300 Вт портативная многомодовая волоконно Импульсная Лазерная машина для очистки прямые продажи с завода скидки
- Категория: >>>
- Поставщик: Hubei Chuangbufan Technology Co. Ltd.Hubei Ltd.
Сохранить в закладки 1601314687472:
Описание и отзывы
Характеристики

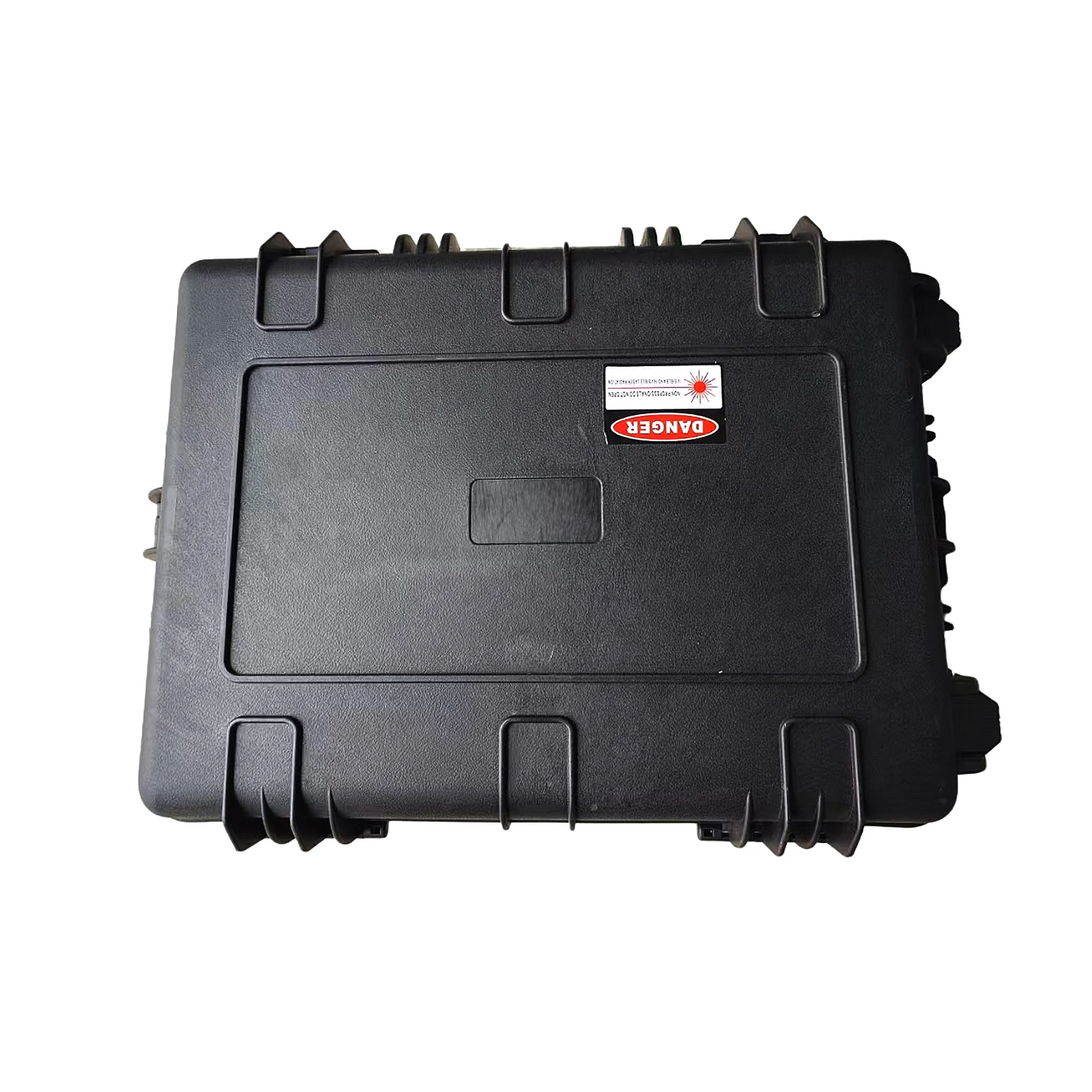

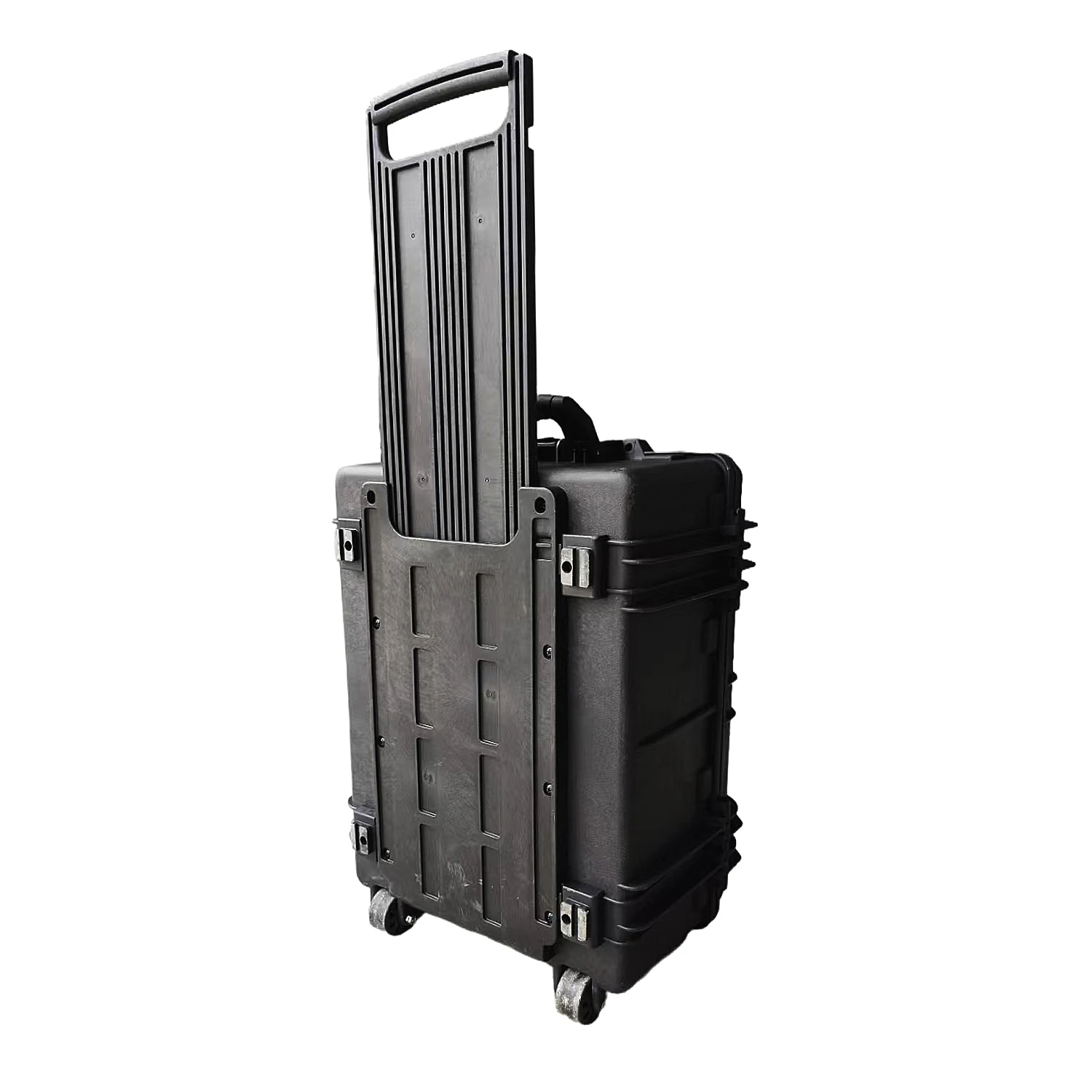

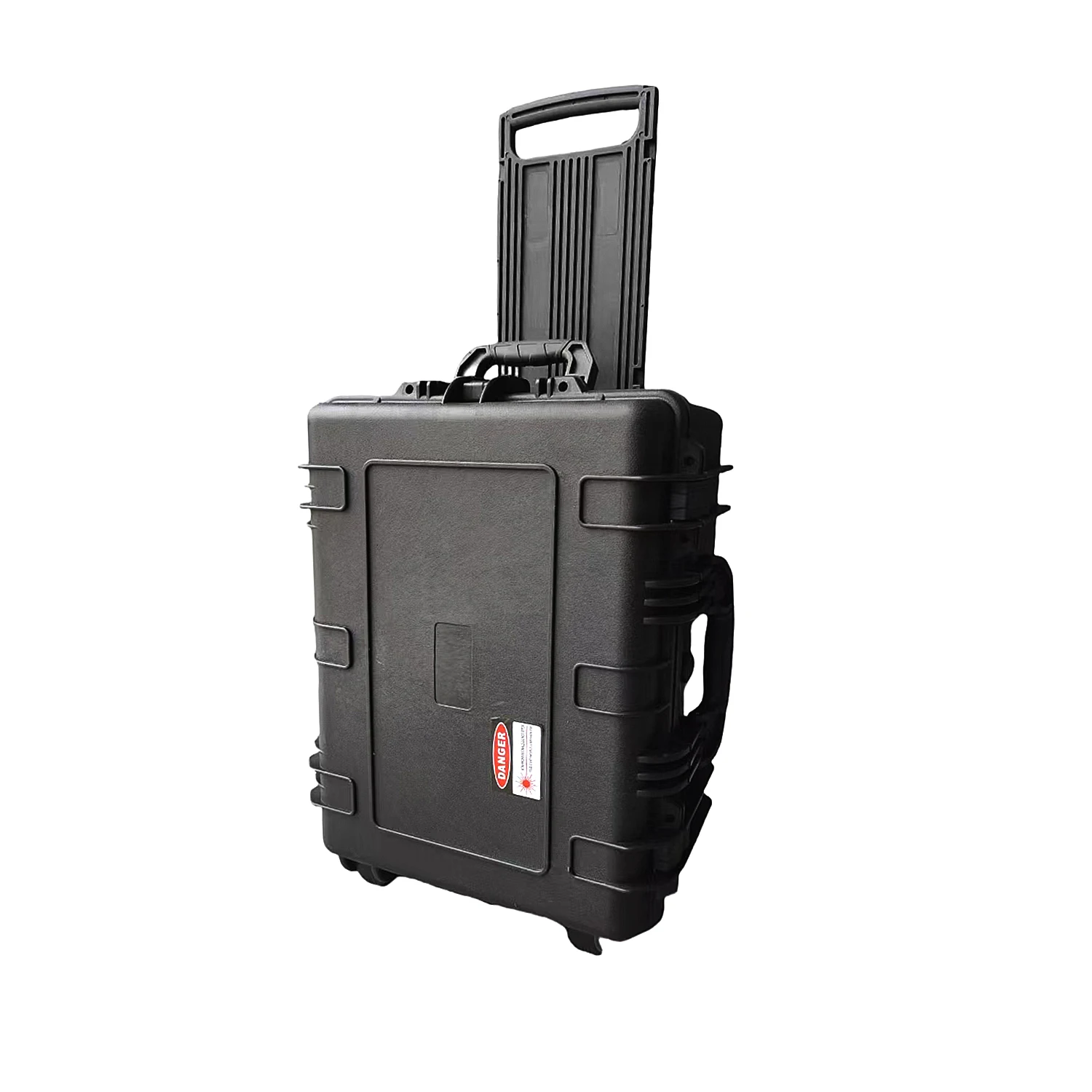

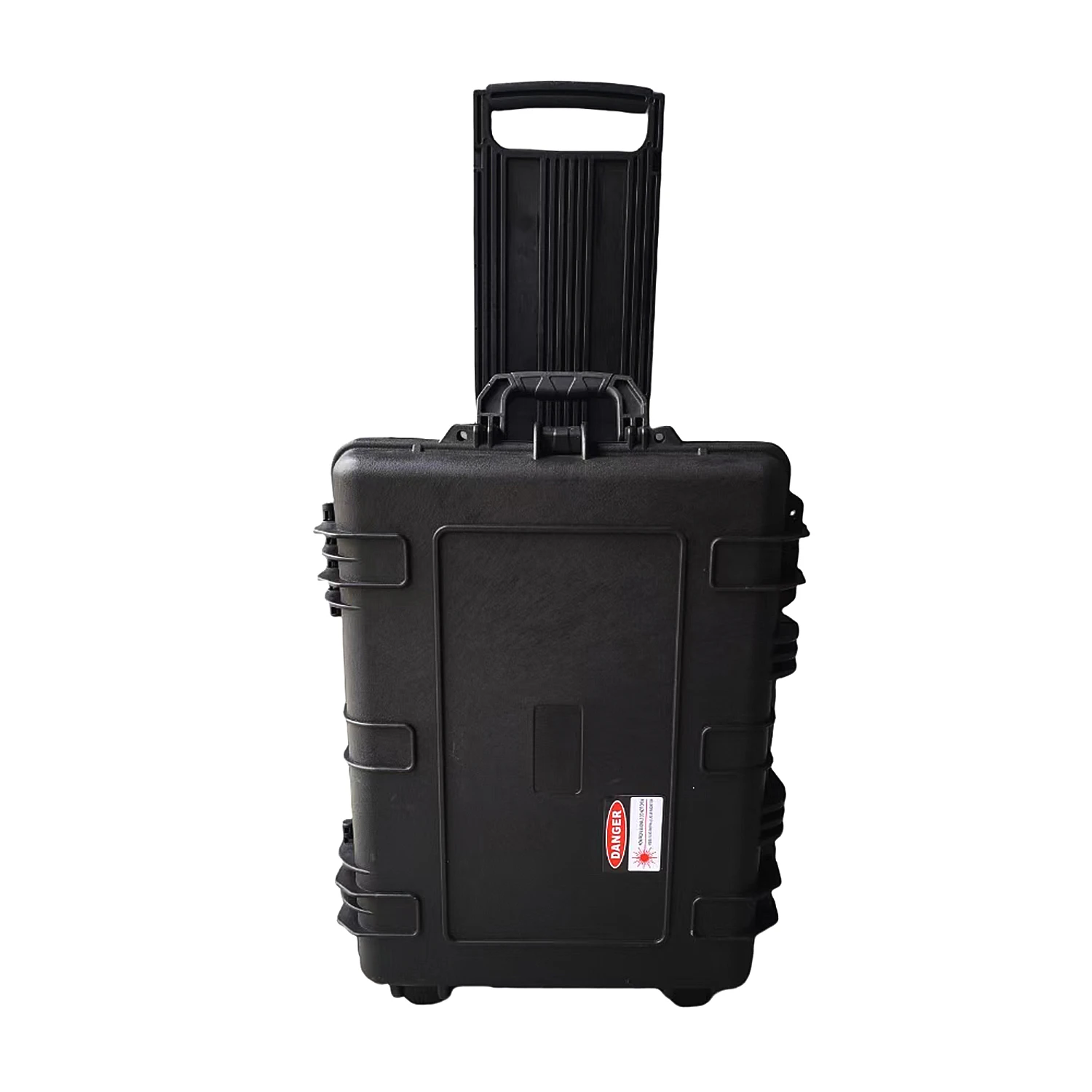

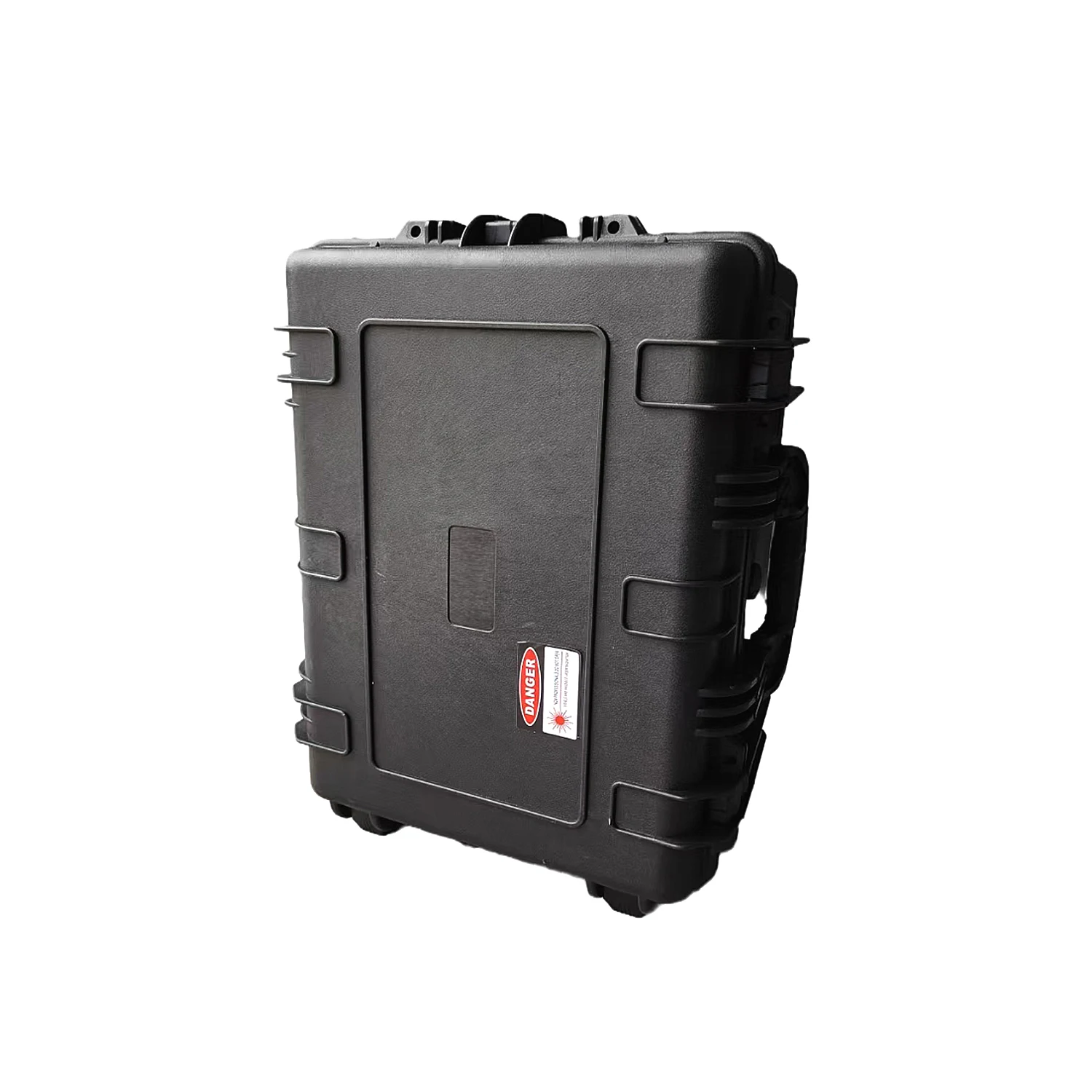

Pull rod type Portable pulsing laser cleaning machine | ||||
model | BV-SPR100P/200P/300P | BV-MPR200P/300P/500P | ||
power voltage | 220VAC±10%、50/60Hz | |||
Gross Power | 800W/1500W/1100W | 1500W/1100W/3000W | ||
working environment Temperature | 5℃～40℃ | |||
working environment Humidity | ≤80% | |||
Laser power(W) | 100W/200W/300W | 200W/300W/500W | ||
Long-term power stability（%） | ＜5% | |||
Power regulate range（%） | 0-100 | |||
laser wave length | 1064nm | |||
Laser wavelength mode | Single-mode fiber | Multimode fiber | ||
Laser output mode | Pulse mode | |||
Range of pulse width | 2/13/13-500ns | 2/13/30-500ns | ||
Range of Frequency regulation(kHz) | 1-4000/3000/3000 | 1-4000/3000/4000 | ||
Maximum single-pulse energy(ml) | 1.5/2/2 | 5/15/15 | ||
Fiber length(m) | 5m | |||
Cooling method | air cooling | |||
Scanning speed(mm/s) | 12000(100W); 30000(200W/300W/500W) | |||
Scanning width(mm) | 0-100(100W);0-145(200W/300W/500W) biaxis supports 9 scanning modes | |||
Field mirror focal length(mm) | 160/210/210 | 210/210/254 | ||
160mm/210mm/254mm/330mm/420mm optional | ||||
Cleaning head weight(Kg） | ＜1.4 | |||
Packing size（Long * wide * high） | 760mm*560mm*480mm | |||
Packing weight（Kg） | ≤52 | |||
Machine size | 617mm*469mm*291mm | |||
Machine weight | ≤32Kg | |||
Product description：
The machine uses high-energy laser beam to illuminate the surface, make the surface corrosion and coating instantaneous evaporation or stripping. High efficiency, low energy consumption, low noise, low pollution, stable system, almost no maintenance, support for 16 languages.
Product advantage：
Non-contact cleaning, do not damage the surface of the parts;
The location and size of cleaning can be selected accurately;
Do not need any chemical cleaning liquid, do not need consumables, safety, environmental protection;
Optional mobile battery module, without external AC current.
The machine uses high-energy laser beam to illuminate the surface, make the surface corrosion and coating instantaneous evaporation or stripping. High efficiency, low energy consumption, low noise, low pollution, stable system, almost no maintenance, support for 16 languages.
Suitable Application：
The machine can remove the surface resin, surface paint, surface oil, surface corrosion, surface coating, and oxide layer. Widely used in ships, automobile repair, rubber mold, high-end machine tools, rail and environmental protection industry.
The machine can remove the surface resin, surface paint, surface oil, surface corrosion, surface coating, and oxide layer. Widely used in ships, automobile repair, rubber mold, high-end machine tools, rail and environmental protection industry.
Product advantage：
Non-contact cleaning, do not damage the surface of the parts;
The location and size of cleaning can be selected accurately;
Do not need any chemical cleaning liquid, do not need consumables, safety, environmental protection;
Optional mobile battery module, without external AC current.
Service and Warranty：
The equipment is free of charge for one year (excluding man-made damage, optical fiber damage);
Provide free technical consultation, technical consultation and software upgrade services;
Provide a lifetime maintenance service, charging only for the parts;
Long-term and extensive hardware and software support.
Provide free technical consultation, technical consultation and software upgrade services;
Provide a lifetime maintenance service, charging only for the parts;
Long-term and extensive hardware and software support.
FAQ |
Feel welcome to contact us
Q 1: How do I choose the most suitable machine?
A:To recommend the most suitable machine model, please tell us the following details:
1. What is your material?
2. Size of the material?
3. What is the thickness of the material?
4. How do you want to process these materials?
Q 2: How do I use this machine when I buy it?
A:We will send the operation video of the machine and the operation manual. Our engineers will be trained online. If needed, we can send our engineers to your site for training, or you can send operators to our factory for training.
Q3: What should I do if something goes wrong with this machine?
A:We offer a one year machine warranty and a two year laser warranty. During the warranty period, if there is any problem with the machine, we will provide free parts (except for personnel damage). After the warranty period ends, we still provide a lifetime service. So, if we have any problems, please let us know and we will provide a solution for you.
Q4: What are the payment terms?
A:Our payment terms include: Western Union, wire transfer, visa, online banking payment. Alibaba has a trade guarantee, and you can pay through Alibaba first.
Q5: How about the transportation mode?
A:Maritime transport is a normal mode; if specified, final confirmation by both parties is required.
Q6. Can you test the samples for us?
A:Yes, of course. You can send samples, if we have similar samples, we can test and send vision to you to check and send samples to you.
Q 7: Can you change the language in the software for us?
A:Yes, of course.
Q8. Do you have any overseas after-sales service?
A:Yes, we have, if you want to sell after-sales service overseas, please tell us first, you need to pay extra fees.
Q9: How do you get the technical support after the purchase?
A: Check the English online service of the laser via Skype, WhatsAPP, wechat or email. If remote operations is required, we can use the team viewer software.
Q 1: How do I choose the most suitable machine?
A:To recommend the most suitable machine model, please tell us the following details:
1. What is your material?
2. Size of the material?
3. What is the thickness of the material?
4. How do you want to process these materials?
Q 2: How do I use this machine when I buy it?
A:We will send the operation video of the machine and the operation manual. Our engineers will be trained online. If needed, we can send our engineers to your site for training, or you can send operators to our factory for training.
Q3: What should I do if something goes wrong with this machine?
A:We offer a one year machine warranty and a two year laser warranty. During the warranty period, if there is any problem with the machine, we will provide free parts (except for personnel damage). After the warranty period ends, we still provide a lifetime service. So, if we have any problems, please let us know and we will provide a solution for you.
Q4: What are the payment terms?
A:Our payment terms include: Western Union, wire transfer, visa, online banking payment. Alibaba has a trade guarantee, and you can pay through Alibaba first.
Q5: How about the transportation mode?
A:Maritime transport is a normal mode; if specified, final confirmation by both parties is required.
Q6. Can you test the samples for us?
A:Yes, of course. You can send samples, if we have similar samples, we can test and send vision to you to check and send samples to you.
Q 7: Can you change the language in the software for us?
A:Yes, of course.
Q8. Do you have any overseas after-sales service?
A:Yes, we have, if you want to sell after-sales service overseas, please tell us first, you need to pay extra fees.
Q9: How do you get the technical support after the purchase?
A: Check the English online service of the laser via Skype, WhatsAPP, wechat or email. If remote operations is required, we can use the team viewer software.
