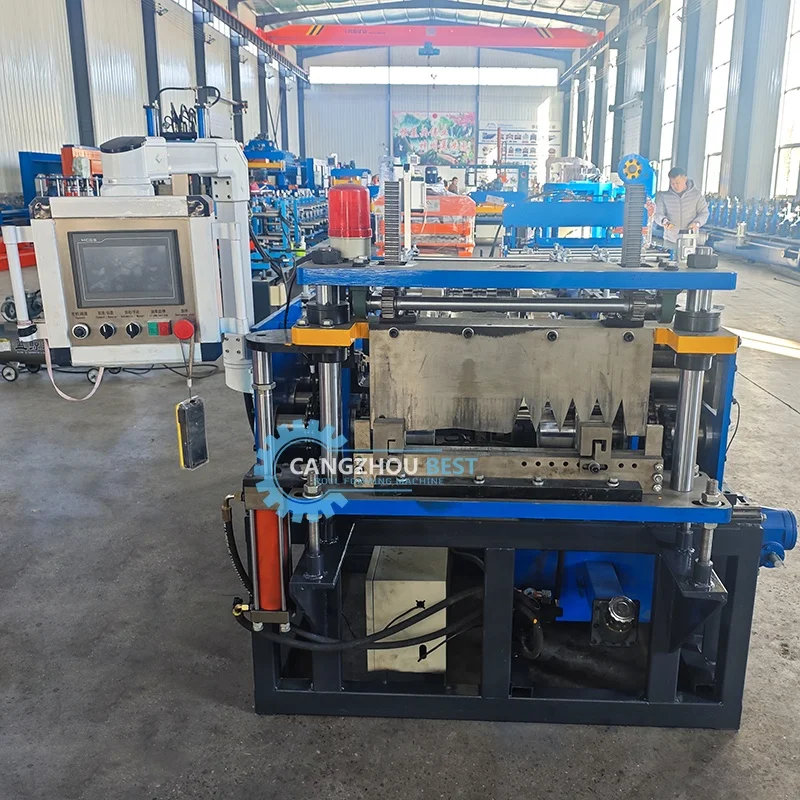

Portable Metal Roof Standing Seam Profile Roll Forming Line Machine for Colombia
- Категория: >>>
- Поставщик: Cangzhou Best Machinery Manufacturing Co. Ltd.Cangzhou Ltd.
Сохранить в закладки 1601314737170:
Описание и отзывы
Характеристики

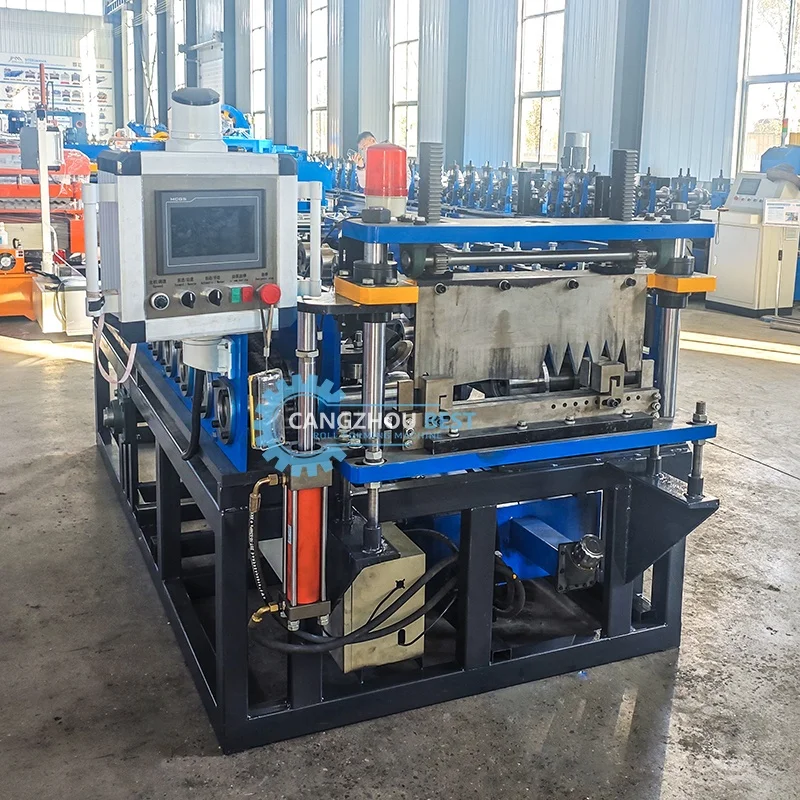

Portable Metal Roof Standing Seam Profile Roll Forming Line Machine For Colombia
Product Description

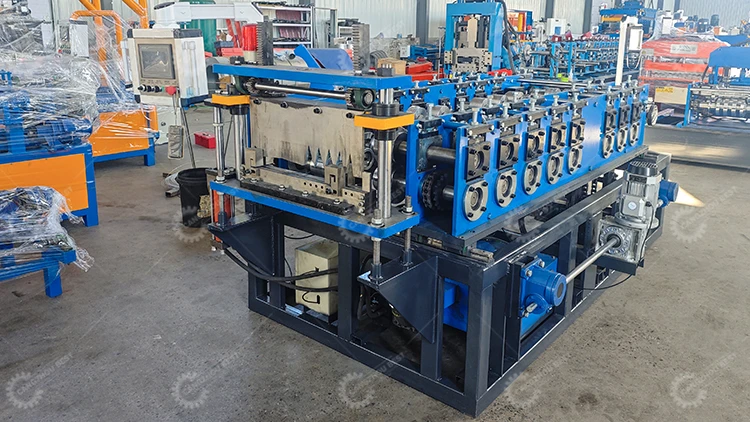

Product Display
Specification
Roll Forming Machine Components: | ||||
NO | Name | Qty | ||
1 | De-coiler | 1 Set | ||
2 | Roll Forming Machine | 1 Set | ||
3 | Hydraulic Cutting Devic | 1 Set | ||
4 | PLC Control Box | 1 Set | ||
5 | Output table | 1 Set | ||
Product Description: | ||
Name | Portable Metal Roof Standing Seam Profile Roll Forming Line Machine For Colombia | |
Suitable Material | Colored or galvanized steel coil, HRB60 or equivalent | |
Thickness Range | 0.3-0.8 mm | |
Coil Width RangeCoil | 914, 1000, 1220 or 1250 mm. According to your actual drawing. | |
Electric Power | 380V, 50 Hz, 3 phase or according to your need. | |
Dimension | About 6.8*1.6*1.45m (L*W*H), as per the drawing | |
Cutting | Automatically stop and cutting when it comes to the set length. | |
Length of the Sheet | You can set the length according to your need. It is controlled by PLC length accuracy: ±1mm. | |
Work Flow
Main Workflow Of Standing Roofing Sheet Machine :
Portable standing seam roof machine factory
Uncoiler → Molding core → Hydraulic System → Automatic Control system → Step Formed Mechanism → Automatic Shearing Mechanism →Products Receiving Tables
Uncoiler → Molding core → Hydraulic System → Automatic Control system → Step Formed Mechanism → Automatic Shearing Mechanism →Products Receiving Tables
Details Show
uncoiler | ||
Loading capacity | 5T | |
Inner diameter | 470-530mm | |
Steel coil width | 914, 1000, 1220, 1250 mm. According to your actual drawing. | |
Working speed | 0-15m/min adjustable | |

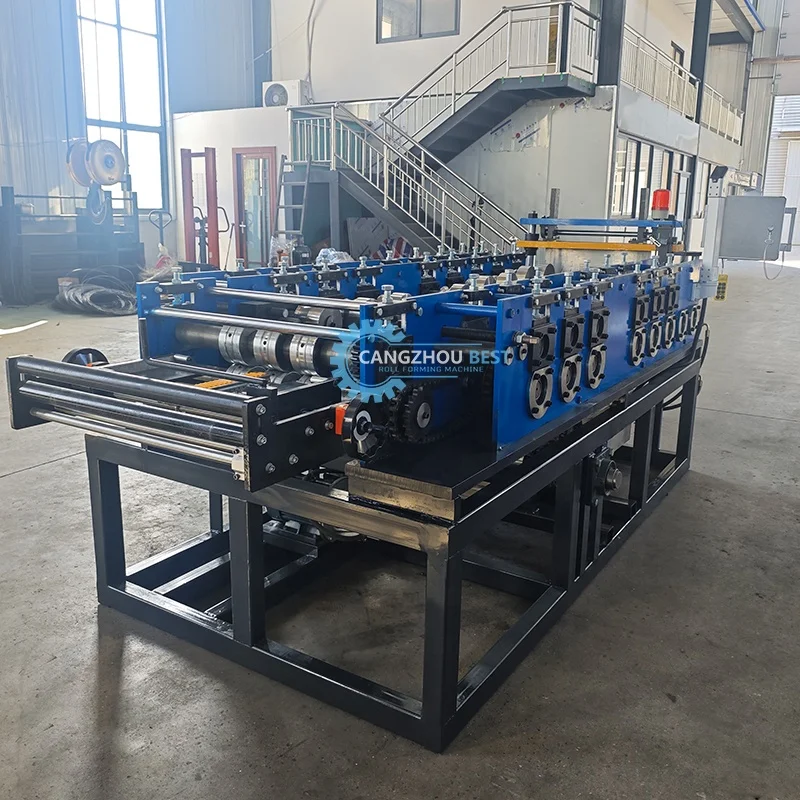

Feeding Table | ||
It is used to control the width and position of the steel sheet. | ||
The sheet is guided into the machine with the correct position to make sure the panel is neat and parallel. | ||
Mainframe | ||
Material | 350 H steel | |
Feature | more table, no shaking | |

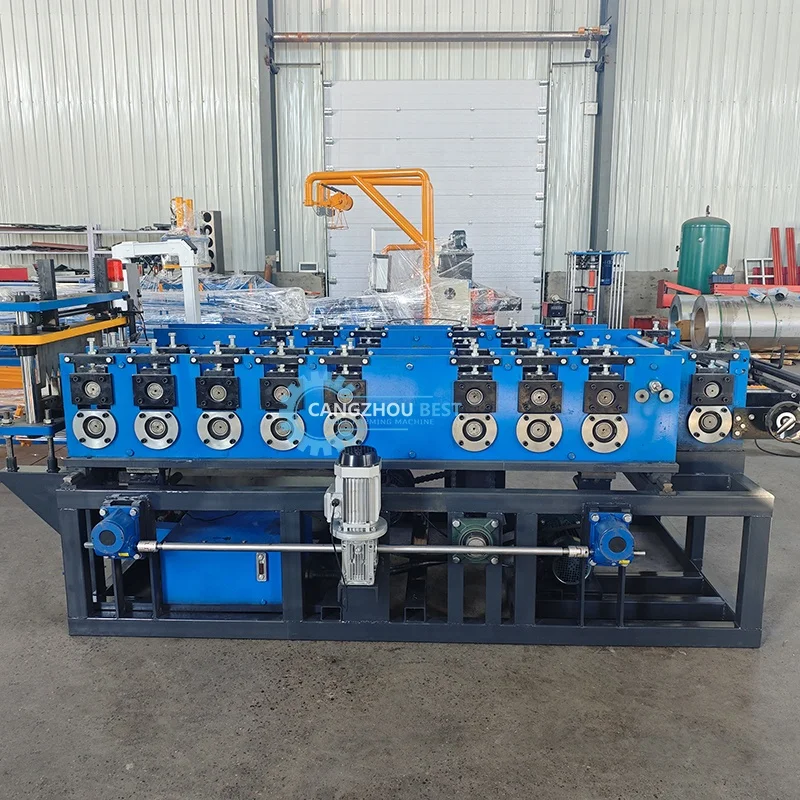

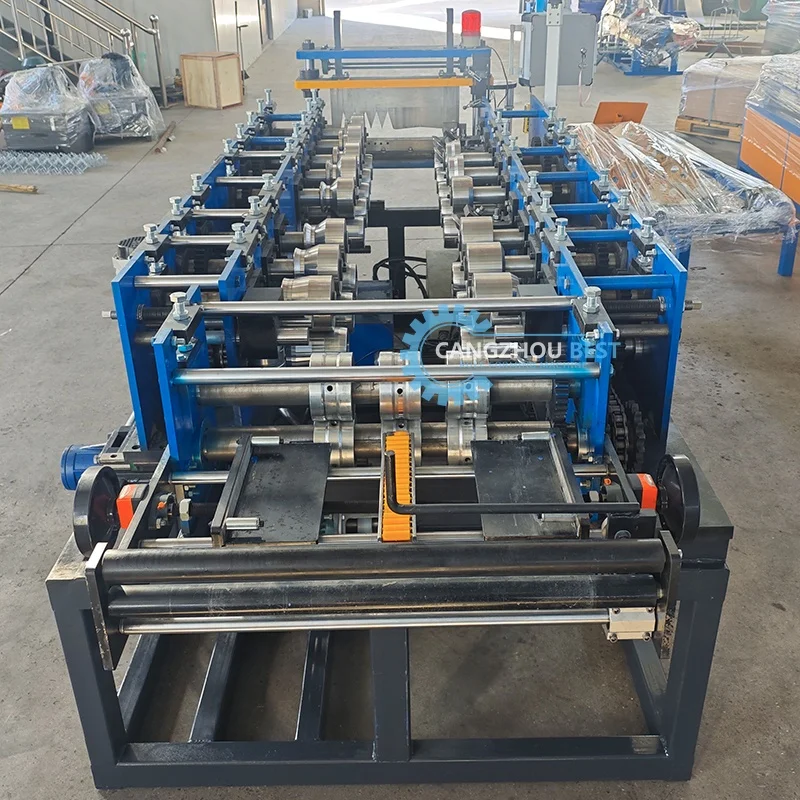

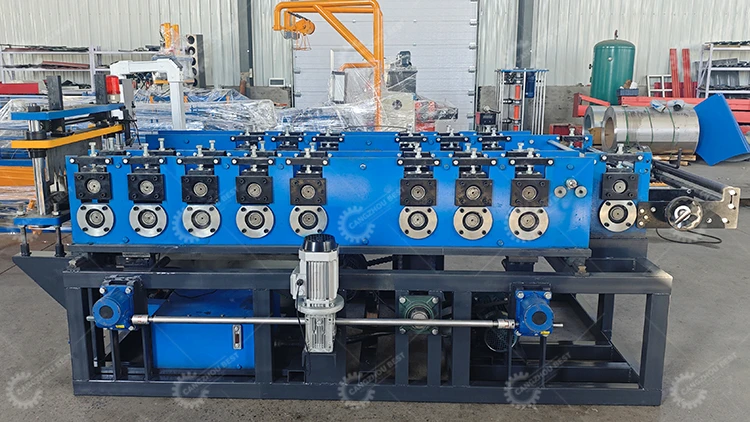

Forming Rollers | ||
Material | High grade 45# steel. | |
Roller stations | 11-16 stations. According to your actual drawing | |

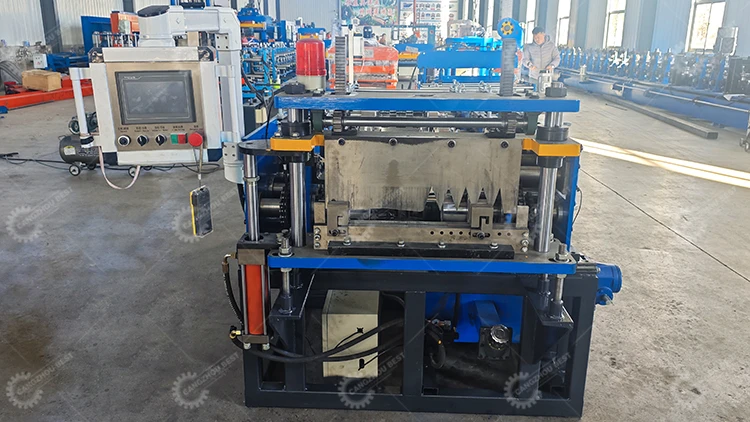

cutting system | ||
Material of blade | Cr12MOV much better than normal Cr12 material | |
Hydraulic power | 3 KW | |
control cabinet | ||
Suitable power | 380V, 50Hz, 3phase or according to your need. | |
Feature | The whole process is automatically controlled by the computer. In this way, you can ensure accuracy and easy work. | |

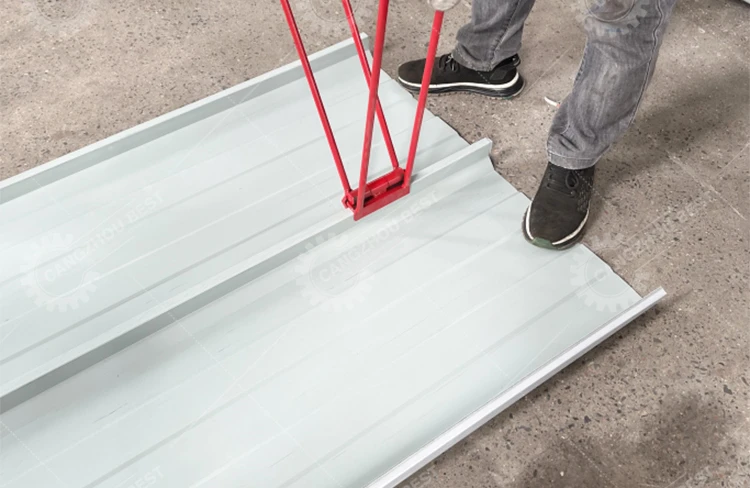

Related Plate Type
FAQ
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2)Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.
4)Q:What can you do if the machine broken?
A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2)Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.
4)Q:What can you do if the machine broken?
A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.
