Большая цена мелкая Золотая шахта речная каменная дробилка Мобильная дизельная щековая с ленточным конвейером вибрационный экран
- Категория: >>>
- Поставщик: Zhengzhou Juding Environmental Protection Equipment Co. Ltd.Zhengzhou Ltd.
Сохранить в закладки 1601314788629:
Описание и отзывы
Характеристики

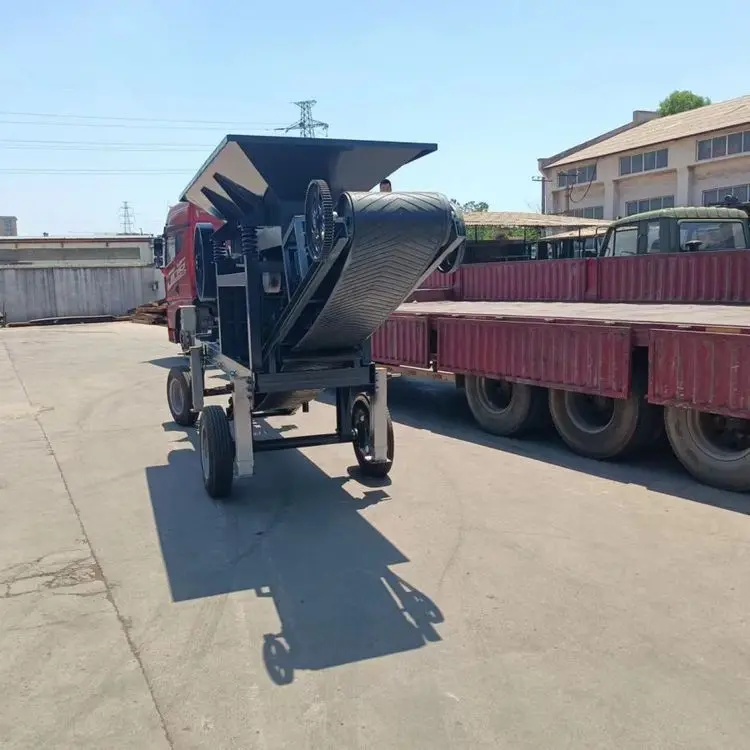

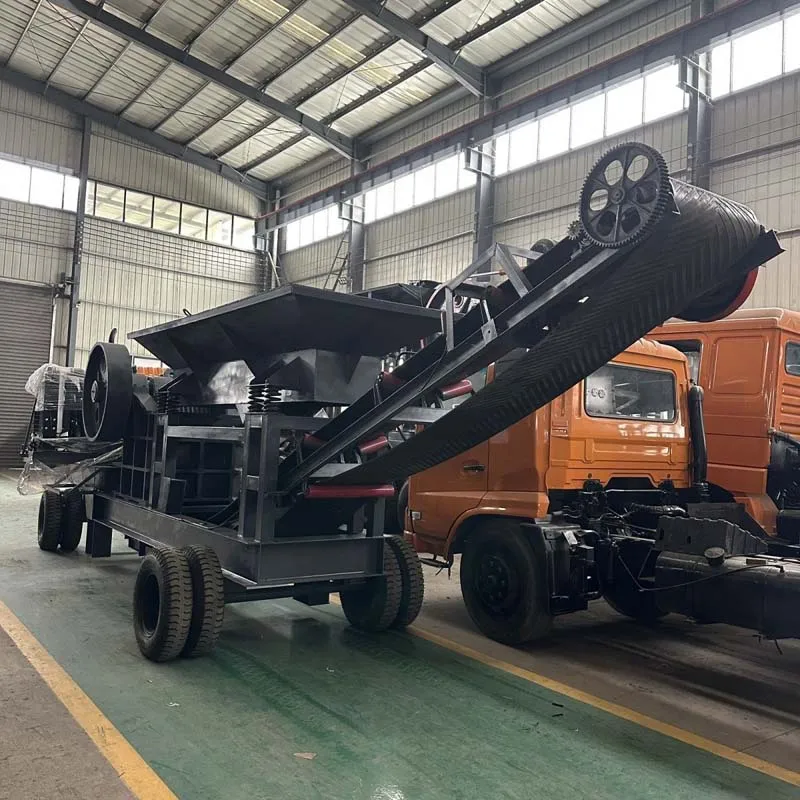

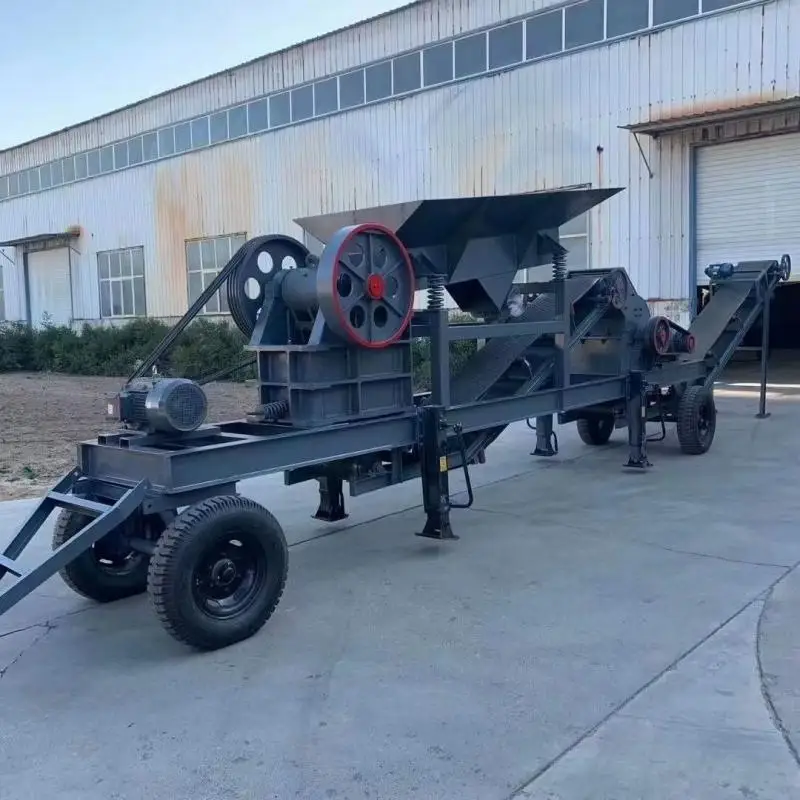

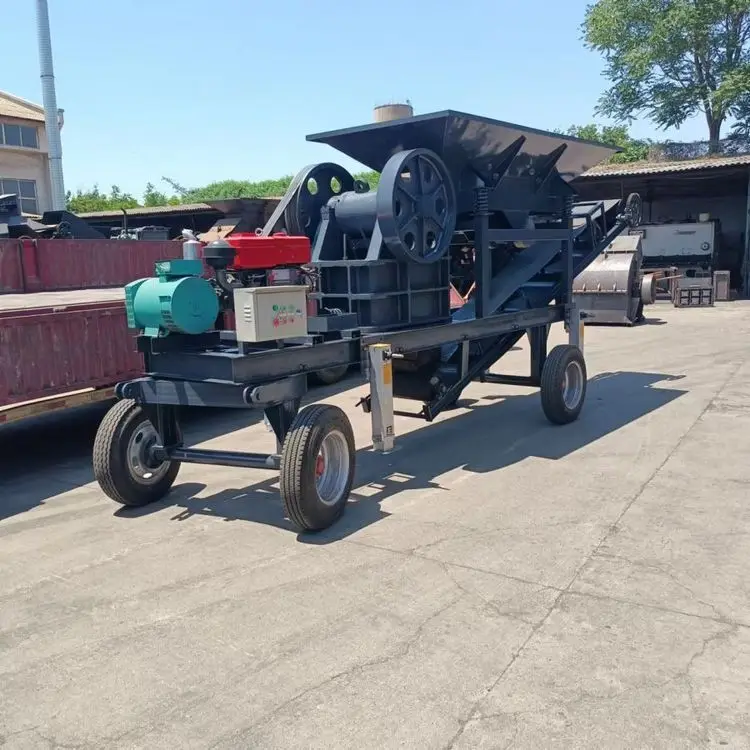

Mobile jaw crusher also known as mobile coarse crusher or mobile stone crusher, is an advanced rock crushing equipment consisting of three systems feeding, crushing, and conveying. It adopts an integrated operation mode and can be easily moved to a suitable location for operation. As an advanced rock stone crushing equipment, the mobile jaw crusher has a wide range of material applicability; it is suitable for processing a variety of materials including hard rocks, granite, limestone, basalt, Andesite, Diabase, river pebbles, ores and tailings, construction waste, etc.
Jaw crusher The working principle is provided as follows:
The material is uniformly transported to the crusher by the feeder. After the initial crushing by the crusher, the closed-circuit system is formed by the circular vibrating screen to realize the circular crushing of the material. The finished material is output by the conveyor for continuous crushing operation. The jaw mobile crusher can remove the circular vibrating screen according to the actual production needs, realize the preliminary crushing of the material directly, and is convenient and flexible to use with other crushing equipment.
Model | Max Feeding Size(mm) | Discharging Size(mm) | Capacity(t/h) | Motor power (KW) | Weight(t) |
PE150*250 | 125 | 15-45 | 1-3 | 5.5 | 1 |
PE200*300 | 180 | 20-50 | 2-5 | 7.5 | 1.5 |
PE250*400 | 210 | 20-60 | 5-12 | 15 | 2.8 |
PE400*600 | 340 | 40-100 | 16-64 | 30 | 7 |
PE500*750 | 425 | 50-100 | 40-110 | 55 | 12 |
PE600*750 | 500 | 150-200 | 80-240 | 55 | 15.8 |
PE600*900 | 500 | 65-160 | 50-160 | 55 | 17 |
PE750*1060 | 630 | 80-140 | 110-320 | 110 | 29 |
PE800*1060 | 640 | 130-190 | 130-330 | 110 | 29.8 |
PE830*1060 | 650 | 160-220 | 150-336 | 110 | 30.7 |
PE870*1060 | 660 | 200-260 | 190-336 | 110 | 31.5 |
PE900*1060 | 685 | 230-290 | 230-390 | 110 | 33 |
PE900*1200 | 750 | 95-165 | 220-380 | 110 | 52 |
PE1000*1200 | 850 | 195-265 | 315-500 | 110 | 55 |
PE1200*1500 | 1020 | 150-350 | 400-800 | 160-220 | 100.9 |
PE1500*1800 | 1200 | 220-350 | 500-1000 | 280-355 | 139 |
PEX100*600 | 100 | 8-30 | 1-5 | 7.5 | 1.2 |
PEX150*750 | 120 | 18-48 | 8-25 | 15 | 3.8 |
PEX250*750 | 210 | 25-60 | 13-35 | 22 | 5.5 |
PEX250*1000 | 210 | 25-60 | 16-52 | 30 | 7 |
PEX250*1200 | 210 | 25-60 | 20-61 | 37 | 9.7 |
PEX300*1300 | 250 | 20-90 | 16-105 | 55 | 15.6 |
Quality: Due to high requirements for mechanical quality, raw materials selection, processing，assembly of industrial control over the industry standard, using the new design, quality manage-ment system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment.
Service: continuous and efhcient after-service for the customer support. 24 hours service with.

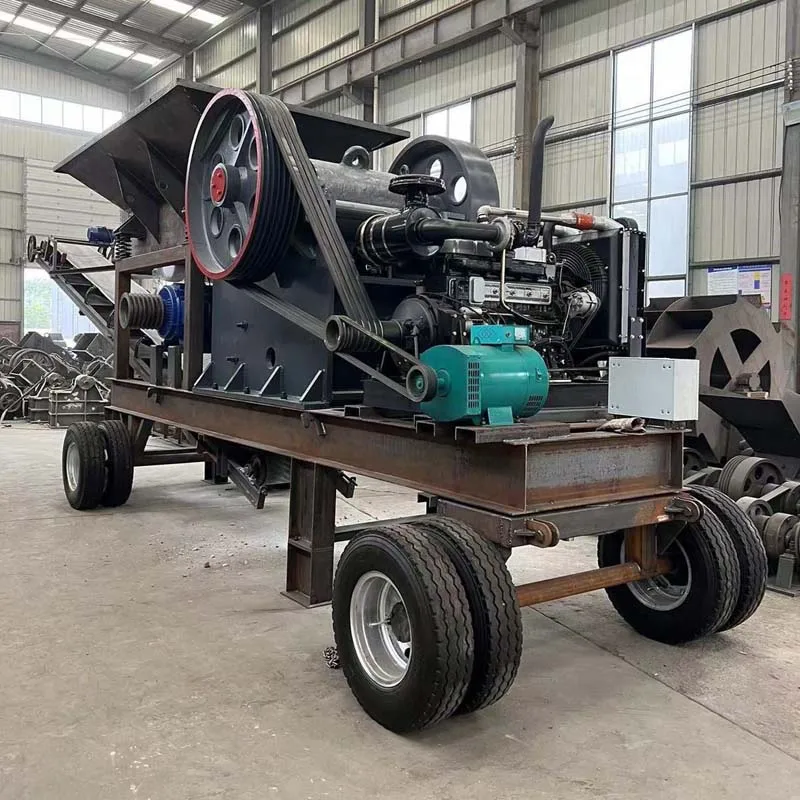

1、Fixed support feet
2、Generator
3、Diesel Engine
4、Vibrators
5、Elbow board
6、Tyres
Fixed support feet
Fixed feet are deep machined from solid steel for long-lasting durability
Generator
Copper wire wrap for long-lasting durability
Diesel Engine
Cummins Power International
Vibrators
All-copper vibration motor, strong power
Elbow board
Safety plates for regulating
the grain size of the material to be discharged
Tyres
Solid tyres, low running resistance, easy to change the workplace
Zhengzhou Juding Environmental Protection Equipment Co., Ltd. is an enterprise focusing on the research and development, manufacture, sales and service of mining machinery equipment and automation equipment. The main products are: mobile crushing plant, sand making machine, sand washing machine, all kinds of crushers, vibrating screen, feeder and related accessories. The products are widely used in mining, building materials, highway, railroad, bridge, chemical industry, metallurgy, refractory materials and other industries, and are exported to Vietnam, North Korea, Central Africa, the Middle East and other countries and regions. The company adheres to the enterprise tenet of “integrity, innovation, enterprise and win-win”, takes the market as the guide and customer satisfaction as the purpose, pursues excellence and continuous improvement.
Q1: Are you a factory or a trading company?
A: We are factory.
Q2: Where have your products been exported to?
A:Our products have been sold to South Asia, Africa, South America and the Middle East.
Q3:How can I help my customers install their equipment?
A:Our senior engineers will video guide you through installation,commissioning and initial production.
Q4: What is the availability of wearing parts?
A:We offer our customers wearing parts at the most favourable prices. If there is a problem that you cannot handle, we will send atechnician to your location, so you will be responsible for all related costs.
Q5: What about after-sales service?
A:All products are guaranteed for 12 months.
Q2: Where have your products been exported to?
A:Our products have been sold to South Asia, Africa, South America and the Middle East.
Q3:How can I help my customers install their equipment?
A:Our senior engineers will video guide you through installation,commissioning and initial production.
Q4: What is the availability of wearing parts?
A:We offer our customers wearing parts at the most favourable prices. If there is a problem that you cannot handle, we will send atechnician to your location, so you will be responsible for all related costs.
Q5: What about after-sales service?
A:All products are guaranteed for 12 months.
