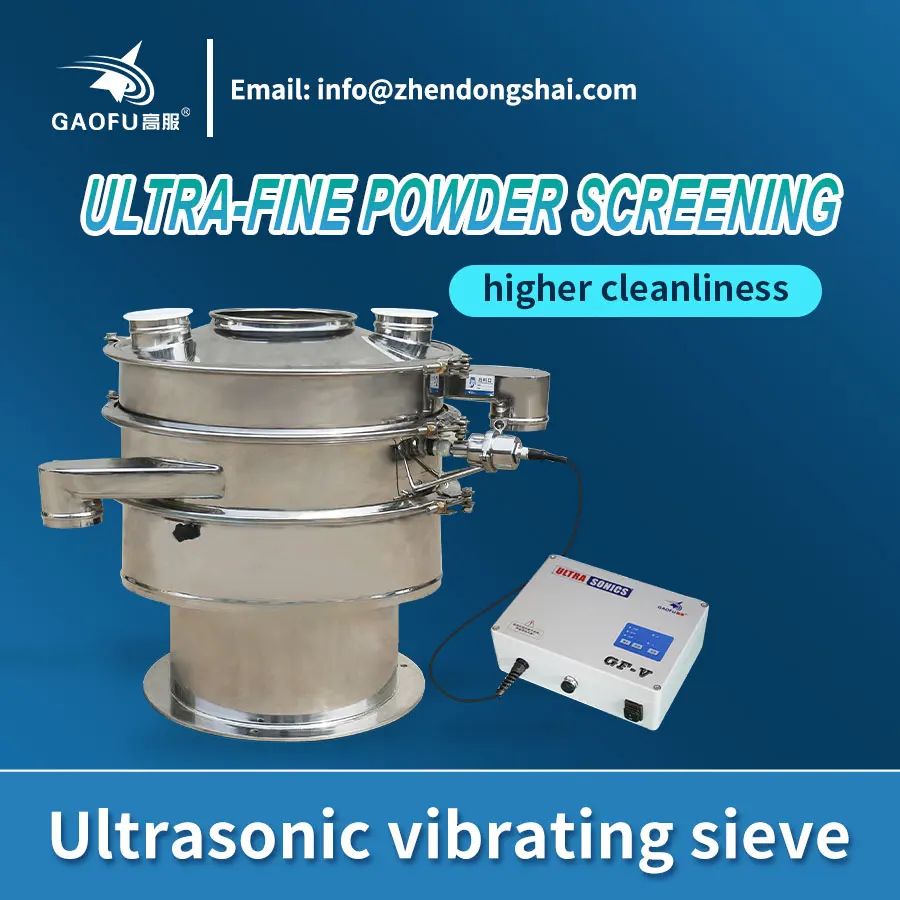

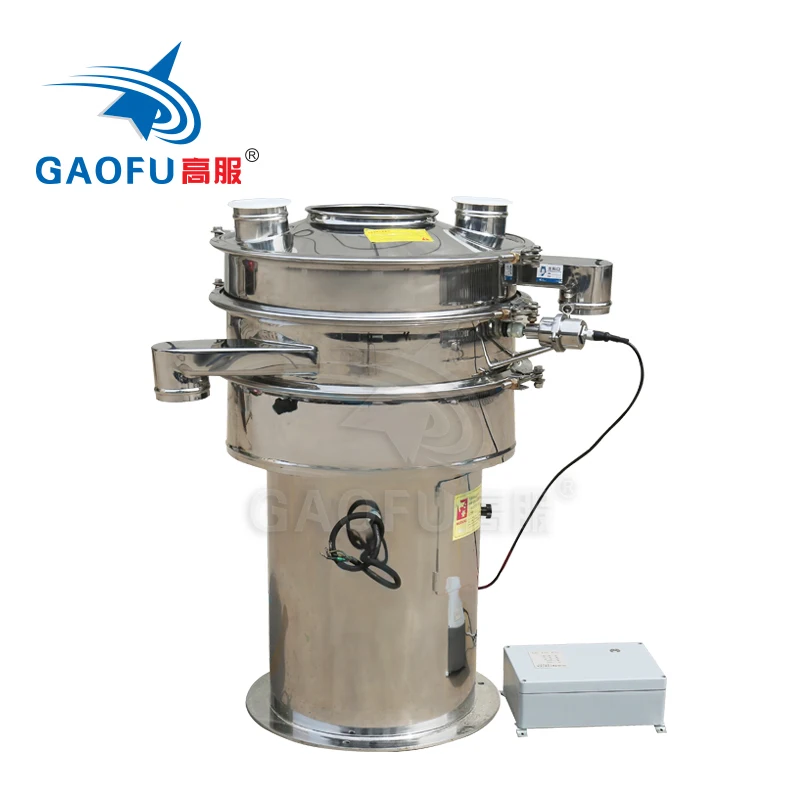

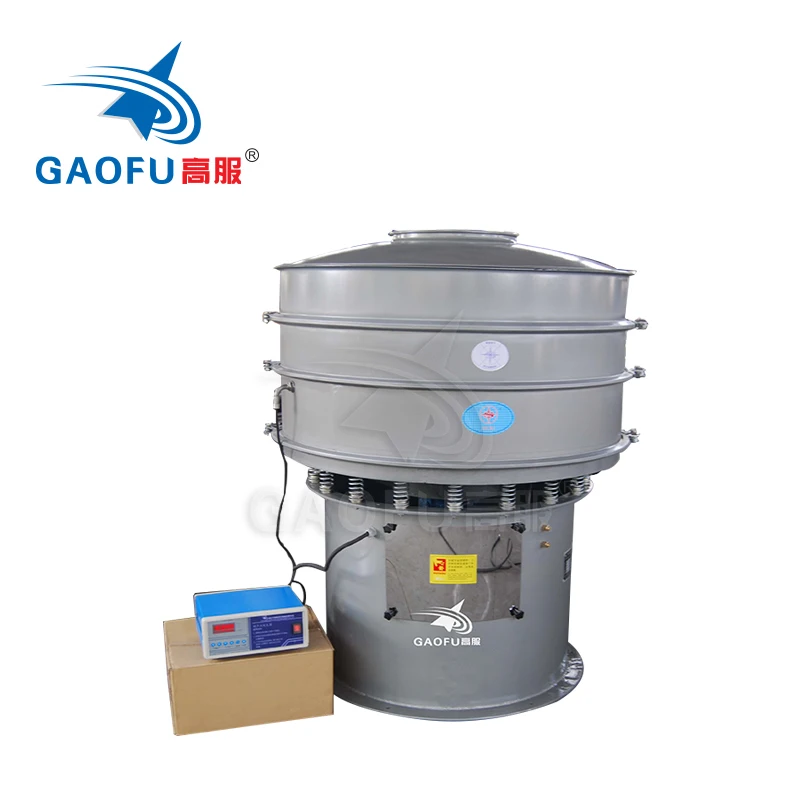

Круглая Порошковая просеивальная машина из нержавеющей стали вибрационное сито для баобаба
900,00-950,00 $
S49 AC1000 двухслойный круговой Вибрационный сито для удаления примесей Ультразвуковой вибрационный экран полевого шпата натрия
- Категория: >>>
- Поставщик: Xinxiang Gaofu Machinery Co. Ltd.Xinxiang Ltd.
Сохранить в закладки 1601315025041:
Описание и отзывы
Характеристики
WORKING PRINCIPLE:
It is to convert 220V, 50Hz or 110V, 60Hz electric energy into18KHz high-frequency electric energy, input it into the ultrasonic transducer, and tun it into 18KHz mechanical vibration, and the generated ultrasonic power makes the screen vibrate at high frequency. While the material on the screen is doing low-frequency rotary vibration, ultrasonic vibration is superimposed, which can not only prevent the blockage of the mesh, but also improve the output and quality of the screening machine, so as to achieve the purpose of efficient screening and screen cleaning, and make ultra-fine powder sifting made easy. Based on the traditional vibrating screen, the system introduces
It is to convert 220V, 50Hz or 110V, 60Hz electric energy into18KHz high-frequency electric energy, input it into the ultrasonic transducer, and tun it into 18KHz mechanical vibration, and the generated ultrasonic power makes the screen vibrate at high frequency. While the material on the screen is doing low-frequency rotary vibration, ultrasonic vibration is superimposed, which can not only prevent the blockage of the mesh, but also improve the output and quality of the screening machine, so as to achieve the purpose of efficient screening and screen cleaning, and make ultra-fine powder sifting made easy. Based on the traditional vibrating screen, the system introduces
a low-amplitude, high-frequency ultrasonic vibration wave (mechanical wave) on the screen to improve the screening performance of ultra-fine particles. It is especially suitable for users of high value-added fine powder.
Model | Effective sieving diameter (mm) | Effective sieving area (m²) | Screen mesh (mm) | Layer | Power (kw) | ||
Vibration motor | Common motor | ||||||
S49-AC-400 | Φ340 | 0.09 | 2-500 | 1-5 | 0.18 | -- | |
S49-AC-600 | Φ560 | 0.23 | 0.25 | 0.75 | |||
S49-AC-800 | Φ760 | 0.42 | 0.55 | 1.1 | |||
S49-AC-1000 | Φ930 | 0.64 | 1.1 | 1.5 | |||
S49-AC-1200 | Φ1130 | 0.95 | 1.1 | 1.5 | |||
S49-AC-1500 | Φ1430 | 1.61 | 1.5 | 2.2 | |||
S49-AC-1800 | Φ1730 | 2.35 | 3 | 3 | |||
S49-AC-2000 | Φ1920 | 2.9 | 3 | 3 | |||
Note:
Due to the wide range of our products, we cannot list all product pictures and corresponding product parameters. If you have other needs, please communicate with me. We can provide supplementary information and technical support.
CONTACT US
Due to the wide range of our products, we cannot list all product pictures and corresponding product parameters. If you have other needs, please communicate with me. We can provide supplementary information and technical support.
CONTACT US
1 GRADING
One to five layers of screens can be installed, and two to six levels of sorting can be performed at the same time.
2 REMOVE IMPURITIES
Impurities and coarse materials are automatically discharged.
One to five layers of screens can be installed, and two to six levels of sorting can be performed at the same time.
2 REMOVE IMPURITIES
Impurities and coarse materials are automatically discharged.
Applicable industries：
1. Chemical industry
Resin, paint, industrial medicine, cosmetics, etc.
1. Chemical industry
Resin, paint, industrial medicine, cosmetics, etc.
2. Food industry
Powdered sugar, starch, salt, rice flour, milk powder, soy milk, egg powder, soy sauce, fruit juice, etc.
3. Metallurgy & mining
Aluminum powder, lead powder, copper powder, ore,alloy powder, Electrode powder, electromagnetic materials, grinding powder, refractory materials, kaolin, heavy calcium carbonate, quartz sand, etc.
4. Other industries
Waste oil, wastewater, dyeing and finishing wastewater, papermaking, additives, etc.
Powdered sugar, starch, salt, rice flour, milk powder, soy milk, egg powder, soy sauce, fruit juice, etc.
3. Metallurgy & mining
Aluminum powder, lead powder, copper powder, ore,alloy powder, Electrode powder, electromagnetic materials, grinding powder, refractory materials, kaolin, heavy calcium carbonate, quartz sand, etc.
4. Other industries
Waste oil, wastewater, dyeing and finishing wastewater, papermaking, additives, etc.
Type selection:
1. Selected according to the specific screening needs.
2. Recommended according to industry standards.
3. Recommended according to material characteristics.
4. Recommended according to customer cases and screening experience.
1. Selected according to the specific screening needs.
2. Recommended according to industry standards.
3. Recommended according to material characteristics.
4. Recommended according to customer cases and screening experience.
ODM & OEM
Customization options:
1. Screen material: stainless steel, perforated plate, polyurethane.
2. Screen frame type: bonded grid, letter grid, flange grid, C-type frame.
3. Customized inner coating: Teflon, mirror, sandblasting, brushed.
4. Machine material: Stainless steel 314/306, carbon steel.
5. Machine color: blue, red, yellow, white... CONTACT US
Customization options:
1. Screen material: stainless steel, perforated plate, polyurethane.
2. Screen frame type: bonded grid, letter grid, flange grid, C-type frame.
3. Customized inner coating: Teflon, mirror, sandblasting, brushed.
4. Machine material: Stainless steel 314/306, carbon steel.
5. Machine color: blue, red, yellow, white... CONTACT US
RELATED PRODUCTS

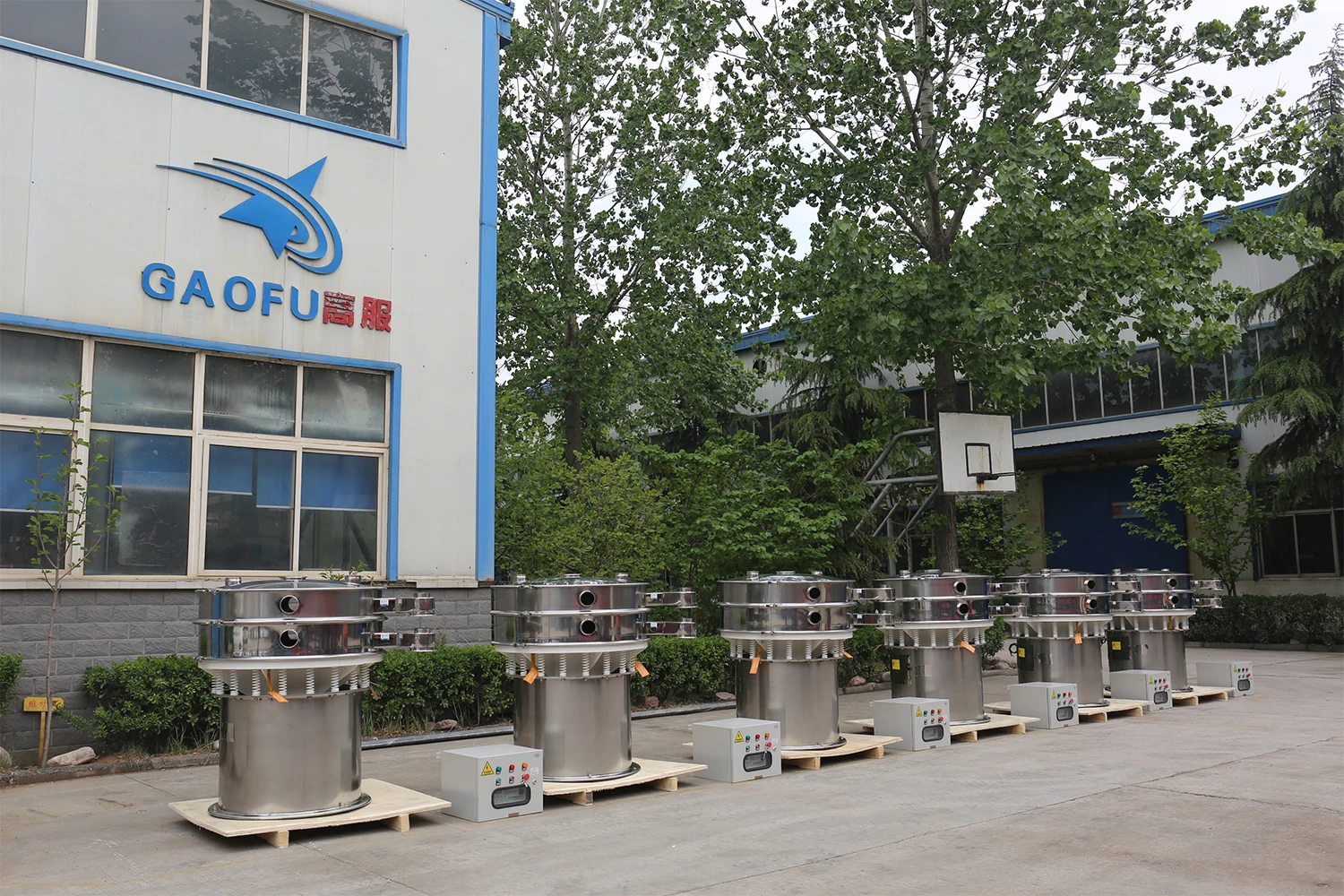

Xinxiang Gaofu Machinery Co., Ltd.
Company Profile
Xinxiang Gaofu Machinery Co., LTD was founded in 1982, the company made shareholding reform in 2015. The company covers an area of 60,000 square meters, and a building area of 46,000 square meters, registered capital of Chinese Yuan 51.46 million and 400 employees.
Xinxiang Gaofu Machinery Co., LTD was founded in 1982, the company made shareholding reform in 2015. The company covers an area of 60,000 square meters, and a building area of 46,000 square meters, registered capital of Chinese Yuan 51.46 million and 400 employees.
In 2017, the company brand “GAOFU ®" is identified as “China well-known trademark" by the Trademark Office of The State Administration For Industry and Commerce. Gaofu company also owns three “Henan Province Famous Trademark", is a provincial “High Technology Expertise”, “Henan Technical Small and Medium Enterprises”, “Enterprise of Observing Contract and Value Credit”. The company has science and technology achievement award issued by the Ministry of Industry and Information Technology of The Republic of China, and hundreds of various patents.
1 INTELLIGENT MANUFACTURING :
High-end intelligent equipment based on computer numerical control machine tools, robots, etc. for production and testing.
Pay attention to the improvement of safety production capacity, the improvement of production equipment capacity, and strictly control every link of quality management.
2 INTELLIGENT FACTORY :
Vertical and horizontal integration is based on the information management system to realizes the interconnection and interoperability of CNC automation of manufacturing systems such as manufacturing, products, workshops, and warehouses.
High-end intelligent equipment based on computer numerical control machine tools, robots, etc. for production and testing.
Pay attention to the improvement of safety production capacity, the improvement of production equipment capacity, and strictly control every link of quality management.
2 INTELLIGENT FACTORY :
Vertical and horizontal integration is based on the information management system to realizes the interconnection and interoperability of CNC automation of manufacturing systems such as manufacturing, products, workshops, and warehouses.
The factory strictly implements the "6S" management model, improves the information construction of the workshop, and improves the production management ability.
FAQ
Xinxiang Gaofu Machinery Co.,Ltd.
Q1: Industry application
A: Our vibrating screen machines are widely used in food, medicine, chemical industry, metallurgy, mining, ceramics, plastics, electromagnetic materials, thermoelectricity, building materials and other industries.
Q2: Guaranteed
A: The whole machine is guaranteed for one year, and the core accessories are guaranteed for three months. After receiving the goods, if you have any quality problems, please contact us in time.
Q3: After-sale service
A: If there is any installation or test machine problem, provide remote online guidance or on-site service.
Q4: Shipping Method and Shipping Time
A: 1. By air port to port: about 7days depends on port.
A: Our vibrating screen machines are widely used in food, medicine, chemical industry, metallurgy, mining, ceramics, plastics, electromagnetic materials, thermoelectricity, building materials and other industries.
Q2: Guaranteed
A: The whole machine is guaranteed for one year, and the core accessories are guaranteed for three months. After receiving the goods, if you have any quality problems, please contact us in time.
Q3: After-sale service
A: If there is any installation or test machine problem, provide remote online guidance or on-site service.
Q4: Shipping Method and Shipping Time
A: 1. By air port to port: about 7days depends on port.
2. By sea port to port: about 20-35 days.
Q5: Where is Xinxiang Gaofu Machinery? Is it possible to visit your factory?
A: Our company is located in Xinxiang City, Henan province, a very famous vibrating screen city in China. The city is near by Zhengzhou Airport, it only take one and half hour from Zhengzhou Airport, welcome to visit our company !
Q5: Where is Xinxiang Gaofu Machinery? Is it possible to visit your factory?
A: Our company is located in Xinxiang City, Henan province, a very famous vibrating screen city in China. The city is near by Zhengzhou Airport, it only take one and half hour from Zhengzhou Airport, welcome to visit our company !
Похожие товары
DZJX дешевая цена ротационная многопалубная высокочастотная тонковибрирующая просеиватель для удаления пыли вибросито
950,00-1 150,00 $
Индивидуальный круговой Вибрационный экран Кварцевый Песок двухпалубный мобильный питающий гранулятор скрининг машина
DAYONG настраиваемый вибрационный просеиватель оборудование для просеивания порошка линейный экран
2 100,00-2 300,00 $

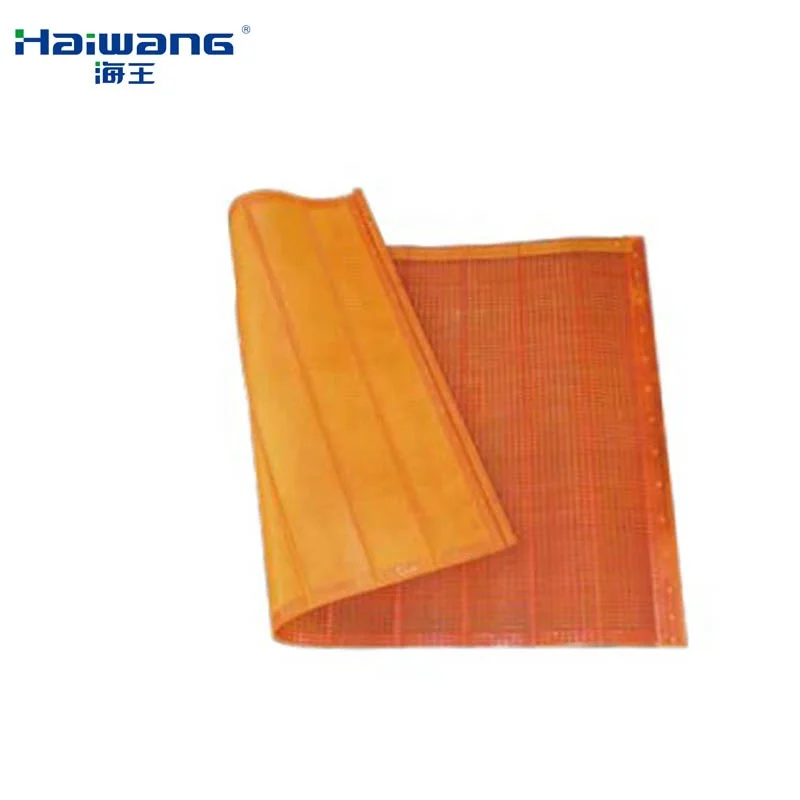

Высокая эффективность скрининга угольная моющая вибрационная сетка из мягкого полиуретана
