Высоковольтный BMS 160S512V 500A Master Slave Lifepo4 bms 16S BMU в серии литиевая батарея для хранения энергии UPS
2 506,00-2 750,00 $
BENY 4MWH Аккумулятор для солнечной батареи контейнер хранения энергии все в одном промышленного 3 44mwh 5MWH
- Категория: >>>
- Поставщик: ZHEJIANG BENYI NEW ENERGY CO. LTD.ZHEJIANG LTD.
Сохранить в закладки 1601315049205:
Описание и отзывы
Характеристики
Why Choose Us
Product Introduction

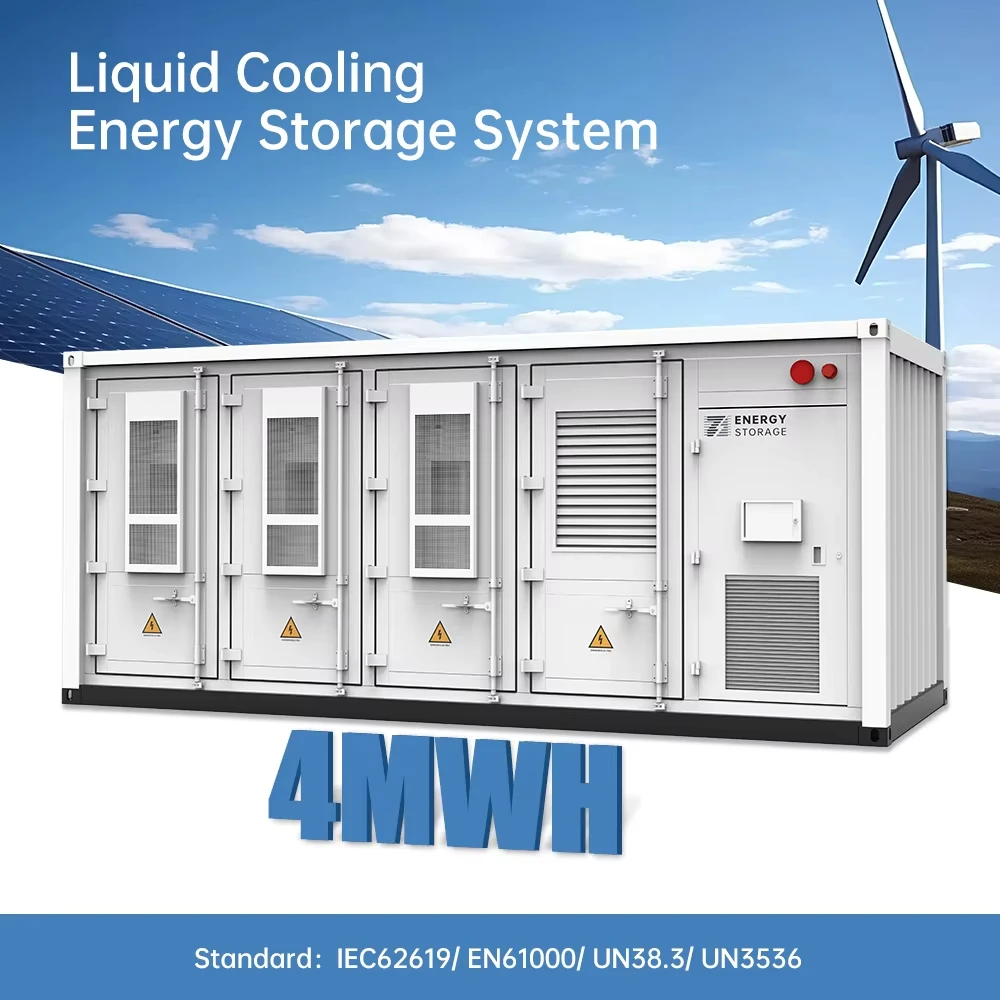

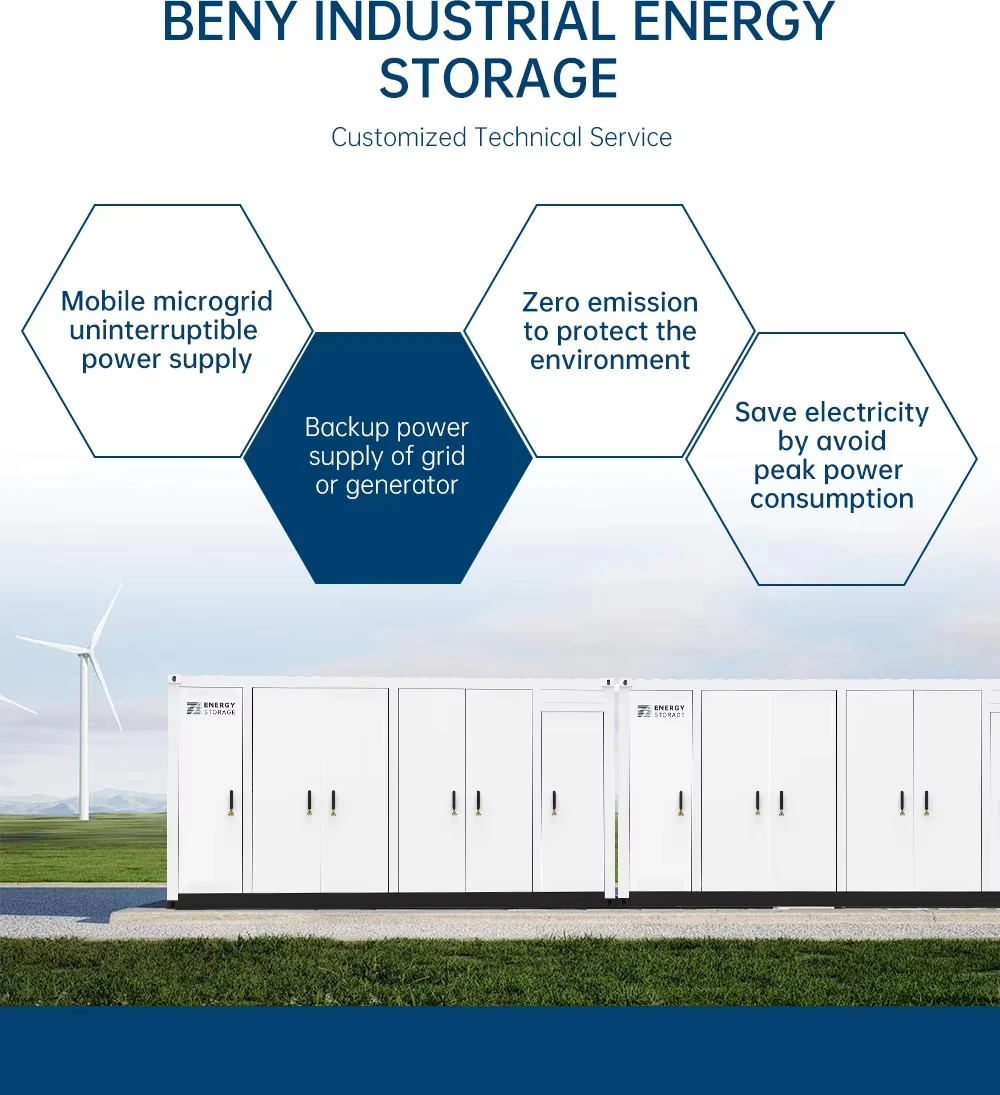

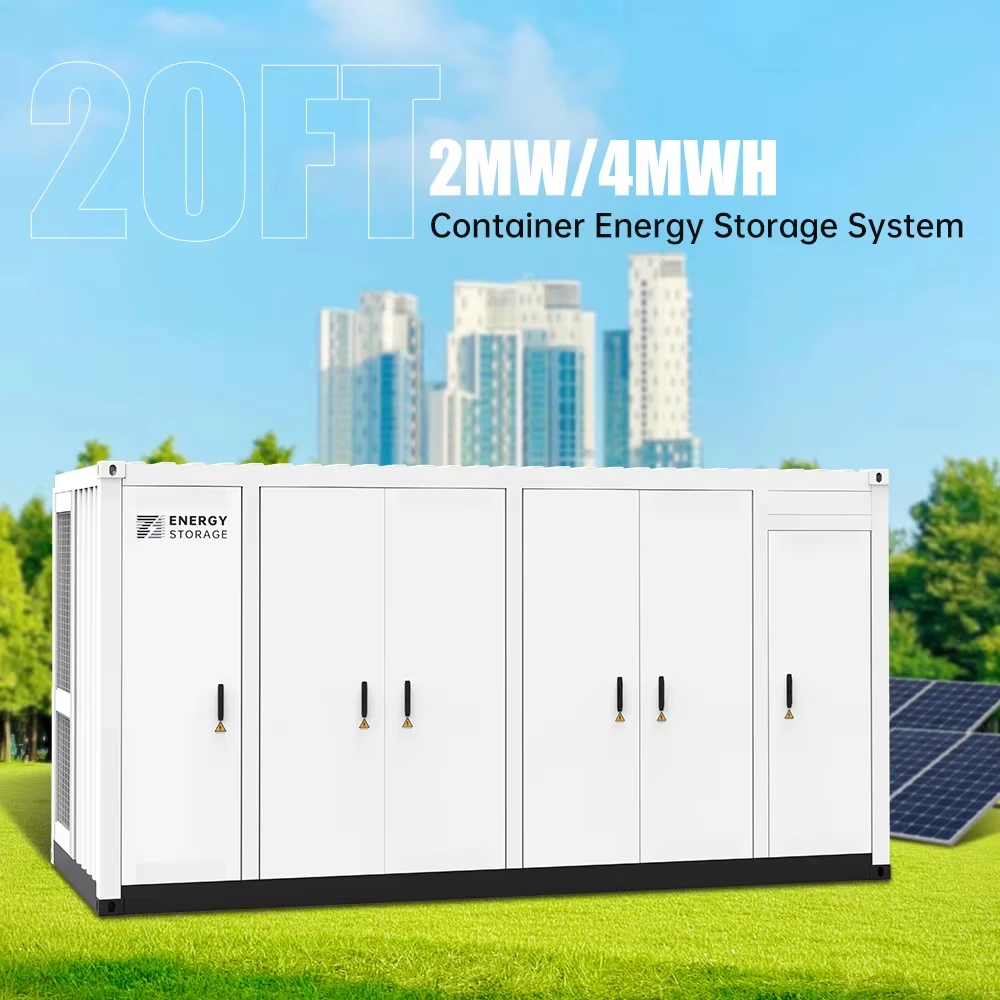

Voyager Power 2.0 is a container energy storage system introduced by Beny, covering BESS from 1MWh-5MWh.
Ess adopts an "All-ln-One" design concept, with ultra-high integration that combines energy storage batteries, BMS (Battery Management System), PCS (Power Conversion System), EMS (energy management system), fire protection, air conditioning, and more into a single unitmakingit adaptable to various scenarios.
This product features a prefabricated cabin design flexible deployment, convenient transportation, and no need for internal wiring and debugging. lt responds quickly, boasts high reliability, and offers functions such as peak shaving, power capacity expansion, emergencybackup power, grid balancing, capacity management, and multi-level parallel connection.
Ess adopts an "All-ln-One" design concept, with ultra-high integration that combines energy storage batteries, BMS (Battery Management System), PCS (Power Conversion System), EMS (energy management system), fire protection, air conditioning, and more into a single unitmakingit adaptable to various scenarios.
This product features a prefabricated cabin design flexible deployment, convenient transportation, and no need for internal wiring and debugging. lt responds quickly, boasts high reliability, and offers functions such as peak shaving, power capacity expansion, emergencybackup power, grid balancing, capacity management, and multi-level parallel connection.
Safe and reliable
IP55 protection grade design, cluster level aerosol layout, BMS and Ac/Dc multi-layer protection Settings to ensure the safe operation of the system
Cost optimization
Small size, light weight, save floor space and installation costs, can be pre-installed whole system transportation,long life, low
failure rate.low operation and maintenance costs
failure rate.low operation and maintenance costs
Efficient and convenient
Batteries, Pcs, etc., all adopt modular design for easy installation and transportation, and canremotely guide configuration,equipment management,data analysis,fault prediction,etc.
Rich scene
Application strategies can be custo mized in different environments to meet product requirements;
Product Paramenters
Type designation | BYHV‑3440BLC | BYHV‑4000BLC | BYHV‑5000BLC | ||
Cell type | LFP 3.2V / 280Ah | LFP 3.2V / 306Ah | LFP 3.2V / 314Ah | ||
Battery configuration | (1P48S*8)×10 | (1P52S*8)×10 | (1P52S*8)×12 | ||
Battery capacity | 3440.6kWh | 4073.4kWh | 5016kWh | ||
Battery current | 1400A | 1530A | 1884A | ||
Battery voltage range | 1075.2V⁓ 1382.4V | 1123.2V⁓ 1497.6V | 1123.2V⁓ 1497.6V | ||
Nominal AC voltage | 1228.8V | 1331.2V | 1331.2V | ||
Dimension（W*H*D） | 6058*2591*2438 | ||||
Weight | 33600Kg | 37200kg | 42000Kg | ||
IP grade | IP55 | ||||
Anti‑corrosion degree | C3(Support C5) | ||||
Operating temperature | -30 to 55ºC(>45ºC derating) | ||||
Operating humidity | 0～95%(non‑condensing) | ||||
Working altitude | 3000m | ||||
Temperature control | liquid cooling | ||||
Fire suppression system | NFPA 69 explosion prevention and Aerosol NFPA 69 | ||||
communication protocol | Modbus TCP, MQTT | ||||
Standard | IEC 62477, IEC 61000‑6‑2, IEC 61000‑6‑4, IEC 62619, UN 38.3/UN 3536 | ||||
Product Advantages
Intelligent monitoring
PowerView
Client software that allows for real-time viewing of the operating status and parameters, economic benefits, product information, and historical data of energy storage system.
Supervisor
Intelligent operation and maintenance software that monitors the operation status of energy storage systems, manages operation and maintenance business, predicts maintenance needs 24/7, and provides worry-free system security.
Analyzer
AI data analysis software that uses a large amount of operational data, combined with battery electrochemical models and load operating conditions, to adjust the optimal operating strategy in real time.
Bidder
Virtual power plant software that aggregates resources such as energy storage, charging stations, photovoltaics, and controllable loads, participates in power market trading, and improves asset investment return.

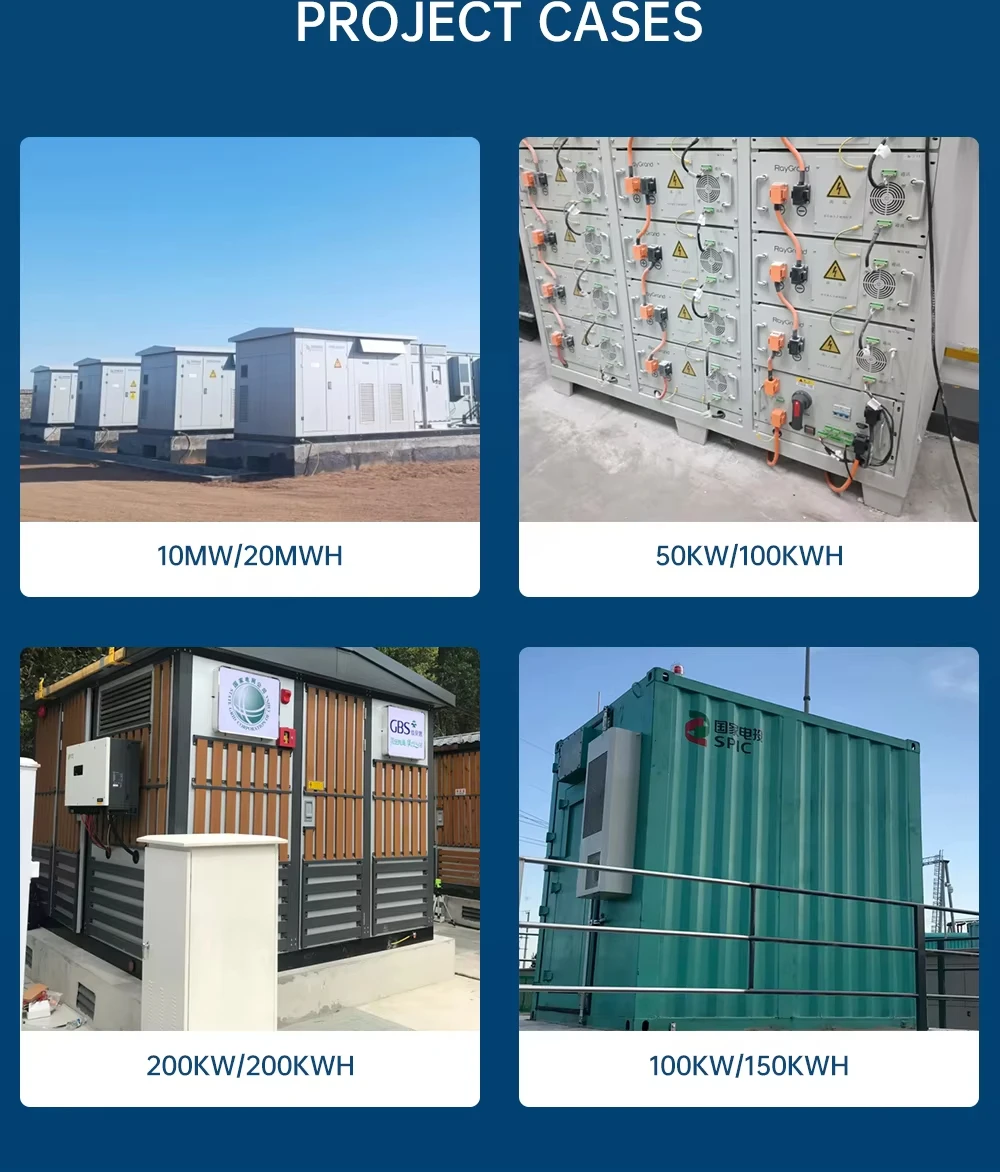

Product Application Case
Company Profile
Exhibition
FAQ
1. Are you a manufacturer or trading company？
A: We are a manufacturer (Over 10 years),And we have more than 100 technical engineers
2. How much life span of the battery？
A: Our batteries are built with grade A lifepo4 cell, cycle life up to 8000+ at 80% DoD
3. How long is the warranty?
A: we offer 5 years truly warranty to provide after-sale service and technology support. Including resend new battery or
replacement BMS.
4. What brand inverter are your batteries compatible?
A: Our BMS supports the following communications Canbus/RS485/RS232 and can compatible with most of famous inverters
5. What is the delivery time? What is your standard packing？
A: Usually delivery in 7-15days, but could be changed according to the quantity or other things.
A: 1 unit in a CARTON or 1 unit in a WOODEN
6. Do you support customization？
A: YES, LOGO/sticker/OEM/ODM welcomed
7. What are your terms of payment?
A: The payment term will be 30%T/T for deposit and the balance before shipment
8. Do you have CE/ MSDS/ UN38.3 / certification for safe transport of goods?
A: YES, We do！
A: We are a manufacturer (Over 10 years),And we have more than 100 technical engineers
2. How much life span of the battery？
A: Our batteries are built with grade A lifepo4 cell, cycle life up to 8000+ at 80% DoD
3. How long is the warranty?
A: we offer 5 years truly warranty to provide after-sale service and technology support. Including resend new battery or
replacement BMS.
4. What brand inverter are your batteries compatible?
A: Our BMS supports the following communications Canbus/RS485/RS232 and can compatible with most of famous inverters
5. What is the delivery time? What is your standard packing？
A: Usually delivery in 7-15days, but could be changed according to the quantity or other things.
A: 1 unit in a CARTON or 1 unit in a WOODEN
6. Do you support customization？
A: YES, LOGO/sticker/OEM/ODM welcomed
7. What are your terms of payment?
A: The payment term will be 30%T/T for deposit and the balance before shipment
8. Do you have CE/ MSDS/ UN38.3 / certification for safe transport of goods?
A: YES, We do！
