Setting Information | ||
Name | P1.667mm HD LED Video TV | |
rated voltage | DV+5V | |
SMD Type | SMD 1010 Black LEDs | |
Humidity | 15%-85% | |
Refresh Rate | >2000 Hz - MBI5153 Driving IC. | |
Drive Mode | 1/30scan | |
Module Weight | 9kg | |
Certificate | CE, ROHS, FCC, ISO9001, TUV | |
Pixel pitch: 1.667 mm
Density: 360000 dots/m2
Scan Mode: 1/30 Scan
Power Supply: MeanWell with UL,CE Approved
Connector: Seetronics or Linkco With UL,CE Approved
SMD Type: SMD 1010 Black LEDs
Refresh rate: >2000 Hz - MBI5153 Driving IC.
Brightness: 500-1000 nits

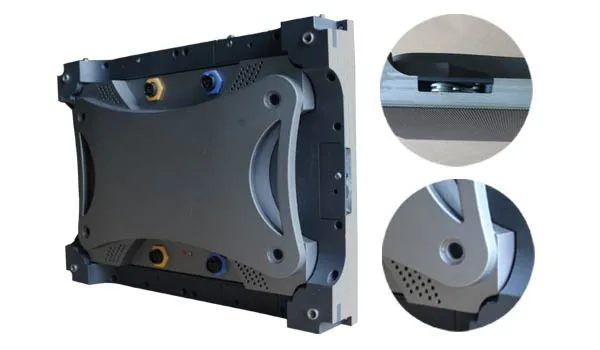

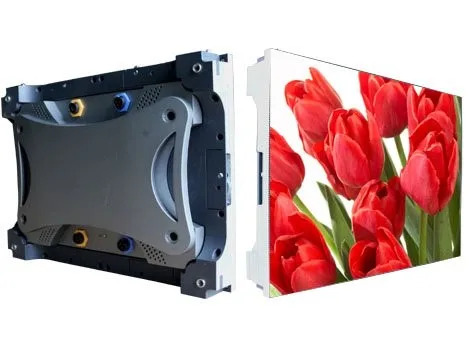

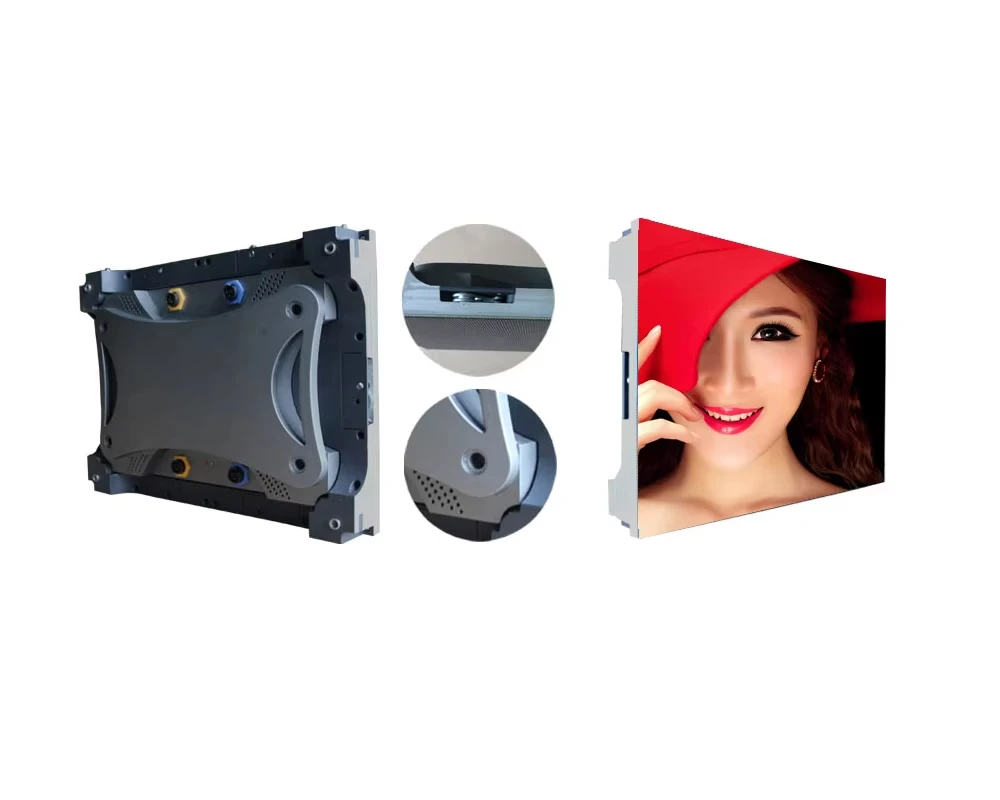

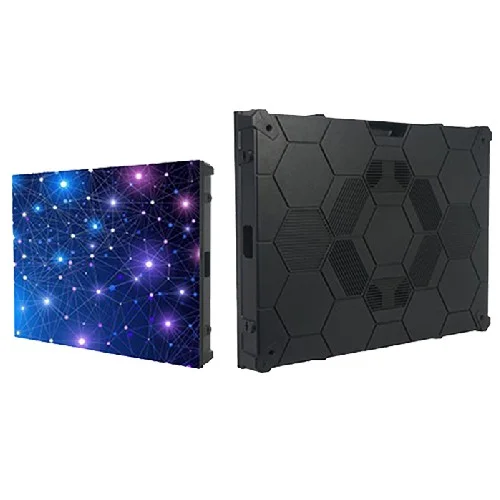

Cabinet Size: 400mm*300mm*75mm
Cabinet Weight: 4.6kg
Pixel pitch is 1.667mm. High resolution brings delicate

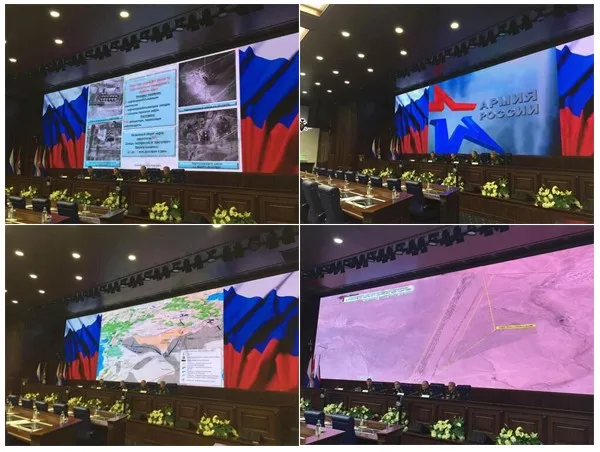

The Cabinet’s 4:3 resolution is specialized for command center.
Vertical/horizontal: 140°/140°, broadcast-level color
gamut, CT and brightness adjustable,

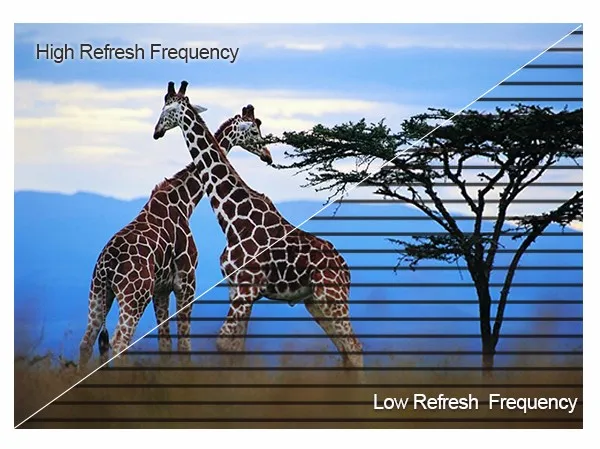

The Ultra HD LED Display is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate. It features a high refresh rate of 1200Hz, producing best quality outputs in form of pictures, videos and texts.
Smooth display image is realized shooting with

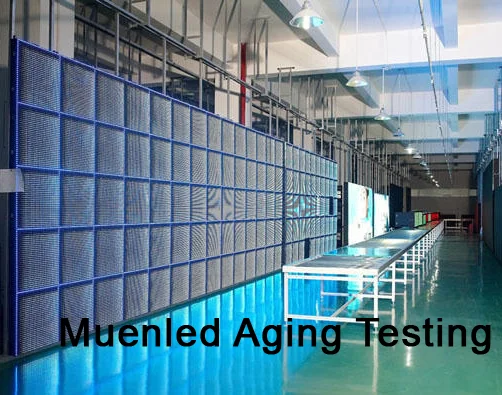

All products undergo a strict aging test. The 72 hours aging test is conducted without die lamp, dim lamp, color difference and mosaic. The product is introduced in the market only if it passes the aging test, making sure the best quality is ensured for you.

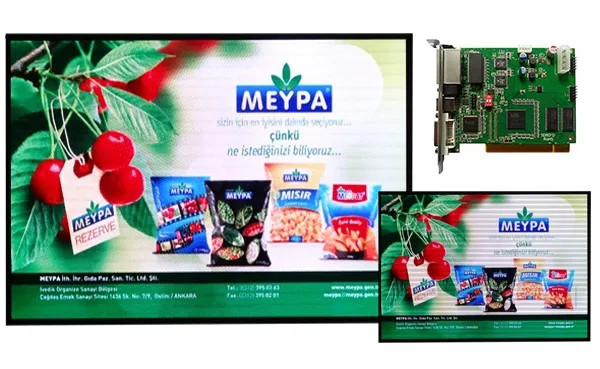

The display features LINSN control system which ensures great quality output, high resolution display, fast loading time and high refresh rate. The display is known for its stability and reliability, making it ideal for different advertising purposes.
Model Number | ||
Pixel Pitch | 1.667mm | |
Pixels Density | 360000dots/sqm | |
Arrangement | 1R1G1B | |
Module Resolution | 200*100*14.75mm | |
Module Weight | 0.4kg | |
Module Resolution(W*H) | 120*60dots | |
Module Max Power | 25W | |
Drive Type | Constant drive | |
Scan Mode | 1/30scan | |
Port Type | HUB75E | |
Brightness of White Balance | >1200cd/sqm | |
Cabinet Dimension(W*H*D) | 400*300*85mm | |
Cabinet Weight | 9kg | |
Cabinet Resolution(W*H) | 256×256=65536(Dots) | |
Power Supply | 5V/40A*1 pcs | |
Best Viewing Distance | 2m-10m | |
Best Viewing Angle | 140°(W) 120°(H) | |
Temperature | storage:-35oC-85oC; working:-20oC-50oC | |
Relative Humidity | 10%-75% | |
Average Power Consumption | 450W/sqm | |
Refresh Frequency | >1200HZ | |
Certificate | CE, ROHS, FCC, ISO9001, TUV | |
Control Card Input | DVI, USB; RJ45, HDMI(Sold separately) | |
