Product Description
Ball mill is a key equipment for further grinding after the primary crushing. It is widely used in cement, silicate products, new building materials, wear-resistant materials, fertilizers, ferrous and non-ferrous metals, glass ceramics and other industries.According to the processing technology, it is divided into two grinding ways-the dry and the wet. Besides,wet ball mill can be divided into tabular type and flowing type.
PRODUCT EXHIBITION
Performance Characteristics:
1. High beneficiation efficiency, high fineness of ore powder.
2. Large discharge port, wide-range usage.
3. Simple structure, easy maintenance.
4. High processing capacity, obvious continuous operation advantages.
1. High beneficiation efficiency, high fineness of ore powder.
2. Large discharge port, wide-range usage.
3. Simple structure, easy maintenance.
4. High processing capacity, obvious continuous operation advantages.
WORKING PRINCIPLE
The material evenly enters the first chamber of the grinder from the quill shaft in feeding device. The chamber is equipped with a ladder liner or ripple liner and steel balls in different specifications. Centrifugal force caused by rotation of barrel brings the steel balls to a certain height and then impact and grind material. Finally the ground materials are discharged by the discharging grate plate.
PRODUCT PARAMETERS
Model | Rotary Speed (r/min) | Ball Weight (t) | Feeding Size (mm) | Output Size （mm） | Capacity(t/h) | Power(kw) | Weight(t) |
Φ900×3000 | 35.6 | 2.4 | ≤25 | 0.075~0.89 | 0.8-2.5 | 22 | 5.3 |
Φ1200×3000 | 32.4 | 4.5 | ≤25 | 0.074~0.4 | 1.6-3 | 37 | 12.1 |
Φ1200×4500 | 32.4 | 7 | ≤25 | 0.074~0.4 | 1.83-3.9 | 55 | 13.1 |
Φ1500×3000 | 29.7 | 7.5 | ≤25 | 0.074~0.4 | 2.8-4 | 75 | 14.8 |
Φ1500×4500 | 29.7 | 11 | ≤25 | 0.074~0.4 | 4.8-7 | 110 | 19.9 |
Φ1500×5700 | 29.7 | 14 | ≤25 | 0.074~0.4 | 5-8 | 130 | 23.4 |
Φ1500×7000 | 29.7 | 17 | ≤25 | 0.074~0.4 | 6-8 | 155 | 27.5 |
Φ1830×3000 | 25.4 | 11 | ≤25 | 0.074~0.4 | 4.5-10.5 | 130 | 26.6 |
Φ1830×4500 | 25.4 | 17 | ≤25 | 0.074~0.4 | 6.8-11.5 | 155 | 30.4 |
Φ1830×6400 | 25.4 | 24 | ≤25 | 0.074~0.4 | 7-12 | 210 | 32.3 |
Φ1830×7000 | 25.4 | 26 | ≤25 | 0.074~0.4 | 7.8-13.8 | 245 | 34.2 |
Φ2100×3000 | 24.9 | 15 | ≤25 | 0.074~0.4 | 5.8-14 | 210 | 32.3 |
Φ2100×4500 | 24.9 | 23 | ≤25 | 0.074~0.4 | 9.5-18 | 245 | 40 |
Φ2400×3000 | 20.8 | 20 | ≤25 | 0.074~0.4 | 7.8-18 | 245 | 51.3 |
Φ2400×4500 | 20.8 | 30 | ≤25 | 0.074~0.4 | 13.7-28 | 380 | 63.7 |
Φ2700×4000 | 19.5 | 34 | ≤25 | 0.074~0.4 | 15-28 | 475 | 89 |
Φ2700×4500 | 19.5 | 39 | ≤25 | 0.074~0.4 | 16.5-36 | 475 | 97 |
Processed Materials:
Limestone, Granite, Basalt, River Stones, Quartz, Copper Ore, Iron Ore, Marble, etc.
Limestone, Granite, Basalt, River Stones, Quartz, Copper Ore, Iron Ore, Marble, etc.

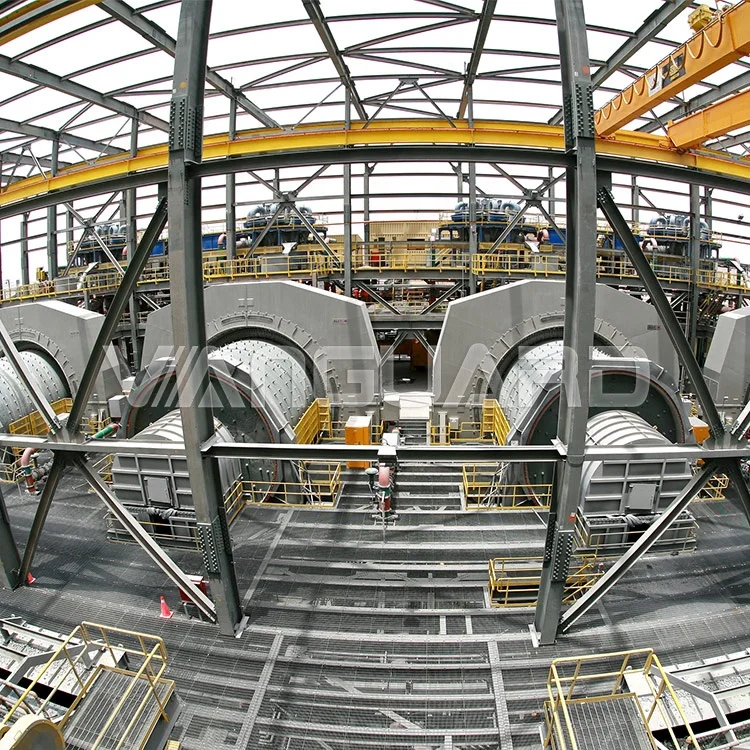

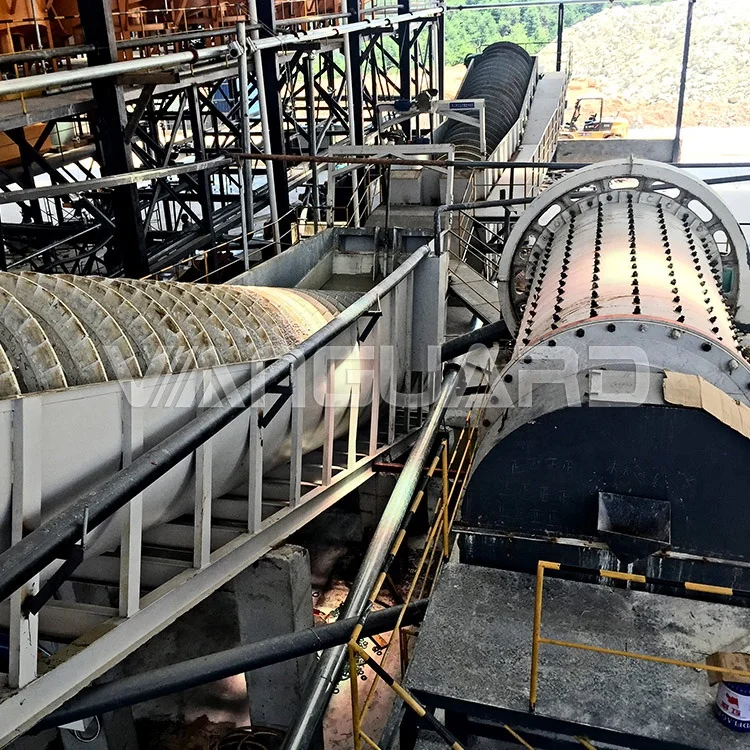

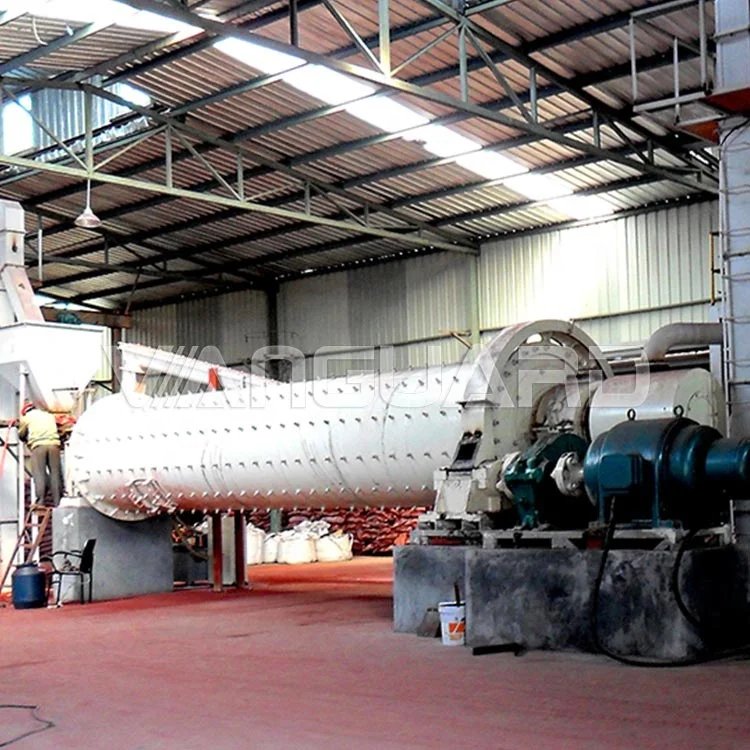

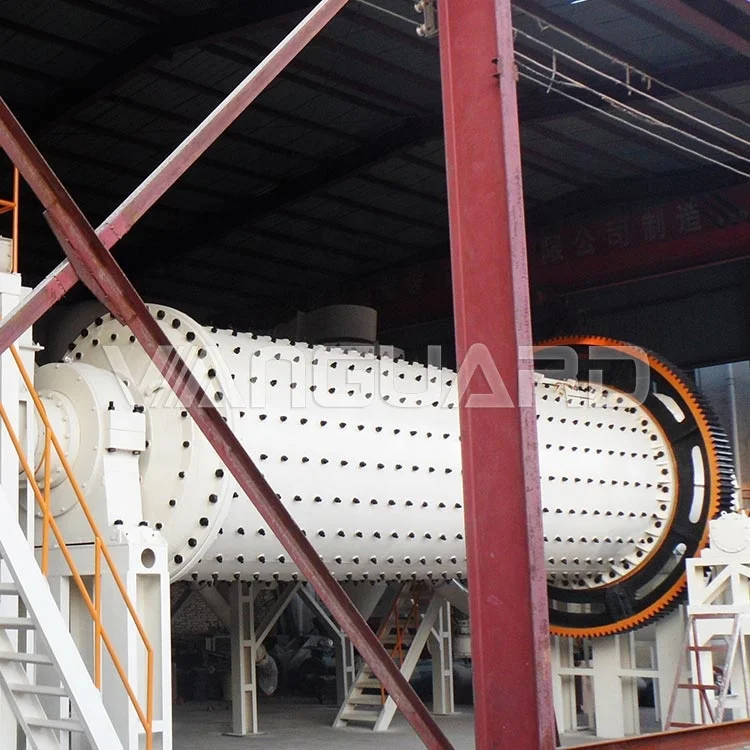

CUSTOMER CASES
Packaging and Shipping
About VANGUARD
Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular equipment in global mining industry.
Matching of production and support system allows customers to get the best service at the lowest cost.
Qualification
Our products have passed ISO9001-2008 international quality management system certification and European CE certification, and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fields.
Our Services
FAQ
Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
Q2: How long is your delivery time？
Q3：If I need the complete crushing plant can you help us to build it?
Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.
Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.
Q3：If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
