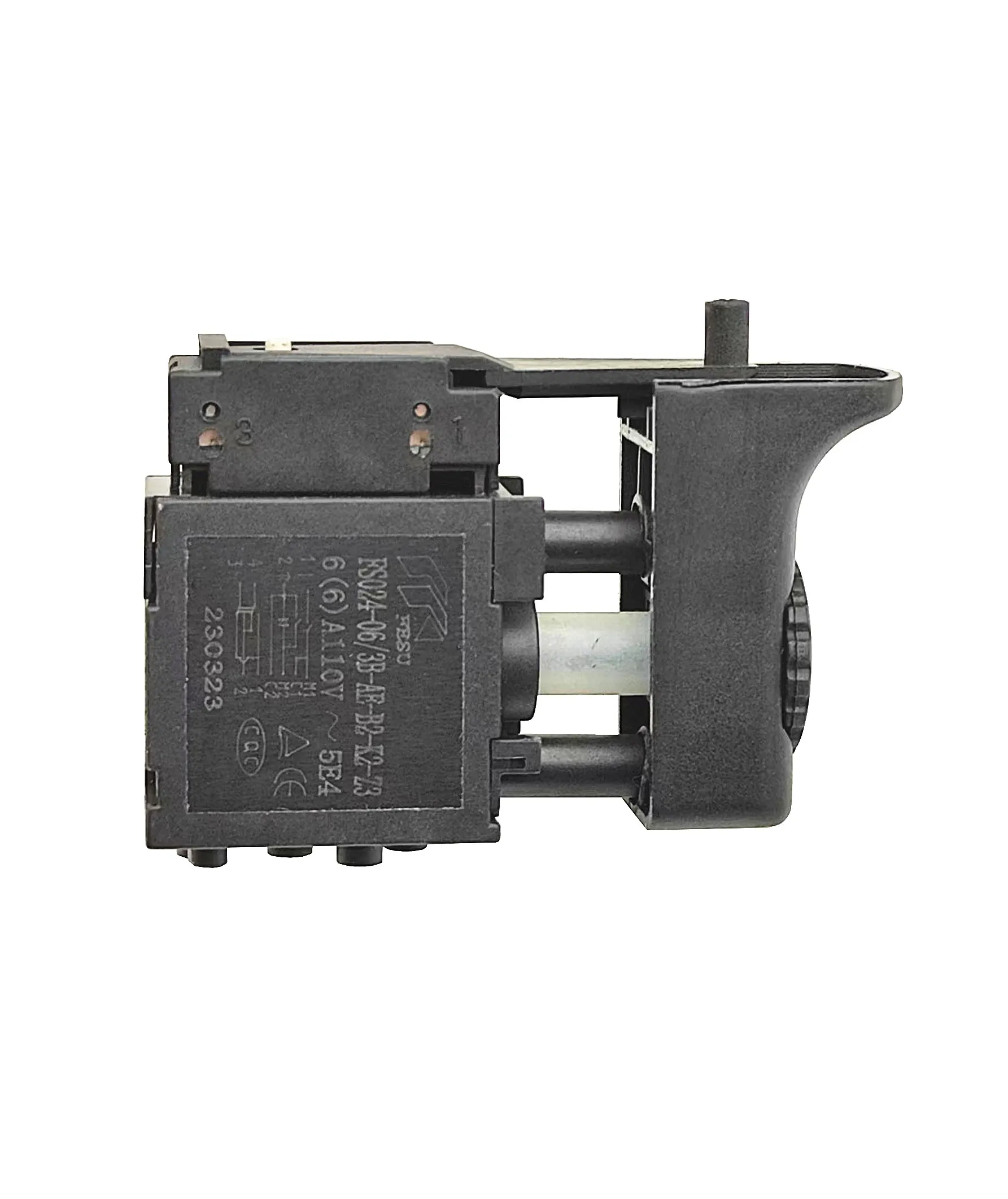

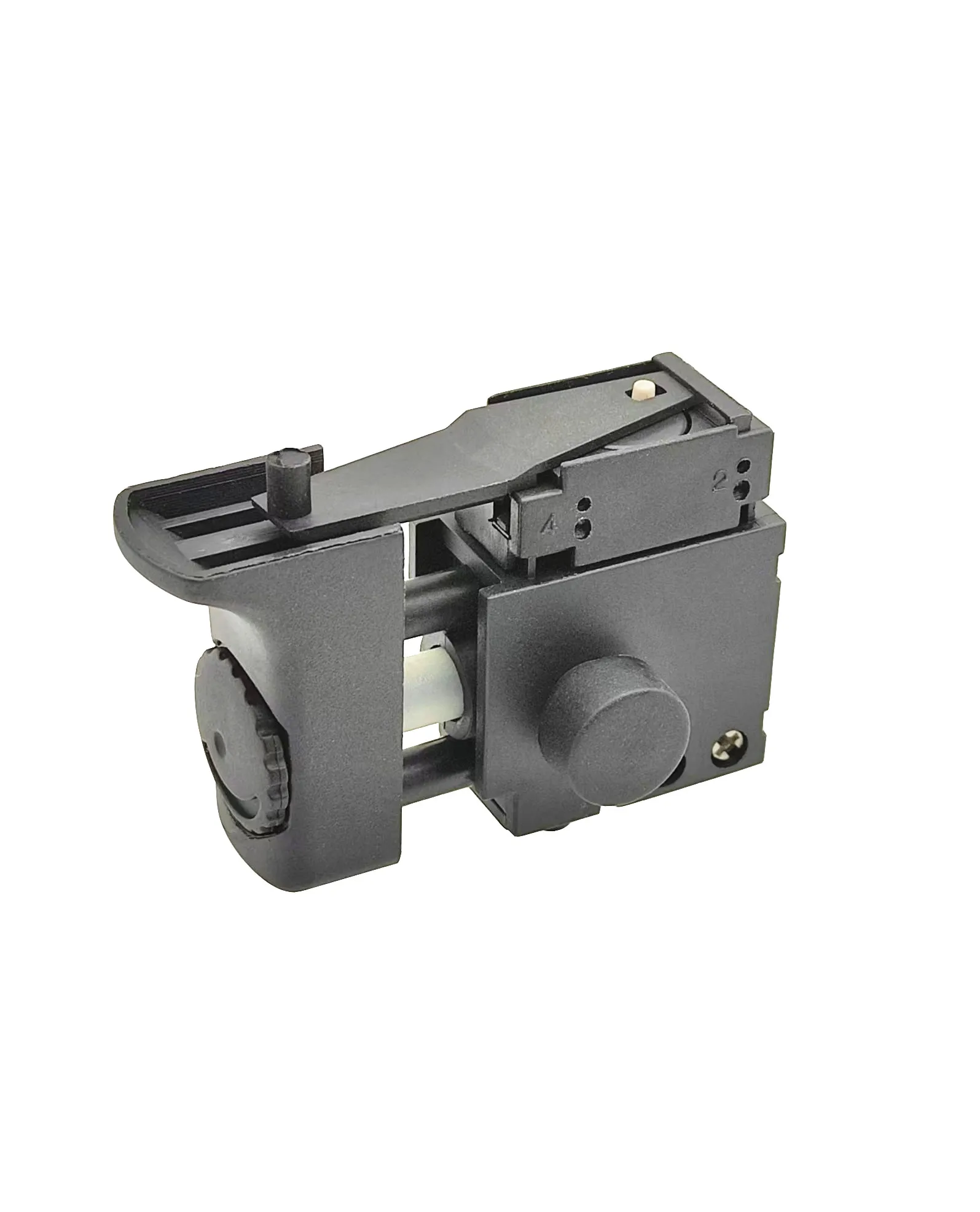

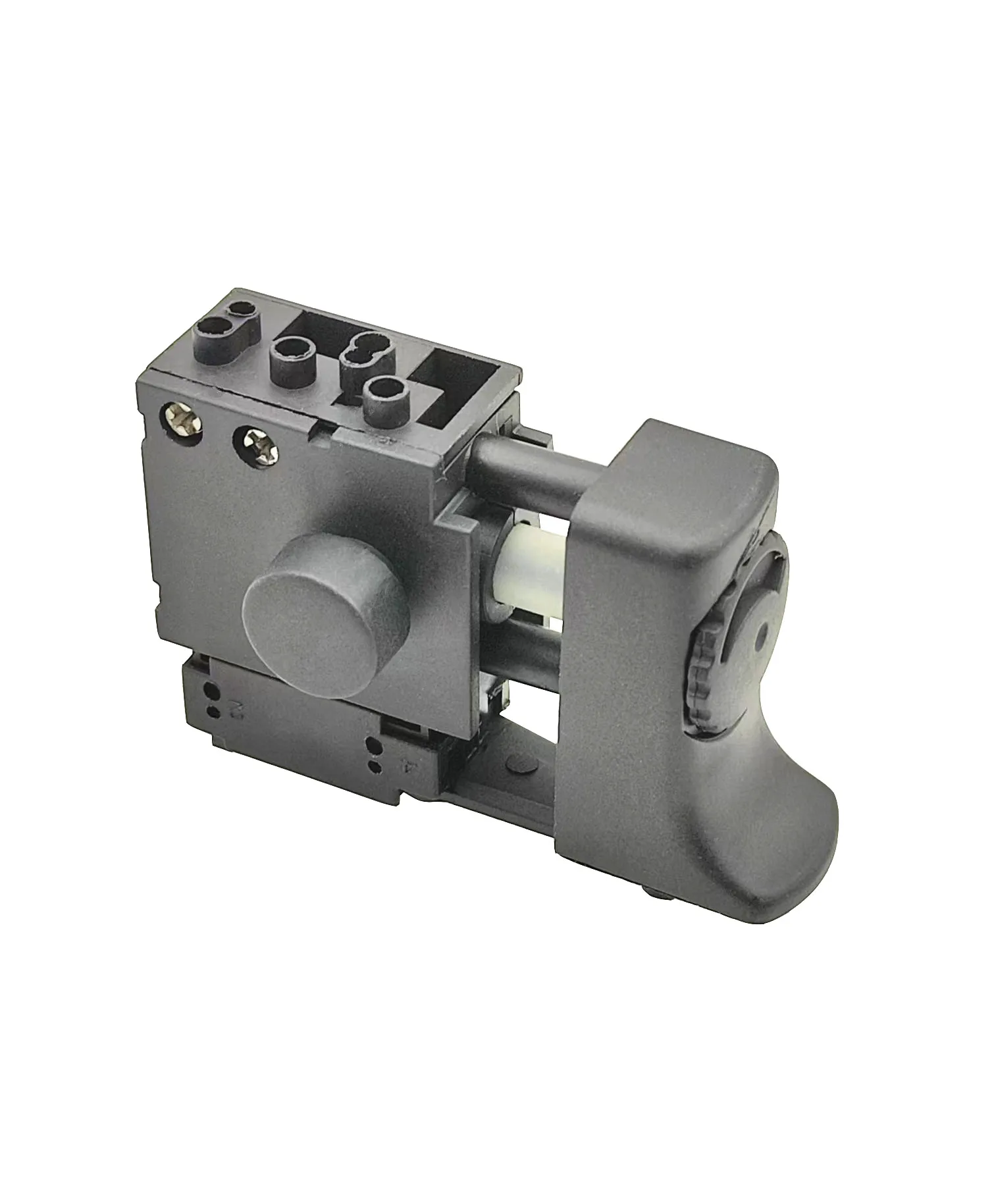

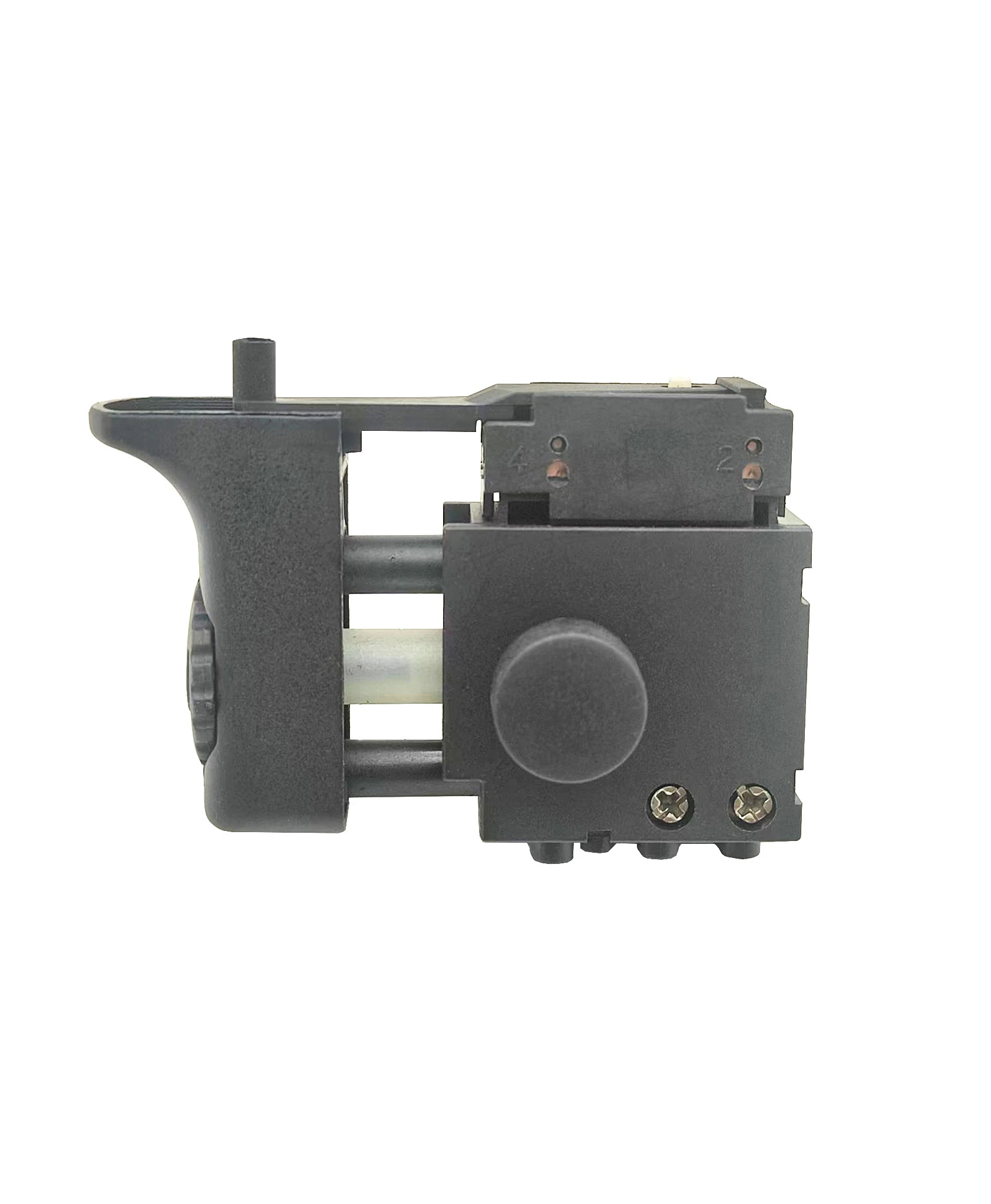

component materials: | 1. actuator :nylon |
2. housing :nylon | |
3. spring :iron | |
4. other component :copper | |
electrical features: | 1.Optional rated current: 4(4)A,6(6)A |
2. optional rated voltage:250V OR 125V | |
3.frequency:50/60HZ | |
4.electrical life:5E4 | |
5. Certificated rating: 4(4)A,250V; 6(6)A,250V | |
mechanical features: | 1. Mechanical contact system: SPNO |
2. Optional full wave sppeed , half wave speed . | |
3.Optional with dust-proof, with distub device. | |
4.Optional with reversing device. | |
5.Optional with closed lock or lock free. | |
6.Optional anti-interference function. | |
7.Optional trimmer pacer. | |
8.Optiona screw terminals M4; Plug-in terminals:2.8*0.8mm | |
9.Mechanical life:1E4 | |
10. contact gap :upon users demand | |
11. approval : TUV, CE, CQC | |
12. trigger operating force:25N(MAX) release lock button | |
13. lock on button force:20N | |
installation: | 1. screw terminals accept stranded wire encapsulated with terminal pins |
