Products Description

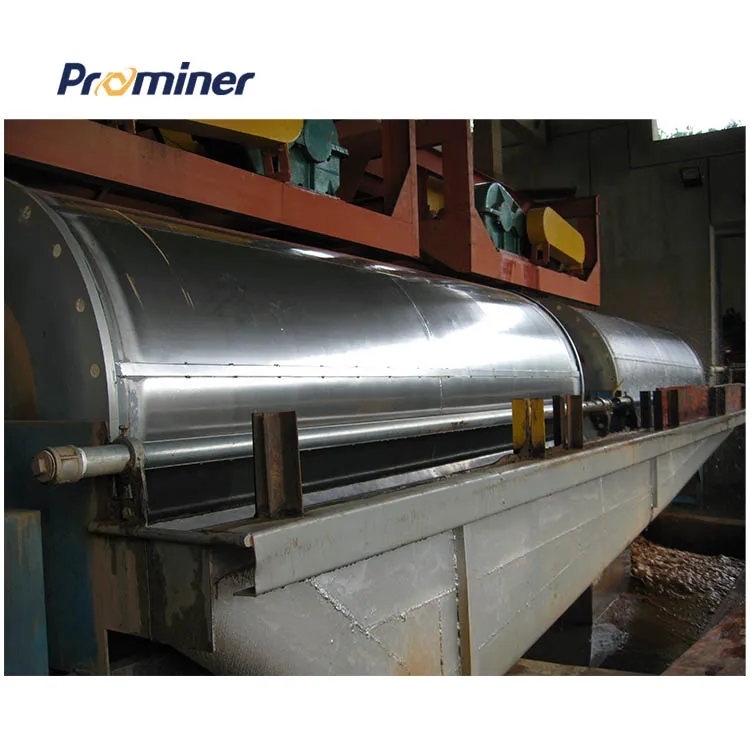

Magnetic Separator
The magnetic system material is made of high remanence magnetic material and high coercivity magnetic material, which has very good anti-demagnetization ability (less than 5% in 8 years). There are several main types of magnetic separators as following:
CTS cocurrent magnetic separator, specially used for coarse particle primary separation. such as river sand, sea sand and it’s suitable for the recovery of magnetic medium.
CTN counter-current type magnetic separator is suitable for fine-grained strong magnetic ore roughing and scavenging pulp after long area, metal loss in tailings is less, high metal recovery.
CTB half counter-current type magnetic separator is suitable for grinding mill selection process stage work, is widely used getting higher concentrate quality and metal recovery.
Equipment Parameter
Model | Speed (r/min) | Capacity (t/h) | Power (KW) | Weight (kg) | ||||
CTB/S/N-0712 | 35 | 10-15 | 3 | 1850 | ||||
CTB/S/N-0918 | 28 | 25-40 | 4 | 2750 | ||||
CTB/S/N-1015 | 21 | 38-50 | 5.5 | 3120 | ||||
CTB/S/N-1021 | 21 | 52-70 | 5.5 | 4200 | ||||
CTB/S/N-1030 | 21 | 80-120 | 7.5 | 6260 | ||||
CTB/S/N-1218 | 19 | 60-75 | 7.5 | 5850 | ||||
CTB/S/N-1545 | 16 | 160-220 | 15 | 15000 | ||||
Customization | ||||||||
Our Advantages
Specilized experiment lab
Prominer can provide the complete laboratory and pilot processing test include exploratory test, condition test, open & closed-circuit test with crushing, grinding, gravity separation, magnetic separation, flotation separation, leaching and lab-scale equipment.
Professional engineering teams
During the foundation and civil work construction period, PROMINER always dispatch 1 or 2 civil work engineers to guide the civil work construction contractor to follow the engineering design drawing.
Reliable quality equipment
According to the process design, we provide the main equipment of magnetic separation project, and some auxiliary equipment we also have reliable outsourcing manufacturers.
Main equipment in magnetic separation
Crusher and screen,
Ball mill, sag mill and others,
Hydrocyclone,
Magnetic separator,
Thickener,
And etc.
Our Service
Civil Work Construction Supervision
Prominer can provide the civil work construction supervision service for mineral processing project.
Foundation Building Guidance
According to the project's demand, we can send civil engineer to guide our client's team to build the foundation.
Workshop Building Construction
We can also dispatch our team to undertake the civil work construction for mineral processing project.
Site Survey Service
Before starting the engineering design work, Prominer will send our engineer to do the site survey work for every mineral processing project.
Sampling Guidance Service
For getting the representative sample for lab test work, we can send our engineer to assist our client to do the sampling drilling work.
Equipment Erection Guidance Service
During the equipment installation stage, Prominer will send our engineer to the site for providing equipment erection guidance service.
Ball Mill Erection Guidance
We send our engineer to provide the ball mill erection service at site for our South Africa Client's project for processing gold, cooper ore.
Equipment Erection Service
We send our team to undertake the project erection and commissioning service for our Colombia client for lead and zinc flotation plant.
Erection Supervision Service
Some client also appoint our team to provide the project supervision service to ensure the correct erection and good performance.
Installation Team for EPC Project
We have sent our team to Sudan to do the installation and commissioning work for gold CIL plant. Our team enjoy our new year holiday at site.
On Site Training Service
During the commissioning stage of gold and copper flotation plant in Tanzania, the client's team joint together with our team to lear how to operate the equipment.
Operation & Maintenance Service
According to our client's demand, we can also leave our team to provide the operation service after project acceptance for our mineral processing project.
Company Profile
As an manufacturer, we can provide key equipment for miner processing include SAG mill, ball mill, banana screen, flip-flow screen, dewatering screen, impact mill, shaping mill and granulator.
As an complete solution provider, we focus on anode material production plant and mineral deep processing on gold, copper, iron ore, lead zinc, graphite, quartz and kaoline.
As an EPC contractor, we have the ability to provide lab test, pilot test, engineering design, equipment supply, erection & commissioning service and project operation service.
Our Service
Lab Test & Pilot Test
Engineering Design
Equipment Supply
On Site Service
Operation & Maintenance Service
Project Consultation
Our Office
Our Culture Wall
Our Office
Our Team in Shanghai
Our Factory
Certifications
ISO9001 and ISO14001 Certificate
High-Tech Enterprise Certificate
Two Invention Patents
28 Utility Model Patents
FAQ
1. who are we?
We are based in Shanghai, China, start from 2016,sell to South Asia(40.00%),South America(30.00%),Africa(10.00%),Southeast
Asia(10.00%),North America(5.00%),Mid East(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Ball Mill, Vibrating Screen, Grinding Mill, Anode Granulator, Belt Conveyor
4. why should you buy from us not from other suppliers?
Focus on providing the complete solution for anode material production and mineral processing include gold, Iron, lead, zinc,
cooper, quartz, graphite and kaolinite. Have ability to provide consultancy service, lab test, pilot test, EPC and OM service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP,FCA,CPT,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Russian
We are based in Shanghai, China, start from 2016,sell to South Asia(40.00%),South America(30.00%),Africa(10.00%),Southeast
Asia(10.00%),North America(5.00%),Mid East(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Ball Mill, Vibrating Screen, Grinding Mill, Anode Granulator, Belt Conveyor
4. why should you buy from us not from other suppliers?
Focus on providing the complete solution for anode material production and mineral processing include gold, Iron, lead, zinc,
cooper, quartz, graphite and kaolinite. Have ability to provide consultancy service, lab test, pilot test, EPC and OM service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP,FCA,CPT,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Russian
