Робот для доставки наружных вездеходов погрузочно-разгрузочных работ погрузочно-разгрузочные материалы роботизированное шасси с использованием гибридной TINS-17E электропитания
9 000,00 $
Большая Полезная нагрузка электрическая резиновая дорожка Мобильная платформа робот шасси транспортный автомобиль tins12e
- Категория: >>>
- Поставщик: Zhengzhou Defy Mechanical & Electrical Equipment Co. Ltd.Zhengzhou Ltd.
Сохранить в закладки 1601317383538:
Описание и отзывы
Характеристики
Tins-12E

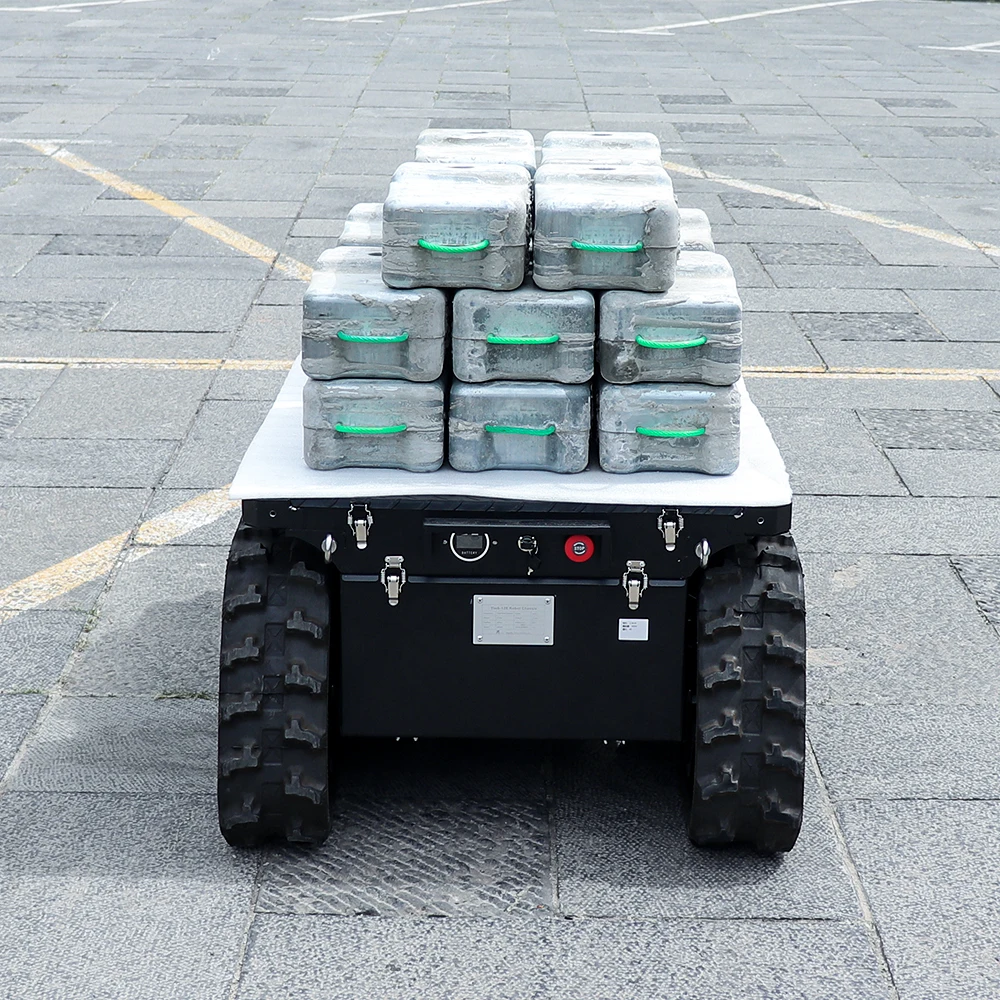

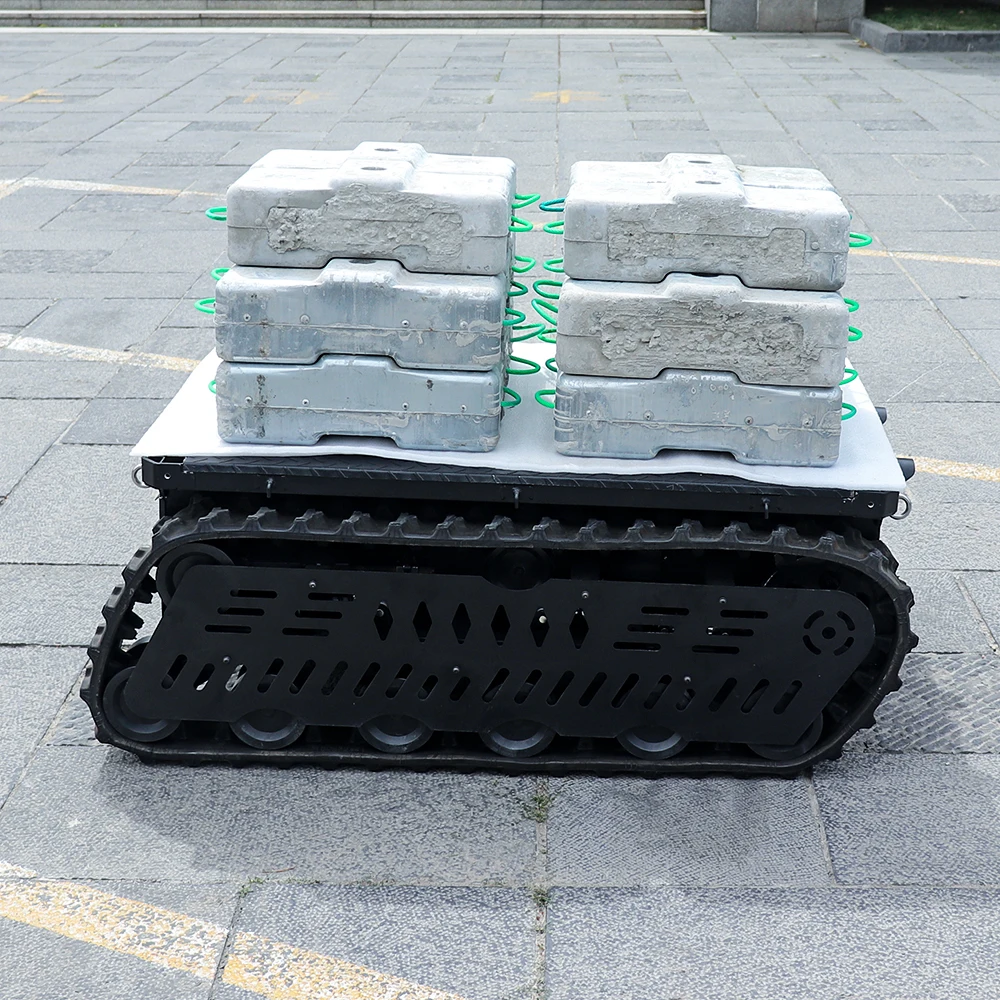

200kg-600kg large payload robot chassis. TinS-12E is mainly used for cargo handling.
Parameters | ||||||
Dimension: | 2000*1300*710mm | Inner battery space: | 690*700*400mm | |||
Self Weight: | 210kg (exclude battery) | Speed: | 3-6.5km/h(can be higher with smaller payload) | |||
Waterproof: | IP65 | Designed Load: | 300-600kg | |||
Track Width: | 150mm | Rated Torque: | 350NM (1.5kw, 1:50) | |||
Gear Ratio: | 1:25-1:50 | Climbing Ability: | ≤30°(can climb stairs) | |||
Motor: | (0.75KW-3KW)*2 | Motor Rated Speed: | 3000r/min | |||
Drive wheel diameter: | 260mm | Maximum Span: | 990mm | |||

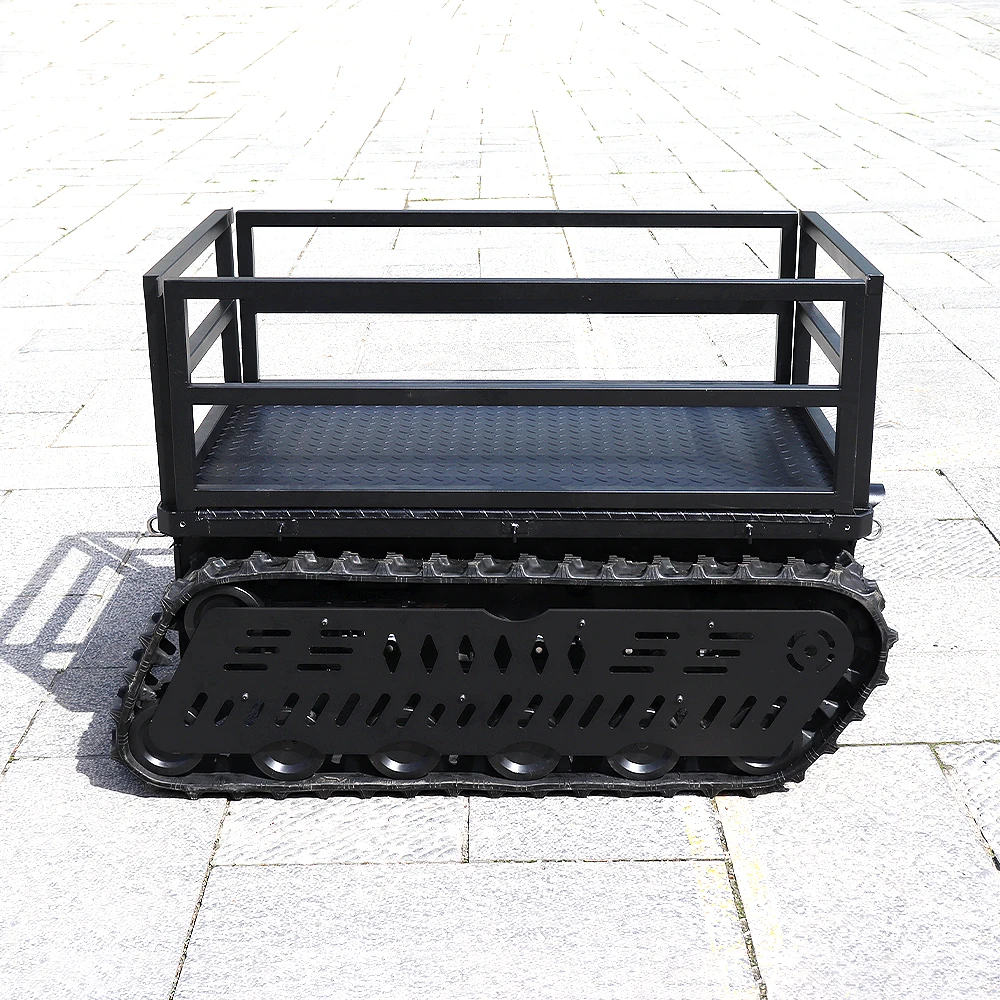

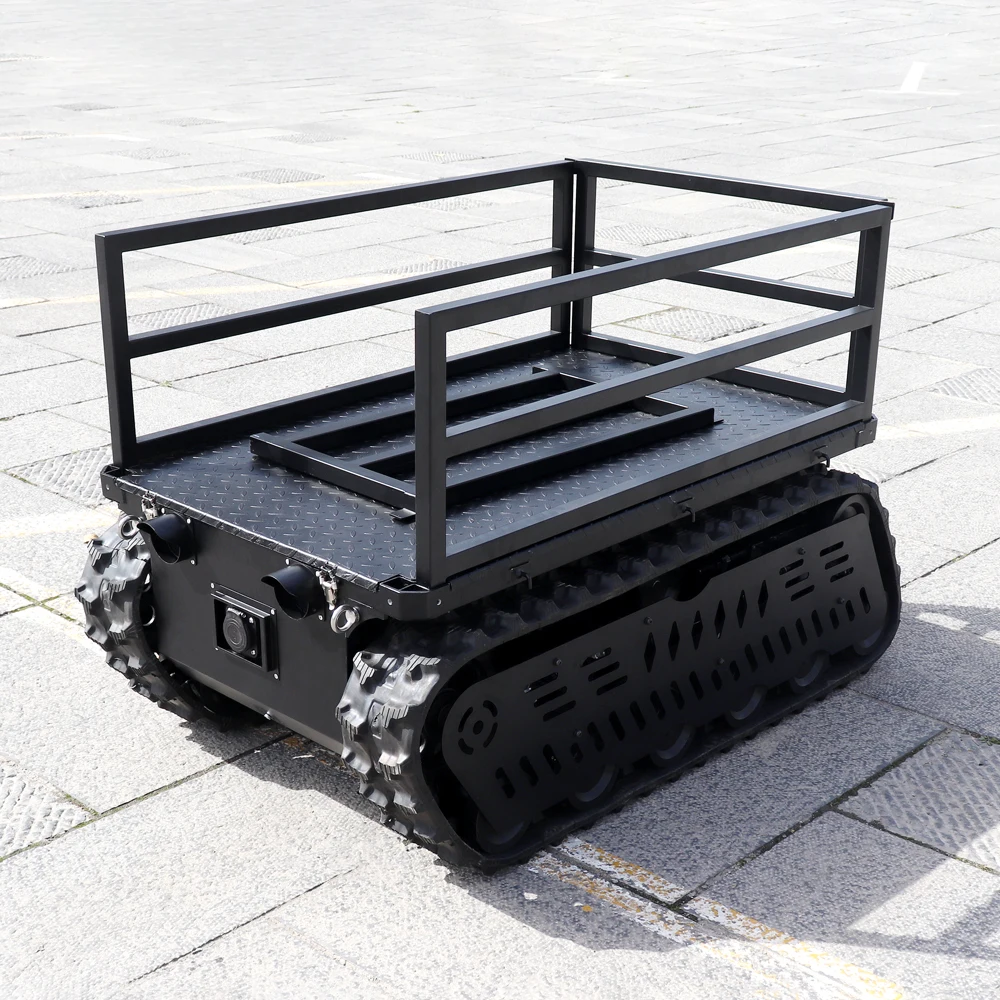

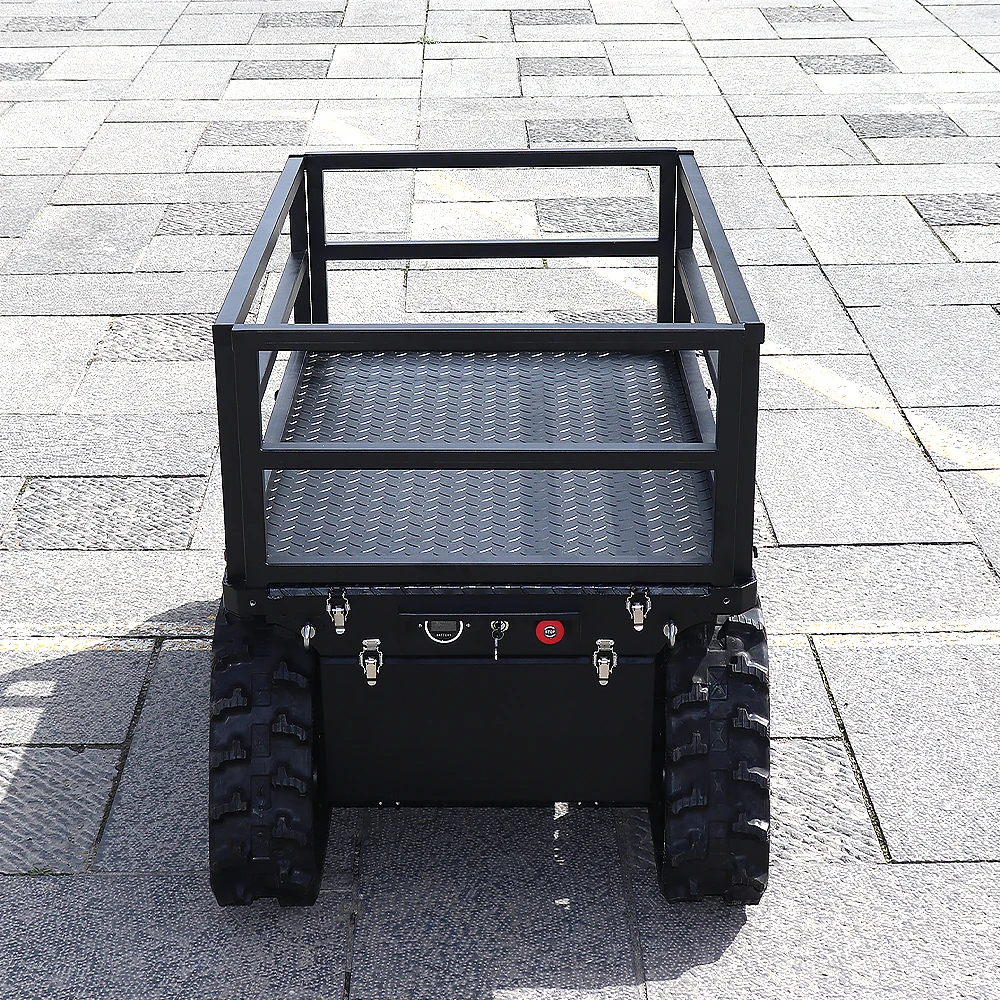

It can be equipped with guardrails and used as a transportation vehicle.
With high ground clearance Strong crossing ability long track grounding area Excellent stair climbing ability.
Easy for customization and secondary development
or servo motor drive+encoder
closed-loop control system, precise control Precise control of steering angle, speed, and stroke It can rotate in place or spiral as needed.
Overvoltage, overcurrent, undervoltage, overheating, short circuit protection
Undervoltage
Overheating
Short circuit
Overheating
Short circuit
standard aircraft model remote control
and upper computer command control
Speed loop+displacement loop+differential loop, precise speed regulation
Good ground adhesion, long track grounding area.
Adjustable to ensure normal tensioning and operation of the track
Matilda suspension combined with Christie shock absorption providing excellent shock absorption system.
High and low beams allows for night driving operations
It has the advantages of high working voltage high energy density, long cycle life, good safety performance low self discharge rate, and no memory effect.
Application
Widely applied in fields such as safety protection monitoring,robotic arm carriers, lifting platforms, transportation vehicle, etc.
Features：
1.Structural performance:
1)The overall track structure of the chassis is designed in a parallelogram shape, with high ground clearance, strong crossing ability, long track grounding area, excellent stair climbing ability, and strong outdoor off-road ability. Both the front and rear tracks can wrap the vehicle body, which is more conducive to protecting the vehicle from damage and allowing it to walk on various terrains.
2)Top 1150 * 750mm large flat plate, can be equipped with guardrails and used as a transportation vehicle.
2. Protection level: IP65.
3. Communication protocol: 485 communication, CAN protocol.
4. Working mode: DC brushless Hall motor or servo motor drive+encoder, closed-loop control system, precise control. Precise control of steering angle, speed, and stroke. It can rotate in place or spiral as needed.
5. Driver: overvoltage, overcurrent, undervoltage, overheating, short circuit protection.
6. Control methods: joystick control, standard aircraft model remote control, and upper computer command control. Speed loop+displacement loop+differential loop, precise speed regulation.
7. Rubber tracks: good ground adhesion, long track grounding area.
8. Tensioning wheel: adjustable to ensure normal tensioning and operation of the track.
9. Widely applied in fields such as safety protection monitoring, robotic arm carriers, lifting platforms, transportation vehicle, etc.
10. Lithium iron phosphate battery: It has the advantages of high working voltage, high energy density, long cycle life, good safety performance, low self discharge rate, and no memory effect.
11. Shock absorption system: Matilda suspension combined with Christie shock absorption, providing excellent shock absorption system.
12. Switching control of high and low beams allows for night driving operations.
13. Support customization and secondary development.
1)The overall track structure of the chassis is designed in a parallelogram shape, with high ground clearance, strong crossing ability, long track grounding area, excellent stair climbing ability, and strong outdoor off-road ability. Both the front and rear tracks can wrap the vehicle body, which is more conducive to protecting the vehicle from damage and allowing it to walk on various terrains.
2)Top 1150 * 750mm large flat plate, can be equipped with guardrails and used as a transportation vehicle.
2. Protection level: IP65.
3. Communication protocol: 485 communication, CAN protocol.
4. Working mode: DC brushless Hall motor or servo motor drive+encoder, closed-loop control system, precise control. Precise control of steering angle, speed, and stroke. It can rotate in place or spiral as needed.
5. Driver: overvoltage, overcurrent, undervoltage, overheating, short circuit protection.
6. Control methods: joystick control, standard aircraft model remote control, and upper computer command control. Speed loop+displacement loop+differential loop, precise speed regulation.
7. Rubber tracks: good ground adhesion, long track grounding area.
8. Tensioning wheel: adjustable to ensure normal tensioning and operation of the track.
9. Widely applied in fields such as safety protection monitoring, robotic arm carriers, lifting platforms, transportation vehicle, etc.
10. Lithium iron phosphate battery: It has the advantages of high working voltage, high energy density, long cycle life, good safety performance, low self discharge rate, and no memory effect.
11. Shock absorption system: Matilda suspension combined with Christie shock absorption, providing excellent shock absorption system.
12. Switching control of high and low beams allows for night driving operations.
13. Support customization and secondary development.
Packing and Shipping
Within 3-5 working days
Services | ||
1 year warranty for main parts | During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight. | |
Spare Parts | most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients. | |
Operation and Maintenance | we will offer you detailed operation manual, ensuring you can use it perfectly. | |
Online support | Video technical support | |
Online Service | your question will be answer within 24 hours during working days, 48 hours during holiday. | |
Zhengzhou Defy Mechanical & Electrical Equipment Co,. Ltd.
is a leading robot manufacturer in China, offering robots and mobile solutions for robotic products. With great development, we have established one-stop solutions for global clients, with our own R&D department, Q&C department, production department, sales department, and after-sales department.
20 years experience of R&D;
9 years professional exporting experience;
11-50 skilled sales service staff;
10 senior engineers and 15 middle-level engineers in the field of mechanical, machinery, electricity&AC.
is a leading robot manufacturer in China, offering robots and mobile solutions for robotic products. With great development, we have established one-stop solutions for global clients, with our own R&D department, Q&C department, production department, sales department, and after-sales department.
20 years experience of R&D;
9 years professional exporting experience;
11-50 skilled sales service staff;
10 senior engineers and 15 middle-level engineers in the field of mechanical, machinery, electricity&AC.
FAQ：
1.Does your machine have great quality and favorable price?
Sure,we offer good quality and cheap price products.
2.How is your service?
We offer professional pre-sales, in-sales and after-sales service for customers. Any of your tiny need will be satisfied in 24 hours.
3.How about the MOQ?
1 set.
4.What's the warranty of machine?
One year warranty for main machine.
5.When the machine can be shipped?
Within 3-5 working days after receiving full payment.
Похожие товары
Грузовая тележка с полезной нагрузкой 600 кг автоматическая для следования за человеком робот-гусеничный автомобиль Tins-12E
4 000,00-8 000,00 $
419-43-27401 аккумлятор для регулятора давления WA380-3 KOMATSU PAPTS
800,00 $

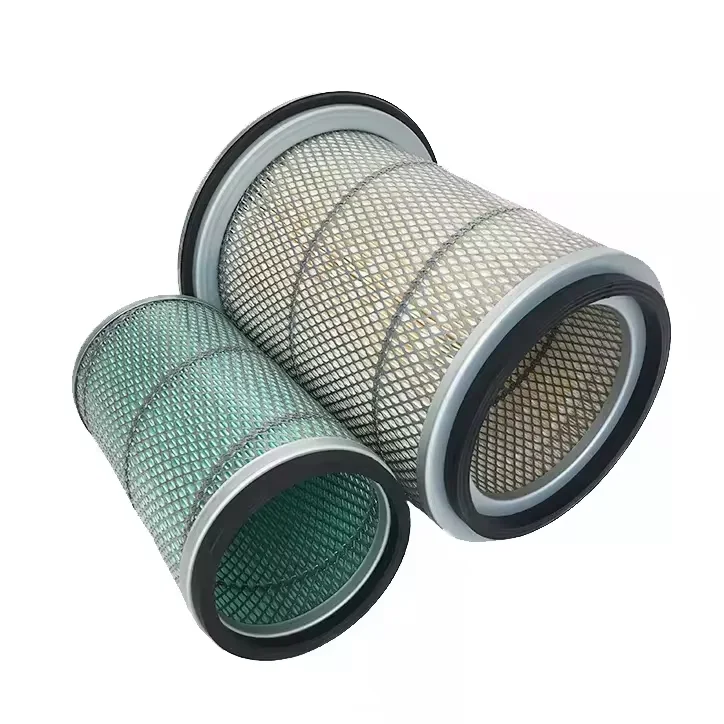

Bomag BT65 BT65/4 BT60 BT80D BW65H воздушный фильтр для трамбовщика
3,00-5,00 $
Высокое качество AF25125M P532501 для строительной техники 6I-2501

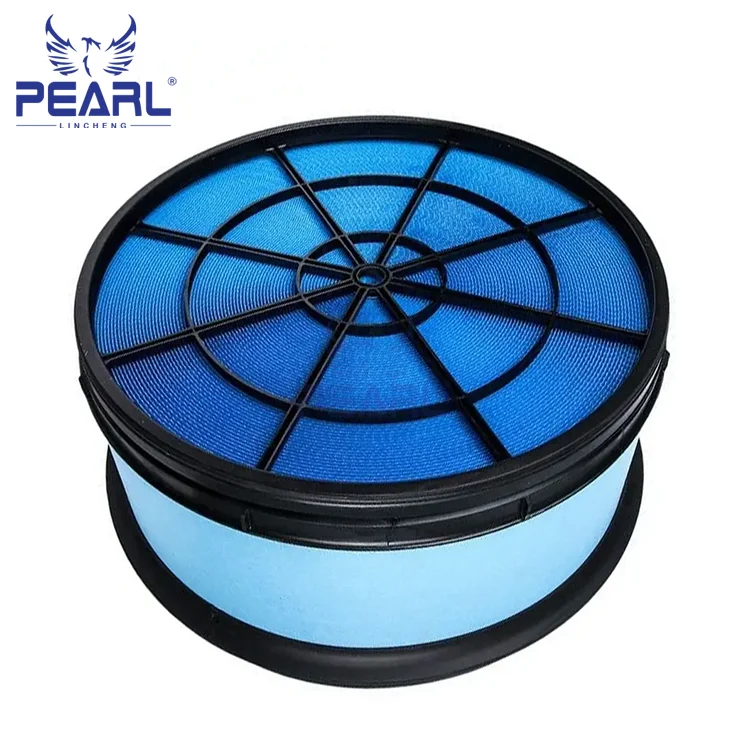

Жемчужный фильтр высококачественный воздушный SEV551H/4 208-9065 для двигателя грузовика по хорошей цене
15,00-16,50 $

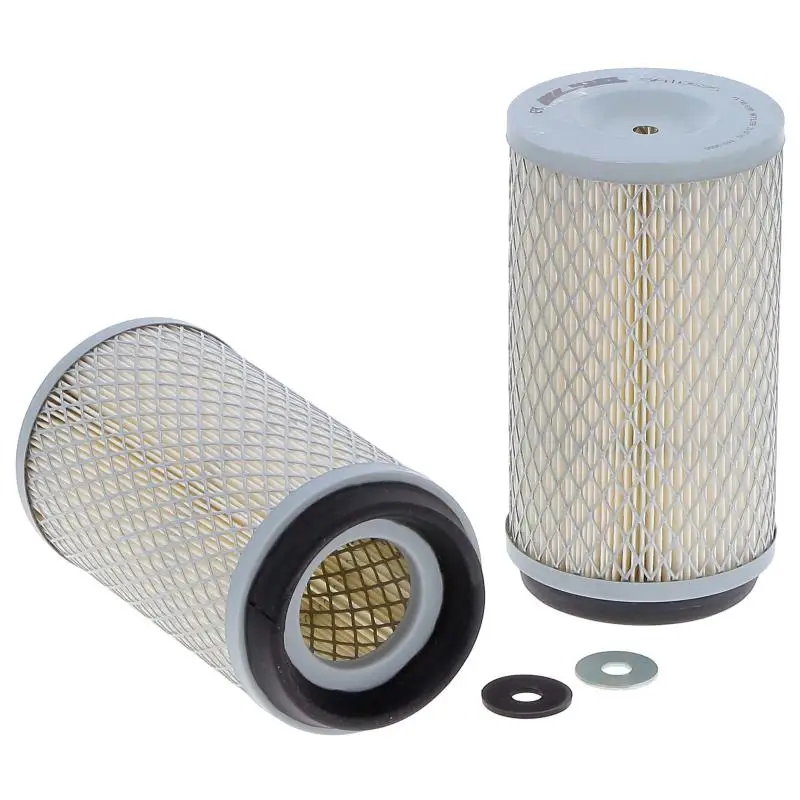

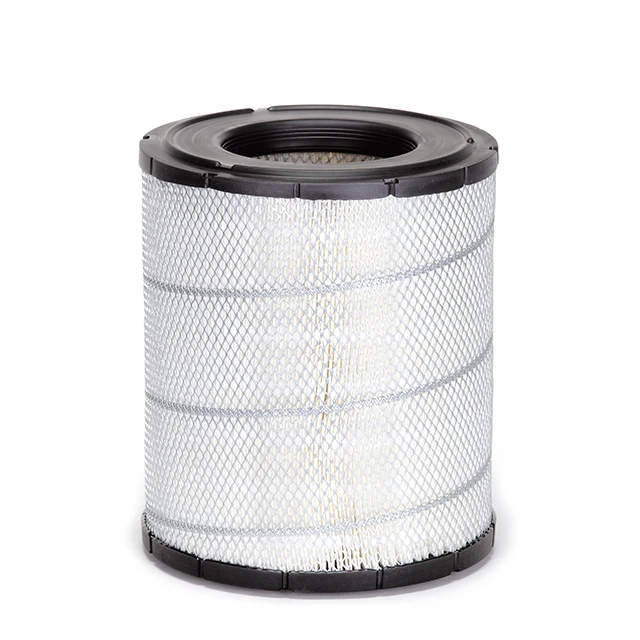

Воздушный фильтр pudis C1043/1 SA 10695 16196220 1619622000 2673698 PA3757 P903547 AF25670 для грузовика
10,50-13,50 $

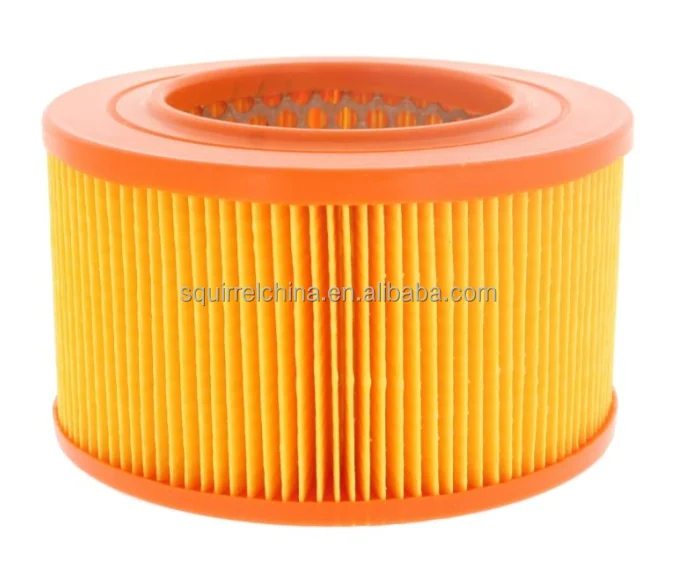

Воздушный фильтр марки PUDISI в сборе 4206098 + 4247974 AF25009 AF25008 PA3479 PA3783
