Mining Industrial Lime Graphite Barite Carbon Black Raymond Grinding Mill Price List
*every production line needed machines is difference*
*the final quotation will according to your project case*
Product Description

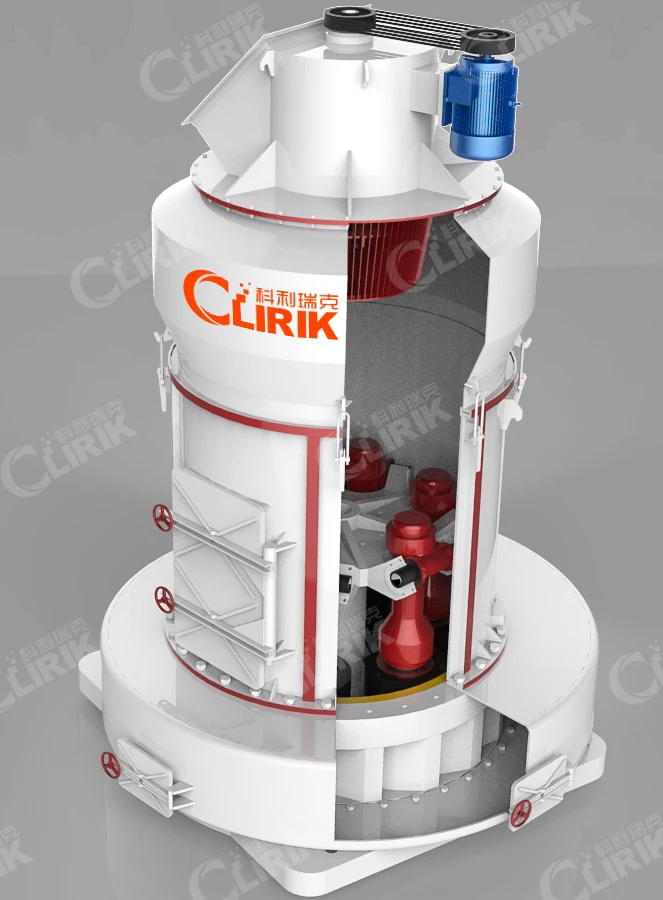

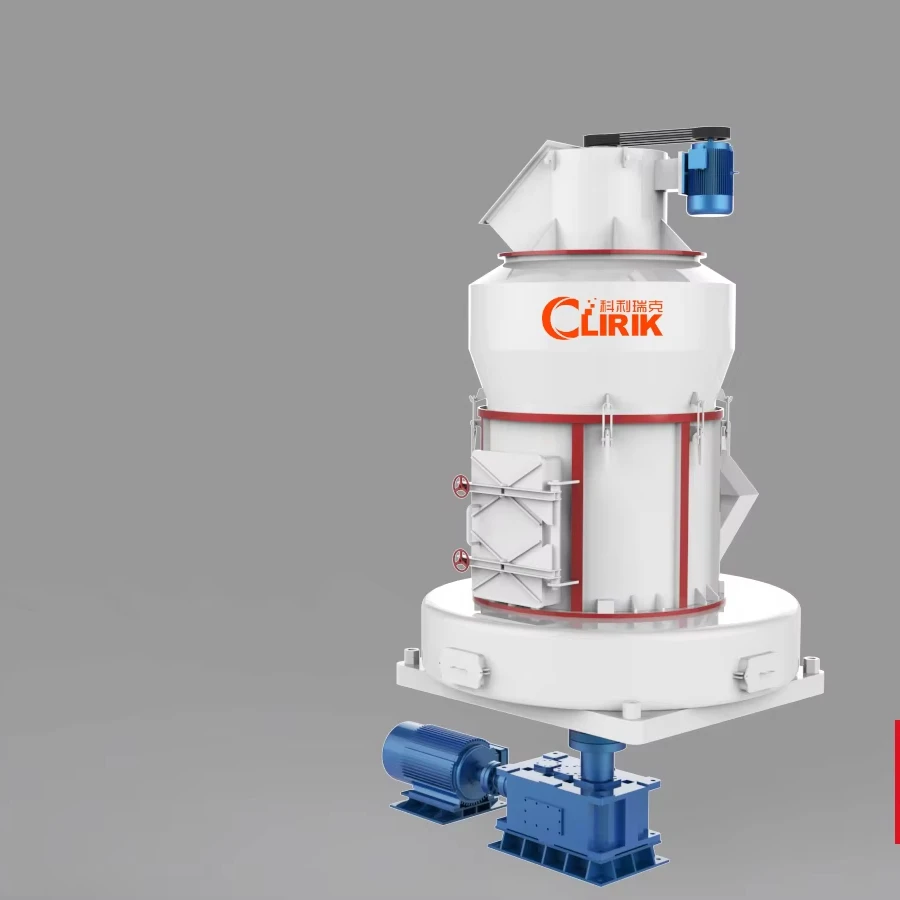

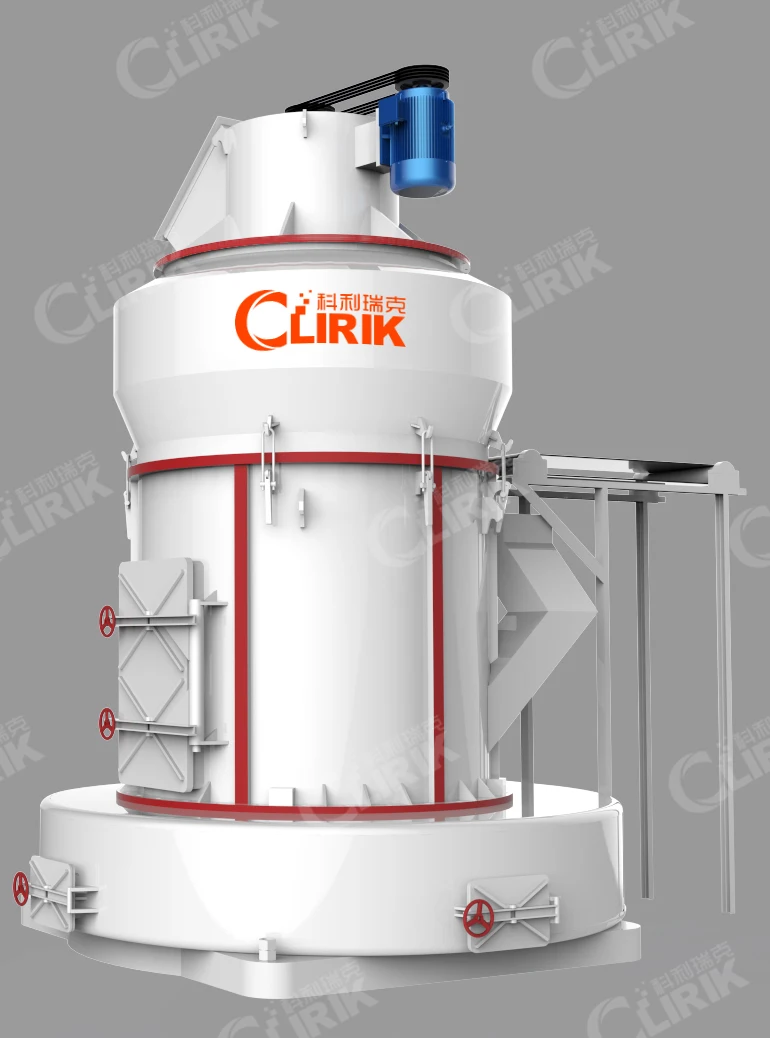

CLRM Raymond Mill Introduction
Clirik enhanced roller grinding mill is one kind of Raymond mill machine is suitable for processing various non flammable and non- explosive mineral materials with Moh's hardness less than 6 and humidity less than 6%;
It is widely used in the fields of metallurgy, construction, chemical industry,mining, highway construction etc,. The granularity of the finished powder size can be adjusted between 50 and 500 meshes(315- 45 micron).
Examples of processing materials include quartz, feldspar, barite, calcite carbonate, limestone, talc, ceramic,iron ore, carborundum, bauxite, rock phosphate, coal and other materials, total about 400 kinds of materials.
More information welcome to Click
>>>CLRM Mill<<<
CLRM Raymond Mill Advantages
>>>Triple vibrating damping for working stability: Triple damping to resist the vibrating transmit in the main unit base, volute airflow house, unit body, grinding part. Be sure the stable grinding condition.
>>>New type impeller of classifier with VFD: Equipped the new cage type impeller for classifier, adjust the speed freely by VFD, enlarge the output size range to 80-500 mesh.
>>>Grinding device adopts superimposed multistage seal, prolong the lubricating cycle.
Specification
Model | Roller | Ring | Main Shaft Speed (r/min) | Feed Size (mm) | Mesh | Motor (kw) | Capacity (t/h) | ||||
Qty (pcs) | Size (mm) | External Dia/mm | H (mm) | ||||||||
CLRM9720 | 3-4 | 320*200 | 1077 | 200 | 145 | <20 | 80-500 | 45*15*37 | 1-7 | ||
CLRM1280 | 3 | 370*240 | 1280 | 240 | 125 | <20 | 80-400 | 75*15*55 | 2-12 | ||
CLRM1300 | 4 | 410*280 | 1390 | 280 | 112 | <20 | 80-400 | 110*22*90 | 3-15 | ||
CLRM1620 | 4 | 450*300 | 1620 | 300 | 102 | <20 | 80-400 | 160*30*132 | 5-20 | ||
CLRM1700 | 4 | 510*300 | 1700 | 300 | 102 | <30 | 80-325 | 185*37*160 | 6-25 | ||
CLRM1720 | 4 | 510*300 | 1850 | 300 | 92 | <35 | 80-325 | 250*45*185 | 6-25 | ||
CLRM1900 | 4 | 600*300 | 1900 | 300 | 92 | <35 | 80-325 | 250*45*200 | 8-32 | ||
CLRM2150 | 4 | 600*300 | 2150 | 300 | 85 | <35 | 80-325 | 315*45*280 | 12-35 | ||

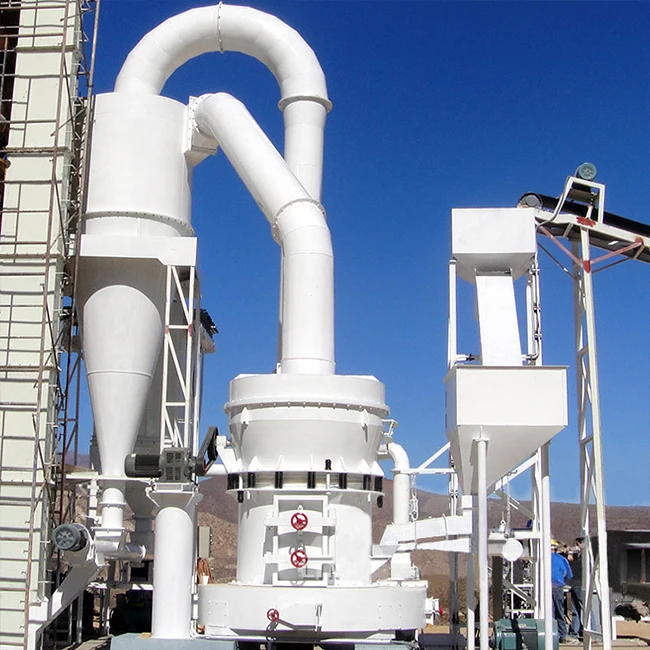

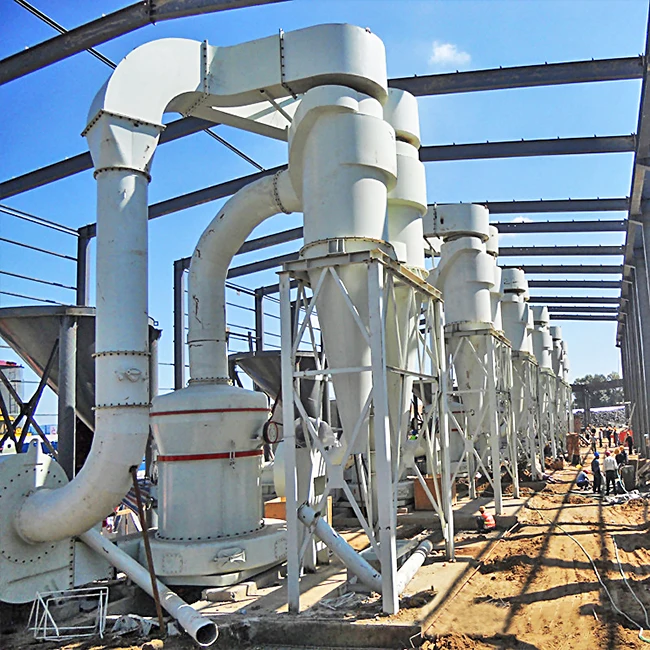

CLRM Raymond Mill Customer Site
Recommend Products
Shanghai Clirik Machinery is a professional mining equipment manufacturer, if you need our CLRM enhanced roller grinding mill or other mining equipment, you are welcome to visit our Online Store
