Product Description

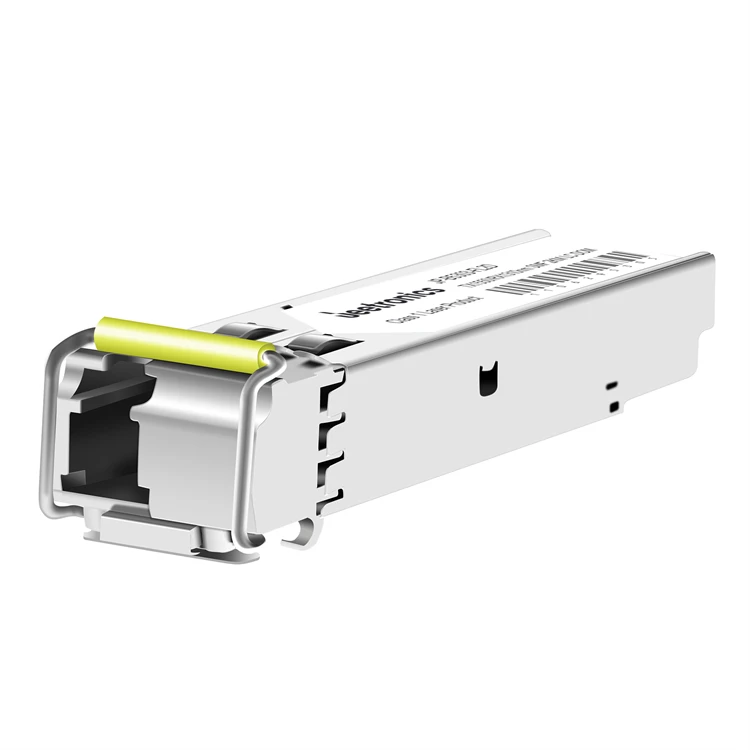

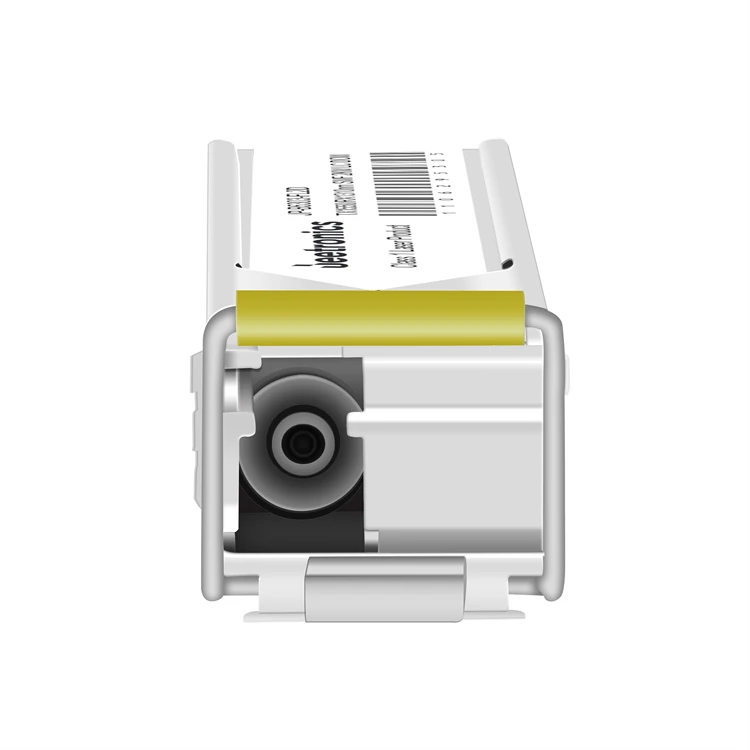

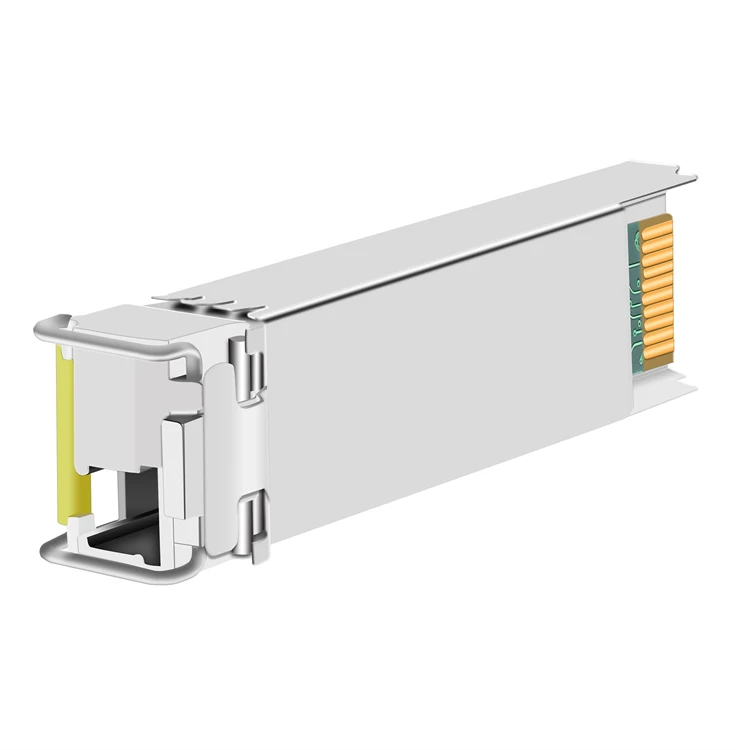

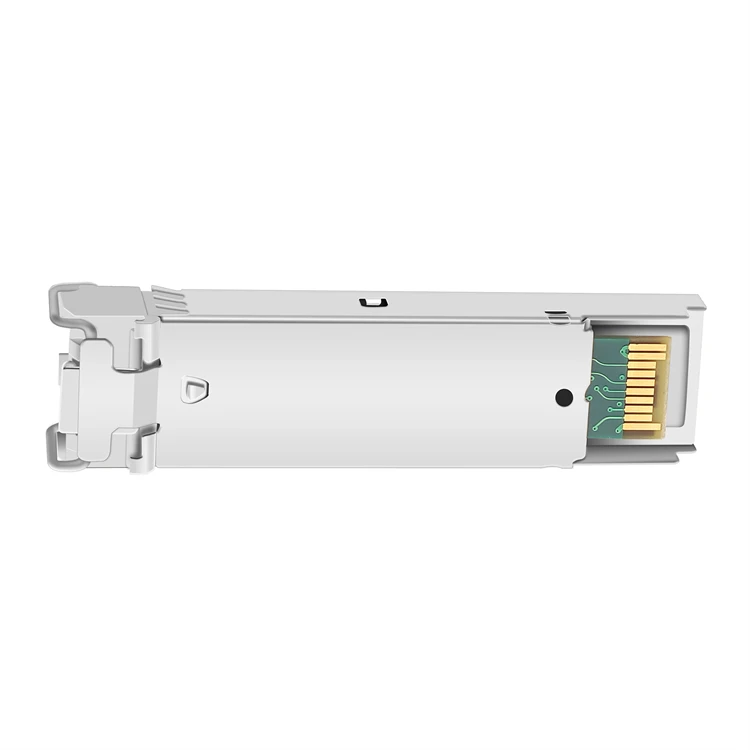

SFP 155Mbps TX1550/RX1310nm SMF 2KM Simplex LC Optical Transceiver
P/N | JP-B5303-FL2D |
Form Factor | SFP |
Standard & protocal | 100BASE BX |
Data Rate | 155Mbps |
WaveLength | TX1550/RX1310nm |
Media | SMF |
Reach | 2KM |
Interface | Simplex LC |
Tx Source | FP |
Rx Source | PIN |
Tx Power | -15~-8dBm |
Rx Power | ≦-28dBm |
Temp. | Tc/Ti |
Features
* Hot-Pluggable SFP Footprint
* Supports upto 155Mbps Data Rates
* Single 3.3V Power Supply and Industry Low Power dissipation
* Max link lenght Up to 2KM on SMF Fiber
* Class 1 Laser Safety Compliant
* RoHS 6 compliant (lead free)
* Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
* Compliant with SFP MSA Specification
* Low power consumption
* Supports upto 155Mbps Data Rates
* Single 3.3V Power Supply and Industry Low Power dissipation
* Max link lenght Up to 2KM on SMF Fiber
* Class 1 Laser Safety Compliant
* RoHS 6 compliant (lead free)
* Operating Case Temperature : 0~70℃ (Extended /Industrial grade optional)
* Compliant with SFP MSA Specification
* Low power consumption
SFP 155Mbps TX1550/RX1310nm SMF 2KM Simplex LC Optical Transceiver
JP-B5303-FL2D is a MSA compliant 155Mbps SFP Packaged Transceiver. It is designed,assembled,tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.
Ordering Information
Compatible SFP 155MBPS Transceiver Module
P/N | DataRate | WaveLength | Reach | Interface | Media | Tx Power | Rx Power | Temp. |
JP-B5303-FL2D | 155Mbps | TX1550/RX1310nm | 2KM | Simplex LC | SMF | -15~-8dBm | ≦-28dBm | Tc/Ti |
JP-B3503-FL2D | 155Mbps | TX1310/RX1550nm | 2KM | Simplex LC | SMF | -15~-8dBm | ≦-28dBm | Tc/Ti |
JP-B3503-FL20D | 155Mbps | TX1310/RX1550nm | 20KM | Simplex LC | SMF | -15~-8dBm | ≦-34dBm | Tc/Ti |
JP-B5303-FL20D | 155Mbps | TX1550/RX1310nm | 20KM | Simplex LC | SMF | -15~-8dBm | ≦-34dBm | Tc/Ti |
JP-B3503-DL40D | 155Mbps | TX1310/RX1550nm | 40KM | Simplex LC | SMF | -5~0dBm | ≦-34dBm | Tc/Ti |
JP-B5303-DL40D | 155Mbps | TX1550/RX1310nm | 40KM | Simplex LC | SMF | -5~0dBm | ≦-34dBm | Tc/Ti |
JP-B4503-DL80D | 155Mbps | TX1490/RX1550nm | 80KM | Simplex LC | SMF | -5~0dBm | ≦-34dBm | Tc/Ti |
JP-B5403-DL80D | 155Mbps | TX1550/RX1490nm | 80KM | Simplex LC | SMF | -5~0dBm | ≦-34dBm | Tc/Ti |
Product Usage
SFP 155Mbps TX1550/RX1310nm SMF 2KM Simplex LC Optical Transceiver
SFP 155Mbps TX1550/RX1310nm SMF 2KM Simplex LC Optical Transceiver
Related Products
Exhibition
Packing&Shipping
Company Introduction
Jeetronics communications is an innovative and competitive provider of optical networking and connectivity products for consumers,small businesses, medium to large-sized enterprises, and service providers in communications, data center, industrial automation,consumer electronics markets.
Backed by strong engineering and manufacturing experience, Jeetronics was established to deliver the high quality and reliable networking product solutions to the marketplace and customers with cutting-edge technologies and industry leading manufacturing facilities at a competitive cost.
We help our customer simplify networking and connectivity complexity with focus on following product lines:
* Fiber Optical Transceivers
* Direct Attach Copper Cables(DAC) & Active Optical Cables(AOC)
* Ethernet switches , Media Converters
* Passive xWDM Mux/Demux/OADMs
* MTP/MPO Cabling, Fiber Patch Cables
* Networking Accessories
At Jeetronics, We are driven to deliver cutting-edge technologies, to establish long-lasting partnership with our customers globally and focus on their growth and success by simplifying network connectivity complexity with unparalleled availability, performance, and simplicity, so that they can focus on business outcomes and new innovations.
Backed by strong engineering and manufacturing experience, Jeetronics was established to deliver the high quality and reliable networking product solutions to the marketplace and customers with cutting-edge technologies and industry leading manufacturing facilities at a competitive cost.
We help our customer simplify networking and connectivity complexity with focus on following product lines:
* Fiber Optical Transceivers
* Direct Attach Copper Cables(DAC) & Active Optical Cables(AOC)
* Ethernet switches , Media Converters
* Passive xWDM Mux/Demux/OADMs
* MTP/MPO Cabling, Fiber Patch Cables
* Networking Accessories
At Jeetronics, We are driven to deliver cutting-edge technologies, to establish long-lasting partnership with our customers globally and focus on their growth and success by simplifying network connectivity complexity with unparalleled availability, performance, and simplicity, so that they can focus on business outcomes and new innovations.
Our Services & Strength
We utilizes the ERP system to automate various processes for better efficiency to deliver the best services to our customers.
Our products are compliant and certified with ISO 9001: 2000, CE, RoHS & FCC.
Our products are compliant and certified with ISO 9001: 2000, CE, RoHS & FCC.
FAQ
Q1.Can we get a sample?
Yes,surely. But sometimes we have to charge the cost for samples.
Q2.Can you offer a better price?Any discount?
Yes,surely. Depending on different product/quantity/requirement,we provide different offer.
Q3.Do you have MOQ?
For hot selling models,we normally keep enough stock with No MOQ. For custom models,there will be different MOQ according to different requests.
Q4.OEM,ODM Severice is available?
Yes,JEETRONICS is providing the flexible OEM/ODM service to our customers.
Q5.Can you take care for the shipment?
Yes,surely. We would like to handle the shipment for you. There are express like as DHL / UPS / FedEx, Air freight and Seafreight.
Q6.Lead time?
Product with stock - 2-3 days Sampling for custom product - 5-10 days Batch order - 10-20 days normally
Q7.What is your warranty period?
Warranty period is 3 years. This warranty does not cover damage caused by man-made damage,improper care, negligence,normal wear tear, and force majeure such as natural disasters,earthquakes,fires, etc.
Yes,surely. But sometimes we have to charge the cost for samples.
Q2.Can you offer a better price?Any discount?
Yes,surely. Depending on different product/quantity/requirement,we provide different offer.
Q3.Do you have MOQ?
For hot selling models,we normally keep enough stock with No MOQ. For custom models,there will be different MOQ according to different requests.
Q4.OEM,ODM Severice is available?
Yes,JEETRONICS is providing the flexible OEM/ODM service to our customers.
Q5.Can you take care for the shipment?
Yes,surely. We would like to handle the shipment for you. There are express like as DHL / UPS / FedEx, Air freight and Seafreight.
Q6.Lead time?
Product with stock - 2-3 days Sampling for custom product - 5-10 days Batch order - 10-20 days normally
Q7.What is your warranty period?
Warranty period is 3 years. This warranty does not cover damage caused by man-made damage,improper care, negligence,normal wear tear, and force majeure such as natural disasters,earthquakes,fires, etc.
Похожие товары
Расширенный ZXC6610 WiFi 6 двухдиапазонный ONU 4GE волоконный маршрутизатор для надежных сетей XPON/GEPON
1 771,57-1 889,67 ₽
V3T404 волоконно-оптическая коммутационная панель 4x100GE плата обработки услуг TCP сетевое коммуникационное оборудование для FTTH IP/4G
921 212,76-944 833,60 ₽
ONU F6610M GPON двухдиапазонный WIFI 6 4GE + 2 4G/ 5G TEL USB WIFI6 ONT Lan порт Gpon оптоволоконный модем китайская прошивка
1 358,20-1 889,67 ₽
GPON 1GE + 3FE Huwei ONT gepon onu оптический сетевой блок FTTH одногигабитный порт модем Hg8546M
496,04-767,68 ₽
OEM Xpon Gpon ONU 4 порта 1Ge + 3Fe HG8546M модем FTTH доступ к сети

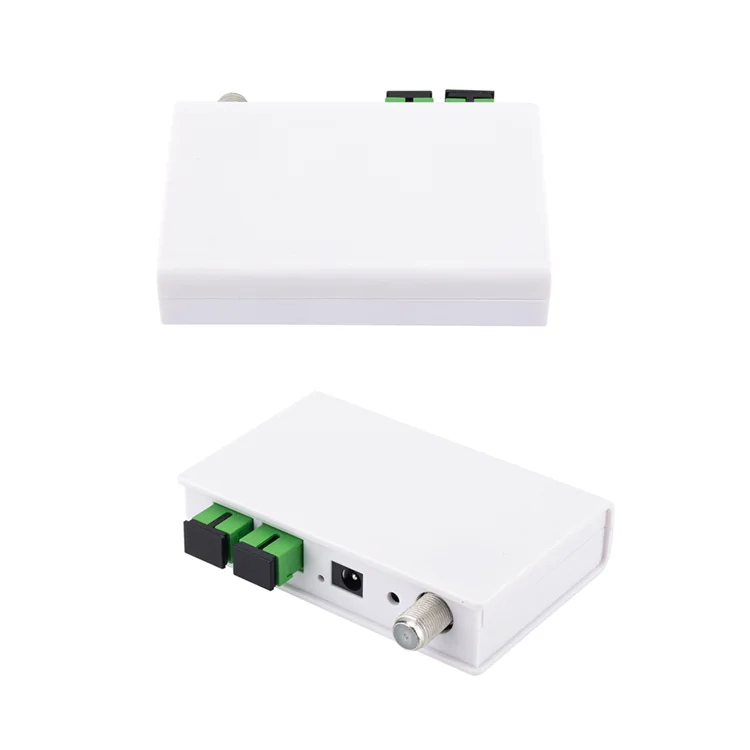

Заводская оптовая цена CATV оптический приемник FTTH для TV сети
413,37-531,47 ₽

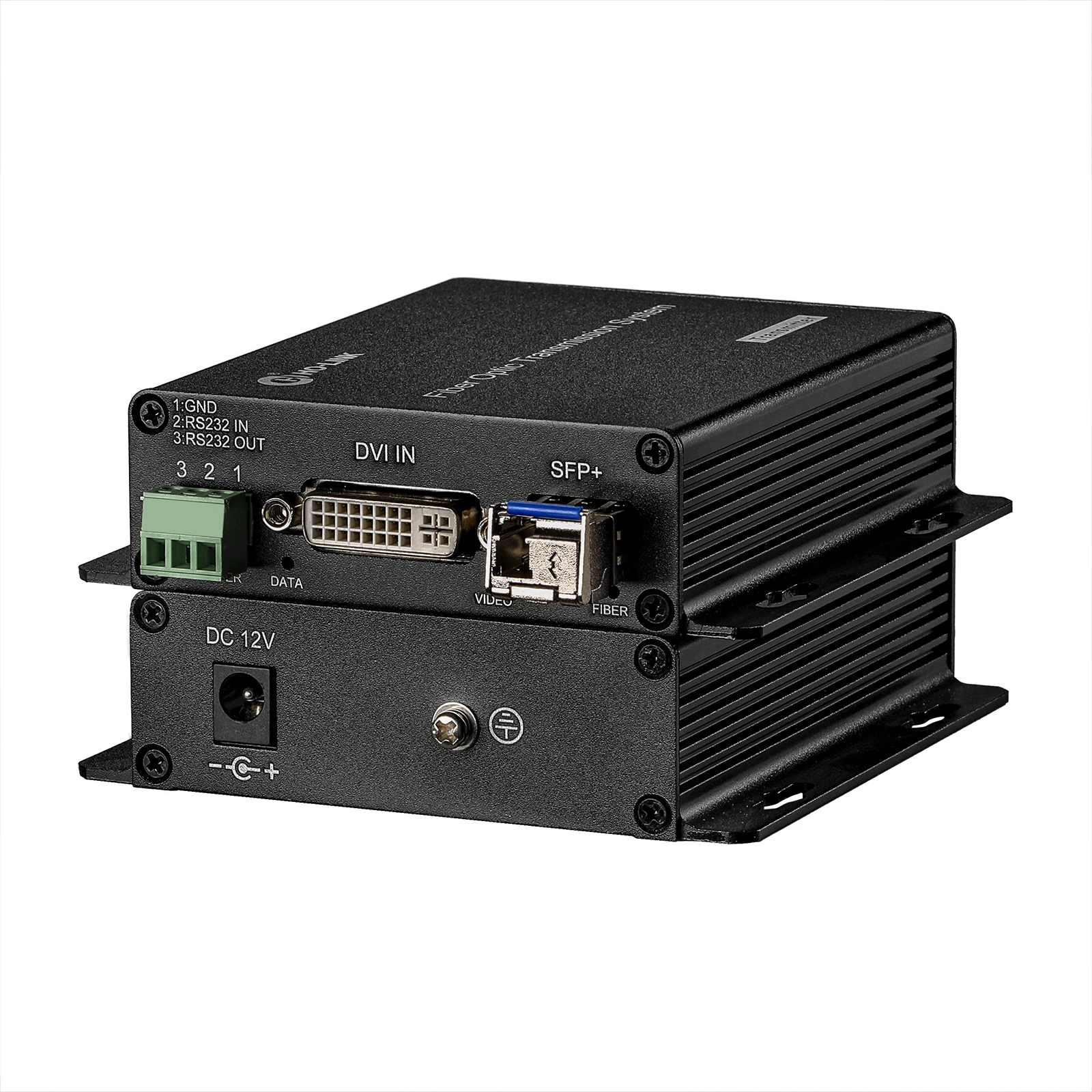

Оптический расширитель dvi HL-D10iL 4K DVI волоконный передатчик и приемник
