Промышленный встроенный компьютер i3/i5/i7 CPU Linux/Window/Ubuntu система железнодорожного транспорта безвентиляторный промышленный контроль мини бокс ПК
- Категория: >>>
- Поставщик: Guangzhou Weiqian Computer Technology Co. Ltd.Guangzhou Ltd.
Сохранить в закладки 1601320122366:
Описание и отзывы
Характеристики
Product Description

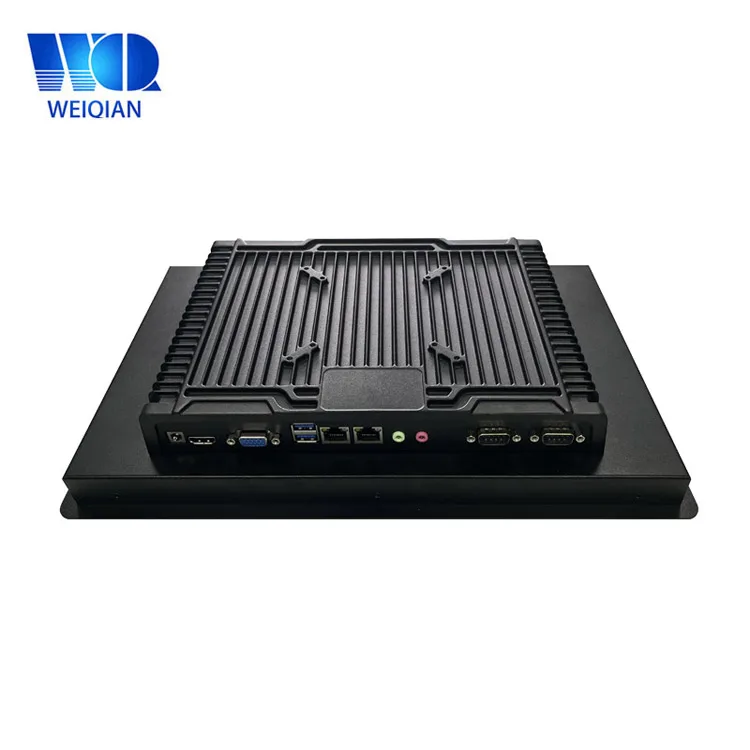

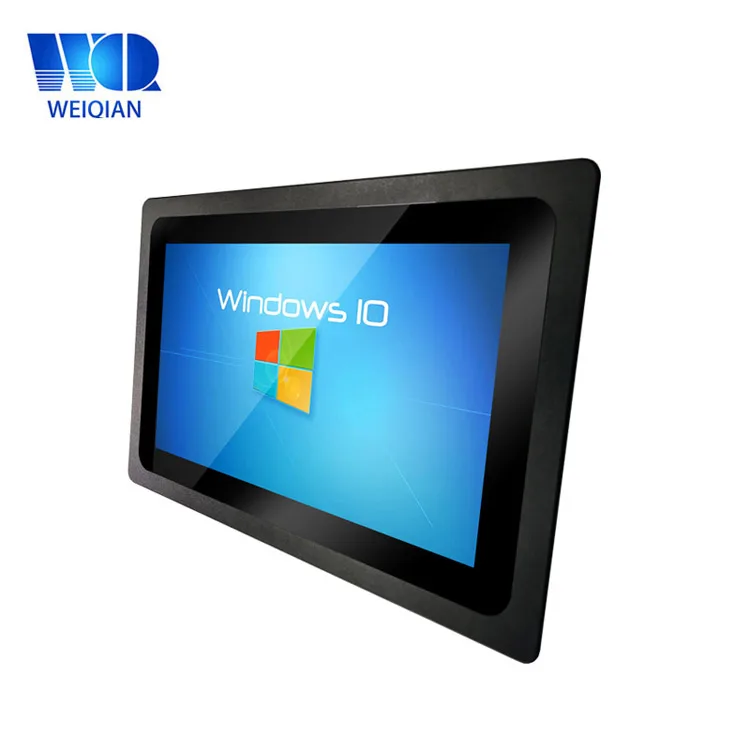

13.3 inch IP65 Industrial Panel PC i5 6th WIN10 pro touchscreen tablet GPIO Rugged all in one computer
Product Paramenters
Product model | WPC-133C-LM00 |
Basic parameters | CPU：Quad-core i5-6360Ui5-6360U，Frequency 2.0GHz, Max 3.1GHz Integrated graphics: Intel Iris 540 Memory ：8GB DDR4L (UP to 64GB) SSD：128GB |
Display screen | Size ：13.3 inch Resolution ：1920×1080 Wide-temperature,2070k colors or 24-bit true colors LED backlight:lifetime>25000 hours |
Touch screen | Capacitive touchscreen |

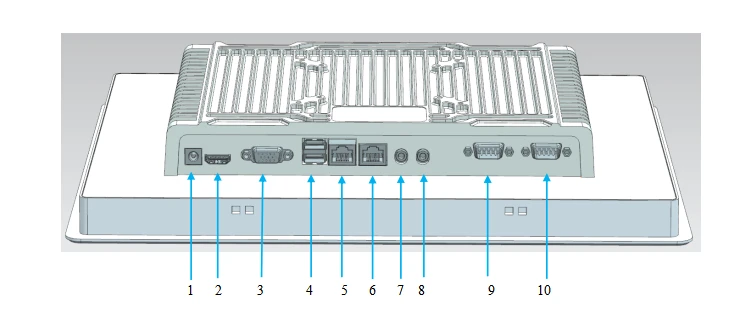

Hardware interface | 1 channel VGA interface 3 channel DB9-232 interface (COM3、COM4、COM5)，COM3 can be customized as DB9-485 1 channel HDMI interface 2 channel USB Host2.0 interface, support usual USB device such as mouse, keyboard, U disk, etc. 2 channel 1000M Ethernet interface 1 channel 3.5 audio interface +1 channel MIC interface 1 channel DC5.5-2.5(DC12V) power input interface 1 channel power button switch WIFI (optional) |
OS | Windows10 |

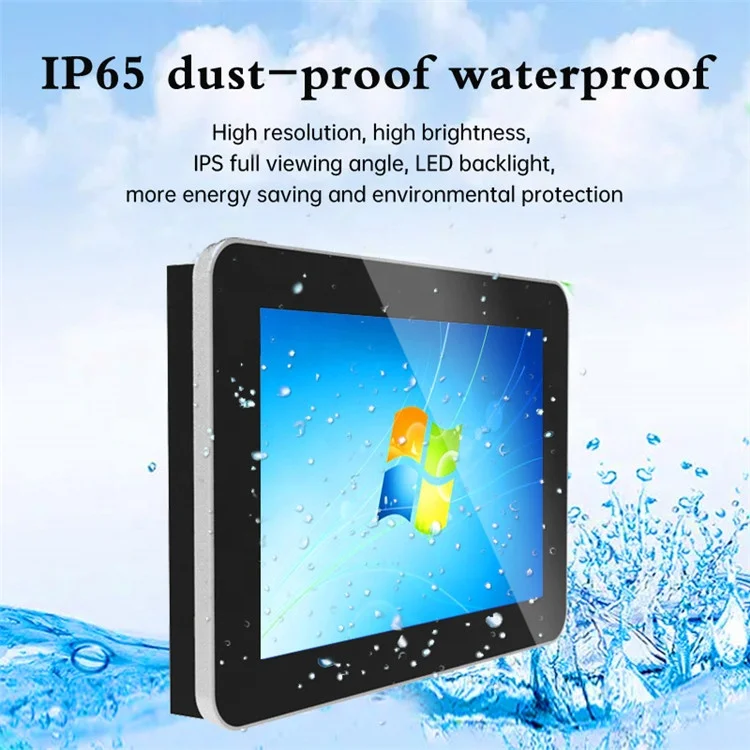

Defend degree | IP65 (front panel) |
Working environment | Power :DC 12V/5A Working temperature:-10~50℃ Storage temperature:-20~80℃ Working humidity:10～90%RH |
specification | Shell structure:Metal Panel size：371x241（mm） Trepanning size：351.5x223.5 （mm） |
Application area | Industrial control, detection device, instruments and meters, security monitoring, medical apparatus and instruments, intelligent terminals embedded high-end application. |
Software support | Support general Windows development software. |
Details Images

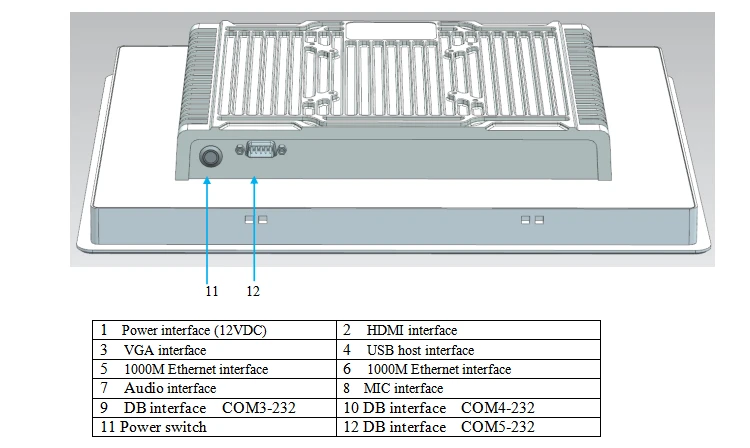

2.1 RS-232 interface
3 channel RS-232 serial port, support the highest-level baud rate is 115200bps. The corresponding interface in Windows system COM3、COM4、COM5.

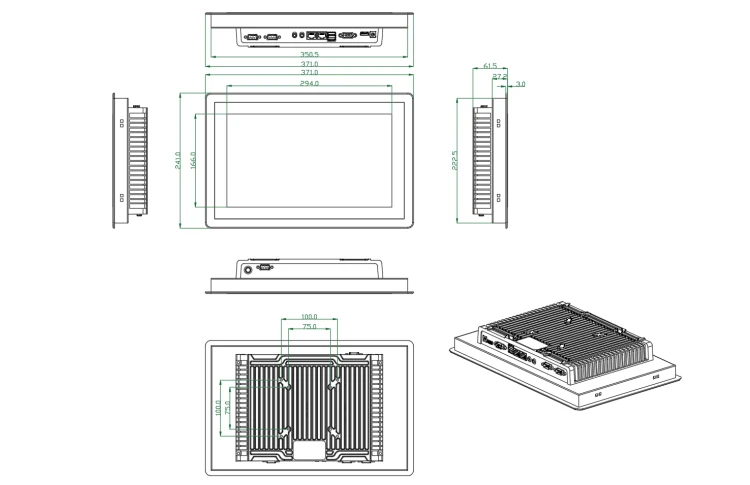

3. Exterior size
Exterior size：371x241x61.5 Trepanning size：351.5x223.5 （mm）

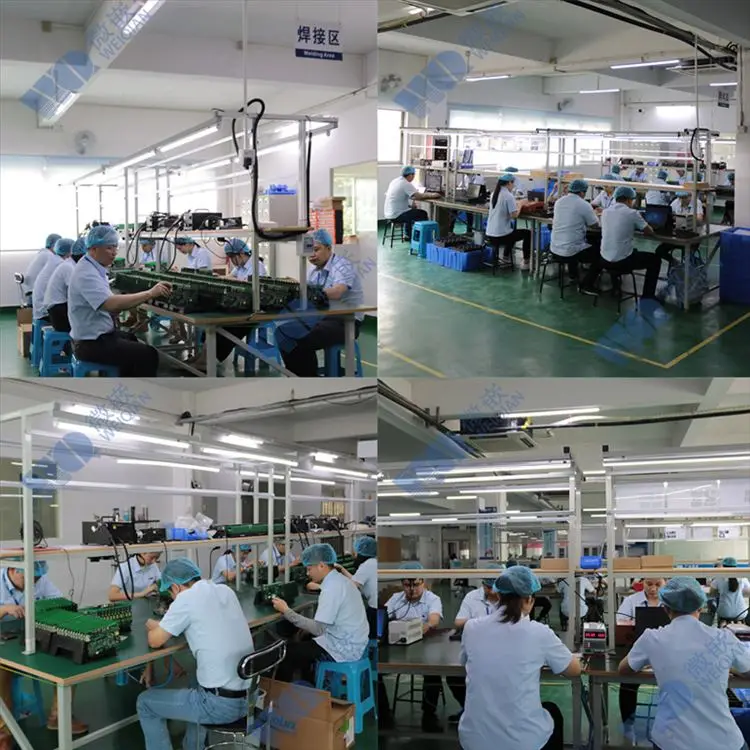

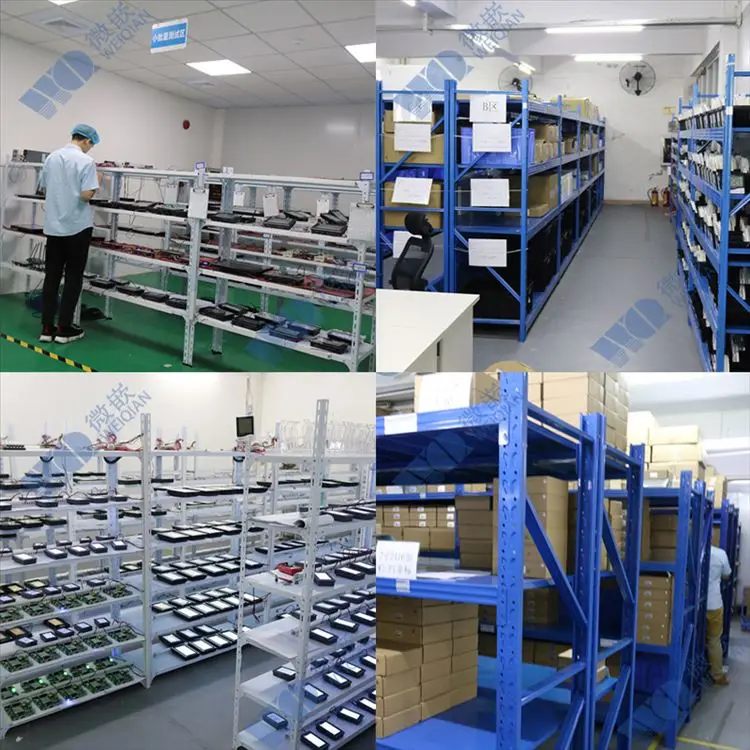

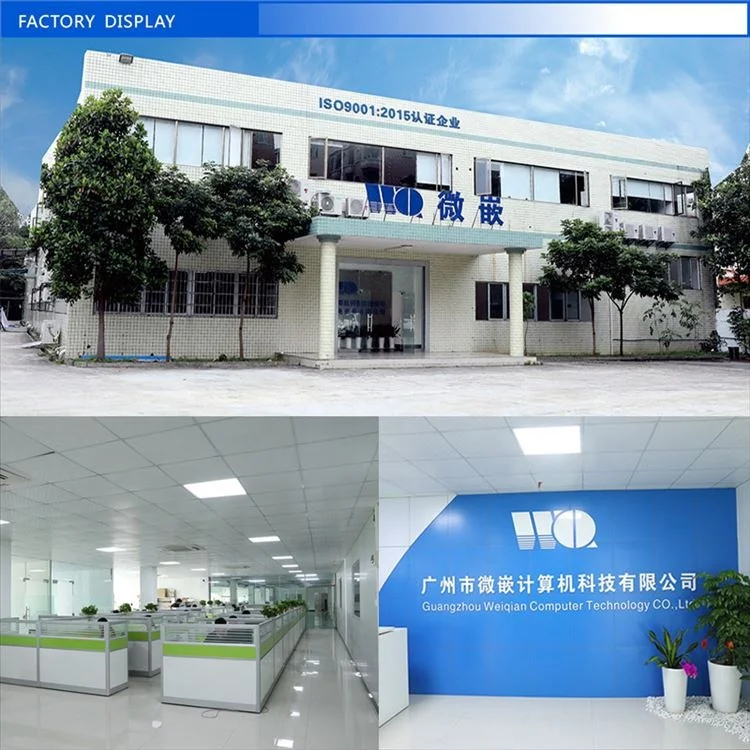

Company Profile
Exhibition
Certifications
Our service:
1. We guarantee that all products have been checked and packaged in good condition before dispatch. We strive for 100% customer satisfaction on every sale we complete.
2. Our products are direct from own factory, there is no middle man, no high markup, so we can provide quality items for a very competitive price.
3. Whether you are not satisfied with our products and services or you have any other questions, Please contact us at first time. We will respond you at 24 hours.
2. Our products are direct from own factory, there is no middle man, no high markup, so we can provide quality items for a very competitive price.
3. Whether you are not satisfied with our products and services or you have any other questions, Please contact us at first time. We will respond you at 24 hours.
Warranty conditions:
1.All products have 1 year warranty, no artificially damaged.
2.If there are some problems with the goods, the buyer needs to supply related documents (Photos, video etc) or damage to the original spare parts to old change new. Please contact the seller before you disassemble machines. please note, we will be not responsible for the goods you disassemble any goods without the seller's permit.
2.If there are some problems with the goods, the buyer needs to supply related documents (Photos, video etc) or damage to the original spare parts to old change new. Please contact the seller before you disassemble machines. please note, we will be not responsible for the goods you disassemble any goods without the seller's permit.
FAQ
Q: What kind of all-in-one industrial panel pc do you manufacture?

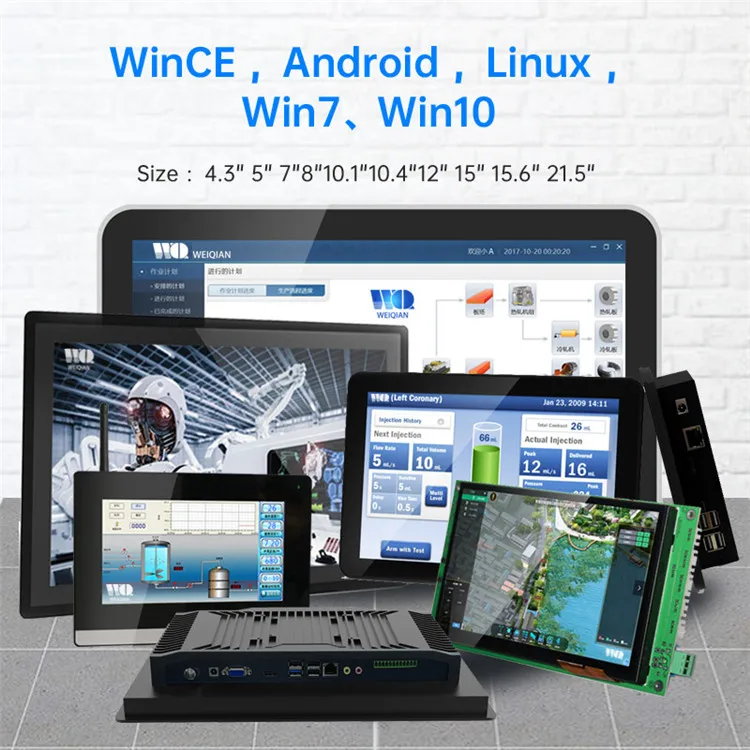

A: Windows CE / Android / Linux Industrial Panel PC based on ARM Architecture ;Windows 7 /Windows 10 based on X86 Architecture since 2005 .
Q: What is the main size for your panel pc and industrial monitor?
A: 4.3" / 5"/ 7"/ 8"/10.1"/10.2"/ 10.4"/11.6"/12"/13.3"/15"/15.6"/17"/19"/21.5"/32" and wide screen the same zise. We also support the customized.
Q: Does this industrial panel pc support secondary development?
A: Weiqian’s industrial panel pc can support secondary development.
Q: What industry is your industrial panel pc applied in?
A: Medical Equipment,Electric Power Equipment, Intelligent Parking ,Industrial Automation Production, Environmental Monitoring System, Smart Factory, Smart Warehouse, Smart Buildings, Smart Transportation, Smart Farming, Computer Room Monitoring system, instruments and meters, security monitoring, intelligent terminals embedded high-end application, etc.
Q: Can we printing our logo on the Plastic case or Metal case ? What is MOQ ?
A: Yes,we can do the silk-printing or UV printing LOGO in the case. MOQ is 200pcs.
Q: Whether your industrial panel pc support the OEM / ODM?
A: Weiqian ‘s industrial panel PC support the customization with size, function, appearance, resolution, high brightness ,boot interface and etc.
Q: What kind of inspection you can provide?
A: Weiqian has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales
representative, to guarantee all signage players are in perfect condition before shipment.
Q: What is your warranty period?
A: 1 Year warranty period & Lifetime technical support.
A: Windows CE / Android / Linux Industrial Panel PC based on ARM Architecture ;Windows 7 /Windows 10 based on X86 Architecture since 2005 .
Q: What is the main size for your panel pc and industrial monitor?
A: 4.3" / 5"/ 7"/ 8"/10.1"/10.2"/ 10.4"/11.6"/12"/13.3"/15"/15.6"/17"/19"/21.5"/32" and wide screen the same zise. We also support the customized.
Q: Does this industrial panel pc support secondary development?
A: Weiqian’s industrial panel pc can support secondary development.
Q: What industry is your industrial panel pc applied in?
A: Medical Equipment,Electric Power Equipment, Intelligent Parking ,Industrial Automation Production, Environmental Monitoring System, Smart Factory, Smart Warehouse, Smart Buildings, Smart Transportation, Smart Farming, Computer Room Monitoring system, instruments and meters, security monitoring, intelligent terminals embedded high-end application, etc.
Q: Can we printing our logo on the Plastic case or Metal case ? What is MOQ ?
A: Yes,we can do the silk-printing or UV printing LOGO in the case. MOQ is 200pcs.
Q: Whether your industrial panel pc support the OEM / ODM?
A: Weiqian ‘s industrial panel PC support the customization with size, function, appearance, resolution, high brightness ,boot interface and etc.
Q: What kind of inspection you can provide?
A: Weiqian has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales
representative, to guarantee all signage players are in perfect condition before shipment.
Q: What is your warranty period?
A: 1 Year warranty period & Lifetime technical support.
