Экран 4 уровня criba вибраторная машина для просеивания цемента
2 000,00-12 000,00 $
Двойной мотор Новый Вибрационный скрининг машина минеральный экран для горнодобывающей промышленности
- Категория: >>>
- Поставщик: Henan Anshun Machinery Equipment Co. Ltd.Henan Ltd.
Сохранить в закладки 1601320349852:
Описание и отзывы
Характеристики
Products Description

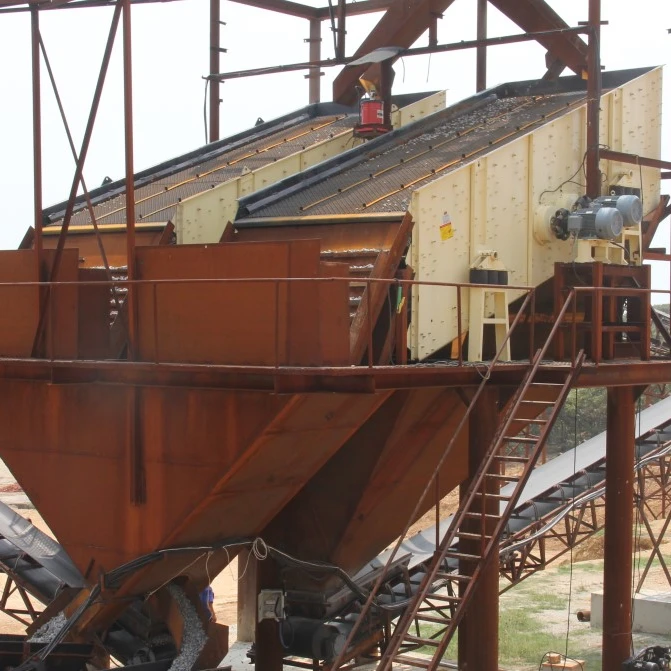

YK series vibrating screen is a high-efficiency vibrating screening equipment that uses an inner eccentric shaft or block eccentricity as the excitation force. It has the advantages of a stable structure, high screening efficiency, low power consumption, and low noise. It is widely used in product grading and screening operations in many industries.
YK series vibrating screens are widely used in quarrying sand and gravel, as well as product grading in coal preparation, mineral processing, building materials, power, and chemical industries. Its efficient and stable screening performance has been recognized by the majority of users.
YK series vibrating screens are widely used in quarrying sand and gravel, as well as product grading in coal preparation, mineral processing, building materials, power, and chemical industries. Its efficient and stable screening performance has been recognized by the majority of users.
Working Principle
How to work
The round vibrating screen machine mainly consists of a screen box, a screen, a vibrator, a vibration absorber spring device, a chassis and so on. The vibrator is installed on the side plate of the screen box, and the motor rotates through the triangle belt to produce the centrifugal inertial force and force the vibration of the screen box. The side plate of the screen machine is made of high quality steel plate, and the side plate is connected with the beam and the base of the exciter with high strength bolts or rivets of ring groove. The vibrator is mounted on the side plate of the screen box and rotated by the motor through the coupling to produce centrifugal inertia force, forcing the screen to vibrate.
Product Advantages
1. Simple and reliable eccentric system, connected by universal shaft;
2. Strong screening ability and high durability;
3. The main machine adopts laser cutting technology, which has higher precision;
4. Adopt Q245R container plate, the screen body is strong and shock-resistant;
5. Adopt thin oil lubrication, and replace the thin oil every 600-1000 hours, which is more convenient for maintenance.
2. Strong screening ability and high durability;
3. The main machine adopts laser cutting technology, which has higher precision;
4. Adopt Q245R container plate, the screen body is strong and shock-resistant;
5. Adopt thin oil lubrication, and replace the thin oil every 600-1000 hours, which is more convenient for maintenance.
Model | Screen Space (mm) | Layers | Screen Mesh Size (mm) | Feed Size (mm) | Capacity (t/h) | Power (kw) | Vibrating Frequency (hz) | Double Amplitude |
2YK-1548 | 4800×1500 | 2 | 5-50 | ≤100 | 50-250 | 15 | 870 | 5-9 |
3YK-1848 | 4800×4800 | 3 | 5-50 | ≤100 | 50-250 | 18.5 | 870 | 5-9 |
3YK-1860 | 6000×1800 | 3 | 5-50 | ≤100 | 50-250 | 22 | 870 | 5-9 |
2YK-2160 | 6000×2100 | 2 | 5-50 | ≤100 | 60-300 | 22 | 730 | 5-9 |
3YK-2160 | 6000×2100 | 3 | 5-50 | ≤100 | 60-300 | 30 | 730 | 5-9 |
2YK-2460 | 6000×2400 | 2 | 5-100 | ≤100 | 100-460 | 37 | 730 | 5-9 |
2YK-2470 | 7000×2400 | 2 | 5-100 | ≤100 | 120-700 | 37 | 800-900 | 5-9 |
2YK-2870 | 7000×2800 | 2 | 5-150 | ≤100 | 150-1000 | 45 | 800-900 | 7-12 |
3YK-3070 | 7000×3000 | 3 | 5-150 | ≤100 | 180-1000 | 2×37 | 800-900 | 7-12 |
3YK-3075 | 7500×3000 | 3 | 5-150 | ≤100 | 210-1100 | 2×37 | 800-900 | 8-12 |
3YK-3680 | 8000×3600 | 3 | 5-150 | ≤100 | 350-1400 | 2×45 | 800-900 | 8-12 |
About Us
Company Profile
Henan ANSHUN Machinery Equipment Co., Ltd. is a modern enterprise that integrates research and development, production, sales, and service of mining crushing, construction sand and gravel aggregate, and crushing and sand making. As one of the first companies to pass the ISO9001 quality certification system and an EU CE-certified company, the company produces and sells products to Southeast Asia, Central Asia, Africa, the Middle East, and other countries and regions. The perfect after-sales service management system has made the company′s products recognized and praised by the industry. The ANSHUN brand is well-known at home and abroad and has become a shining pearl in the mining machinery manufacturing industry.
About Customer Visits
Anshun Crusher has been exported to more than 150 countries around the world. This global business layout requires Anhsun Crusher to frequently communicate and exchange with customers from all over the world; visiting customers may include potential customers, existing customers, and partners.
Anshun Machinery attaches great importance to customer visits and has formulated a complete reception process and standards for this purpose. The company has a professional reception team responsible for receiving visiting customers, arranging itineraries, and providing explanations and demonstrations.
Packing&Shipping
FAQ
Support:
We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.
After-sales service support :
After we sign the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
Technological support :
ANSHUN Machinery has been largely adopting new technologies, new techniques and high-tech equipment. And ANSHUN Machinery also has strict and effective quality control system. We have obtained ISO9001:2000, TUV and CEquality system certificate.
