Yuefeng навесная настенная пила световой люк машина для резки крыши оконный дырокол поставка алюминия Лидер продаж 2024
1 660 519,00 ₽
WEIKE WJK 550 Высококачественная алюминиевая навесная настенная интерфейсная режущая пила машина для изготовления окон прочная конструкция двигателя
- Категория: >>>
- Поставщик: Shandong Weike Cnc Machinery Co. Ltd.Shandong Ltd.
Сохранить в закладки 1601322212434:
Описание и отзывы
Характеристики

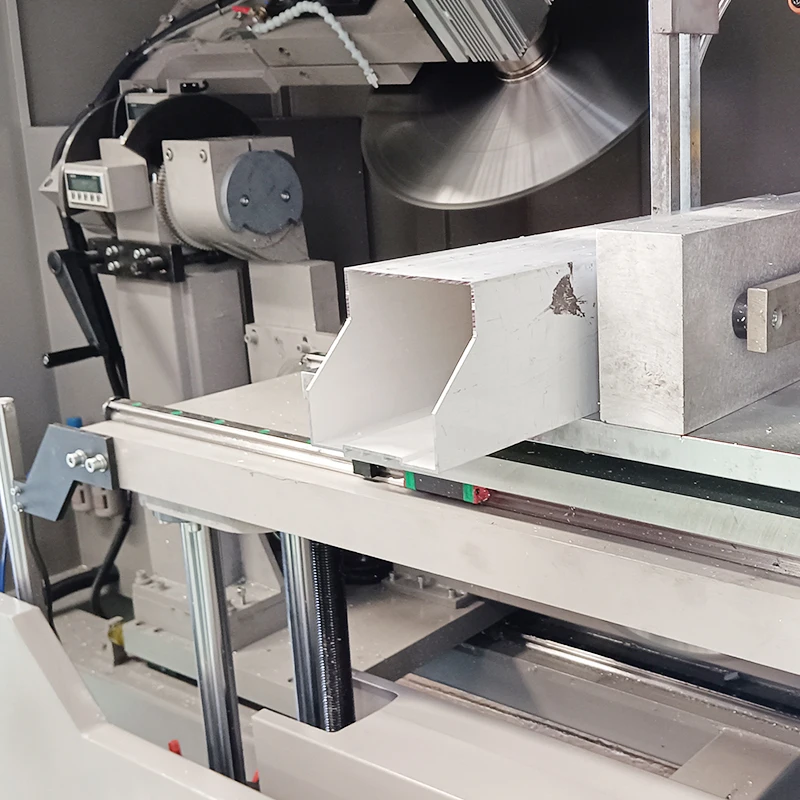

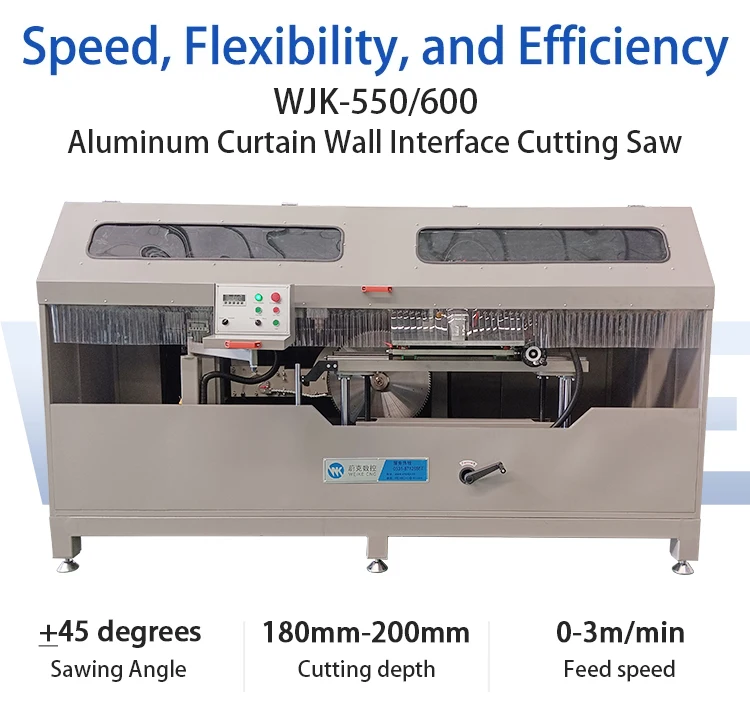

Aluminum Curtain Wall Interface Cutting Saw
Introducing our Aluminum Curtain Wall Interface Cutting Saw, engineered for precision cutting of aluminum curtain wall and skylight profiles with special end-face angles. Designed for simplicity, reliability, and ease of maintenance, this machine delivers high performance with advanced technology to meet the demands of modern aluminum profile processing.
Key Features:
1. Versatile Angle Cutting: Ideal for processing special interface angles on aluminum curtain wall and skylight profiles. The saw offers flexibility in cutting unique angles at the end faces of profiles, enabling custom solutions for diverse design requirements.
2. Easy Operation & Reliable Performance: The user-friendly design makes operation simple and intuitive, while the robust construction ensures consistent performance with minimal downtime. It’s the perfect choice for both small and large-scale production environments.

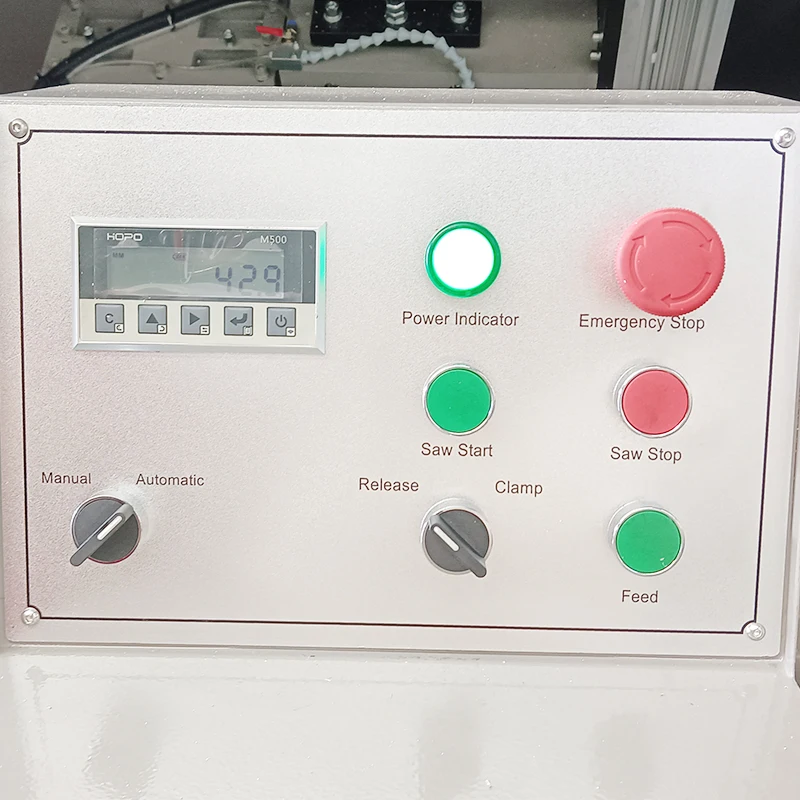

3. Digital Display Control System: Equipped with a magnetic scale control system, this saw provides precise digital display of the cutting angle and table height, ensuring that every adjustment is accurate and easy to monitor.
4. Efficient Adjustment Mechanism: The worktable and positioning devices are easily adjustable, allowing for fast and precise setup when cutting different profile angles. This flexibility increases productivity and allows for greater precision in every cut.
5. High Precision Cutting: Featuring a Simek direct-coupled spindle motor, the machine offers smooth and stable cutting, resulting in higher efficiency and accuracy. This ensures smooth operation and quality cuts every time.
6. Cooling & Lubrication System: The built-in spray cooling system provides effective cooling and lubrication, which not only keeps the saw blade at an optimal temperature but also extends the life of the blade, reducing wear and tear during operation.
7. Oil-Water Separator: An integrated oil-water separator effectively reduces moisture in the lubrication system and automatically oils the cylinders at specified intervals. This feature helps lower the machine’s failure rate, ensures stable operation, and enhances cutting precision.
8. Safety Features: With a phase sequence protection relay, the machine automatically detects and corrects the electrical phase sequence to prevent the saw blade from reversing, safeguarding both the equipment and operator from potential damage and accidents.
Applications:
This cutting saw is perfect for companies involved in the production of aluminum curtain walls, skylights, and other specialized aluminum profiles. Whether working on large-scale commercial projects or custom-built designs, this machine guarantees precise, efficient cutting to meet the highest standards.
With its advanced features, ease of use, and reliable performance, the Aluminum Curtain Wall Interface Cutting Saw is an essential tool for manufacturers looking to improve productivity while maintaining exceptional cutting accuracy and quality.
Introducing our Aluminum Curtain Wall Interface Cutting Saw, engineered for precision cutting of aluminum curtain wall and skylight profiles with special end-face angles. Designed for simplicity, reliability, and ease of maintenance, this machine delivers high performance with advanced technology to meet the demands of modern aluminum profile processing.
Key Features:
1. Versatile Angle Cutting: Ideal for processing special interface angles on aluminum curtain wall and skylight profiles. The saw offers flexibility in cutting unique angles at the end faces of profiles, enabling custom solutions for diverse design requirements.
2. Easy Operation & Reliable Performance: The user-friendly design makes operation simple and intuitive, while the robust construction ensures consistent performance with minimal downtime. It’s the perfect choice for both small and large-scale production environments.
3. Digital Display Control System: Equipped with a magnetic scale control system, this saw provides precise digital display of the cutting angle and table height, ensuring that every adjustment is accurate and easy to monitor.
4. Efficient Adjustment Mechanism: The worktable and positioning devices are easily adjustable, allowing for fast and precise setup when cutting different profile angles. This flexibility increases productivity and allows for greater precision in every cut.
5. High Precision Cutting: Featuring a Simek direct-coupled spindle motor, the machine offers smooth and stable cutting, resulting in higher efficiency and accuracy. This ensures smooth operation and quality cuts every time.
6. Cooling & Lubrication System: The built-in spray cooling system provides effective cooling and lubrication, which not only keeps the saw blade at an optimal temperature but also extends the life of the blade, reducing wear and tear during operation.
7. Oil-Water Separator: An integrated oil-water separator effectively reduces moisture in the lubrication system and automatically oils the cylinders at specified intervals. This feature helps lower the machine’s failure rate, ensures stable operation, and enhances cutting precision.
8. Safety Features: With a phase sequence protection relay, the machine automatically detects and corrects the electrical phase sequence to prevent the saw blade from reversing, safeguarding both the equipment and operator from potential damage and accidents.
Applications:
This cutting saw is perfect for companies involved in the production of aluminum curtain walls, skylights, and other specialized aluminum profiles. Whether working on large-scale commercial projects or custom-built designs, this machine guarantees precise, efficient cutting to meet the highest standards.
With its advanced features, ease of use, and reliable performance, the Aluminum Curtain Wall Interface Cutting Saw is an essential tool for manufacturers looking to improve productivity while maintaining exceptional cutting accuracy and quality.
Specification
Model | WJK-550/600 |
Motor speed | 2800r/min |
Working pressure | 0.5-0.8MPa |
Gas consumption | 60L/min |
Sawing range of both saw blades | +45 degree--- -45degree |

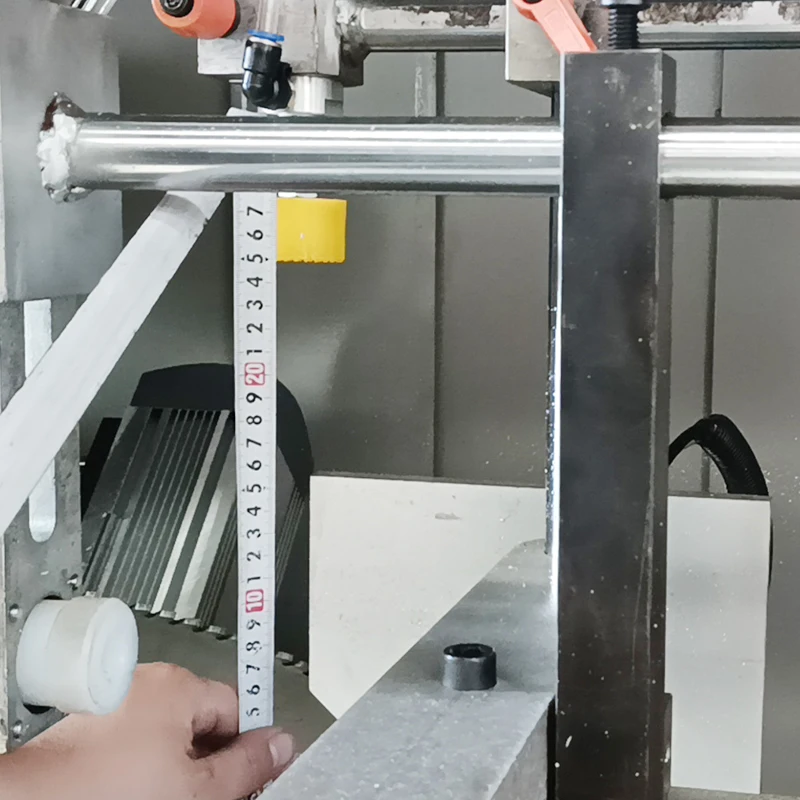

Depth of cut | 200mm |
Feed speed | 0-3m/min |
Dimensions | 3240*1380*1800mm |
Working pressure | 0.5-0.8MPa |
Control system | CNC |
After-sales service provided | Engineers available to service machinery overseas |
Factory Introduction
Shandong Weike CNC Machinery Co.,Ltd. is a well-known manufacturer specializing in the research, development, production and sales of aluminum doors, windows and curtain wall equipment in China. It‘s the most large-scale and industrialized production enterprise in the industry.
We have large production workshop and strong mechanical processing supporting capabilities, high-quality scientific research team and high-tech production team. We have strong research and development strength, perfect product system, and insists on independent innovation, improve products scientific and practical continuously. The company has several offices in China, forming a one-stop comprehensive service system integrating product development, production, sales and service.
After Sale Service Introduction
1. 3 year warranty. Provide a full range of technical support for life.
2. From monday to sunday 9am to 18pm. Experienced technician to guarantee lifetime online support (by whatsapp /skyper /wechat /email) . So there is no need to worry about technical support due to time difference.
3. Support local after-sales service. Up to 2024, we have provided on-site services to more than 50 countries and regions: Canada, Mexico, the United States, Ukraine, Russia, Italy, Poland, Spain, Brazil, Indonesia, India, Turkey, Thailand, Vietnam, Australia, etc.
Packing & Delivery
Professional package of mitre saw cutting machine:
1. Whole film packaging mitre saw cutting machine;
2. Anti-collision package edge;
3. Fumigation-free plywood wooden box and pallets with iron binding belt.
2. Anti-collision package edge;
3. Fumigation-free plywood wooden box and pallets with iron binding belt.
FAQ
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: What customized services you provided?
A: WEIKE CNC is the true manufacturer, we have own factory, therefore we could supply full OEM and ODM service.
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: What customized services you provided?
A: WEIKE CNC is the true manufacturer, we have own factory, therefore we could supply full OEM and ODM service.
