Электрический чугунный одновинтовой насос для удаления шлама и сточных вод тяжелой нефти фармацевтической промышленности

Сохранить в закладки 1601322214841:


Цена:180,00-260,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики

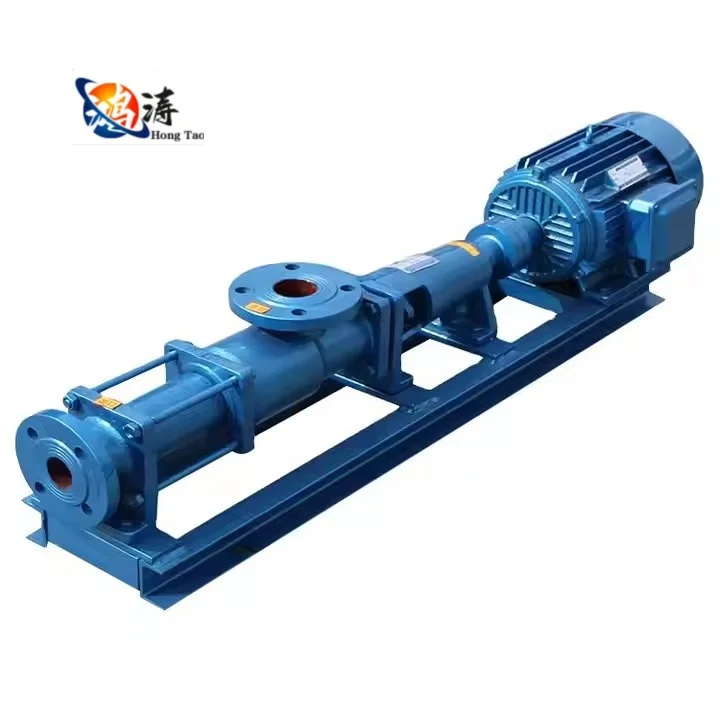

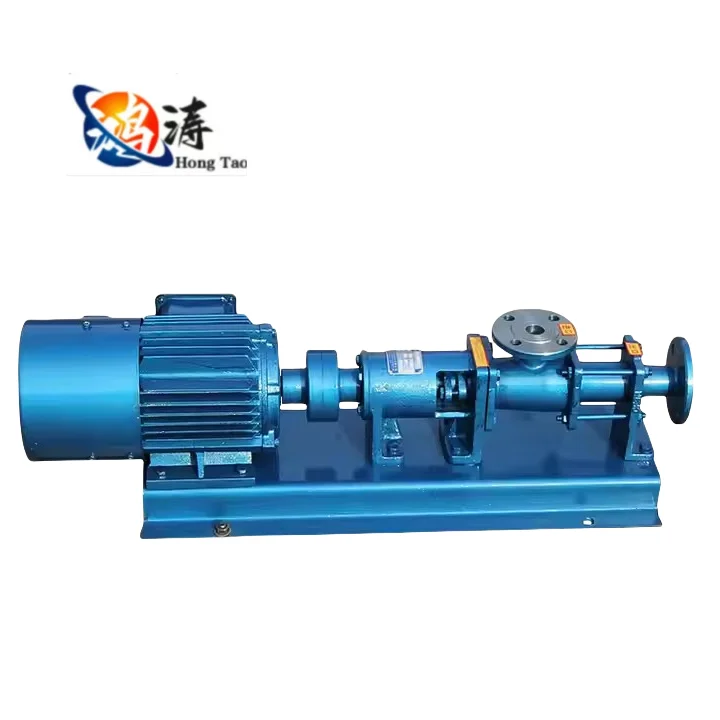

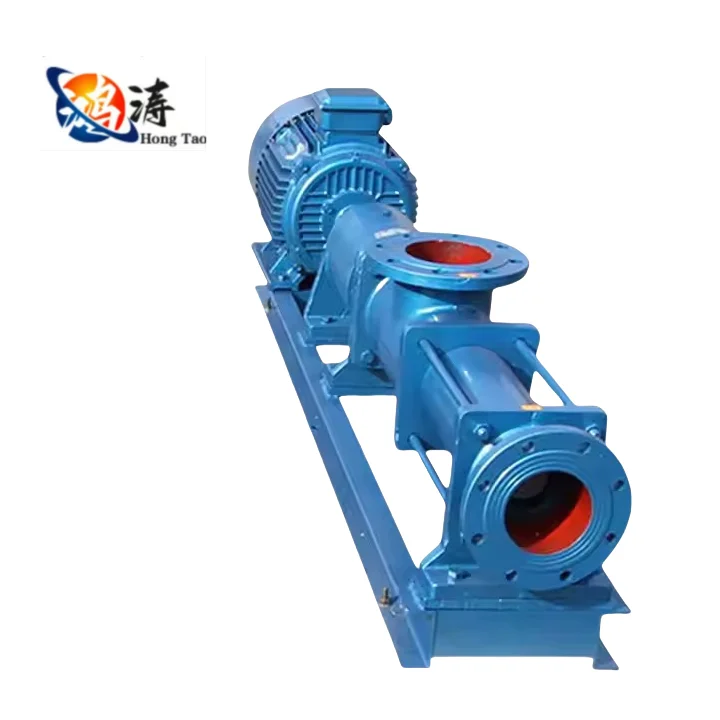

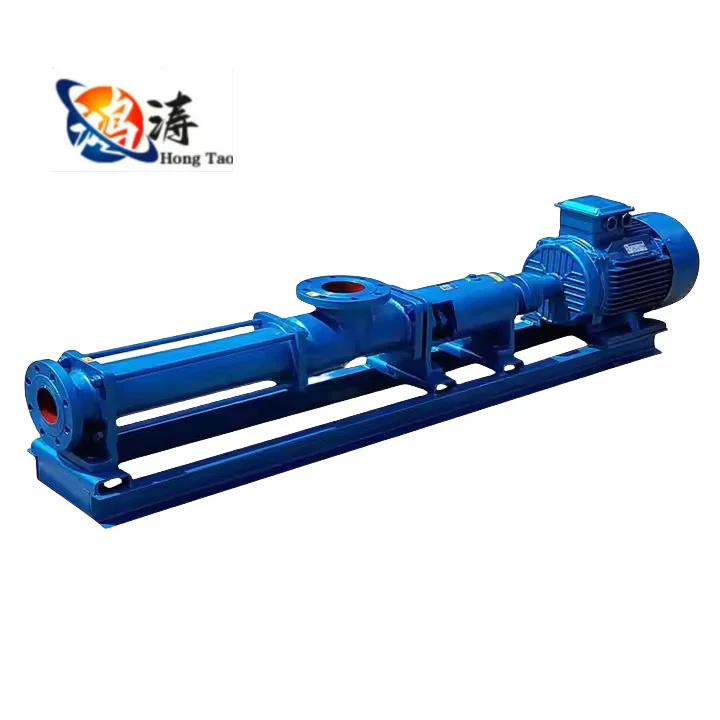

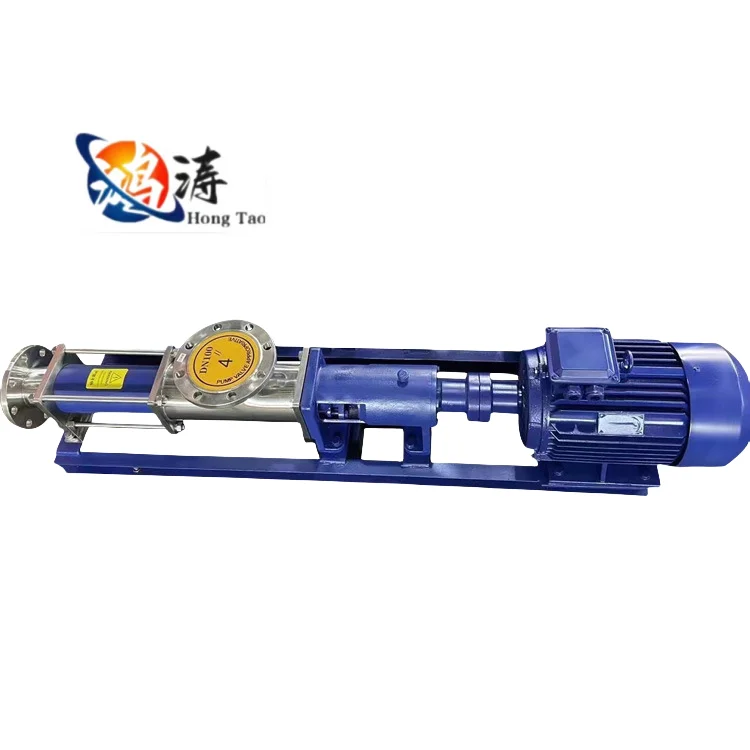

High Pressure Single Screw Pump

The G series single-screw pump main working parts are eccentric screw (rotor) and fixed bushing
(stator). Due to the special
geometry of the two components, a separate sealed cavity is formed, the medium is uniformly flowed from the axial direction, the
internal flow velocity is low, the volume remains unchanged, and the pressure is stable, so that eddy current and agitation are
not generated. The output pressure of each pump is 0.6MPa, the head is 60m (clean water), and it is suitable for conveying medium
temperature below 80 °C (special requirements up to 150 °C).
Because the stator is made of a variety of elastic materials, the pump's transport of high-viscosity fluids and the transport of
hard suspended particulate media or fiber-containing media are not suitable for general pumping. The flow rate is proportional to
the speed. The transmission can be directly driven by a coupling, or by a speed-regulating motor, a V-belt, a gearbox, etc. The
pump has few parts, compact structure, small volume and simple maintenance, and the rotor and the stator are the wearing parts of
the pump, and the structure is simple and easy to assemble and disassemble.








model

High discharge pressure
(Mpa)

Cavitation allowance
(m)
      Media usage characteristics (allowable value)
Conventional matching method
High viscosity (mpa.s)
Large particle size (mm)
Large fiber length (mm)
Speed
r/min
Flow at constant speed (m3/h)
Matching motor model-number/power (KW)
G20-1
0.6
4
56*103
3
20
1400
2.2
Y90S-4/1.1
910
1.4
Y90S-6/0.75
G20-2
1.2
4
56*103
3
20
140
2.2
Y90L-4/1.5
910
1.4
Y90L-6/1.1
G35-1
0.6
4
8*103
5
32
1400
9.5
Y112M-4/4
910
6.2
Y112M-6/2.2
710
4.6
Y132S-8/2.2
G35-2
1.2
4
8*103
5
32
1400
9.5
Y132M-4/7.5
910
6.2
Y132M-6/4
710
4.6
Y132M-8/3
G40-1
0.6
4
9*103
6.5
40
960
12.2
Y132M-6/4
710
9
Y132M-8/3
G40-2
1.2
4
9*103
6.5
40
960
12.2
Y132M-6/7.5
710
9
Y132M-8/5.5
G50-1
0.6
4.5
114*103
8
50
960
24.5
Y160M-6/7.5
710
18
Y160M-8/5.5
G50-2
1.2
4.5
114*103
8
50
960
24.5
Y160L-6/7.5
710
18
Y180L-8/11
G70-1
0.6
4.5
14*104
10
64
710
38
Y180L-8/11
G70-2
1.2
4.5
14*104
10
64
710
38
Y225M-8/22
G85-1
0.6
4.5
2*105
13
80
630
67
G85-2
1.2
4.5
2*105
13
80
630
67
G105-1
0.6
4.5
4*105
16
100
500
107
G105-2
1.2
4.5
4*105
16
100
500
107




Generally used in:

1. Environmental protection: Industrial sewage, domestic sewage, and sludge turbid water containing solid
particles and short fibers are especially used in oil-water separator plate and frame filter press equipment. 2. Shipbuilding
industry: round bottom cleaning, oil water, oil residue, oil sewage and other ring transportation. 3. Petroleum industry:
transporting crude oil, a mixture of crude oil and water, a mixture of coal gas and water, pouring polymers into the formation,
and the like. 4. Medicine, daily: a variety of thick paste, emulsion, various ointment cosmetics. 5. Food canning industry: all
kinds of viscous starch, distiller's grains, grain slag, various sauces, pulp, solid slurry. 6. Construction industry: spraying of
cement mortar, lime slurry, paint and paste. 7. Mining industry: solid particles, groundwater, and slurry water in mines. 8.
Chemical industry: various suspensions, greases, various colloidal pastes, various adhesives. 9. Printing, papermaking: high
viscosity ink, wallpaper PVC polymer paste and various concentrations of pulp, short fiber slurry. 10. Industrial boilers, power
plants: coal water slurry transportation.
