Product Description

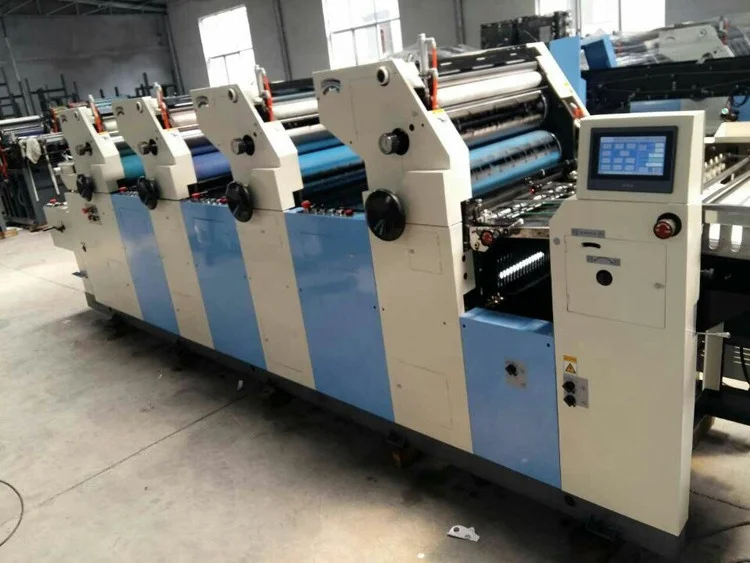

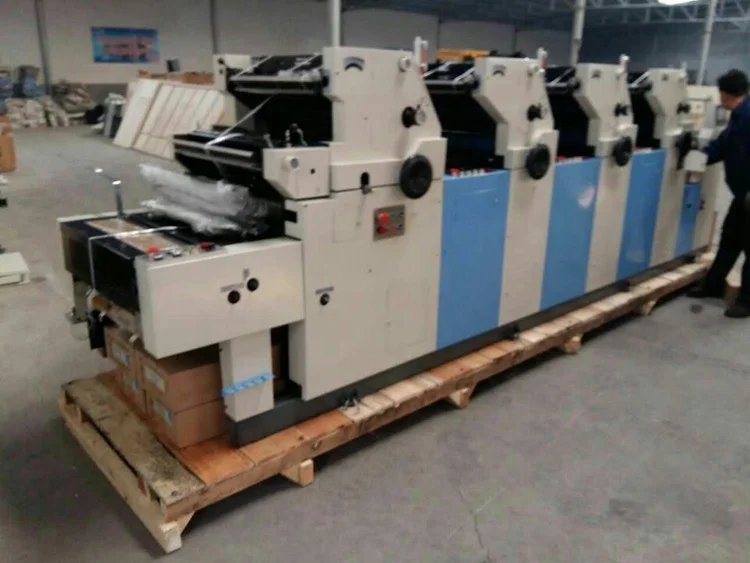

OffAutomatic A2 Paper Newspaper Book 2 Colour Offset Printer Cup
Double Sided Numbering 4 Color Offset Printing Machine Offset Printing Machine Price Multi Color Offset Printing Machine
Model | HC447 | HC456 | HC462 | ||
Printing colors | 4 colors | 4 colors | 4 colors | ||
Max sheet size | 470*365mm | 560 * 400mm | 620*450mm | ||
Max printing area | 450*345mm | 550*375mm | 605*440mm | ||
Paper sheet weight | 28-250g/m² | 28-250g/m² | 28-250g/m² | ||
Speed | 2000-7200sheets/hour | ||||
Plate size | 470*395*0.15mm | 560 *420 * 0.15mm | 620*485*0.15mm | ||
Blanket size | 470*465*1.95mm | 560 * 460 *1.95mm | 616*505mm*1.95mm | ||
Form roller number | Three ink rollers and two water rollers | ||||
Overall power | 1.65KW | 2.2KW | 2.6KW | ||
Voltage | 380V/50HZ 3P | 380V/50HZ 3P | 380V/50HZ 3P | ||
Machine weight | 2000kg | 2500kg | 3200kg | ||
Overall dimensions | 4500*1000*1600mm | 4500*1200*1400mm | 4350*1040*1460mm | ||
1.The Rubber roller using three point suspension technology, pneumatic clutch pressure, the pressure will be adjusted well for the accuracy and reliability, and the roller adjust will not affect each other, this protect the roller bearings properly.
2.External high-precision helical gear driver and walk-way iron cylinder to ensure a stable pressure of the printing and delivery of a smooth rotating, to ensure the large printing and very clear mseh work print or copy well, including the small text printing.
3.The whole machine use the way of self-lubricating to ensure that all gears and bearings both in the
boot of lubrication at the same time when you operating it.
4.The whole unit of the ink supply Composed by 15 rollers, which including 4 different diameter rollers side by the edition, the system responds quickly, good ink absorption function, the ink duct controlled by the ink subcontrol key, also can be adjusted by separately, will not affect each other to ensure the enough ink reservoir and uniformity smoothly. The ink and water will be controlled electronically, they are all clutched pneumatically.
5.Professional high-quality and reliable feeding system ensure the paper feeding smoothly and accurately.Semi- automatic version Loading, printing version was controlled or adjusted electronically, this shorten the time of version installed and adjusted, reducing the requirements for operators.
6.The machine with the function of synchronization hydropower, when the speed of host-run version
changes, then motor of lubricating also changes the speed at the same time.
2.External high-precision helical gear driver and walk-way iron cylinder to ensure a stable pressure of the printing and delivery of a smooth rotating, to ensure the large printing and very clear mseh work print or copy well, including the small text printing.
3.The whole machine use the way of self-lubricating to ensure that all gears and bearings both in the
boot of lubrication at the same time when you operating it.
4.The whole unit of the ink supply Composed by 15 rollers, which including 4 different diameter rollers side by the edition, the system responds quickly, good ink absorption function, the ink duct controlled by the ink subcontrol key, also can be adjusted by separately, will not affect each other to ensure the enough ink reservoir and uniformity smoothly. The ink and water will be controlled electronically, they are all clutched pneumatically.
5.Professional high-quality and reliable feeding system ensure the paper feeding smoothly and accurately.Semi- automatic version Loading, printing version was controlled or adjusted electronically, this shorten the time of version installed and adjusted, reducing the requirements for operators.
6.The machine with the function of synchronization hydropower, when the speed of host-run version
changes, then motor of lubricating also changes the speed at the same time.
This machine is mainly for printing bills,tickets,books,newspaper,magazine,brochures,non-wowen bags, paper cups etc.
Recommend Products
Contact us
Packaging & Shipping

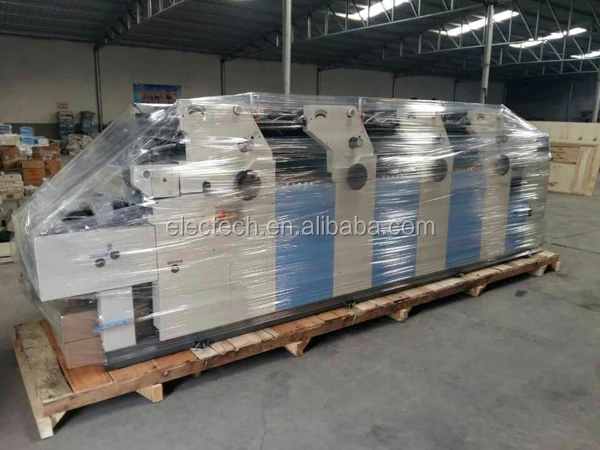

PACKAGING
Packaging Details | Stong wooden box package | ||
Port | The main ports in China, depends customers choice | ||
Lead Time | 1 pc | 35 days | |
>1 pcs | To be negotiated | ||
SHIPPING
1.By air, sea or combined transportation.
2.Express via FEDEX, TNT, UPS, DHL, EMS(AS your request)
3.Tracking Number will offer you immediately after delivery
3.Tracking Number will offer you immediately after delivery
4.Shipping cost depends on the shipping method, product quantity,weight, carton size and your area.
Company Profile
Certificate
FAQ
Q1: Are you a manufacturer ?
Yes.We are a professional manufacturer of machine for more than15 years.
Yes.We are a professional manufacturer of machine for more than15 years.
Q2:Can your machine be customized?
Yes, almost all of our products can be customized, including the sizes,color, logo, package and so on.
Q3: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by
FCL(full container loading) we might use the wooden case.
Q4:How do you ship the finished products?
By Sea, By Plane, By courier, TNT , DHL, Fedex, UPS Etc.
Q5:What's the delivery time?
Within 15-35 days after get the payment
Q6: What is your after sale service?
A: Any questions will be responded within 24 hours by email, Skype, call or Whatsapp/Wechat. In addition, we have professional engineer available for overseas service...
Q7:Does it easy to operate and what can ido if it doesn't work?
First, our machine is stable and easy to operate by one man. What you do is just learn some basic thing like loading the jumbo roll paper, start the machine and cutting the paper. And we will sent you manual and video.we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong,you can call us video-chat email us. And we will give solutions within 36 hrs.
Q8:If the machines spare parts broken,where can I get ?
Yes, almost all of our products can be customized, including the sizes,color, logo, package and so on.
Q3: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by
FCL(full container loading) we might use the wooden case.
Q4:How do you ship the finished products?
By Sea, By Plane, By courier, TNT , DHL, Fedex, UPS Etc.
Q5:What's the delivery time?
Within 15-35 days after get the payment
Q6: What is your after sale service?
A: Any questions will be responded within 24 hours by email, Skype, call or Whatsapp/Wechat. In addition, we have professional engineer available for overseas service...
Q7:Does it easy to operate and what can ido if it doesn't work?
First, our machine is stable and easy to operate by one man. What you do is just learn some basic thing like loading the jumbo roll paper, start the machine and cutting the paper. And we will sent you manual and video.we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong,you can call us video-chat email us. And we will give solutions within 36 hrs.
Q8:If the machines spare parts broken,where can I get ?
We will give you the spare parts which is vulnerable, and some critical parts like gear box our quality is good, in case it broken within one year ,we will sent you for free.
