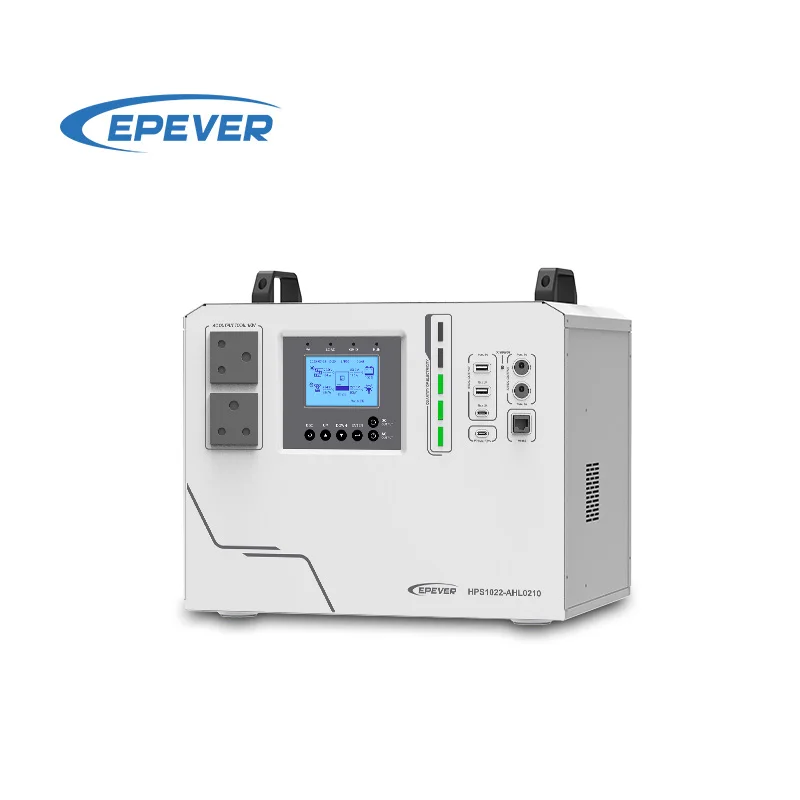

Перезаряжаемый солнечный генератор Epever HPS1522 AHL 1500 Вт 1536

Сохранить в закладки 1601322348521:


Цена:0,33-0,54 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики






Features

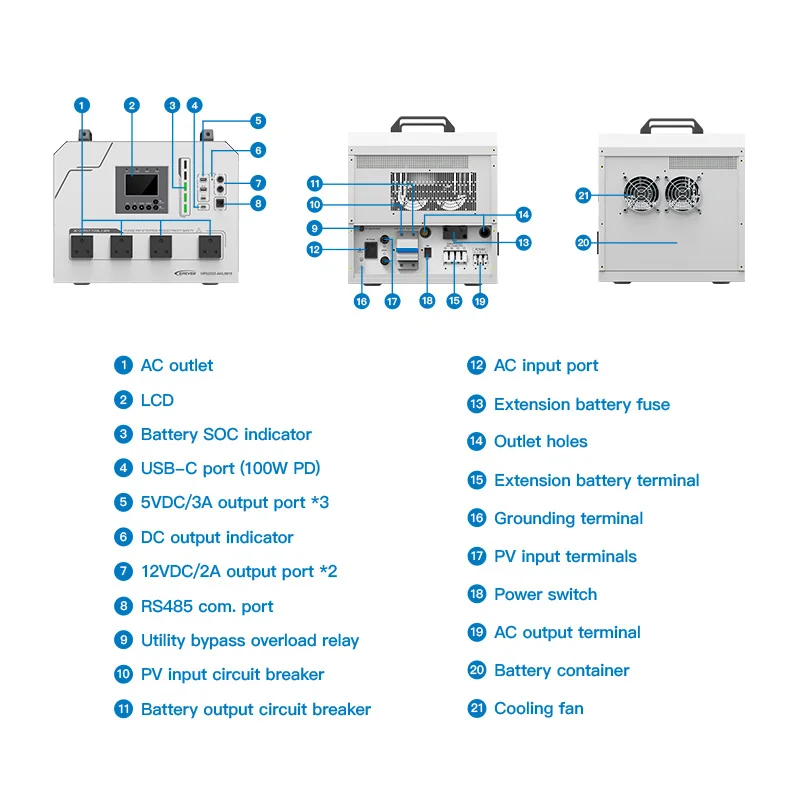

*Excellent dust-proof performance with separate compartment design *Built-in LiFePO4 lithium battery *Intuitive display of battery SOC via 5-bar indicator lights *Multiple DC output ports (5VDC/3A ports, 12VDC/2A ports, Type C ports) *Build-in bluetooth module *Large-sized LCD screen to monitor and modify system parameters *Optional 4G or WiFi module to remote control the inverter/charger by the RS485 com. port *AC input overload relay for disconnecting from the grid when the fault occurs *Circuit breaker on PV input for equipment safety *Circuit breaker on battery output for battery safety *AC charging with PFC technology, high power factor for efficient energy consumption *Bidirectional high-frequency transformer isolation topology *Advanced MPPT technology: maximum tracking efficiency≥99.5% *EMC design on AC output to avoid interference with AC load *Long-term continuous operation at full power *Pure sine wave output *Comprehensive electronic protection







Product Description













Technical Specifications












































































































Model


HPS1522-AHL0310


Utility Input





Switch Response Time


Switch Response Time-Utility to Inverter: ≤20ms
Switch Response Time-Inverter to Utility: ≤20ms


Utility Voltage


200~240VAC


Failure Voltage


290VAC


Utility Frequency


7A@220VAC


Inverter Output





Inverter Rated Power (@25℃)


1500W


4-second Transient Surge Output Power


2700W


Output Voltage Waveform


Pure sine wave


Output Voltage Harmonic Distortion Rate


≤3% (Resistive load)


Solar Controller





PV Maximum Input Withstand Voltage


95VDC (at minimum operating environment temperature)


Solar Controller Type


MPPT


MPPT Maximum Efficiency


≥99.5%


MPPT Voltage Range


24~76VDC


PV Maximum Charging Current


30A


Battery





Battery Type


LFP8S2P


Battery Rated Capacity


60A


Cycle Times


2000 times


Other





Enclosure


IP30


Communication Method


Bluetooth, RS485 (WiFi optional)


Warranty


Two years
