Модель бренда USUN: US BPT G400 CC компьютерный контроль испытательный стенд/машина/тестер для шланга и трубки
- Категория: >>>
- Поставщик: DongGuan Usun Fluid Control Equipment Co LtdDongGuan Ltd
Сохранить в закладки 1601322560719:
Описание и отзывы
Характеристики
WHY CHOOSE OUR BURST PRESSURE TEST BENCH?

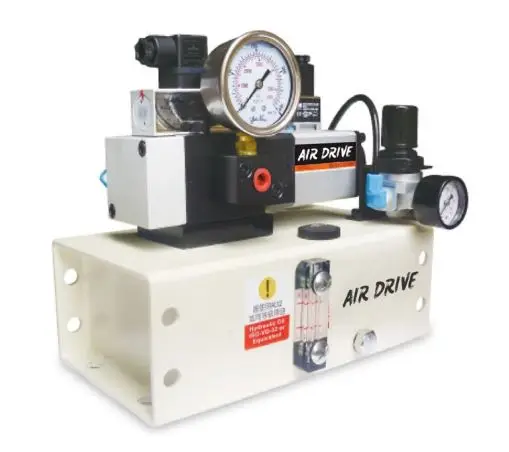

This brochure introduces pneumatic driven air /Hydraulic boosters and Complete booster system.
These air liquid pump offer a flexible and efficient source for delivering high pressure liquids
1. Costing savings: An alternative to the purchase of High Pressure compressor ,our air driven liquid are
Compact and Require no electrical or mechnical drive connections ,Are powered by the same air that they amplify
and can mounted in any position
2. High Flow rates at High pressure: When High flow rates at high pressure are needed ,the Air Liquid pump
can charge a receiver to an even higher pressure level ,thus storing a volume of air aviable for rapid release at a constant
pressure through a pressure reducing valve
3.Safety Operation : Safe Pneumatic Operation-No Heat, Flame or Spark Rish and No need electricity .

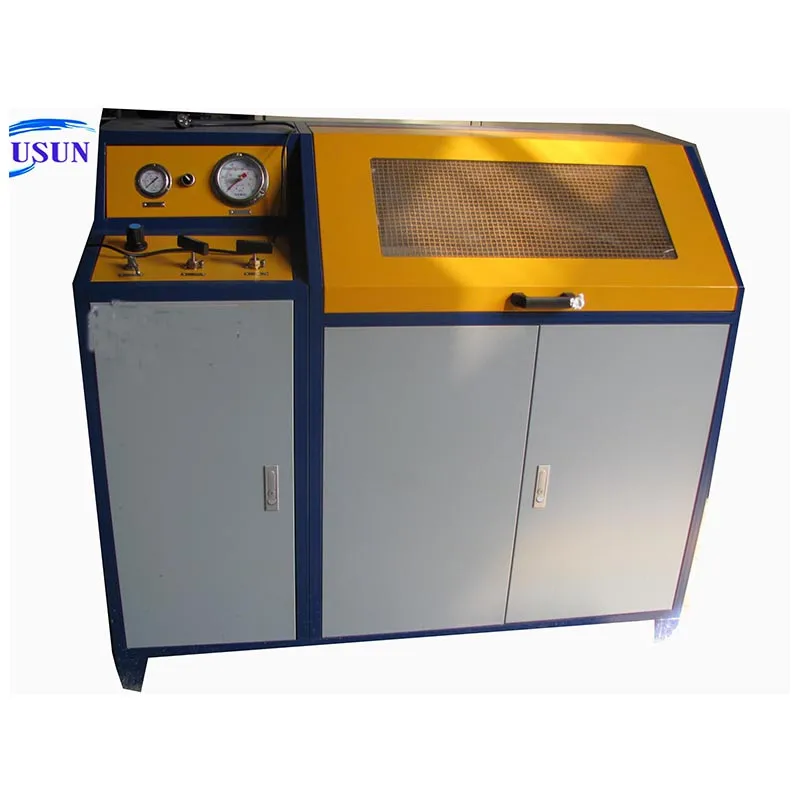

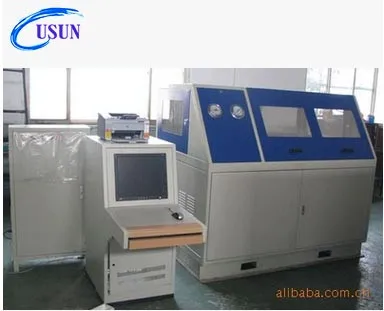

High pressure test equipment computer control type burst pressure test bench
USUN pneumatic/hydraulic/water/hydro/hydrostatic/burst pressure test machine
Applicable for :hose/tube/pipe/valve/sensor/cylinder/guage
Test medium: air/water/hydraulic oil
Test pressure range:0-300MPA
Product Description
1 . The moel significance and model series
US-BPT-UG-400-CC
US-USUN Brand
BPT------- burst pressure test machine
2400------ Indicates a boost ratio of 400:1
CC------- COMPUTERl Control
Outlet pressure-300MPa(3000 bar)
Note: The maximum test pressure we could provide is 640Mpa (6400 bar).
2 System composition
The system is composed of Air driven liquid booster pump and control valve, pipes, pressure gag3.

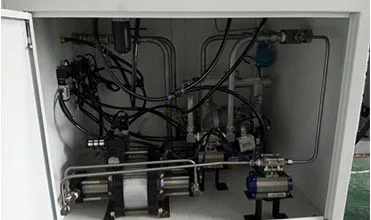

3.Main components of such burst pressure test bench
System diagram
Configuration
Product features
1. Realiable ,Easy to Maintain ,compact and robust
2. No heat,flame or spark risk
3. Infinitely variable output pressure and flow capability
4. Air driven Models do not require electrical connection ,easy to apply automatic controls
5. Wide range of models and controls and options
6.Seals system designed for long working life,No airline lubricated required
7. Wide range of standard and customized liquid pump systems
Main technical of pump inside parameter
Model xxxxxxxx | Pressure ratio | Outlet Pressure | Maximum Flow rate | Connection port size | Net weight | |||
| bar | psi | L/min | Air driven inlet | Inlet | Outlet | Kg | ||
| UG6 | 6:1 | 48 | 696 | 29.91 | G 1/2 | NPT1/2 | NPT1/2 | 12.7 |
| UG10 | 10:1 | 80 | 1160 | 18.84 | G 1/2 | NPT1/2 | NPT1/2 | 12.7 |
| UG16 | 16:1 | 128 | 1856 | 12.42 | G 1/2 | NPT1/2 | NPT1/2 | 12.7 |
| UG28 | 28:1 | 224 | 3248 | 7.11 | G 1/2 | NPT1/2 | NPT 3/8 | 12.2 |
| UG40 | 40:1 | 320 | 4640 | 4.89 | G 1/2 | NPT1/2 | NPT 3/8 | 12.2 |
| UG64 | 64:1 | 512 | 7424 | 3.08 | G 1/2 | NPT 1/2 | NPT 3/8 | 12.2 |
| UG80 | 80:1 | 640 | 9280 | 2.44 | G 1/2 | NPT1/2 | NPT 3/8 | 12.2 |
| UG100 | 100:1 | 0800 0 | 11600 | 1.92 | G 1/2 | NPT 1/2 | NPT 3/8 | 12 |
| UG130 | 130:1 | 1040 | 10580 | 1.47 | G 1/2 | NPT1/2 | M14X1.5 | 12 |
| UG175 | 175:1 | 1400 | 20300 | 1.14 | G 1/2 | NPT1/2 | M14x1.5 | 12 |
| UG255 | 255:1 | 2040 | 29580 | 0.75 | G 1/2 | NPT 1/4 | M14*15 | 12 |
| UG400 | 400:1 | 3200 | 46400 | 0.48 | G 1/2 | NPT1/4 | M14*15 | 12 |
* The pressure ratio is driven piston/hydraulic plunger ratio.
* The outlet pressure based on air driven pressure is 8Bar (116psi). (It is estimation of maximum allowable pressure.)
* The rate of flow based on the air driven pressure is 6Bar (87psi) and the outlet pressure is 0 Bar. (It is approximate flow value.)
* The mininum air driven pressure is 3 Bar (43.5psi).
* The outlet pressure based on air driven pressure is 8Bar (116psi). (It is estimation of maximum allowable pressure.)
* The rate of flow based on the air driven pressure is 6Bar (87psi) and the outlet pressure is 0 Bar. (It is approximate flow value.)
* The mininum air driven pressure is 3 Bar (43.5psi).
Product computer control type hydrostatic test bench diagram
Product Pressure testing chart
The test fluid system and driving fluid system are separated; it is more convenient for test temperature control and test media diversificationThe software adopts force control configuration software or written in LABVIEW (computer control),The software adopts force control configuration software or written in LABVIEW (computer control)A variety of ancillary tooling, meet different specimens of installation
In the testing process, the pressure can be automatically compensated ,time after the burst pressure testing decreased rapidly ,pressure automatical stop system .
The test fluid system and driving fluid system are separated; it is more convenient for test temperature control and test media diversificationThe software adopts force control configuration software or written in LABVIEW (computer control),The software adopts force control configuration software or written in LABVIEW (computer control)A variety of ancillary tooling, meet different specimens of installation
In the testing process, the pressure can be automatically compensated ,time after the burst pressure testing decreased rapidly ,pressure automatical stop system .
Packaging & Shipping
Shipping
| By sea | Cheapest but longest option 18~30 days by sea delivery for mass shipment |
| By air | More expensive than sea delivery, But cheaper than express 5~7 days by air to airport. |
| By express | door to door service,the fastest and most expensive one, 3~5 day for DHL /Fedex /UPS/TNT express |
Company Information
Dongguan Usun Fluid Equipment Co Ltd Ltd, its a machinery factory, was founded in DongGuan,GuangDong
Province in 2007 which Specializing in making Hydro-Pneumatic product such as Air driven gas booster
,hydro-pneumatic pump ,air hydro pump ,High pressure stainless needle valve ,high pressure complete
gas/hydraulic booster system for many hydro-pneumatic machinery and automatical
Having worked in numerous industries for years, our various experiences benefit us by knowing how to
provide customers with the most efficient solutions.
Having worked in numerous industries for years, our various experiences benefit us by knowing how to
provide customers with the most efficient solutions.We have also already exported for many countries
for our High pressure pump and high pressure system to USA ,North America ,Europe ,Middle east
and south America and so on .
FAQ
How do I select a correct model
1. Free to inform us that your Inlet gas Pressure range
2. Kindly advise your needed output pressure for connecting machine
3. Should be kindly informed the Gas flow at the rated pressure for calculating the suitable pressure
ratio base on customer"s requirement
4.Feel kindly advise us the avaible air driven pressure
5.Then we can suggest a suitable model base on above Technical data
What is the warranty for product
1.We have 1 Year Warranty for product and can send some easy wear out repairing parts for fixing
the pump such as important seal kits
2.Customer should cover the to-and fro shipping cost for repairing if goods is out of warranty peroid
Похожие товары
Центробежная Насосная машина Bomba De Agua серии MHF с высоким потоком
45,00-52,00 $
Высококачественные системы защиты от перегрузки сделанные в Тайване
993,04 $

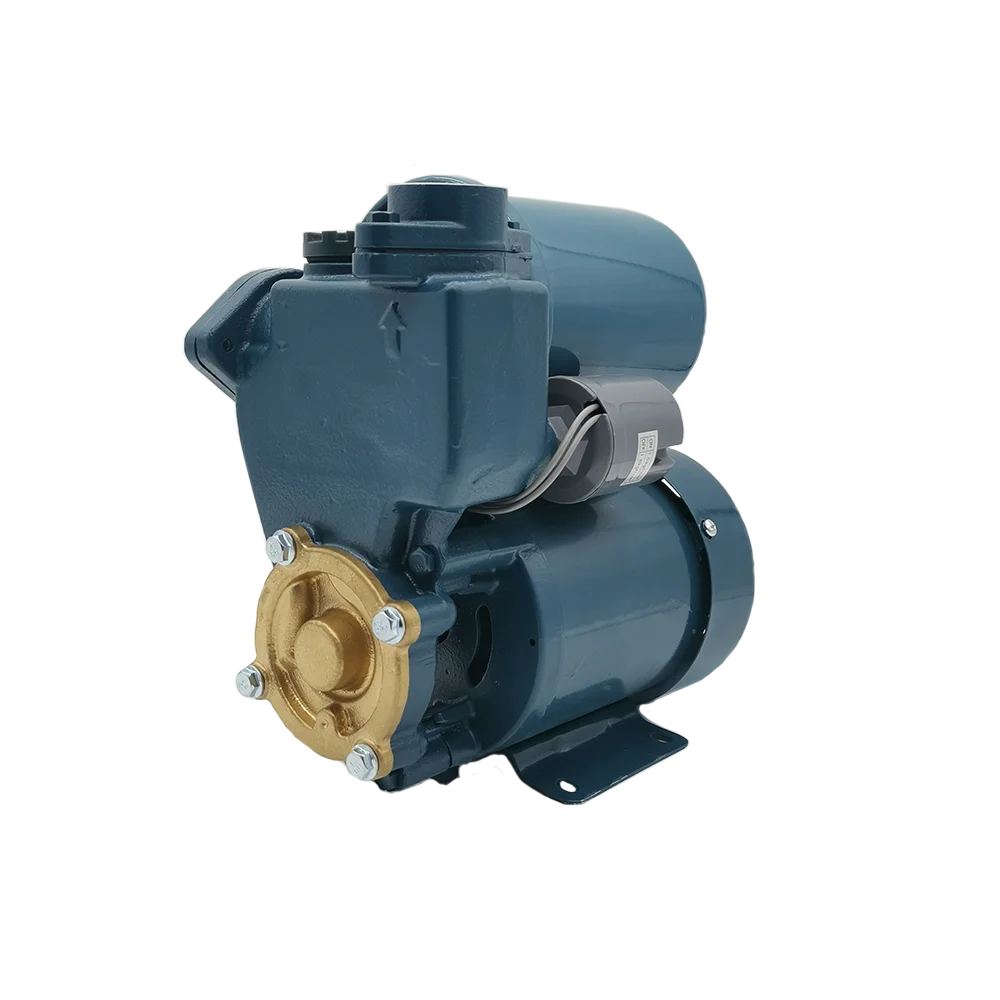

RUIQI 125 Вт 0 15 л.с. Юго-Восточная Азия лидер продаж автоматический самовсасывающий насос скважинный PS-126 дома
16,86-16,96 $

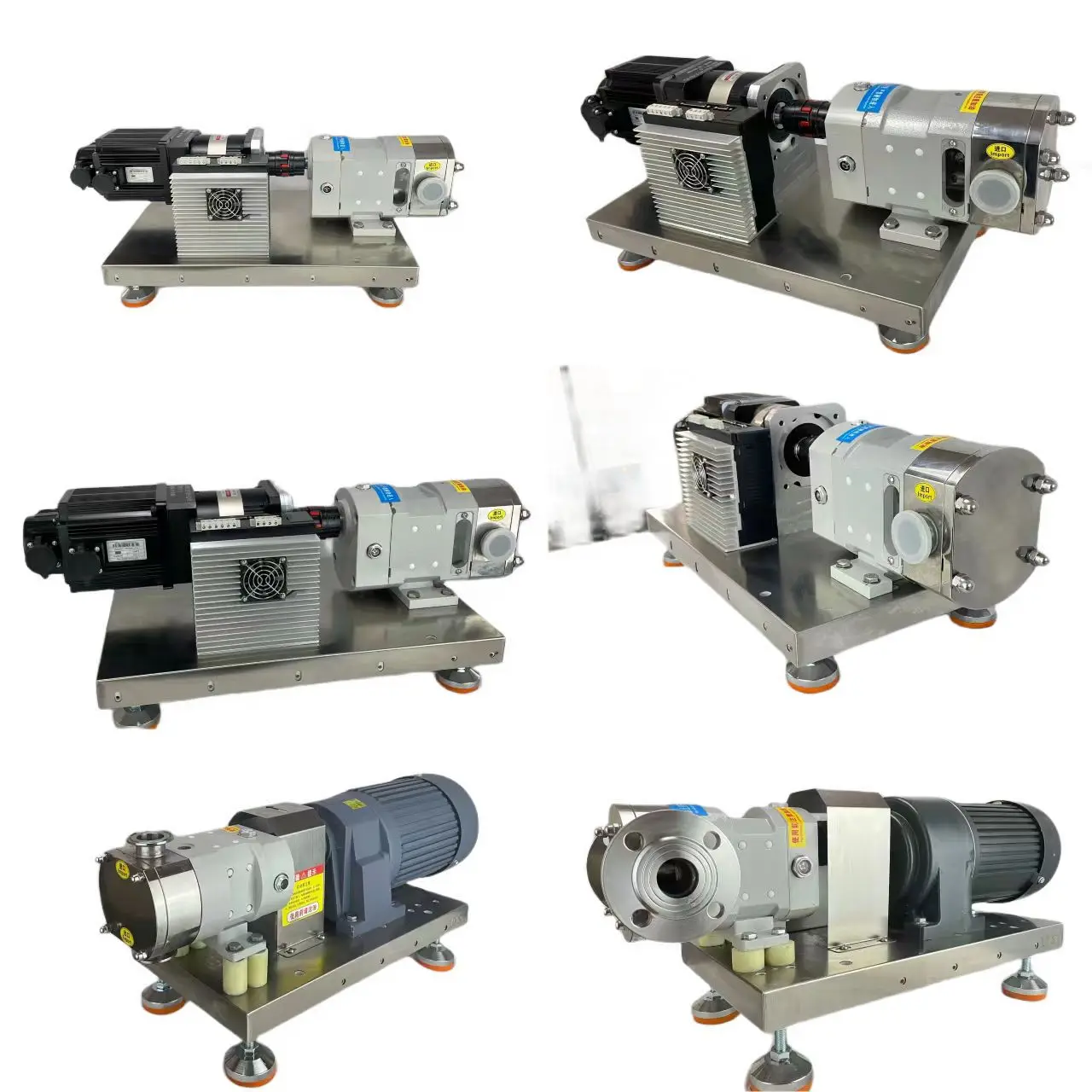

Нержавеющая сталь 316L высокочистый лопастной насос пищевой роторный томатный соус медовая паста вязкий высокого давления
1 050,00-1 100,00 $

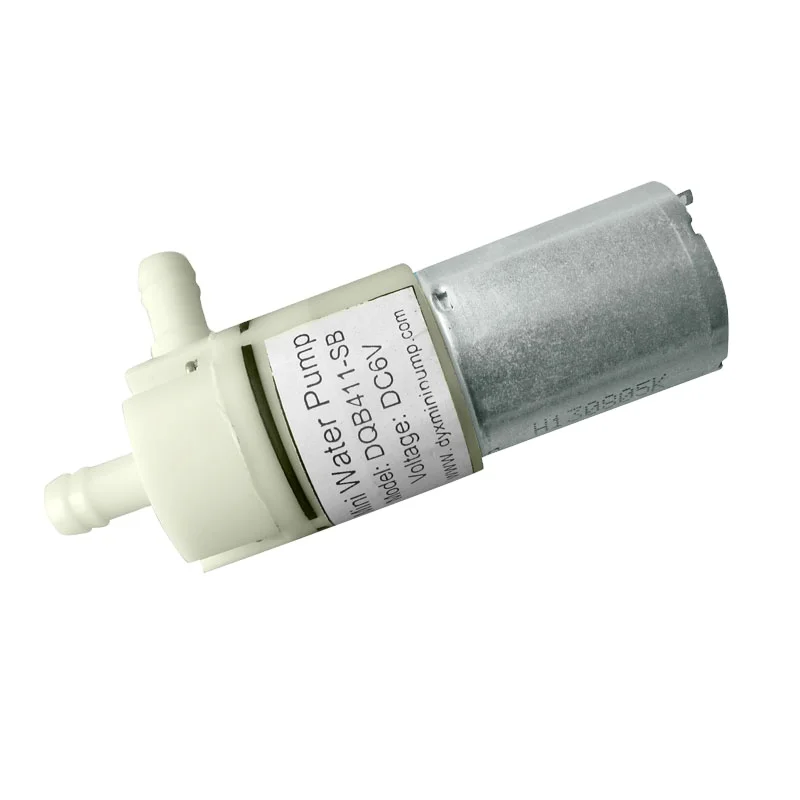

6 в/12 в электрический водяной насос для водяного диспенсера запасные части
1,90-2,80 $
3/2CC-TH гравийный песочный шламовый насос с запасными частями распорка вала C117C21

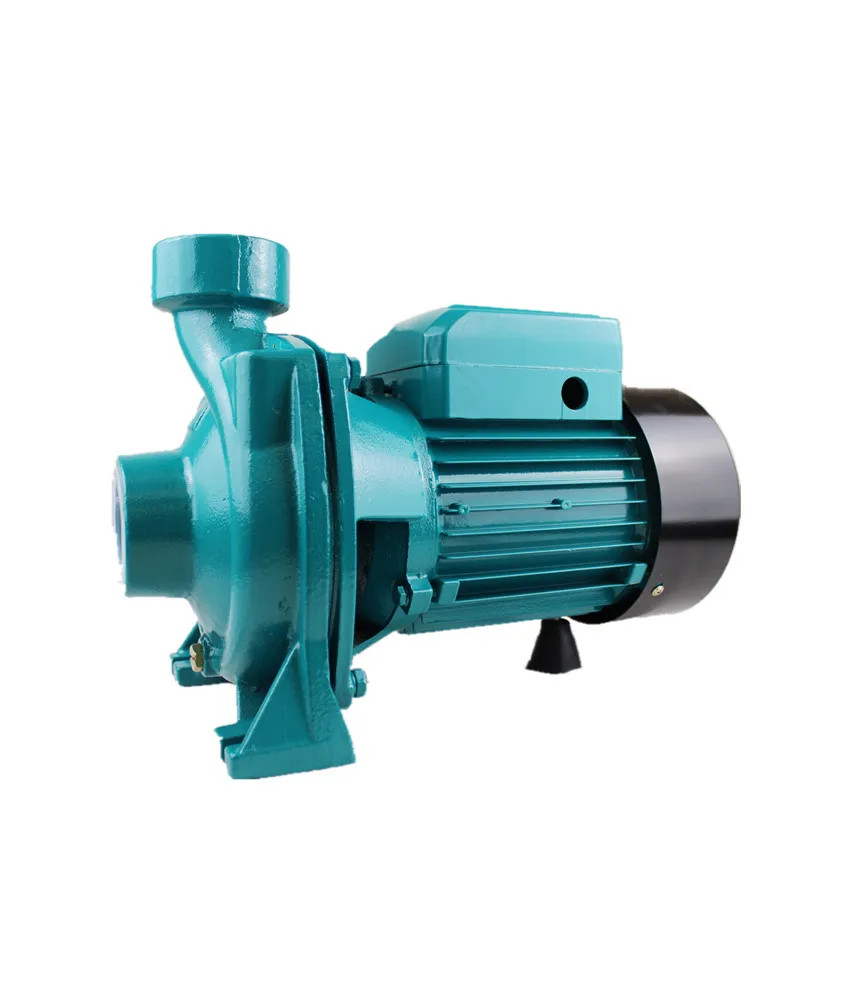

Центробежный водяной насос TOLSEN 79975 750 Вт с высоким кликом
