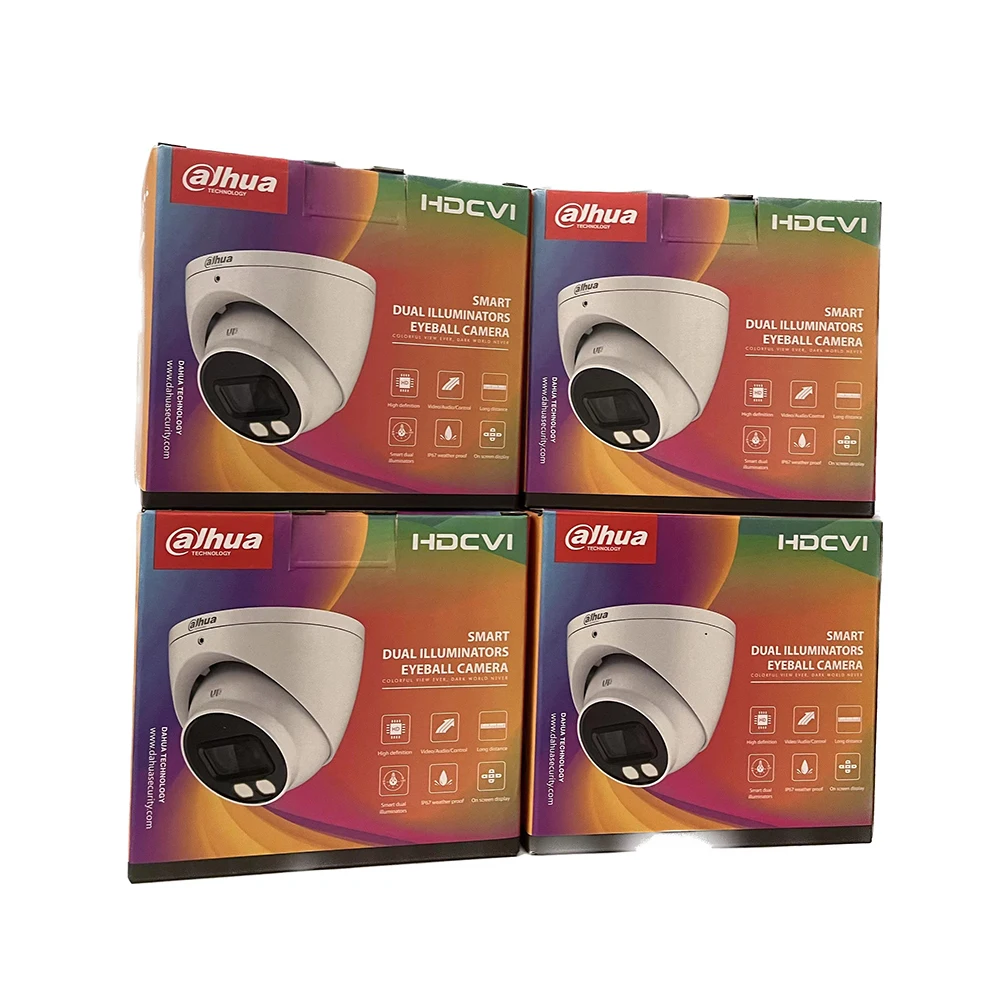

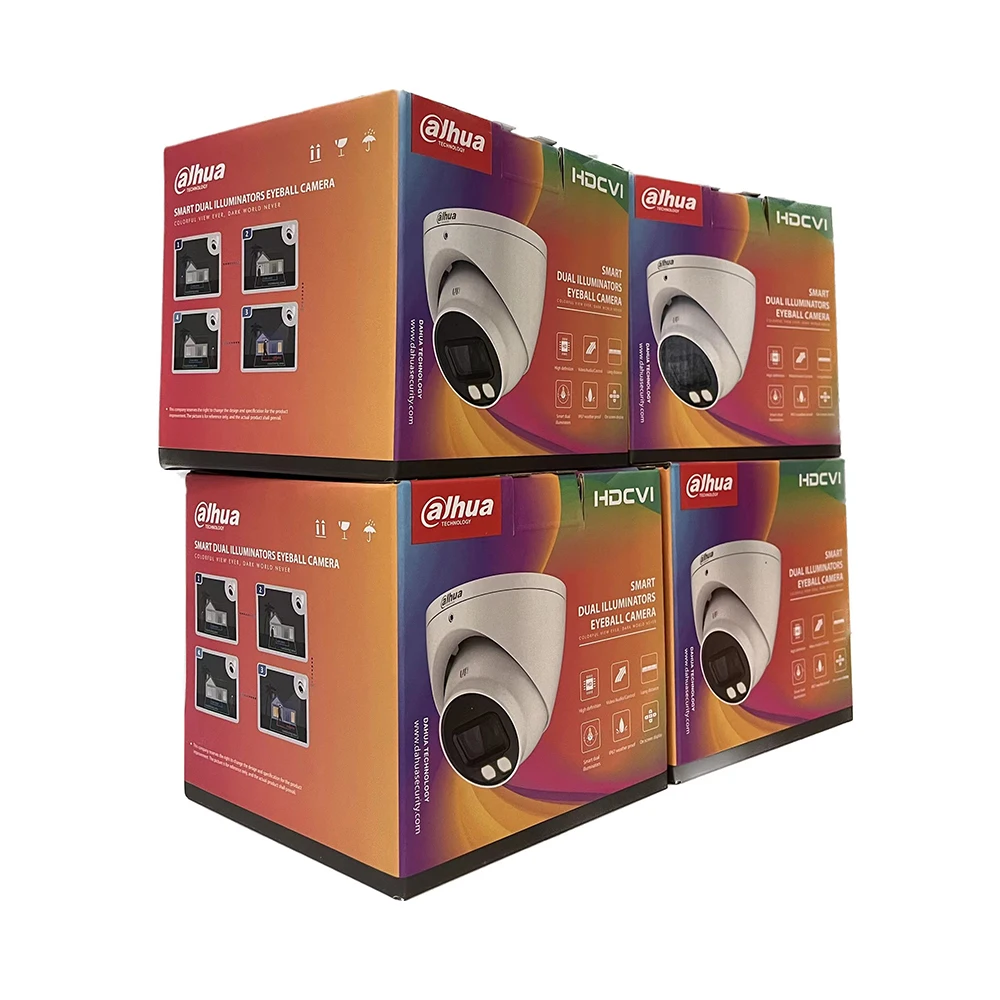

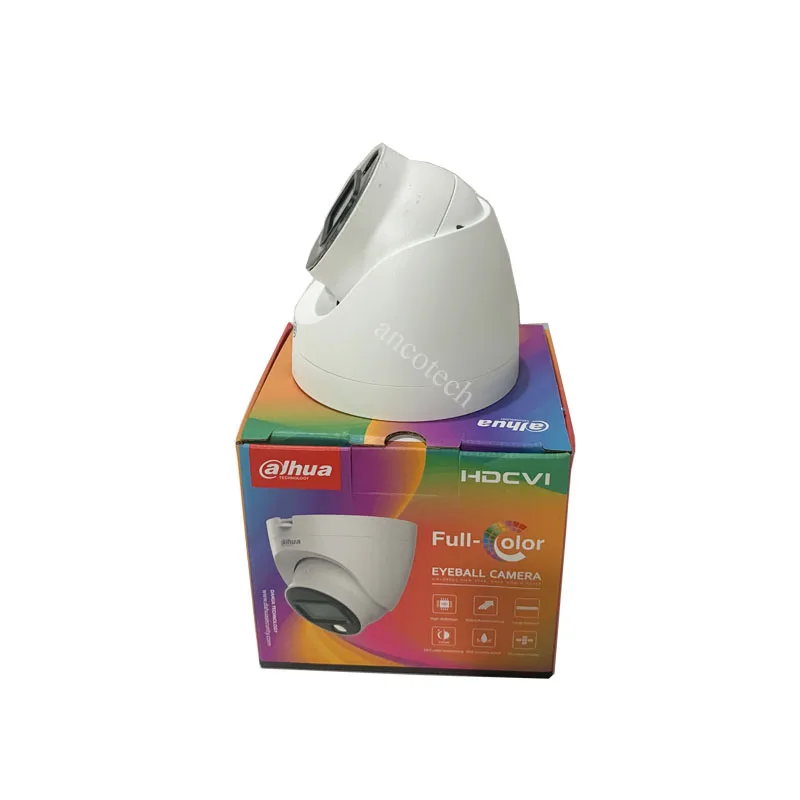

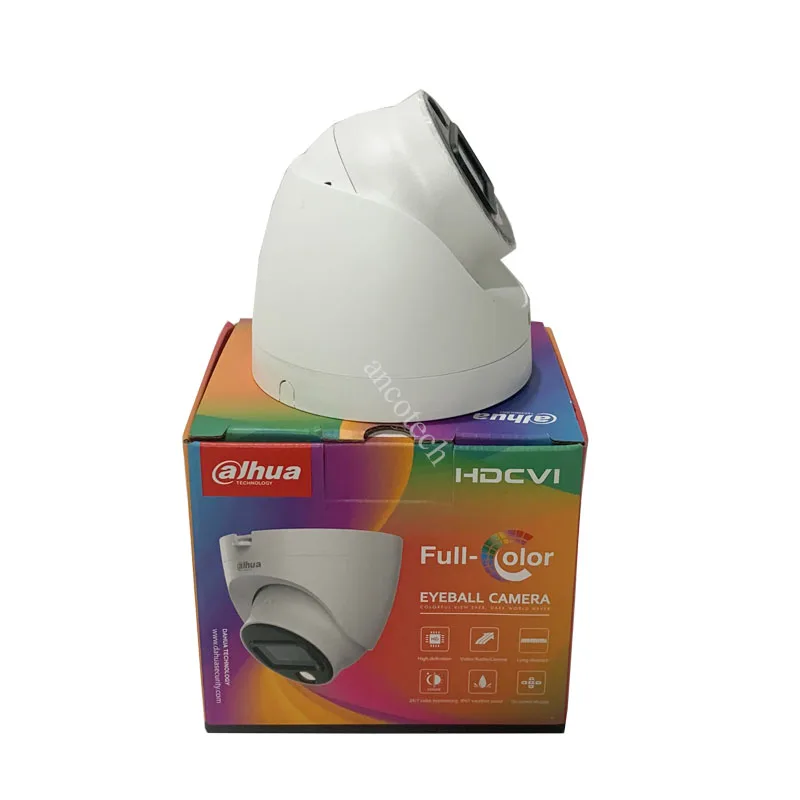

HAC HDW2249T A LED 2MP полноцветная камера видеонаблюдения

Image Sensor

Image Sensor

2MP CMOS

Max. Resolution

1920(H) × 1080(V)

Pixel

2MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3 s–1/100,000 s
NTSC: 1/4 s–1/100,000 s

S/N Ratio

> 65 dB

Min. Illumination

0.0002 Lux/F1.0, 0 Lux White Light on

Illumination Distance

40 m (131.2 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

2

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed lens

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: H: 106°; V: 55°; D: 125°
3.6 mm: H: 84°; V: 44°; D: 99°

Iris Type

Fixed iris

Close Focus Distance

2.8 mm: 1 m (3.3 ft)
3.6 mm: 1.7 m (5.6 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

45.5 m

(149.3 ft)

18.2 m

(59.7 ft)

9.1 m

(29.9 ft)

4.6 m

(15.1 ft)

3.6 mm

55.2 m

(181.1 ft)

22.1 m

(72.5 ft)

11.0 m

(36.1 ft)

5.5 m

(18.0 ft)

Video

Frame Rate

CVI:
PAL: 1080P@25fps
NTSC: 1080P@30fps
AHD:
PAL: 1080P@25fps
NTSC: 1080P@30fps
TVI:
PAL: 1080P@25fps
NTSC: 1080P@30fps
CVBS:
PAL: 960H
NTSC: 960H

Resolution

1080P (1920×1080); (960H×960× 576/960×480)

BLC

BLC/HLC/WDR/HLC-Pro

WDR

120dB

White Balance

Auto; Area white balance

Gain Control

Auto; manual

Noise Reduction

3D NR

Smart Light

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4, EN62368-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

Audio Input

One channel built-in mic

Power

Power Supply

12V ±30% DC

Power Consumption

Max 5.8W (12V DC, warm light on)

Environment

Operating Temperature

–40°C to +60°C (–40°F to 140°F) ; < 95% (non-condensation)

Storage Temperature

–40°C to +60°C (–40°F to 140°F) ; < 95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Metal throughout the whole casing

Camera Dimensions

φ106.0 mm × 93.6 mm (φ4.17" × 3.69")

Net Weight

0.48 kg (1.06 lb)

Gross Weight

0.63 kg (1.39 lb)
