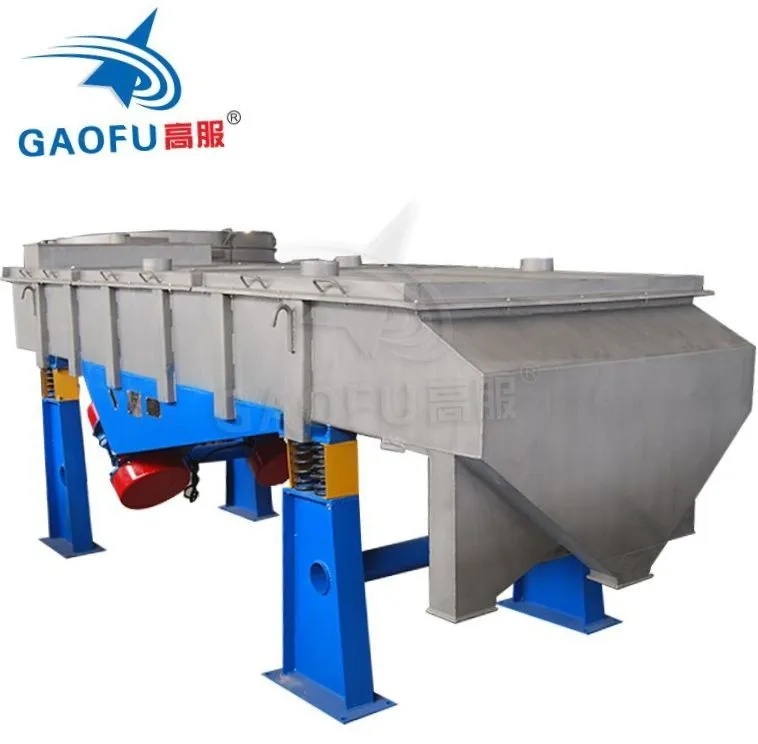

Углеродистая сталь вибрационный просеиватель калийный полевой шпат новый прямоугольный линейный экран
5 102,00-5 862,00 $
Сверхтонкий липкий материал с высоким содержанием влаги просеивающий сырьевой уголь боксит никелевая руда банан экран
- Категория: >>>
- Поставщик: Prominer (shanghai) Mining Technology Co. Ltd.Prominer Ltd.
Сохранить в закладки 1601322707625:
Описание и отзывы
Характеристики
Products Description

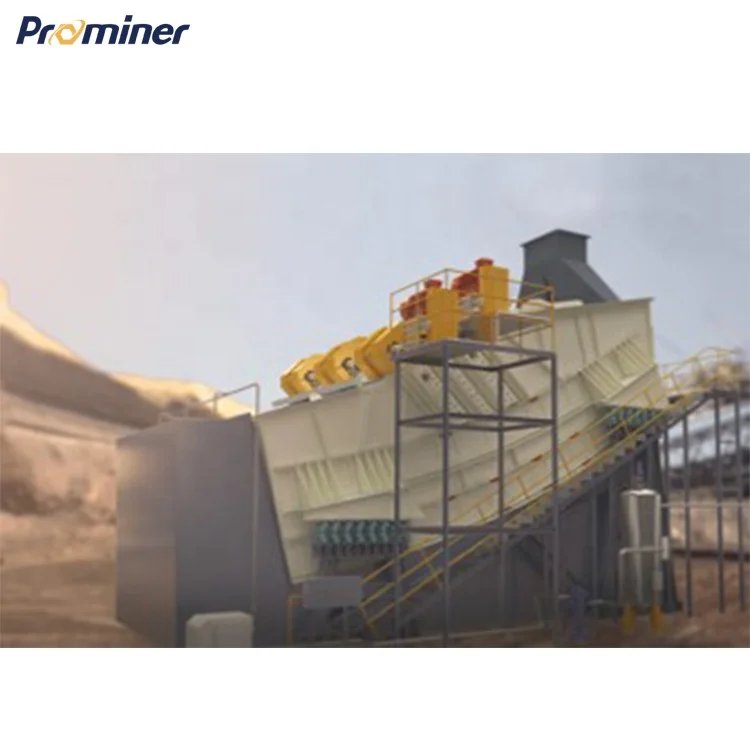

Banana Screen
Based on the applications in coal and mine industry for the past decades, Banana screens have been re-designed in 3D designing softwares (Pro-E/Solidworks). The analysis of mode and dynamic stress with and without load for the screen structure is finished in finite element analysis software ANSYS. The movement of material on the screen mesh is also simulated and realized by analysis software in fluid dynamics. Our screens are tailor-made products as per pre-analysis data to satisfy the demands from such industries as coal, cement, steel & iron, sand gravel and electricity. The ‘breathing’ polyurethane sieve mesh, high resilience rubber sieve mesh and Vibra launch spring sieve mesh assure reliability in chemical and physical properties. For fine and sticky sizing, screening is so achieved in efficiency that material jam is not a problem any longer.
Banana screens are used for coal, cement, steel & iron, sand gravel screening with dry sizing 5-30mm and unit capacity can reach up to 4000~8000t/h.
Equipment Parameter
Type | Model | Screen Area (㎡) | Capacity (t/h) | ||||||||
1mm (wet) | 3mm (wet) | 5mm (dry) | 20mm (dry) | ||||||||
Single-deck banana screen | SSB3673 | 26.28 | 280 | 650 | 400 | 870 | |||||
SSB4361 | 26.23 | 280 | 650 | 400 | 870 | ||||||
SSB4385 | 36.55 | 390 | 900 | 550 | 1200 | ||||||
SSB4973 | 35.77 | 390 | 900 | 550 | 1200 | ||||||
SSB4997 | 47.53 | 540 | 1250 | 750 | 1600 | ||||||
Provide customized screen. | |||||||||||
Type | Model | Screen Area (㎡) | Capacity (t/h) | ||||||||
bottom 1mm (wet) | bottom 3mm (wet) | bottom 5mm (dry) | bottom 20mm (dry) | ||||||||
Double-decks banana screen | SDB3673 | 52.56 | 490 | 1100 | 800 | 1550 | |||||
SDB4361 | 52.46 | 490 | 1100 | 800 | 1550 | ||||||
SDB4385 | 73.10 | 680 | 1600 | 1100 | 2150 | ||||||
SDB4973 | 71.54 | 680 | 1600 | 1100 | 2150 | ||||||
SDB4997 | 95.06 | 950 | 2150 | 1500 | 2800 | ||||||
Provide customized screen. | |||||||||||
Details Images
Heavy duty box exciter, large clearance helical gear transmission, thin oil lubrication, no breathing cap, maintenance free.
Large FAG or SKF special bearings for vibration are used for box exciters for mines. They are high-speed and high-temperature resistant. There are two types of exciters: imported assembly and imported complete unit. Small bearings for coal industry.
The characteristic of the torsion spring is that during the shutdown of the screen, it can make the screen stop quickly, avoiding the resonance frequency and reducing the impact on the foundation. Due to its high cost, the steel coil spring (D27 or D30) is still recommended.
Screen deck: material is rubber or polyurethane. Rubber material is recommended for larger feed particles (≥ 25mm), and polyurethane material is recommended for smaller particles (6-25mm). With good screening effect, less blinding, modular production and installation, and reduces labor intensity.

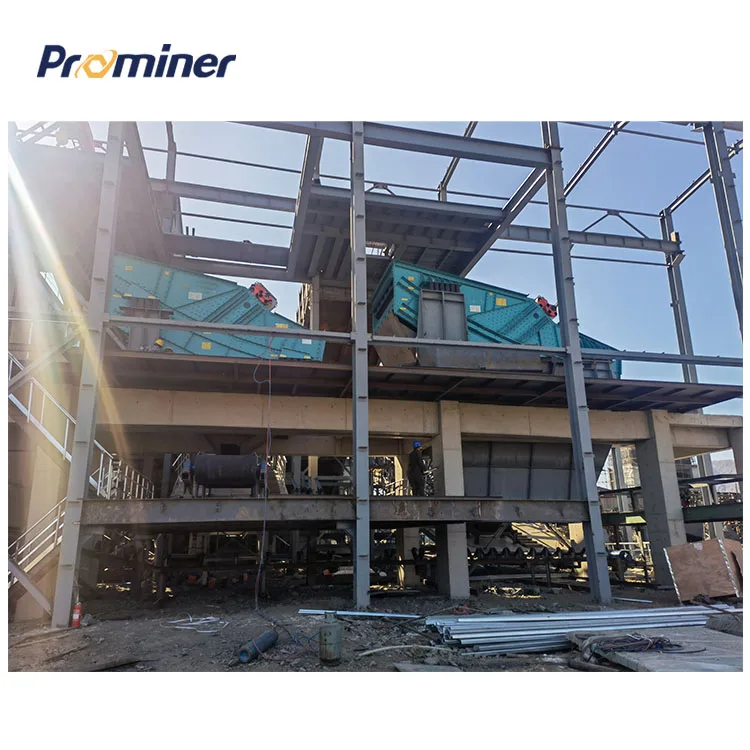

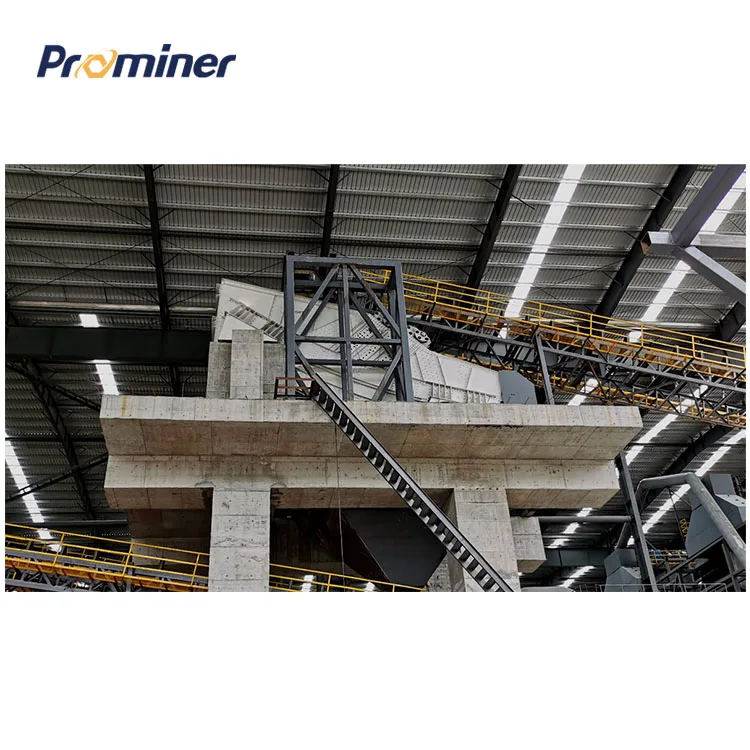

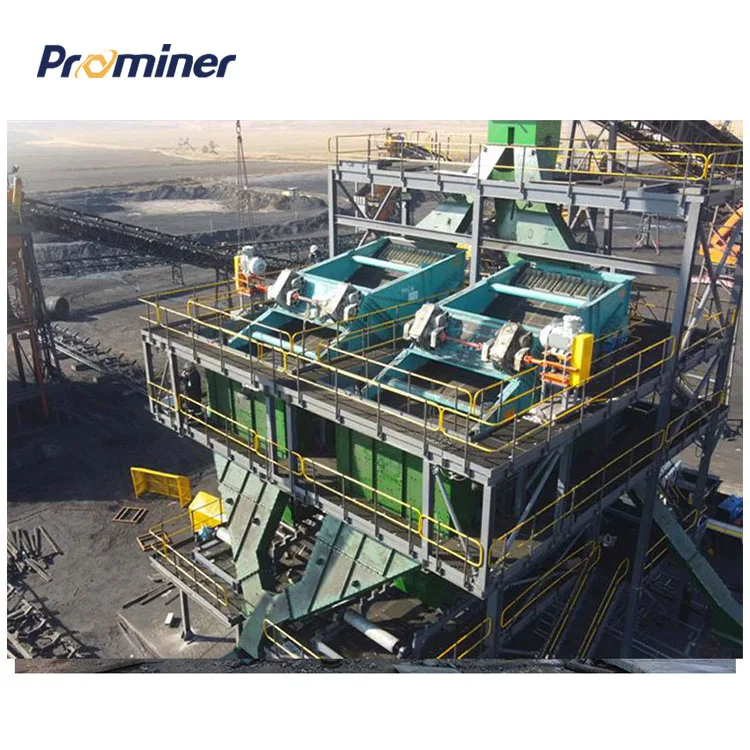

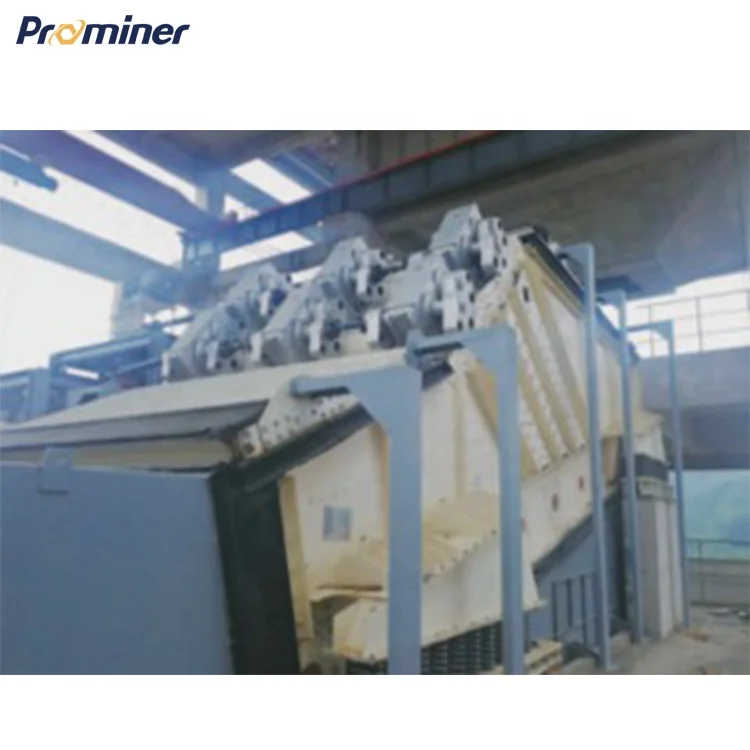

Project Photos
Largest double-layer banana screen in the world: SDB4997 applied for aggregate in guangxi, 3800t/h per set, sizing of 32mm with screening efficiency more than 95%.
Largest single-layer screen in the world: SSB4399 applied in liaoning province, 4200t/h per set, Sizing of 40mm with screening efficiency more than 95%.
Our Factory
Machining
Stock
Company Profile
As an manufacturer, we can provide key equipment for miner processing include SAG mill, ball mill, banana screen, flip-flow screen, dewatering screen, impact mill, shaping mill and granulator.
As an complete solution provider, we focus on anode material production plant and mineral deep processing on gold, copper, iron ore, lead zinc, graphite, quartz and kaoline.
As an EPC contractor, we have the ability to provide lab test, pilot test, engineering design, equipment supply, erection & commissioning service and project operation service.
Our Service
Lab Test & Pilot Test
Engineering Design
Equipment Supply
On Site Service
Operation & Maintenance Service
Project Consultation
Our Office
Our Culture Wall
Our Office
Our Team in Shanghai
Certifications
ISO9001 and ISO14001 Certificate
High-Tech Enterprise Certificate
Two Invention Patents
28 Utility Model Patents
FAQ
1. who are we?
We are based in Shanghai, China, start from 2016,sell to South Asia(40.00%),South America(30.00%),Africa(10.00%),Southeast Asia(10.00%),North America(5.00%),Mid East(5.00%).
We are based in Shanghai, China, start from 2016,sell to South Asia(40.00%),South America(30.00%),Africa(10.00%),Southeast Asia(10.00%),North America(5.00%),Mid East(5.00%).
There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Ball Mill, Vibrating Screen, Grinding Mill, Anode Granulator, Belt Conveyor
4. why should you buy from us not from other suppliers?
Focus on providing the complete solution for anode material production and mineral processing include gold, Iron, lead, zinc,cooper, quartz, graphite and kaolinite.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Ball Mill, Vibrating Screen, Grinding Mill, Anode Granulator, Belt Conveyor
4. why should you buy from us not from other suppliers?
Focus on providing the complete solution for anode material production and mineral processing include gold, Iron, lead, zinc,cooper, quartz, graphite and kaolinite.
Have ability to provide consultancy service, lab test, pilot test, EPC and OM service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP,FCA,CPT,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Russian
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP,FCA,CPT,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Russian
Похожие товары
Металлическая круглая вращающаяся машина для обезвоживания какао-бобов вибрационная сито 120 сетка
1 150,00-1 250,00 $

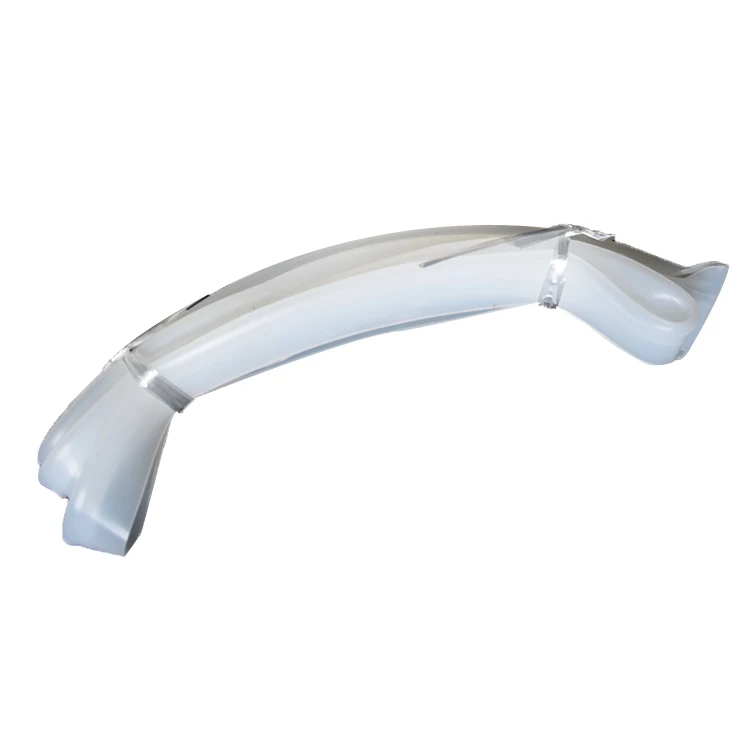

Высококачественная силиконовая уплотнительная Резиновая полоса для вибрационного экрана
12,00-15,00 $
Полиуретановый износостойкий экран вибрационный резиновый
50,00-70,00 $
Высокое Качество Вибрационный экран полиуретановый резиновый
55,00 $
Вибрационный Фильтр из нержавеющей стали для соевого молока жидкий фильтр воды сито шейкер от китайского поставщика

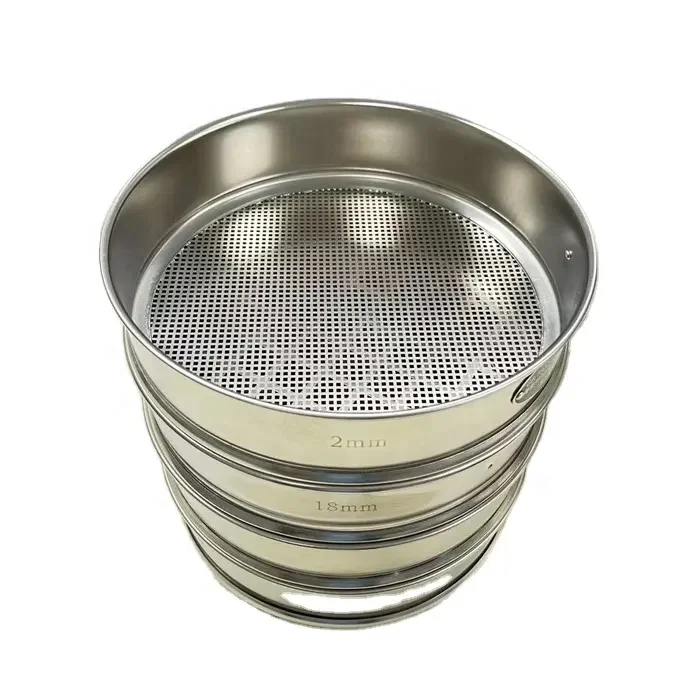

Завод Oem высокоточное ПЕРФОРИРОВАННОЕ металлическое сито из нержавеющей стали для лабораторных испытаний почвы
21,90 $

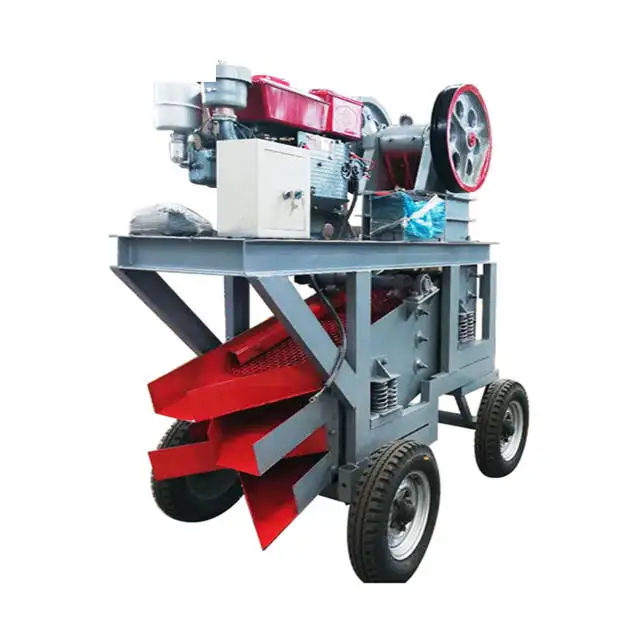

Мобильная каменная дробилка ROCKWELL 80 тонн в час с Щековой каменной дробилкой и квадратным вибрационным фильтром для продажи
