Оборудование для жидкого кислородного завода NUZHUO 300Y оборудование азота криогенный блок разделения воздуха LOX O2
42 559,00-82 223,00 $
CHENRUI N2 чистота 99 ~ 99.999% стоимость генератора азота и кислородный азотный газовый баллон установки
- Категория: >>>
- Поставщик: Hangzhou Chenrui Air Separator Installation Manufacture Co. Ltd.Hangzhou Ltd.
Сохранить в закладки 1601323380549:
Описание и отзывы
Характеристики

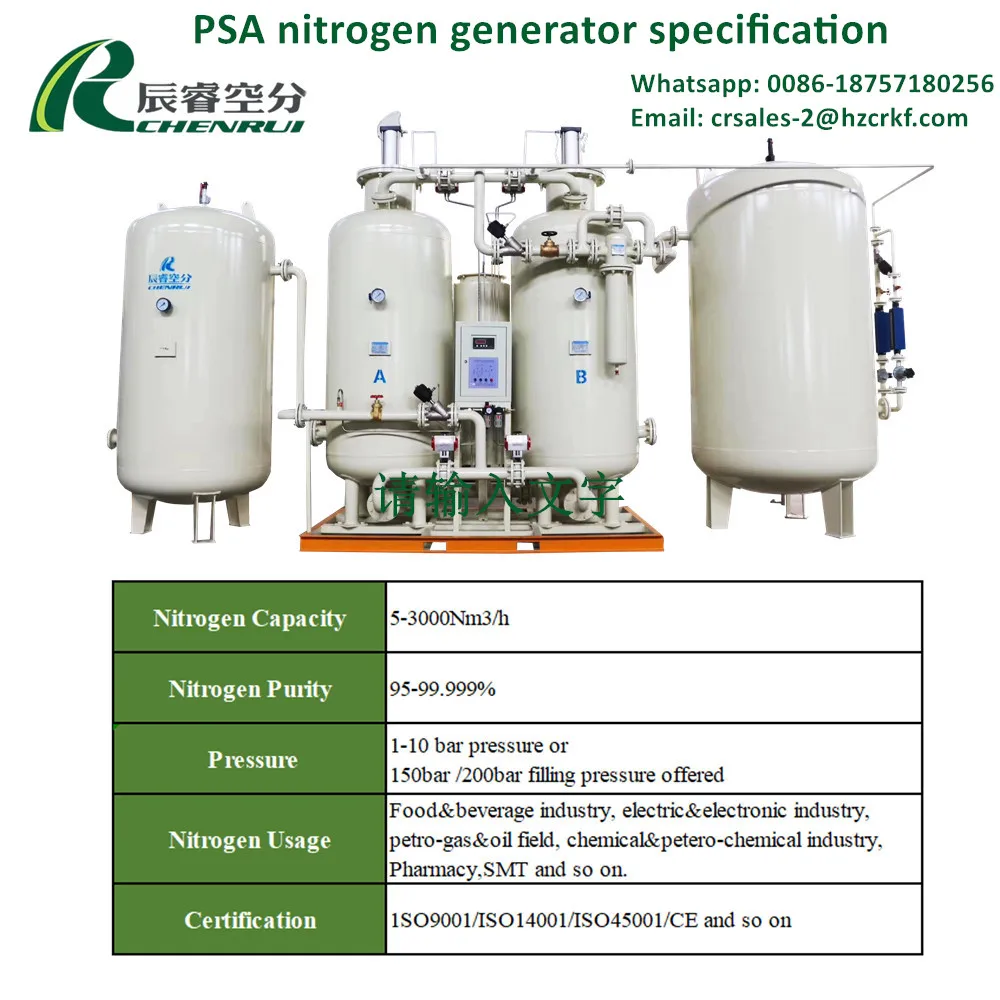

PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Nitrogen Capacity | 5-3000Nm3/h |
2 | Nitrogen Purity | 95-99.999% |
3 | Nitrogen outlet pressure | 0.1-0.8 MPa (1-8Bar) adjustable or according to user’s requirement |
Product Overview
PSA Nitrogen generator principle
PSA nitrogen generator is an automatic equipment which separate nitrogen from air. According
to the performance of molecular sieve, its adsorption when pressure risen and desorption when pressure loose. Molecular sieve’s surface and inner surface and interior are filled with micro pores. Oxygen molecule has a faster diffusion rate of molecular sieve and nitrogen molecules has a slower diffusion rate. Nitrogen molecules are enriched in the end from the absorption tower.The process comes in cycle way and controlled by PLC.
to the performance of molecular sieve, its adsorption when pressure risen and desorption when pressure loose. Molecular sieve’s surface and inner surface and interior are filled with micro pores. Oxygen molecule has a faster diffusion rate of molecular sieve and nitrogen molecules has a slower diffusion rate. Nitrogen molecules are enriched in the end from the absorption tower.The process comes in cycle way and controlled by PLC.
NO. | Main Parts | Function |
1 | Air compressor | Air is used as raw material to collect & compress air to 8 bar, (Screw type) |
2 | Air purification system | Remove dust and oil from compressed air. Material: carbon steel. |
3 | Heat less air dryer | Remove water from compressed air, dew point could be -40℃.Power 220V/50Hz 60W |
4 | Air buffer tank | Store pure and dry air for subsequent adsorption and separation. |
5 | Adsorption tower | A&B adsorption tower work in cycle, regenerating and adsorption, collect nitrogen gas at the end. |
6 | Analyzer | Real-time monitoring and analysis of nitrogen purity, indicating that the equipment is working normally and alarming. |
7 | Valves & pipelines | Intelligent control valves realize automatic operation of equipment, PLC control, SUS304 pipelines. |
8 | Dust filter | Remove the dust brought by molecular sieve in PSA nitrogen system. |
9 | Check valve | Prevent nitrogen back flow. |
10 | Pressure regulator | Adjust and temperature the outlet pressure of nitrogen (1-8 Bar). |
11 | Nitrogen storage Tank | Store nitrogen with qualified purity. |
12 | Nitrogen buffer tank | Stable nitrogen pressure before nitrogen booster (for optional) |
13 | Nitrogen Booster | Pressurize the oxygen&nitrogen to the filling pressure, generally 150bar or 200bar. (for optional) |
14 | Filling Manifold | Split high-pressure nitrogen into cylinder (for optional) |
FEATURES AT A GLANCE
1.Full Automation
2. Lower Space Requirement
3. Fast Start-up
4. High Reliability
5. Long molecular sieves life
6.Adjustable

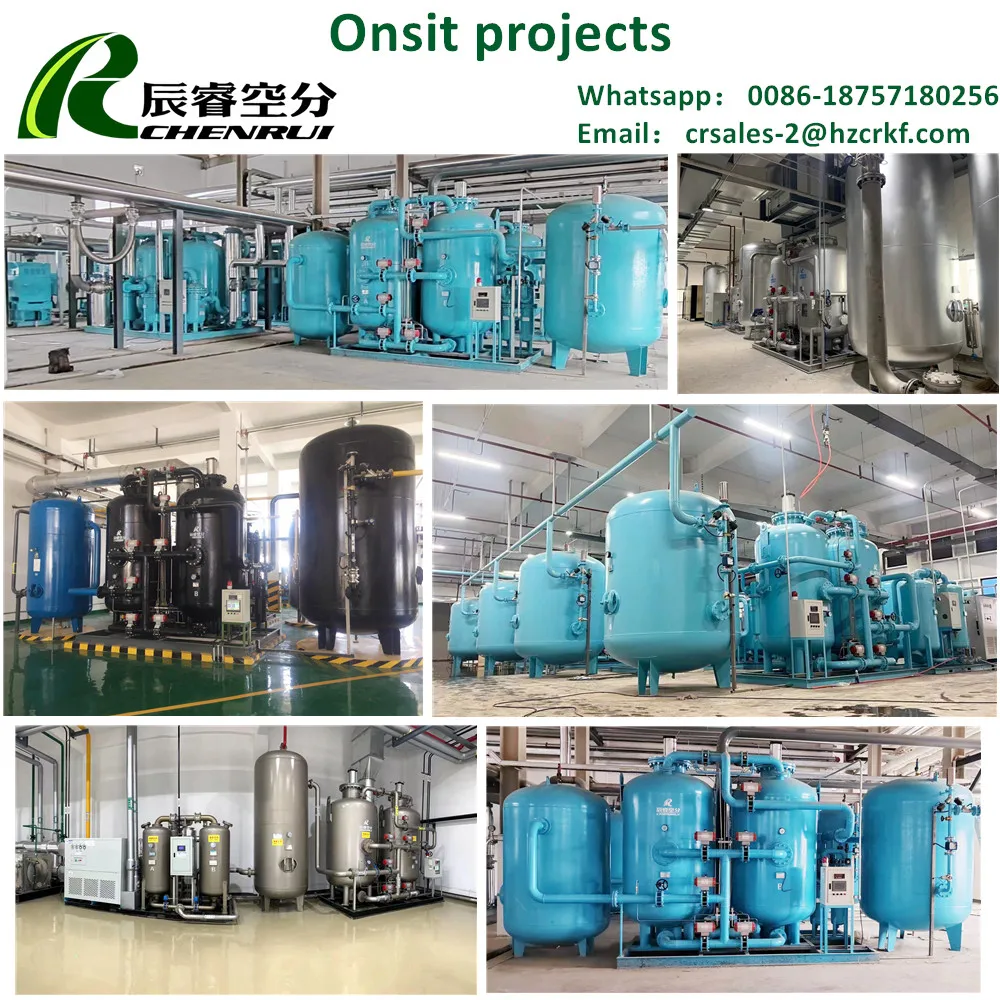

Successful Project
SIMILAR PRODUCTS
Company Profile
SALES AND SERVICE NETWORK
Our Exhibition
Our Customers
FAQ
1. Are you manufacturer or trade company?
We are a professional manufacturer in oxygen generator, nitrogen generator, liquid nitrogen generator and air
separator plant field for more than 22 years experience.
2. What about production time?
About 30 days.
3. What about quality?
Our generators have exported to more than 40 countries with good reputation around our customers, quality is in the top level in China.
4.Terms of payment?
30% advance payment, 70% before shipping.
6.How to get a promote quotation of nitrogen generator?
When you send an inquiry to us, pls kindly send below technical information:
1) nitrogen generator capacity : _____Nm3/hr
2) nitrogen purity: _____%
3) nitrogen pressure: _____Bar
4) Voltages and Frequency : ______V/PH/HZ
5) Application:
6) Project Location:
6. Could we as your agent?
Yes, of course. We are looking for sole agent in some Country who have the willing to cooperate with us for long business term.
We are a professional manufacturer in oxygen generator, nitrogen generator, liquid nitrogen generator and air
separator plant field for more than 22 years experience.
2. What about production time?
About 30 days.
3. What about quality?
Our generators have exported to more than 40 countries with good reputation around our customers, quality is in the top level in China.
4.Terms of payment?
30% advance payment, 70% before shipping.
6.How to get a promote quotation of nitrogen generator?
When you send an inquiry to us, pls kindly send below technical information:
1) nitrogen generator capacity : _____Nm3/hr
2) nitrogen purity: _____%
3) nitrogen pressure: _____Bar
4) Voltages and Frequency : ______V/PH/HZ
5) Application:
6) Project Location:
6. Could we as your agent?
Yes, of course. We are looking for sole agent in some Country who have the willing to cooperate with us for long business term.
If you have any question, please do not hesitate to contact us.
Thank you!
