Морокко фосфорная установка для обработки руды 100 т/ч оборудование Обогащения Золота лабораторный шейкер стол продажи
- Категория: >>>
- Поставщик: Jiangxi Changyi Mining Machinery Co. Ltd.Jiangxi Ltd.
Сохранить в закладки 1601323450064:
Описание и отзывы
Характеристики
Product Description

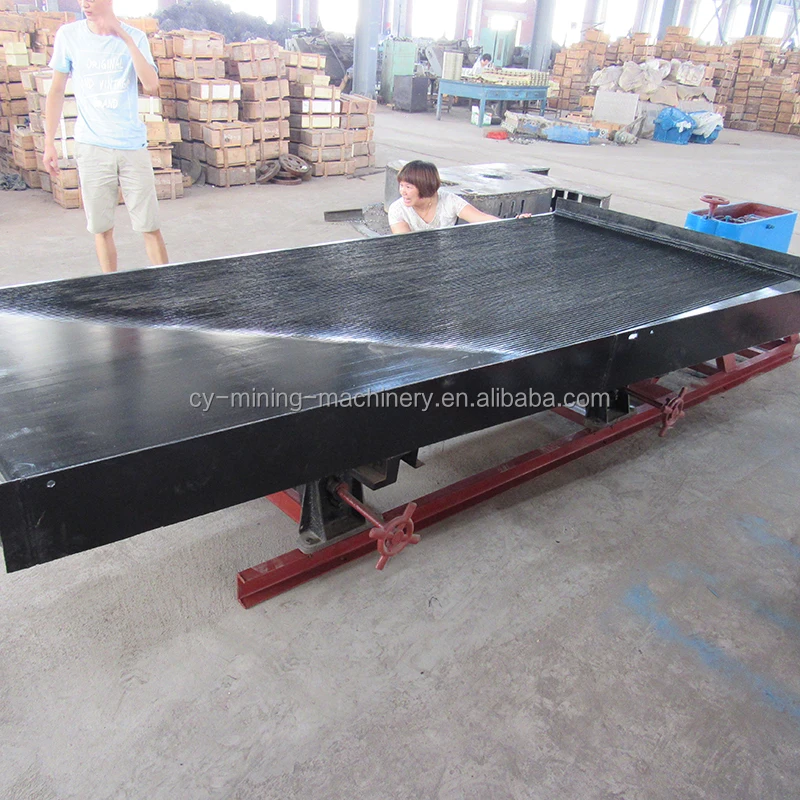

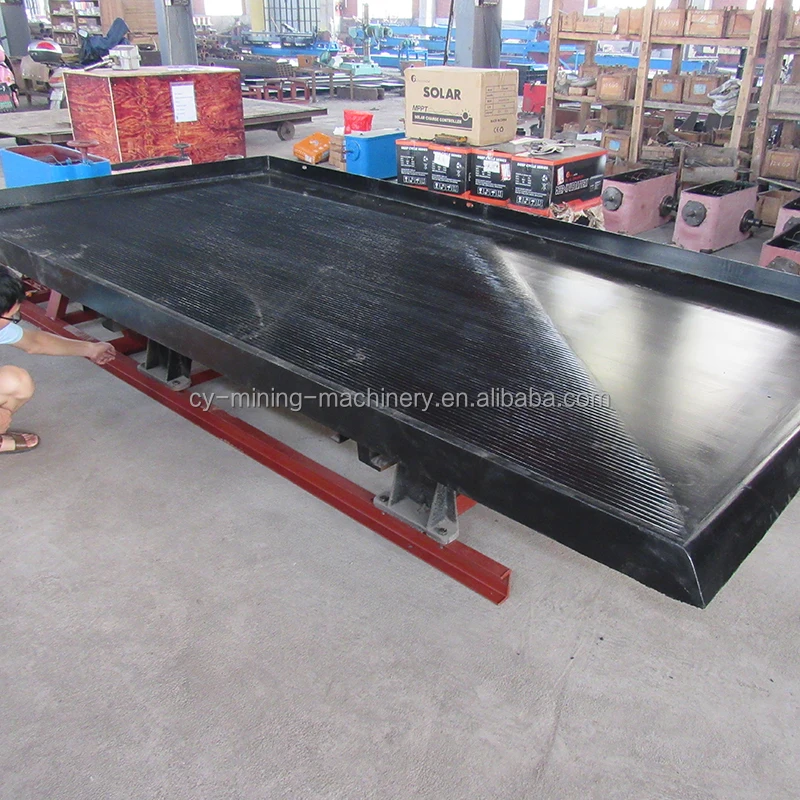

Shaking table is a flagship mining equipment with more than 50 years experiences in JXCY factory.
It is a gravity wet process mine machinery, the table deck is made of fiber glass reinforced with wearable corundum surface.
Mining shaker table is composed of three parts: head motion of shaking table, table deck of shaking table, as well as bearing and adjusting gradient.
Shaking table widely used to separate gold, tin, tungsten, chromite, silver, diamond, zircon, cobalt, tantalum-niobium, lead,
zinc, copper, antimony, other rare metal and noble metal ores.
It is a gravity wet process mine machinery, the table deck is made of fiber glass reinforced with wearable corundum surface.
Mining shaker table is composed of three parts: head motion of shaking table, table deck of shaking table, as well as bearing and adjusting gradient.
Shaking table widely used to separate gold, tin, tungsten, chromite, silver, diamond, zircon, cobalt, tantalum-niobium, lead,
zinc, copper, antimony, other rare metal and noble metal ores.
JXCY 6-S shaking table has very good separation effect and high recoveryas we have different decks for different mineral
sizes.4.6-slot/60-slot belong to coarse sand deck,used for separating 0.5--2mm;88-slot/120-slot belong to fine sand deck, used for separating 0.074--0.5mm;138-slot belong to slurry deck,used for separating ≤0.074mm.
sizes.4.6-slot/60-slot belong to coarse sand deck,used for separating 0.5--2mm;88-slot/120-slot belong to fine sand deck, used for separating 0.074--0.5mm;138-slot belong to slurry deck,used for separating ≤0.074mm.
Working Principle of 6s Shaking Table:
The working principle of Shaker Table is separating the heavy material from light material by using their different proportion & specific gravity, under the effect of gravity, the minerals will divide into the ore concentrate, the middling and the tailing.
The prominent advantage of ore shaking table is precise separation.
The enrichment ratio of concentrate is very good, up to 95% high recovery ratio for kinds of heavy minerals, when dealing with low grade tungsten ore and tin ore, the enrichment ratio could reach about 300 times.
we can get some final concentrates, final tailings and 1 or 2 kinds of middling products after first separating from the feeding mineral.
The prominent advantage of ore shaking table is precise separation.
The enrichment ratio of concentrate is very good, up to 95% high recovery ratio for kinds of heavy minerals, when dealing with low grade tungsten ore and tin ore, the enrichment ratio could reach about 300 times.
we can get some final concentrates, final tailings and 1 or 2 kinds of middling products after first separating from the feeding mineral.
Shaker Spare Parts
Features and Application
1. Add collection trough and feed trough, made of wear-resistant PP.
2. Increase the height of the channel frame.
3. Add a protective cover on the belt.
4. Thicken the steel plate to 5mm.
5. Reinforce the table top with emery and fiberglass materials.
(Strongly recommend 6s shaking table)
2. Increase the height of the channel frame.
3. Add a protective cover on the belt.
4. Thicken the steel plate to 5mm.
5. Reinforce the table top with emery and fiberglass materials.
(Strongly recommend 6s shaking table)

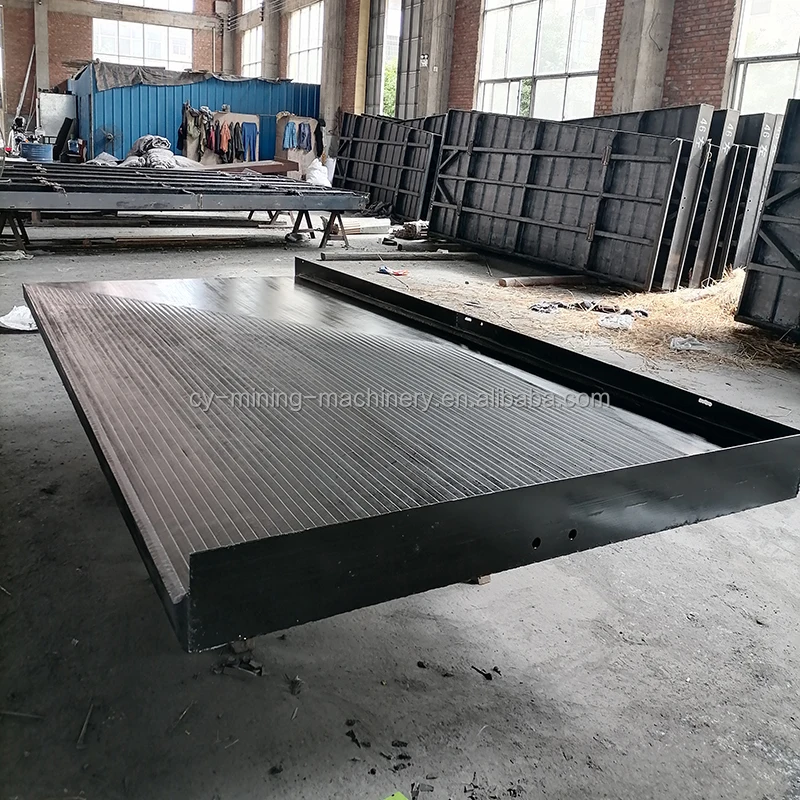

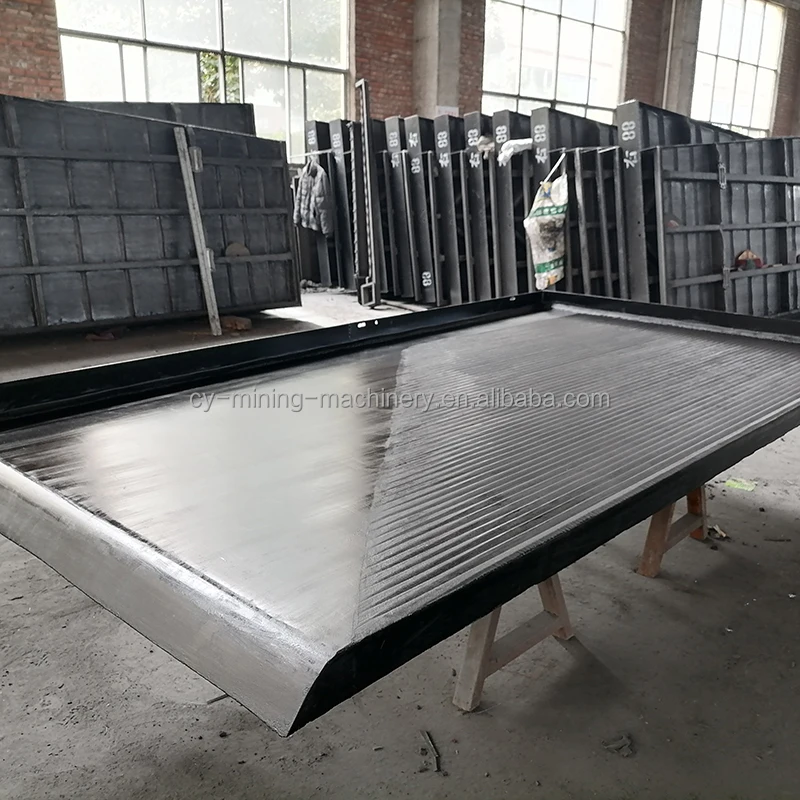

Table for shaking Table
1.Made of emery,epoxy resin and fberglass fabrlc.
2.Emery: first-grade,most wear-reslsting,can make the
table wearproof, long llfe tlme.
table wearproof, long llfe tlme.
3.fiberglass fabrlc: thlcken , can support the table more stable and stronger
Big &High Channel Frame For ShakingTable
1.#28 big channel frame
2. 50cm more height than normal, socan collect the minerals more convenlently
PP Materlal Feeding Chute &CollectlonChute
The feeding chute & collection chute is made of PP material,wearproof. long life time. can collect the concentrate and middlingmore conveniently.
old type is iron sheet or without this chute.The old feeding chute material is woodenwhich is more easy to be broken.
old type is iron sheet or without this chute.The old feeding chute material is woodenwhich is more easy to be broken.

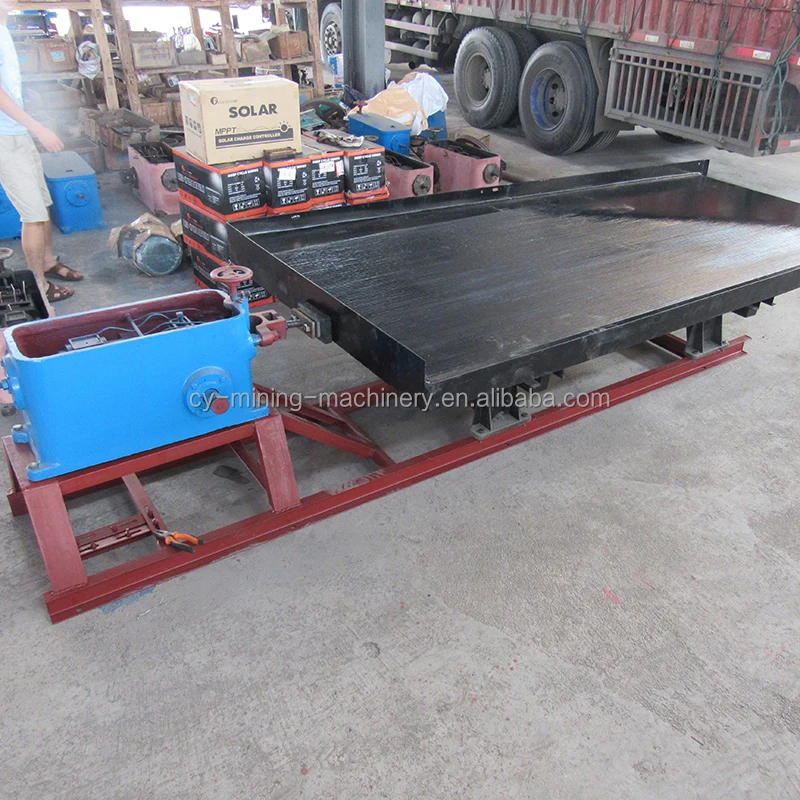

Electrlc Motor&Transmisslon Box forshaking Table
1.From China famous motor brand: DASU
2.Also can make SIEMENS brand
3.Can customize motor as per request.
4. Wheels is with Cover, more safety operation.
5.High quality transmission box make table working stable
2.Also can make SIEMENS brand
3.Can customize motor as per request.
4. Wheels is with Cover, more safety operation.
5.High quality transmission box make table working stable
Successful Cases
Packaging&Shipping
Packaging | Wooden Box, Iron Frame, Customized | ||||||
Port | Xiamen, Shenzhen, Qingdao | ||||||
About Us
Jiangxi Changyi Mining Machinery Co., Ltd.
It is a professional mining machinery manufacturer with more than 10 years of experience led by a young team, providing a full range of processing equipment for gold, tin, tungsten, iron, diamond,coltan,silica sand, zircon sand, black sand, chromium, etc.
Main products: shaker, ball mill, drum sand washer, spiral sand washer,spiral chute, jig, centrifugal concentrator, vibrating
screen, drum screen, jaw crusher, hammer crusher, flotation machine, spiral classifier, magnetic separator, etc. and a full range of small laboratory mining equipment and alloy bearings.
screen, drum screen, jaw crusher, hammer crusher, flotation machine, spiral classifier, magnetic separator, etc. and a full range of small laboratory mining equipment and alloy bearings.
Main markets: Africa, South America, Europe, Southeast Asia, Asia, etc. Our cooperative customers cover Congo, Ghana, Uganda,South Sudan, Israel, Pakistan, Mozambique, Suriname, Zambia, Nigeria, Cameroon, Malaysia, Indonesia, South Korea, Philippines,Mongolia,Singapore, India, Iran, Mexico, Brazil, Chile, Peru, Spain, Canada, Australia, the United States, the United Arab Emirates, etc.
Tanzania Exhibition
Customer visit
FAQ
1. How is the quality of your products? (Mining Equipment/Machines)
A: Our products are strictly produced according to national and international standards, and we will test each machine before delivery.
2. Is there a quality guarantee?
A: All our products have a one-year warranty. If the product quality is not consistent with our description or promise before placing an order, we promise 100% refund.
3. How about the price?
A: For exactly the same machine, we can guarantee that our quality is the best when the price is the same as other competitors, and our price can be the lowest when the quality is up to standard level.
4. Service and payment terms?
A: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is an international trade practice; finished product pictures will be provided to customers before delivery.
A: Our products are strictly produced according to national and international standards, and we will test each machine before delivery.
2. Is there a quality guarantee?
A: All our products have a one-year warranty. If the product quality is not consistent with our description or promise before placing an order, we promise 100% refund.
3. How about the price?
A: For exactly the same machine, we can guarantee that our quality is the best when the price is the same as other competitors, and our price can be the lowest when the quality is up to standard level.
4. Service and payment terms?
A: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is an international trade practice; finished product pictures will be provided to customers before delivery.
