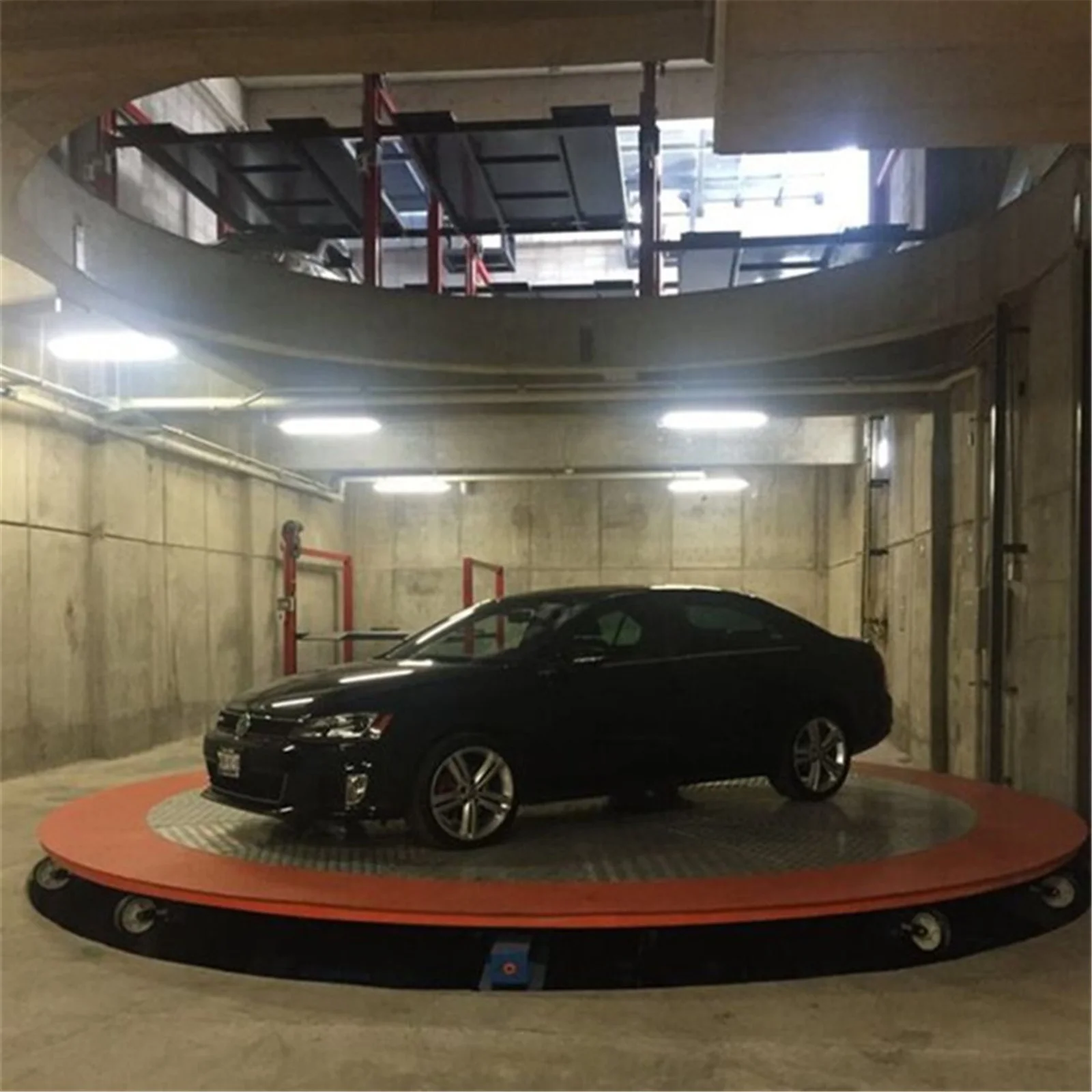

360 Degree Rotatable Exhibition Stand Turntable Car Display Platform Garage Parking Turn Table
1 200,00-1 700,00 $
Китайский бренд 100 тонный гусеничный кран телескопический стреловой цена QUY100 с запасными частями высокое качество разумная
- Категория: >>>
- Поставщик: Cruking Engineering Equipment (Xiamen) Co. Ltd.Cruking Ltd.
Сохранить в закладки 1601323458759:
Описание и отзывы
Характеристики

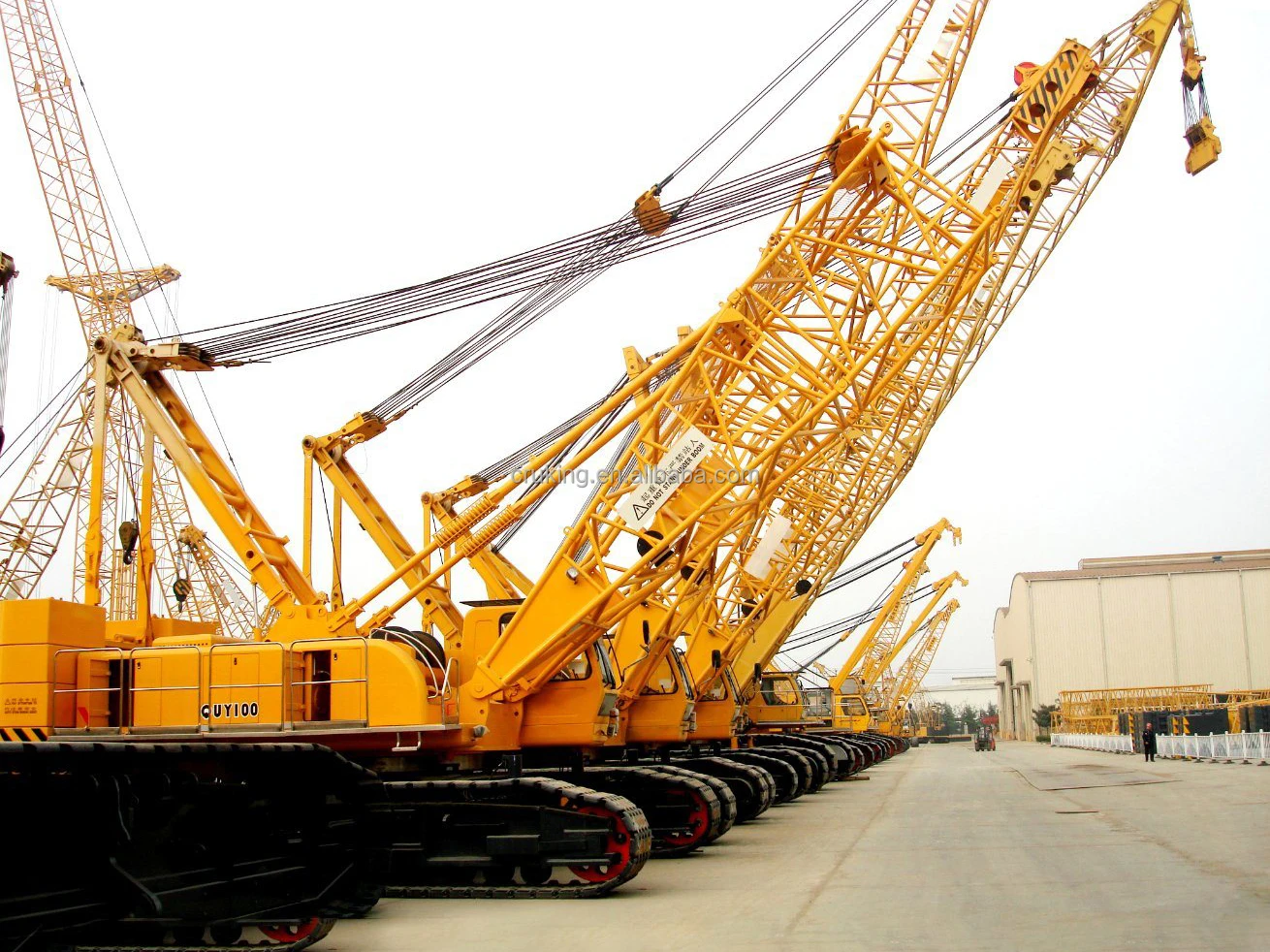

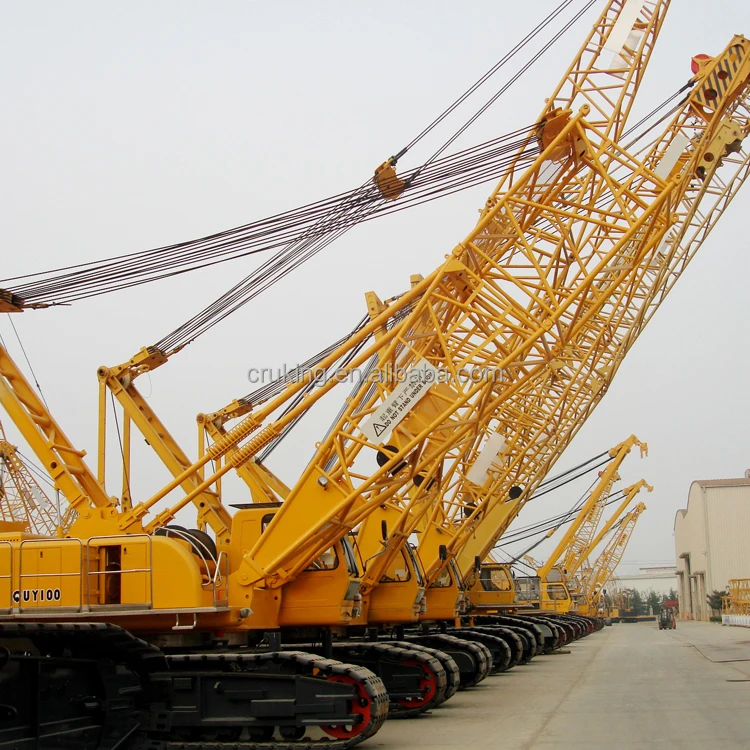

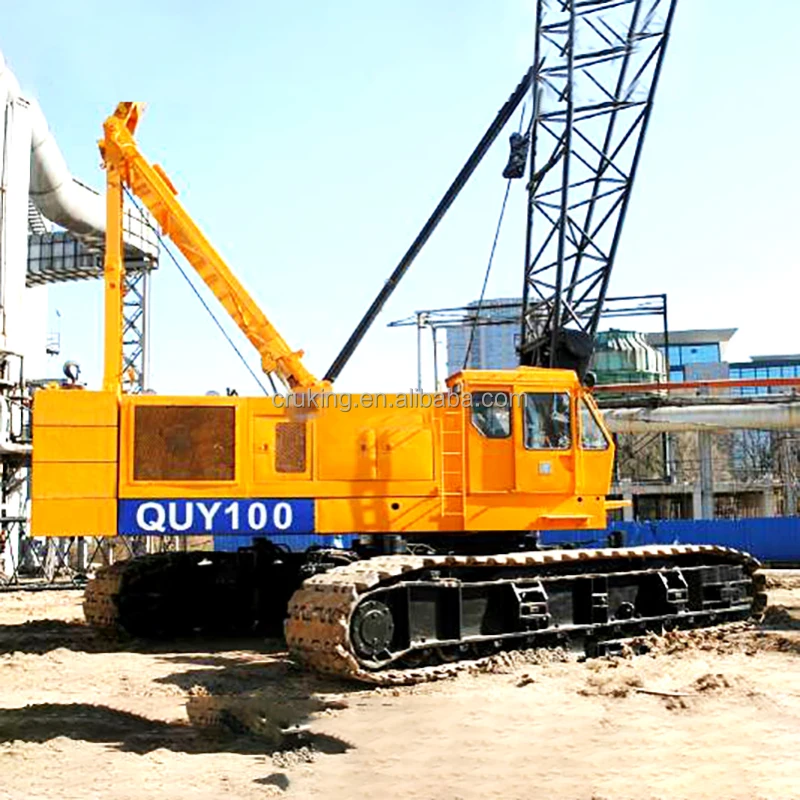

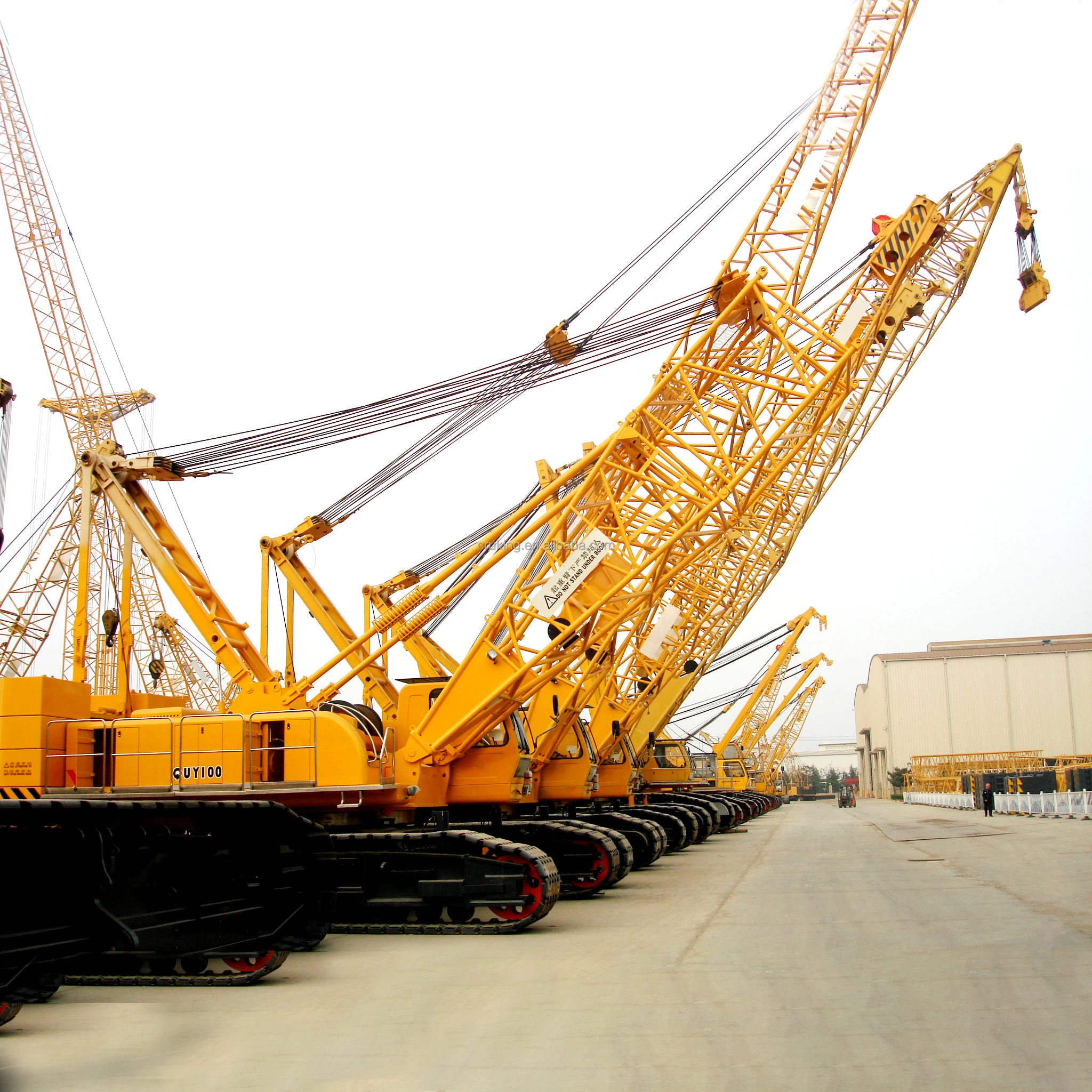

Top Brand Full Hydraulic 100 Ton Crawler Crane QUY100 With Spare Parts for Sale within Lifting Machinery
Contact Way
Product Overview
The system is mature and reliable, and the safety devices are complete. It is equipped with a self-erecting function, main winch quick release function, one key switch function, an engine cold start device, a winch monitoring system, a hydraulic high-pressure bypass filter system, and an electronic level gauge, anti-lightning system, travel commutation function, the main boom catwalk and other advanced technology, all aspects of performance are superior to the domestic counterparts.
1. High hoisting speed
2. Heavy lifting capacity on fixed jib
3. Strong lifting capacity on main boom
(1) Lifting capacity on main boom is heavier than that on its counterpart in the same trade;
(2) Lifting capacity on middle-short-length boom is equal to that on its counterpart in the same trade;
(3) Lifting capacity on middle-long-length boom is 10%~50% heavier than that on its counterpart in the same trade, depending on the working radius;
(4) Compared with its counterpart in the same trade, the QUY 80 crawler crane boasts such advantages as excellent whole stability and stable lifting capacity on middle-long-length boom;
4. High cost-performance
We can provide you with more practical and economical configuration and higher cost-performance crane while guaranteeing that the whole performance of our crane is equal to or even better than its counterpart in the same trade.
2. Heavy lifting capacity on fixed jib
3. Strong lifting capacity on main boom
(1) Lifting capacity on main boom is heavier than that on its counterpart in the same trade;
(2) Lifting capacity on middle-short-length boom is equal to that on its counterpart in the same trade;
(3) Lifting capacity on middle-long-length boom is 10%~50% heavier than that on its counterpart in the same trade, depending on the working radius;
(4) Compared with its counterpart in the same trade, the QUY 80 crawler crane boasts such advantages as excellent whole stability and stable lifting capacity on middle-long-length boom;
4. High cost-performance
We can provide you with more practical and economical configuration and higher cost-performance crane while guaranteeing that the whole performance of our crane is equal to or even better than its counterpart in the same trade.
Contact me
Candice Li
Mobile/WhatsApp/Wechat : +86-13599640301
Email : candice@cruking.com
Candice Li
Mobile/WhatsApp/Wechat : +86-13599640301
Email : candice@cruking.com
Product Paramenters
Item | Unit | Parameter value |
Parameter Item | - | QUY100 |
Operation performance parameter | * | |
Max. rated lifting capacity for boom | (t) | 100 |
Max. rated lifting capacity for fixed jib | (t) | 15.6 |
Max. rated lifting capacity for luffing jib | (t) | - |
Max. load moment | (t.m) | 575 |
Max. rated lifting capacity for tower jib | (t) | - |
Max. rated lifting capacity for boom single top | (t) | 13 |
Max. rated lifting capacity for special jib | (t) | - |
Dimension parameter | * | |
Boom length | (m) | 19~73 |
Boom luffing angle | (°) | 30~81 |
Fixed jib length | (m) | 13~25 |
Tower jib length | (m) | - |
Max. dimension of single unit in transport state(L×W×H) | (m) | 10.5×3.0×3.35 |
Fixed jib offset angle | (°) | 15,30 |
Special jib length | (m) | - |
Speed parameter | * | |
Max. single line speed for hoist mechanism | (m/min) | 110/120 |
Max. single line speed for boom luffing mechanism | (m/min) | 34/46 |
Max. single line speed for jib luffing mechanism | (m/min) | - |
Max. slewing speed | (r/min) | 1.4 |
Max. travel speed | (km/h) | 1.3 |
Grade ability | (%) | 30 |
Mean ground pressure | (MPa) | 0.087 |
Max. single line speed for tower jib luffing mechanism | (m/min) | - |
Max. single line speed for superlift luffing | (m/min) | - |
Engine | * | |
Model | - | SC9DK270G3/QSC |
Engine power | (kW) | 200/183 |
Emission | - | National III/EU III |
Mass parameter | * | |
Overall crane mass | (t) | 104.5(main hook, 19m boom) |
Max. mass of single unit in transport state | (t) | 32.5 |
Details Images
Company Information
Похожие товары
Гидравлическая система ручной штабелер с грузоподъемностью 1 т 6 м

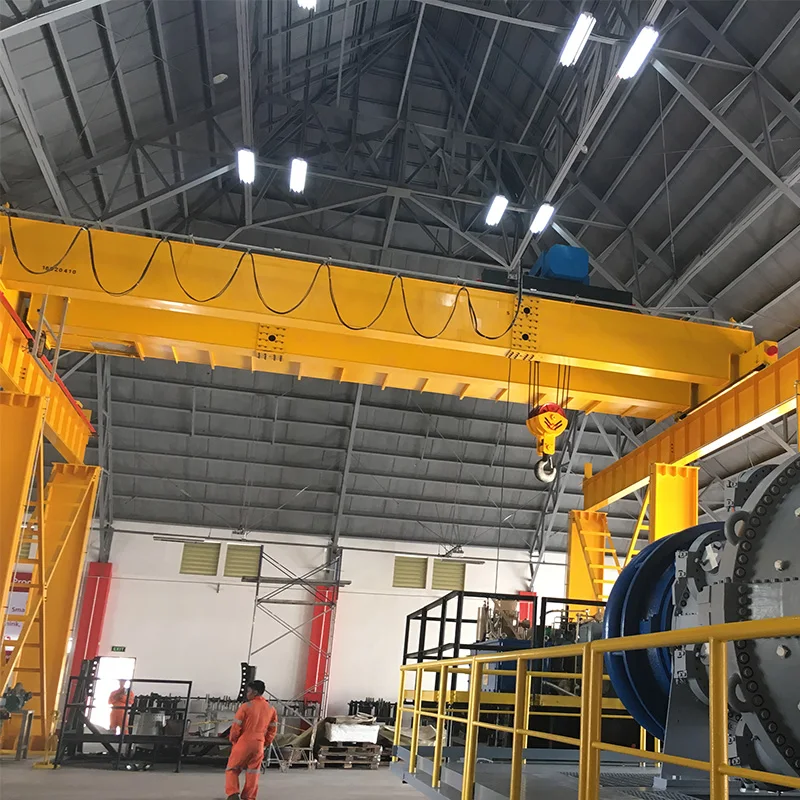

LH Электрический подъемник мостовой кран
20 000,00 $

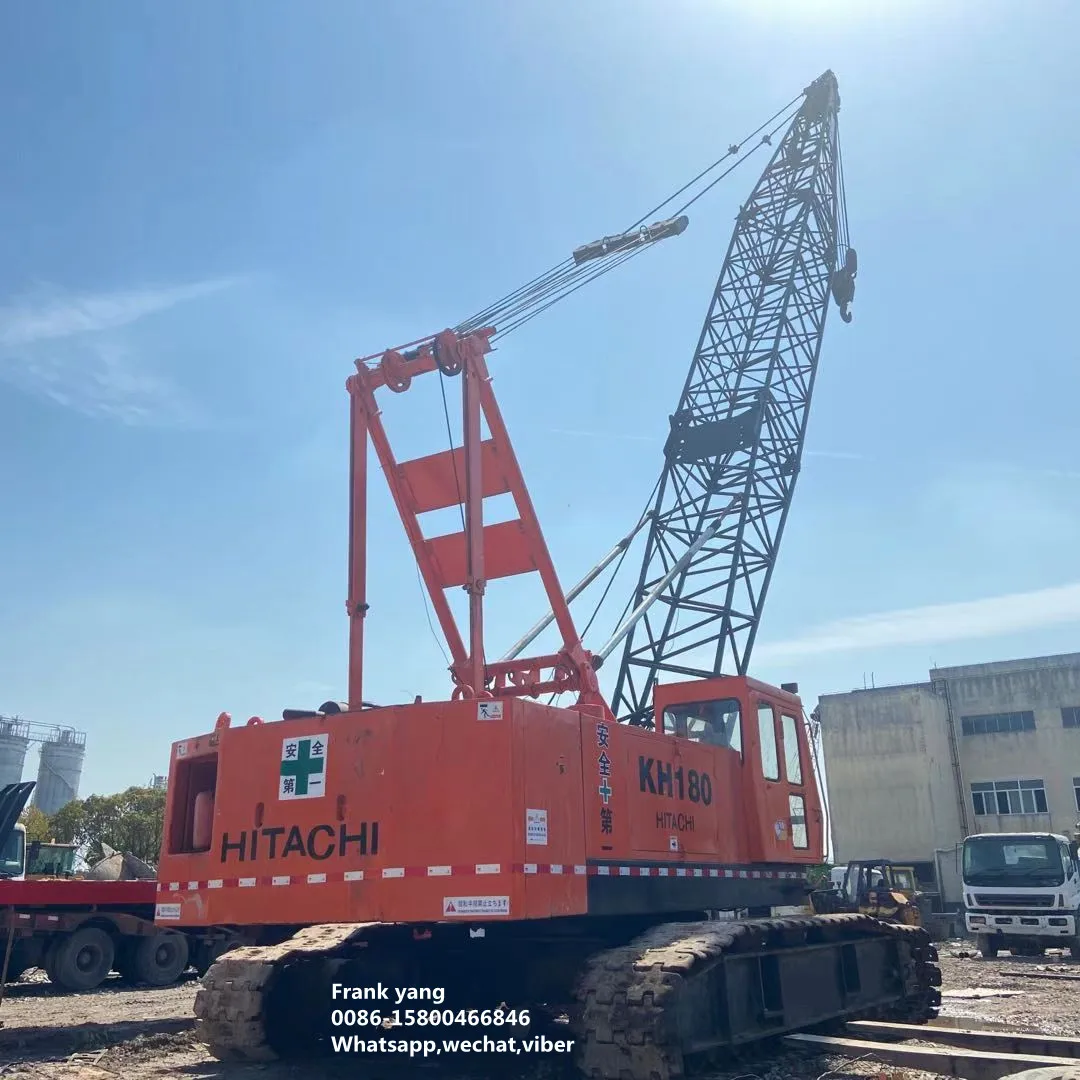

Used 50 Ton H1tachi Lattice Boom Crane Kh180-3 Crawler
Сделано в Китае JHQ-C Тип кран полиуретановый буфер с индивидуальным размером
100,00-500,00 $
Дно и крюковые блоки для промышленного козлового крана с компонентами сердечника двигателя необходимыми деталей сцепления
620,00 $

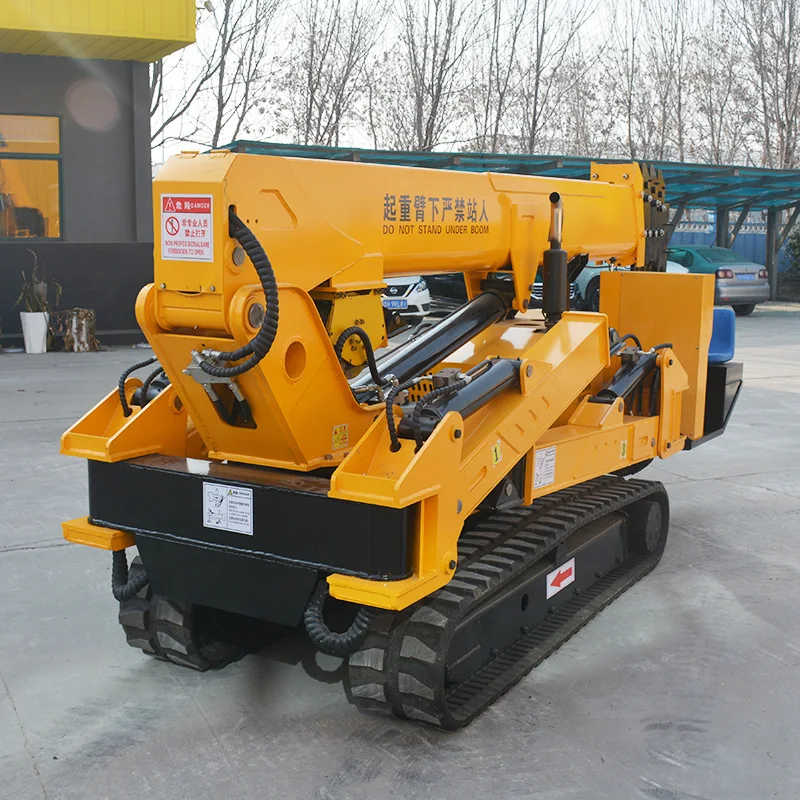

Гидравлический Телескопический строительный кран-манипулятор 6 3 тонный Грузовой кран цена продажи мини-кран-паук 28 л/мин 100
