Product Description
Model Name | Android 10 System Touch Screen 2+16GB NFC QR Barcode Scanner Bus validator | ||||
CPU | Quad core, 1.4GHz | ||||
Operation System | Android 10 | ||||
RAM | 2GB DDR | ||||
ROM | 16GB EMMC | ||||
LCD Display | Landscape: 7 inch RGB 1024*600 Portrait: 5 inch RGB 480*800 | ||||
Driver Dispaly | 8 bits LED Digital Display | ||||
QR Barcode Scanner | 1D: UPCA、UPCE0、Code 11、Codabar、Matrix2of5、Industrial25、 RSS14、RSSLimited、RSSExpanded、MSIPlessey、UPCE1、EAN13、EAN8、CODE39、CODE 93、CODE 128、SBN13、INTERLEAVED 2 of 5 2D QR Code: PDF417 DATAMATRIX QRCode | ||||
Face AI Recognization Camera(Optional) | Binnocular RGB+IR More than 2 Million Pixel Camera,Living Biometric Identification | ||||
NFC Card Reader Quick Pay Module | EMV3.0/3.1ISO/IEC 14443 TypeA Protocol for High-speed Transmission of 06kbit/s 212kbit/s424kbit/s、848kbit/s ISO/IEC 14443 TypeB and CCITT Protocol P2P Passive initiator of ISO/IEC 18092 Felica Card 212K and 424K ISO/IEC 15693 SIGIN/SIGOUT | ||||
Audio Amplifier | Efficient DSP Processing, SD Sound 3W Mono Output | ||||
Physical Button | Confirmation key, Up Flip key, Down Flip key, Clear key | ||||
4G/LTE-FDD B1/B2/B3/B4/B5/B7/B8/B20/B28 4G/LTE-TDD B38/B39/B40/B41 3G/WCDMA B1/B8 3G/TD-SCDMA B34/B39 3G/EVDO/CDMA BC0 2G/GSM 900/1800MHz WiFi 802.11b/g/n/AC 2402-2482MHz/5180-5825MHZ BT4.1/4.2 LE 2402-2480MHz GNSS GPS/GLONASS/BEIDOU GPS: 1575.42MHZ ±1.023MHZ GLONASS: 1597.5-1605.8MHZ BEIDOU: 1561.098-2.046MHZ | |||||
External Interface | 1* USB interface OTG 1* Serial port(RS232 by default,can do RS485) 1* GPS antenna socket 1* DC Socket(DC IN) 3* SIM Card 1* PSAM Card(6 PSAM Max) | ||||
Packaging | Standard Industrial Packaging | ||||
Charger and Cigarette lighter | Input 10-40V 2.5A | ||||
Battery (Optional) | 3.7V 2600mAh Polymer battery, Barcode Scanning Time >12h when no transmission | ||||
Detailed Images

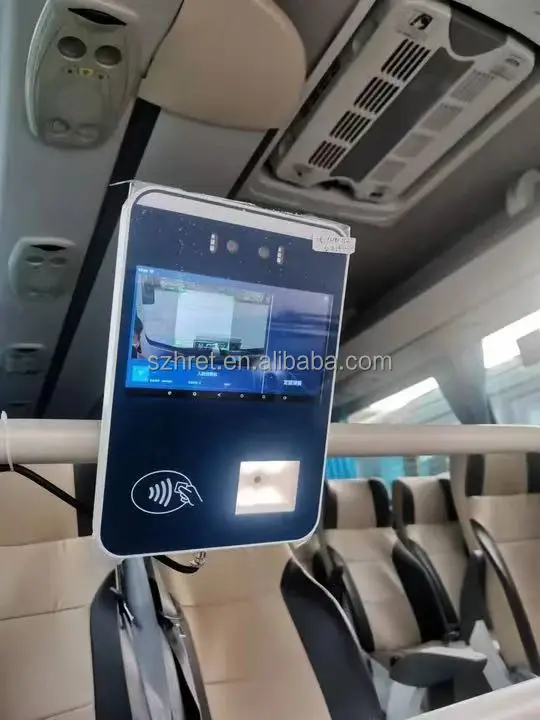

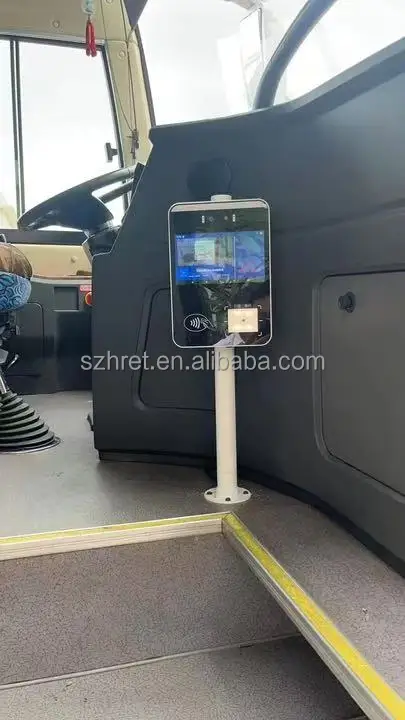

H158 Bus Card Validator Installed by customer

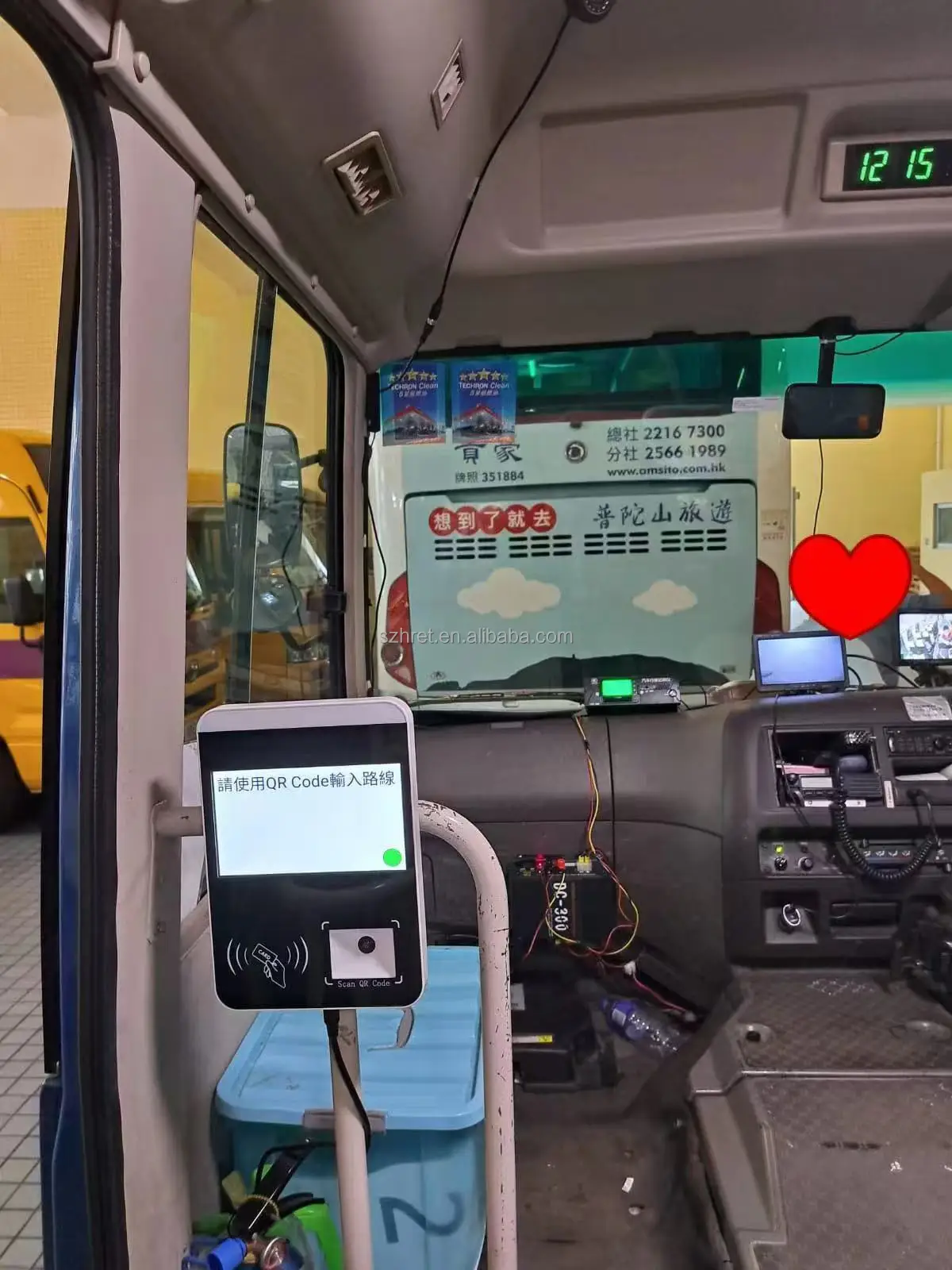

Device Run In European Bus Card Validator Payment
Assembling Bus Card Validator for AFCS

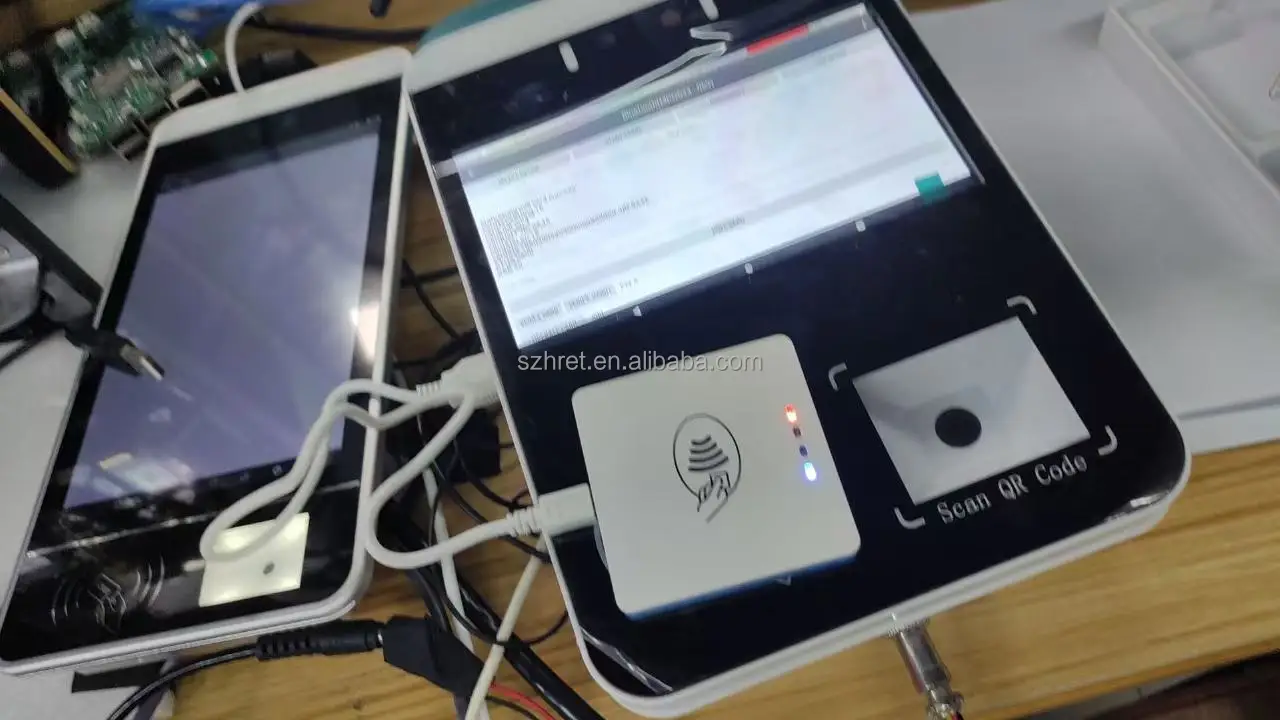

Testing QR Barcode Scanner NFC Card Reader Validator

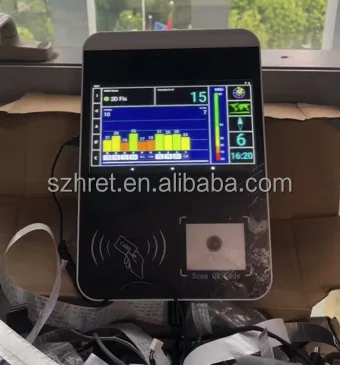

7 inch Big Touch Screen Android 11 Bus Validator
Smart Bus Validator Payment Terminal with NFC QR 4G
Bus Validator with USB RS232 WIFI BT 4G LTE GPS
Smart Bus Validator with Driver Screen and Mounted Hole
Our Company
We, Shenzhen Hua Rui Electronic Technology Co., Ltd established in 2009, headquarters located in Shenzhen City, one of the leading supplier for Commercial Terminal. We got the certificates of "Shenzhen High-Tech Enterprises" and "Chinese High-Tech Enterprises”.Qualified with more than 160 patents and 42 product certifications.
With the continuous technology innovation and business expanding, in order to enhance our customer experience & satisfaction simultaneously, we set OEM Business Unit, ODM Business Unit and SKD Business Unit from 2018, set Huizhou office Branch and Wuhan Branch, total workshop more than 15000 square meter.
ODM Business Unit produce and sell all type POS machines. Such as Handheld Pos, Desktop Pos, Cash Register Pos, both Android/Windows System. Products are widely used in scenarios such as Payment, Retail, E-Ticket, Lottery, Online Ordering,QueueSystem and so on. Till now, HRET has deployed worldwide 2.5M+ Pos Terminals, exported to 120+ countries, 600+ big projects,served 5000+ customers and build 15 service centre overseas.
OEM Business Unit mainly produce Self-Service Payment Kiosk Machine(Wall mounted and Floor Standing), All in one Touch Machine and related commercial use terminals. OEM Business Unit has 30 engineers in R&D, 4 production line, production capacity is 20K pieces per month. Our customers are KFC, MacDonald’s, Walmart and Banks.
SKD Business Unit produce Industrial Level Android Development Main Board PCBA. Boards equipped with RK3128, RK3288, RK3399,RK3566, RK3568, RK3588 CPU and Qualcomm 450, 660, Snapdragon 845 etc. Use for Pos Machine, Kiosk Machine, Digital Signage,Advertising Media Player, Vending Machine, AI Weighting Machine, Health Medical Machine and so on. 25 engineers in R&D,Production capacity 70K pieces per month.
With the mission of creating a colorful future, HRET sticks to technology-driven and market demand-oriented and solidly stands in the AIOT industry forefront, welcome to realise this together with us.
With the continuous technology innovation and business expanding, in order to enhance our customer experience & satisfaction simultaneously, we set OEM Business Unit, ODM Business Unit and SKD Business Unit from 2018, set Huizhou office Branch and Wuhan Branch, total workshop more than 15000 square meter.
ODM Business Unit produce and sell all type POS machines. Such as Handheld Pos, Desktop Pos, Cash Register Pos, both Android/Windows System. Products are widely used in scenarios such as Payment, Retail, E-Ticket, Lottery, Online Ordering,QueueSystem and so on. Till now, HRET has deployed worldwide 2.5M+ Pos Terminals, exported to 120+ countries, 600+ big projects,served 5000+ customers and build 15 service centre overseas.
OEM Business Unit mainly produce Self-Service Payment Kiosk Machine(Wall mounted and Floor Standing), All in one Touch Machine and related commercial use terminals. OEM Business Unit has 30 engineers in R&D, 4 production line, production capacity is 20K pieces per month. Our customers are KFC, MacDonald’s, Walmart and Banks.
SKD Business Unit produce Industrial Level Android Development Main Board PCBA. Boards equipped with RK3128, RK3288, RK3399,RK3566, RK3568, RK3588 CPU and Qualcomm 450, 660, Snapdragon 845 etc. Use for Pos Machine, Kiosk Machine, Digital Signage,Advertising Media Player, Vending Machine, AI Weighting Machine, Health Medical Machine and so on. 25 engineers in R&D,Production capacity 70K pieces per month.
With the mission of creating a colorful future, HRET sticks to technology-driven and market demand-oriented and solidly stands in the AIOT industry forefront, welcome to realise this together with us.
