roulement YET 205 YET205 bearing eccentric collar locking pillow block ball insert bearing SA205

Product Description

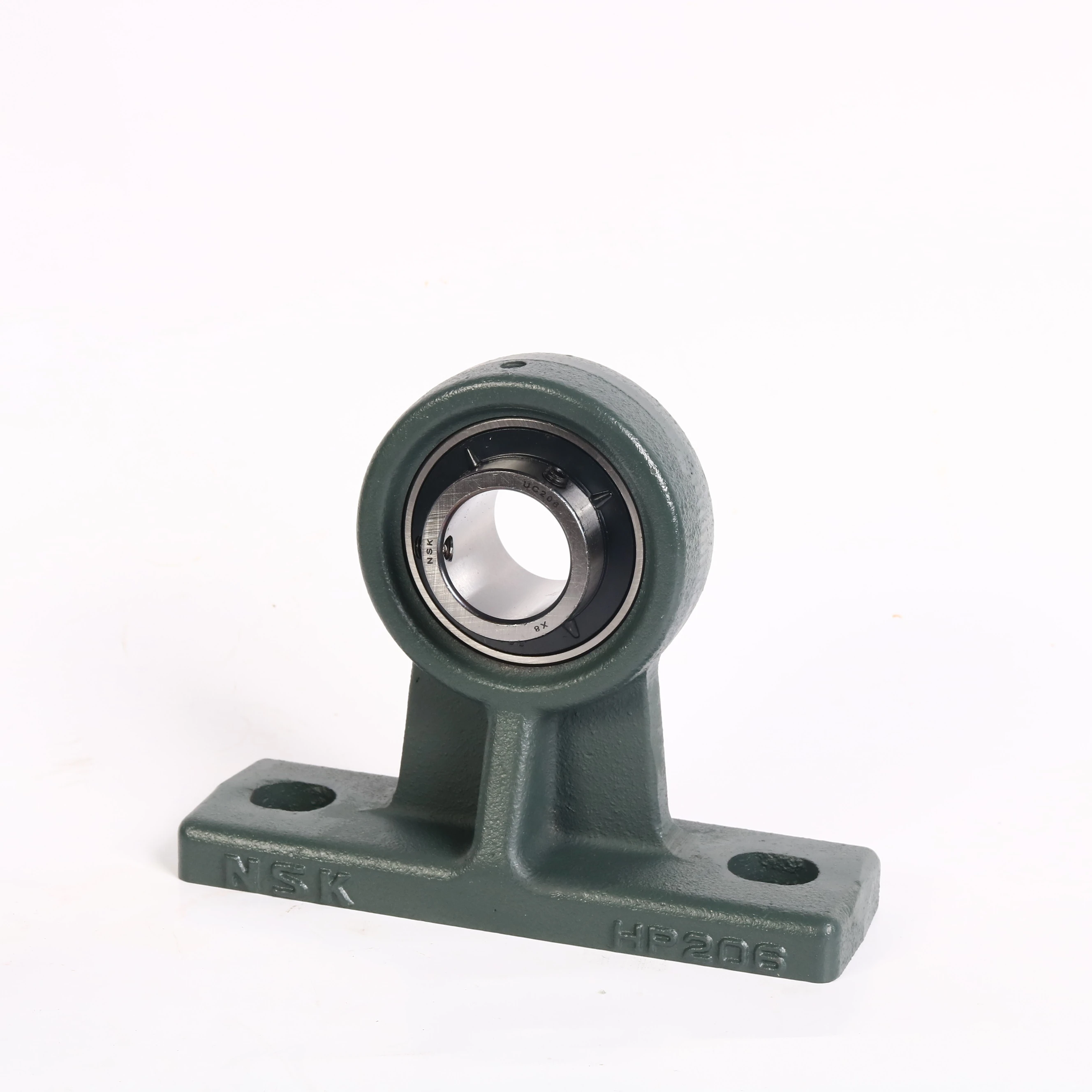

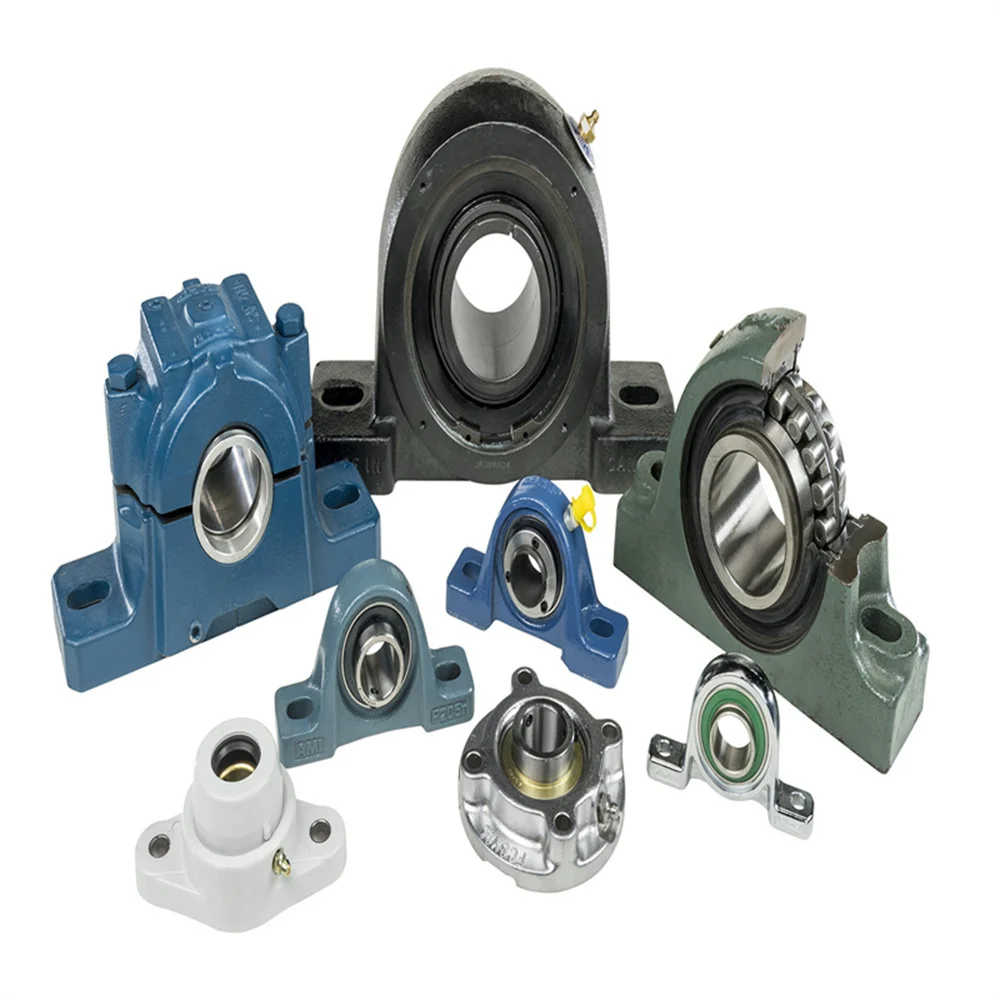

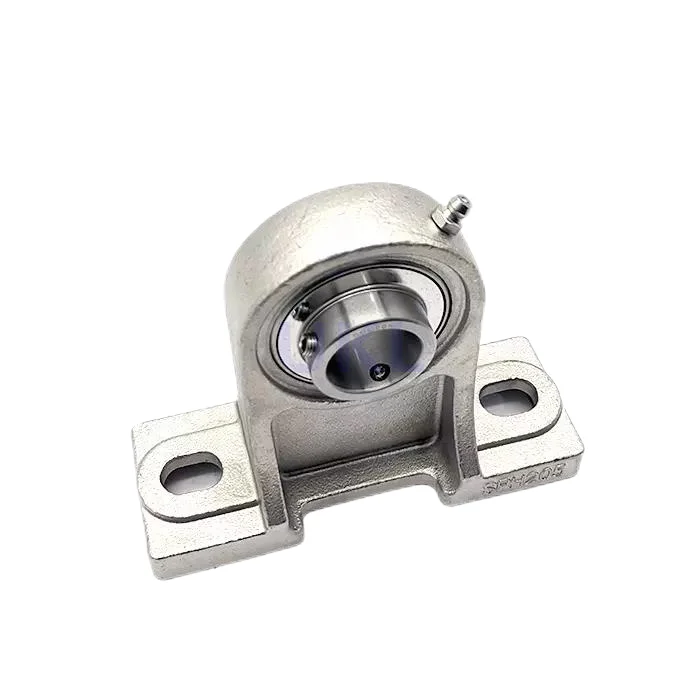

A pillow block (or plummer block) is a pedestal used to provide support for a rotating shaft with the help of compatible bearings & various accessories. Housing material for a pillow block is typically made of cast iron or cast steel.

A pillow block usually refers to a housing with an included anti-friction bearing. A pillow block refers to any mounted bearing wherein the mounted shaft is in a parallel plane to the mounting surface, and perpendicular to the center line of the mounting holes, as contrasted with various types of flange blocks or flange units. A pillow block may contain a bearing with one of several types of rolling elements, including ball, cylindrical roller, spherical roller, tapered roller, or metallic or synthetic bushing. The type of rolling element defines the type of pillow block. These differ from "plummer blocks" which are bearing housings supplied without any bearings and are usually meant for higher load ratings and a separately installed bearing.

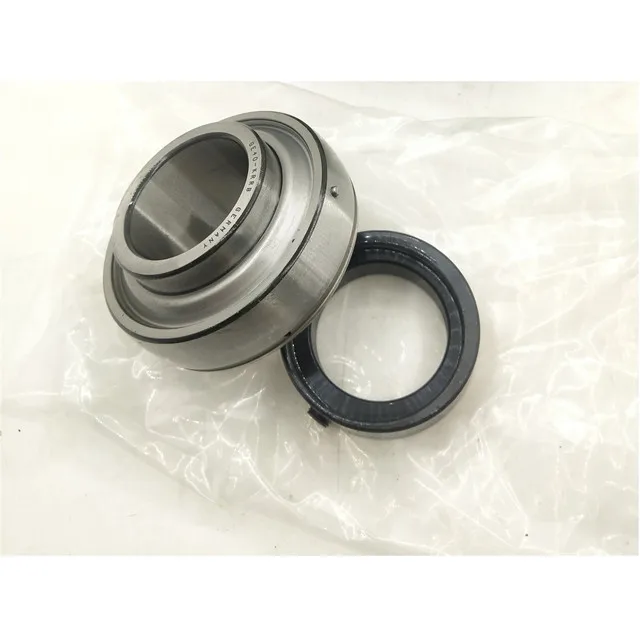

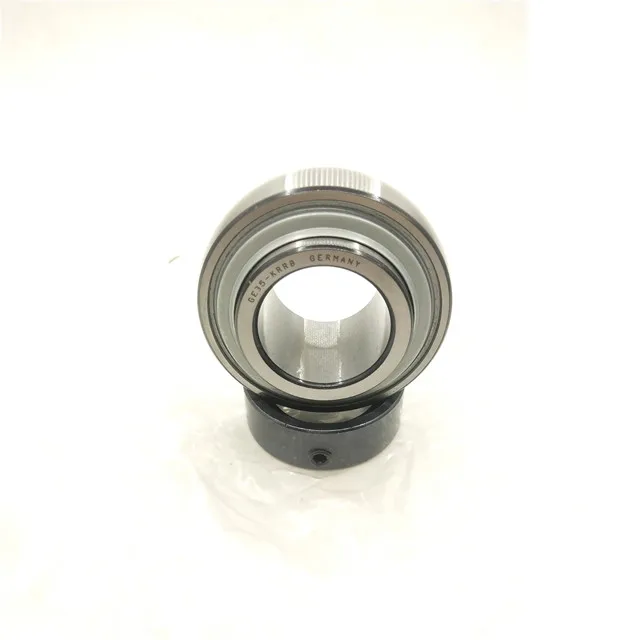

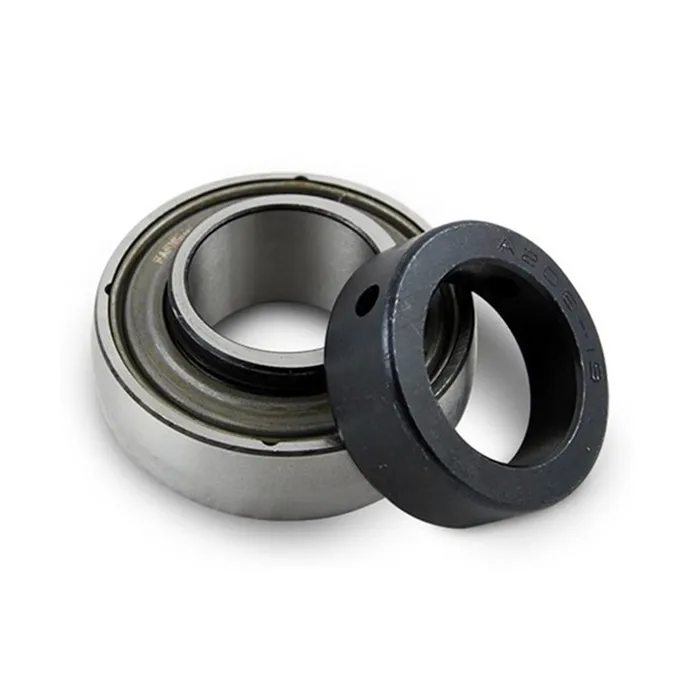

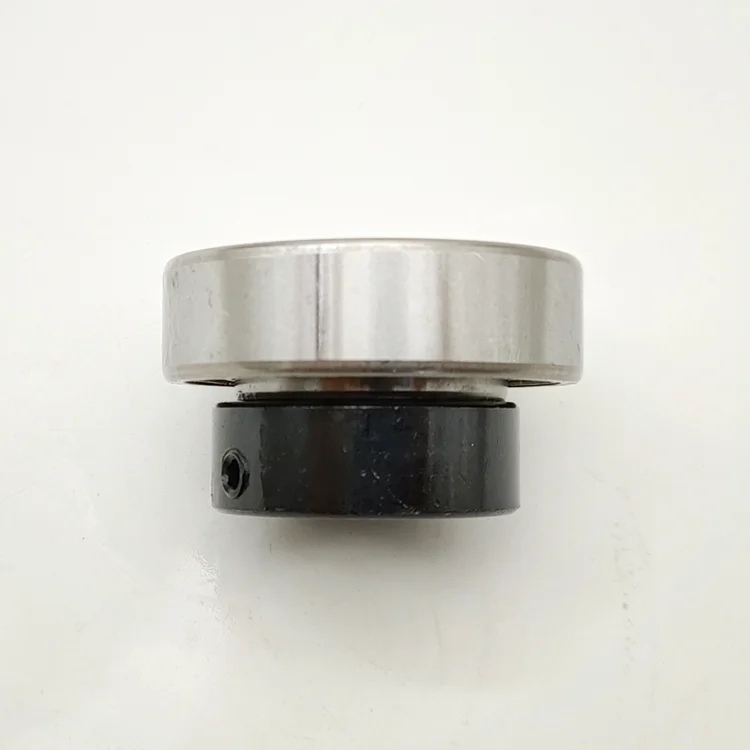

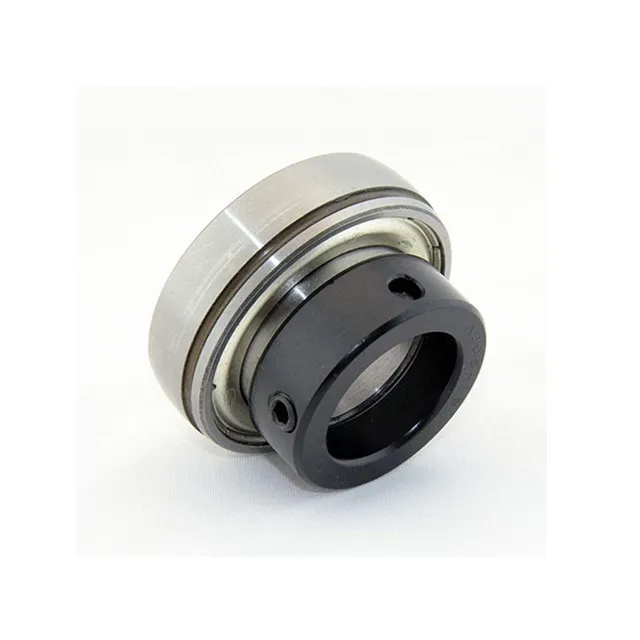

Specifications: YET205 pillow block ball insert bearing SA 205
Type	ball insert bearings
Bore diameter	25mm
Outer diameter	52mm
Thickness	31mm
Application	AGRICLUTRAL MACHINERY
Locking device	eccentric locking collar
Seal type	Contact Seal with Flinger
Bore type	Round bore
Duty type	Standard Duty
Origin	china shandong bearing

ball insert bearing size chart:

Size (mm)				Basic load ratings		Mass	Bearing
d	D	B1	C	C	C0	KGS	OEM number
12,7	40	28,6	12	9,56	4,75	0,13	YET 203-008
15	40	28,6	12	9,56	4,75	0,12	YET 203/15
17	40	28,6	12	9,56	4,75	0,1	YET 203
19,05	47	31	14	12,7	6,55	0,17	YET 204-012
19,05	47	31	14	12,7	6,55	0,16	E2.YET 204-012
19,05	47	43,7	14	12,7	6,55	0,2	YEL 204-012-2F
20	47	31	14	12,7	6,55	0,18	YET 204
20	47	31	14	12,7	6,55	0,18	YET 204/VL065
20	47	31	14	12,7	6,55	0,16	E2.YET 204
20	47	43,7	14	12,7	6,55	0,19	YEL 204-2RF/VL065
20	47	43,7	14	12,7	6,55	0,19	YELAG 204
20	47	43,7	14	12,7	6,55	0,19	YEL 204-2F
25	52	31	15	14	7,8	0,18	YET 205
25	52	31	15	14	7,8	0,18	YET 205/VL065
25	52	31	15	14	7,8	0,19	E2.YET 205
25	52	44,4	15	14	7,8	0,24	YEL 205-2RF/VL065
25	52	44,4	15	14	7,8	0,23	YELAG 205
25	52	44,4	15	14	7,8	0,24	YEL 205-2F
25,4	52	31	15	14	7,8	0,18	YET 205-100
25,4	52	31	15	14	7,8	0,18	E2.YET 205-100
25,4	52	44,4	15	14	7,8	0,23	YELAG 205-100
25,4	52	44,4	15	14	7,8	0,22	YEL 205-100-2F
28,575	62	35,7	18	19,5	11,2	0,32	E2.YET 206-102
28,575	62	35,7	18	19,5	11,2	0,32	YET 206-102
28,575	62	48,4	18	19,5	11,2	0,39	YELAG 206-102
28,575	62	48,4	18	19,5	11,2	0,39	YEL 206-102-2F
30	62	35,7	18	19,5	11,2	0,3	YET 206
30	62	35,7	18	19,5	11,2	0,3	E2.YET 206
30	62	35,7	18	19,5	11,2	0,3	YET 206/VL065
30	62	48,4	18	19,5	11,2	0,36	YEL 206-2RF/VL065
