230 нм 3/ч ацетиленовый генератор ацетиленовая установка для производства газа оборудование с низким потреблением заводской поставщик
3 321 038,00-3 558 255,00 ₽
Поставщик оборудования для производства газа NUZHUO криогенный азотный кислородный завод ASU жидкий аппарат O2 N2
- Категория: >>>
- Поставщик: Hangzhou Nuzhuo Technology Group Co. Ltd.Hangzhou Ltd.
Сохранить в закладки 1601326328552:
Описание и отзывы
Характеристики
ENGINEERING CASES
PRODUCT SPECIFICATION
Product Name | Cryogenic Liquid & Gaseous Oxygen Nitrogen And Argon Air Separation Unit | ||||||
Model No. | NZDO, NZDN, NZDON, NZDOAr, NZDONAr/ Simultaneously/Alternatively | ||||||
Brand | NUZHUO | ||||||
Accessories | Air compressor & Pre-cooling unit & Turbo Expander & Fractionating column | ||||||
Usage | High purity Oxygen & Nitrogen & Argon production machine | ||||||
Model | NZDON-50/50 | NZDON-80/160 | NZDON-180/300 | NZDON-260/500 | NZDON-350/700 | NZDON-550/1000 | NZDON-750/1500 | NZDONAr-1200/2000/30y | ||
O2 0utput (Nm3/h) | 5 | 50 | 80 | 180 | 260 | 350 | 550 | 750 | 1200 | |
O2 Purity (%O2) | 10 | ≥99.6 | ≥99.6 | ≥99.6 | ≥99.6 | ≥99.6 | ≥99.6 | ≥99.6 | ≥99.6 | |
N2 0utput (Nm3/h) | 20 | 50 | 160 | 300 | 500 | 700 | 1000 | 1500 | 2000 | |
N2 Purity (PPm O2) | 40 | 9.5 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | |
Liquid Argon Ouput(Nm3/h) | 60 | —— | —— | —— | —— | —— | —— | —— | 30 | |
Liquid Argon Purity(Ppm O2 + PPm N2) | —— | —— | —— | —— | —— | —— | —— | ≤1.5ppmO2 + 4 p p mN2 | ||
Liquid Argon Pressure (MPa.A) | 80 | —— | —— | —— | —— | —— | —— | —— | 0.2 | |
Consumption (Kwh/Nm3 O2) | 100 | ≤1.3 | ≤0.85 | ≤0.68 | ≤0.68 | ≤0.65 | ≤0.65 | ≤0.63 | ≤0.55 | |
Occupied Area (m3) | 150 | 145 | 150 | 160 | 180 | 250 | 420 | 450 | 800 | |
PROCESSING & CONFIGURATION
SELF-CLEANED RAW AIR FILTER
Efficiently filter particles, oil mist and other pollutants in the air to ensure the high purity and quality of gas products produced by the cryogenic ASU.
AIR COMPRESSOR
The air in the environment is drawn into the equipment after passing through a self-cleaning filter and compressed through a series of compressors to obtain the compressed air required by ASU.
AIR PURIFICATION UNIT
The air purification system uses molecular sieves and activated alumina to adsorb and remove moisture, carbon dioxide and other hydrocarbons in the air.

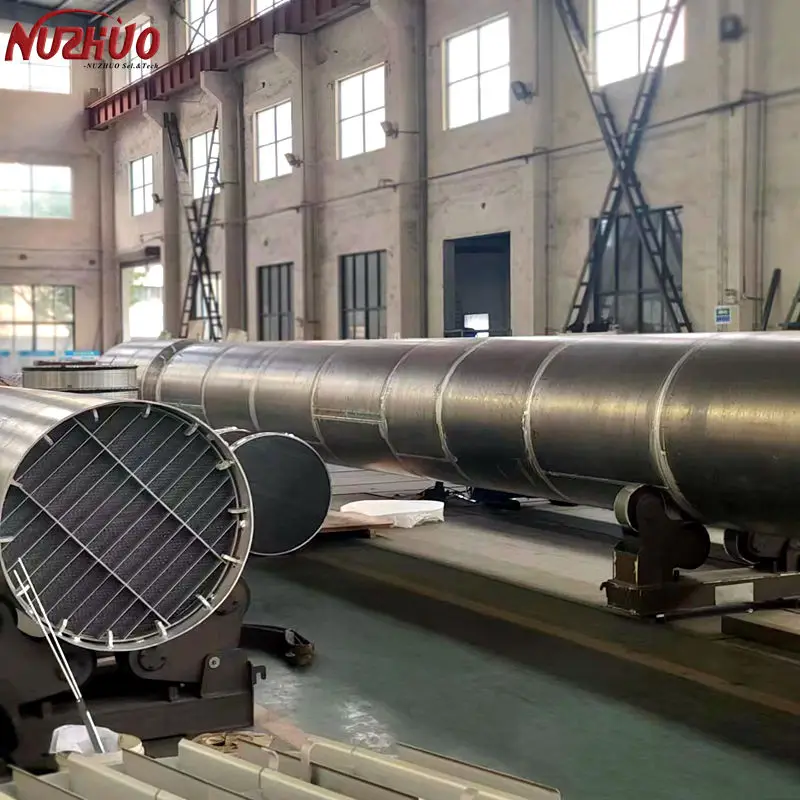

RECTIFICATION COLUMN
Obtain high purity and high quality liquid and gaseous oxygen, nitrogen and argon with low temperature and low pressure technology;
PLC SYSTEM
The PLC system uses Siemens S7-1500
Set up a control cabinet, which includes CPU modules, system communication modules, various I/0 modules, power supply modules, etc.
LOX & LIN & LAr STORAGE TANK
To storage high purity and high standard liquid oxygen, liquid nitrogen and liquid argon produced by cryogenic ASU equipment with different capacity;
VAPORIZATION CYLINDER FILLING
LOX & LIN & LAR stored in the cryogenic tank, pumped by cryogenic liquid pump, and convert to gas from by high pressure vaporizer, and then refill cylinders
WARRANTY& GUARANTEE
ABOUT NUZHUO
WHAT YOU WANT
FAQ
Q1: Are you a trading company or manufacturer?
A: !!! NUZHUO are truly manufacturer, we have our own factory and engineer teams.
A: !!! NUZHUO are truly manufacturer, we have our own factory and engineer teams.
B. NUZHUO more than 30 people international salesmen to provide on time services for you.
C. NUZHUO promise the lifetime technology support for the whole line.
Q2: What is your term of payment?
A: 30%T/T in advance and balance before shipment.
Q2: What is your term of payment?
B. 30% T/T in advance and Irrevocable L/C at Sight.
C. Accept negotiation.
Welcome to contact Lyan: 0086-18069835230(Tel/Whatsapp/Wechat), Lyan.ji@hznuzhuo.com
Q3 How long is your delivery time?
A: Depending on what type of machine you are purchased.
Welcome to contact Lyan: 0086-18069835230(Tel/Whatsapp/Wechat), Lyan.ji@hznuzhuo.com
Q3 How long is your delivery time?
B. Cryogenic ASU, the delivery time is at least 3 months.
C. Cryogenic liquid plant, the delivery time is at least 5 months.
Welcome to have a contact with our salesman: 0086-18069835230, Lyan.ji@hznuzhuo.com
Q4: Why choose NUZHUO?
A: Warranty: 1 year guarantee for the whole line, lifetime technology support for free.
Q4: Why choose NUZHUO?
B. Certificate: ISO9001 & CE certification, Pressure Vessel Certificate, ASME certificate;
C. Inspection: Supporting third-part to have a inspection before shipment, like SGS, TUV certificated. \\
C. Inspection: Supporting third-part to have a inspection before shipment, like SGS, TUV certificated. \\
D. Spare part: Beyond the warranty, NUZHUO support to provide the spare part with cost price;
E. After-sales Service: Majority of core parts made by NUZHUO directly, with high quality and cost price, meanwhile, it's easy to find the after-sales services for each of equipment!!!
F. Language: All the documents with English Version, the PLC support to choose your pointed languages; Welcome to contact Lyan: 0086-18069835230(Tel/Whatsapp/Wechat), Lyan.ji@hznuzhuo.com
Q5: Can use your own logo?
A: Yes, we can paint your logo on the body of the equipment;
E. After-sales Service: Majority of core parts made by NUZHUO directly, with high quality and cost price, meanwhile, it's easy to find the after-sales services for each of equipment!!!
F. Language: All the documents with English Version, the PLC support to choose your pointed languages; Welcome to contact Lyan: 0086-18069835230(Tel/Whatsapp/Wechat), Lyan.ji@hznuzhuo.com
Q5: Can use your own logo?
B: PLC support to show your logo;
Welcome to contact Lyan: 0086-18069835230(Tel/Whatsapp/Wechat), Lyan.ji@hznuzhuo.com
Q6: Does your product used or new?
A: NUZHUO Supply 100% new equipment!
Q6: Does your product used or new?
Welcome to contact Lyan: 0086-18069835230(Tel/Whatsapp/Wechat), Lyan.ji@hznuzhuo.com
Q7: What is the shipping solution?
CONTACT US FOR QUOTE
Contact: Mrs. Lyan
Tel: +86 180 6983 5230
Mail: Lyan.ji@hznuzhuo.com
Whatsapp: +86 180 6983 5230
WeChat: +86 180 6983 5230
Web: www.nuzhuoasu.com
Facebook: www.facebook.com/NUZHUO
Youtube: https://youtube.com/@nuzhuogroup1708?si=10aop2Ut-DuWxymk
Youtube: https://youtube.com/@nuzhuogroup1708?si=10aop2Ut-DuWxymk
