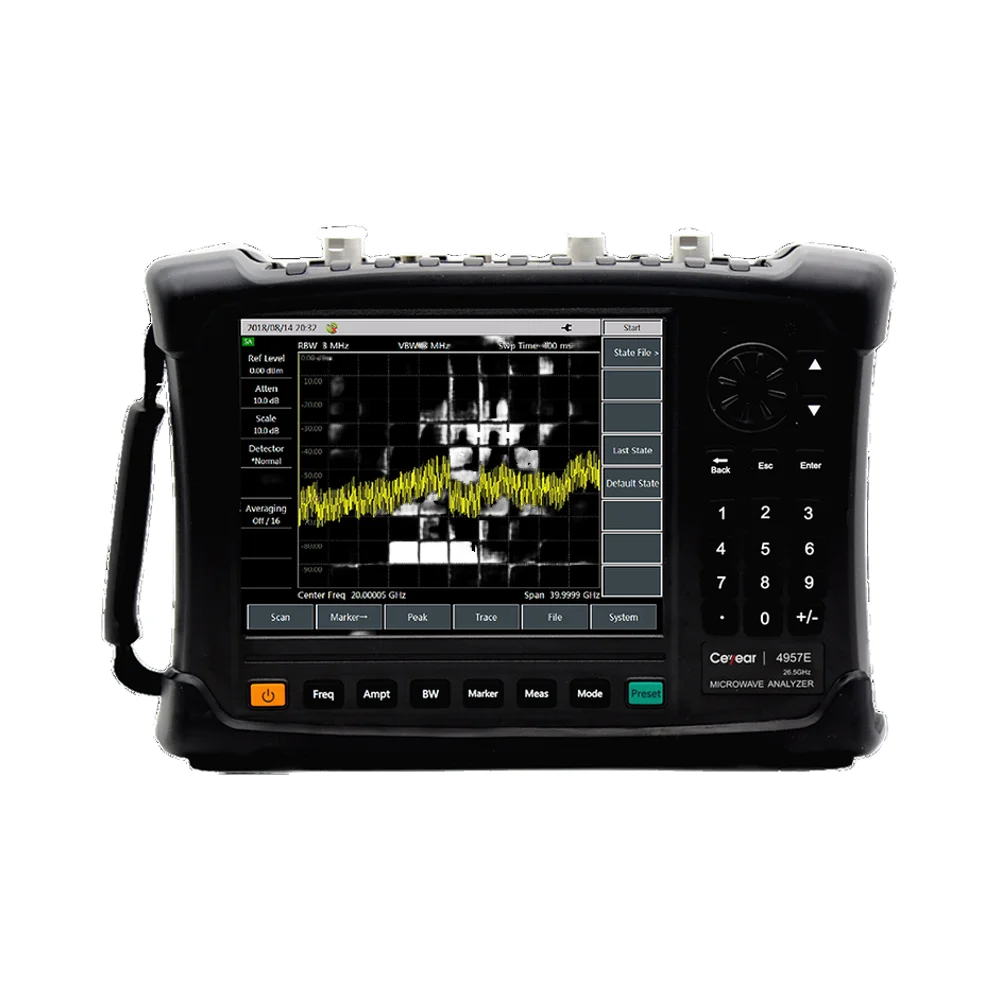

4957E микроволновый анализатор
4 789 854,82 ₽
HAMGEEK SSA6G 35 мГц 6200 мГц РЧ анализатор спектра РЧ мультиметр анализатор с сенсорным экраном
- Категория: >>>
- Поставщик: Shenzhen Tianzhongtian Trading Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601331472953:
Описание и отзывы
Характеристики
Product Paramenters

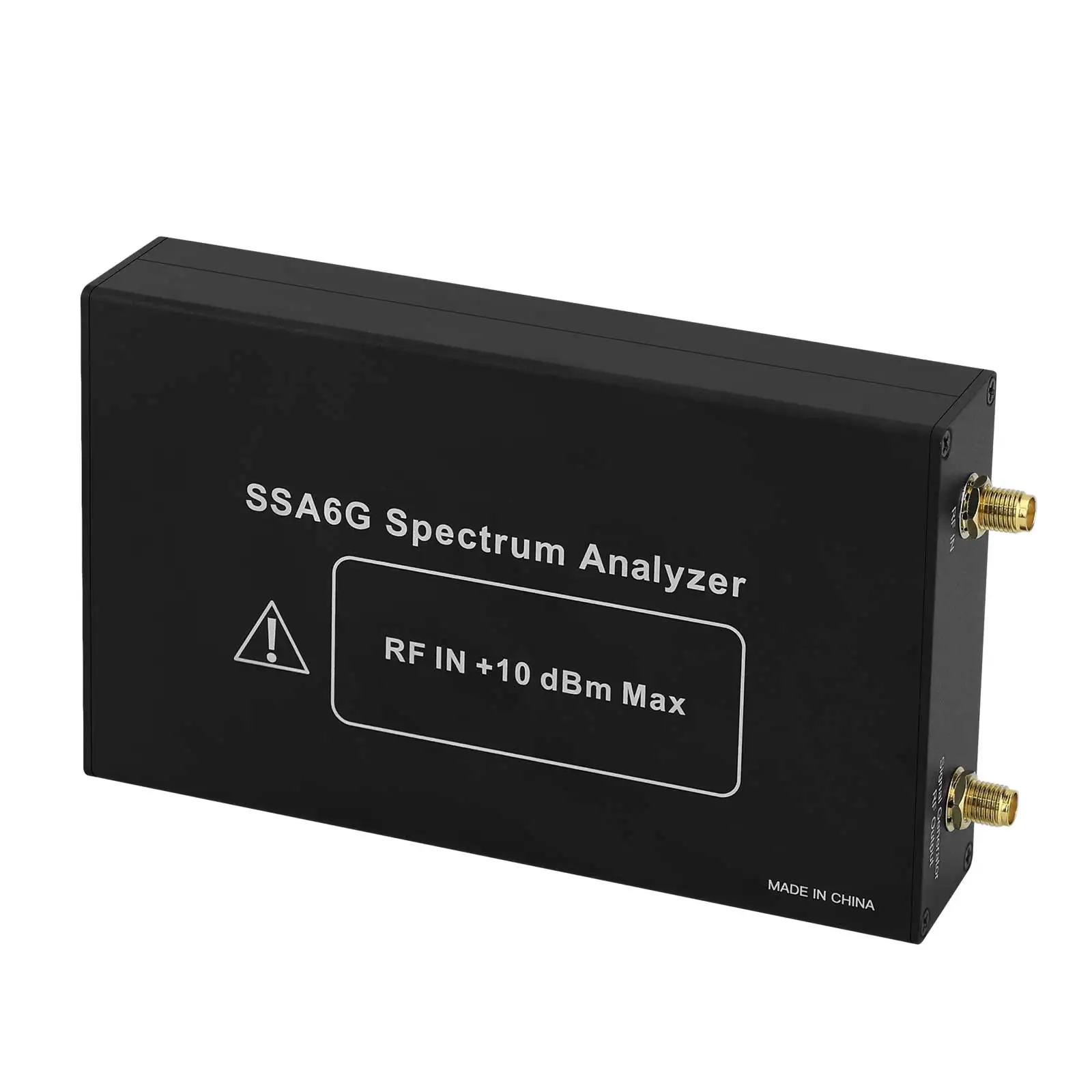

HAMGEEK SSA6G 35MHz-6200MHz RF Spectrum Analyzer RF Multimeter Spectrum Analyzer with Touch Screen
Description:
HAMGEEK SSA6G is a portable panoramic spectrum analyzer designed to display signal spectrum in the frequency range from 35MHz to
6200MHz. The analyzer finds the amplitude and frequency of spectral components of the analyzed process.
HAMGEEK spectrum analyzer is able to find the signal amplitude for all widely used technologies: including Wi-Fi, 2G, 3G, 4G, LTE,
CDMA, DCS, GSM, GPRS and GLONASS.
Application:
HAMGEEK SSA6G is primarily intended for field operation. The device is rugged and light with low energy consumption. It enables
service centers and maintenance teams to perform on-the-spot HF analysis for commissioning and repair works. Moreover, the
spectrum analyzer is a perfect solution for repair workshops and radio amateurs.
For example, using the device you can perform the following operations:
* Put an external antenna on the base station
* To conduct a rapid analysis of RF environments
* Check the correct operation of the repeater cellular
Principle of Operation:

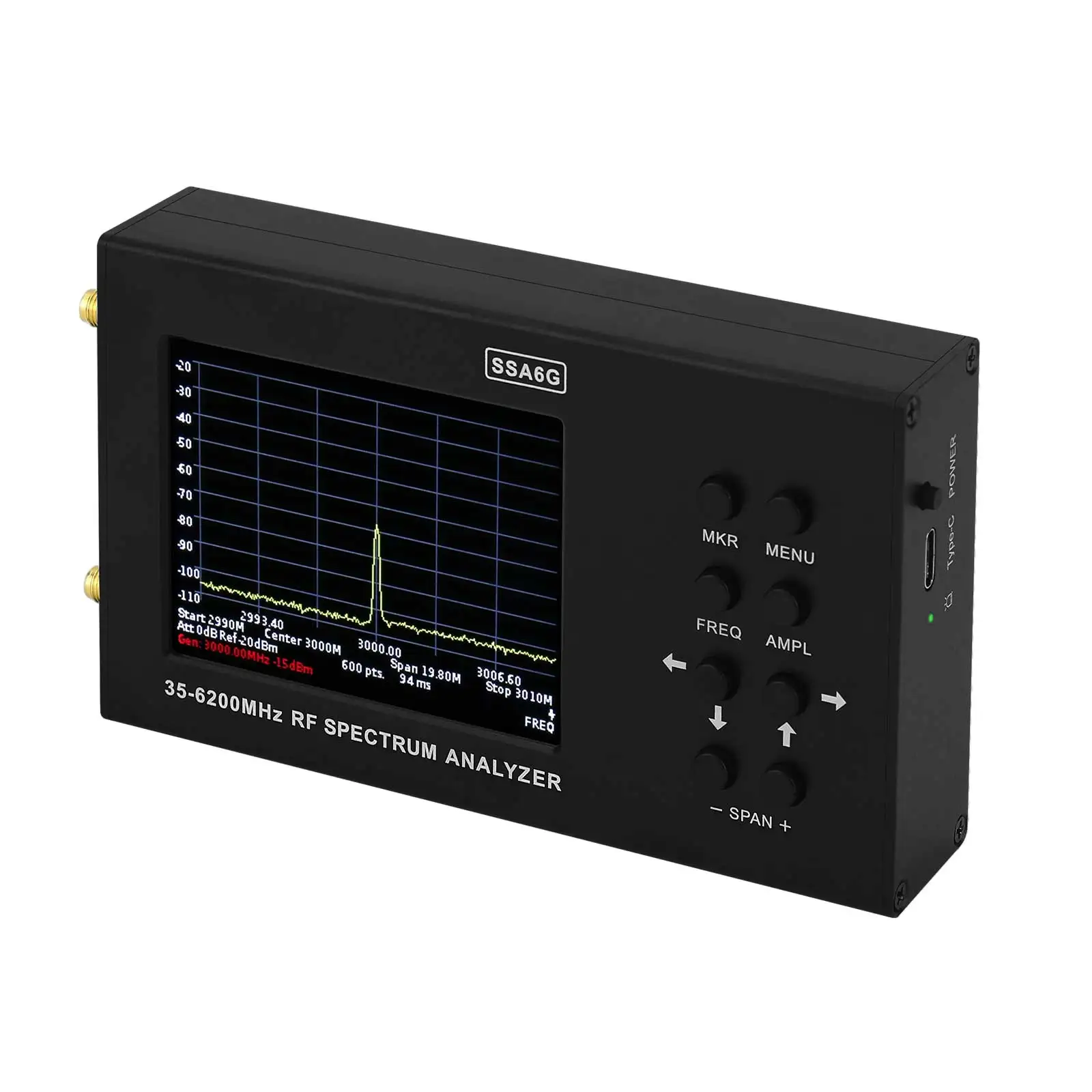

The spectrum analyzer is a portable device which is connected to the measured circuit and has an independent power supply. The
device has a 3.2" color resistive touch screen to display the signal spectrum and to control the device.
The device is controlled by one of these three ways:
* By buttons and touchscreen on the device
* By a smartphone or tablet for Android
* By a PC or laptop with operating system for Windows
The data between the analyzer and smartphone/tablet/PC is transmitted through Bluetooth or USB-cable. The Bluetooth range is up to
10m (Password for connecting via Bluetooth: 1234). All the measured data is displayed in real time on the screen of the device or
smartphone/tablet/PC. You can install the analyzer software to control by smartphone or tablet from the Google Play or download
from other sources.
You can download the analyzer software to control by PC or laptop. Windows 7 or higher and the latest version of Java Virtual
Machine are required for the correct work of application. The application requires full (100%) support for OpenGL version 2.1 and
higher.
API:
There is a possibility of device control using API. You can send the device a command to make a measurement (scanning range) with
the following parameters:
* start frequency
* stop frequency
* measuring step
* the value of the attenuator
After the command completes, HAMGEEK SSA6G will send the client device (microcontroller, computer, mobile device, etc.) a message
containing the measured values of the amplitudes for the given frequency values. Users can record the received data to a file,
database, etc.
Using this API users can customize automatic measurements and use the spectrum analyzer HAMGEEK SSA6G in their system. The API
works in any programming language that supports work with input-output ports (Java, C, C++, C#, Python, Assembler, etc.).
Basic functions of the analyzer software:
* Displays the signal spectrum graphically and sets up the frequency range and reference limit.
* Sets up and manages absolute and relative (delta) markers.
* Searches one or a series (up to ten) of maximum values of the signal in the instantaneous or tracking mode.
* Sets and stores unique identifiers of the frequency ranges - bands. For instance, a band titled DCS UpLink can be set for the
range 1710-1785 MHz. Additionally, working frequency bands can be set for each operator. This option considerably facilitates the
HF analysis and identification for the signals of conventional technologies.
* Has preset bands and is able to store the bands in a file and share them with other devices to control the spectrum analyzer
HAMGEEK SSA6G.
* Has the tracing mode that generates a signal spectrum averaged by a number of measurements. In addition to the average spectrum,
extreme values and moving average values can be displayed as well.
* Stores the settings for the spectrum scanning (band limits, attenuator value and others) for a quick and easy switching into the
required measurement mode.
* Stores the spectrum signal with markers for later analysis. Then the stored graph can be opened in any device for Android with
an application (in this event you don't need to have the spectrum analyzer at hand) or use the table editor to convert the graph
into the required type of data display.
Advantages:
* Low price
* 3.2-inch color resistive touch screen
* Wide frequency range: 35 MHz to 6200 MHz
* Rapid scanning of the frequency range: approx. 500 µs per point
* High measurement precision: 2 dB within the dynamic range of 70-75 dB
* Compatibility with most devices for Android and computers for Windows
* Possibility to use one device with the help of several smartphones/tablets/PCs
* Exceptionally easy to use in the field: the weight is as low as 400 g, dimensions are 155 x 81 x 27 mm, independent supply lasts
up to 4 h of uninterrupted operation, wireless data transmission to the smartphone/tablet/PC. The device can be power by a
smartphone/tablet/PC
* Free multifunctional software and free updates for the device control
Specifications:
* Displayed frequency range: 35MHZ-6200MHz
* Measured frequency range: 35MHz-4500MHz
* Dynamic range for 35-3000 MHz band: 75 dB
* Dynamic range for 3000-4500 MHz band: 70 dB
* Maximum span: 6165 MHz
* BW: 200 kHz, fixed
* Scan speed for a viewing band of more than 100 MHz: 700 MHz/sec
* Sweep 100 MHz: < 0.25 sec
* Noise floor: < - 90 dBm (up to 3000 MHz)
* Noise floor: < -85 dBm (3000-4500 MHz)
* Noise floor: < -80 dBm (4500-6200 MHz)
* Wave impedance: 50 Ohm
* SWR at the operating frequency range: < 1.5
* Internal attenuator: 0-30 dB
* Error with attenuation up to 10 dB: 2 dB
* Error with attenuation from 10 to 20 dB: 5 dB
* Error with attenuation from 20 to 30 dB: 8 dB
* Accuracy within the dynamical range: 2.0 dB
* Maximum input power at attenuator 0 dB: 10 dBm
* Maximum input power when the attenuation is above 20 dB: +20 dBm
* Maximum input measured signal: +10 dBm
* Maximum input DC voltage: 25 Volts
* Maximum current consumption when running on battery: 350 mA
* Maximum current draw when running from USB: 500 mA (when charging)
* Battery: 2000 mAh
* Battery life: 4 hours
* Battery charging time: ~ 5 Hours
Package Included:
* 1 x HAMGEEK SSA6G Spectrum Analyzer
* 2 x 30cm/11.8" SMA-SMA Extension Cables
* 1 x 10cm/3.9" Type-C USB Data Cable
* 1 x Stylus
* 1 x SMA-KK Connector
Packaging Details:
* Weight: 0.6kg
Items not included in the box:
* Smartphone or tablet for Android's 4.0.3 control or higher. Use your device for Android in order to control the equipment. The
device is implemented in one body, while the equipment for its control is built in another. It has been done in order to make the
spectrum analyzer much simpler and more available. Also, use your laptop or computer to control the device.
* External attenuation network. The maximum measured input power, which is supplied to the device, is limited by +5 dBm. If it is
necessary to measure a larger value, each user of the device has to select the necessary attenuators on his/her own.
* Set of the super-high frequency adapters.
Limitations:
The spectrum analyzer HAMGEEK SSA6G is not a measurement gauge, as it does not have an approved pattern of the measuring
equipment. The approval of pattern of the measuring equipment has had a negative effect on the availability and price of the
device. For this reason the spectrum analyzer is officially considered a field indicator. However, the device fully meets all
technical requirements. Each device is calibrated against the power and frequency.
Additional Information:
* Essentially, the device is "radio frequency multimeter" or "radio frequency explorer".
* The device is not for iPhones and other Apple products.
* Frequency bands are displayed only when it is working with devices for Android or Windows. Frequency bands are not displayed on
the screen of the device itself.
* For the correct operation of the software for Windows need to have the OpenGl support of your equipment (version 2.1 and
higher).
HAMGEEK SSA6G is a portable panoramic spectrum analyzer designed to display signal spectrum in the frequency range from 35MHz to
6200MHz. The analyzer finds the amplitude and frequency of spectral components of the analyzed process.
HAMGEEK spectrum analyzer is able to find the signal amplitude for all widely used technologies: including Wi-Fi, 2G, 3G, 4G, LTE,
CDMA, DCS, GSM, GPRS and GLONASS.
Application:
HAMGEEK SSA6G is primarily intended for field operation. The device is rugged and light with low energy consumption. It enables
service centers and maintenance teams to perform on-the-spot HF analysis for commissioning and repair works. Moreover, the
spectrum analyzer is a perfect solution for repair workshops and radio amateurs.
For example, using the device you can perform the following operations:
* Put an external antenna on the base station
* To conduct a rapid analysis of RF environments
* Check the correct operation of the repeater cellular
Principle of Operation:
The spectrum analyzer is a portable device which is connected to the measured circuit and has an independent power supply. The
device has a 3.2" color resistive touch screen to display the signal spectrum and to control the device.
The device is controlled by one of these three ways:
* By buttons and touchscreen on the device
* By a smartphone or tablet for Android
* By a PC or laptop with operating system for Windows
The data between the analyzer and smartphone/tablet/PC is transmitted through Bluetooth or USB-cable. The Bluetooth range is up to
10m (Password for connecting via Bluetooth: 1234). All the measured data is displayed in real time on the screen of the device or
smartphone/tablet/PC. You can install the analyzer software to control by smartphone or tablet from the Google Play or download
from other sources.
You can download the analyzer software to control by PC or laptop. Windows 7 or higher and the latest version of Java Virtual
Machine are required for the correct work of application. The application requires full (100%) support for OpenGL version 2.1 and
higher.
API:
There is a possibility of device control using API. You can send the device a command to make a measurement (scanning range) with
the following parameters:
* start frequency
* stop frequency
* measuring step
* the value of the attenuator
After the command completes, HAMGEEK SSA6G will send the client device (microcontroller, computer, mobile device, etc.) a message
containing the measured values of the amplitudes for the given frequency values. Users can record the received data to a file,
database, etc.
Using this API users can customize automatic measurements and use the spectrum analyzer HAMGEEK SSA6G in their system. The API
works in any programming language that supports work with input-output ports (Java, C, C++, C#, Python, Assembler, etc.).
Basic functions of the analyzer software:
* Displays the signal spectrum graphically and sets up the frequency range and reference limit.
* Sets up and manages absolute and relative (delta) markers.
* Searches one or a series (up to ten) of maximum values of the signal in the instantaneous or tracking mode.
* Sets and stores unique identifiers of the frequency ranges - bands. For instance, a band titled DCS UpLink can be set for the
range 1710-1785 MHz. Additionally, working frequency bands can be set for each operator. This option considerably facilitates the
HF analysis and identification for the signals of conventional technologies.
* Has preset bands and is able to store the bands in a file and share them with other devices to control the spectrum analyzer
HAMGEEK SSA6G.
* Has the tracing mode that generates a signal spectrum averaged by a number of measurements. In addition to the average spectrum,
extreme values and moving average values can be displayed as well.
* Stores the settings for the spectrum scanning (band limits, attenuator value and others) for a quick and easy switching into the
required measurement mode.
* Stores the spectrum signal with markers for later analysis. Then the stored graph can be opened in any device for Android with
an application (in this event you don't need to have the spectrum analyzer at hand) or use the table editor to convert the graph
into the required type of data display.
Advantages:
* Low price
* 3.2-inch color resistive touch screen
* Wide frequency range: 35 MHz to 6200 MHz
* Rapid scanning of the frequency range: approx. 500 µs per point
* High measurement precision: 2 dB within the dynamic range of 70-75 dB
* Compatibility with most devices for Android and computers for Windows
* Possibility to use one device with the help of several smartphones/tablets/PCs
* Exceptionally easy to use in the field: the weight is as low as 400 g, dimensions are 155 x 81 x 27 mm, independent supply lasts
up to 4 h of uninterrupted operation, wireless data transmission to the smartphone/tablet/PC. The device can be power by a
smartphone/tablet/PC
* Free multifunctional software and free updates for the device control
Specifications:
* Displayed frequency range: 35MHZ-6200MHz
* Measured frequency range: 35MHz-4500MHz
* Dynamic range for 35-3000 MHz band: 75 dB
* Dynamic range for 3000-4500 MHz band: 70 dB
* Maximum span: 6165 MHz
* BW: 200 kHz, fixed
* Scan speed for a viewing band of more than 100 MHz: 700 MHz/sec
* Sweep 100 MHz: < 0.25 sec
* Noise floor: < - 90 dBm (up to 3000 MHz)
* Noise floor: < -85 dBm (3000-4500 MHz)
* Noise floor: < -80 dBm (4500-6200 MHz)
* Wave impedance: 50 Ohm
* SWR at the operating frequency range: < 1.5
* Internal attenuator: 0-30 dB
* Error with attenuation up to 10 dB: 2 dB
* Error with attenuation from 10 to 20 dB: 5 dB
* Error with attenuation from 20 to 30 dB: 8 dB
* Accuracy within the dynamical range: 2.0 dB
* Maximum input power at attenuator 0 dB: 10 dBm
* Maximum input power when the attenuation is above 20 dB: +20 dBm
* Maximum input measured signal: +10 dBm
* Maximum input DC voltage: 25 Volts
* Maximum current consumption when running on battery: 350 mA
* Maximum current draw when running from USB: 500 mA (when charging)
* Battery: 2000 mAh
* Battery life: 4 hours
* Battery charging time: ~ 5 Hours
Package Included:
* 1 x HAMGEEK SSA6G Spectrum Analyzer
* 2 x 30cm/11.8" SMA-SMA Extension Cables
* 1 x 10cm/3.9" Type-C USB Data Cable
* 1 x Stylus
* 1 x SMA-KK Connector
Packaging Details:
* Weight: 0.6kg
Items not included in the box:
* Smartphone or tablet for Android's 4.0.3 control or higher. Use your device for Android in order to control the equipment. The
device is implemented in one body, while the equipment for its control is built in another. It has been done in order to make the
spectrum analyzer much simpler and more available. Also, use your laptop or computer to control the device.
* External attenuation network. The maximum measured input power, which is supplied to the device, is limited by +5 dBm. If it is
necessary to measure a larger value, each user of the device has to select the necessary attenuators on his/her own.
* Set of the super-high frequency adapters.
Limitations:
The spectrum analyzer HAMGEEK SSA6G is not a measurement gauge, as it does not have an approved pattern of the measuring
equipment. The approval of pattern of the measuring equipment has had a negative effect on the availability and price of the
device. For this reason the spectrum analyzer is officially considered a field indicator. However, the device fully meets all
technical requirements. Each device is calibrated against the power and frequency.
Additional Information:
* Essentially, the device is "radio frequency multimeter" or "radio frequency explorer".
* The device is not for iPhones and other Apple products.
* Frequency bands are displayed only when it is working with devices for Android or Windows. Frequency bands are not displayed on
the screen of the device itself.
* For the correct operation of the software for Windows need to have the OpenGl support of your equipment (version 2.1 and
higher).
Product packaging
Package: Normally we use the standard paper package to export worldwide.
Shipping Method
Shipping :
1. By Couriers: DHL, UPS, FEDEX, are the main courier we are co-operating at present.
2. By chinese small parcel, usually for the customer to save the cost. But Chinese small parcel have the risk for lost parcel.
Note: If we got the parcel back, we only can refund the item cost. If we didn't get the parcel,then sorry we can't refund any.
3. By Air: Delivery from the Shenzhen airport to customers’ destination city air port.
4. By Sea: Delivery from the Shenzhen sea port .
1. By Couriers: DHL, UPS, FEDEX, are the main courier we are co-operating at present.
2. By chinese small parcel, usually for the customer to save the cost. But Chinese small parcel have the risk for lost parcel.
Note: If we got the parcel back, we only can refund the item cost. If we didn't get the parcel,then sorry we can't refund any.
3. By Air: Delivery from the Shenzhen airport to customers’ destination city air port.
4. By Sea: Delivery from the Shenzhen sea port .
Company Profile
We committed to enhance customer satisfaction by continually improving the process with a vision of expertise in the field.
Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant
communication service.Welcome to contact us!
Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant
communication service.Welcome to contact us!
Our Advantages
- Streamline the buying and payment process, and make it as easy as possible.
- Help the customers all over the world discover products and manufacturers in China.
- The Shortest order processed time and speed delivery.
FAQ
FAQ:
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Samples arrived often need 3-5 days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions.
Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.
Q8: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
Contact Us
Whatsapp/Tel/Wechat: 86-19902906050
Web: //www.thanksbuyer.com
Address: Room 303 Building 2,Youpin Cultural and Creative Park,Zhangkeng,Minzhi Street,Longhua District,518131,Shenzhen,China
(Mainland)
Recommend Products
Похожие товары
4957D микроволновый анализатор

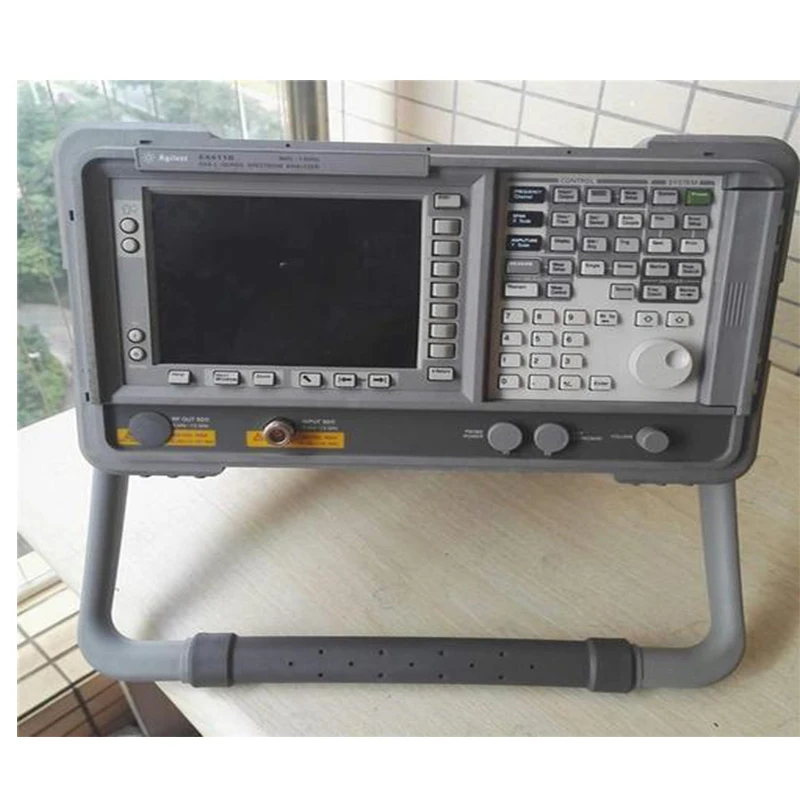

Agilent E4411B 9 кГц до 1,5 ГГц, ESA-L спектральный анализатор серии тестирование б/у

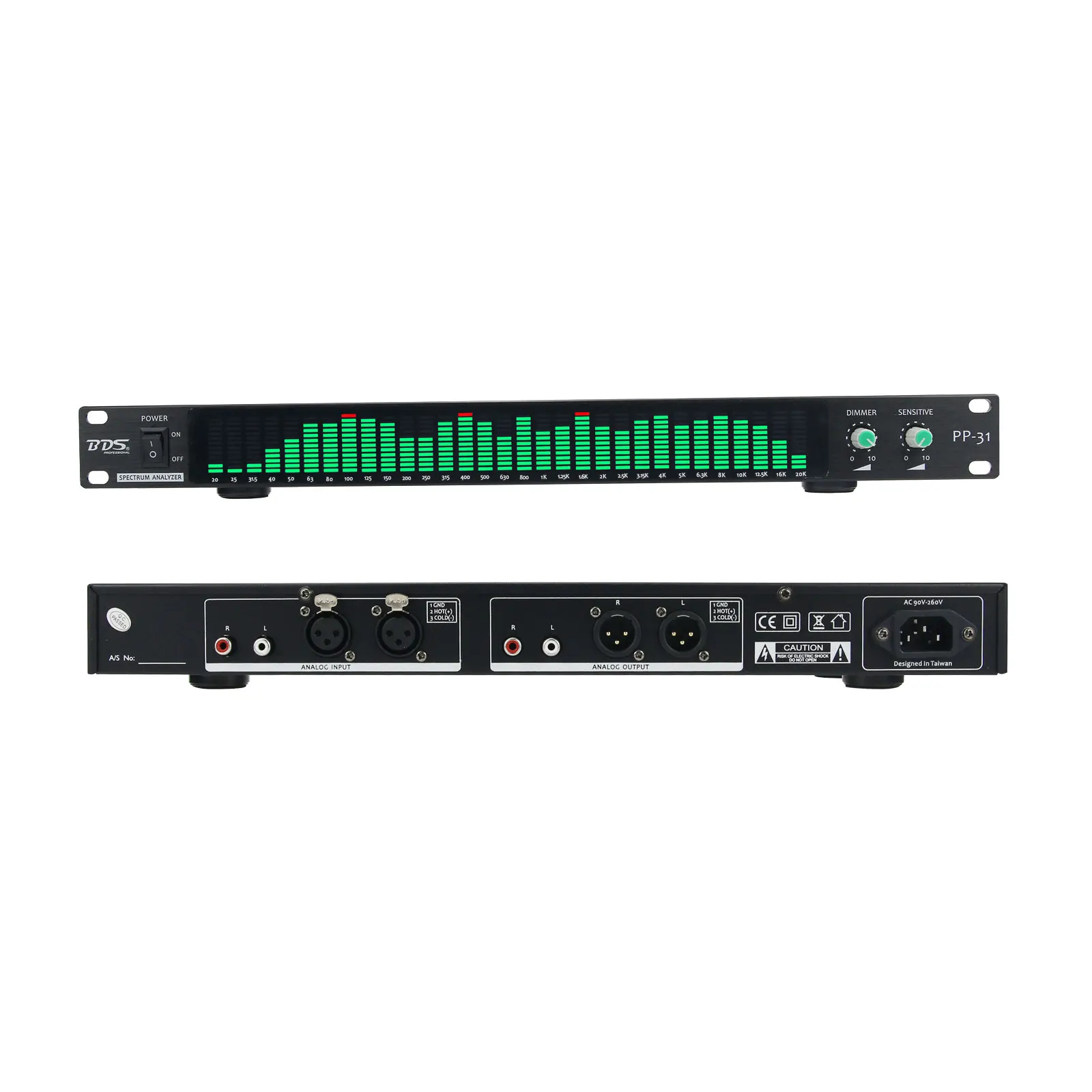

BDS PP-31 Зеленый цифровой аудио анализатор спектра дисплей 1U музыкальный VU метр 31
167,00 $ - 181,00 $

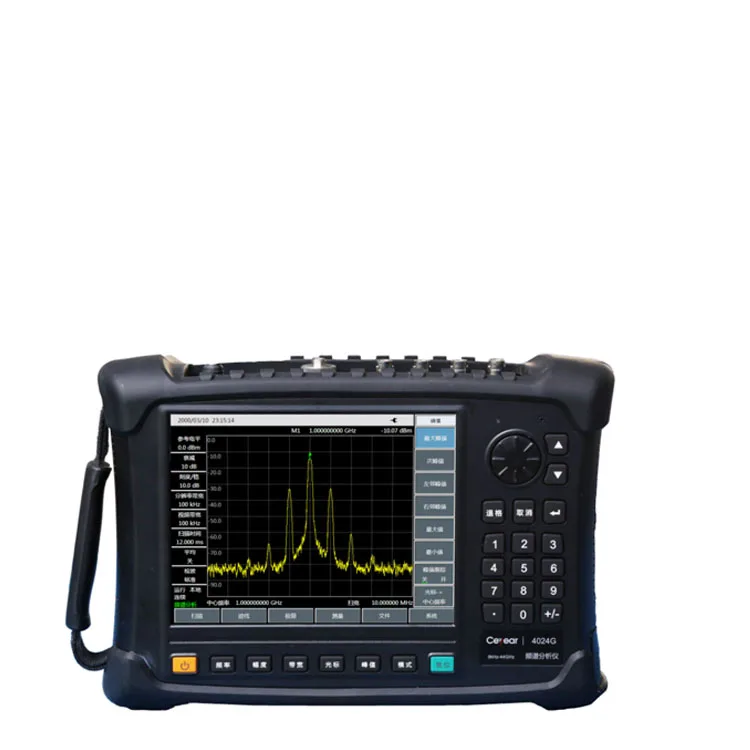

Ceyear 4024C 9 кГц-9 Ггц портативный анализатор спектра эквивалентный R & S

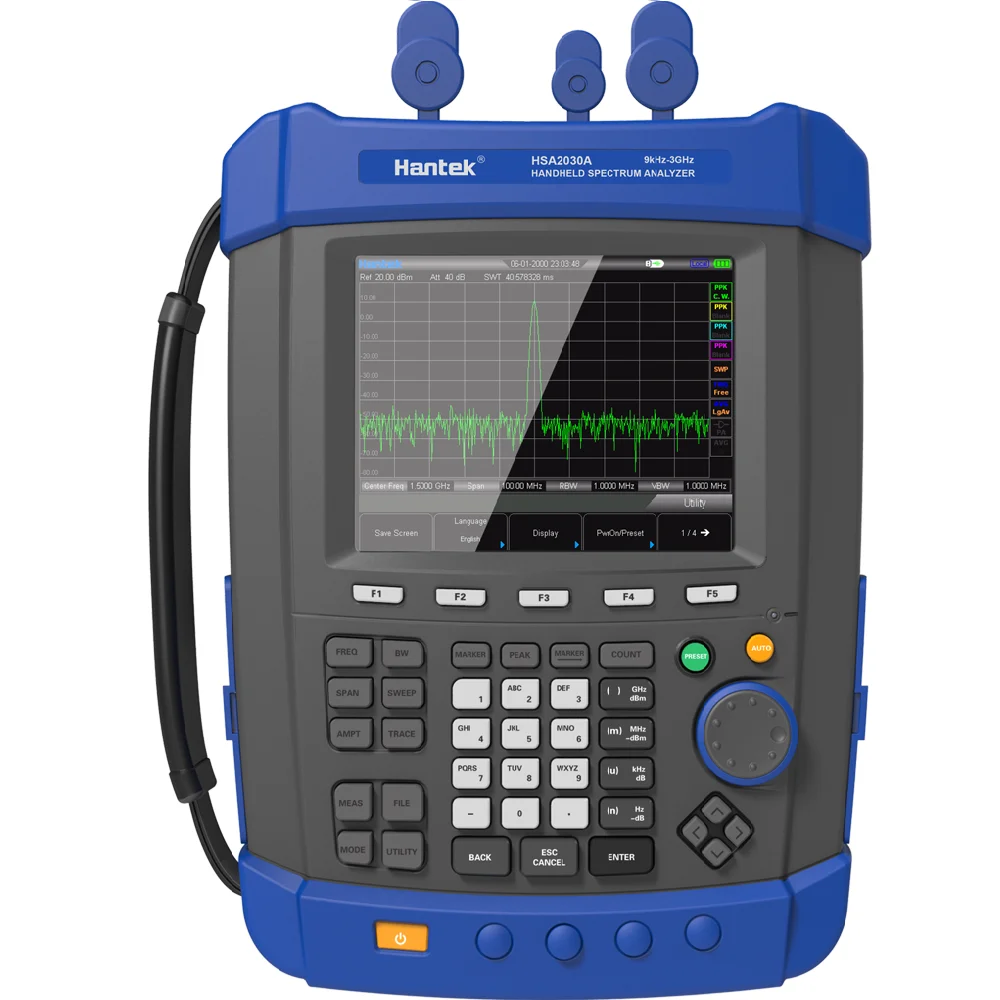

Портативный цифровой анализатор спектра Hantek HSA2030A, портативный измеритель силы в поле 9 кГц 3,2 ГГц AC, связанный с USB интерфейс HLX
355,40 $ - 406,20 $

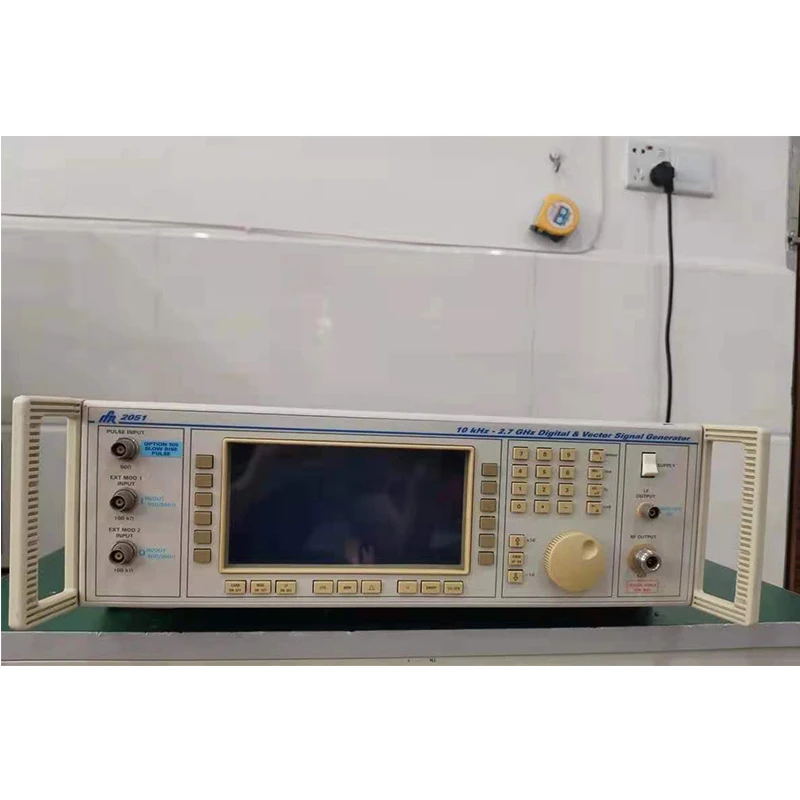

Генератор Цифровых и векторных сигналов IFR / Aeroflex 2051 от 10 кГц до 2 7
Новейшая модель; UNI-T UTS1015B ручной анализатор спектра; 9 кГц ~ 1 5 г Гц спектра 1Hz-1 МГц разрешения через USB
8 508,00 $ - 8 802,00 $
Новые поступления
Новинки товаров от производителей по оптовым ценам
Рекламный надувной самолет украшение для костюма самолета ходячие костюмы продажи
C100 % восковая ткань с принтом китайские поставщики поставляют настраиваемые печатные африканские восковые ткани
0,93-0,97 $
Прямые продажи с фабрики могут быть оптовые складные тележки для покупок Удобные и уличные продуктовые
8,39-9,89 $
Hantek щупы осциллографа автоматический Тестовый Кабель Ht30a Bnc к банану двойная Банановая головка многоцелевое автомобильное
3,10-3,44 $
Горячая распродажа ручная работа традиционная деревянная урна для домашних животных квадратная коробка золы собак и кошек персонализированная Лучшая цена
Промышленная серия CL Бесшумная цепь стальная зубчатая Фланцевая контактная звездочка соединяющая бесшумные цепи
1-1,50 $
Irdmco экологически чистый минималистичный прямоугольный деревянный ящик для хранения стеллаж поделок и детских игрушек Домашняя мебель гостиной
Технология сенсорных перчаток и аксессуары для детей от дождя холода M725132-334
1,07-1,40 $
