Подержанный автомобиль для продажи Китай тяжелый грузовик Hao Wo самосвал
1 500,00-3 090,00 $
Высокопроизводительный Foton Ruiwo ES5 220 л.с. 4x4 4 2 м/4 5 м
- Категория: >>>
- Поставщик: Shandong Hongtai New Energy Vehicle Technology Co. Ltd.Shandong Ltd.
Сохранить в закладки 1601331841610:
Описание и отзывы
Характеристики
Product Description

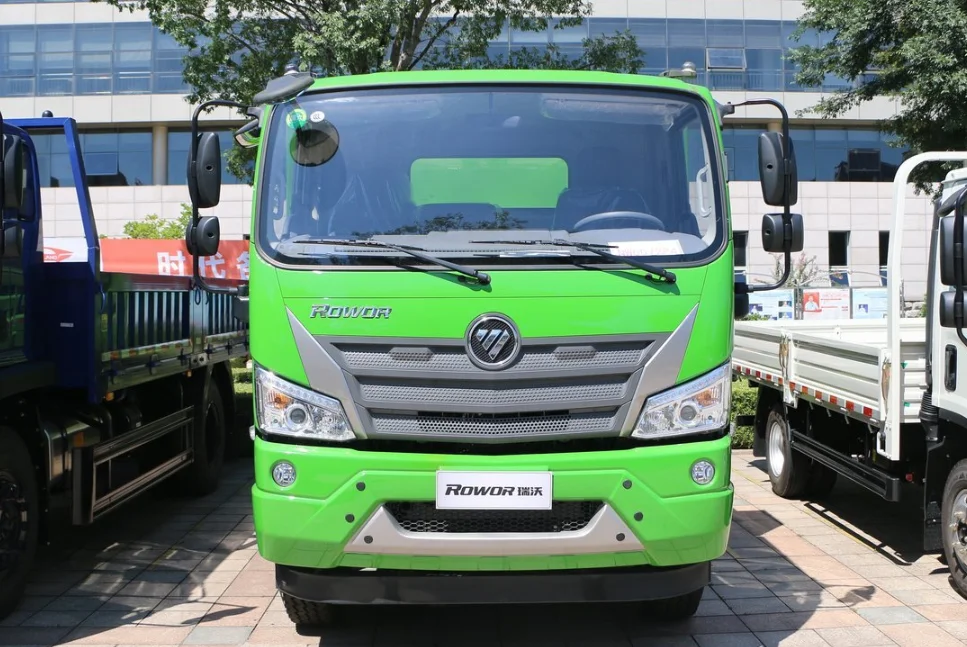

High performance Foton Ruiwo ES5 dump truck
Specification
Product name | Foton Ruiwo ES5 220HP 4X4 4.2mdump truck | Foton Ruiwo ES5 220HP 4X4 4.5mdump truck |
Drive type: | 4X4 | 4X4 |
Wheelbase: | 3600mm | 3750mm |
engine: | Yuchai YCS04220-61A | Yuchai YCS04220-61A |
Gearbox: | Fast 10JS90A-B | Fast 10JS90A-B |
Rear axle ratio: | 6.73 | 6.73 |
Body length: | 6.515 m | 6.815 m |
Body width: | 2.55 m | 2.55 m |
Ride height: | 2.93 m | 2.93 m |
Front track: | 1815mm | 1815mm |
Rear track: | 1785mm | 1785mm |
Vehicle weight: | 8.99 tons | 8.2 tons |
Rated load: | 8.815 tons | 9.605 tons |
Total mass: | 18 tons | 18 tons |
Tonnage level: | Medium Card | Medium Card |
Approach Angle: | 37 degrees | 37 degrees |
Departure angle: | 15 degrees | 15 degrees |
Origin: | Zhucheng, Shandong | Zhucheng, Shandong |
Fuel Type: | diesel fuel | diesel fuel |
Version: | ||
Engine Model: | Yuchai YCS04220-61A | Yuchai YCS04220-61A |
Engine Brand: | Yuchai | Yuchai |
Number of cylinders: | 4 cylinders | 4 cylinders |
Fuel Type: | diesel fuel | diesel fuel |
Displacement: | 4.295L | 4.295L |
Emission standards: | National VI | National VI |
Maximum horsepower: | 220 hp | 220 hp |
Maximum output power: | 162kW | 162kW |
Maximum Torque: | 850N·m | 850N·m |
Maximum torque speed: | 1200-1600rpm | 1200-1600rpm |
Length of cargo box: | 4.2 m | 4.5 m |
Cargo box width: | 2.3/2.42 m | 2.3 m |
Cargo box height: | 0.8m | 0.8m |
Cargo box form: | Self-unloading | Self-unloading |
Cargo box width: | 2.2 m | 2.3 m |
Cab width: | 2060mm | 2060mm |
Number of passengers allowed: | 3 people | 3 people |
Number of Seat Rows: | ||
Gearbox Model: | Fast 10JS90A-B | Fast 10JS90A-B |
Gearbox brand: | Fast | Fast |
Shifting method: | Manual | Manual |
Forward gears: | 10 levels | 10 levels |
Reverse gear number: | 2 | 2 |
Number of passengers allowed: | ||
Permissible load on front axle: | 6500kg | 6500kg |
Rear Axle Description: | 16T wheel side reduction bridge | 16T wheel side reduction bridge |
Permissible load on rear axle: | 11500kg | 11500kg |
Speed ratio: | 6.73 | 6.73 |
Number of springs: | 10/12+9 | 10/12+9 |
Shifting method: | ||
Tire specifications: | 10.00R20 18PR | 10.00R20 18PR |
Number of tires: | 6 | 6 |
Tire type: | Off-road tires | Off-road tires |
Number of springs: | 9/10+8 | 9/10+8 |

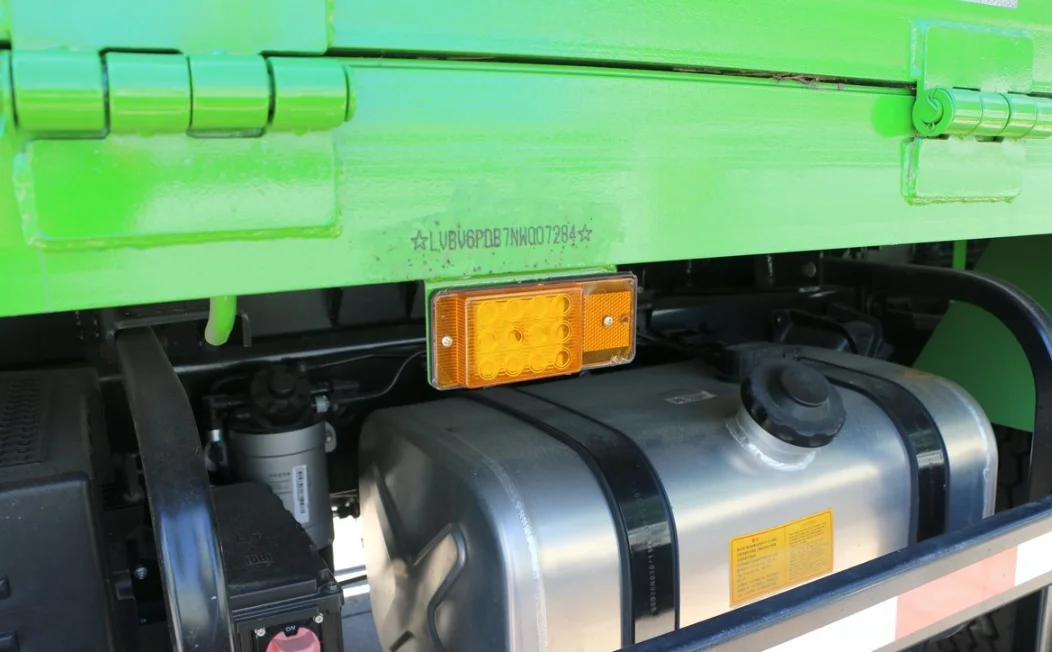

Fuel tank material: | Aluminum Alloy | |
Fuel tank capacity: | 350L | |
Number of tires: | 6 | 6 |
Frame size: | 280(7+4)mm | |
Front axle description: | 5.5T*2 | |
Permissible load on front axle: | 6500kg | 6500/6500kg |
Rear Axle Description: | 10T*2 | |
Permissible load on rear axle: | 10400kg | 18000(two-axle group)kg |
Speed ratio: | 6.333 | 5.57 |
Number of springs: | 10/10/13 | |
clutch: | Φ430 | |
Tire specifications: | 10.00R20 18PR | 11.00R20 18PR |
Number of tires: | 6 | 12 |
Title goes here.
The cab of the Ruiwo ES5 super dump truck adopts a semi-floating suspension structure with coil spring shock absorbers, which reduces the impact of road bumps on the body, has a lower body failure rate, high driving comfort, and no fatigue during long-term driving.
Title goes here.

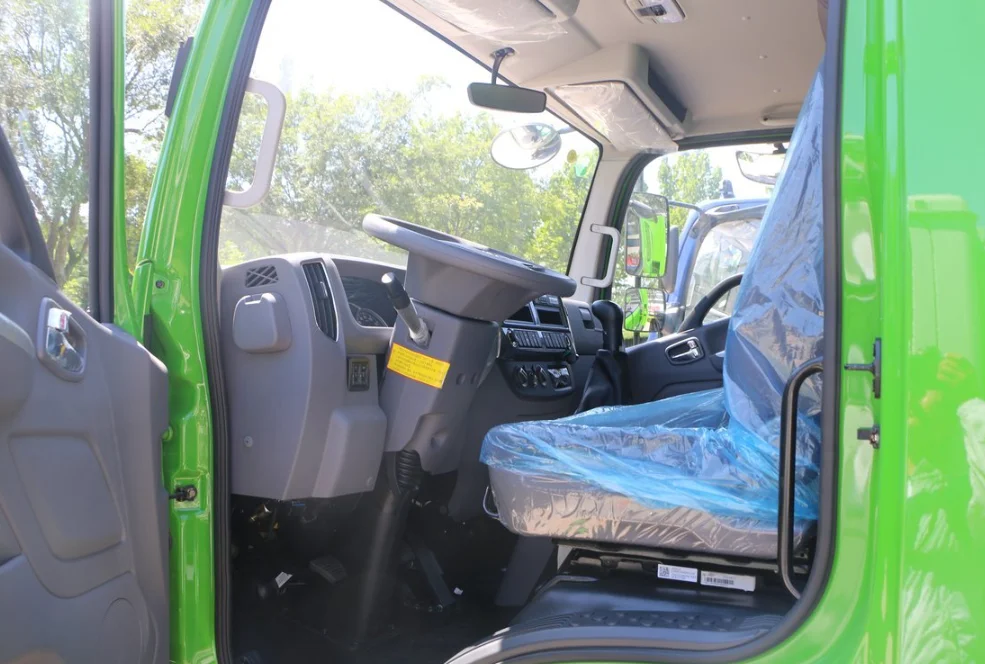

The multifunctional four-spoke steering wheel is easy to operate and looks more high-end. The hydraulic shock-absorbing seat uses ergonomic design to improve the driver's riding comfort. The instrument panel uses a dynamic pointer and a large-screen LCD combined CAN bus instrument, which can provide instantaneous fuel consumption and other prompts, making it easier for the driver to understand the vehicle situation. The central control panel integrates the audio system, air conditioning system, and driving recorder. The buttons are comfortable and flexible, and the optional navigation multimedia and intelligent navigation make driving more convenient.
Title goes here.
The newly developed electronically controlled lifting system can intelligently operate the lifting and lowering of the cargo box with buttons, making the operation more precise and flexible. The middle top connecting rod combined cargo box lifting mechanism has good lateral rigidity, smooth lifting, small working stroke of the oil cylinder piston, and shorter lifting time.
Title goes here.
All the plate cores of the Ruiwo ES5 super dump truck cargo box are made of 610L high-strength steel plates, which have the advantages of high strength, light weight, and corrosion resistance. Under the premise of ensuring maximum strength and reliability, it is 0.3-0.5t lighter than ordinary steel plate cargo boxes of similar products. The rear leaf spring seat is optimized to achieve a single-piece weight reduction of 3.34kg while ensuring the function and reliability of the components. Based on CAE analysis, the frame assembly is simulated and calculated under various working conditions, and the stress of each component of the assembly is analyzed one by one to achieve weight reduction of the frame assembly while ensuring the bearing capacity and reliability.
Packing & Delivery
Company Profile
Q. What’s your minimum Order quantity?
A. Pls Don' Worry, We Not Have Moq, 1 Unit Is Ok. Pls Feel Free To Contact Us If You Are Interested In Which Model.
Q. Can you satisfy my special requirement?
A. Definitely!We can make the trailers based on your requirement.
Q. How to trust us?
A.The good faith management is our philosophy,and you are welcome to visit our company at any time. Q. what can you buy from us?
A. New Energy Vehicles, SUV, MPV, Sedan
Q. How Can You Ensure The Quality Of The Car?
A. We Offer Used Cars With 0 Km Mileage. Our Offline Store Has 20 Years Of Experience In Second-Hand Car Sales. There Are Many Experienced Technicians To Test The Car To Ensure That Every Car Of The Customer Is Of High Quality And Low Price.
Q. Have You Tested All Your Cars Before Delivery?
A. Yes, We Conduct 100% Inspection On The Products Before Delivery.
A. Pls Don' Worry, We Not Have Moq, 1 Unit Is Ok. Pls Feel Free To Contact Us If You Are Interested In Which Model.
Q. Can you satisfy my special requirement?
A. Definitely!We can make the trailers based on your requirement.
Q. How to trust us?
A.The good faith management is our philosophy,and you are welcome to visit our company at any time. Q. what can you buy from us?
A. New Energy Vehicles, SUV, MPV, Sedan
Q. How Can You Ensure The Quality Of The Car?
A. We Offer Used Cars With 0 Km Mileage. Our Offline Store Has 20 Years Of Experience In Second-Hand Car Sales. There Are Many Experienced Technicians To Test The Car To Ensure That Every Car Of The Customer Is Of High Quality And Low Price.
Q. Have You Tested All Your Cars Before Delivery?
A. Yes, We Conduct 100% Inspection On The Products Before Delivery.
Похожие товары
Грузовик-самосвал 4 2 м х2
31 800,00-35 900,00 $

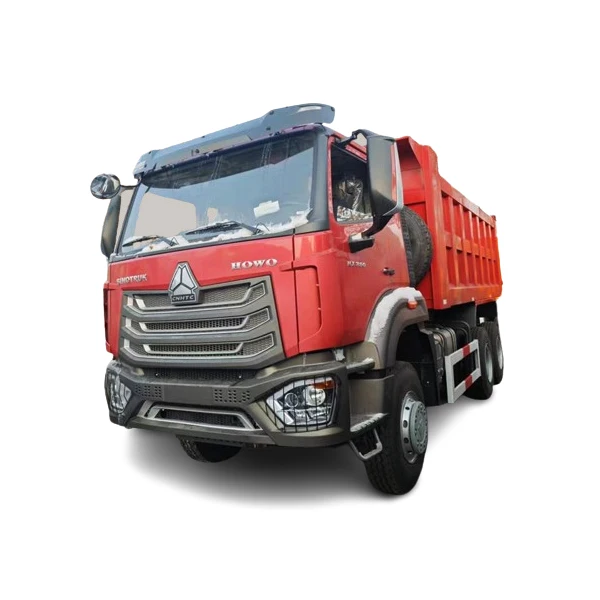

Новая модель самосвала 25 тонн Sinotruk howo V7-X самосвал для продажи гарантия качества
15 500,00-15 700,00 $
Китай Sinotruk Hohan 6x4 380HP EURO3 самосвал для продажи
41 500,00-43 000,00 $
SINOTRUK 6X6 внедорожник на все колеса/шило трактор 371 л.с.
9 450,00-9 980,00 $
Самосвал самосвал shakman 6x4 l3000 евро 2 3 4
38 000,00 $

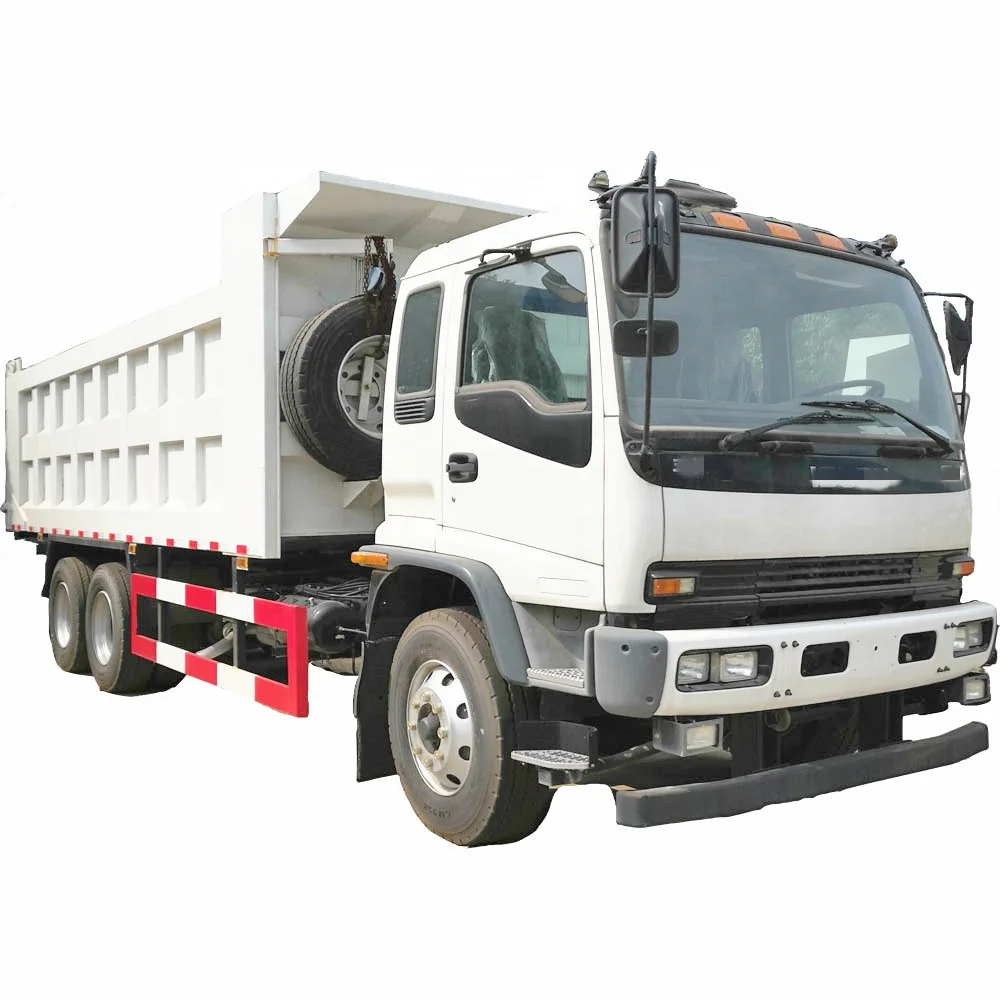

Японский самосвал марки Wushiling Qingling izuzu FVZ 6x4 30ton 35ton
