Внутреннее стекло прозрачная светодиодная пленка дисплей прозрачные панели Светодиодная лента экран дисплея
540,00-560,00 $
Высокопрозрачный светодиодный стеклянный дисплей ограждение экран для наружного мультимедийного стеклянного оконного дисплея домашний дизайн
- Категория: >>>
- Поставщик: Shenzhen Guojia Optic-Electronic Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601331843605:
Описание и отзывы
Характеристики
Specification
Key attributes | |
Application | Indoor |
Type | LED |
Brand Name | GUOJIA |
Other attributes | |
Place of Origin | Guangdong,China |
use | advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, education, medical treatment |
Specification | video wall |
Color | full color |
Model Number | GJ-PH5 |
Pixel Pitch | p5 |
Pixel color | 1R1G1B |
Transparency rate | 65% |
Brightness | 5000cd |
Waterproof | IP45 |
Video Details
Product Parameters
Model | GJ-PH5 | GJ-PH6 | GJ-PH8 | GJ-PH10 | GJ-PH16 | GJ-PH20 | |||||
Pixel pitch(mm) | 5-5 | 6-6 | 8-8 | 10-10 | 16-16 | 20-20 | |||||
LED chip | SMD2020 | ||||||||||
Module size(mm) | customized | 996*192 | 960*160 | 960*256 | 960*160 | 960*256 | |||||
Pixel density px/㎡ | 40000 | 27777 | 15625 | 10000 | 3906 | 2500 | |||||
Color | 1R1G1B | ||||||||||
The optimal viewing distance | 6-250m | 8-250m | 10-250m | 12-250m | 18-250m | 25-250m | |||||
Transparency | 55% | 60% | 65% | 70% | 75% | 80% | |||||
Weight kg/㎡ | 35kg/㎡-45kg/㎡ | ||||||||||
Viewing angle | 160° | ||||||||||
Thickness | 6+6mm/8+8mm | ||||||||||
Average power w/㎡ | ≤300 | ||||||||||
Max consumption w/㎡ | ≤800 | ||||||||||
Refresh rate | ≥3840 | ||||||||||
Brightness cd/㎡ | 5000 | ||||||||||
Life | 100000 hrs | ||||||||||
Waterproof grade | IP65 | ||||||||||

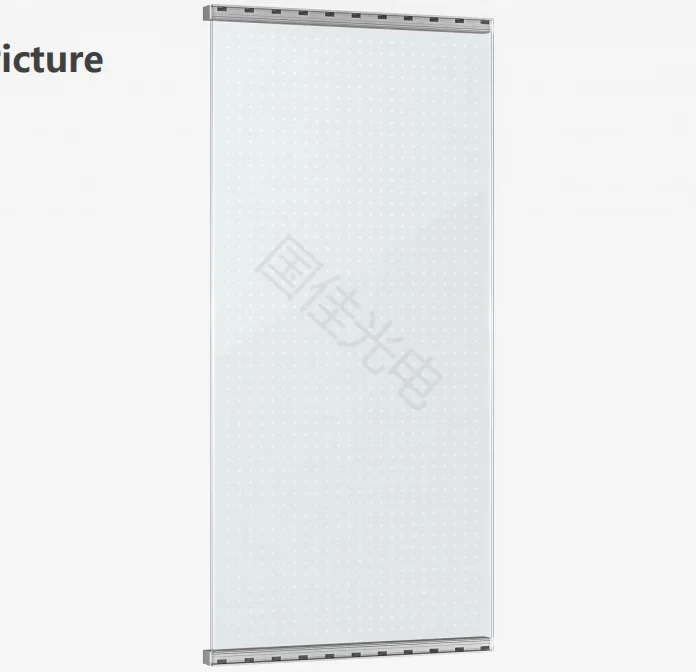

Product Description
Combine environmental protection and practicality

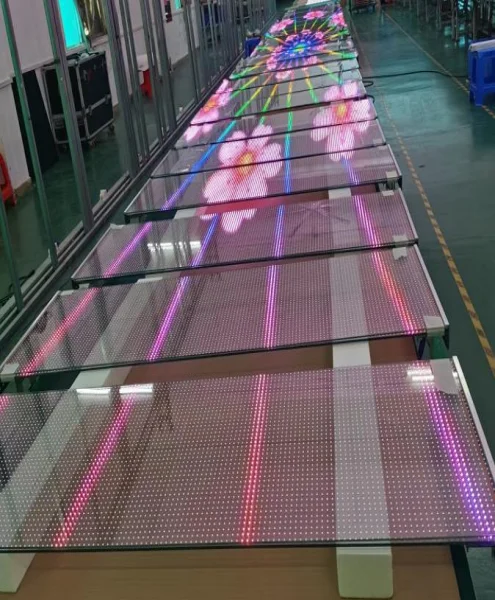

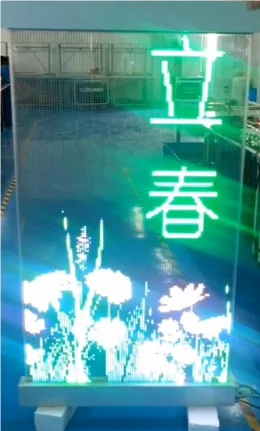

\t Guojia LED Glass Screen is a state-of-the-art building material that combines environmental protection and practicality. It offers impressive energy-saving and safety features, ultra-high transparency, and is visually versatile — capable of displaying text, images,and videos. Ideal for glass curtain walls and sightseeing elevators, its dry PVB technology makes it lightweight and transparent, with transparency levels exceeding 90%
Applicability
The product can be easily customized to any size required for a specific application scenario, and it is also effortless to
install. It boasts nearly 20 patents and is a leader in its category among similar international products. It is highly versatile and can be used in a variety of settings, such as indoor and outdoor glass curtain walls, shop windows, outdoor media, lighting, and more.
Novel style with strong functionality

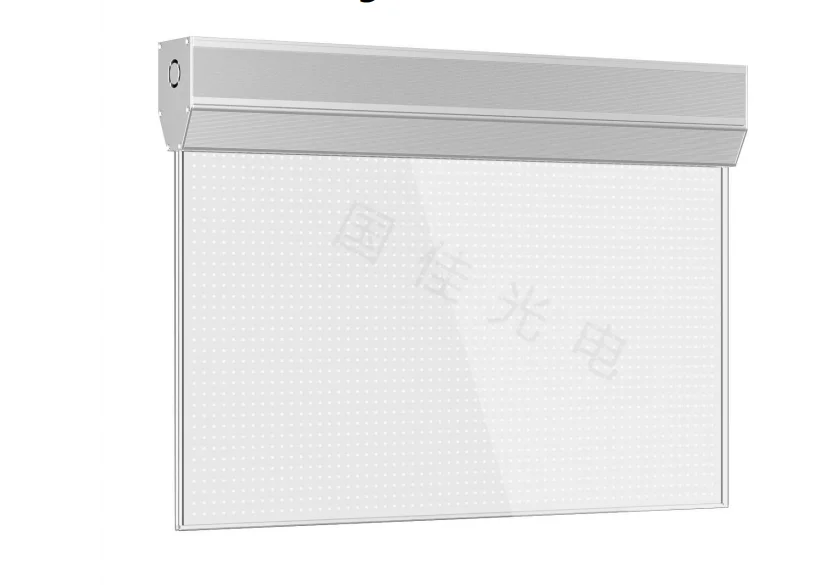

The LED glass screen is made up of three main components: conductive glass, surface glass, and LED chips that are embedded in
the middle using adhesive. The laser-etched circuitry enables the screen to achieve various functions such as displaying text, patterns, lighting, and videos with style and elegance
Installation Notes
While the LED Guardrail Screen has a waterproof design, we recommend avoiding soaking it in water. For outdoor installation, we suggest adding a convex platform of more than 3CM at the bottom of the product and carrying out adequate drainage treatment.
1.Who are we?
Shenzhen Guojia Optoelectronics Co., Ltd. is a subsidiary of Guojia Group. It is a high-tech enterprise (registered capital of 50 million) to focus on LED manufacturing, research and development, design, sales and engineering services.
2. Are you a manufacturer or company?
We are a LED display factory with 15 years experience,The company's main products are LED transparent screen, LED window display screen,LED screen,LED lamp screen and LED lighting and other applications.Our products are exported to North America, Europe and the Middle East and other overseas markets, such as Sweden, Britain, Italy, Germany, Romania, Serbia, Poland, Turkey, Israel, Spain, Portugal, the United States, cartels, Singapore and more than 110 countries.
3.What is your minimum order quantity?
Your order can accept any quantity. And the price for large quantities can be negotiated.
4.What technical support can you provide?
We provide various technical training free of charge, including the operation and maintenance training of LED display in the
factory. We can send a team of engineers to the customer's country to guide the installation.
factory. We can send a team of engineers to the customer's country to guide the installation.
Похожие товары
Настенная Светодиодная панель
195,00-220,00 $
Большие размеры 32-43 50 55 65 дюймов 1920X1080P Android настенное крепление сенсорный экран напольный FHD разрешением 4K Full HD CCTV камера монитор

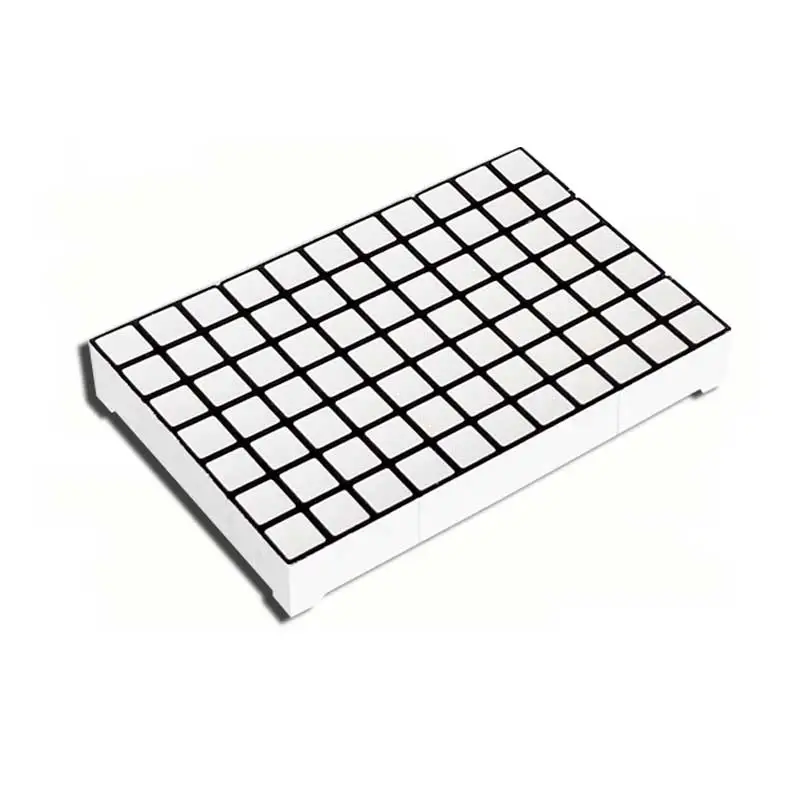

Купить Водонепроницаемый 7x11 светодиодный матричный дисплей для лифта точечная матрица 11x7 и подъемный поставщик
0,20-1,00 $

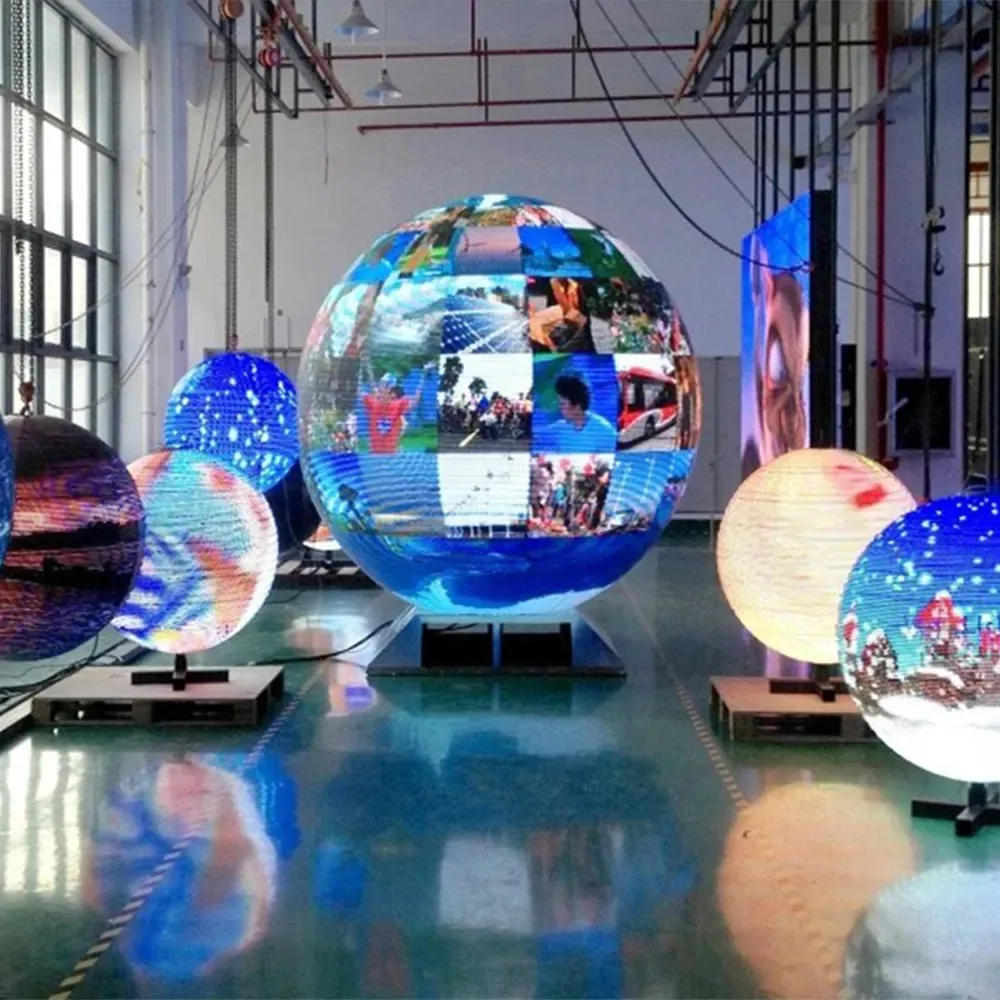

Lionled закрытый Многофункциональный нерегулярный изогнутый шар видео Сферический светодиодный экран технологии выставки OEM поставщик
4 699,00-4 899,00 $

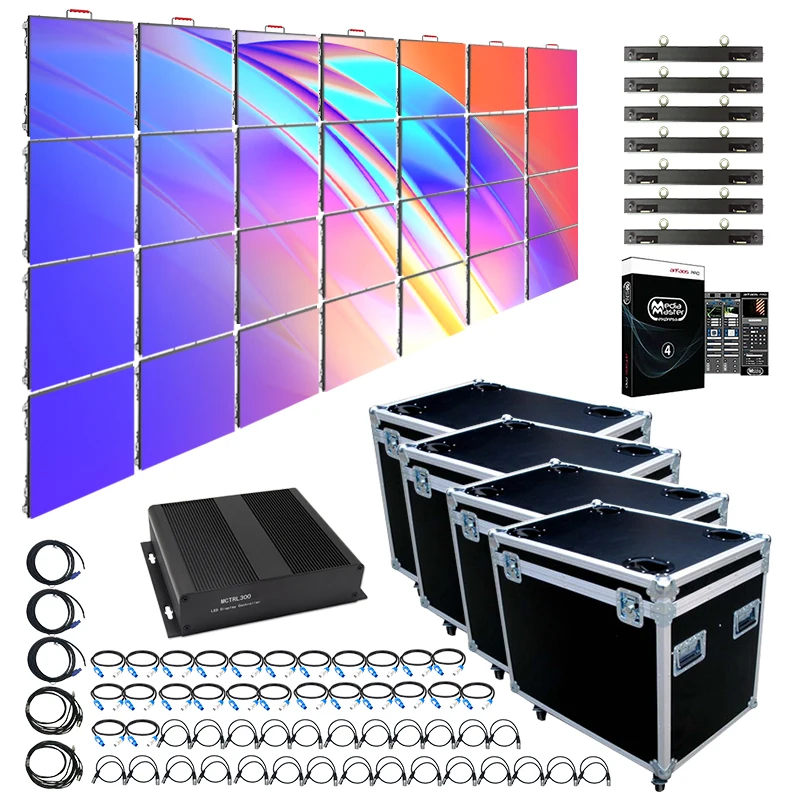

Полноцветный светодиодный настенный экран P3.91 для помещений жесткая проводка Светодиодная панель дисплей Pantalla мероприятий
150,00-250,00 $

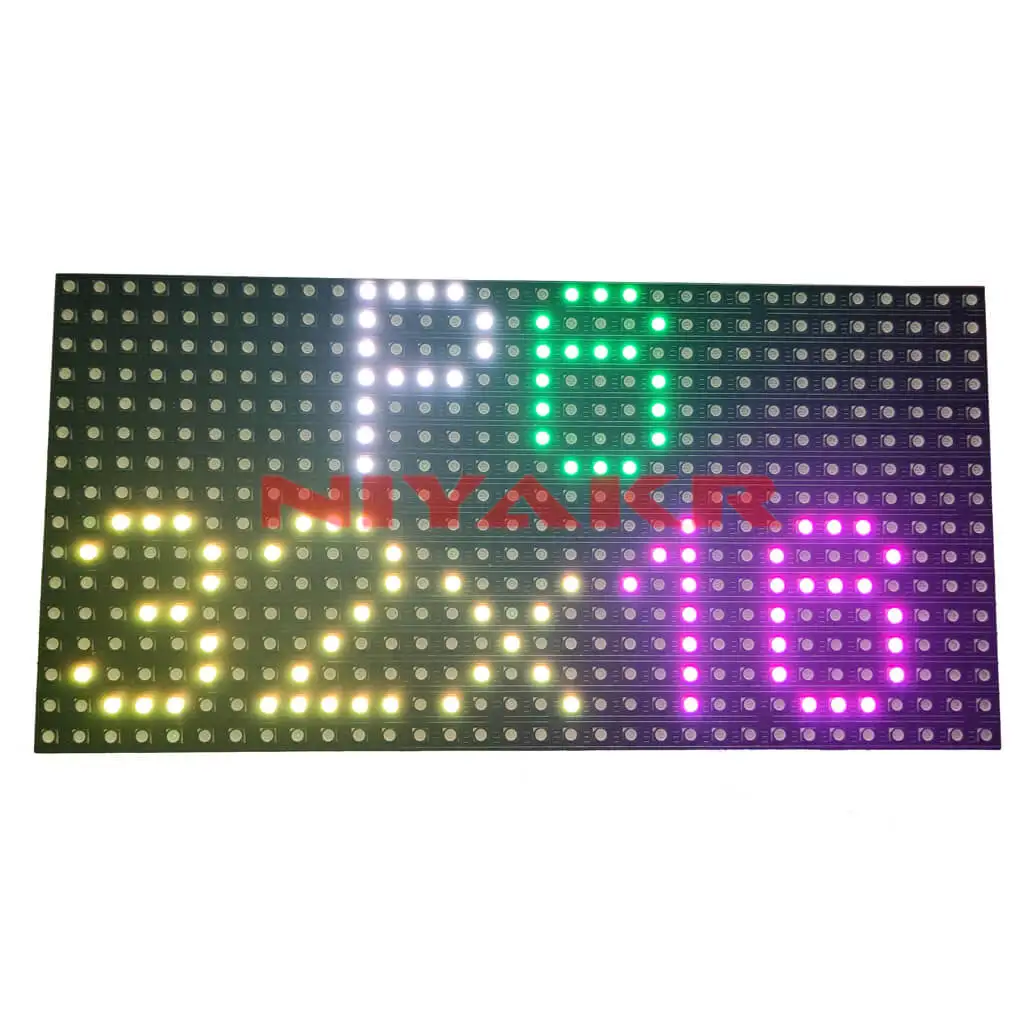

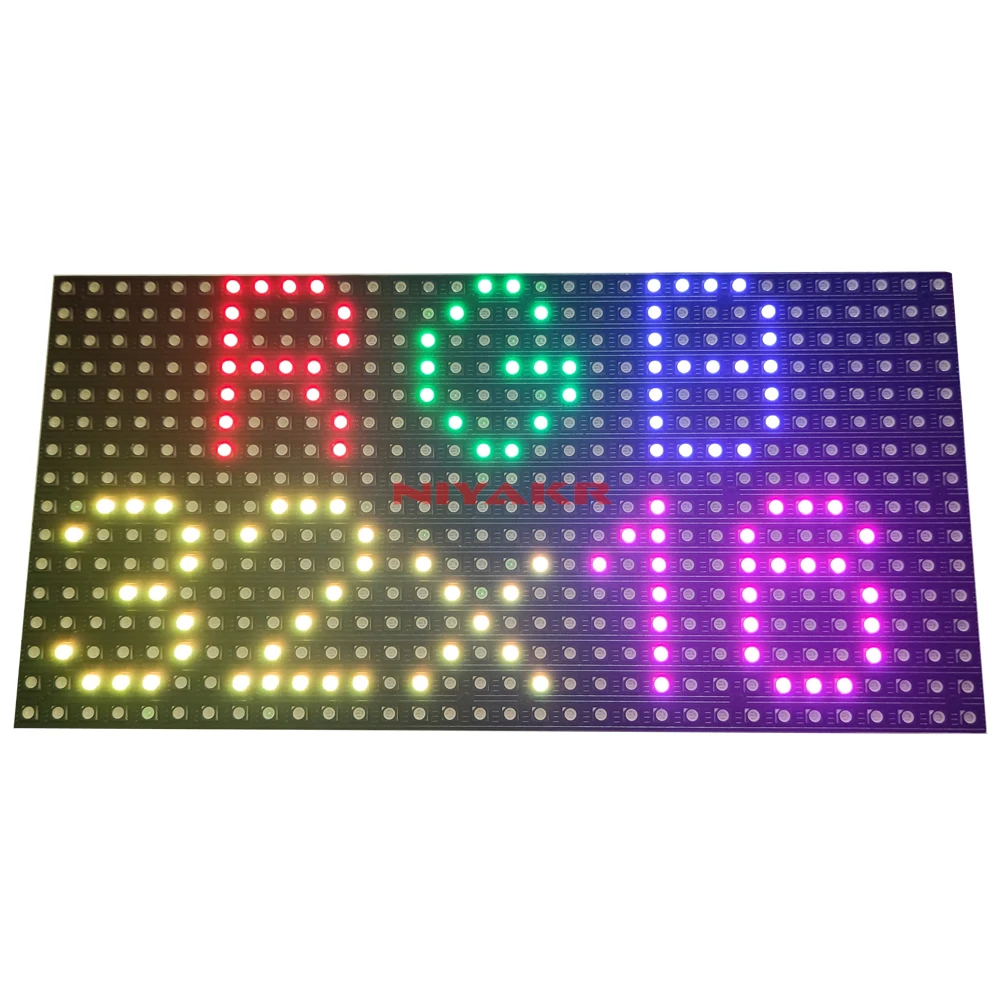

NIYAKR 32x16 RGB полноцветная светодиодная матричная Панель 6 мм
