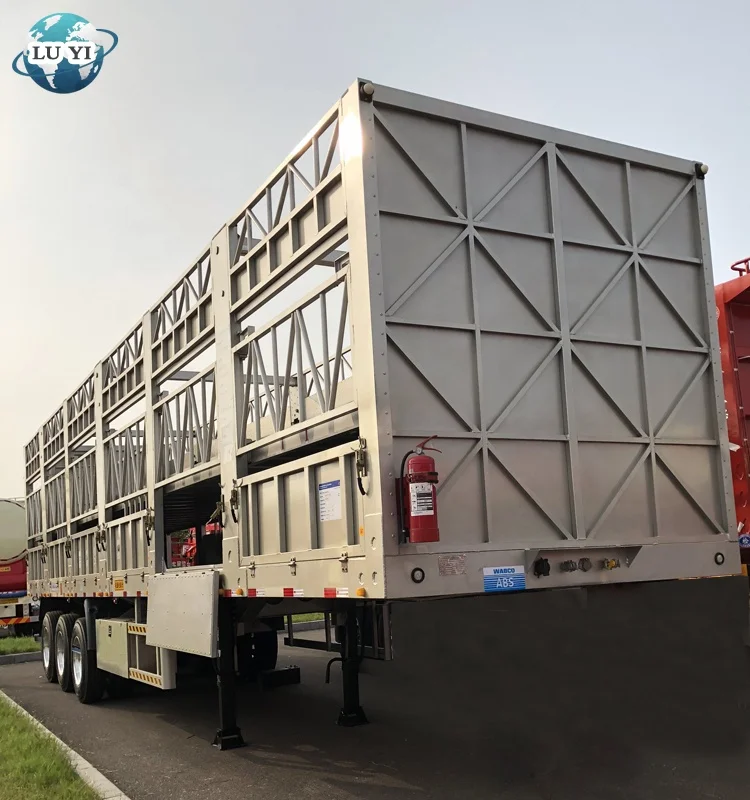

Животное грузовик с прицепом для домашнего скота Грузовой автомобиль Прицеп боковых стенок продажи
1 187 818,80-1 414 070,00 ₽
Дешевая цена 40ft 3 оси 12 шин фургон коробка 90cbm полуприцеп занавес прицеп для грузовика распродажа
- Категория: >>>
- Поставщик: Jinan Tian Run Machinery International Co. LtdJinan Ltd
Сохранить в закладки 1601332380614:
Описание и отзывы
Характеристики
Product Description
Our Main Products Heavy Trucks,Trailers and Construction Machinery. including Head tractor trucks(Prime movers), Dump
trucks(Tippers),Concrete mixer trucks, Bulk cement trucks, Cargo trucks, Water/Oil tank trucks, Sprinkling trucks, Garbage trucks, Log carrier trucks, All-wheel drive trucks, Fire-fighting trucks,Refrigerator trucks, Crane Trucks, Concrete Pump Trucks, Semi-trailers, tank trailers and Excavator, Motor grader,Wheel loader, Roller loader.
trucks(Tippers),Concrete mixer trucks, Bulk cement trucks, Cargo trucks, Water/Oil tank trucks, Sprinkling trucks, Garbage trucks, Log carrier trucks, All-wheel drive trucks, Fire-fighting trucks,Refrigerator trucks, Crane Trucks, Concrete Pump Trucks, Semi-trailers, tank trailers and Excavator, Motor grader,Wheel loader, Roller loader.
Specification
THREE AXLES SIDE CURTAIN SEMI TRAILER SPECIFICATIONS | ||
Weight | ||
Tare weight | 10000kg | |
Payload | 40000kg | |
Size | ||
Overall size(L*W*H) | 13900*2580*4000mm | |
Van volume | 91m³ | |
Plateform height | 1298mm | |
Chassis | ||
Main beam | Material: Q355NE steel; Type: straight type; Height: 480mm; Upper plate: 12mm； Bottom plate: 14mm Middle plate: 8mm Process: welded by automatic submerged-acr | |
Side beam | 14#C type; Q235 | |
Cross beam | 8# C type; Q235 | |
plateform | 3mm High strength steel plate,300mm bamboo plywood | |
Top | Curtain | |
Twist lock | none | |
King pin | 50# or 90# | |
Hole / lashing | sharing | |
Hook | 28-32 | |
Inner frame | 5+5 Aluminum alloy bracket | |
Rear door | portal frame with double wing (container type, aluminum alloy), 270。Opening | |
Curtain | Heat-resistant and waterproof tarpaulin | |
Running System | ||
Axle | Capacity: 13T SAF brand QTY: 3 units | |
Tyre | Type: 385/65R22.5 ; double mounted; QTY: 6 units | |
Rim | 22.5*9.0-14, 6 units | |
Landing gear | FUWA 28T total Lifting capacity and 50T static capacity; double speed; large pad feet; | |
Suspension | air suspension | |
Brake system | Type: Dual line braking system Brake air chamber: 6 in total, T30/30*4 + T30*2 Air tank: 40L*2 unit ABS: none | |
Accessories | ||
Electric system | 24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. | |
Tool box | 1 unit; include: 1 tyre spanner, 1 gudgeon sleeve & 1 cranking bar & instruction sheet | |
Spare wheel bracket | 1 unit | |
Protectors | Mudguard; Mud-flags behind rear axle; Mid & Rear Side protection; | |
Print | sand blaster; outer light blue; inside white; 1 coat of anticorrosive prime, 2 coats of final paints | |
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice | ||
Curtain side trailers are versatile and can be used to transport various types of cargo, from machinery and construction materials to consumer goods. The flexibility of the curtains allows for easy loading and unloading from the sides.
The curtain sides can be quickly and easily opened and closed, providing easy access to the cargo. This is particularly useful when goods need to be loaded or unloaded from the side of the trailer.

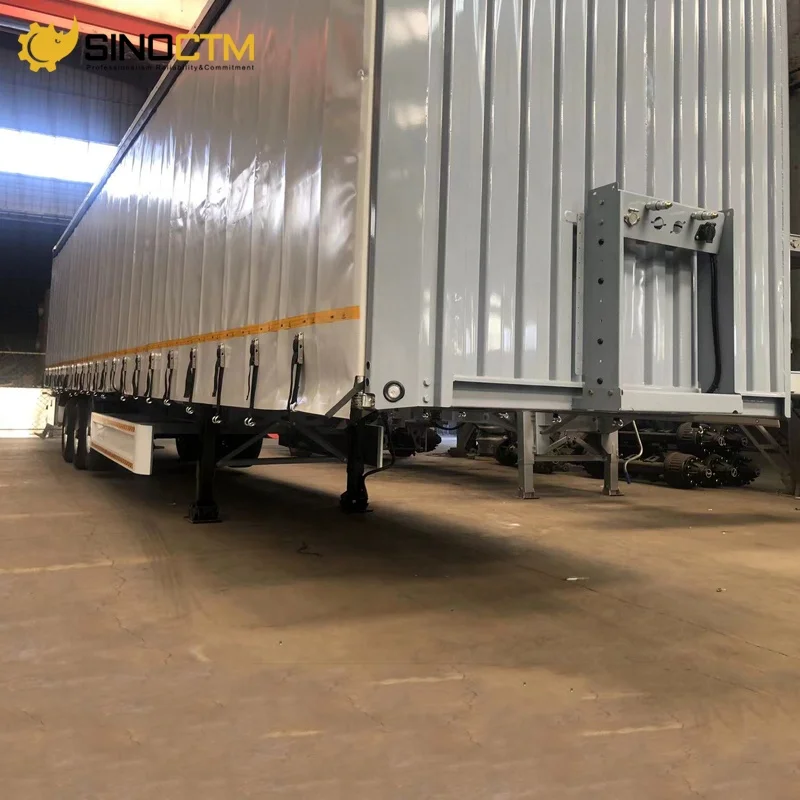

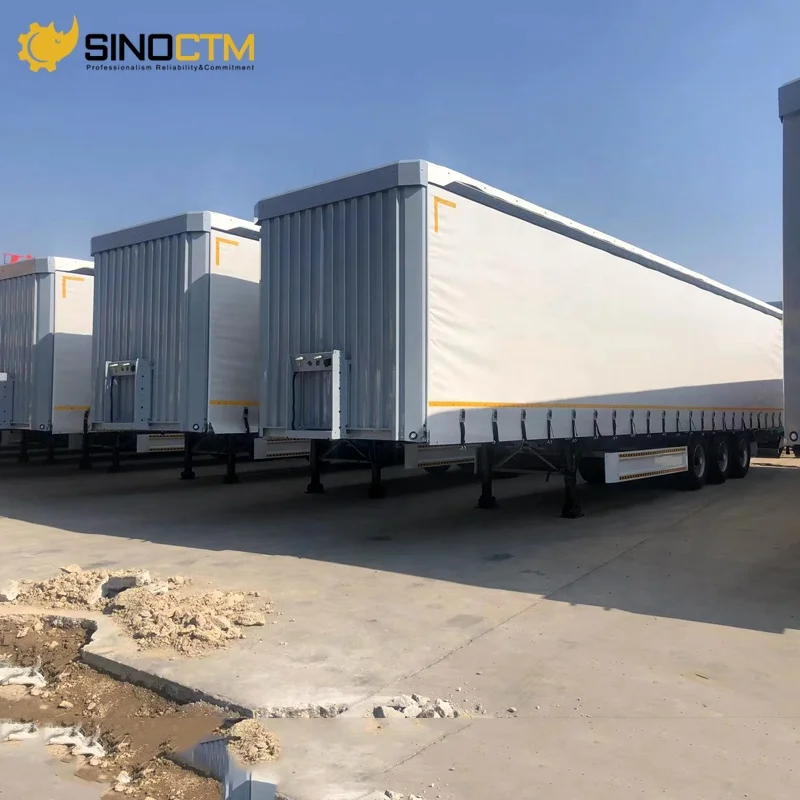

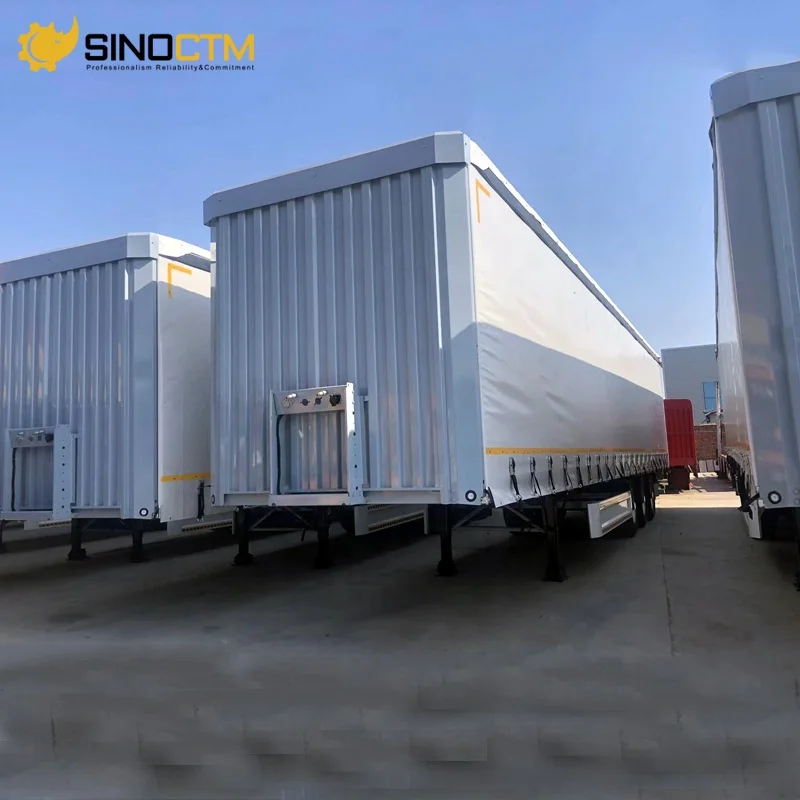

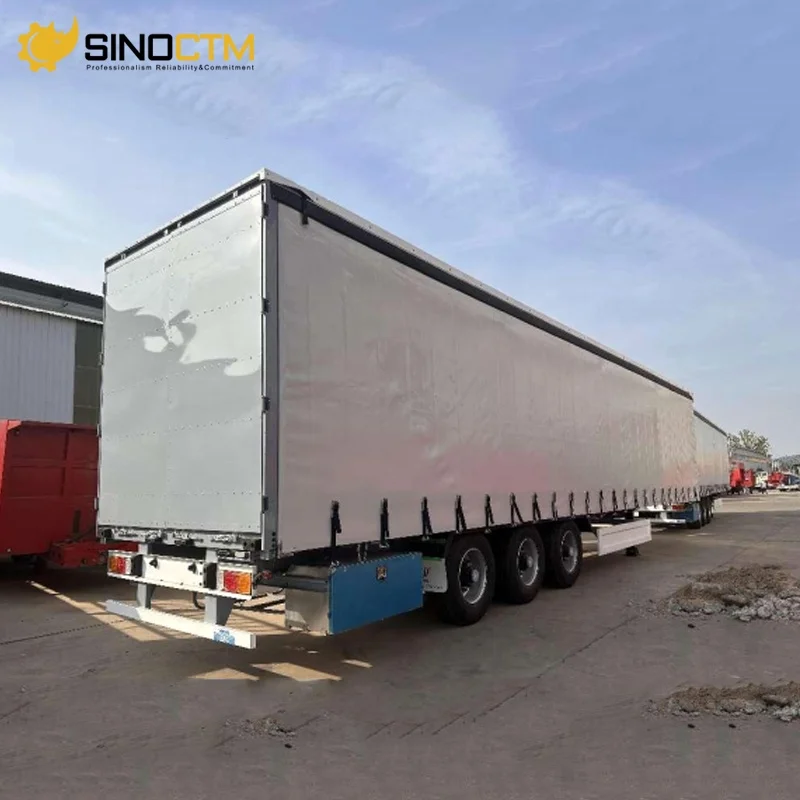

Details Images
Advanced technology: Major parts and components of the trailer are processed by advanced equipments. Longitudinal beams are finished by automatic tracking submerged arc welding machine; all the sub-assemblies are shot-blasted to improve paint adhesiveness and are painted before assembling.
Chassis: To ensure optimal structure for cargo handling and larger payload, the chassis is manufactured as a space frame structure of high-strength steel, 16Mn steel welded longitudinal beam and integrated cross member.
Axle: High performance domestic and imported axles with ABS system optionally available can significantly increase driving safety.
Suspension: High strength and impact resistance new type suspension is adopted with patented rod connecting design. It guarantees performance in rough road condition and longer service life.
Tool Box: Large capacity water-proof detachable tool box.
Chassis: To ensure optimal structure for cargo handling and larger payload, the chassis is manufactured as a space frame structure of high-strength steel, 16Mn steel welded longitudinal beam and integrated cross member.
Axle: High performance domestic and imported axles with ABS system optionally available can significantly increase driving safety.
Suspension: High strength and impact resistance new type suspension is adopted with patented rod connecting design. It guarantees performance in rough road condition and longer service life.
Tool Box: Large capacity water-proof detachable tool box.
Our Advantages
1 Factory price, more competitive than agent price.2 Quality: With SINOTRUK group inspection system, a series inspections are well
done before the exportation.
3 Warranty: One year or 100 000k which comes to the first for the engine, gear box, and axles.
4 After-sales: Professional after-sales team sovle your difficult or special questions within 3working days or 5 working days, and
all spare parts are available for your urgent use.
5 Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.
done before the exportation.
3 Warranty: One year or 100 000k which comes to the first for the engine, gear box, and axles.
4 After-sales: Professional after-sales team sovle your difficult or special questions within 3working days or 5 working days, and
all spare parts are available for your urgent use.
5 Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.
Company Profile
SINOTRUK is located in Jinan city and was founed in 1956.It once manufactured china's first heavy duty truck. Our company belong to SINOTRUK sales department and we have specialized in sinotruk trucks and spare parts for many years.The famous brand of sinotruk are HOWO series,HOWO A7 series,HOHAN series.We can supply tractor truck,dump truck,cargo truck,concrete mixer truck,fire truck,water truck,fuel tank truck,bulk cement truck,sewage suction truck and also different types of semi trailers.
In 1960,sinotruk introduced technology using on engine and axle from Austria.Later,sinotruk established cooperation withGerman man
group and wobaco company.Today,sinotruk has developed into china's largest heavy duty truck manufacturing base and made
significant contributions to the development of china's heavy duty truck industry and national economic growth.SINOTRUK has an annual output of 180,000 vehicles and 200,000 engines capacity.
We have not only the certificate and license of truck export and also strict quality anagement, fast and convenient channel of goods delivery, strict examination in quality and quantity of products, professional packing, professional and reliable loading goods, on-time delivery and competitive prices. If you want to buy these products, please contact us.
We sincerely hope to cooperate with you to expand market in your country!
group and wobaco company.Today,sinotruk has developed into china's largest heavy duty truck manufacturing base and made
significant contributions to the development of china's heavy duty truck industry and national economic growth.SINOTRUK has an annual output of 180,000 vehicles and 200,000 engines capacity.
We have not only the certificate and license of truck export and also strict quality anagement, fast and convenient channel of goods delivery, strict examination in quality and quantity of products, professional packing, professional and reliable loading goods, on-time delivery and competitive prices. If you want to buy these products, please contact us.
We sincerely hope to cooperate with you to expand market in your country!
Recommend Products
Main products
1.Dump Truck / Tipper Truck / Mining Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Cargo truck / Van truck / Refrigeration truck
8. Fecal suction truck / Sewage suction truck / garbage compactor truck
9. Cement Powder Tank truck/ Bulk cement truck
10.Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer etc )
11.Construction Machinery (Excavator, wheel loader, buldozer, road roller, motor grader)
12.Coach Bus
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Cargo truck / Van truck / Refrigeration truck
8. Fecal suction truck / Sewage suction truck / garbage compactor truck
9. Cement Powder Tank truck/ Bulk cement truck
10.Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer etc )
11.Construction Machinery (Excavator, wheel loader, buldozer, road roller, motor grader)
12.Coach Bus
Packing & Delivery
Roll on roll off (RORO) ship
It's the specialized ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.
Bulk carrier ship
It's the specialized ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport
trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.
Container ship
It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so sometimes, we have to use container ship.
It's the specialized ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.
Bulk carrier ship
It's the specialized ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport
trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.
Container ship
It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so sometimes, we have to use container ship.
FAQ
Q1. What's your MOQ?
A1. One unit trailer or truck.
Q2. What is your terms of payment?
A2. T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the
balance.
Q3. What is your terms of shipment?
A3. Generally, we ship our truck by ro-ro ship , bulk cargo vessel, container etc. spare parts are packed in wooden cases, shipped
by containers
Q4. What is your terms of delivery?
A4. EXW, FOB, CFR, CIF
Q5. How about your delivery time?
A5. It will take 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of
your order.
Q6. Do you test all your goods before delivery?
A6. Yes, we have 100% test before delivery.
A1. One unit trailer or truck.
Q2. What is your terms of payment?
A2. T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the
balance.
Q3. What is your terms of shipment?
A3. Generally, we ship our truck by ro-ro ship , bulk cargo vessel, container etc. spare parts are packed in wooden cases, shipped
by containers
Q4. What is your terms of delivery?
A4. EXW, FOB, CFR, CIF
Q5. How about your delivery time?
A5. It will take 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of
your order.
Q6. Do you test all your goods before delivery?
A6. Yes, we have 100% test before delivery.
Похожие товары
Новый бортовой полуприцеп 60 тонн 3 оси 40 футов 13 метров контейнер прицеп для продажи
735 316,40-791 879,20 ₽

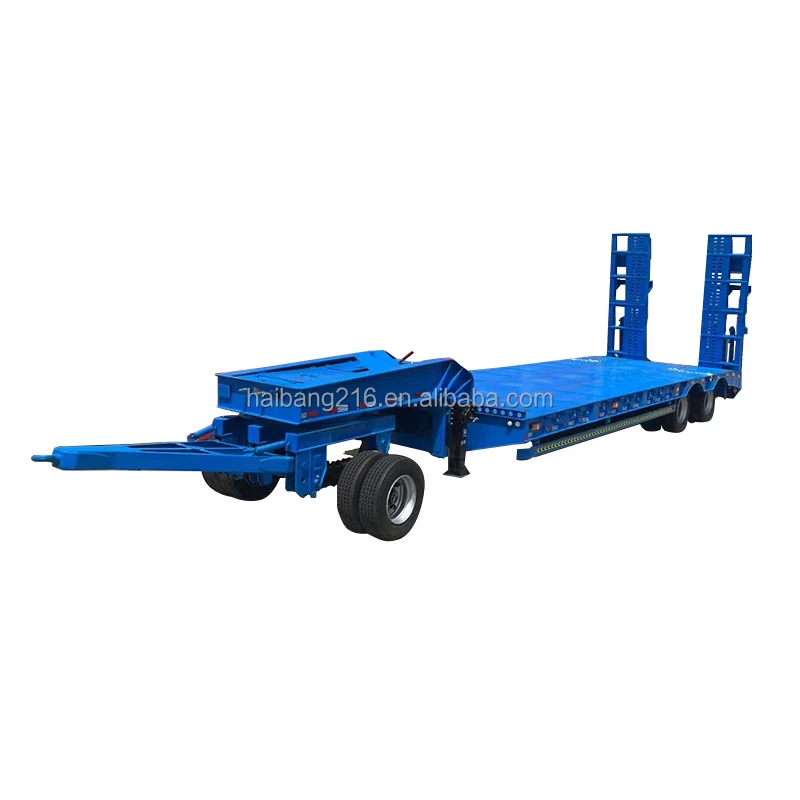

Белый низкий плоский полуприцеп цена транспорт 50 тонн 2 оси прицеп для продажи
1 131 256,00 ₽
Высококачественный сверхмощный самосвал задний Опрокидывающий полуприцеп фургон прицеп грузовик
678 753,60-1 244 381,60 ₽

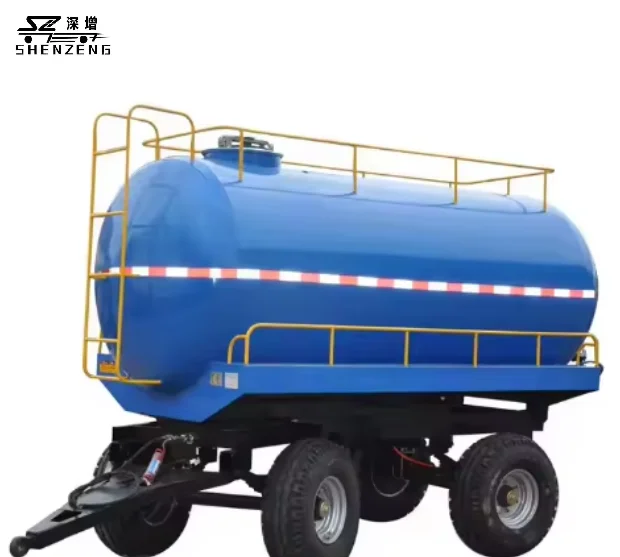

Новый двухосевой одноосный полуприцеп со стальным резервуаром для воды емкостью 6000л с тормозной системой Wabco сертифицированный ADR/DOT
