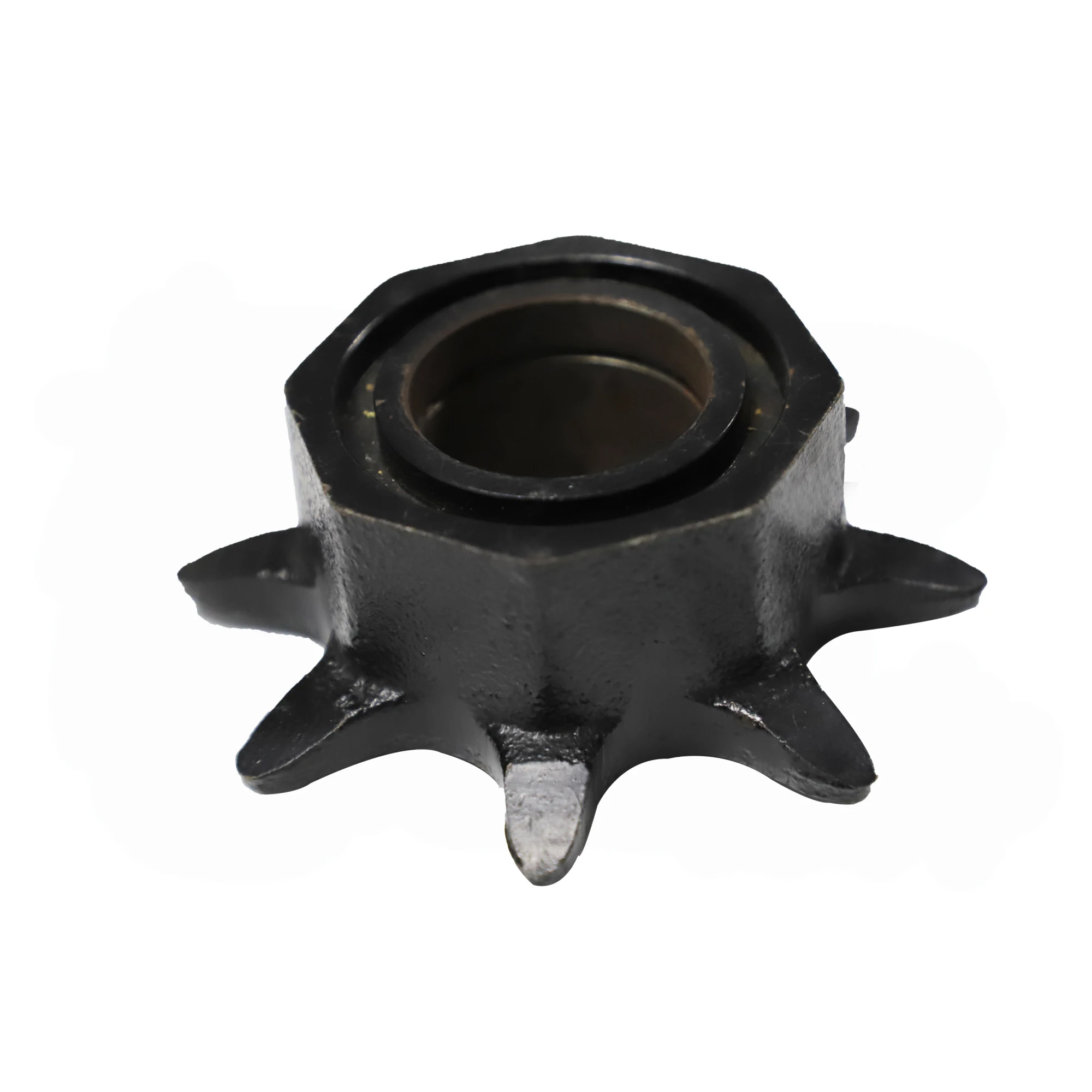

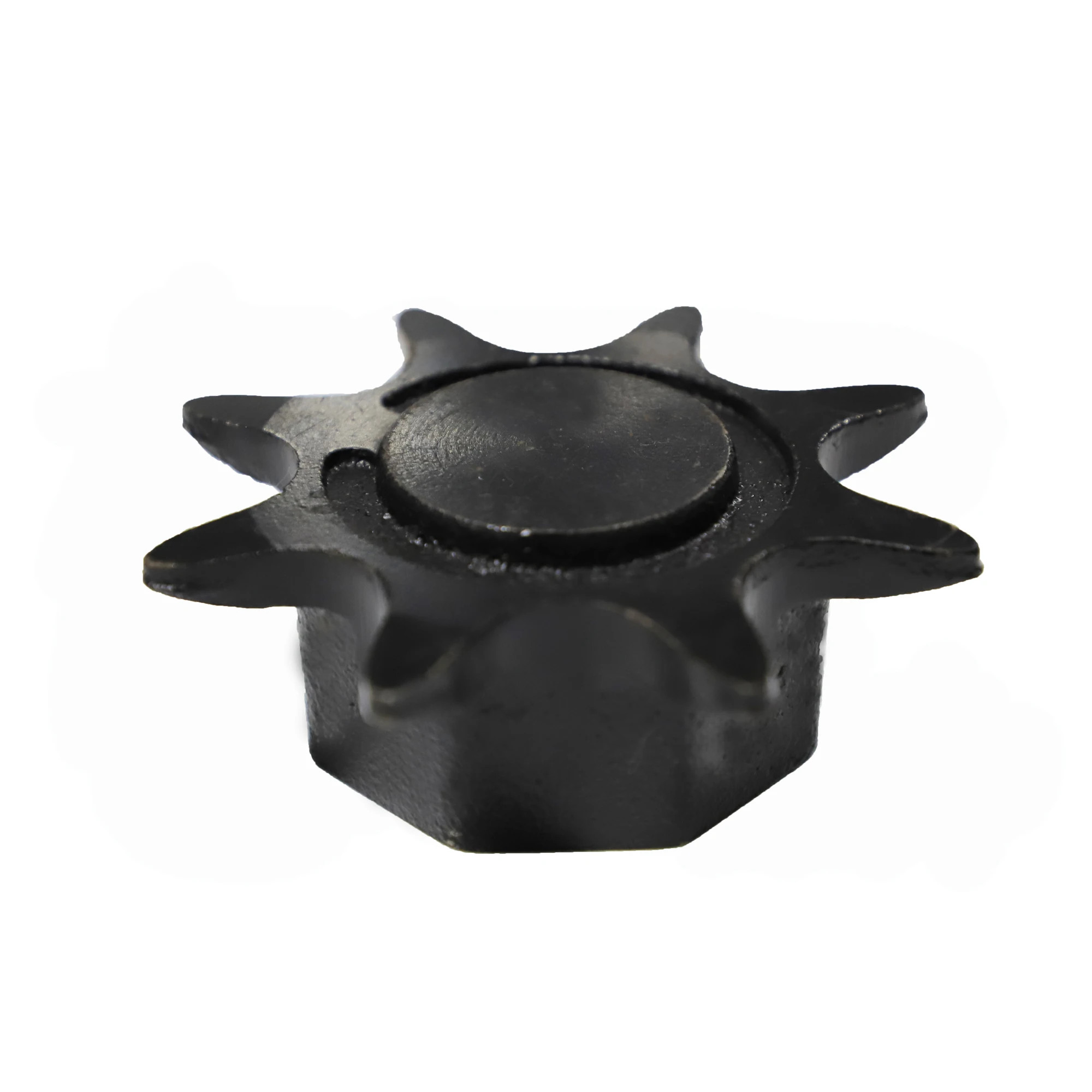

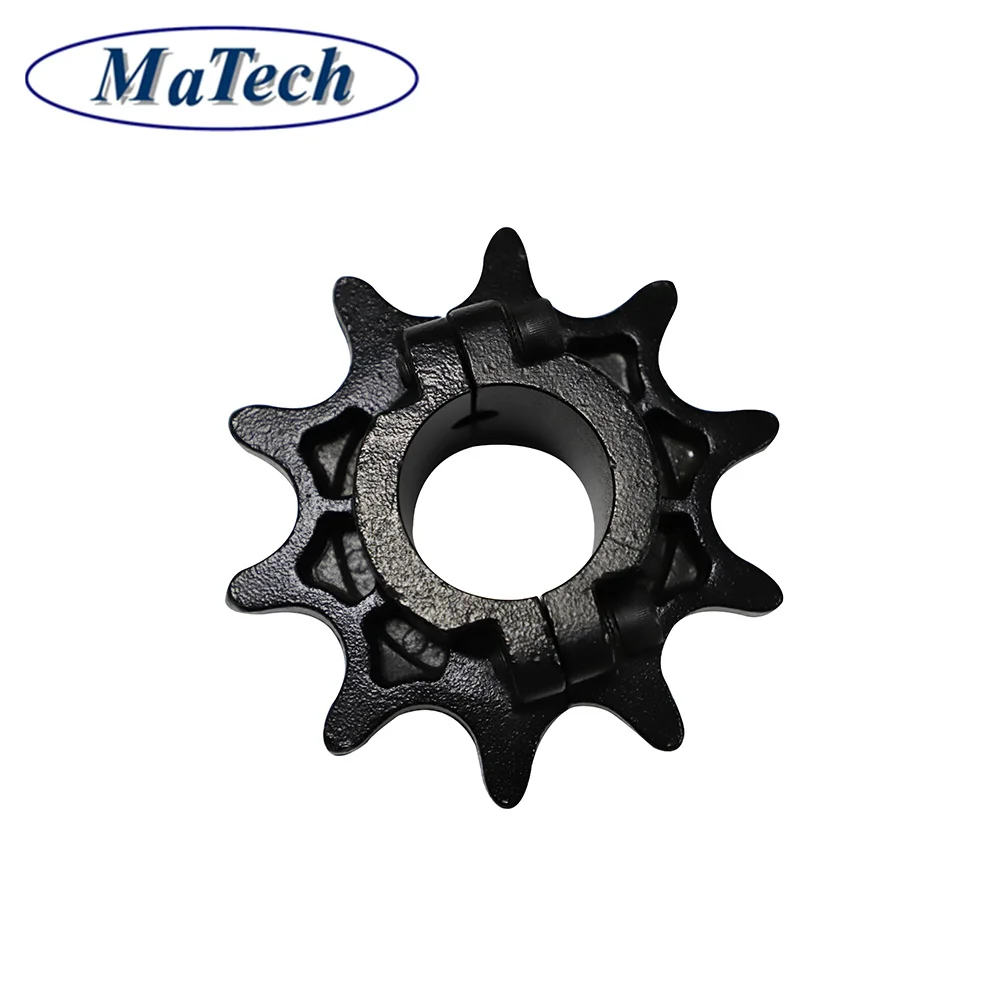

Производитель оборудования OEM-сервис Звездочка для литья из ковкого чугуна
313,29 ₽
Прямые поставщики с завода сварные аустенитные звездочки из ковкого чугуна
- Категория: >>>
- Поставщик: Shanghai Matech Machinery Manufacture Corporation Ltd.Shanghai Ltd.
Сохранить в закладки 1601332610087:
Описание и отзывы
Характеристики
Hebei Large One Stop Service Non Standard Ductile Iron Castings Sprocket | ||
Main blank Process for Casting Iron | Sand Casting , Resin Sand Casting, Green Sand Casting, Shell Molding, Automatic Molding | |
CT9-10 for Machine Molding Process, CT8-9 for Shell Molding and Lost Foam Molding Casting Process CT10-11 for Manual Molding Sand casting Process | ||
Applicable Material | Ductile Iron, Grey Iron Casting, or as customer request. | |
Casting Blank Size /Dimensions | 2 mm-2000mm / 0.08inch-79inch for casting iron, as per customer requirement | |
Casting Blank Weight | Range from 0.01kg-1000kg for casting iron | |
Applicable Machining Process | CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/ Reaming /Grinding/Honing and etc. | |
Machining Tolerance | From 0.005mm-0.01mm-0.1mm | |
Machined Surface Quality | Ra 0.8-Ra3.2, according to customer requirement | |
Applicable Heat Treatment | Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching. | |
Applicable Finish Surface Treatment | Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate,Dacromat coating, Finish Painting. | |
MOQ per batch | For cast iron: 100pcs, or as client require For Machining: 50pcs | |
Lead Time | about 50 days of grey iron ggg25 casting part | |
One-series service
* From mold design to manufacturing.
* From casting to heat treatment.
* From casting to mechanical processing.
* Finished surface treatment.
You only need to give us the drawings or samples and tell us the requirements,the rest is done by us you only need to check.
* From casting to mechanical processing.
* Finished surface treatment.
You only need to give us the drawings or samples and tell us the requirements,the rest is done by us you only need to check.
Product Proccesses
1.OEM service available;
2.Materials:Ductile Iron, Grey Iron and so on;
3.Process: Sand Casting , Resin Sand Casting, Green Sand Casting, Shell Molding, Automatic Molding
4.Weight range: 0.1kg-1000kg
4.Weight range: 0.1kg-1000kg
5.Application: Industrial parts, Machinery parts, Mining machines,Hardware, Construction parts, Valve/valve parts, Train, Craft, Door handle, Hinge, Hydraulic pressure, Agricultural machinery;Oil&gas pipe line parts,Automobile,etc.
6.Advantage :Different products use different production lines to optimize costs;Experienced in high tensile strength iron production
Sand Casting Production Line & Automatic Molding
* Equipment type: automatic production line
* Modeling process: clay sand/damp mold sand
* Shape direction: horizontal/vertical
* Suitable product: 0.1 kg-1000 kg KG
4 production lines with different processes/specifications,meeting the optimal choice for different product unit weights of 0.1-1000 KG
Surface Treatment
We have various surface treatment capacity of precision casting. Such as pickling, polishing, electrolytic polishing, grinding,sand blasting,phosphating, etc.lt can assist to finish spraying, painting, galvanizing,chromium plating, nickel plating,blackening, teflon and other surface treatment requirements.
Quality Inspection
* Have a sound quality management system documentation for total Quality management ;
* Have a series of high-precision testing instruments, improve product inspection accuracy, to ensure product size accuracy
Main Testing Equipment | ||||||
1 | Metallographic microscope | 2 | CMM | |||
3 | Digital hydraulic strength testing machine | 4 | Digital display micro Vickers hardness tester | |||
5 | Surface roughness tester | 6 | Carbon & Silicon Analyzer | |||
7 | PS analyzer | 8 | Spectrometer | |||
9 | Tensile testing machine | 10 | Image Measuring Instrument | |||

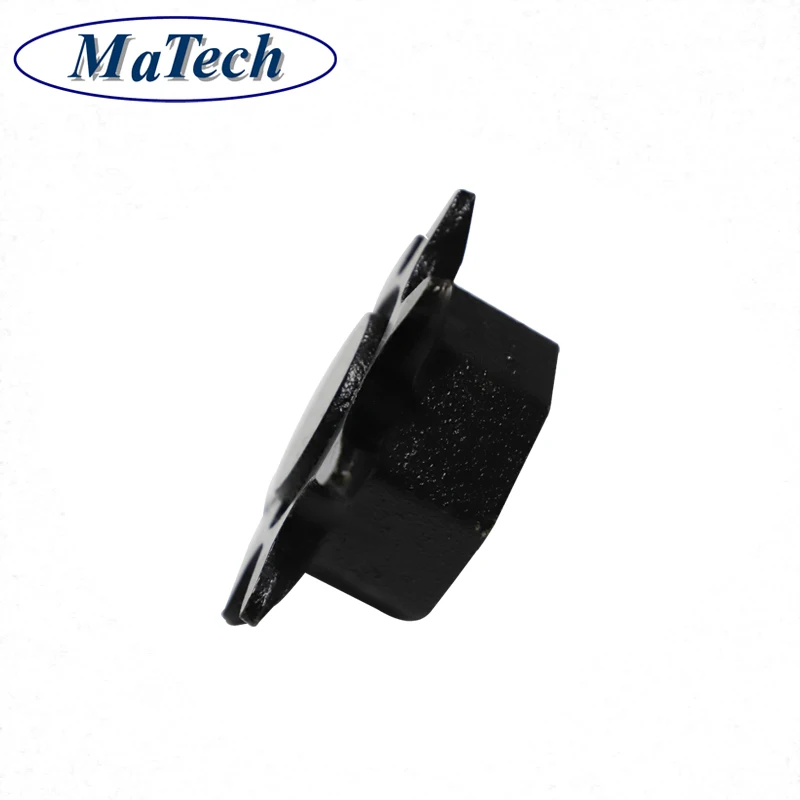

Some pictures of our Sand Casting parts:
Packaging & Shipping
Inner Packing →Strong & waterproof plastic big is packed inside, to keep the product in safe condition.Or as customer requests.
Outer Packing →Multilayer wooden box with strong bandages, used for standard export package. Or customized as per customer's requirements.
Our certificate
Project Management
FAQ
Basic information | ||
Manufacture technology | Sand Casting , Resin Sand Casting, Green Sand Casting, Shell Molding, Automatic Molding | |
Monthly output | 1500 tons | |
Import & Export | Self-supporting | |
Port & distance | 200km to Shanghai Port | |
Currency | USD, Euro, RMB | |
Acceptable language | English, Chinese | |
Certificate | ISO 9001,Utility Model Patent Certificate | |
Market distribution | USA,Canada, UK, Germany, French,Netherland, ltaly, Switzerland, Finland,Russia,Australia.Japan, South Africa, Brazil,Slovakia and so on. | |
Lead time | 25days for sampling,60 days for batch order,2 day for quoting | |
Mainly Equipment | Machining center, CNC, machine for drilling, milling, grinding, turning and taping.wax-injector, de-waxing stove, baking machine,induction furnace, shot-blast machine,pressure correction machine.Spectrometer, tensile tester, microscope, CMM,radiographic tester and so on. | |
Ductile Iron Casting Material Comparison Table: | ||||||||||||
Cast iron with nomular graphite DIN EN 1563 | Germany DIN 1693 | France NF | Great Britain BS | Netherlands NEN | Sweden MNC | USA ASTM A536 | ||||||
EN-GJS-350-22-LT | GGG-35.3 | FGS 370-17 | 370/17 | GN 38 | 0717-15 | ---- | ||||||
EN-GJS-400-18-LT | GGG-40.3 | ---- | ---- | ---- | ---- | 60-40-18 | ||||||
EN-GJS-400-15 | GGG-40 | FGS-400-12 | 420/12 | GN 42 | 0717-02 | 60-40-18 | ||||||
EN-GJS-400-10 | ---- | ---- | 420/12 | ---- | ---- | 65-45-12 | ||||||
EN-GJS-500-7 | GGG-50 | FGS-500-7 | 500/7 | GN 50 | 0727-02 | 65-45-12/ 80-55-06 | ||||||
EN-GJS-600-3 | GGG-60 | FGS-600-3 | 600/3 | GN 60 | 0732-03 | 80-55-06 | ||||||
EN-GJS-700-2 | GGG-70 | FGS-700-2 | 700/2 | GN 70 | 0737-01 | 100-70-03 | ||||||
EN-GJS-800-2 | GGG-80 | FGS-800-2 | 800/2 | 120-90-02 | ||||||||
EN-GJS-1000-5 (DIN EN 1564) | GGG-100B/A | ---- | ---- | ---- | ---- | 850-550-10 | ||||||
EN-GJS-AX NiSiCr35 5 2 | GGG- NiSiCr 35 5 2 | FGS- Ni35Si5Cr2 | S5S | ---- | ---- | Type D-5S | ||||||
Grey Iron Casting Material Comparison Table: | ||||||||||||
Cast iron with lamellar graphite DIN EN 1561 | Germany DIN 1691 | France NF | Great Britain BS | Netherlands NEN | Sweden MNC | USA ASTM A48 | ||||||
EN-GJL-150 | GG-15 | Ft 15 D | Grade 150 | GG 15 | 01 15-00 | 20 B / 25 B | ||||||
EN-GJL-200 | GG-20 | Ft 20 D | Grade 180/220 | GG 20 | 01 20-00 | 25 B / 30 B | ||||||
EN-GJL-250 | GG-25 | Ft 25 D | Grade 220/260 | GG 25 | 01 25-00 | 35 B / 40 B | ||||||
EN-GJL-300 | GG 30 | Ft 30 D | Grade 300 | GG 30 | 01 30-00 | 40B / 45 B | ||||||
