Продажа датчика квадратного типа инфракрасного света зондирования 30 см расстояние PTV D30N фотоэлектрического цена

Сохранить в закладки 1601332732690:


Цена:1 245,39-1 565,64 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики





Product Description:










































































































































Sensing type





Diffuse reflection


Thru-beam


Sensing distance





30cm


500cm


Response time





<1ms





Output type





NPN/PNP Open-collector





Switch type





Selectable L.on/D.on





Light Source





Infrared light LED(850nm)





Operating voltage





12~24V DC





No-load supply current





≤25mA





Load current





≤100mA(24V DC)





Ambient temperature





-20℃~60℃ no freezing





Ambient humidity





35~85%RH,No coagulating





Insulation resistance





≥20MΩ/500V DC





Degree of protection





IP64





Material





PBT+PC





Connection





4 Core cable(Length:2m)





Weight





≈60g


≈115g


Material





Nickle plated brass/PBT Optional





Model No.


NPN

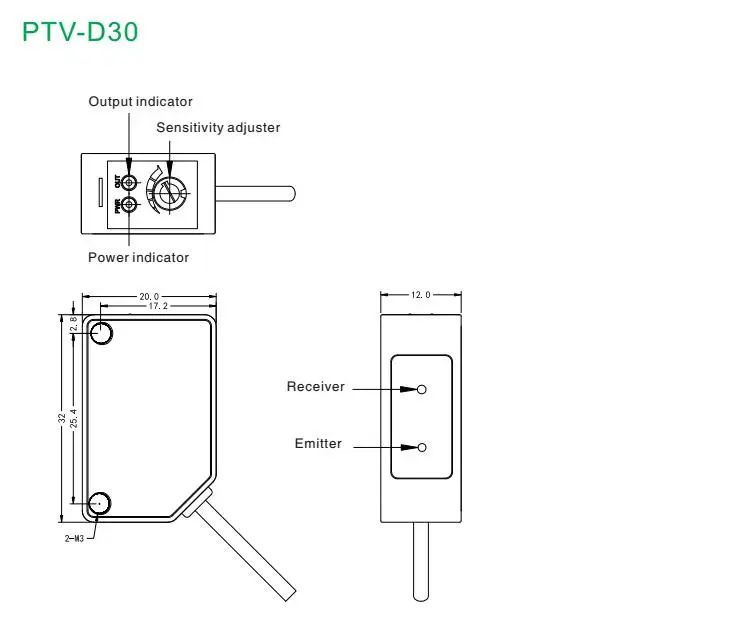

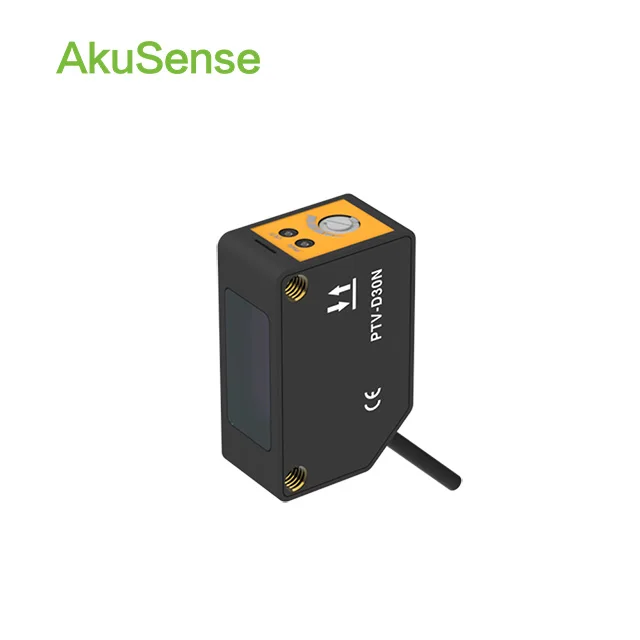

PTV-D30N


PTV-T500N





PNP


PTV-D30P


PTV-T500P





Company Profile:


Sense is an innovative company specializing in industry photoelectric sensors and deep learning technologies, with a primary focus on precision positioning, displacement measurement, Al image recognition, and area safety solutions in 3C electronics, new energy, semiconductor process, medical electronics, and service robots with precision intelligence and Al sensing technologies.






FAQ:


1. Who are we?


We are based in Guangdong, China, Start from 2010, Sell to Eastern Asia(30.00%), Southeast Asia(30.00%), Western Europe(15.00%), North America(10.00%), South America(3.00%), Eastern Europe(3.00%), Central America(2.00%), Northern Europe(2.00%), SouthAsia(1.00%), Oceania(1.00%), Southern Europe(1.00%), Africa(1.00%), Mid East(1.00%), Domestic Market(0.00%). There are about 201-300 people in our office.





2. How can we guarantee quality?


Always a pre-production sample before mass production;


Always final Inspection before shipment;





3. What can you buy from us?

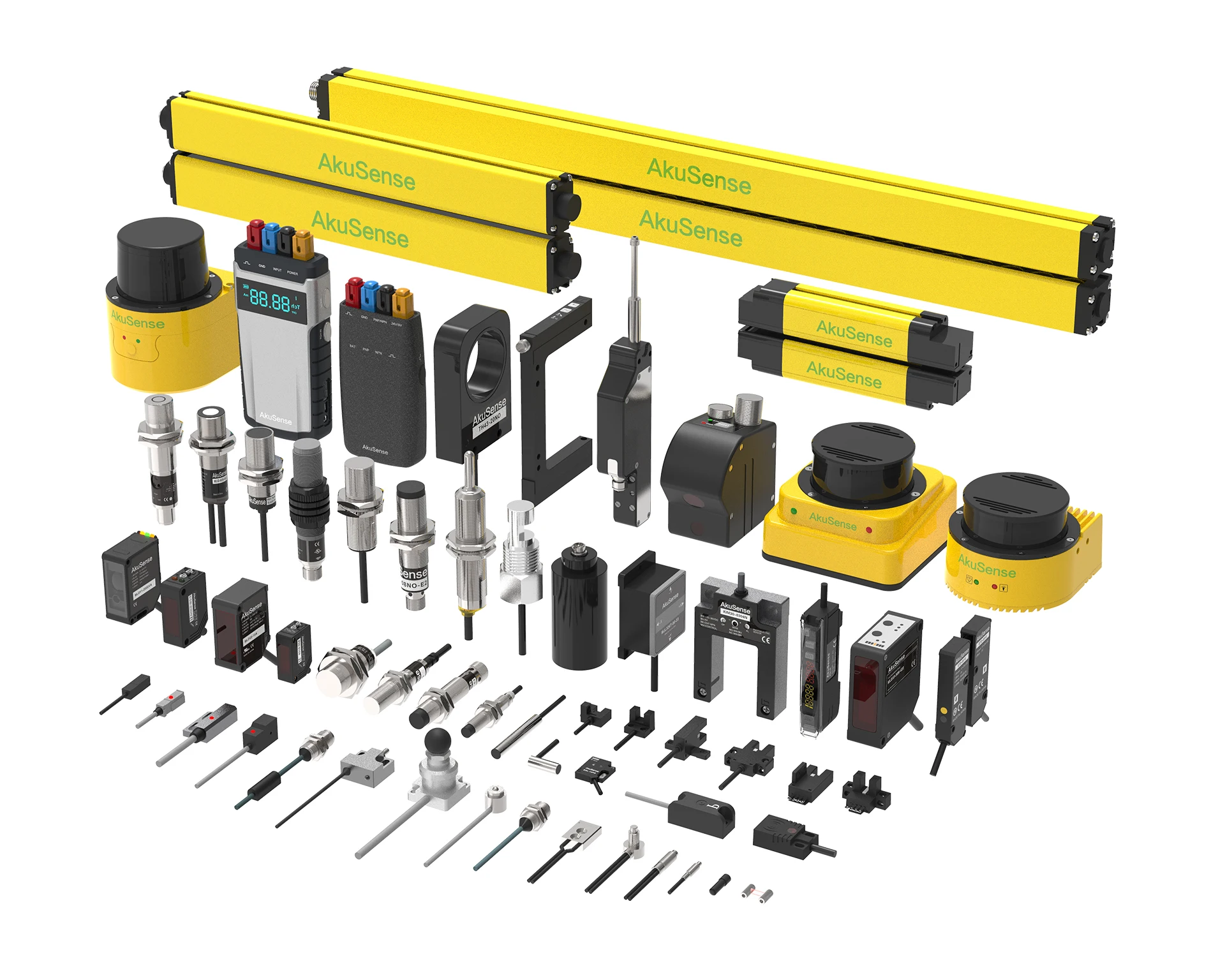

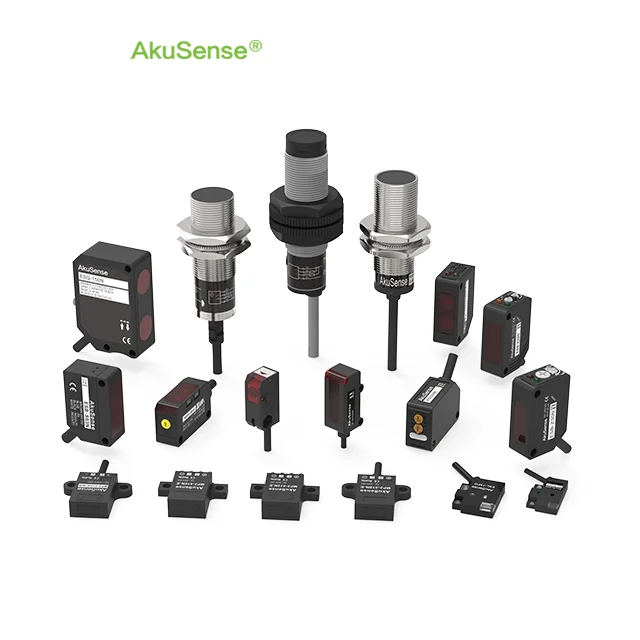

Photoelectric Sensor, Proximity Sensor, Fiber Optic Sensor, LiDAR Scanner, Vision System





4. Why should you buy from us not from other suppliers?


Focus on optoelectronic and proximity technology, while good at magnetism, ultrasonics, piezoelectricity, wireless transmission, focusing on 3c, new energy, rail transit, medical, logistics, service robots, etc.





5. What services can we provide?


Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA, CPT, DDP


Accepted Payment Currency: USD, EUR, AUD, HKD, CNY;


Accepted Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash, etc.


Language Spoken: English
