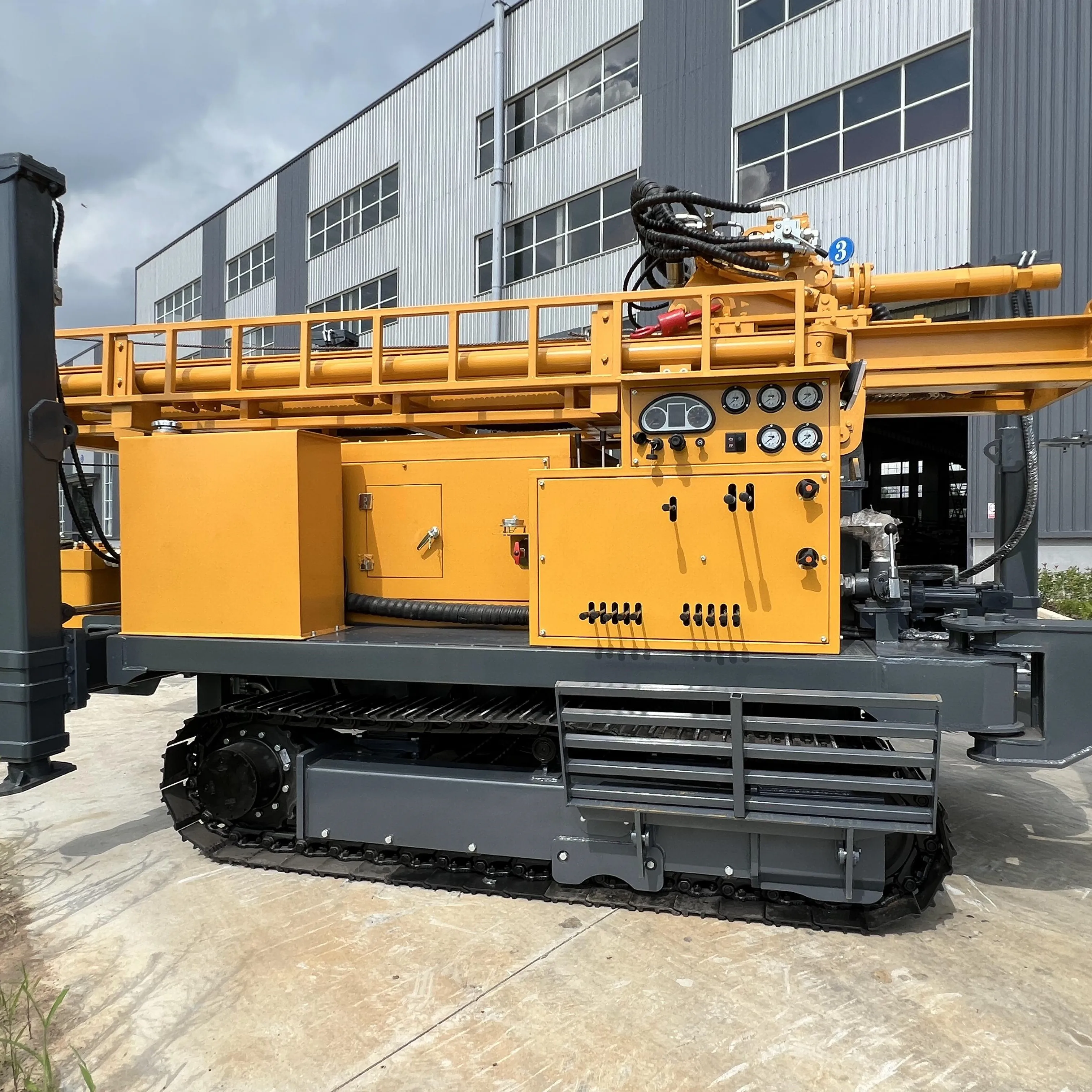

Буровая установка CS400 с верхним приводом для продажи в Индии Дубай торговое оборудование буровая водяных скважин
3 314 580,08 ₽
D 180 буровая установка дизельная водяная скважина машина d
- Категория: >>>
- Поставщик: Zhengzhou Yotol Machinery & Equipment Co. Ltd.Zhengzhou Ltd.
Сохранить в закладки 1601333181748:
Описание и отзывы
Характеристики
Product Description
Specification
FY180 | FY280 | FY350 | FY380 | FY450 | FY580 | FY680 | |||||||
The weight（T） | 5.2 | 7.6 | 8.6 | 9.2 | 9.4 | 12 | 13 | ||||||
The hole diameter（mm） | 140-254 | 140-305 | 140-325 | 140-325 | 140-350 | 140-350 | 140-400 | ||||||
Drilling depth（m） | 180 | 280 | 350 | 380 | 450 | 580 | 680 | ||||||
One-time advance length（m） | 3.3 | 6.6 | 6.6 | 6.6 | 6.6 | 6.6 | 6.6 | ||||||
Walking speed（km/h） | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | ||||||
Climbing angles（Max.） | 30 | 30 | 30 | 30 | 30 | 30 | 30 | ||||||
Equipped capacitor（kw） | 60 | 75 | 92 | 96 | 103 | 132 | 153 | ||||||
Using air pressure（MPA） | 1.7-2.5 | 1.7-3.0 | 1.7-3.4 | 1.7-3.4 | 1.7-3.5 | 1.7-3.5 | 1.7-3.5 | ||||||
Air consumption（m³/min） | 17-31 | 17-31 | 17-36 | 17-36 | 17-36 | 17-42 | 17-42 | ||||||
Swing speed（rpm） | 45-70 | 40-70 | 66-135 | 66-135 | 50-135 | 45-140 | 45-140 | ||||||
The penetration efficiency（m/h） | 10-35 | 15-35 | 15-35 | 15-35 | 15-35 | 15-35 | 15-35 | ||||||
Drill pipe diameter（mm） | Φ76 Φ89 | Φ76 Φ89 | Φ89 Φ102 | Φ89 Φ102 | Φ89 Φ102 | Φ102 Φ108 Φ114 | Φ102 Φ108 Φ114 | ||||||
Drill pipe length（m） | 1.5m 2.0m 3.0m | 1.5m 2.0m 3.0m | 1.5m 2.0m 3.0m 6.0m | 1.5m 2.0m 3.0m 6.0m | 1.5m 2.0m 3.0m 6.0m | 1.5m 2.0m 3.0m 6.0m | 1.5m 2.0m 3.0m 6.0m | ||||||
Rig lifting force（T） | 12 | 17 | 22 | 24 | 25 | 28 | 30 | ||||||
Rapid rise speed（m/min） | 20 | 25 | 18 | 20 | 20 | 20 | 20 | ||||||
Fast feeding speed（m/min） | 40 | 30 | 33 | 40 | 40 | 40 | 40 | ||||||
Width of loading（m） | 2.4 | 2.7 | 2.7 | 2.8 | 2.8 | 2.85 | 2.95 | ||||||
Hoisting force of winch（T） | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||||||
Swing torque（N.m） | 3200-4600 | 4500-6000 | 6200-8500 | 6500-9000 | 7000-9500 | 8500-11000 | 8850-13150 | ||||||
Dimension（mm） | 4000*1630*2250 | 5900×1850×2360 | 6000×2000×2550 | 5950×2100×2550 | 5950×2100×2600 | 6200×2200×2650 | 6300×2300×2650 | ||||||
hammer | Medium and high wind pressure series | ||||||||||||
High leg stroke | 1.4 | 1.4 | 1.4 | 1.6 | 1.6 | 1.7 | 1.7 | ||||||
Diesel | Yuchai engine | Cummins engine | |||||||||||
YOTOL’s water well drilling rigs are designed for safety, reliability, and productivity with products to serve all of your
drilling needs. YOTOL has a rich history in the water well drilling rig market that spans over 50 years and counting. As water is our most precious resource and the global demand for water increasing each year, YOTOL takes pride in offering solutions to meet this growing demand.
We have a complete line of hydraulic top-head drive drilling rigs, designed for water well drilling and other applications
requiring air or mud rotary as well as down-the-hole hammer drilling methods. Our drills provide ample power and versatility to
reach target drilling depths in all types for soil conditions and rock formations. Additionally, our rigs are highly mobile,
capable of reaching the most remote locations.
YOTOL’s water well rigs come in a full range of pullback (hosting) capability and feature safe and efficient rod handling with
some products offering optional hands-free rod loader systems. The rigs are also capable of pull down for drilling in those more
challenging formations. Optional features such as water injection systems, hammer lubricators, mud systems, auxiliary winches,
etc. offer flexibility when configuring a rig. We also have the capability to design custom options to better serve the need of
our customers.
Innovation is one of our core values and we strive to deliver innovative solutions for our customers that bring value to their
operations. With reduced downtime, fuel efficiency, and by providing a safer work environment, YOTOL’s water well drilling rigs
help customers grow and sustain their businesses.
some products offering optional hands-free rod loader systems. The rigs are also capable of pull down for drilling in those more
challenging formations. Optional features such as water injection systems, hammer lubricators, mud systems, auxiliary winches,
etc. offer flexibility when configuring a rig. We also have the capability to design custom options to better serve the need of
our customers.
Innovation is one of our core values and we strive to deliver innovative solutions for our customers that bring value to their
operations. With reduced downtime, fuel efficiency, and by providing a safer work environment, YOTOL’s water well drilling rigs
help customers grow and sustain their businesses.
FAQ
1. 7*24 Hours service
7. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Please tell a little more about your problem, situation, and requirements. We are happy to offer our insights and opportunies. You can expect a reply within 24 hours.
2. Happy Clients Everywhere
YOTOL has a professional technical team traveling all over the world to meet our clients, to monitor the RIG performance, to listen their problem and desires. That is the fundamental motivation and resources for our ever improving product and envolving services.
3. Reliability
The normal life of YOTOL rigs is 35/40 years, with simple and appropriate maintenance and few spare parts.
4. Delievery
YOTOL drilling rigs have been presented globally in more than 50 countries and regions, just tell us your port name, we can deliver to you, whenever, wherever.
5. Service and grantee
1.All spare parts can be changed for free with in 12 months.
2.The machine are expected to be functioning 30years with ability of spare parts.
3.You can enjoy technical support by phone call or email forever.We will respond quickly to provide a prompt solution.
4.On-site training could be executed if this term is included in the contracts agreed.
5.We can assign our engineers abroad for on-site service if this term is included in the contracts agreed
6.what can you buy from us?
water well drilling rig
2. Happy Clients Everywhere
YOTOL has a professional technical team traveling all over the world to meet our clients, to monitor the RIG performance, to listen their problem and desires. That is the fundamental motivation and resources for our ever improving product and envolving services.
3. Reliability
The normal life of YOTOL rigs is 35/40 years, with simple and appropriate maintenance and few spare parts.
4. Delievery
YOTOL drilling rigs have been presented globally in more than 50 countries and regions, just tell us your port name, we can deliver to you, whenever, wherever.
5. Service and grantee
1.All spare parts can be changed for free with in 12 months.
2.The machine are expected to be functioning 30years with ability of spare parts.
3.You can enjoy technical support by phone call or email forever.We will respond quickly to provide a prompt solution.
4.On-site training could be executed if this term is included in the contracts agreed.
5.We can assign our engineers abroad for on-site service if this term is included in the contracts agreed
6.what can you buy from us?
water well drilling rig
Geotechnical drilling rig
Mineral exploration drilling rig
underground exploration drilling rig
percussion cabal tool drilling rig
tunnel drilling rig
7. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Company Profile
YOTOL DRILLING RIGS, one of the leading manufacturers of Drilling Rigs in China, produces and develops drilling rigs since 1980, with a constant and continuous research, in order to improve the efficiency, competitiveness and quality of our production.
From 100 to 1400m deep, YOTOL rigs are perfect for mineral research , core drilling, water well drilling,anchoring, constructure,percussion, we can provide different solutions depending on the depth, the hole diameter and type of soil to be analyzed.
At YOTOL, we always operate with a primary focus on customer satisfaction and, thanks to our experience, we are able to suggest technologies of different kinds and customize our drilling rigs to better meet customer’s needs.
Made in China
Our rigs are all Made in China: the entire design and assembly process is performed in our warehouse, by using only the highest quality components, personally tested by us.So all rigs enjoys a high quality and a competitive labor cost.
YOTOL drilling rigs are now present all over the world, in more than 50 countries and we proudly maintain long lasting working relationships with many of our customers and partners.
Reliability
With pride, we say that one of our key point is reliability. The normal life of YOTOL rigs is 35/40 years, with simple and appropriate maintenance and few spare parts.
By choosing YOTOL our customers make a lifetime investment and, thanks to high performances of the rig, this investment will be soon repaid, by a fast and problem-free everyday drilling work.
From 100 to 1400m deep, YOTOL rigs are perfect for mineral research , core drilling, water well drilling,anchoring, constructure,percussion, we can provide different solutions depending on the depth, the hole diameter and type of soil to be analyzed.
At YOTOL, we always operate with a primary focus on customer satisfaction and, thanks to our experience, we are able to suggest technologies of different kinds and customize our drilling rigs to better meet customer’s needs.
Made in China
Our rigs are all Made in China: the entire design and assembly process is performed in our warehouse, by using only the highest quality components, personally tested by us.So all rigs enjoys a high quality and a competitive labor cost.
YOTOL drilling rigs are now present all over the world, in more than 50 countries and we proudly maintain long lasting working relationships with many of our customers and partners.
Reliability
With pride, we say that one of our key point is reliability. The normal life of YOTOL rigs is 35/40 years, with simple and appropriate maintenance and few spare parts.
By choosing YOTOL our customers make a lifetime investment and, thanks to high performances of the rig, this investment will be soon repaid, by a fast and problem-free everyday drilling work.
Похожие товары
Дрель для дрели
6 221 908,00 ₽

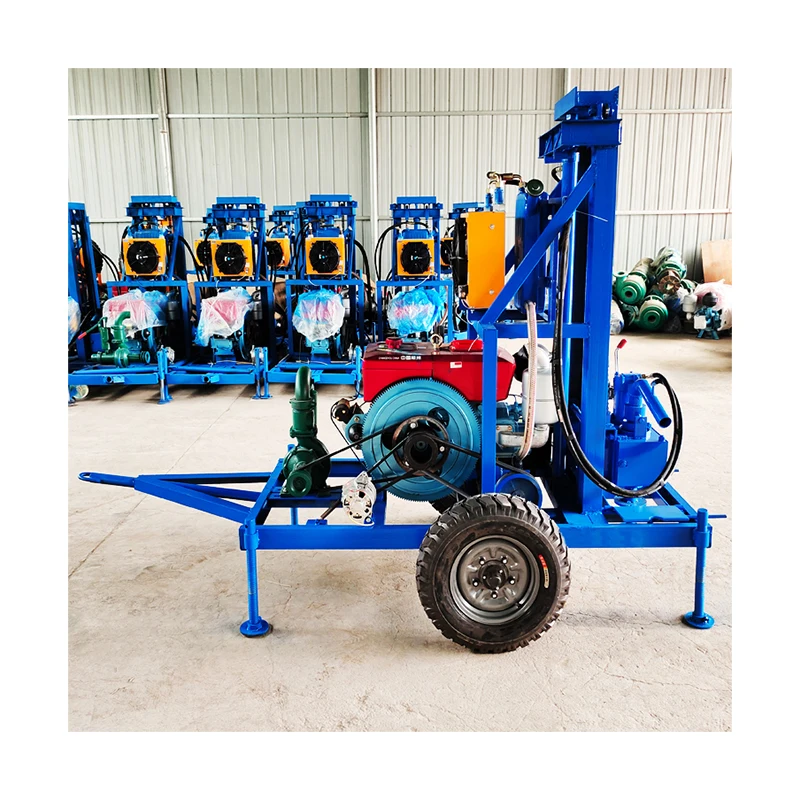

100 м 200 небольшая гидравлическая буровая установка для бурения скважин
362 001,92-395 939,60 ₽

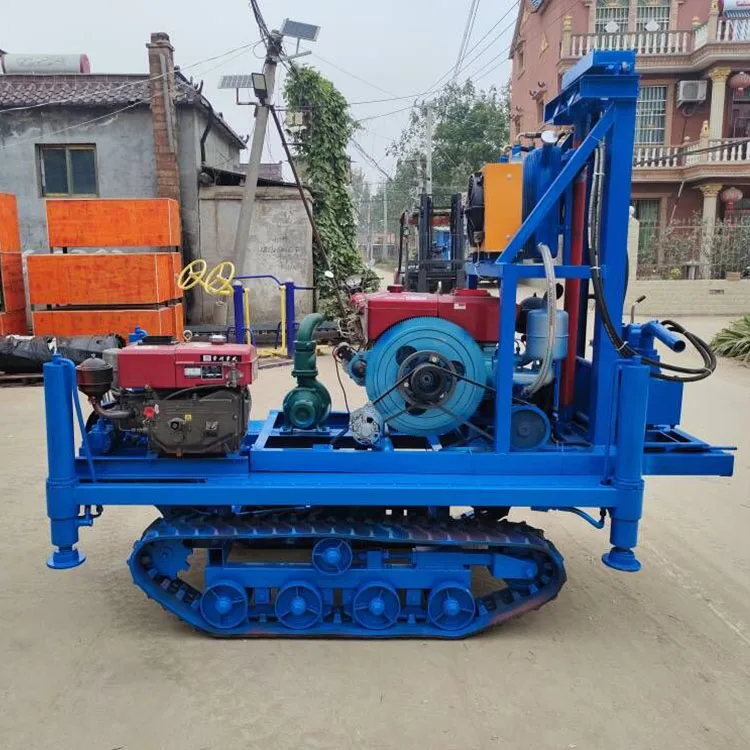

Гидравлический небольшой дизельный станок для бурения скважин скважинный корм бизнеса
362 001,92-407 252,16 ₽

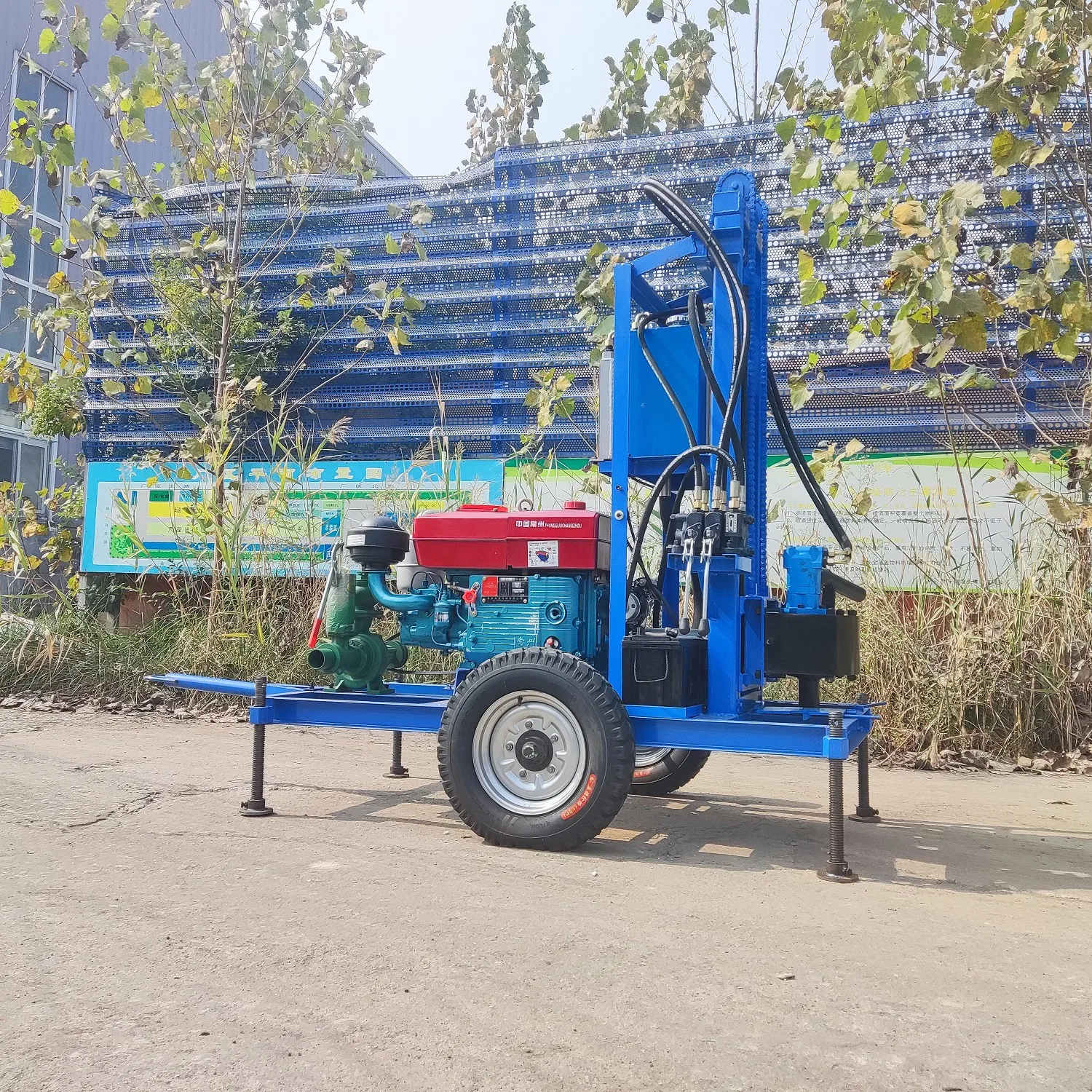

Небольшой дизельный гидравлический колесный сверлильный станок 120 метров двигатель 12HP скважина бурильная Установка 25 л.с.
