Оборудование для добычи золота магнитный сепаратор концентрирования железа серебро медь свинцовая алюминиевая руда продажи
- Категория: >>>
- Поставщик: Gongyi City Jingying Machinery Manufacturing FactoryGongyi Factory
Сохранить в закладки 1601334601857:
Описание и отзывы
Характеристики
Products Description

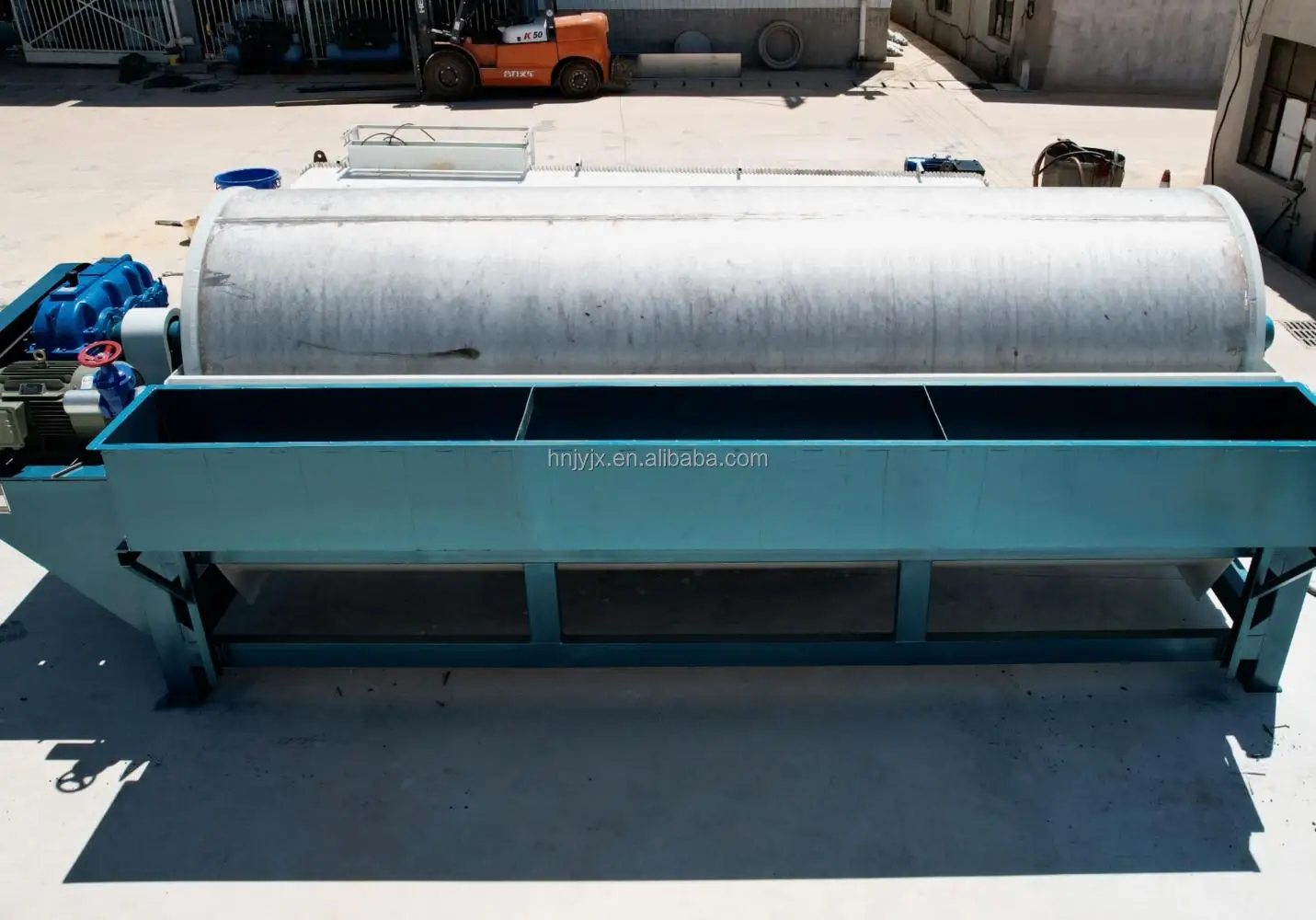

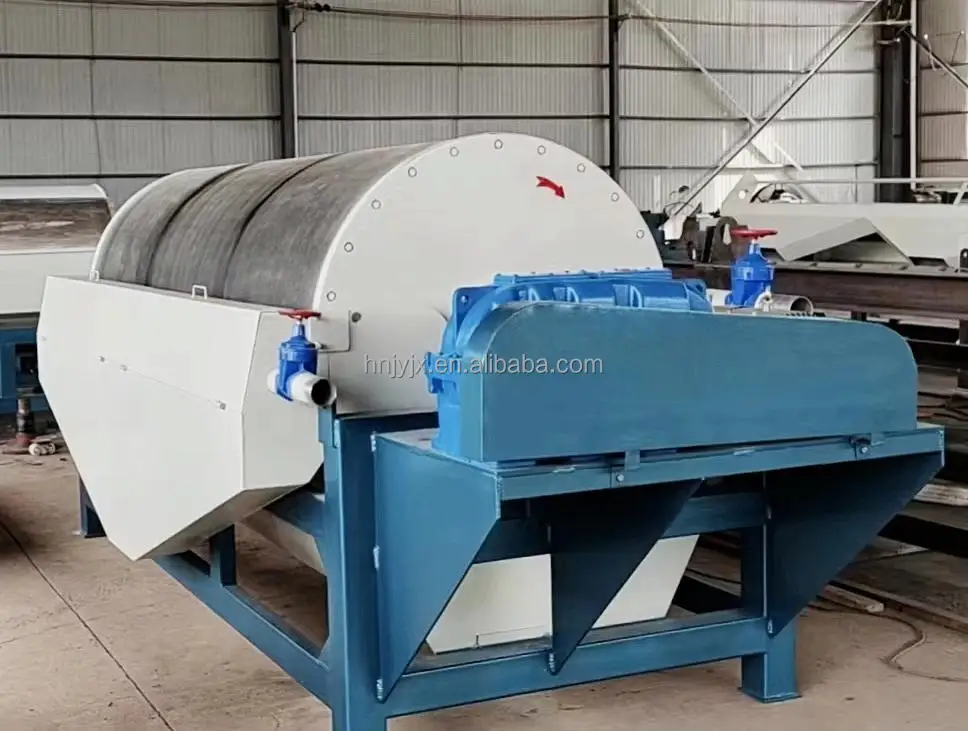

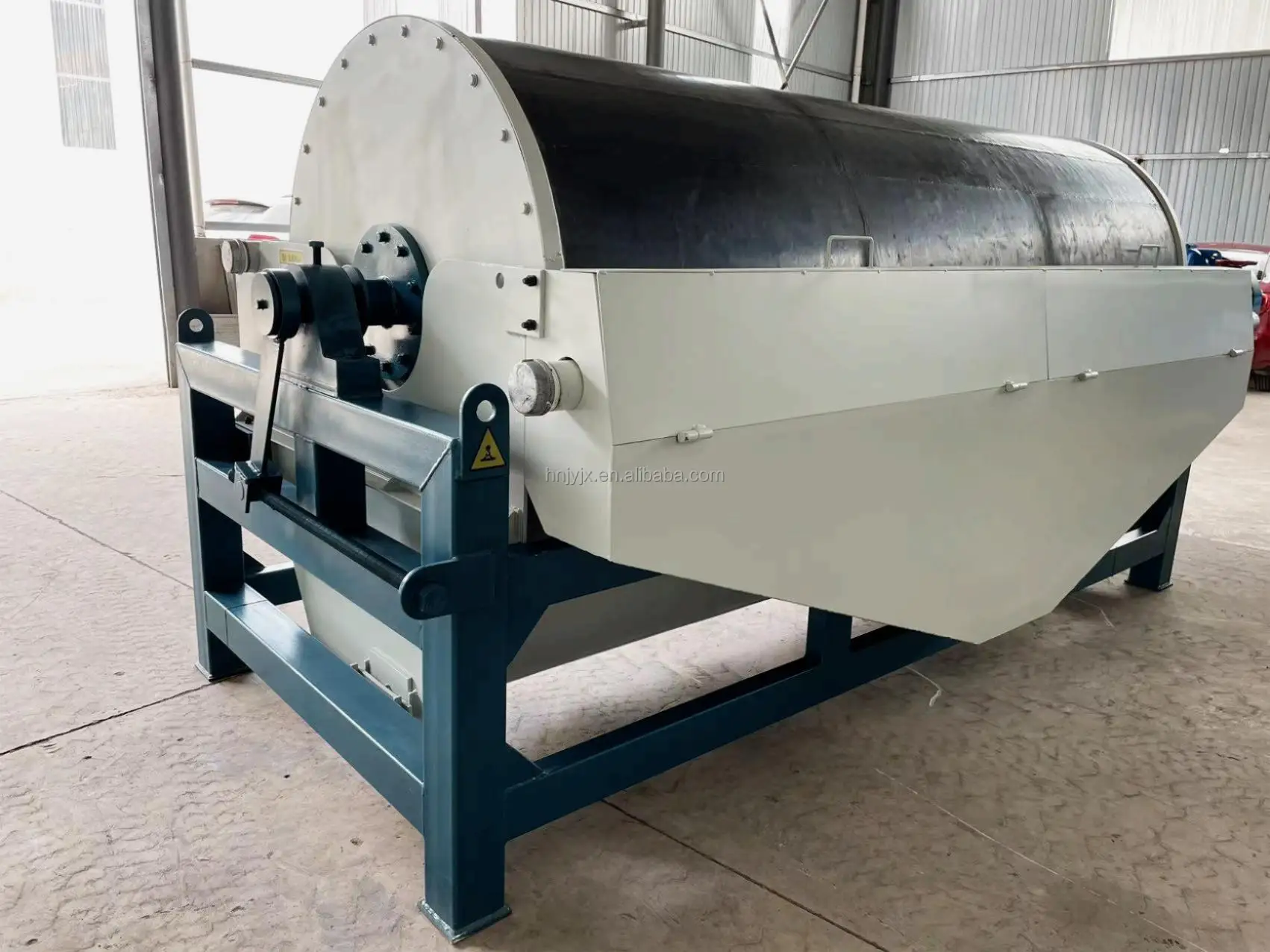

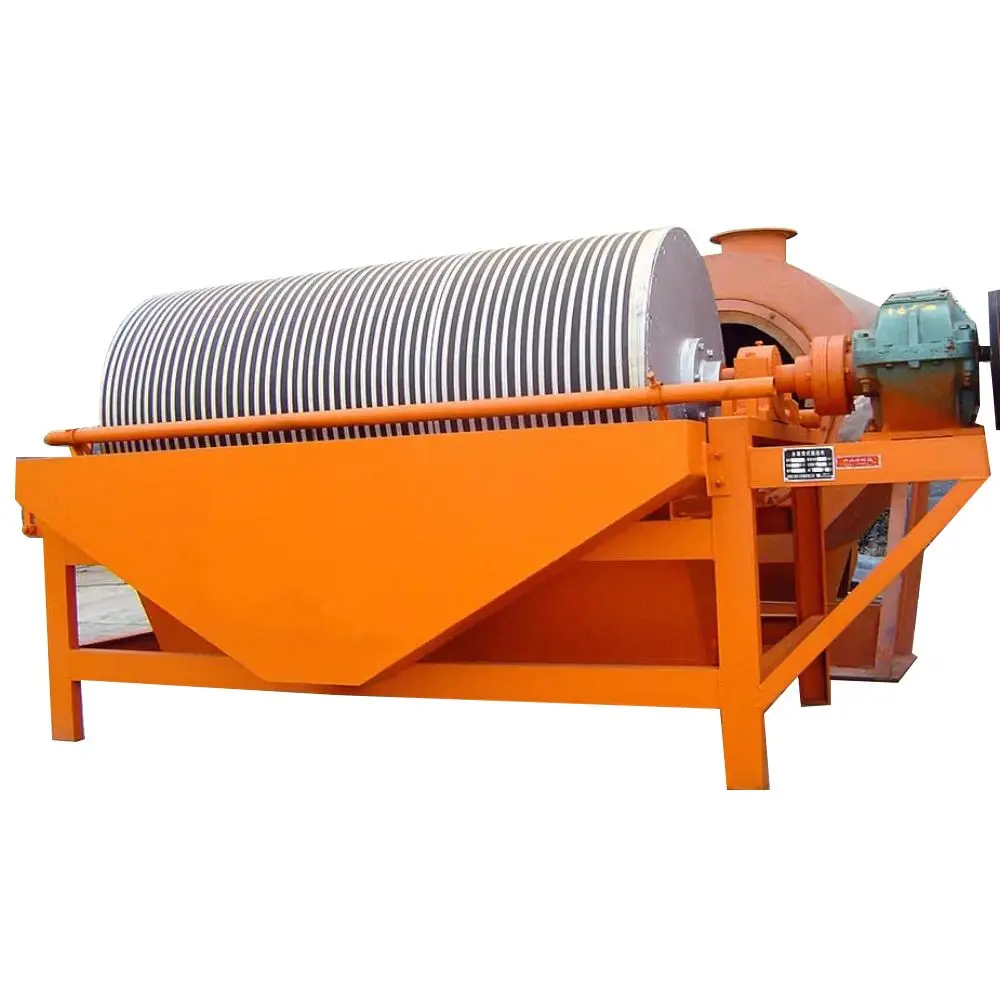

Wet Permanent Magnetic Separator
Permanent magnetic separator can be used for wet dressing ores with sizes less than 3 mm, such as magnetite, pyrrhotite, calcined ore, ilmenite and so on. It is also used to remove the iron for processing coal, non-metallic minerals and construction materials.
Wet drum magnetic drum separators have 3 kinds including downstream type, counter flow type and semi- counter flow type according to the difference of base structures.
According to user needs, Jing Ying Machinery can provide magnetic separators with different surface magnetic strengths.
According to user needs, Jing Ying Machinery can provide magnetic separators with different surface magnetic strengths.

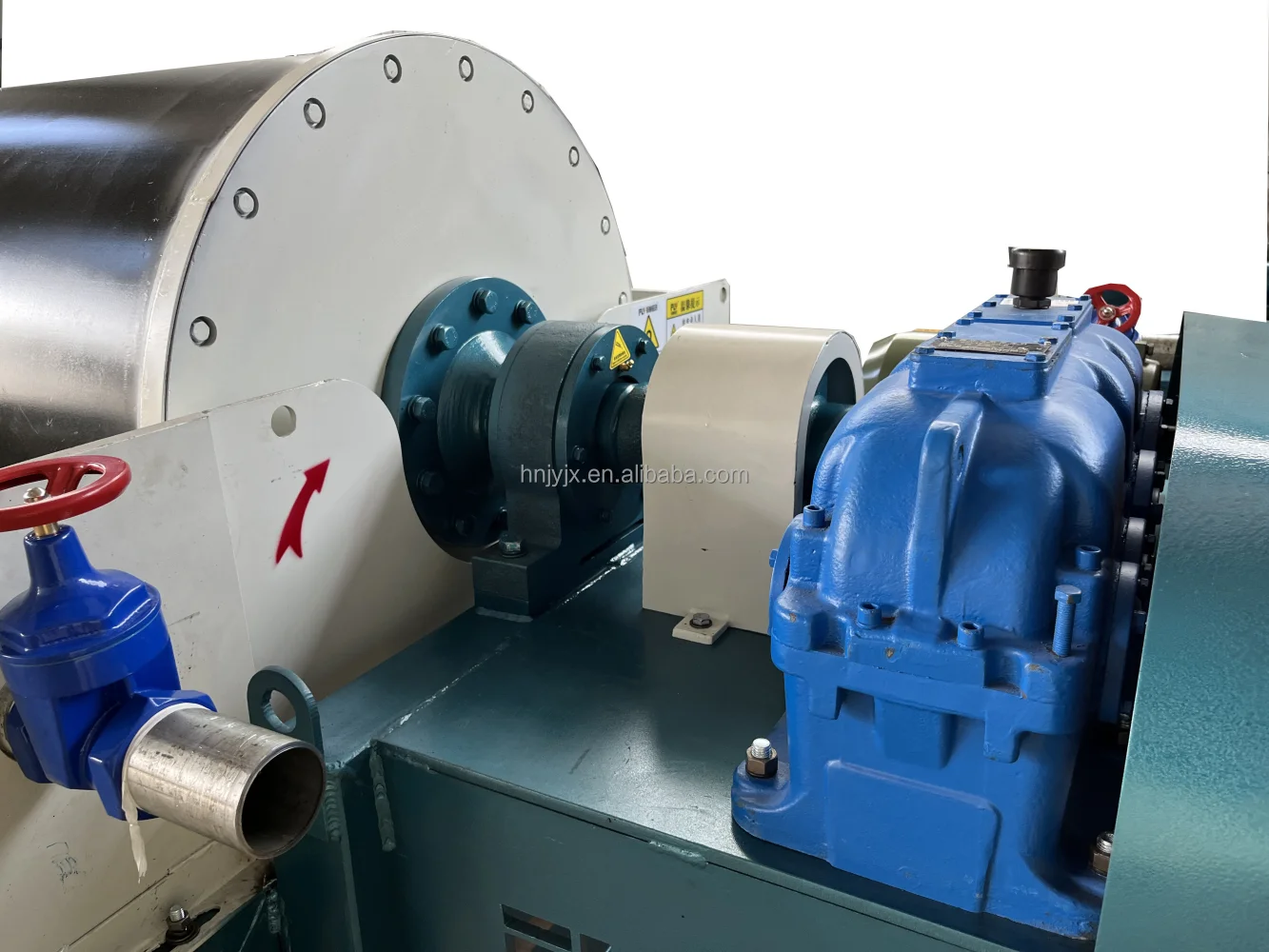

Product Structure
Magnetic separation is used to separate minerals based on their magnetic properties. When wet drum magnetic separator is working, slurry is fed to the tank and subsequently flows through the magnetic field generated by the drum. The ferromagnetic minerals are attracted to the drum surface by the magnetic circuit and are rotated out of the slurry stream. The ferromagnetic discharge from the drum surface when rotated out of the magnetic field.
Product Parameters
Model | Drum specification | Rotation Speed | Handling Capacity | Motor Power | ||||
Diameter(mm) | Length(mm) | (r/min) | Dry ore (t/h) | Slurry (m3/h) | (kw) | |||
JY-46 | 400 | 600 | 45 | 1~3 | 5 | 1.1 | ||
JY-69 | 600 | 900 | 40 | 8~15 | 24 | 1.1 | ||
JY-612 | 600 | 1200 | 40 | 10~20 | 32 | 2.2 | ||
JY-618 | 600 | 1800 | 40 | 15~30 | 48 | 2.2 | ||
JY-718 | 750 | 1800 | 35 | 20~45 | 72 | 3.0 | ||
JY-918 | 900 | 1800 | 28 | 25~55 | 90 | 4.0 | ||
JY-924 | 900 | 2400 | 28 | 35~70 | 110 | 4.0 | ||
JY-1018 | 1050 | 1800 | 21 | 40~75 | 120 | 5.5 | ||
JY-1024 | 1050 | 2400 | 21 | 52~100 | 160 | 5.5 | ||
JY-1030 | 1050 | 3000 | 21 | 65~125 | 200 | 7.5 | ||
JY-1218 | 1200 | 1800 | 19 | 47~90 | 140 | 5.5 | ||
JY-1224 | 1200 | 2400 | 19 | 82~120 | 192 | 7.5 | ||
JY-1230 | 1200 | 3000 | 19 | 80~150 | 240 | 7.5 | ||
JY-1530 | 1500 | 3000 | 14 | 90~170 | 270 | 11 | ||
JY-1540 | 1500 | 4000 | 14 | 115~220 | 350 | 11 | ||
Product Features
1. Magnetic systems all adopt Nd-Fe-B magnets with high magnetic energy product and high coercivity, strong magnetic density and high affect depth. The demagnetization rate of the magnetic density within 8 years is no more than 5%.
2. The large wrap angle magnetic system with gradual field strength and smooth transition increases the length of the separation zone and the number of magnetic flips to achieve efficient separation of magnetic minerals and non- (weak) magnetic minerals.
3. The permanent magnetic roller has a strong adaptability of production. It can bear large change of feeding amount, particle size and pulp concentration.
4. The cylinder adopts non-magnetic stainless steel, covered with the super wear-resistant rubber, long service life.
5. All the series of magnetic separators can be used cooperatively or singly. The good processing indexes can both be acquired.
2. The large wrap angle magnetic system with gradual field strength and smooth transition increases the length of the separation zone and the number of magnetic flips to achieve efficient separation of magnetic minerals and non- (weak) magnetic minerals.
3. The permanent magnetic roller has a strong adaptability of production. It can bear large change of feeding amount, particle size and pulp concentration.
4. The cylinder adopts non-magnetic stainless steel, covered with the super wear-resistant rubber, long service life.
5. All the series of magnetic separators can be used cooperatively or singly. The good processing indexes can both be acquired.

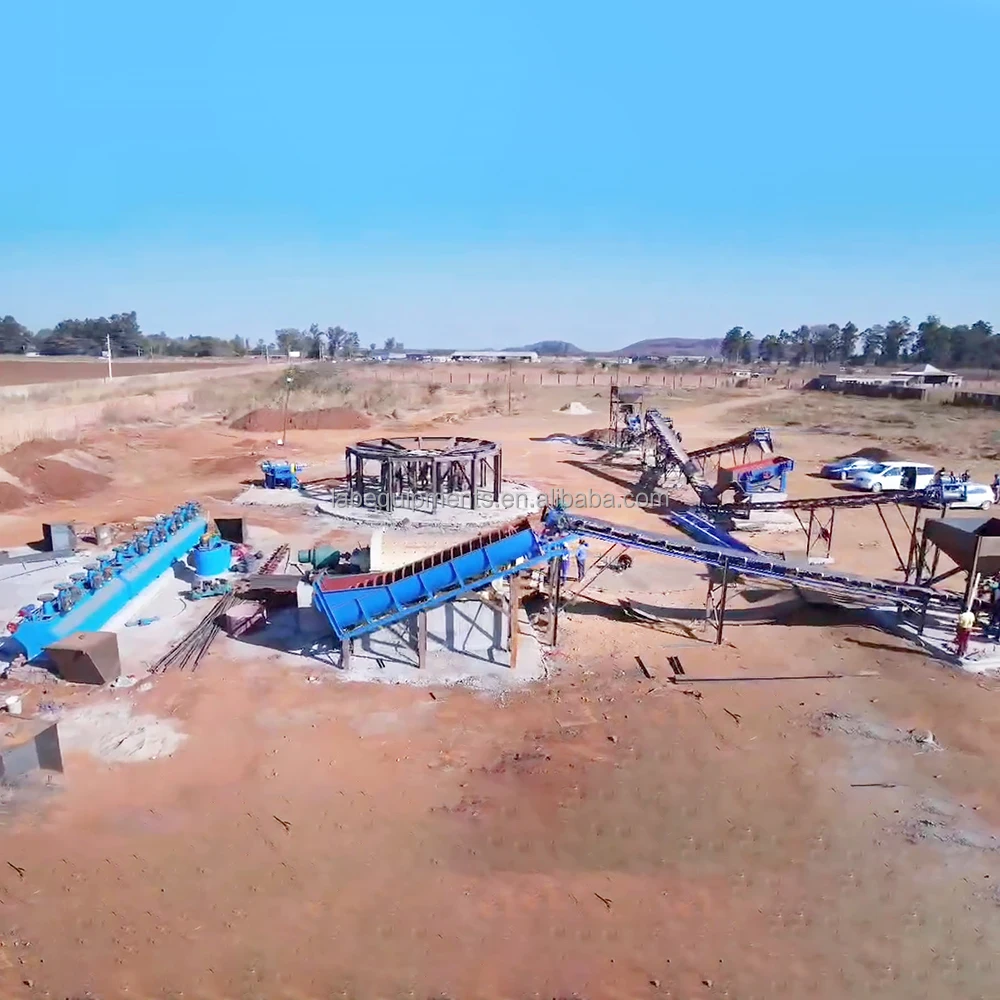

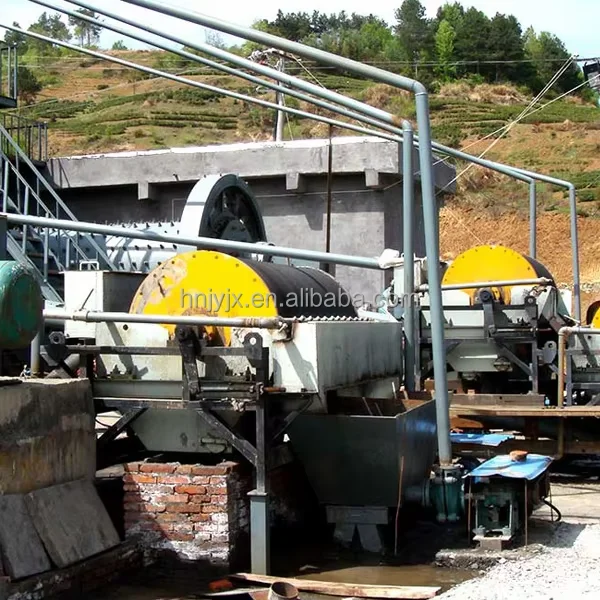

Customer Site
Packing and Shipping
Maybe you are interested in
Company Profile
FAQ
Q: Are you a manufacturing or trading company?
A: We are a factory, established in 1998. We are the direct manufacture, so we can offer you the lowest price than the market price. The price of the machine can be given the largest discount based on quantity.
Q: What is your payment method?
A: T/T, L/C, Paypal, and Western Union are all available. After sign the contract, pay the 30%-50% deposit of total purchase price and pay the full payment before delivery. We take photos and videos of finished products before delivery.
Q: How long is your delivery time?
A: The lead time is 10-30 days, Delivery time will vary depending on the type of the machine, shipping method selected and parts availability.
Q: How long is the warranty? Does your company supply the spare parts?
A: One year. Spare parts for you at the lowest cost. We will provide the technical advice and find the solution immediately for you when the machine is in trouble.
Q: If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We have already built many mining projects in China and overseas.
Q: What is your payment method?
A: T/T, L/C, Paypal, and Western Union are all available. After sign the contract, pay the 30%-50% deposit of total purchase price and pay the full payment before delivery. We take photos and videos of finished products before delivery.
Q: How long is your delivery time?
A: The lead time is 10-30 days, Delivery time will vary depending on the type of the machine, shipping method selected and parts availability.
Q: How long is the warranty? Does your company supply the spare parts?
A: One year. Spare parts for you at the lowest cost. We will provide the technical advice and find the solution immediately for you when the machine is in trouble.
Q: If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We have already built many mining projects in China and overseas.
Похожие товары
Xfd лаборатории флотации машина ( китай известного )

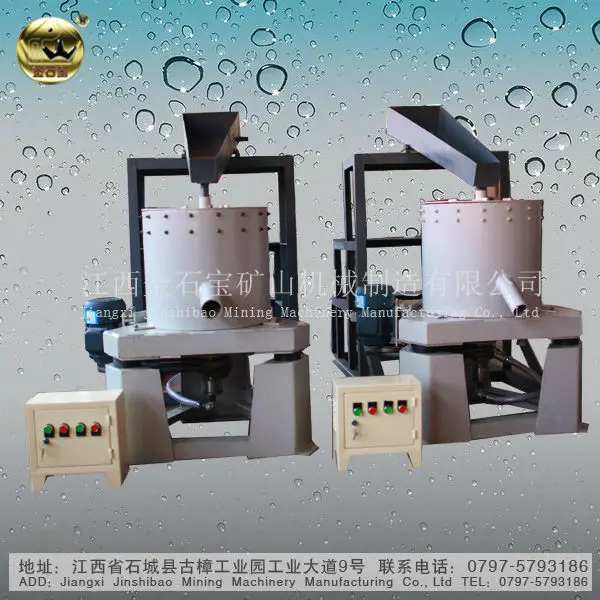

малом масштабе центробеёного концентратора для медной руды
Магнитный сепаратор 3 в одном магнитный для ильменитовой железной руды
17 910,00-17 982,00 $
Нержавеющая сталь Портативный Мобильный грохот экран барабан ситом из нержавеющей стали
1 500,00 $

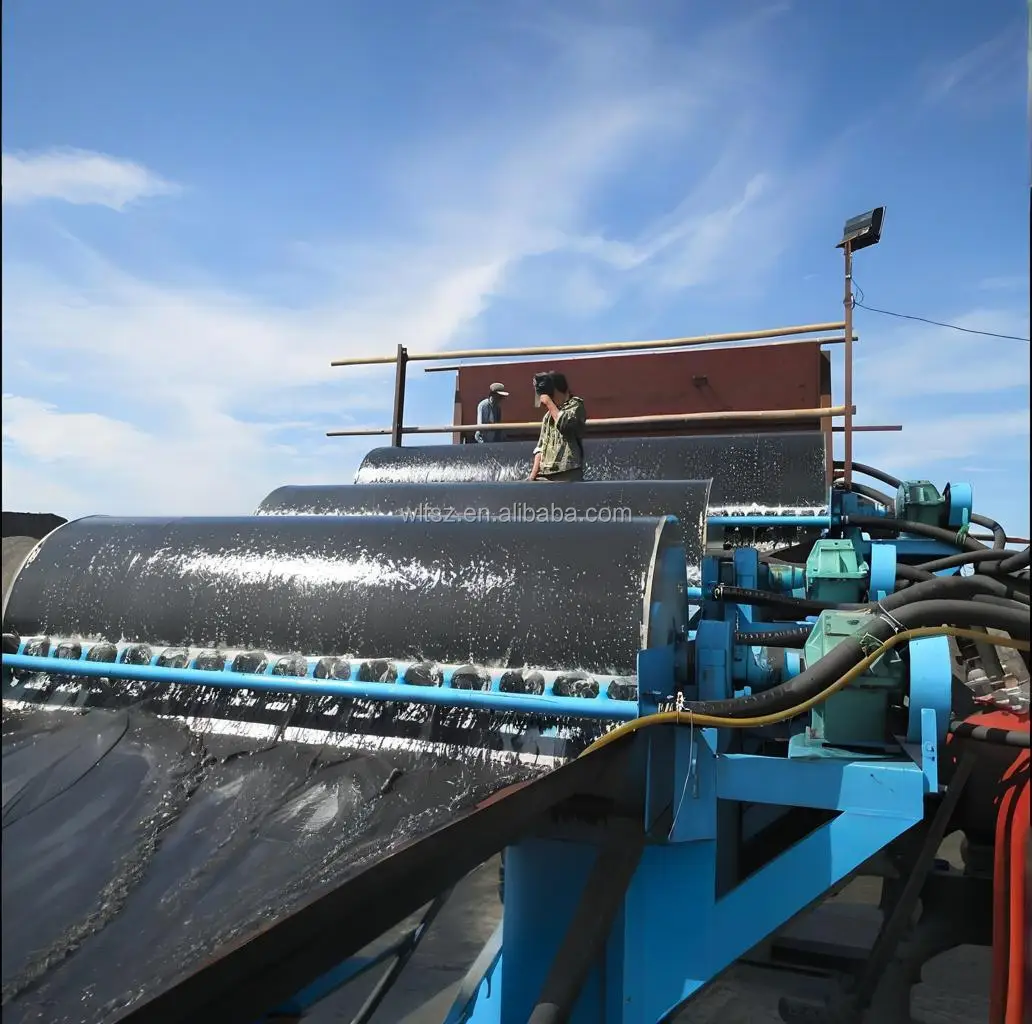

Фабрика FETECH высокоинтенсивная машина для сепарации железа с постоянным ВАЛКОМ Gauss обработка горного дела влажный Магнитный барабанный сепаратор
