Products Description

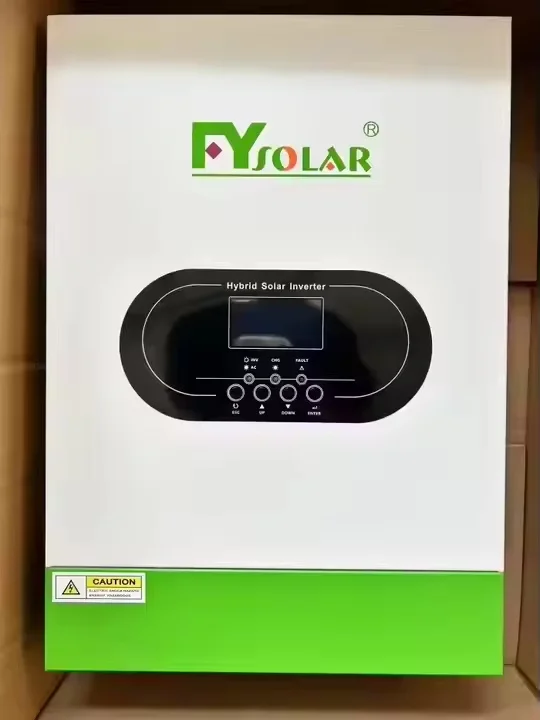

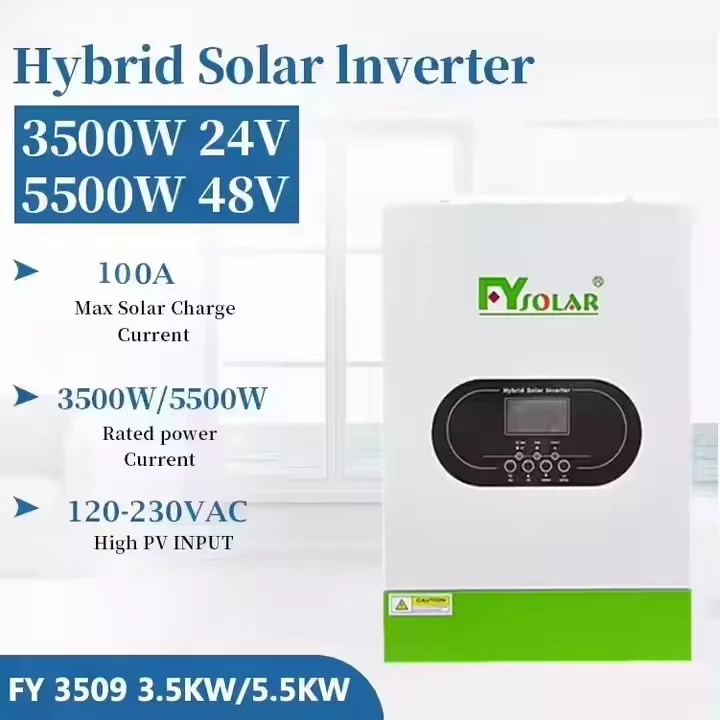

High Frequency Hybrid Solar Inverter
Off Gird FY 3509 Series (3.5KW/5.5KW)
Off Gird FY 3509 Series (3.5KW/5.5KW)

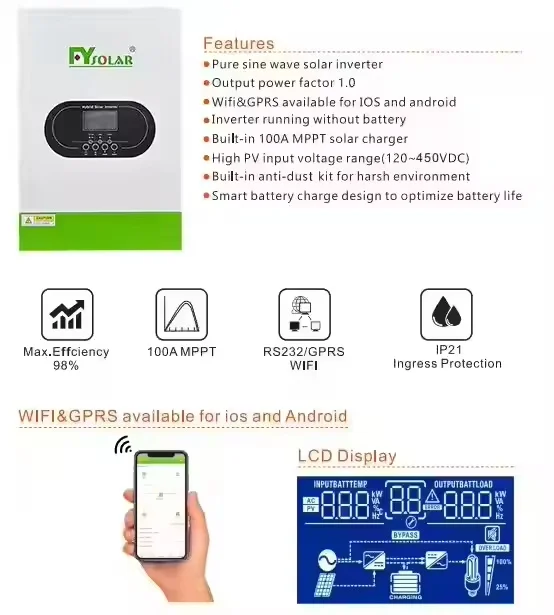

Features
*Pure sine wave solar inverter
*Output power factor 1
*High PV input voltage range
*Built-in MPPT solar controller.
*Battery equalization function to optimize battery performance and extend lifecycle. *Inverter running without battery
*Built-in anti-dusk kit for harsh environment *Parallel operation with up to 12 units, support parallel in 1phase/3phase, support wireless parallel
*Support mutliple output priority: UTL, SOL, SBU, SUB.
*Support mutliple output priority: UTL, SOL, SBU, SUB.
*WiFi/GPRS remote monitoring.
*RS485 communication for BMS(Optional)
Selection Guide Auswahlhilfe
Model | FY 3509-3.5kw | FY 3509-5.5KW | FY 3509-5.5KW-PC | |||
CAPACITY | 3.5KVA/3.5KW | 5.5KVA/5.5KW | 5.5KVA/5.5KW | |||
Parallel Capability | NO | NO | YES,12 units | |||
INPUT | ||||||
Nominal Voltage | 230VAC | |||||
Acceptable Voltage Range | 170-280VAC(For personal Computer);90-280vac(For Home Appliances) | |||||
Frequency | 50/60 Hz(Auto sensing) | |||||
OUTPUT | ||||||
Nominal Voltage | 220/230VAC±5% | |||||
Surge Power | 7000VA | 11000VA | 11000VA | |||
Frequency | 50/60Hz | |||||
Waveform | Pure Sine wave | |||||
Transfer Time | 10ms(For personal Computer);20ms(For Home Appliances) | |||||
Peak Efficiency(PV to INV) | 96% | |||||
Peak Efficiency(Battery to INV) | 94% | |||||
Overload Protection | 5s@>=150% load; 10s@110%~150% load | |||||
Crest Factor | 2:1 | |||||
Admissible Power FACTOR | 0.6~1（inductive or capacitive) | |||||
BATTERY | ||||||
Battery Voltage | 24VDC | 48VDC | 48VDC | |||
Floating Charge Voltage | 27VDC | 54VDC | 54VDC | |||
OverCharge Protection | 33VDC | 63VDC | 63VDC | |||
Charging Method | CC/CV | |||||
Solar Charger & AC Charger | ||||||
Solar Charger TYPE | MPPT | |||||
Max.PV Array Power | 4000W | 5500W | 5500W | |||
Max.PV Array Open Circuit Voltage | 500VDC | |||||
PV Array MPPT Voltage Range | 120VDC~450VDC | |||||
Max.Solar Input Current | 15A | 18A | 18A | |||
Max.Solar Charge Current | 100A | 100A | 100A | |||
Max.AC Charge Current | 60A | 60A | 60A | |||
Max.Charge Current | 100A | 100A | 100A | |||
PHYSICAL | ||||||
Dimensions,D x W x H(mm) | 448x295x120 | |||||
Package Dimensions,D x W x H(mm) | 560x375x190 | |||||
Net Weight(Kg) | 9 | 10 | 10 | |||
Communication Interface | USB/RS232/Dry-contact | |||||
ENVIRONMENT | ||||||
Operating Temperature Range | （-10℃ to 50℃） | |||||
Storage temperature | （-15℃ ~ 60℃） | |||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||||
Certifications
Related Products
Company Profile
FAQ
What is the advantage of high frequency off-grid inverter?
High-frequency off-grid inverters offer several advantages compared to traditional low-frequency inverters. Here are some key advantages of high-frequency off-grid inverters:
1. Compact and Lightweight: High-frequency inverters are typically smaller and lighter compared to low-frequency inverters. This makes them easier to install and transport, especially in portable or mobile off-grid applications.
2. Energy Efficiency: High-frequency inverters are known for their high energy efficiency. They convert DC power from the battery bank to AC power with minimal energy losses, resulting in higher overall system efficiency and reduced energy waste.
3. Improved Power Output: High-frequency inverters can deliver higher surge power output for short periods. This is beneficialwhen starting high-power appliances or equipment that require a momentary surge of power, such as refrigerators, air conditioners, or power tools.
4. Faster Response Time: High-frequency inverters have a faster response time, allowing them to quickly adjust to changes in load demand. This ensures a stable and reliable power supply, especially during sudden load variations.
5. Enhanced Voltage Regulation: High-frequency inverters typically have better voltage regulation capabilities. They can maintain a stable and precise output voltage, which is essential for sensitive electronic devices and appliances that require consistent power quality.
6. Reduced Electromagnetic Interference (EMI): High-frequency inverters produce lower levels of electromagnetic interference compared to low-frequency inverters. This reduces the potential interference with other nearby electronic devices or sensitive equipment.
7. Lower Cost: High-frequency inverters are generally more cost-effective compared to low-frequency inverters. Their compact design, improved efficiency, and reduced component requirements contribute to lower manufacturing and installation costs.
It's important to note that the suitability of a high-frequency off-grid inverter depends on specific application requirements,
such as the power capacity needed, the types of loads, and the overall system design. Consulting with a professional solar
installer or energy expert can help determine the optimal inverter type for your off-grid system.
How many solar panels can you put on a 5kW inverter?
2.Inverter Capacity: Check the maximum DC input capacity of the 5kW inverter. This specification indicates the maximum power it can handle from the solar panels. Ensure that the total wattage of the panels does not exceed this capacity.
3.System Design and Efficiency: Consider any system design requirements or efficiency losses that may affect the number of panels you can connect. These factors could include shading issues, panel orientation, and wiring losses.
