650*1000 мм минеральная передача прочная горнодобывающая конвейерная ленточная система для продажи
- Категория: >>>
- Поставщик: Ganzhou Eastman Technology Co. LtdGanzhou Ltd
Сохранить в закладки 1601334889076:
Описание и отзывы
Характеристики
Product Introduction
Product Introduction
A belt conveyor is a continuous machine with a flexible conveyor belt as material carrying and traction components, which divides into fixed and mobile types. It has the features of a simple structure and high efficiency. The belt conveyor is widely used in mine production lines, coal washing plants, building materials, metallurgy, and other industries. The primary conveying materials include ore, chemical raw materials, coal, coke, cement, sand, Stones, abrasives, limestone, etc.
Belt conveyor belt materials: rubber, silicone, PVC, PU, and other materials.
Structure of belt conveyor: trough belt conveyor, flat belt conveyor, climbing belt conveyor, turning belt conveyor, telescopic belt conveyor, and other forms.
Belt conveyor drive methods: geared motor drive, electric drum drive.
Working Principle
The material is fed to the belt surface of the belt feeder through the feeding funnel. With the rotation of the AC speed
regulating motor, the belt moves forward slowly, and the material on the belt surface is fed into the next process through the first round to realize continuous feeding.
regulating motor, the belt moves forward slowly, and the material on the belt surface is fed into the next process through the first round to realize continuous feeding.
Product display
We are professional conveyor belt manufacturer offers rubber conveyor, PVC conveyor belt, belt conveyor design is available, provide replacement conveyor belt. conveyor belt combines with stone crusher plant, gravity concentration, gold wash plant, etc.

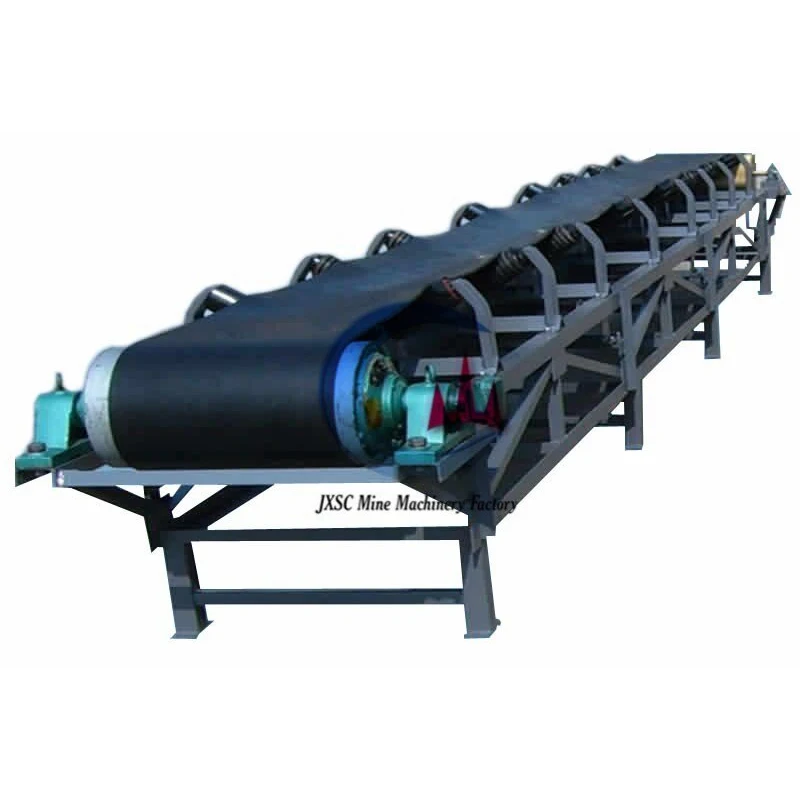

Frame of belt conveyor
Roller of belt conveyor
Advantages and Features
1. There are two ways to adjust the production capacity of the belt feeding machine, one is to adjust the speed of the AC speedcontrol motor, and the other is to adjust the insertion depth of the regulating gate installed on the feeding funnel.
2. Low power consumption, easy operation.
3. Easy installation and large conveying capacity.
4. Noise is low.
Technical Data
Model | Width (mm) | Center distance of head and tail wheel or drum wheel (mm) | Head and tail wheel diameter (mm) | Feeding Capacity (t/h) | Feeding Size(mm) | Motor Power (kw) | Weight (kg) |
500×1000 | 500 | 1000 | 219 | 10~100 | 0~50 | 0.75 | 266 |
500×1300 | 1300 | 10~100 | 0~50 | 2.2 | 503 | ||
500×1500 | 1500 | 10~100 | 0~50 | 2.2 | 552.7 | ||
500×2000 | 2000 | 10~100 | 0~50 | 2.2 | 609.4 | ||
500×2800 | 2800 | 10~100 | 0~50 | 2.2 | 670 | ||
500×3000 | 3000 | 10~100 | 0~50 | 2.2 | 697 | ||
500×4000 | 4000 | 10~100 | 0~50 | 2.2 | 736 | ||
650×1500 | 650 | 1500 | 10~100 | 0~50 | 2.2 | 610 | |
650×2600 | 650 | 2600 | 10~100 | 0~50 | 2.2 | 636 | |
650×4000 | 650 | 4000 | 10~100 | 0~50 | 2.2 | 893 | |
800×2000 | 800 | 2000 | 15~150 | 0~80 | 2.2 | 721 | |
800×3000 | 800 | 3000 | 15~150 | 0~80 | 7.5 | 857.3 | |
800×4000 | 800 | 4000 | 15~150 | 0~80 | 7.5 | 1012 | |
800×4500 | 800 | 4500 | 400 | 15~150 | 0~80 | 2.2 | 1200 |
1000×2000 | 1000 | 2000 | 200~450 | 0~80 | 3 | 1549 | |
1000×2500 | 2500 | 200~450 | 0~100 | 3 | 2105 | ||
1000×6000 | 6000 | 200~450 | 0~100 | 11 | 5214 |
More Model Please Contact Us,the Model Also Can Be Customized！

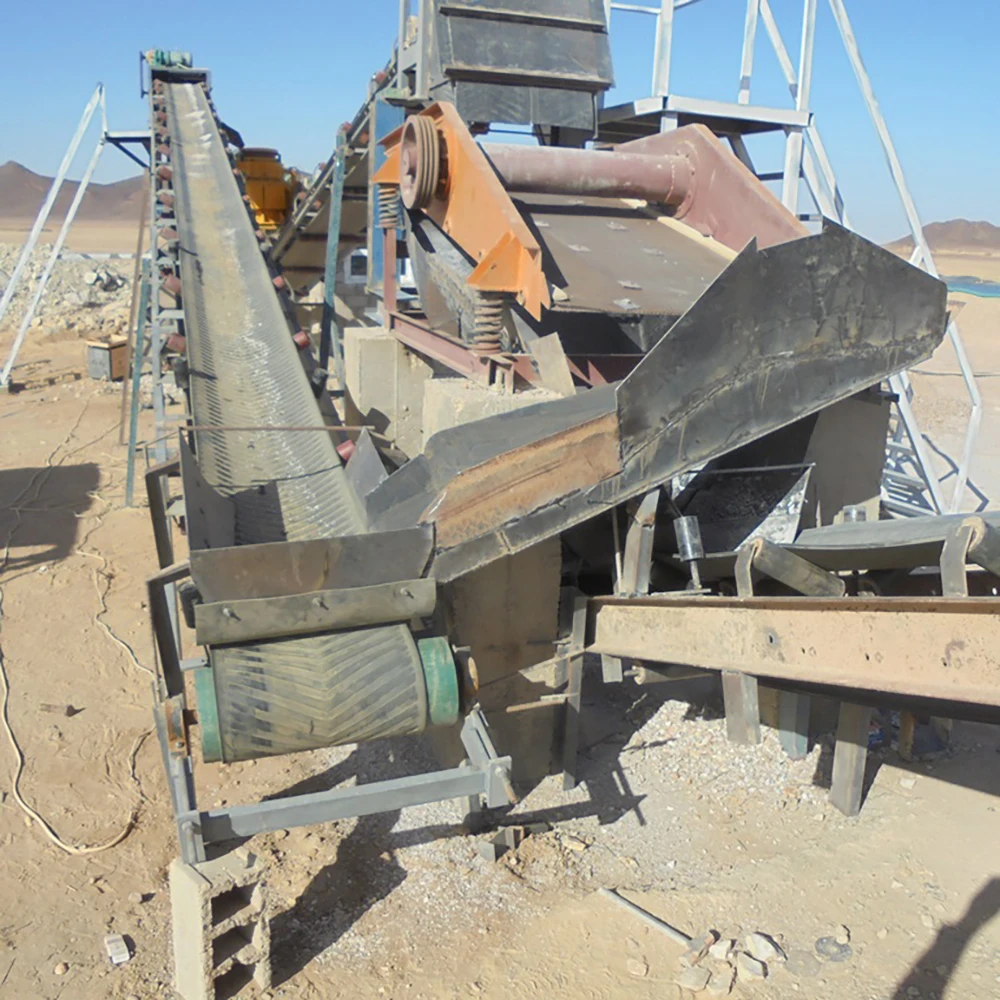

Successful Cases
We have more than 35 years of experience in mining equipment production and can provide a full range of mining equipment from crushing to beneficiation. We have professional engineers who can design the process for you and can provide field guidance for installation services. Here are some of our success stories. Welcome to inquire!
Product packaging
●Ways Of Packing
1.Small parts packed in the wooden cases.
2.Big parts packed by plastic membrane.
3.The whole big machine is loaded in the container.
● Shiping by sea/air freight
or any way the customer requires.
Our Company
7*24 hours online consulting service, we provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
Send technicians to the job site guiding the installation and adjustment, training operators and finishing the check and accept together with you.
FAQ
●Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique,
building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique,
building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
