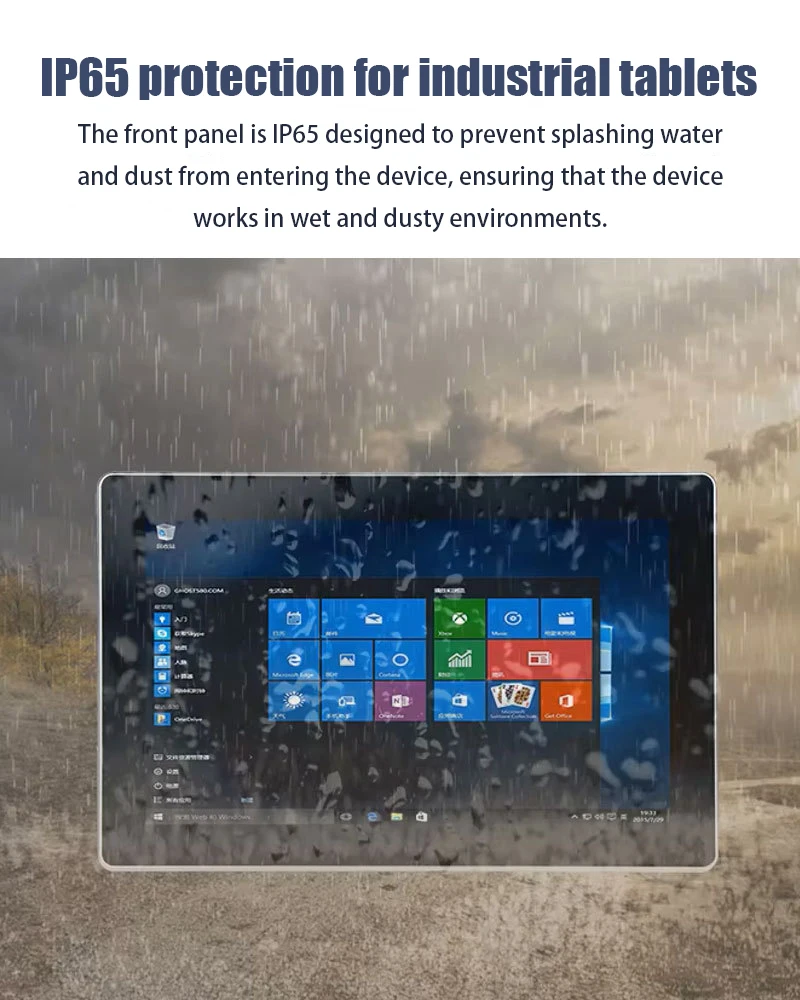

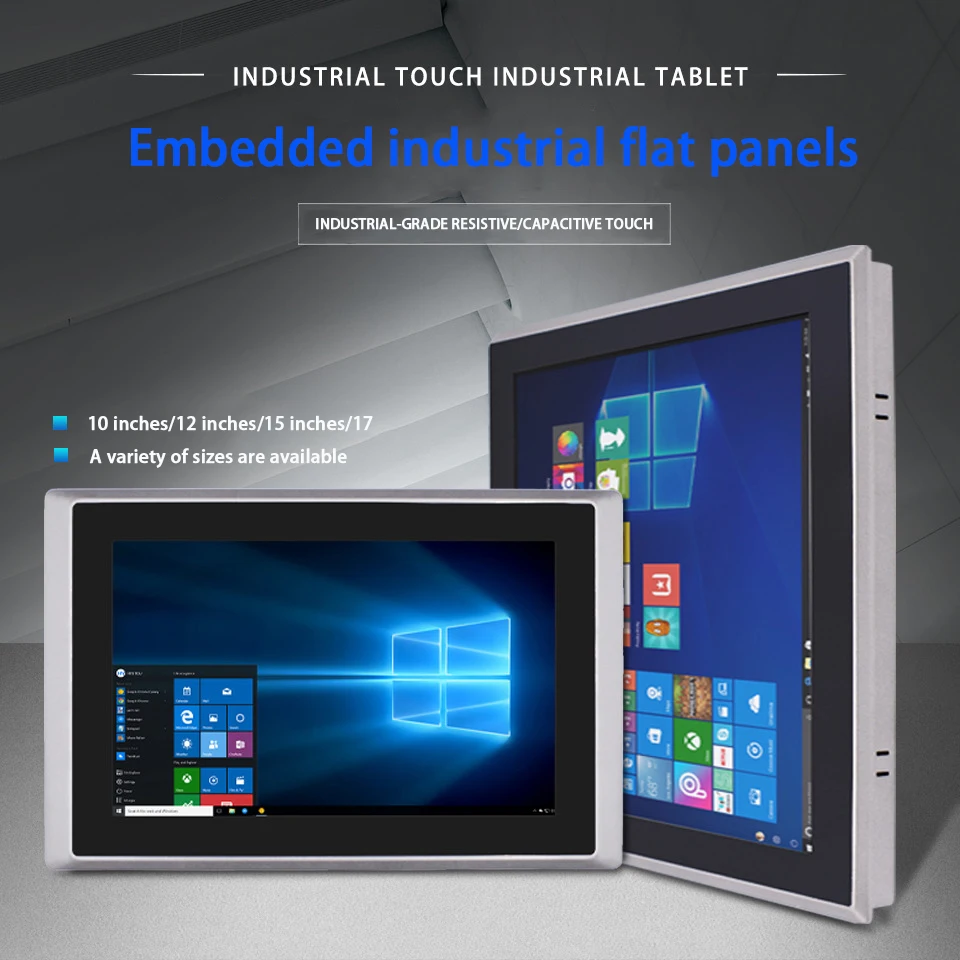

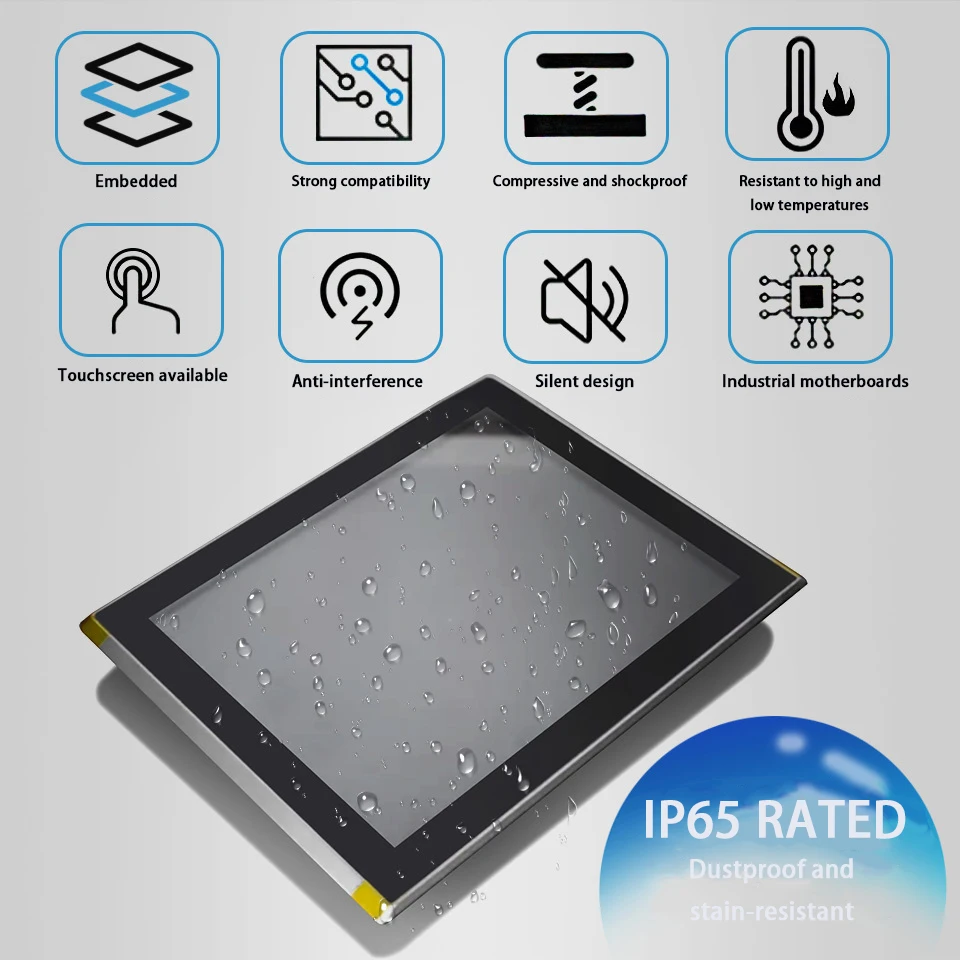

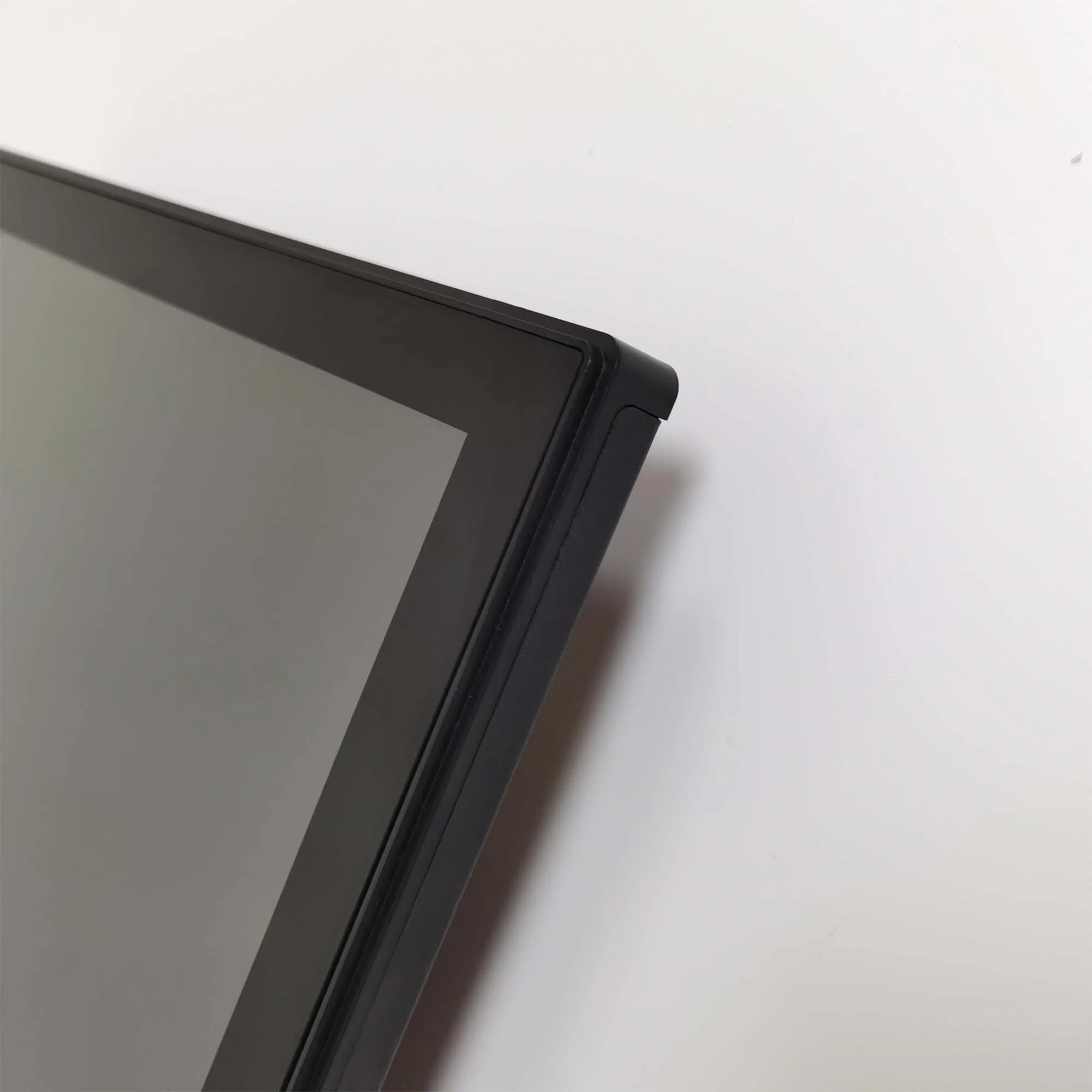

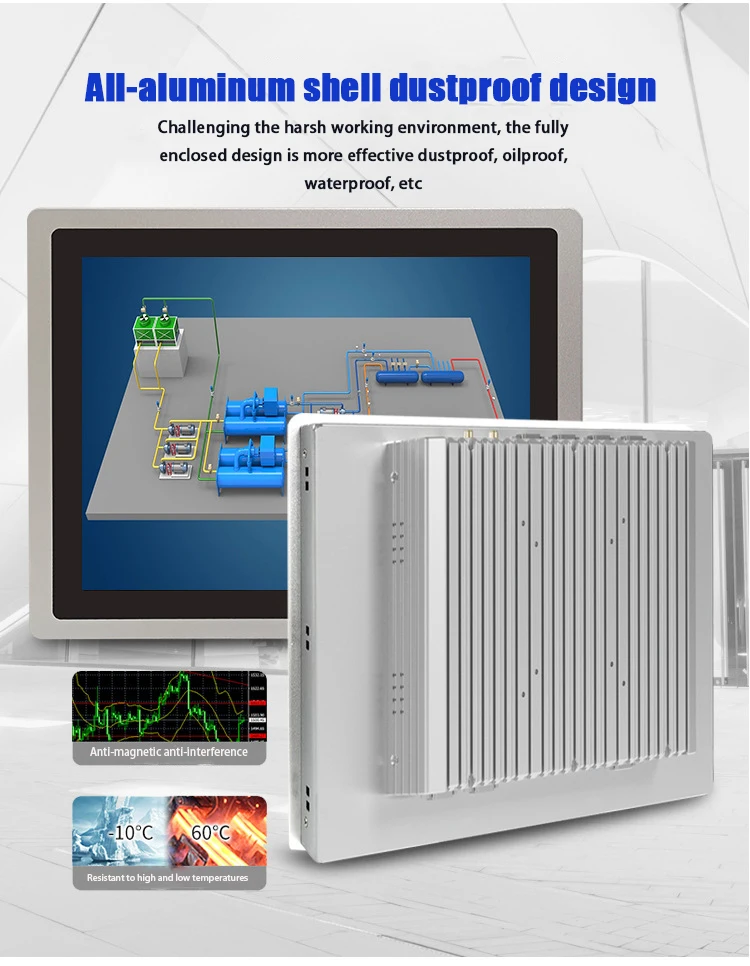

21.5 Inch 22 Inch Embedded 3mm Bezel LCD Flat Capacitive Touch Screen Industrial All In One Panel PC With Aluminum Case IP65 FHD
|
|
|
|
CPU
|
Inter Celeron J1900, quad core, 2.0Ghz, fanless(Core i3, Core i5 Core i7 , RK3566,RK3568,RK3288 optional)
|
Memory
|
2GB,4GB DDR3, ( Max. 16G)
|
|
SSD: 64GB,128GB,256GB,512GB,1TB
|
HDD: 500GB,1TB
|
Network
|
1×Realtek RTL 8111E Gigabit Ethernet controller
|
Wireless Network
|
WIFI optional
|

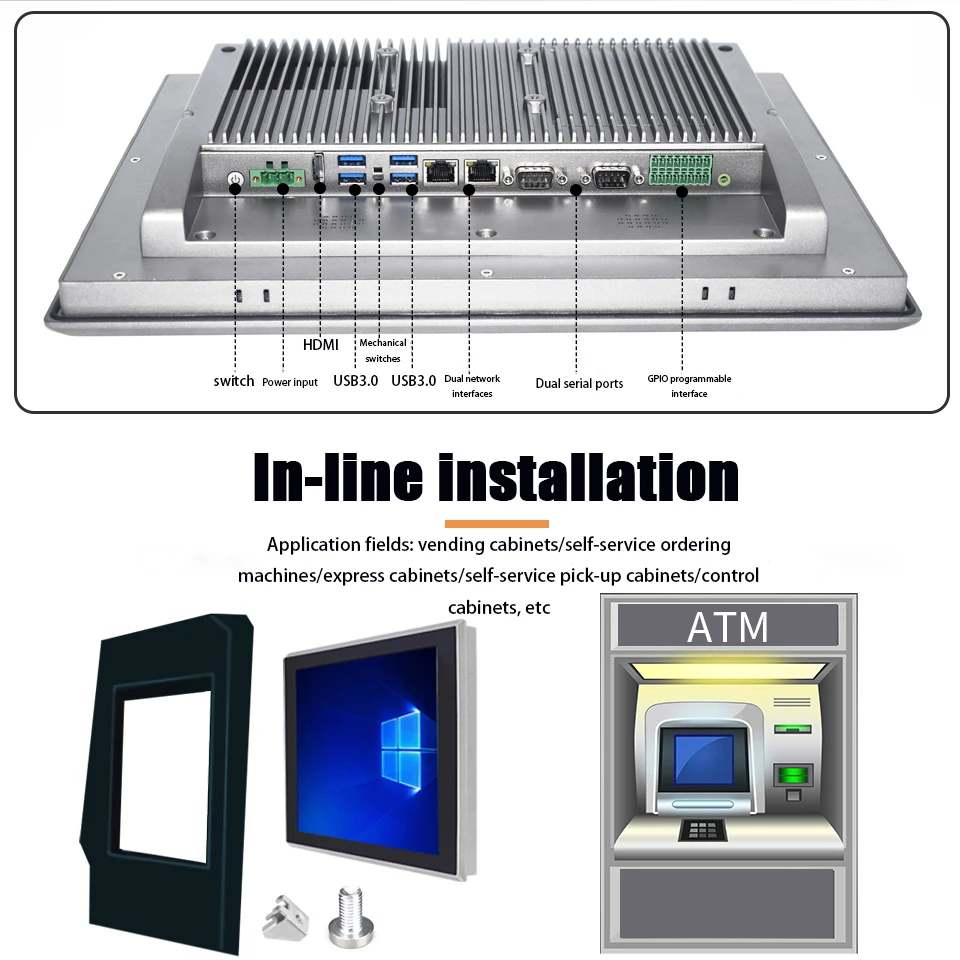

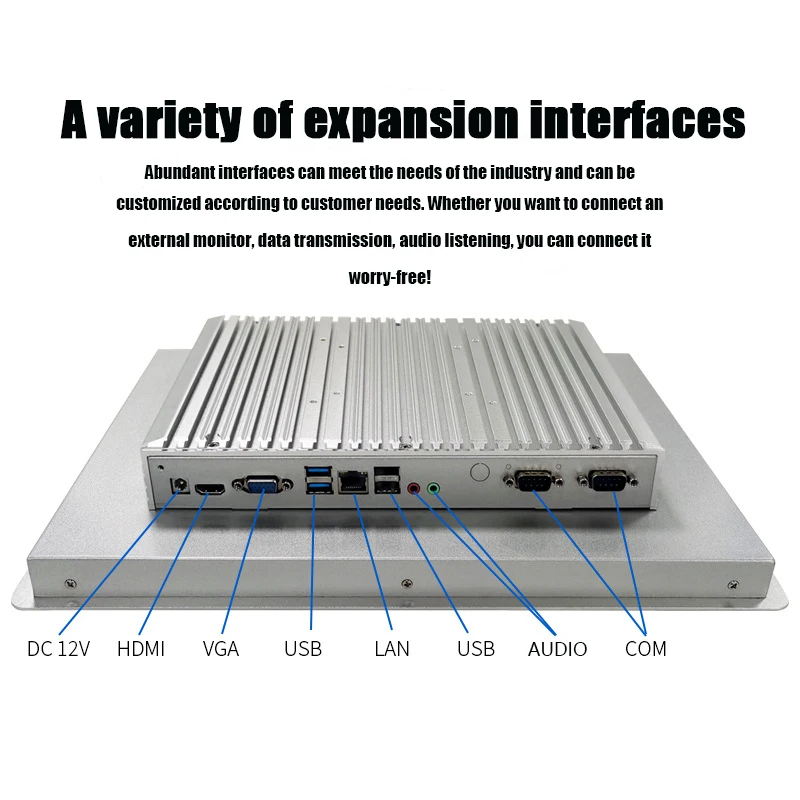

I/O Interface
|

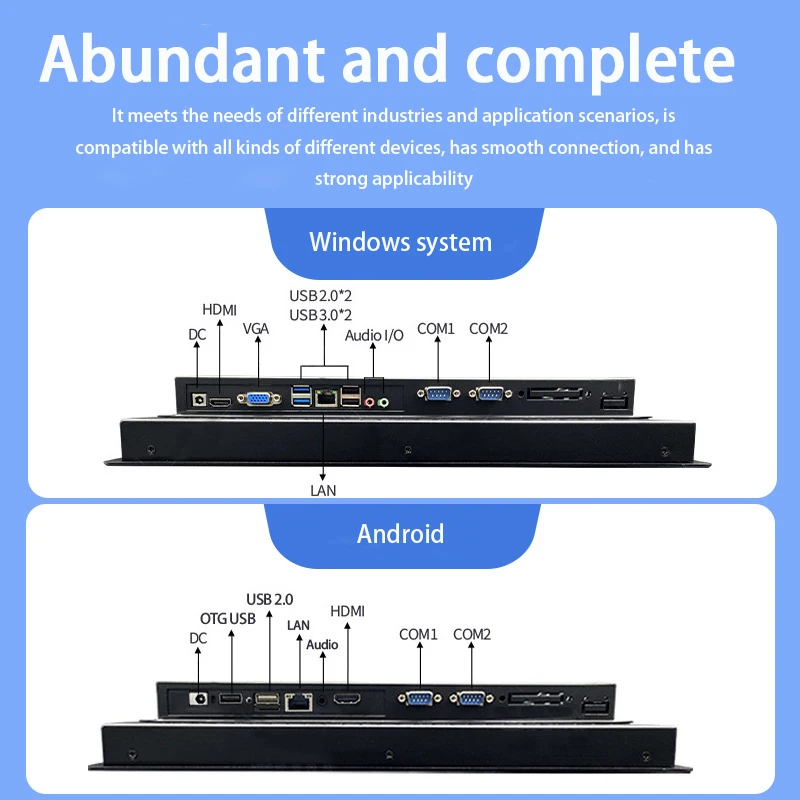

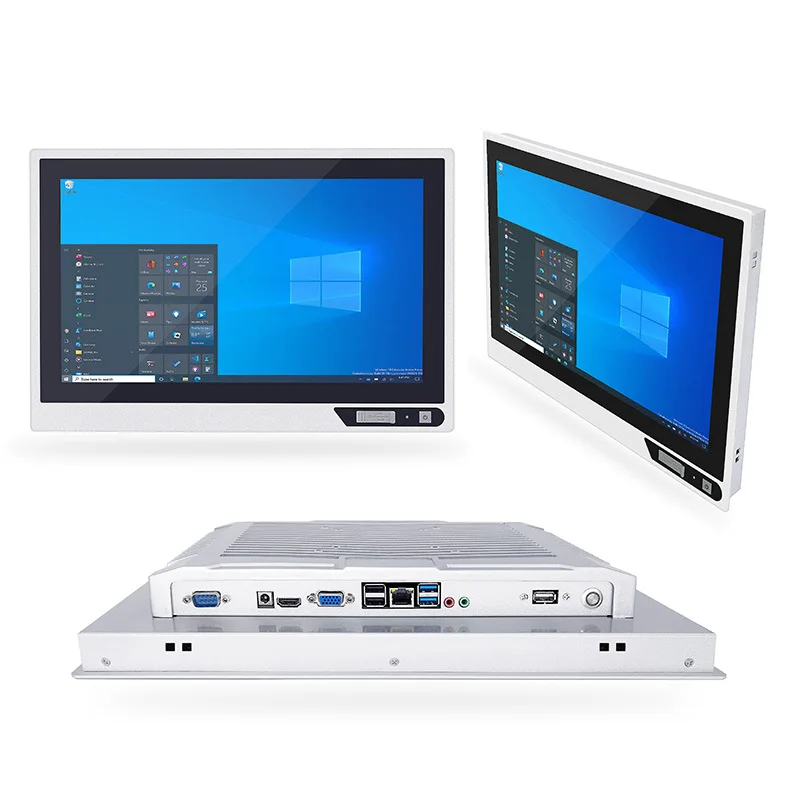

1xHDMI/VGA/LAN, 4x USB/Audio Out/Power DC
|
Opetation System
|

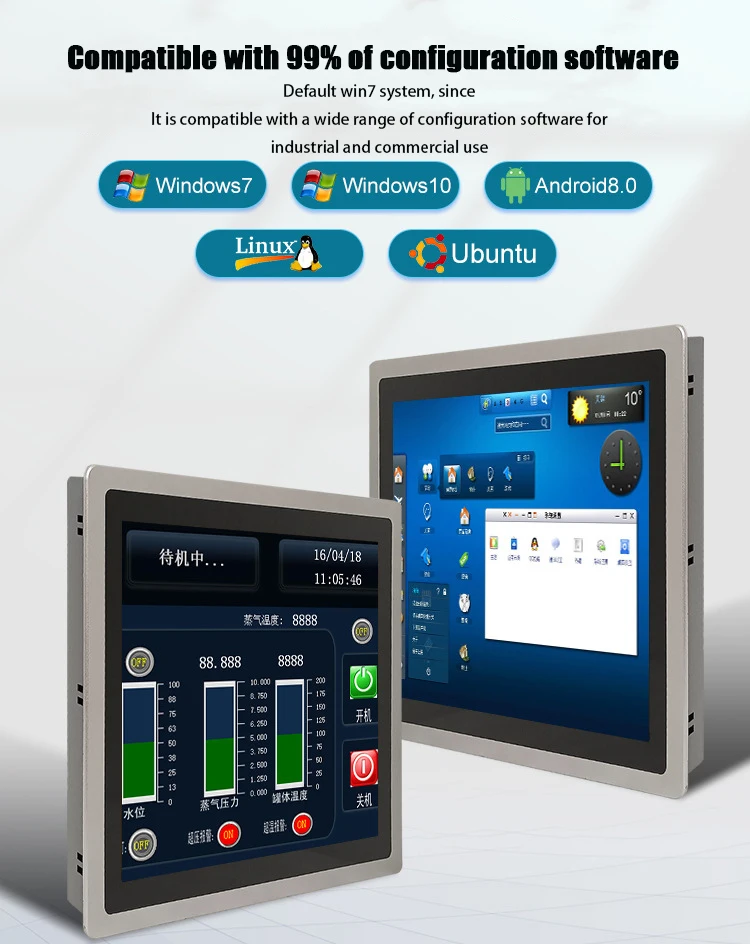

Preinstall test version Windows 7/8/10,Linux,Android
|
Image Format
|
Support BMP,JPEG,PNG,GIF
|
LCD panel
|
Panel size
|
13.3" 15.6" 17" 18.5" 21.5" Inch
|
Resolution
|
1920x1080, 1024x768, 1280x1024
|
Brightness (cd/m²)
|
250 - 1000 cd/m2 sunlight readable
|
Response time
|
15ms
|
Contrast ratio
|
1000:1
|
View angle
|
89°/89°/89°/89° (R/L/U/D)
|

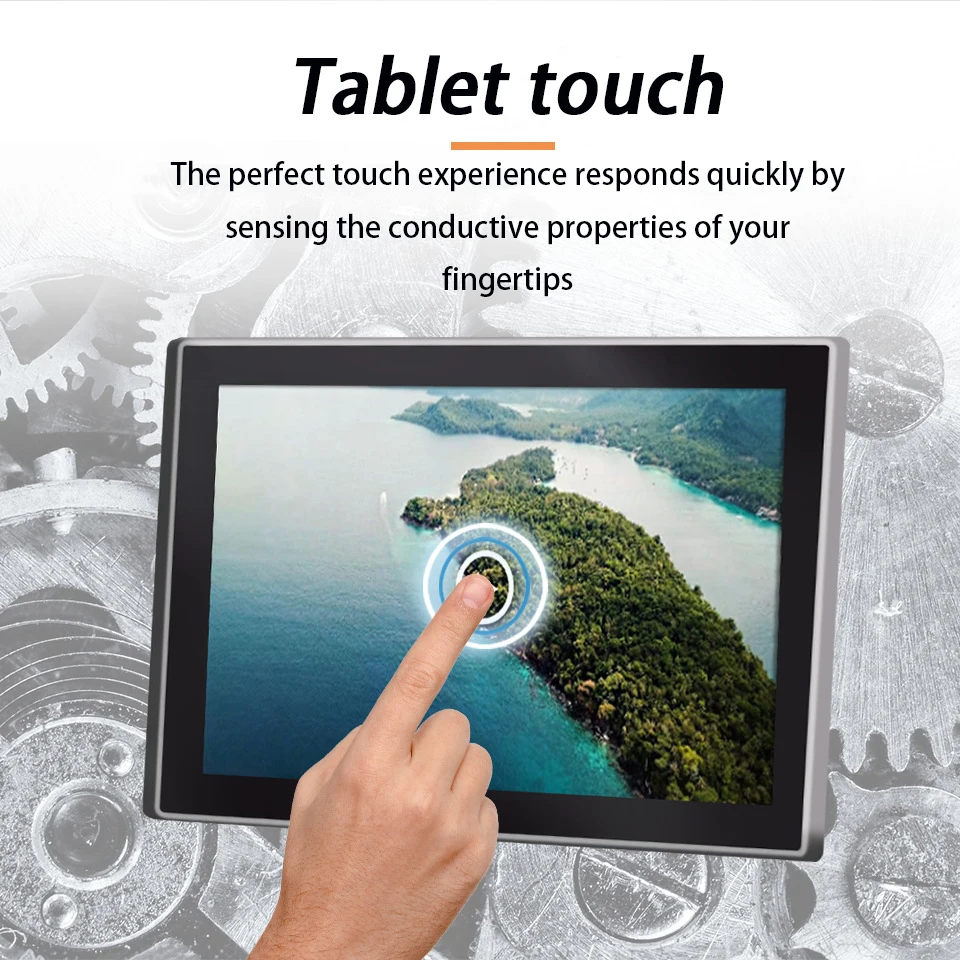

Touch panel
|
Touch Type
|

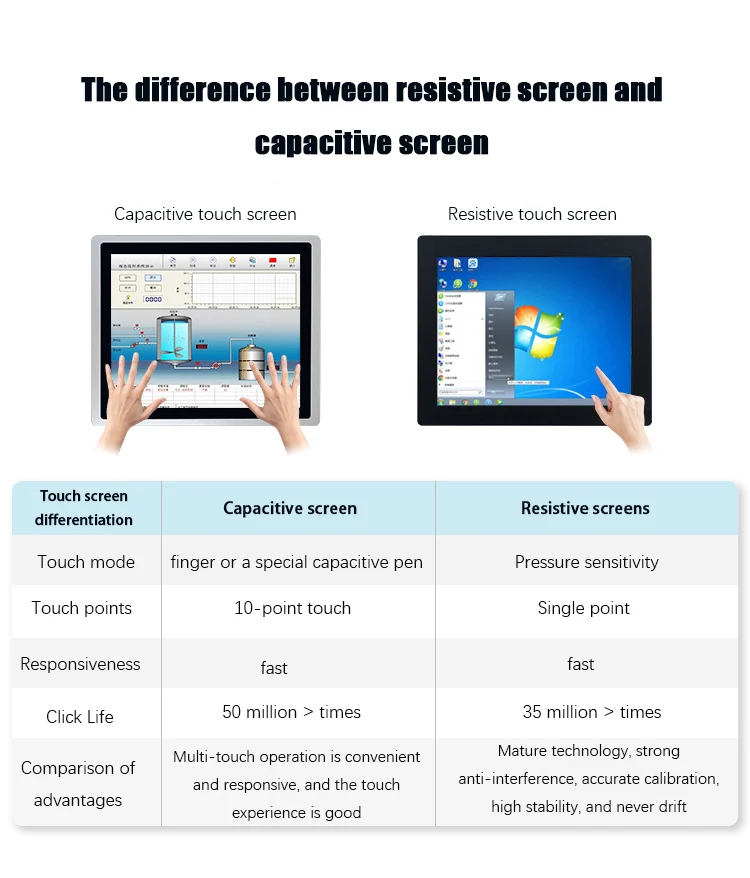

Capacitive touch
|
Touch Interface
|
USB
|
Response time
|
<8ms
|
Luminousness
|
75-85%
|
Power Supply
|
External Power Supply
|
AC 100 - 240V
|
Working voltage
|
DC 12V(DC9~36V optional0
|
Power consumption
|
≤60W
|
Operating Environment
|
Temperature range
|
Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 80 °C
|
Relative humidity
|
5%~95% @ 40° C, non-condensing
|
Vibration
|
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
|
Packing Details
|

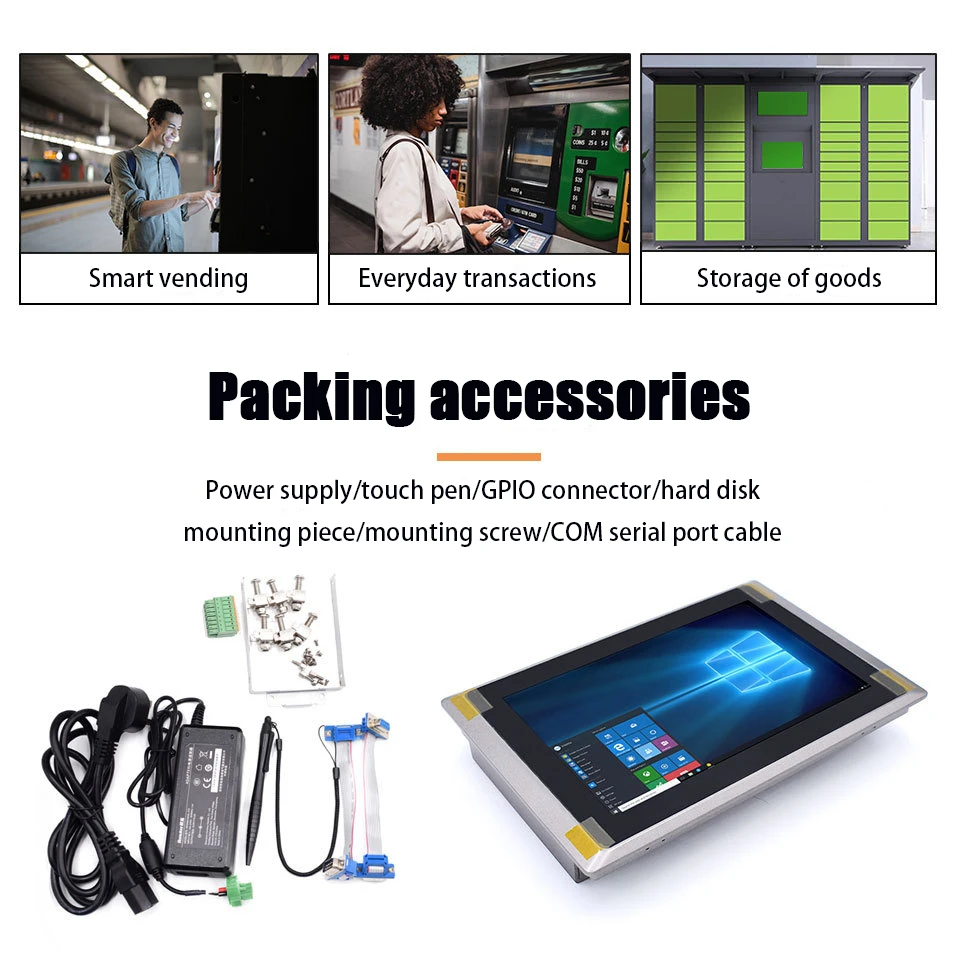

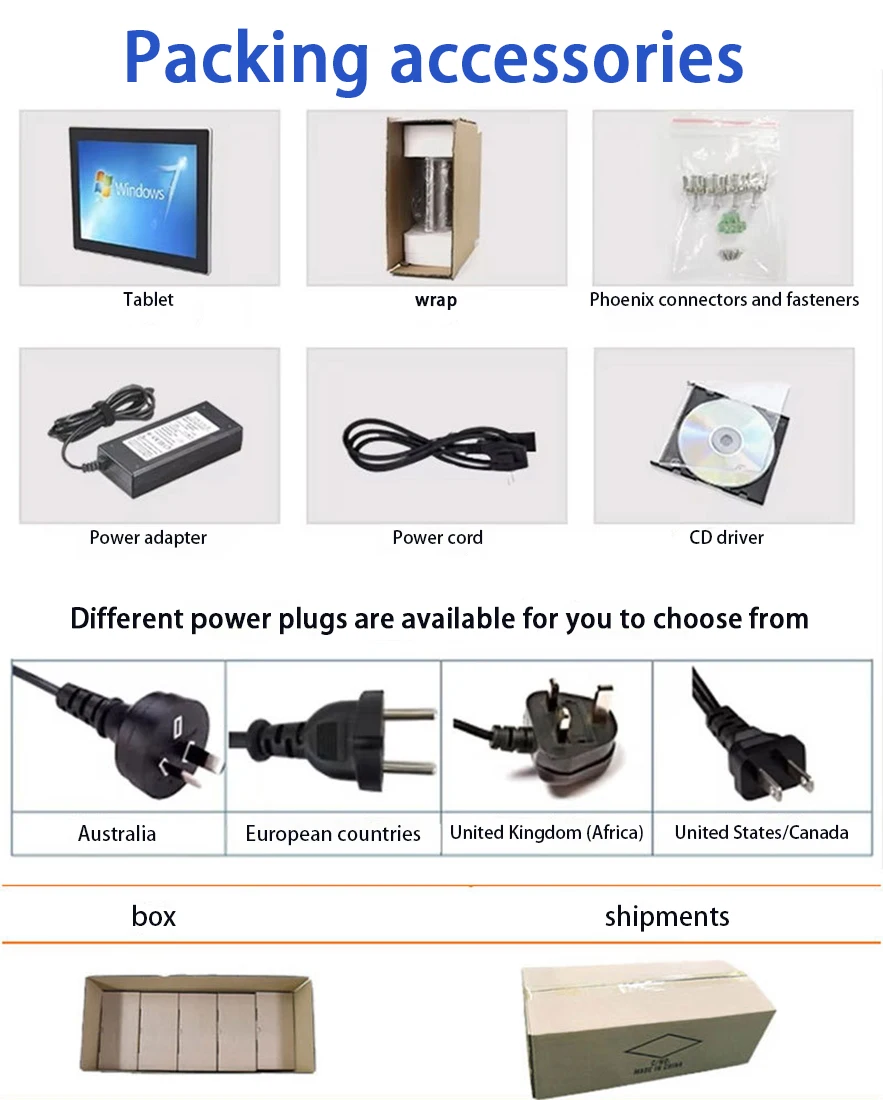

Accessories
|
Power adapter, Wifi antenna,embedded screws
|
Other
|
Mounting (options)
|
1) provide wall brackets for wall-mounting, VESA 100×100mm
|
2) provide Floor standing to support the PC
|

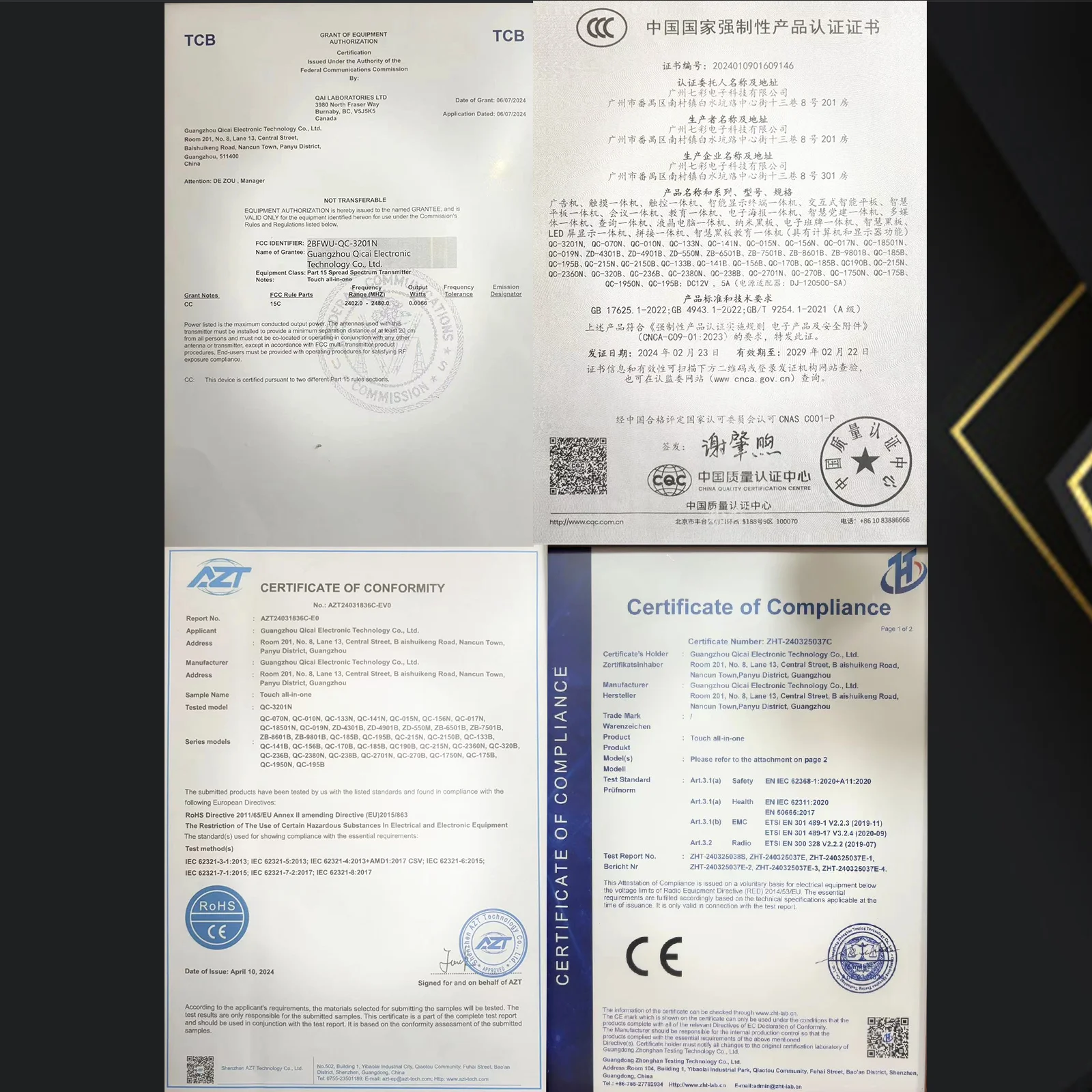

Certification
|
CE, FCC,ROHS
|
Warranty
|
1 year warranty,3 years optional
|
