Product Description

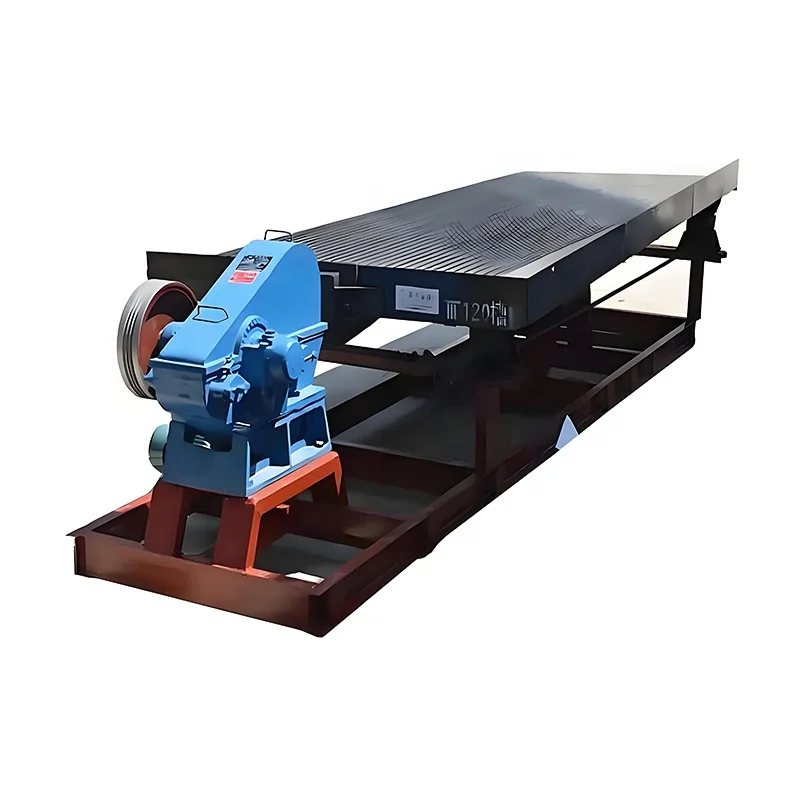

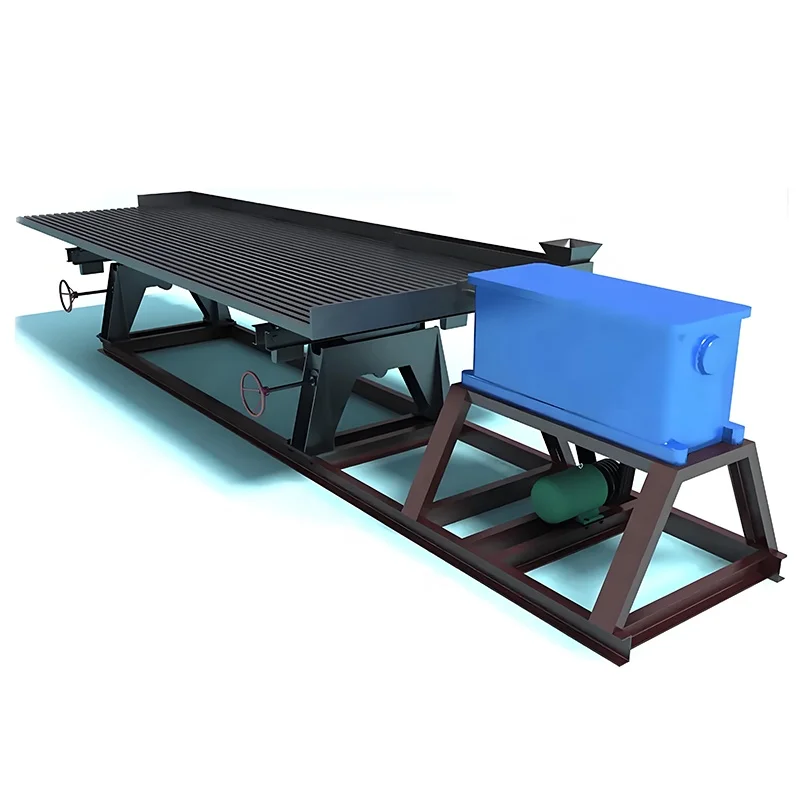

fine gold recovery equipment chrome ore shaking table for alluvial gold washing plant
A shaker table is also known as a gold shaking table, gold separation table, or concentrating table.
It is a fine gold recovery equipment common in the gold shaker wash plant, alluvial gold mining plant to separate concentrates, medium concentrates, and tailings according to material density and grain size.
Gold mining shaker table can not only be used as an independent beneficiation machine, but it often works with jig separator machines, centrifugal concentrators, sluice boxex, flotation equipment, magnetic drum separator, spiral classifier, and other ore dressing equipment.
Gold mining shaker table can not only be used as an independent beneficiation machine, but it often works with jig separator machines, centrifugal concentrators, sluice boxex, flotation equipment, magnetic drum separator, spiral classifier, and other ore dressing equipment.
Model Performance | LS | LY | LY | LY | ||
Screen Size(mm) | 4500×1850×1560 | 3000×1620×1100 | 2100×1050×850 | 1100×500×430 | ||
Stroke length | mm | 10-30 | 6-30 | 12-28 | 9-17 | |
Frequency | T/min | 240-420 | 210-320 | 250-450 | 280-460 | |
Horizontal slope | Degree | 0-5 | 0-10 | 0-8 | 0-10 | |
Feeding Range(mm) | Sand ore | -2 | -2 | -2 | -2 | |
slime | -0.074 | -0.1 | -0.074 | -0.074 | ||
Feeding Density | % | 10-30 | - | 10-30 | 10-30 | |
Capacity (t/h) | Sand ore | 0.5-1.8 | 0.7-1.5 | 0.4-0.8 | 0.1-0.2 | |
slime | 0.5-0.8 | 0.4-1 | 0.3-0.5 | 0.05-0.1 | ||
Water consumption | t/h | 0.4-0.7 | 0.3-1.5 | 0.2-1 | 0.1-0.5 | |
Motor | model | Y70L-4 | Y100L-4 | Y90L-4 | Y80L-4 | |
Power kw | 1.1 | 1.1 | 1.1 | 0.55 | ||
Rotation speed r/min | 1400 | 1400 | 1400 | 1400 | ||
V-belt (mm) | A-2000 | A-1033 | B-2007 | A-1245 | ||
Size(mm) Long× wider × higher | 5600×1850×860 | 4075×1320×780 | 3040×1050×1020 | 1530×500×800 | ||
Weight(kg) | 370 | 310 | 180 | 50 | ||
Application Field
Shaking table is a mineral separation device for fine manerals working by gravity.
They are effective in processing precious and base metal .
Rare metal and non-metalic minerals,widely manganese,Zircon,Lead Zinc,Mercury,Copper, Alumiunm ect.
Working Principle
The working principle of the Shaking Table is to use the combined action of the specific gravity difference of sorted minerals,alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.

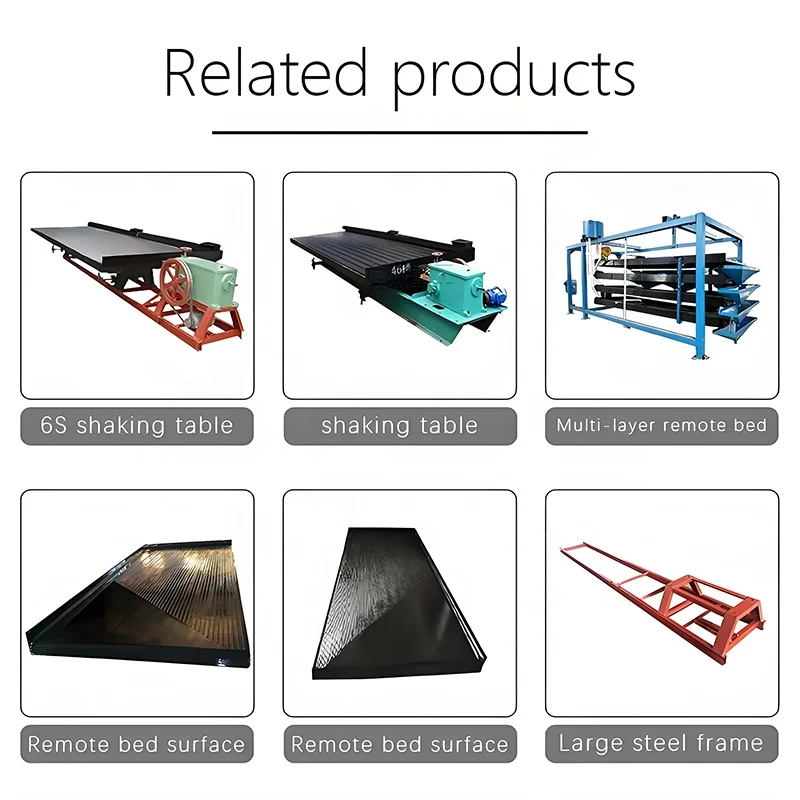

Related Products
Ball mill machine
HengChang's major product, professional technology support and all-around service can be offered to you.
Weight:37000KG
Capacity:0.65-90T/H
Weight:37000KG
Capacity:0.65-90T/H
Hammer crusher machine
Also called hammer mill,is suitable for crushing various hard and brittle materials.
Weight:3.5t,0.8t
Capacity:5-75t/h
Weight:3.5t,0.8t
Capacity:5-75t/h
Jaw crusher machine

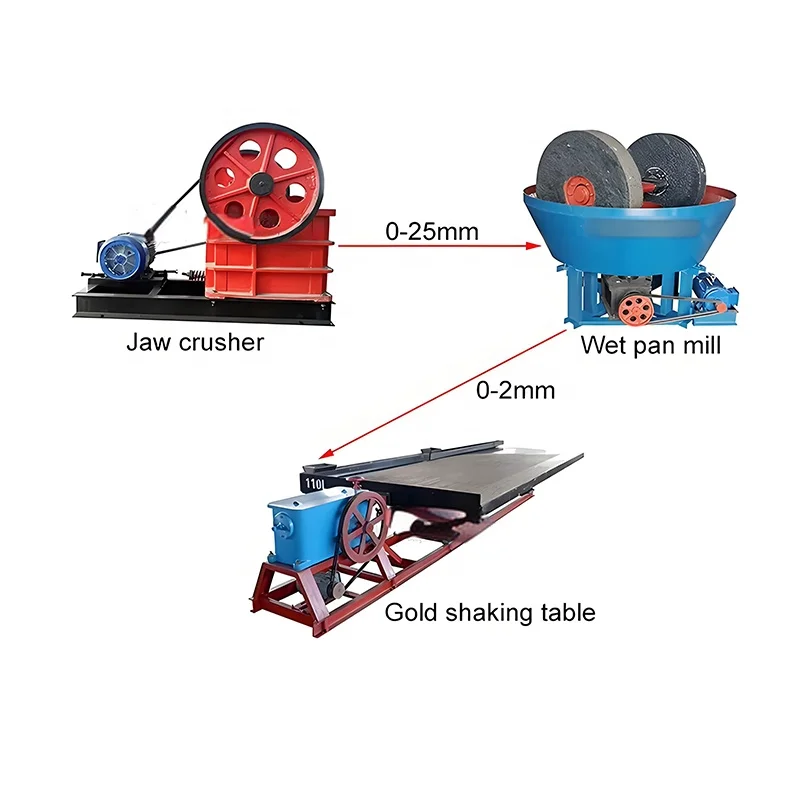

During gold washing processing,it is a pre-mill processing,the jaw plate is a special alloy material,which can press the ore into smaller particles,in this way to save the wet pan mill wearing.
Gold mercury Distiller
During gold washing processing,it is a pre-mill processing,the jaw plate is a special alloy material,which can press the ore into smaller particles,in this way to save the wet pan mill wearing.
>>Review more information
Company Profile
Gongyi Hengchang Metallurgical Building Materials Equipment Factory is located in Zhengzhou, Henan Province, China, specializing in the research and development, manufacturing, and sales services of mining equipment.
We can provide a complete set of equipment including crushing, screening, mineral separation, etc.
The product has been exported to markets in Southeast Asia, the Middle East, Africa, and the Americas.
Agents have also been developed in Egypt, Pakistan, Vietnam, and other countries. We provide high-quality products, the best solutions, professional technical support, and excellent after-sales service.
Agents have also been developed in Egypt, Pakistan, Vietnam, and other countries. We provide high-quality products, the best solutions, professional technical support, and excellent after-sales service.
Exhibition & Customer Visit
Product & Packaging
Packaging Details:
Normally the machines are taken apart before delivery and are packed by suitable packing ways.
Normally the machines are taken apart before delivery and are packed by suitable packing ways.
The packing ways are as below: Nude packing,Bundle packing,Grass rope packing,Water proof packing,Wooden pallets packing,Wooden box or carton box packing.
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25 working days
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25 working days
FAQ
Q: If I don't know how to operate this machine? How can I do?
A: Our machine has been tested OK and fully assembled before shipping, customer just needs to make2~4 hours wear-in and then can work.
Q: What can I get the price?
A: We usually quote within 2 hours after we get your inquiry . If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
Q :How can I get the sample to check your quality?
A :After price confirmation, you can require for samples to check our product’s quality.
Q :What is your term of delivery?
A :We accept EXW, FOB Qingdao. You can choose the one which is the most convenient or cost effective for you.
Best quality vegetable spiral type oil press/ vegetable seeds edible oil presses.
Q: Can I be a distributor of Hengchang ?
A: Of course you can.
A: Our machine has been tested OK and fully assembled before shipping, customer just needs to make2~4 hours wear-in and then can work.
Q: What can I get the price?
A: We usually quote within 2 hours after we get your inquiry . If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
Q :How can I get the sample to check your quality?
A :After price confirmation, you can require for samples to check our product’s quality.
Q :What is your term of delivery?
A :We accept EXW, FOB Qingdao. You can choose the one which is the most convenient or cost effective for you.
Best quality vegetable spiral type oil press/ vegetable seeds edible oil presses.
Q: Can I be a distributor of Hengchang ?
A: Of course you can.
Похожие товары

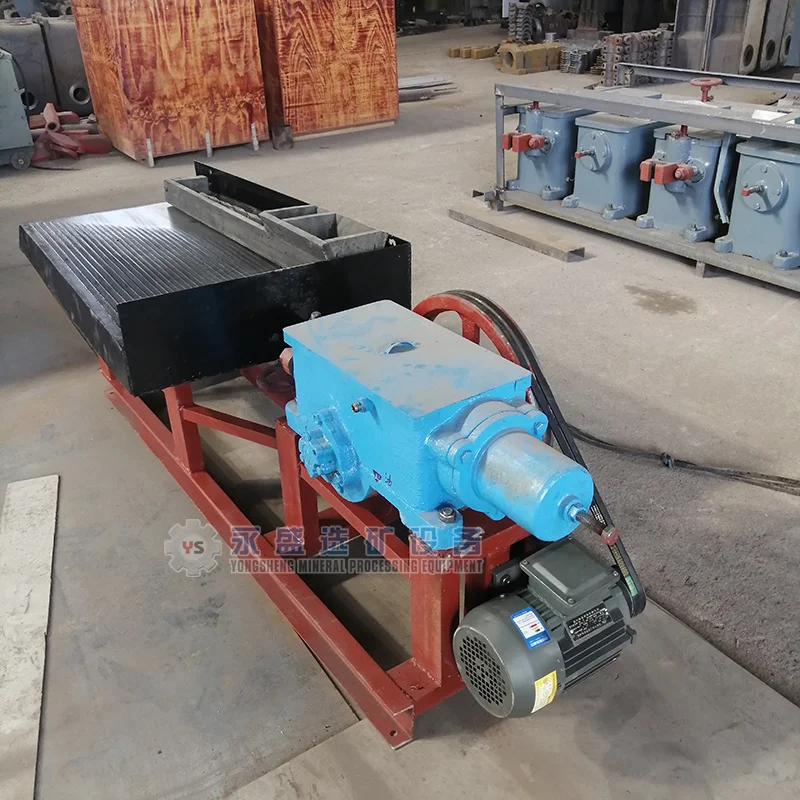

Небольшой мини-лабораторный золотой рудник для использования встряхиватель настольное горное оборудование продажи
800,00-1 110,00 $
Оборудование для добычи золота
2 450,00-3 650,00 $

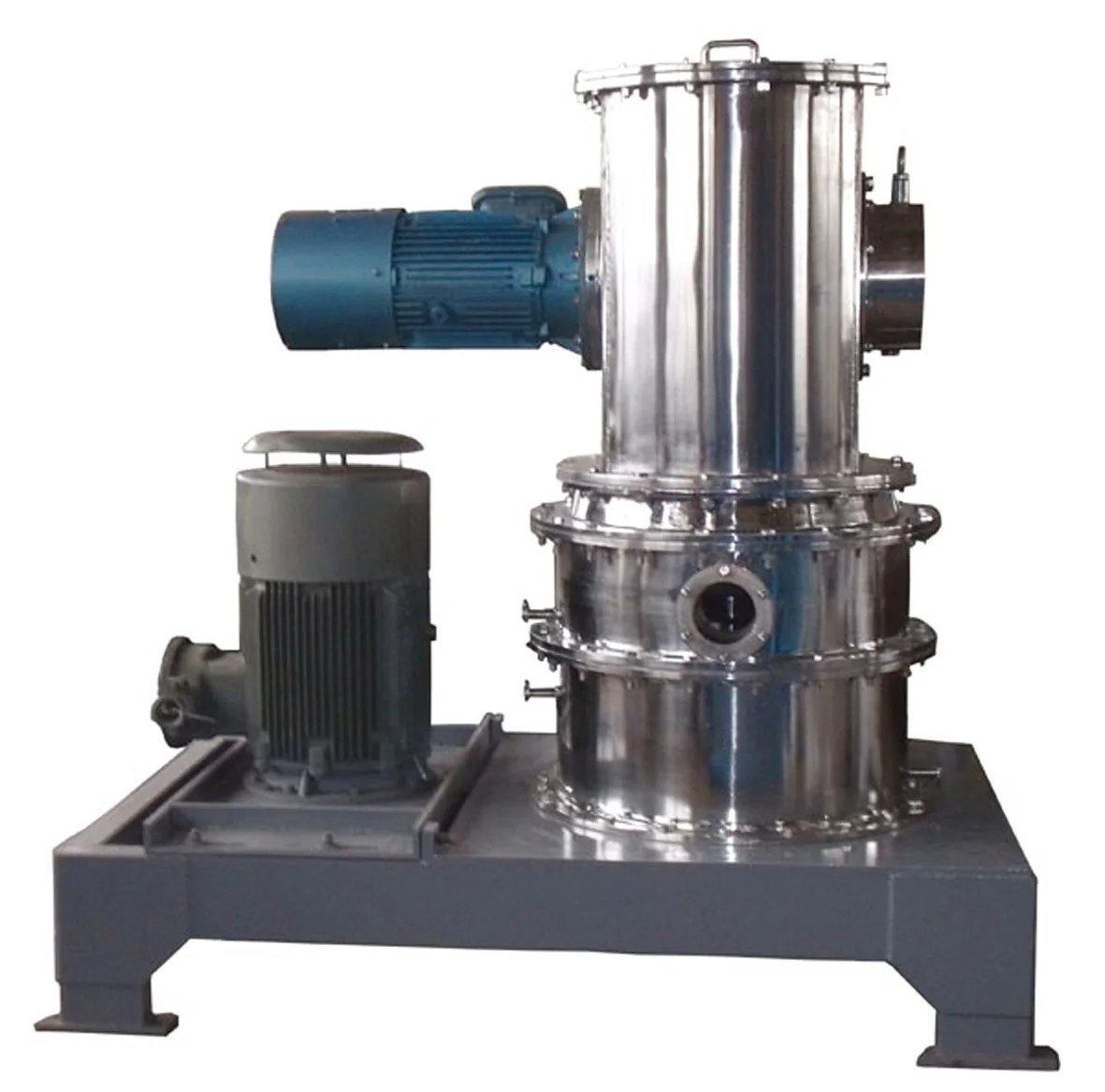

Лабораторная струйная мельница измельчитель
35 000,00-80 000,00 $
Гравитационный сепаратор крупный крючок для частиц
1 300,00 $

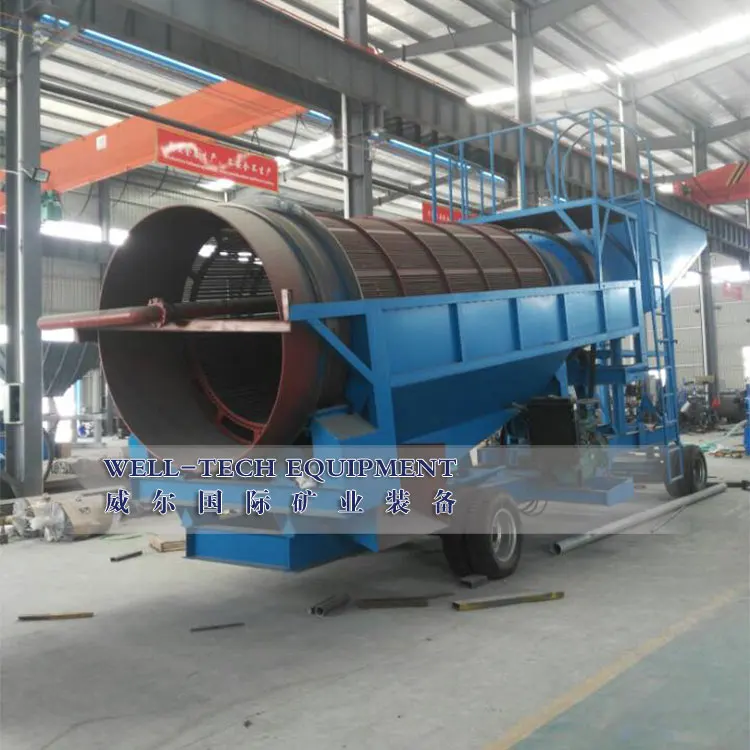

Рок Золото Сепаратор стиральная машина песок гравий сортировочный барабан для промывки
