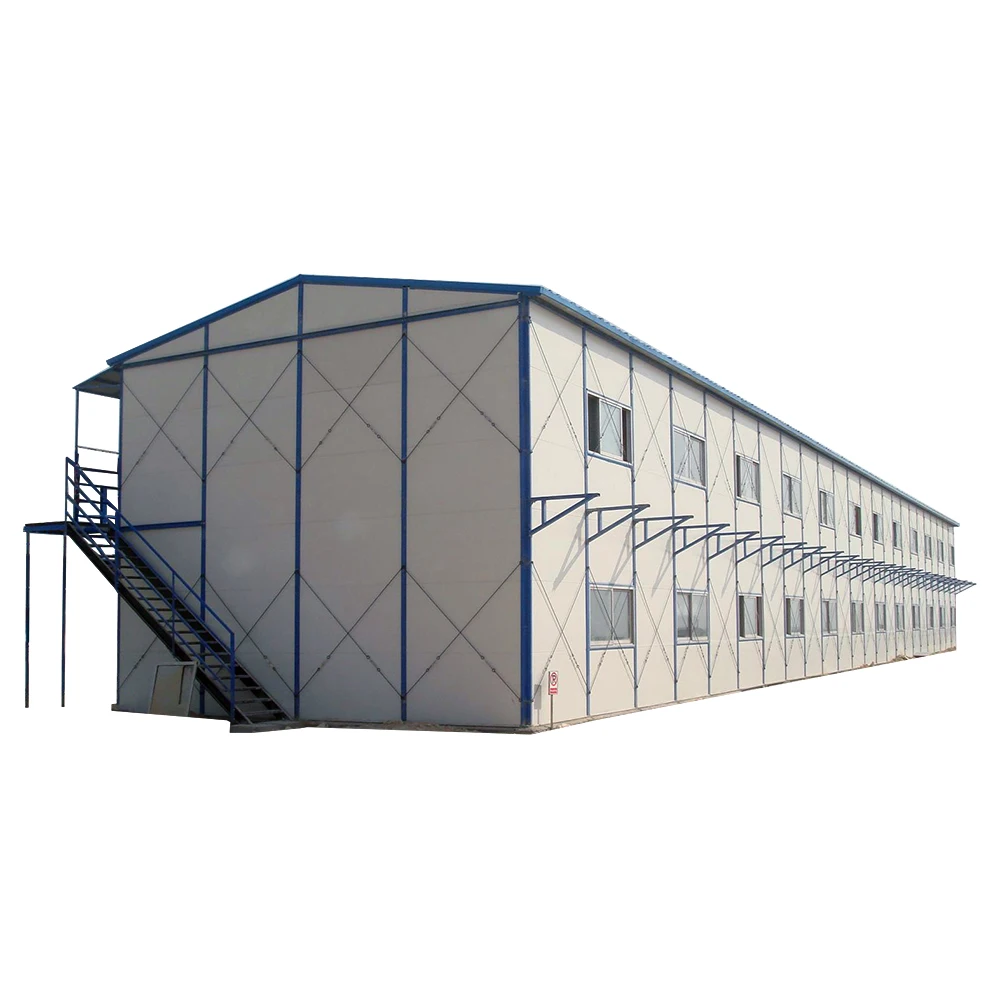

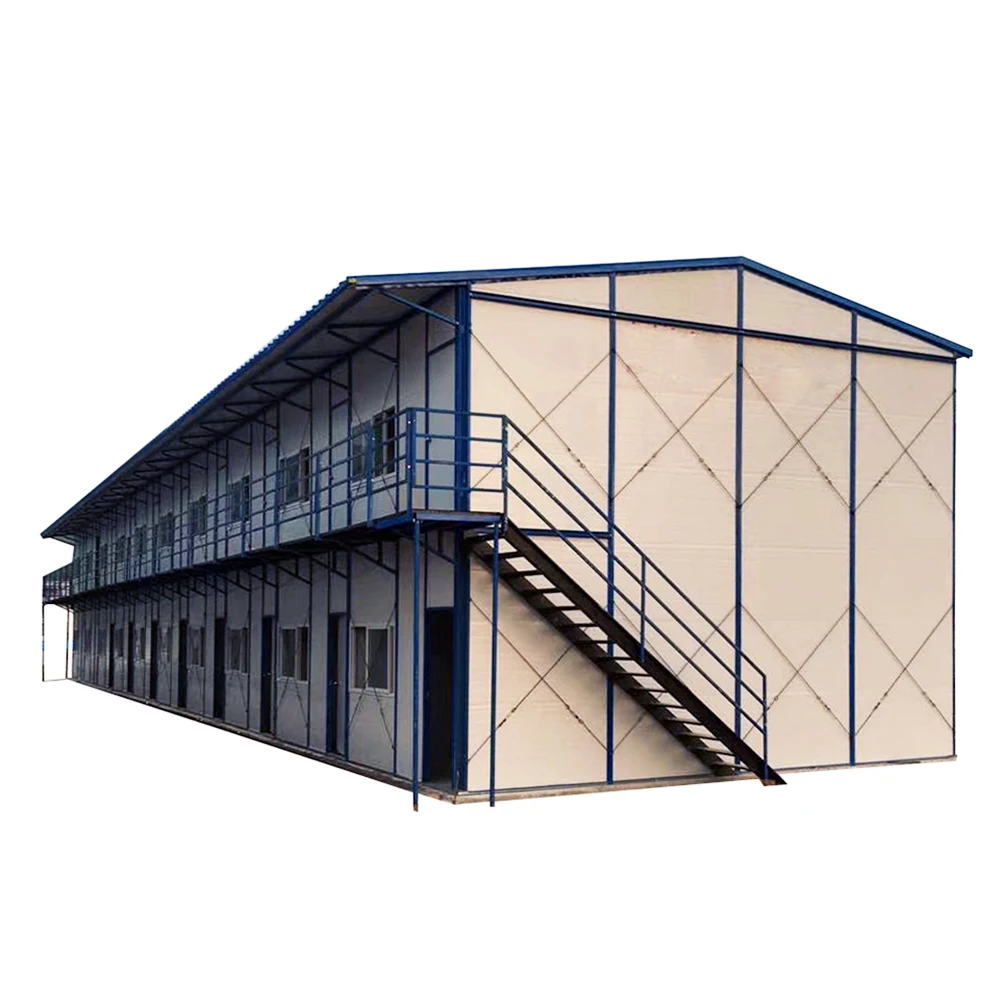

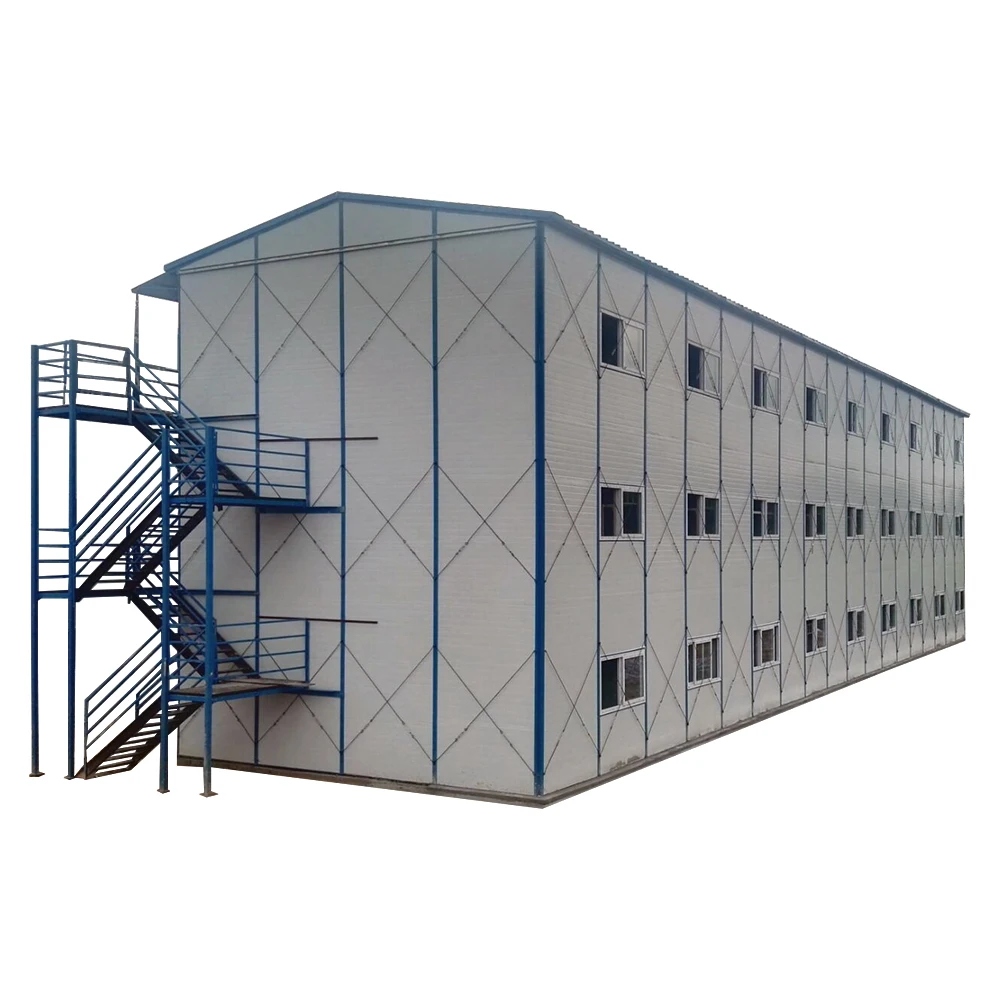

Сборный дом типа K для рабочих легкая стальная конструкция быстрая установка в Индонезии
- Категория: >>>
- Поставщик: Foshan Sanshui Bingfa Metal Products Co. Ltd.Foshan Ltd.
Сохранить в закладки 1601338006595:
Описание и отзывы
Характеристики
Product Description
K House Area computation:
Pay attention to:Standard Two Floor prefabricated house with 2 staircase,one on the left side .and the other one on the right side.Each standard staircase is 4.5㎡,corner staircase is 16㎡,and it's usually for Three Floor prefabricated house.When increase and decrease staircase,according to this amount.
Area computation rule:1、Prefabricated house area=Length of exterior wall*Width of exterior wall*number of plies.
2、Standard staircase is 4.5㎡ and corner staircase is 16㎡.
3、Rain cover is half of projected area.
4、Walkway board is according to projected area.
5、Awning panel blow out of wall in the range of 200mm,not calculating area.
6、Totally Area=（1）+（2）+（3）+（4）
7、Project quantity computation rule according to above-mentioned formula for cost settlement
expect special explanation.
Instruction:Above computation area rule also applies to flat roof prefab house.
Specification
Size: | width,length(K):1K=1.82 meter |
height: | P,P=0.95 meter |
Floor loads: | 150kg/square meter |
Roof loads: | 35kg/square meter |
Wind pressure resistant | 100km/hour |
Window | PVC sliding window |
Door | Sandwich panel door |

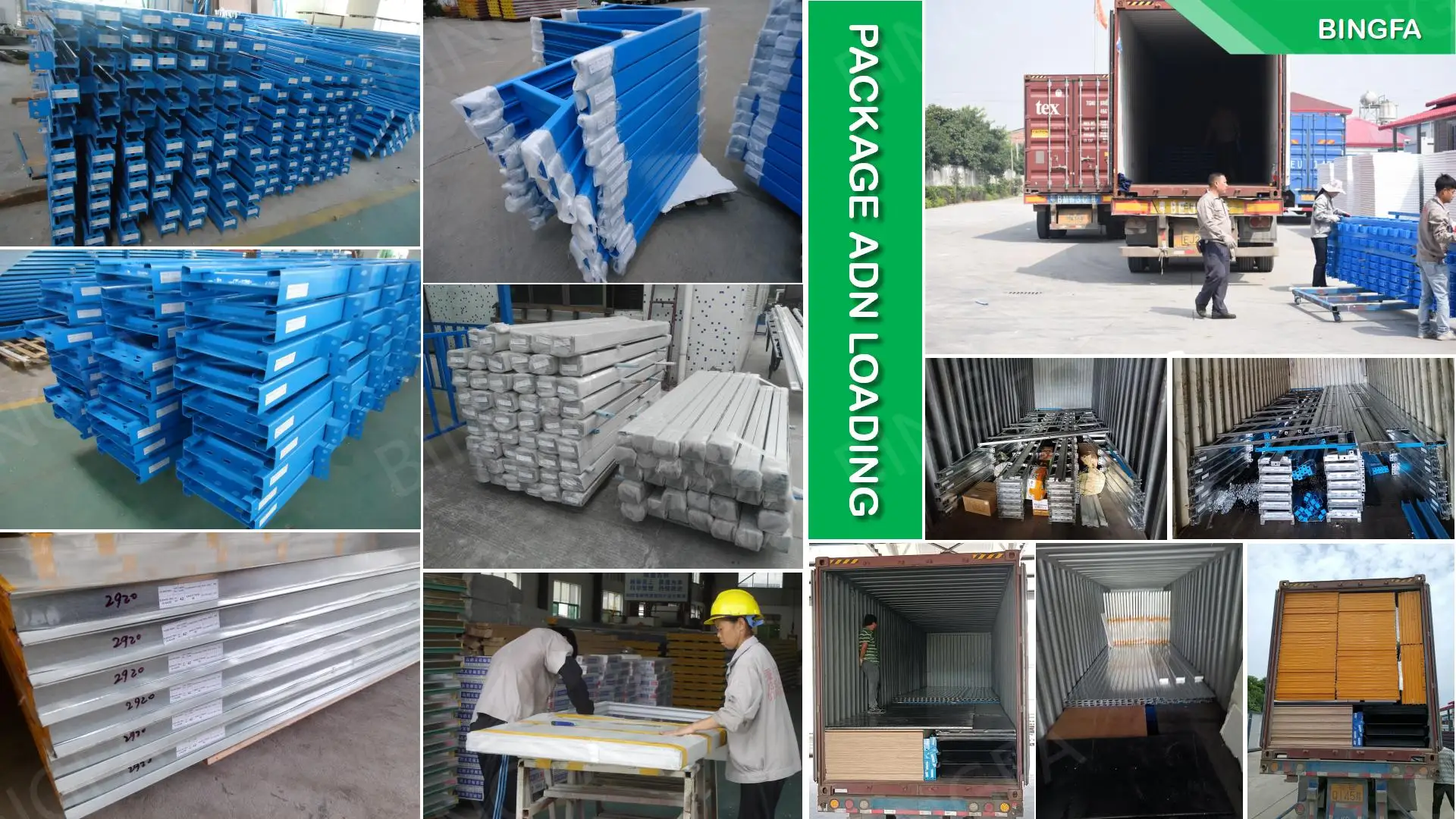

Packing & Delivery
Professional loading team:
We have a professional loading team and cranes, which can complete the loading quickly and meticulously.We have strict enforcement
standards when it comes to protecting our products.
standards when it comes to protecting our products.
Company Profile
BingFa Metal Product Co., Ltd. is a professional manufacturer of prefabricated houses, container houses, light steel villas, steel
structures and sandwich panels.
Our factory is located in Foshan, China, the famous Pearl River Delta region in southern China, and is closely connected with
highway, railway and port facilities. Within 10 years, our prefabricated houses, steel structures and sandwich panels have
occupied a certain market share, and have been highly praised by domestic and foreign customers.
Our products are widely used in construction site offices, labor camps, workers' accommodation, canteens, laboratory buildings,
storage rooms, warehouses, workshops, kitchens, lounges, toilets, taverns, etc. The annual output of the product is as follows:
Steel structure-10,000 tons ,container house-6000 units,prefabricated house-360,000 square meters, light steel villa-200,000
square meters, sandwich panel-2,000,000 square meters.
We always enhance our application abilities of prefab house and promote the new-green type house under the work of our strong
techical team,strict QC team,talent R&D team,rich experienced Sales Team,skilled production team.
Basing on their good management,strict qulitity control and excellent service,we success to export our products to
Australia,Middle East,Asia,Africa,South America etc.
structures and sandwich panels.
Our factory is located in Foshan, China, the famous Pearl River Delta region in southern China, and is closely connected with
highway, railway and port facilities. Within 10 years, our prefabricated houses, steel structures and sandwich panels have
occupied a certain market share, and have been highly praised by domestic and foreign customers.
Our products are widely used in construction site offices, labor camps, workers' accommodation, canteens, laboratory buildings,
storage rooms, warehouses, workshops, kitchens, lounges, toilets, taverns, etc. The annual output of the product is as follows:
Steel structure-10,000 tons ,container house-6000 units,prefabricated house-360,000 square meters, light steel villa-200,000
square meters, sandwich panel-2,000,000 square meters.
We always enhance our application abilities of prefab house and promote the new-green type house under the work of our strong
techical team,strict QC team,talent R&D team,rich experienced Sales Team,skilled production team.
Basing on their good management,strict qulitity control and excellent service,we success to export our products to
Australia,Middle East,Asia,Africa,South America etc.
FAQ
