Product Description
argon gas cylinder automatic welding robot machine
Product introduction
The automatic welding equipment is a special equipment designed according to the characteristics of the cylindrical cylinder. The equipment is suitable for the welding of the circumferential and longitudinal seams of the cylinder. It is equipped with a separate control box and operation box to realize simultaneous welding of 2 power sources and a roller frame. Linkage, beautiful welding shape and high production efficiency, it is the ideal equipment for professional cylindrical welding girth seam
The automatic welding equipment is a special equipment designed according to the characteristics of the cylindrical cylinder. The equipment is suitable for the welding of the circumferential and longitudinal seams of the cylinder. It is equipped with a separate control box and operation box to realize simultaneous welding of 2 power sources and a roller frame. Linkage, beautiful welding shape and high production efficiency, it is the ideal equipment for professional cylindrical welding girth seam
Horizontal moving speed of welding torch | 100-1000mm/min |
Effective translation stroke of welding torch | 2000mm |
Welding speed | 100-1000mm/min |
Suitable for welding diameter | ￠200mm-800mm |
Suitable for welding length | 1500mm |
Maximum workpiece weight of roller | 800kg |
Spindle speed | 1. 0.12-2rpm（Frequency conversion stepless speed regulation） |
Welding method | TIG/MIG/CO2 SAW |
Detailed

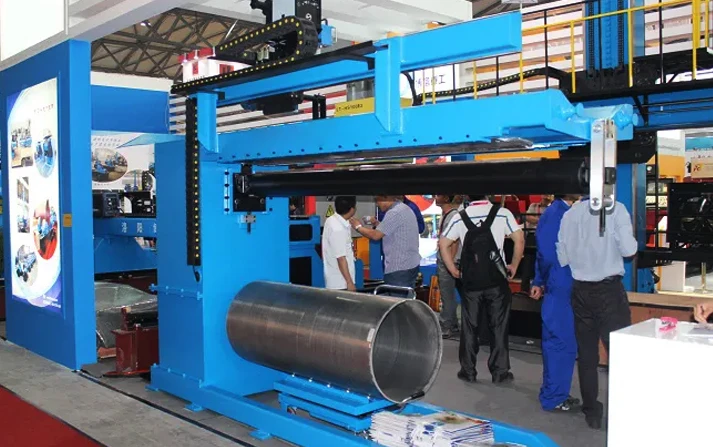

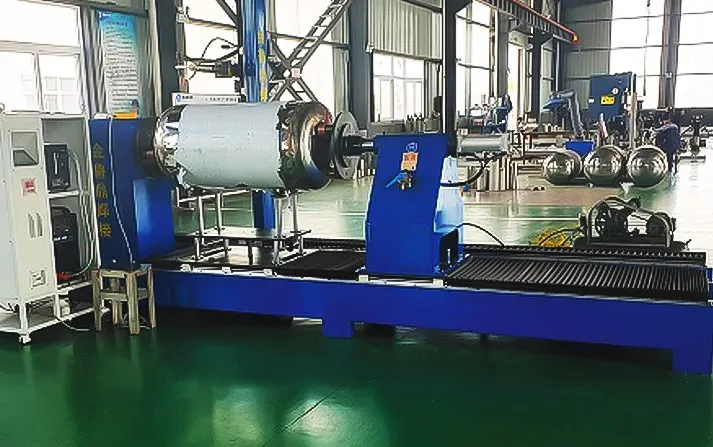

Cylinder Welding Workstation Show
Product advantages
1.The equipment is composed of welding gantry, workpiece positioner, welding equipment system, welding gun control system, etc. The whole equipment has a high degree of welding automation, simple operation and long service life.
2.Workpiece positioner, the head frame is tailor-welded by a box-shaped mechanism, with good rigidity, the entire drive system is built-in, and the appearance is beautiful. The chuck and the drive head are connected together, and the workpiece is clamped by the chuck to rotate under the drive of the drive head. Driving principle: AC motor—precision reducer—chuck—workpiece. The entire drive system has a self-locking function to ensure that the workpiece stays in any position at any time. The main engine is driven by AC variable frequency stepless speed regulation, constant torque output, stable speed, especially quick start or stop at low speed.
3.Welding gantry: Welding gantry is the carrier of the welding system and is made of tailored welding of profiles. Unique gantry structure design, high strength and good stability.
4.The welding gun control system has high positioning accuracy and simple operation. The end adjustment can be optional laser tracking automatic adjustment and manual adjustment.
5.Welding equipment adopts well-known domestic and foreign brands, such as Aotai, Panasonic, Lincoln, and Fronius. Brand customers can choose by themselves.
1.The equipment is composed of welding gantry, workpiece positioner, welding equipment system, welding gun control system, etc. The whole equipment has a high degree of welding automation, simple operation and long service life.
2.Workpiece positioner, the head frame is tailor-welded by a box-shaped mechanism, with good rigidity, the entire drive system is built-in, and the appearance is beautiful. The chuck and the drive head are connected together, and the workpiece is clamped by the chuck to rotate under the drive of the drive head. Driving principle: AC motor—precision reducer—chuck—workpiece. The entire drive system has a self-locking function to ensure that the workpiece stays in any position at any time. The main engine is driven by AC variable frequency stepless speed regulation, constant torque output, stable speed, especially quick start or stop at low speed.
3.Welding gantry: Welding gantry is the carrier of the welding system and is made of tailored welding of profiles. Unique gantry structure design, high strength and good stability.
4.The welding gun control system has high positioning accuracy and simple operation. The end adjustment can be optional laser tracking automatic adjustment and manual adjustment.
5.Welding equipment adopts well-known domestic and foreign brands, such as Aotai, Panasonic, Lincoln, and Fronius. Brand customers can choose by themselves.
Product Structure
Packed
Packed in wooden cases with shockproof foam up to about 30mm thick to ensure the safely. Professional logistics system to deliver the goods to port on time.
Our Service
Pre-Sale
Experienced sales to offer you the most suitable solution
After-Sale
Professional engineers team provided technical support
Certifications
Kehui always point to technology accumulation on intelligent welding since 1996. Up to now, we has 41 national patents and 6 software Copyrights. Kehui always the leader of Intelligent welding factory system. This showed some certifications of our welding machine.
FAQ
Q1.Are you a factory or trading company?
A: We are a professional manufacturer specialized in Robot Welding Machines, automatic welding system since 1996, located in Zhengzhou, Capital city of Henan Province, China.
Q2. How could I know if this machine is suitable for me?
A: Before ordering, we will provide every details of the machine for your reference, or you could tell us your detailed requirements, our technician will recommend the most suitable machine for you.
Q3.How long is the warranty time for your products?
A: Our officially promised fiber laser marking machine warranty time is two whole year after delivery at best.
Q4. Can I visit your factory?
A: Welcome to visit our factory. We build business relationship with many well-known factory. We can visit the cooperative factories if you need, and you could know more thing about kehui according that.
Q5.I haven't done business with you guys before,how can I trust your company?
A: We would trade on Alibaba online to make sure your money is safely; Kehui build on 1996, we has rich experience of intelligent welding factory solutions. Kehui had established business relationship with so many famous brands. Quality is reliable.
Q6.What's the shipment terms and delivery time of your company?
A: It depends on the quantity of your order. Meanwhile,our board attach importance to foreign orders ,thus the orders aboard will have priority over it at home.
Our Company
Zhengzhou Kehui Technology is a professional integrated welding project solution supplier. We located in zhengzhou - capital of henan province, and we have more than 300 employees.
We have four manufacture basements in China, total 26000 ㎡, Each basement has experienced workers, is capable of technical programming, site construction, manufacture, technical support, installation, commissioning and system integration. What is more, share resource and well cooperation could strongly support big project.
Contact Us and get the last price:
WEB:https://www.zzkehui.com/
E-mail: info@zzkehui.com
Похожие товары

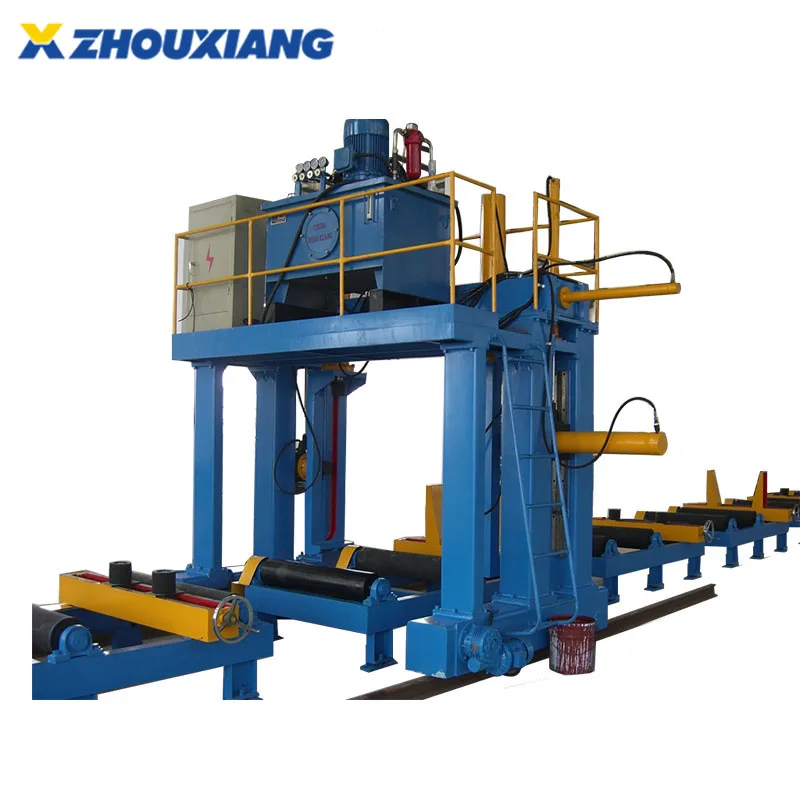

Zhouxiang коробка колонна сборочная машина
40 000,00 $
Автоматический Роботизированный производитель сварочный трансформатор Танк робот ar1440 сварочная цена
17 500,00-18 000,00 $
Автоматический сварочный аппарат автоматический для цистерны неправильной формы резервуар

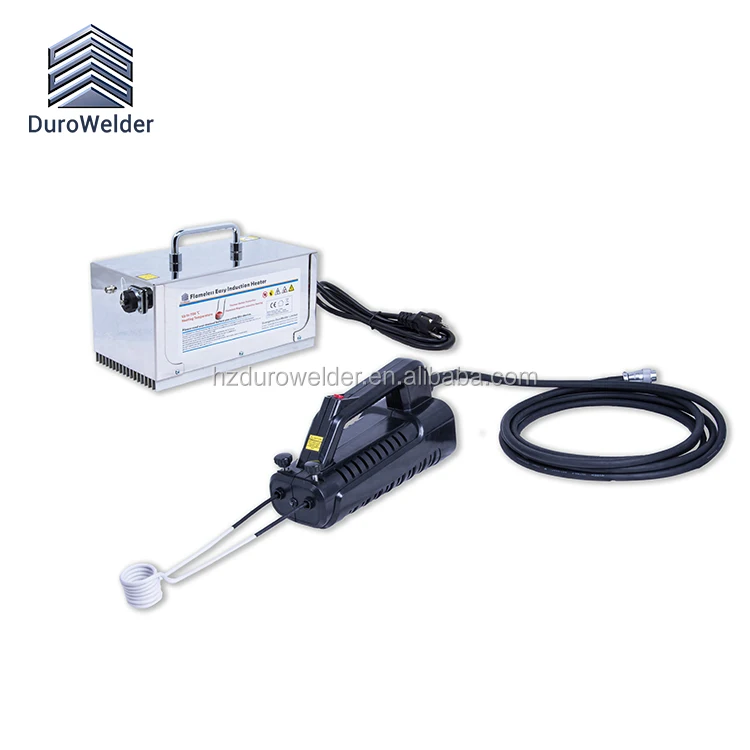

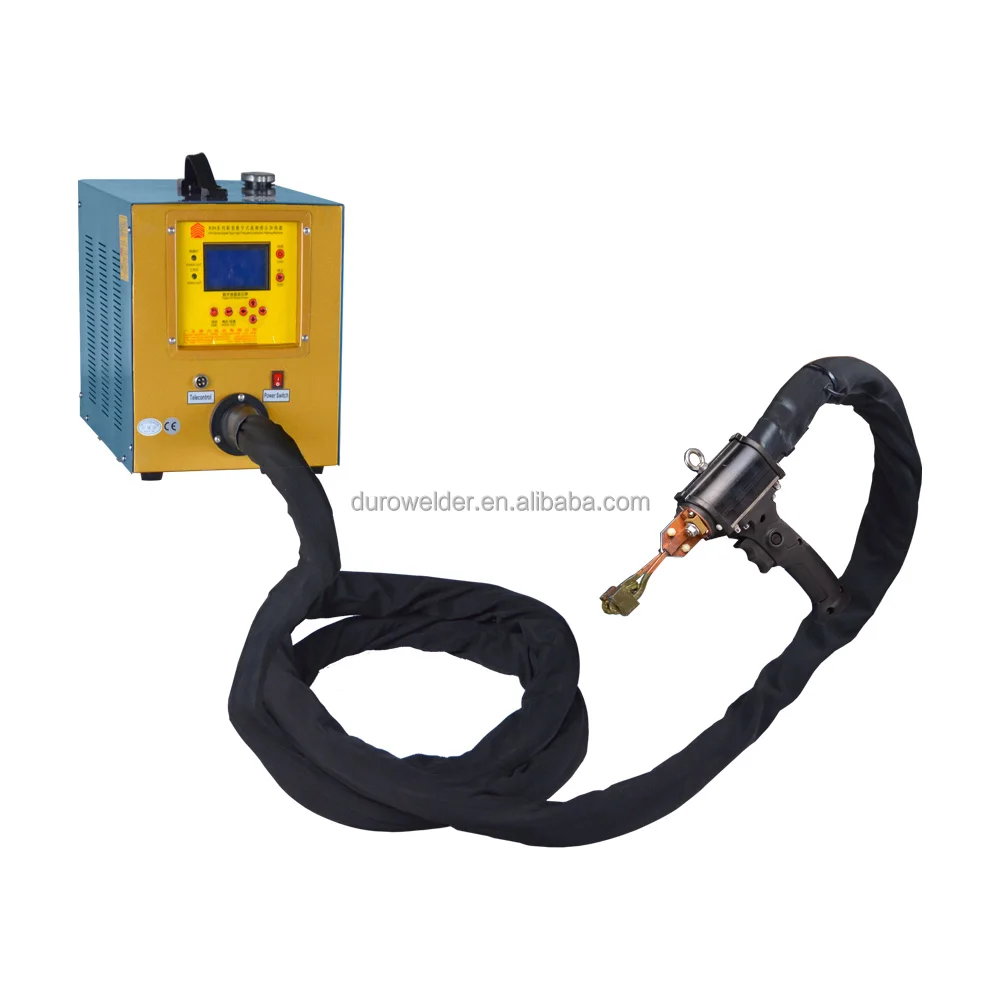

Ручной портативный высокочастотный индукционный нагреватель
850,00-900,00 $
Guangzhou DuroWelder ограниченный металлический индукционный нагреватель
Портативный индукционный нагреватель мощностью 1 4 кВт

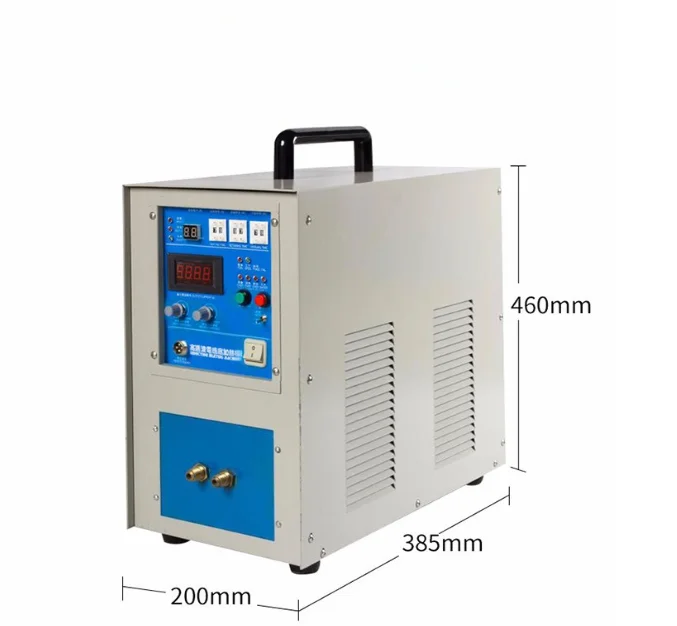

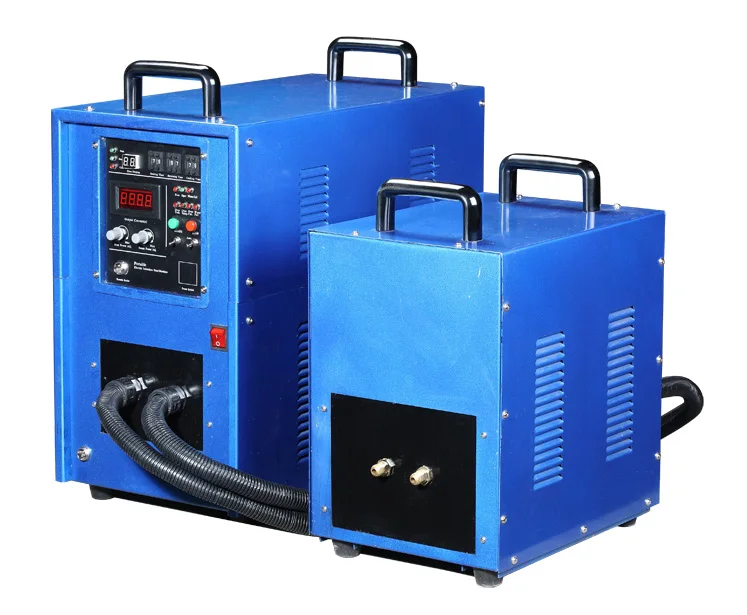

DW-15KW подвижный и Портативный индукционный нагреватель
