250 Ватт 300 400 Вт интеллектуальная светодиодная уличная лампа на солнечной батарее
1,50-2,05 $
Светодиодные уличные фонари наружные Проводные светодиодные Кобра 100 n Калибр и тени книга
- Категория: >>>
- Поставщик: Ningbo Oyate Lighting Electrical Appliance Co. Ltd.Ningbo Ltd.
Сохранить в закладки 1601338504528:
Описание и отзывы
Характеристики
Product Description
Ningbo Oyate Lighting Electrical Appliance Co.,Ltd is a professional engaged in the research,development,sale and service of traditional HID:Metal halide lamps,High pressure Sodium Lamps,Mercury lamps,Magnetic ballast, CWA ballast,Igniter,Capacitor,Street light,flood light,high bay light for more than 15 years and LED :Led street light,Led flood light,Led high bay light,Led garden light,Led solar light,Led Landscape Light,Led strip light,led T8 light for more than 8 years.We have more than 400 square meters of office and 5000 square meters of production workshop.
WHY CHOOSE US?
1)RICH PROJECT EXPERIENCE
the projects that have been successfully delivered include:
Asian market: Bangladesh Stadium 1200w project with DMX Control, Bangladesh Tennis Court 200w led high bay project, Bangladesh Led street light project,Big shopping mall LED Strip light project for DHAKA,Malaysia 400w led flood light project.
European market: Netherlands Stadium lighting Project；Italy led street light Project,Spain Yard project, Solar led street light project
2)RESEARCH AND DEVELOPMENT
the ability to develop new molds every year and the ability to cooperate with customers in developing new molds and professional confidentiality work
3)INNOVATIVE R&D TEAM
We have an engineer team to respond the DIALUX Simulations for lights quantity calculations and effects.IES Files are available upon request.
4)ABROAD TECHNICAL SUPPORT
For some professional projects, we can provide on-site technical support from abroad.
5) FLEXIBLE PAYMENT METHODS
After establishing a stable foundation of trust and cooperation, we can support customer O/A payment.
CATEGORY
Product Details
Venus Model Lens Type
–4 sizes aluminum die-casting housing design from 20-250W;
– Tens of beam angle PC lens with high visual comfortable and
uniform lighting distribution to meet different optics requirement;
– High quality LED chips, Driver (0-10V/DALI/programmed upon requests), 10kv/20kv spd;
– Class I / Class II is available upon request;
– Top-post and side-entry mounting, angle can be adjustable, installation diameter Φ60mm;
– Akzo Anti-UV pure polyester powder painting;
– No photo-biological risk (no risk linked to infrared, blue light or UV) in accordance with EN 62471;
– With Nema/Zhaga socket, could work with smart-city control technology;
–Luminaire efficacy: Up to 150 lm /w or 185lm/w
– Lifetime more than 100, 000 hours
– Impact resistance: IK10
– Type of protection: IP66
– Tens of beam angle PC lens with high visual comfortable and
uniform lighting distribution to meet different optics requirement;
– High quality LED chips, Driver (0-10V/DALI/programmed upon requests), 10kv/20kv spd;
– Class I / Class II is available upon request;
– Top-post and side-entry mounting, angle can be adjustable, installation diameter Φ60mm;
– Akzo Anti-UV pure polyester powder painting;
– No photo-biological risk (no risk linked to infrared, blue light or UV) in accordance with EN 62471;
– With Nema/Zhaga socket, could work with smart-city control technology;
–Luminaire efficacy: Up to 150 lm /w or 185lm/w
– Lifetime more than 100, 000 hours
– Impact resistance: IK10
– Type of protection: IP66
Product Description

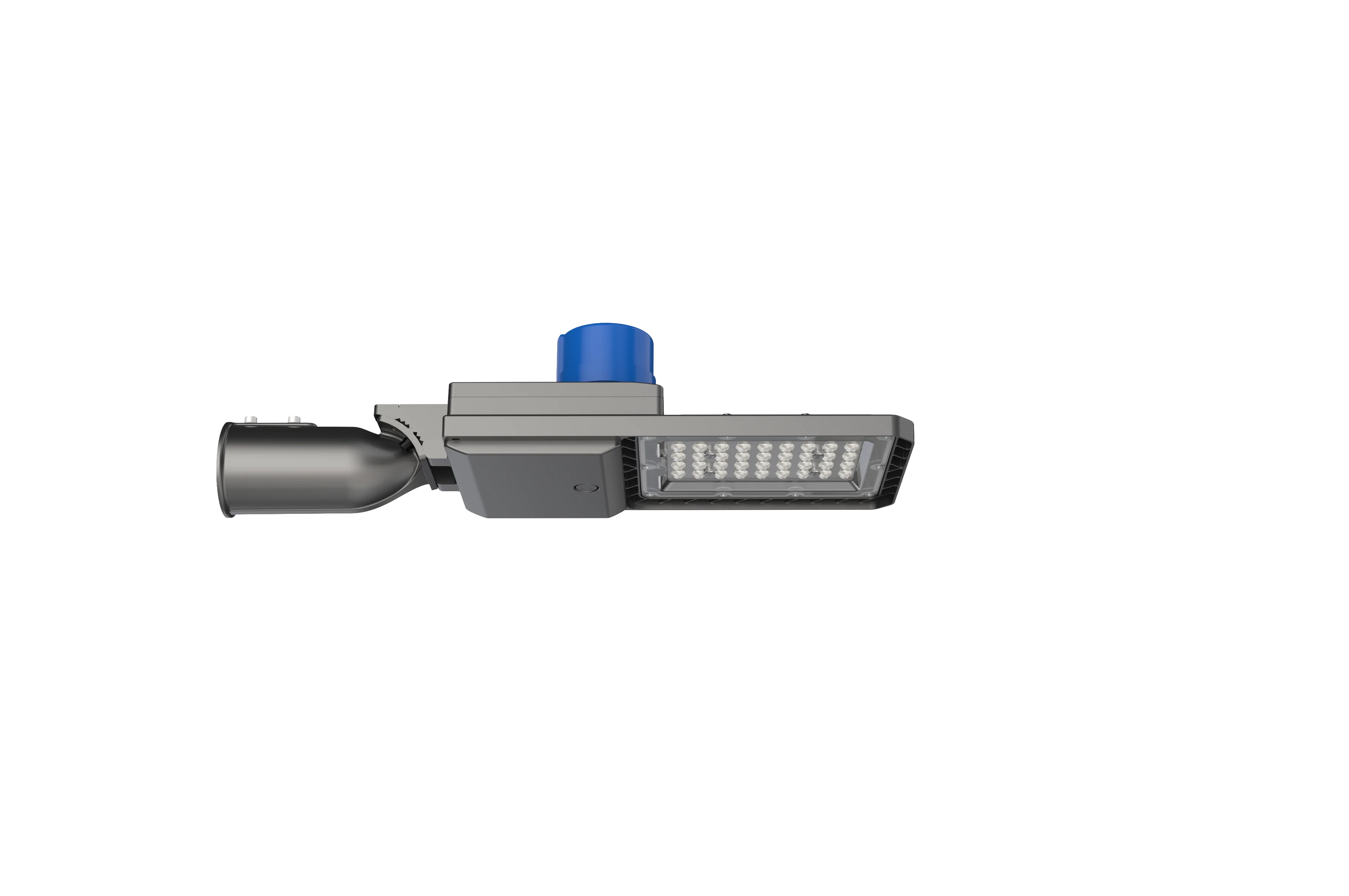

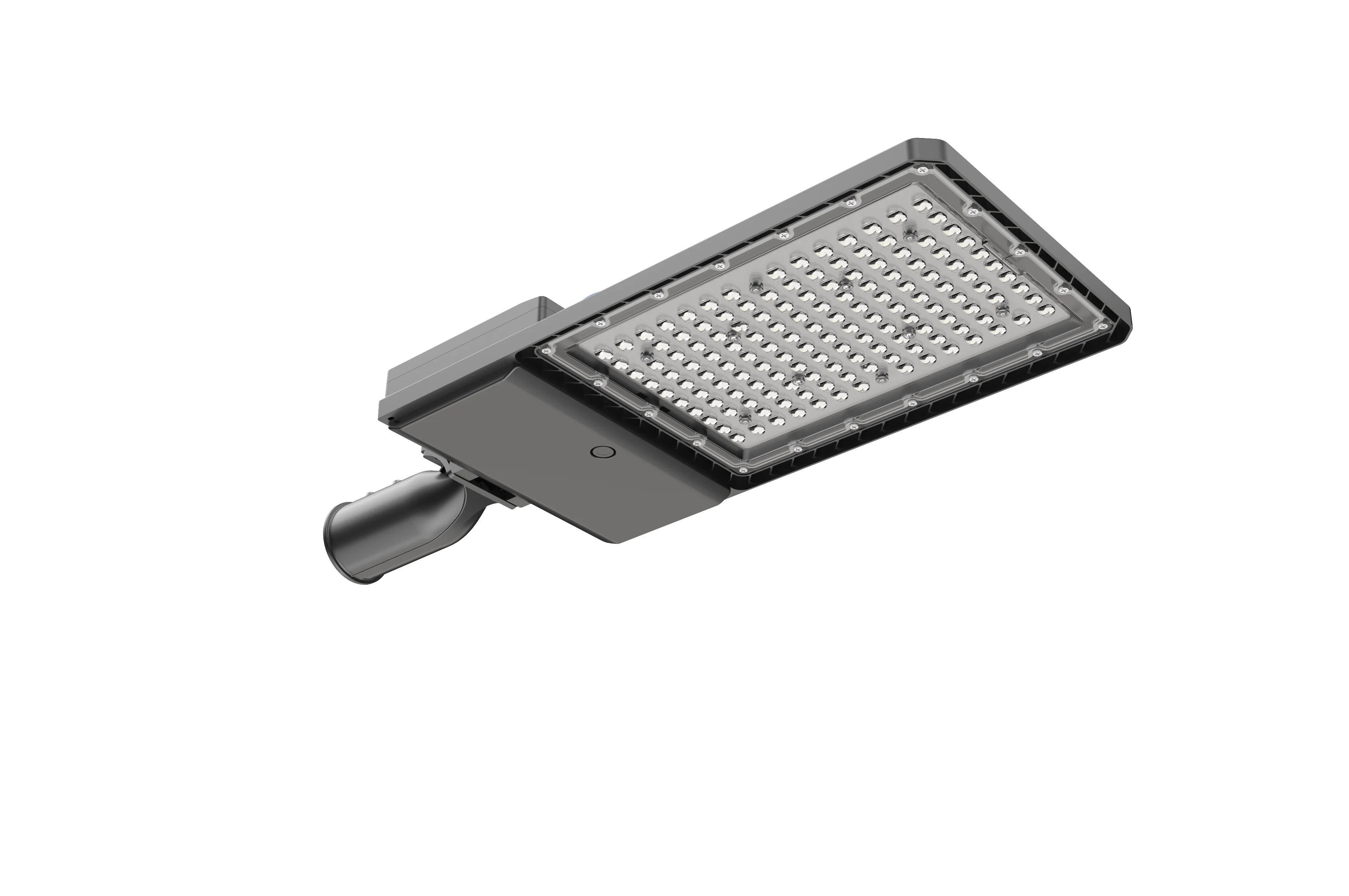

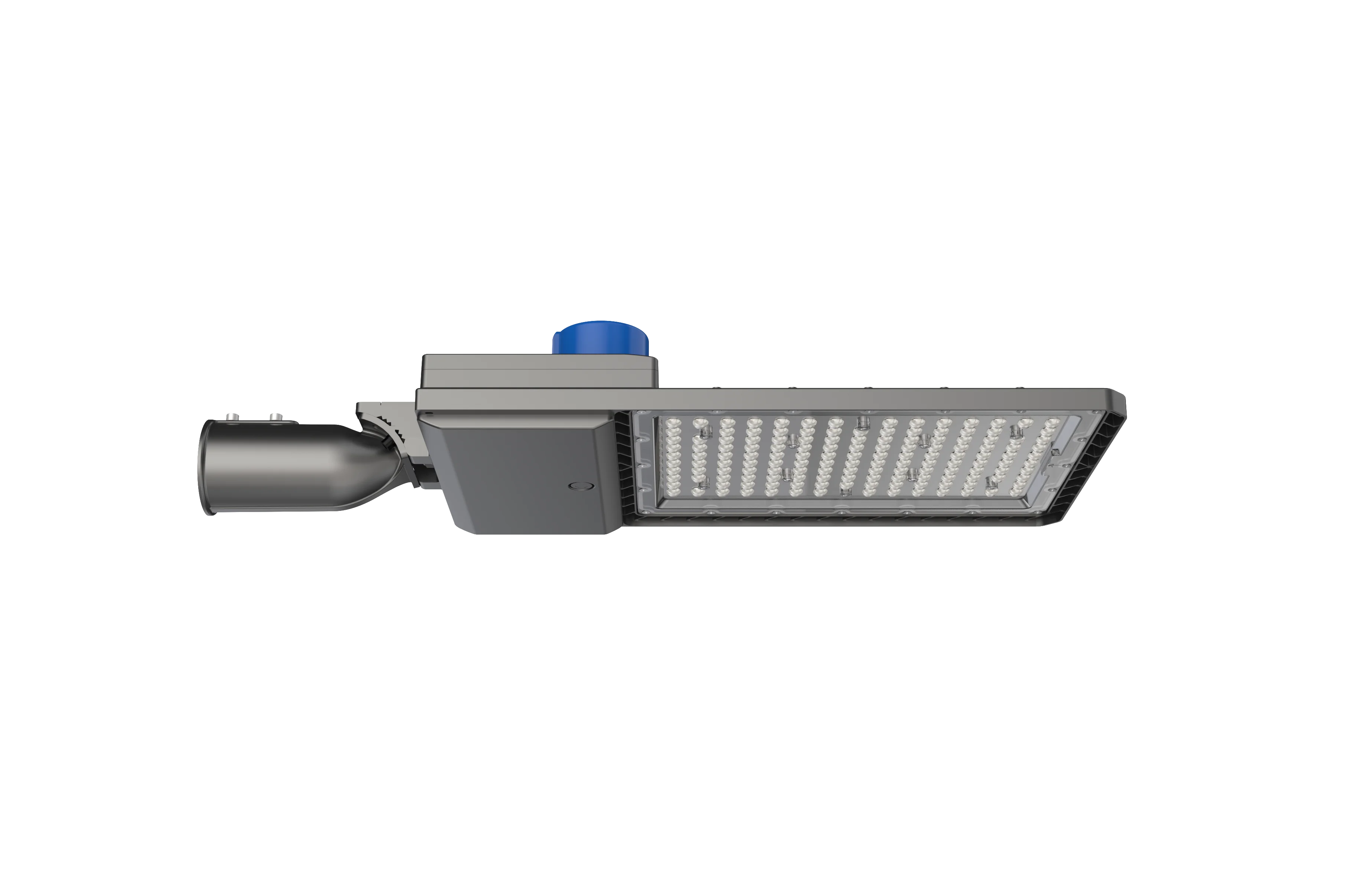

VENUS MODEL led street light PC and Glass diffuser
This Venus led street light is our new private Mould 2024 year with Glass and PC diffuser for option,Slim, nice design with relevant economic cost compare with other heavy and thick model.
Model No | VENUS(Lens and Glass Type) |
Power | 30w.40w,60w,75w,80w,100w,120w,150w,180w,200w,250w |
Nomial voltage | Lumileds /Other brands on request |
Driver | Philips / Inventronics / moso / Other brands on request |
Power Factor | >0.95 |
THD | <15 |
SPD | 10KV / 20KV |
Optics | T1,T2,T3,T4,T5 |
Standard Deviation of Color Matching | <5 SDCM |
CRI | Ra>70 (Default) / Ra>80(available on request) |
CCT | 2200K,3000K, 4000K, 5000K, 5700K,6500K |
Body Materia | High pressure die-cast aluminum |
Housing Color | Available on request |
Cover Material | Super white tempered glass |
Lens Materials | UV-resistant Polycarbonate |
Working Environment | 40°C ~ +50°C, 10%～90%RH |
Lifespan L70 at 25 °C | >100, 000 h |
Dimmable | Non-dimming (Default) /1-10v(available on request) |
Protection Class | Class I (Default) /Class II |
Available on reques | NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor,NTC, OLC, Solar Compatible, 1-10V/DALI Dimming |
Product Benefits
– 70% energy saving, short ROI period
– Up to 100, 000hrs @ L70, low maintenance cost
– Wide choice of optics for different applications
– Smart design, low transportation costs
– 5 years warranty
Areas of application
– Local roads
– Express roads
– Town roads
– Residential area roads
– Pedestrian crossings
– Parking areas
– 70% energy saving, short ROI period
– Up to 100, 000hrs @ L70, low maintenance cost
– Wide choice of optics for different applications
– Smart design, low transportation costs
– 5 years warranty
Areas of application
– Local roads
– Express roads
– Town roads
– Residential area roads
– Pedestrian crossings
– Parking areas
Detailed Images
Glass Type
If the lens type is not interested you,We
also have the Glass Type to meet your requirment.

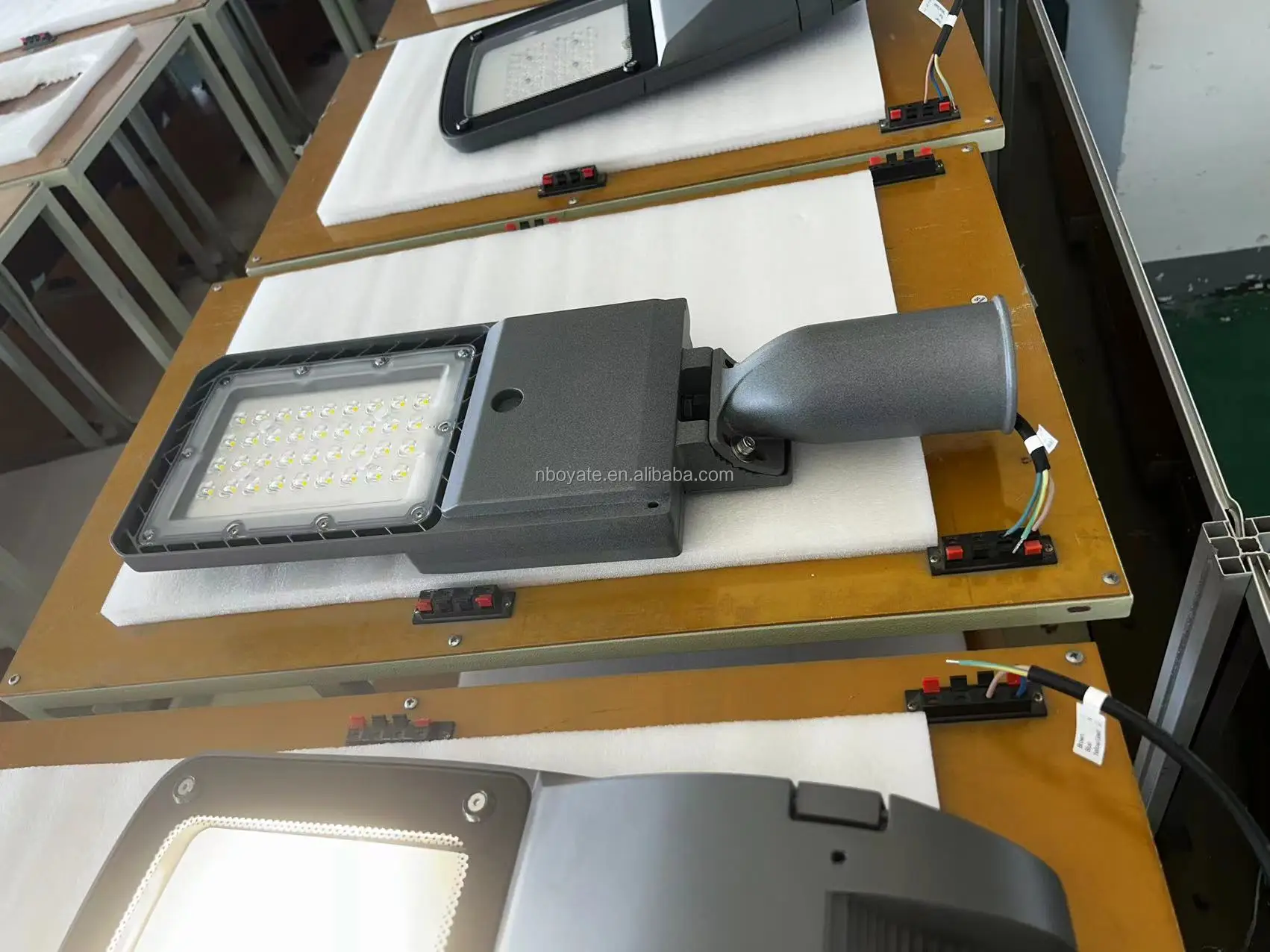

Test
All led street light under professional test before shipment to make sure quality is top.
Driver
This Venus Model mainly work with Philips driver,anyway,other brand driver also workable upon your request
Packing&Shipping
Company Introduction
Ningbo Office :
Office 411 Square meter
Factory 5000 Square meter
Project shows
FAQ
A) How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B) Sample time? Existing items:
Within 7 days.
C) Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.OEM /ODM
Service.
Service.
D) Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.
E) How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
F)What is your special service in this lighting field?
We can provide the professional light simulations according to your required.
Похожие товары
Уличные светильники из литого алюминия 50 Вт 100 150 200
IP65 водонепроницаемый алюминиевый CCC Сертифицированный для дорожного источника питания переменного тока высокой мощности 50 Вт и 350 Уличные светодиодные уличные фонари
20,00-30,00 $
Городское освещение Ip66 водонепроницаемый наружный Smd уличный свет литье алюминия 50 Вт 100 светодиодный
Пользовательский IP67 SMD светодиодный модуль 50 Вт 30 40 60 20 уличный фонарь водонепроницаемый Ip66 переменного тока 220 В
7,80-8,00 $

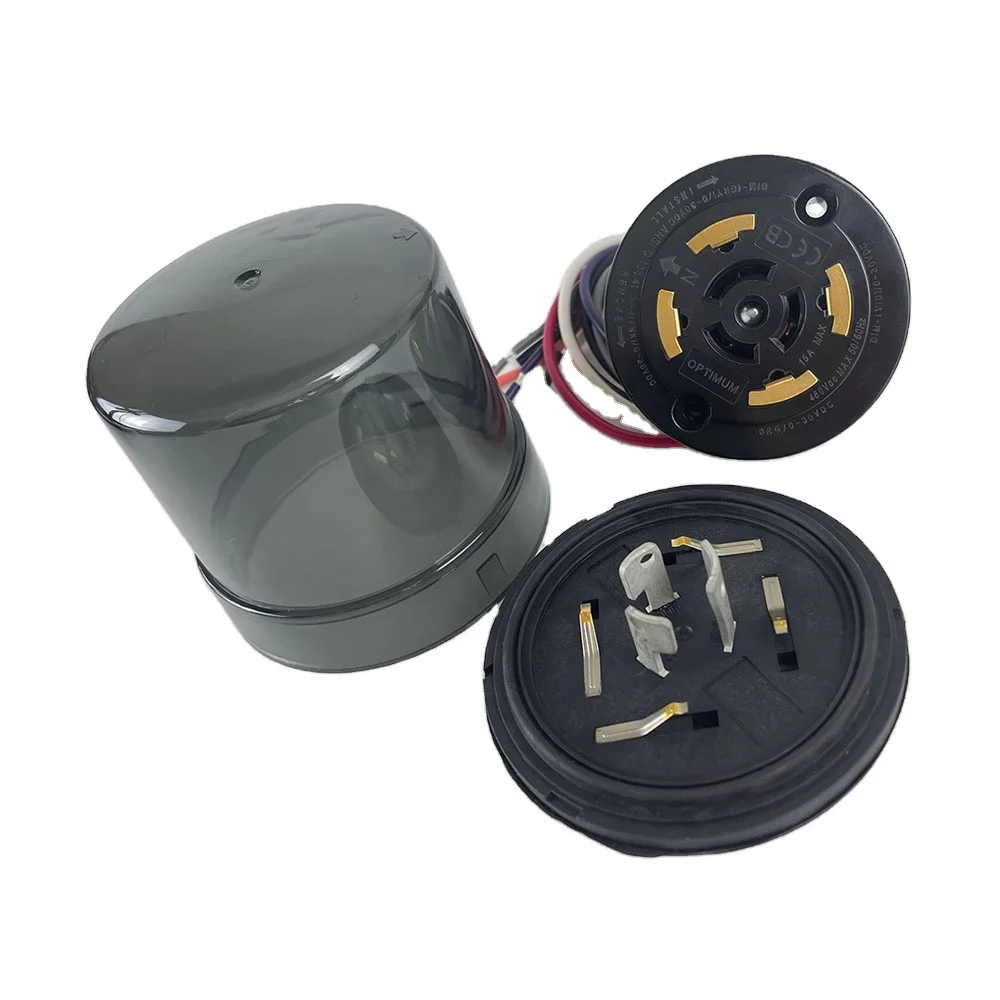

Высокое качество IP67 Lora/NB-IOT/CAT1 совместимый узел управления (Национальная ассоциация владельцев электротехнических 7 пин контроллер для уличных светильников корпус
