15. 6 дюймов Full HD сенсорный экран Настольный Конференц-терминал с микрофоном емкостный безбумажный Конференц-система
2 606,00-2 608,00 $
Система видеоконференций цифровой безбумажный расширитель Конференц системы для решения конференц зала
- Категория: >>>
- Поставщик: Guangzhou DSPPA Audio Co. Ltd.Guangzhou Ltd.
Сохранить в закладки 1601339320554:
Описание и отзывы
Характеристики
Details Images
Features
Support port auto flip function.

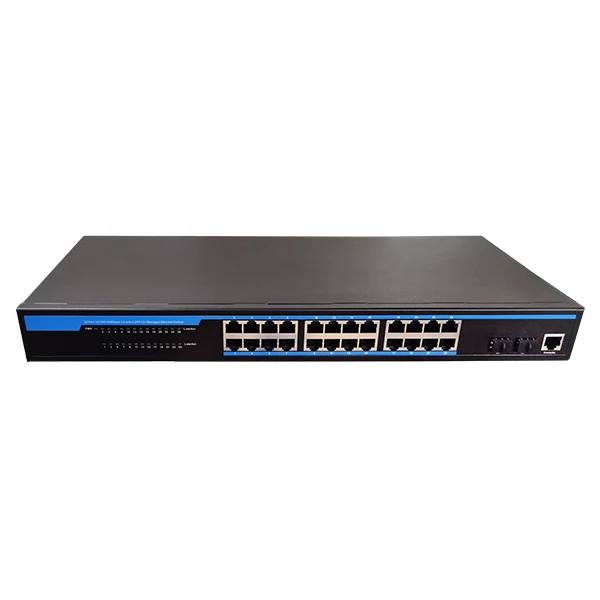

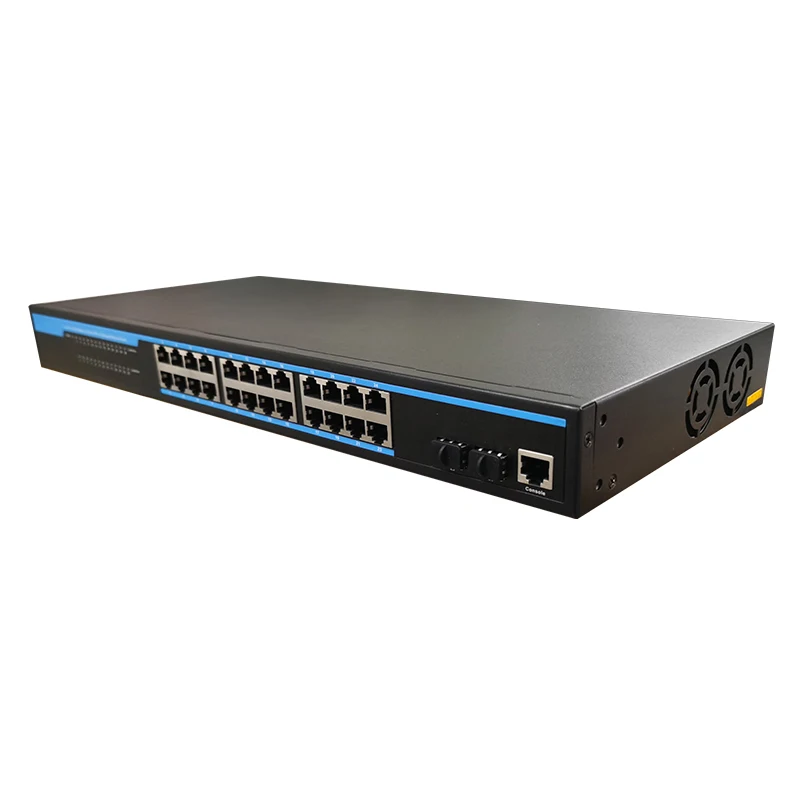

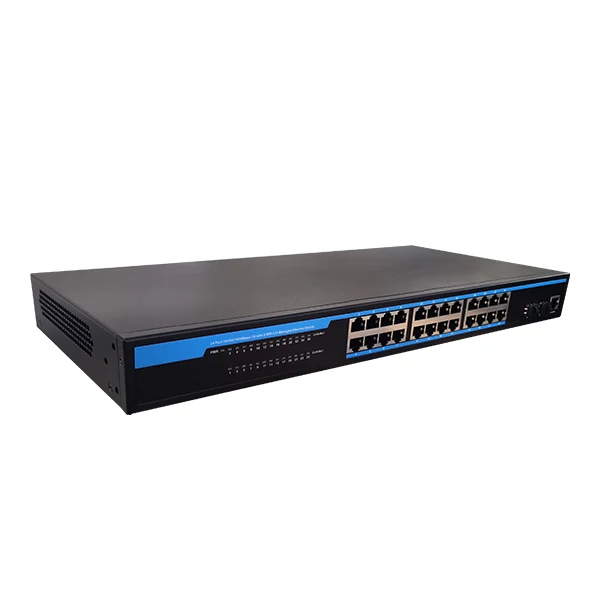

With 24 gigabit ports and 2 independent gigabit optical ports.
Support port mirroring and bandwidth control.
Support Web management method.
Support IEEE802.3x flow control.
Auto detection of the receiving end; auto power management.
The network port supports lightning protection.
With built-in AC-DC power supply.
The AC input port supports lightning protection.
Support working temperature of 0°C ~ 40°C.
With 24 gigabit ports and 2 independent gigabit optical ports.
Support port mirroring and bandwidth control.
Support Web management method.
Support IEEE802.3x flow control.
Auto detection of the receiving end; auto power management.
The network port supports lightning protection.
With built-in AC-DC power supply.
The AC input port supports lightning protection.
Support working temperature of 0°C ~ 40°C.
Product Paramenters
Model | D7602E | |
Hardware Specifications | ||
Required Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z | |
Working Mode | Store and forward; support wire-speed forwarding | |
MAC Address Table Capacity | 8 K | |
Backplane Bandwidth | 52 Gbps | |
Flow Control | IEEE 802.3x flow control, back pressure flow control | |
Software Specifications | ||
Port Configuration | Support to configure disable&enable, rate, full/half duplex, flow control, address learning | |
Port Mirroring | Support many-to-many mirroring | |
VLAN | Support port-based VLAN and 802.1q Tag-VLAN | |
Link Aggregation | Support up to 8 groups, each group up to 4 gigabit ports | |
Flow Fontrol | IEEE 802.3x flow control, back pressure flow control | |
Port Speed Limit | Speed limit unit: 64kbps | |
Spanning Tree Protocol | Support STP, RSTP, MSTP | |
Other Loop Protocols | Support EAPS | |
Multicast | Support 256 multicasts, support IGMP Snooping | |
QoS | Support 4 priority queues Provide multiple queue scheduling algorithms such as SP, WRR, SP+WRR, etc. Support port-based / MAC-based / 802.1p-based / DSCP-based classification | |
Port Mirroring | Support many-to-many mirroring | |
ACL | Support standard IP extended IP MAC IP ARP, support 512 ACL rules | |
Security | Support MAC 802.1X-based authentication Support AAA/RADIUS authentication Support WEB/Telnet login password protection Support password protection for access privileged mode | |
SNMP | Support | |
Configuration File | Support to upload and download configuration files via Web | |
Firmware Upgrade | Support to upgrade firmware via Web | |
Management Interface | Support WEB, SNMP, CLI, Telnet, Console | |

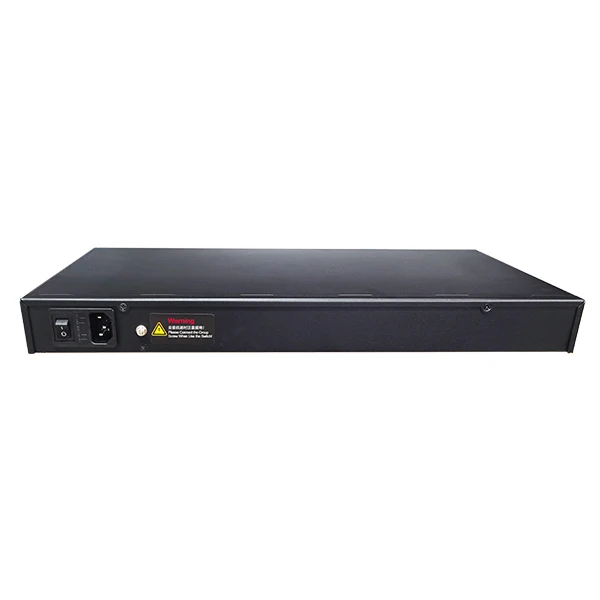

Power Input | Power Input | |
AC Input Voltage | 100 ~ 240 VAC 50-60 Hz | |
Lightning Protection | AC input supports 6kV lightning protection | |
Power Consumption | 15W (without PD load) | |
Use Environment | Use Environment | |
Working Temperature | 0℃ ~ 40℃ | |
Storage Temperature | -40℃ ~ +85℃ | |
Relative Humidity | 10% ~ 90% RH, no condensation | |
Installation Method | Desktop/Rack-mounted | |
Shell | Metal | |
Package Dimensions | 505 mm x 285 mm x 100 mm | |
Machine Dimensions | 440 mm x 200 mm x 44 mm | |
Gross Weight | 3.3kg | |
Net Weight | 2.6kg | |
