Product Description

CloudEngine S5731-H series GE/GE hybrid Ethernet switches provide GE or GE hybrid ports for downlink, four GE optical ports for uplink, and one expansion card slot.

CloudEngine S5731-H is based on HW‘s Versatile Routing Platform (VRP). It has the versatile integration capability of wired and wireless, supports on-board AC, and can manage up to 1K aps. Have the ability to follow business and provide consistent user experience; It supports innovative photoelectric collaborative technology and integrates optical and electrical ports. It can be used as a central switch to provide power supply for remote module (RU) over 300 meters from 60W PoE++. It is the best choice for branch of large and medium-sized high-end quality campus network, core of small campus network and data center access. Widely used in medical, retail, mining, Internet and other industries.

Ultra-remote access
Built-in board AC
512MB extra large cache

Item	Details
Part Number	02354QXB
Model	S5731-H48HB4XZ
Description	S5731-H48HB4XZ(44Hybrid GE SFP ports, 4Hybrid 10GE SFP+ ports, 410GE SFP+ ports, 1expansion slot, PoE++, without power module)

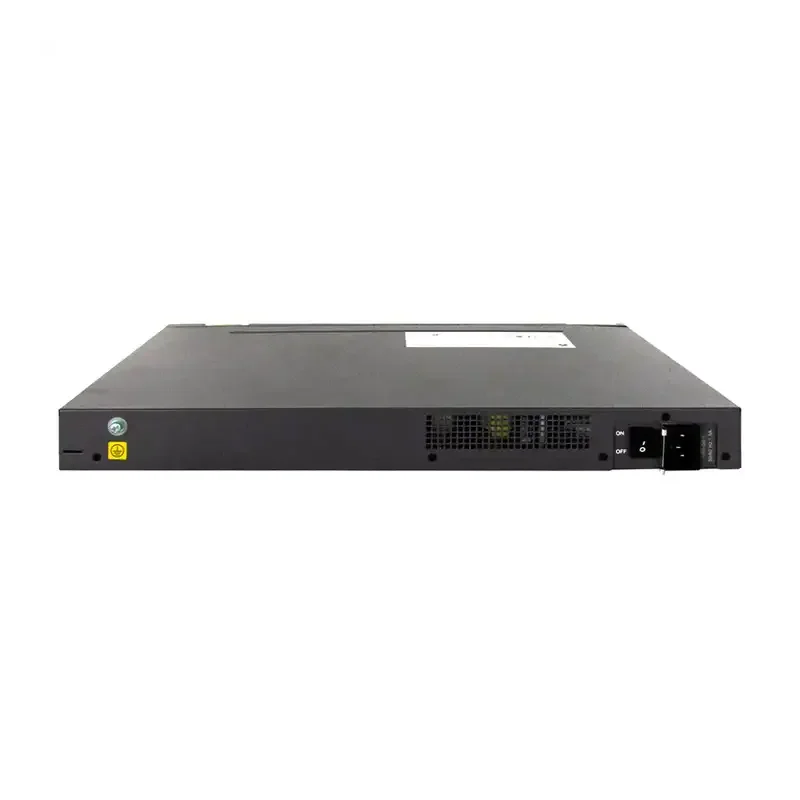

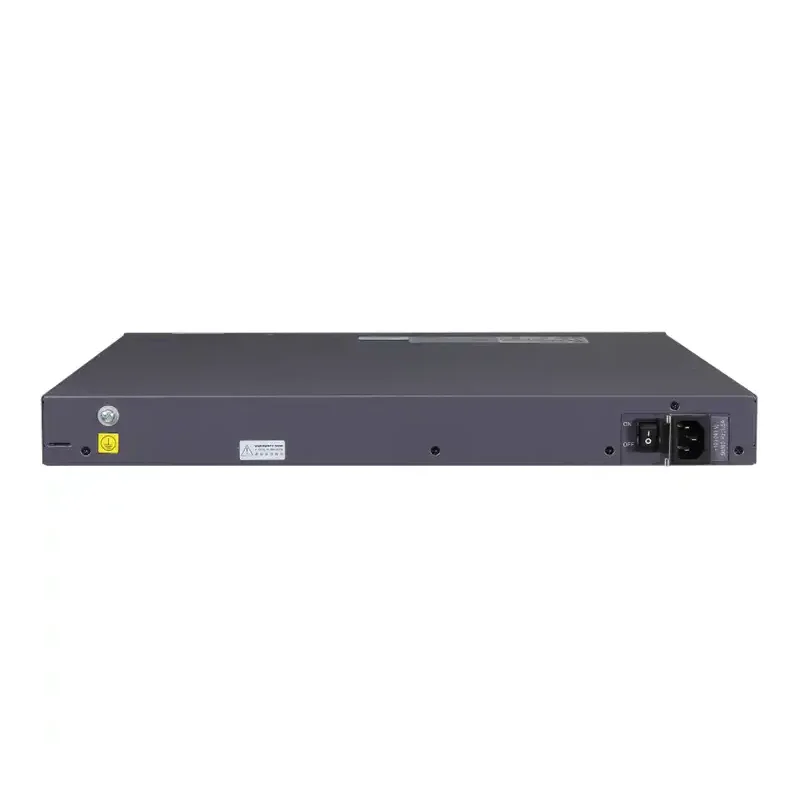

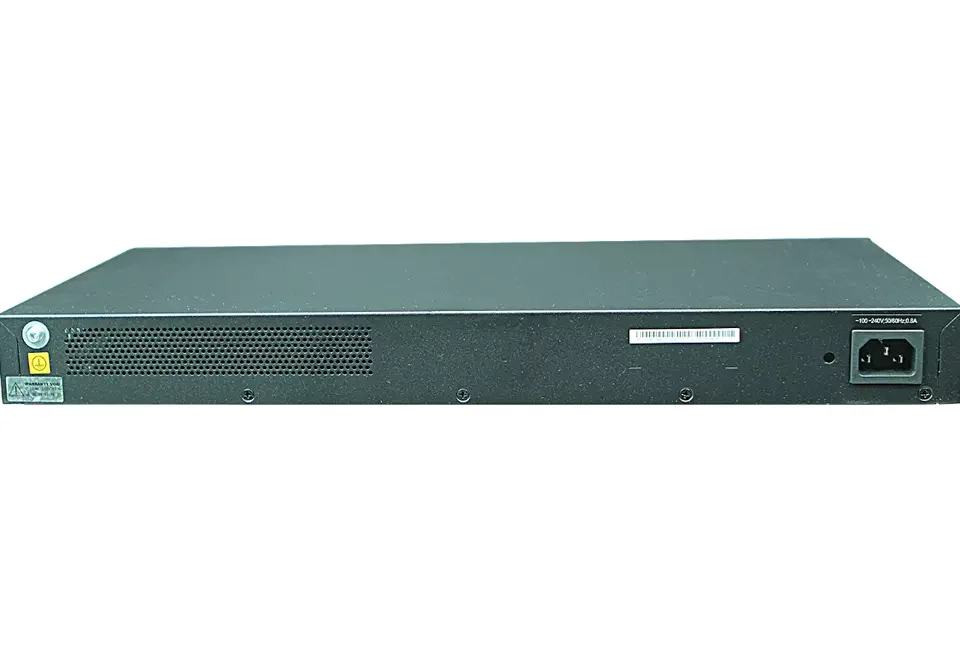

Details Images

Specification

Wide [mm]	442.0 mm
Depth [mm]	420.0 mm
Height [mm]	43.6 mm
Chassis height [U]	1
Weight with packaging [kg(lb)]	7.96 (17.55)
Weight without packaging [kg(lb)]	6.16 (13.58)
Typical power consumption [W]	118
Maximum power consumption [W]	- Without PoE: 151 W (without cards) - Full PoE load: 1927 W (PoE: 1745 W, without cards)
Typical heat dissipation [BTU/hour]	402.63
Maximum heat dissipation [BTU/hour]	- Without PoE: 515.23 (without cards) - Full PoE load: 6575.12 (without cards)
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Power supply mode	Pluggable power supply
Rated input voltage [V]	- AC input: 100 V AC to 240 V AC; 50/60 Hz - High-voltage DC input: 240 V DC - DC input: –48 V DC to –60 V DC
Input voltage range [V]	- AC input: 90 V AC to 290 V AC; 45–65 Hz - High-voltage DC input: 190 V DC to 290 V DC - DC input: -38.4 V DC to -72 V DC
Maximum input current [A]	The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.
Number of card slots	1
Number of power slots	2
Memory	2 GB
Flash memory	1 GB in total. To view the available flash memory size, run the display version command.
Redundant power supply	1+1 Pluggable AC and DC power modules can be used together in the same switch, but power modules that use natural heat dissipation and power modules that use air cooling cannot be used together.
Types of fans	Pluggable
Noise at normal temperature (acoustic power) [dB(A)]	Dual-AC 600 W, 70% load: 57.77 dBA Dual-AC 1000 W, 70% load: 63.78 dBA Dual-DC 1000 W, 70% load: 62.38 dBA Dual-AC 600 W, 100% load: 63.78 dBA Dual-AC 1000 W, 100% load: 68.07 dBA Dual-DC 1000 W, 100% load: 66.26 dBA
Airflow direction	Air intake from left, front, and right and air exhaust from rear
Long-term operating temperature [°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Restriction on the operating temperature variation rate	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met: - The operating temperature can exceed 45°C (113°F) for a maximum of 96 consecutive hours in a year. - The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours. - The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year. If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur. Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
MTBF [year]	53.82
MTTR [hour]	2
Availability	>0.99999
Maximum number of physical ports on the entire device	60 (including cards)
Maximum number of 100GE ports	0
Maximum number of 40GE ports	2 (including cards)
Maximum number of 25GE ports	2 (including cards)
Maximum number of 10GE ports	16 (including cards)
Maximum number of GE ports	60 (including cards)
Maximum number of FE ports	52 (including cards)
10GE optical interface	4
USB	Supported
Console port	RJ45
Eth Management port	RJ45
Service port surge protection	-
Power supply surge protection	- Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode - Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
RPS input	Not supported
PoE	Supported
PoE power supply	Supported
