316 металлический шланг 304 трубы из нержавеющей стали dn25
- Категория: >>>
- Поставщик: Hebei Huansheng Rubber & Plastic Products Co. Ltd.Hebei Ltd.
Сохранить в закладки 1601341106341:
Описание и отзывы
Характеристики
Product Description

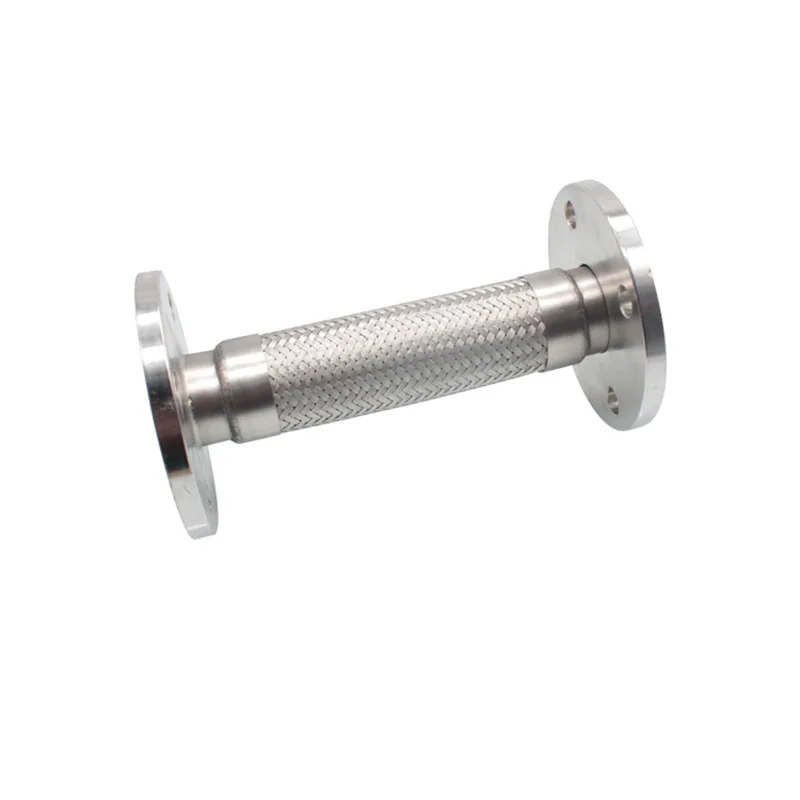

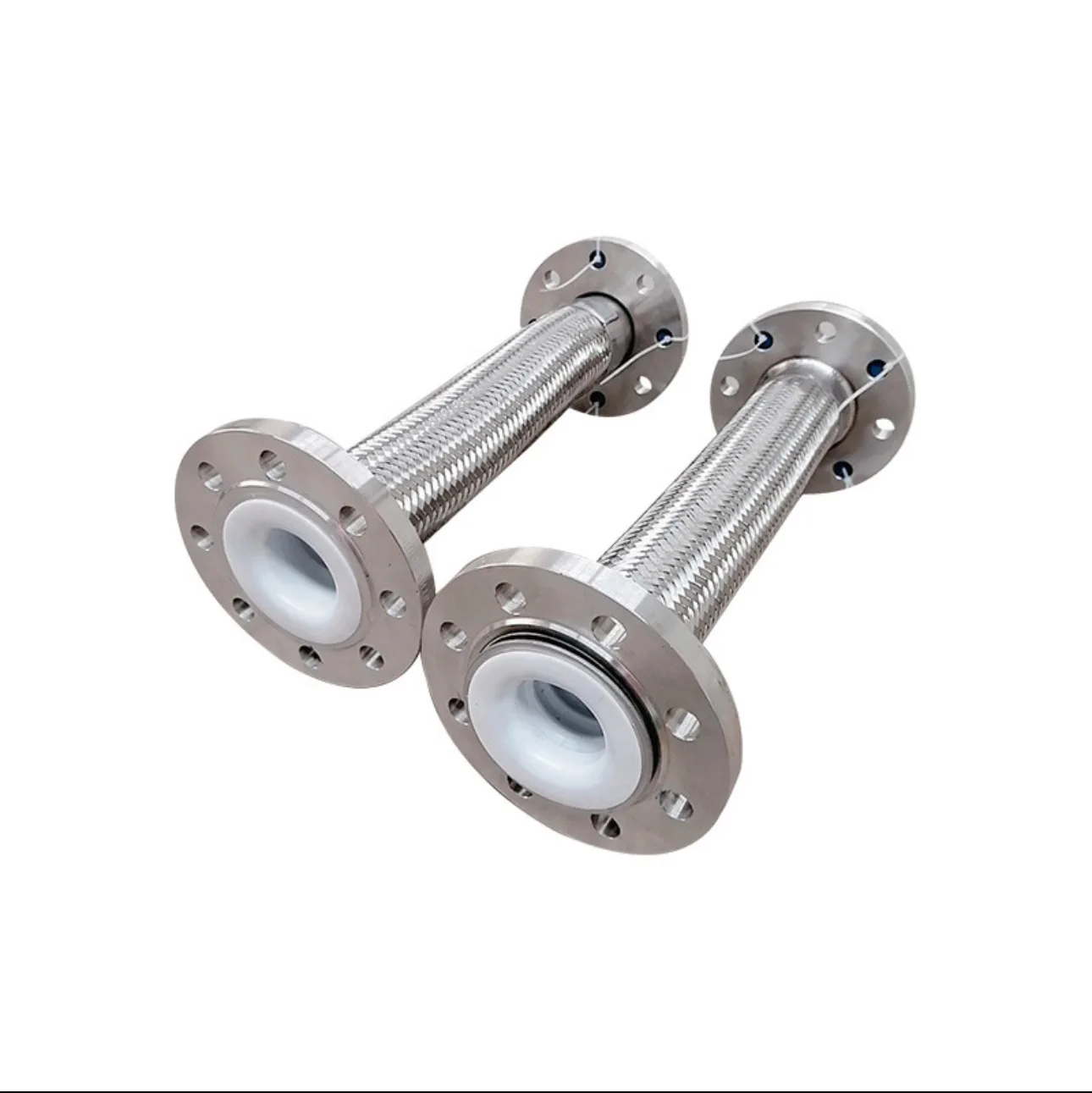

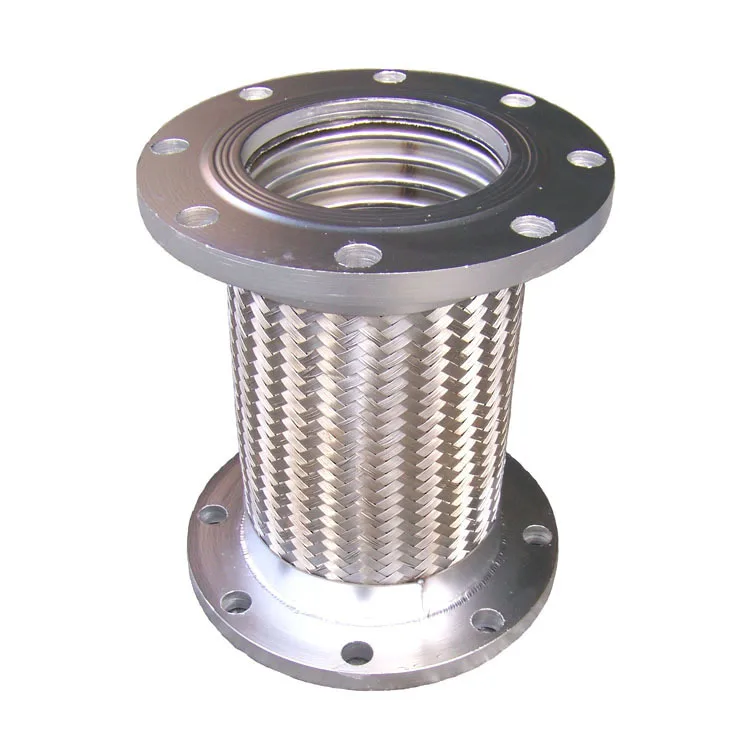

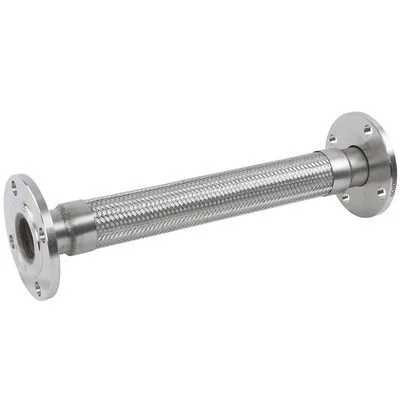

stainless steel wire braided flexible expansion joint corrugated metal hose with flange
Stainless Steel Braided Joint is a kind of flexible hose with high quality in modern industrial pipeline.
The inner tube of metal bellows hose is spiral or annular thin-wall stainless steel bellows.
The outer braid mesh of bellow pipe(corrugated pipe) is made of stainless steel wire and steel belt according to certain
parameters.
The joints or flanges on both ends of the hose are matched to the joint or flange of the customer's pipe.
Stainless Steel Braided Joint is a kind of flexible hose with high quality in modern industrial pipeline.
The inner tube of metal bellows hose is spiral or annular thin-wall stainless steel bellows.
The outer braid mesh of bellow pipe(corrugated pipe) is made of stainless steel wire and steel belt according to certain
parameters.
The joints or flanges on both ends of the hose are matched to the joint or flange of the customer's pipe.
Technical parameter of metal hose with flange | ||||||||||||||
Nominal diameter DN | Inner diameter (mm) | Outer diameter | Minimum bending radius | Working pressure | ||||||||||
Bellows | Braid mesh | Static | Dynamic | Single braid mesh | Double braid mesh | |||||||||
8 | 8.8 | 13.2 | 14.4 | 50 | 110 | 15 | 20 | |||||||
10 | 11.7 | 16.5 | 17.7 | 65 | 145 | 185 | 20 | |||||||
15 | 13.5 | 19.5 | 21.1 | 80 | 180 | 18 | 20 | |||||||
20 | 20.0 | 27 | 28.6 | 120 | 270 | 10 | 15 | |||||||
25 | 27.0 | 34.5 | 36.1 | 160 | 360 | 6.3 | 10 | |||||||
32 | 32.0 | 40 | 41.6 | 175 | 400 | 4.0 | 6.3 | |||||||
40 | 39.6 | 52 | 53.6 | 225 | 510 | 4.0 | 6.3 | |||||||
50 | 49.7 | 62 | 63.6 | 280 | 640 | 3.0 | 5.0 | |||||||
65 | 61.2 | 80.2 | 81.8 | 410 | 915 | 3.0 | 5.0 | |||||||
80 | 79.0 | 96.3 | 97.9 | 486 | 1030 | 3.0 | 5.0 | |||||||
100 | 101.2 | 119.6 | 121.2 | 610 | 1340 | 2.5 | 4.0 | |||||||
125 | 124.1 | 145.3 | 146.9 | 700 | 1540 | 2.5 | 4.0 | |||||||
150 | 149.4 | 180.8 | 182.4 | 810 | 1780 | 2.5 | 4.0 | |||||||
200 | 176.0 | 240 | 243.2 | 1000 | 2000 | 2.5 | 4.0 | |||||||
250 | 248.0 | 290 | 294 | 1250 | 2500 | 2.5 | 4.0 | |||||||
300 | 298.0 | 350 | 354 | 1500 | 3000 | 1.6 | 2.5 | |||||||
350 | 347.0 | 400 | 404.8 | 1750 | 3500 | 1.6 | 2.5 | |||||||
400 | 397.6 | 460 | 464.8 | 2000 | 4000 | 1.6 | 2.5 | |||||||
Specification
item | value |
Standard | GB, JIS, AiSi |
Place of Origin | China |
Hebei | |
Brand Name | huansheng |
Model Number | metal hose |
Type | Welded |
Steel Grade | 300 Series |
Application | Food industry machinery |
Welding Line Type | Efw |
Tolerance | ±1% |
Processing Service | Bending, Welding, Decoiling, Punching, Cutting |
Grade | stainless steel 304/316L |
Section Shape | Round |
Alloy Or Not | Non-Alloy |
Steel Grade | 316L, 321, 304, 201, 2205, 2504 |
Surface Finish | TSHS |
Invoicing | by actual weight |
Delivery Time | 8-14 days |
Product name | Flexible Metal Hose |
Shape | Round Pipe Tube |
Material | SS201/301/304/316L/2205/2504 |
MOQ | 100M |
Keyword | Flexible Metal Hose |
Surface | Customers't Requirement |
Length | Customers' Request |
Usage | Petroleum Chemistry Construction Boiler |
Size | Customer's Requst |
Quality | High Quality. Inspection |
Related Products

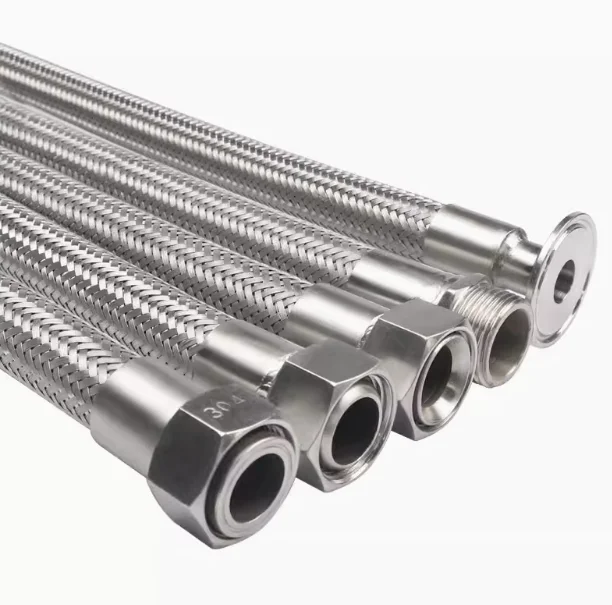

Metal hoses and fittings
Rubber hose
Rubber, injection molding, polyurethane products
Company Profile
Hebei Huansheng Rubber Products is located in Jingxian County, Hengshui City, Hebei Province. It is a professional manufacturer of rubber products, injection molded parts, metal hoses and metal hose fittings. We have dozens of large-scale production machinery with fast production speed and high product quality. Our products have been exported to many manufacturers at home and abroad.
Why Choose Us
Professional production team and various large-scale machine production workshops have high production efficiency and high product quality.
Metal hose production workshop
Rubber products production workshop
Rubber hose production workshop
Customer evaluation
Transportation and packaging
FAQ
1. May I have free samples before ordering
Yes, for small amount,free samples can be provided.Freight is collected on customer
2. What''s the MOQ?
No MOQ for standard products.Custom parts can be discussed
3. What is the lead time?
Common items are stocked--3-5 days
Big volume order usually takes about 20-30 days
4. Do you have product warranty?
Yes,12 months warranty.100% inspection on finished products before dispatch.Inferior products can be returned or replaced without excuse.
Repair parts could be supplied for replacement
5. Do you acceptable custom?
OEM is welcomed,and we can sign on Non-disclosure Agreement of Commercial Secrets.
Custom facbrication is acceptable.
6. Payment method
30% advance payment, 70% payment before delivery (small amount by 100% more economical)
Yes, for small amount,free samples can be provided.Freight is collected on customer
2. What''s the MOQ?
No MOQ for standard products.Custom parts can be discussed
3. What is the lead time?
Common items are stocked--3-5 days
Big volume order usually takes about 20-30 days
4. Do you have product warranty?
Yes,12 months warranty.100% inspection on finished products before dispatch.Inferior products can be returned or replaced without excuse.
Repair parts could be supplied for replacement
5. Do you acceptable custom?
OEM is welcomed,and we can sign on Non-disclosure Agreement of Commercial Secrets.
Custom facbrication is acceptable.
6. Payment method
30% advance payment, 70% payment before delivery (small amount by 100% more economical)
Похожие товары
Сварная труба из нержавеющей стали промышленного класса круглая сварная
205,00-212,00 $
Труба для нефтепромысловой обсадной трубы 8 5/8 K55 LTC/BTC/STC
850,00-890,00 $

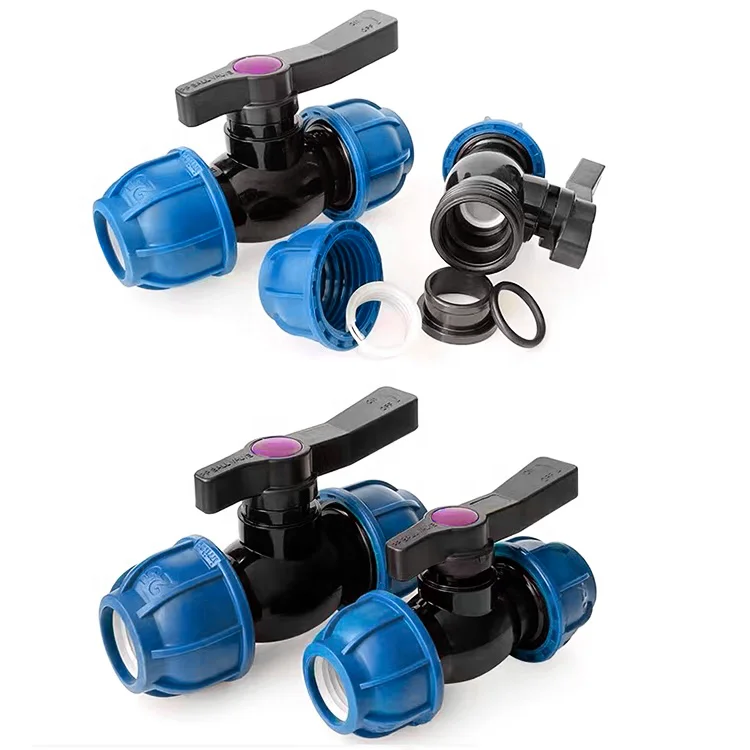

Оптовая продажа премиум DN20 110 HDPE фитинги для труб Трехходовой инженерного водоснабжения компрессионный шаровой клапан
0,20-0,35 $

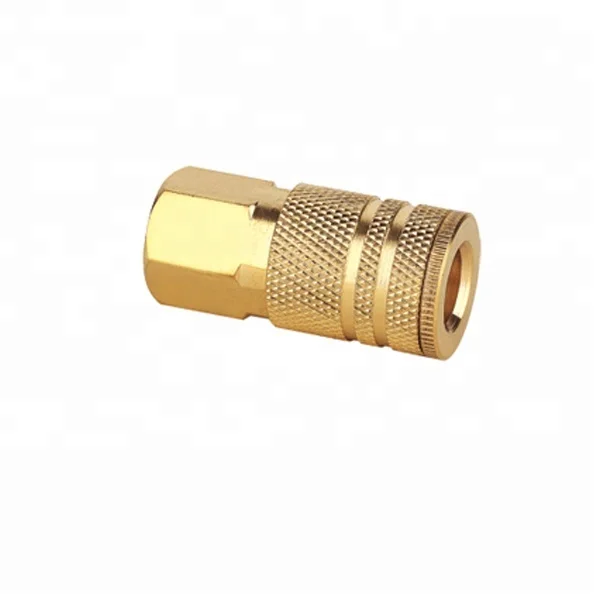

Горячая Распродажа США американский тип латунный быстроразъемный соединитель пневматическая БЫСТРОРАЗЪЕМНАЯ муфта
0,95-1,05 $

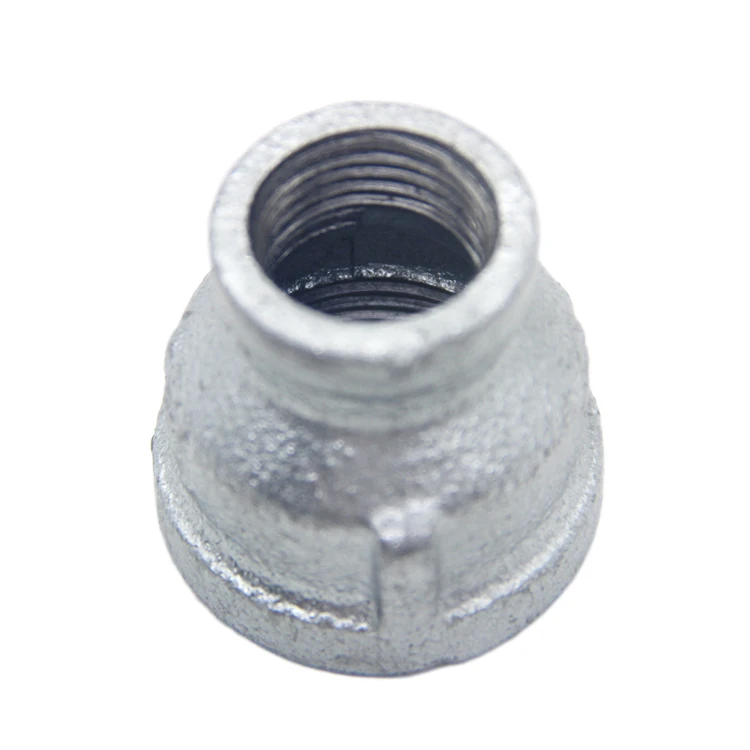

Усовершенствованная технология фитинги для труб резьба уменьшающая форму кованая розетка дренажной системы
0,17-0,85 $

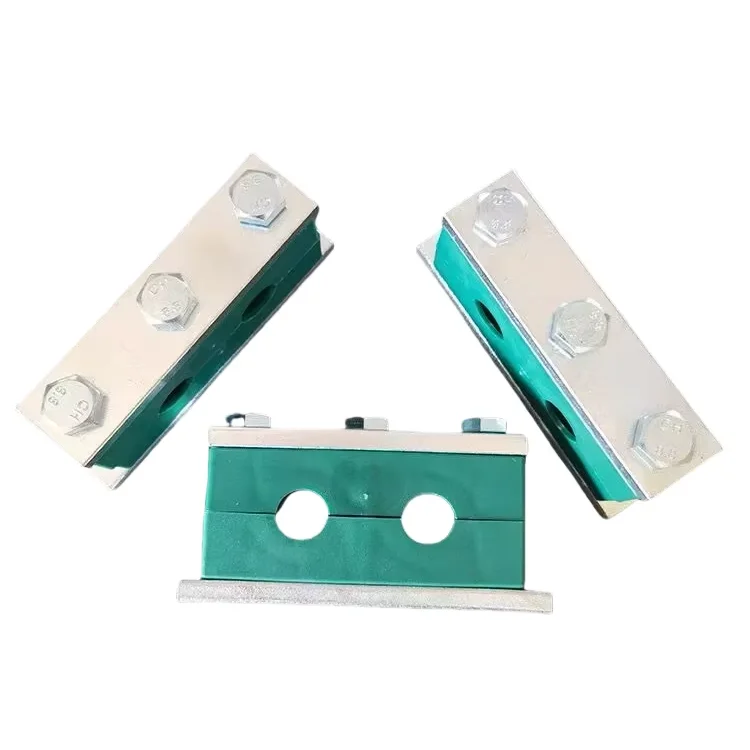

Сверхмощный пластиковый зажим для труб одно отверстие оцинкованная сварная Нижняя пластина морская гидравлическая труба специальный
2,10-2,50 $

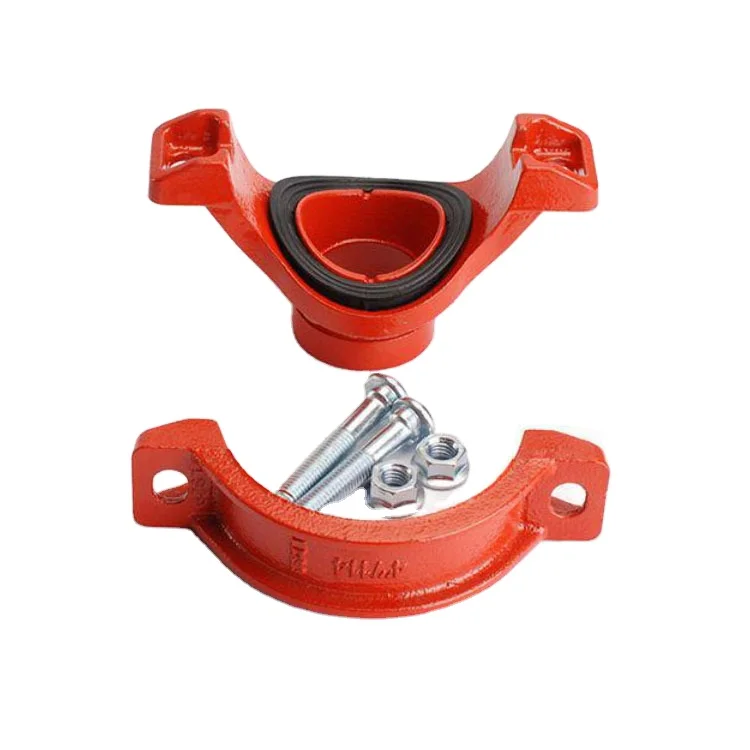

Чугунные соединительные розетки с рифленой гибкой муфтой рифленым концом
