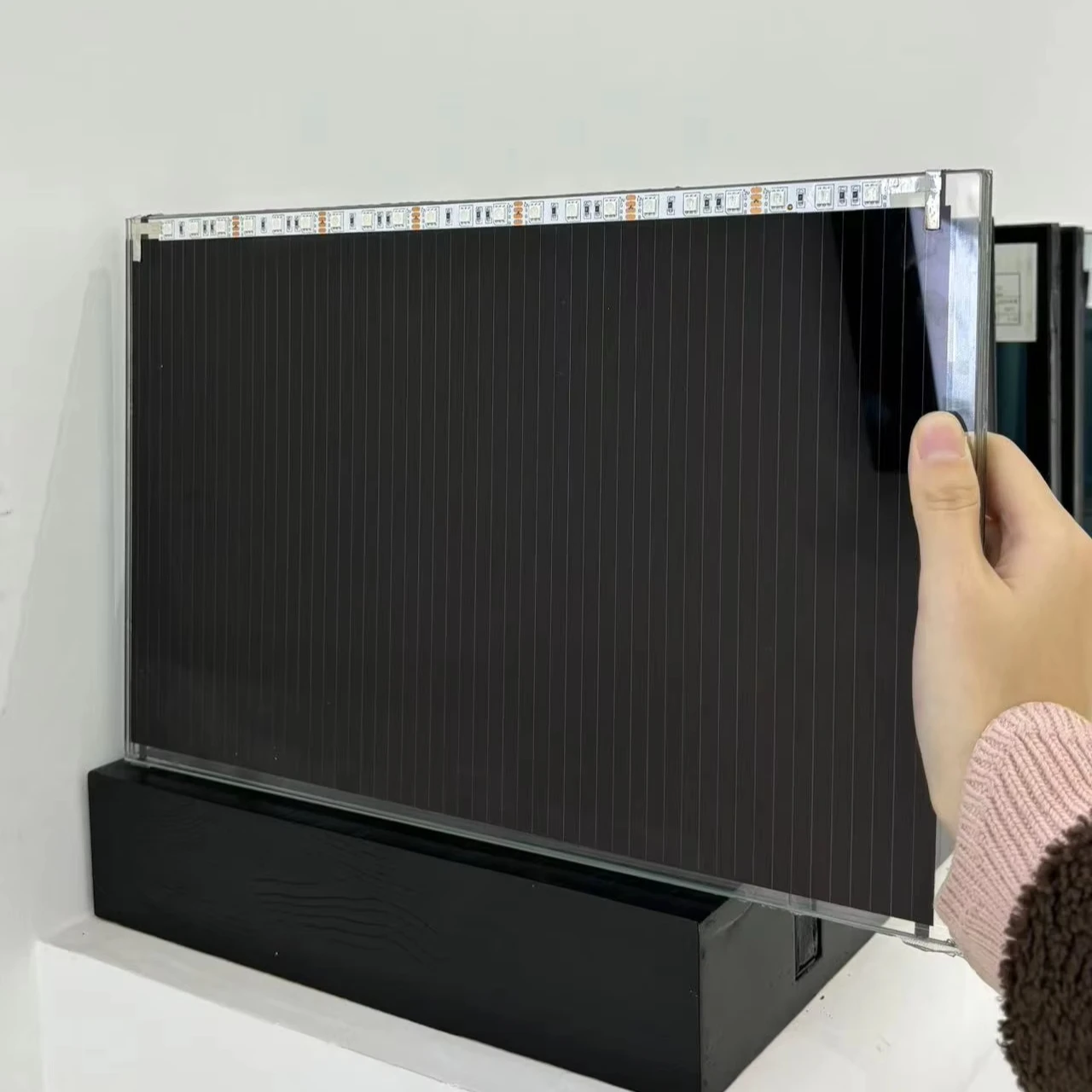

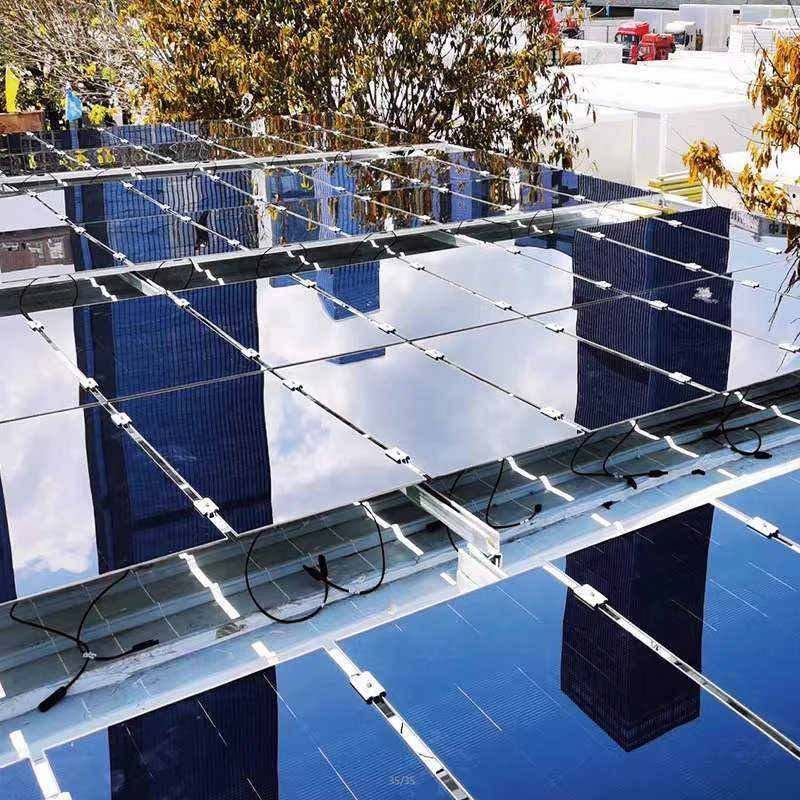

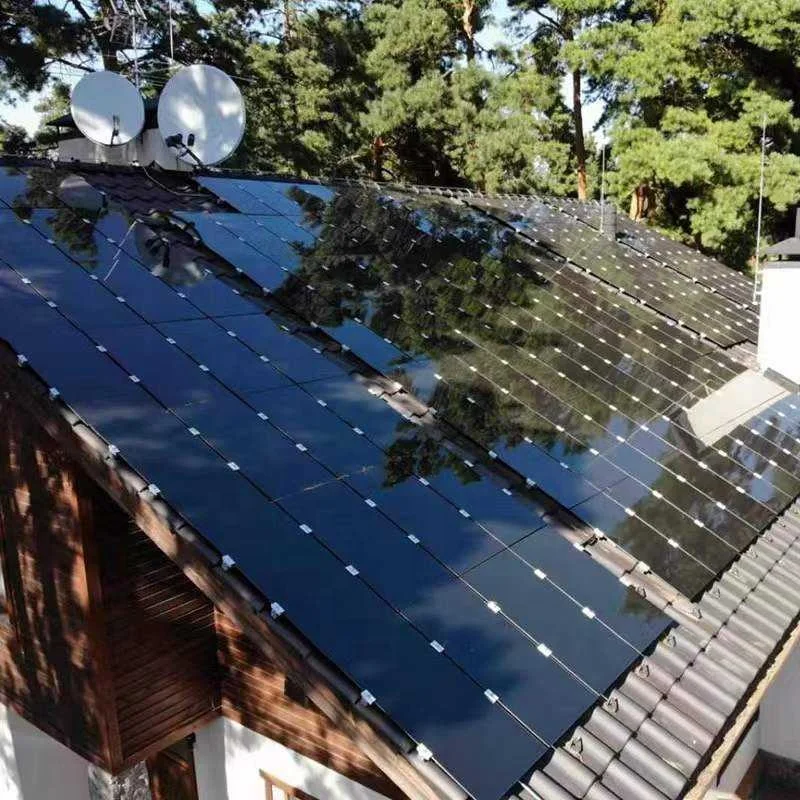

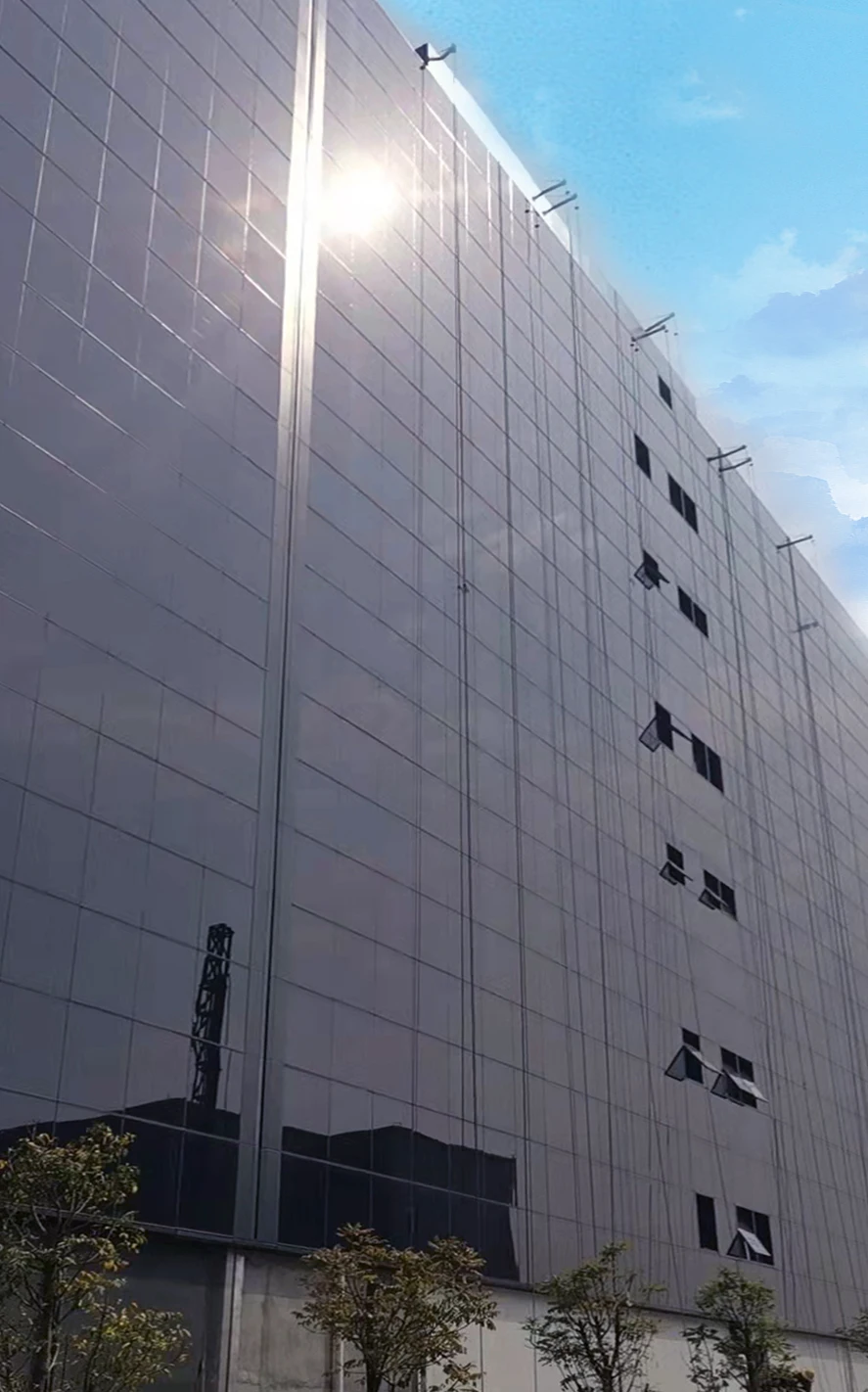

Панель солнечных батарей BIPV стеклянный фасад сплошная конструкция для наружного промышленного и тепличного использования строительства крыши
518,13-554,28 ₽
Сохранить в закладки 1601341122989:
Working condition | ||
Product series | hollow | |
Maximum system voltage | 1000V | |
Fire rating | Class A | |
Operating temperature | -40°C~+85°C | |
Mechanical load | 2400Pa/5400Pa | |
Hail test | pass | |
Protection class | IP67 | |
encapsulation | PVB/POE |
Electrical parameters under STC | ||||||||
Model number | COM-Z3-T30 | COM-Z3-T40 | COM-Z3-T50 | |||||
Film removal rate | 30% | 40% | 50% | |||||
Maximum rated power | Pmax(W) | 155 | 130 | 110 | ||||
Power tolerance | % | ±3 | ||||||
Maximum power operating voltage | Vmpp(V) | 132 | 131 | 130 | ||||
Maximum power working current | lmpp(A) | 1.19 | 1.02 | 0.86 | ||||
Open-circuit voltage | Voc(V) | 1.76 | 175 | 175 | ||||
Short-circuit current | Isc(A) | 1.4 | 1.21 | 1.05 | ||||
STC (standard test conditions) : irradiance 1000W/m2, battery temperature 25℃, atmospheric quality AM1.5 |
Film removal rate | 0-60% |
Dew point test (-60°C, 5min) | pass |
Ultraviolet radiation resistance | pass |
Durability of water vapour seal | pass |
Heat transfer coefficient (U value) | 0.5-3W/(m2-K) |
Total solar transmittance (sunlight factor) | customizable |
Shading factor | customizable |

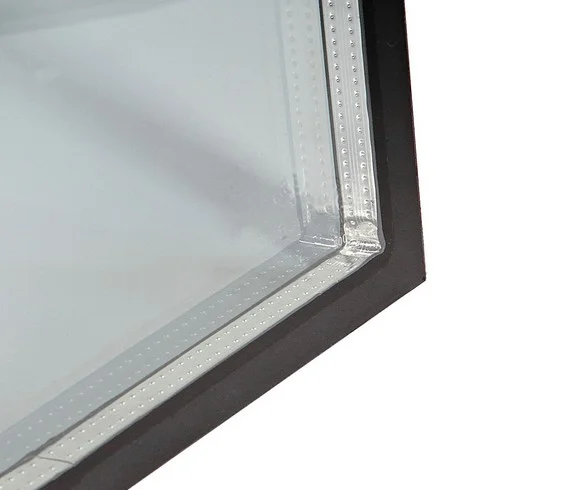

Front plate glass | 3.2mm Super White tempered +3.2mm power glass +3.2mm super white tempered |
Thickness of air layer | 12mm (12A) |
Back glass | 6mm super white tempered glass /LOW-E glass |

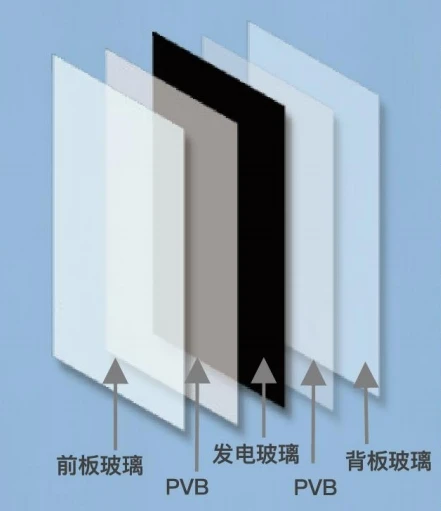

Component structure | 3.2mm Super white tempered +3.2mm power glass +3.2mm super white tempered +6mm super white tempered glass /LOW-E glass |
