Фиксированная 3000 Вт Лазерная eva notty tube автоматическая машина для резки рулона в листе поставщиков

Сохранить в закладки 1601341276136:


Цена:1 589 414,68 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики

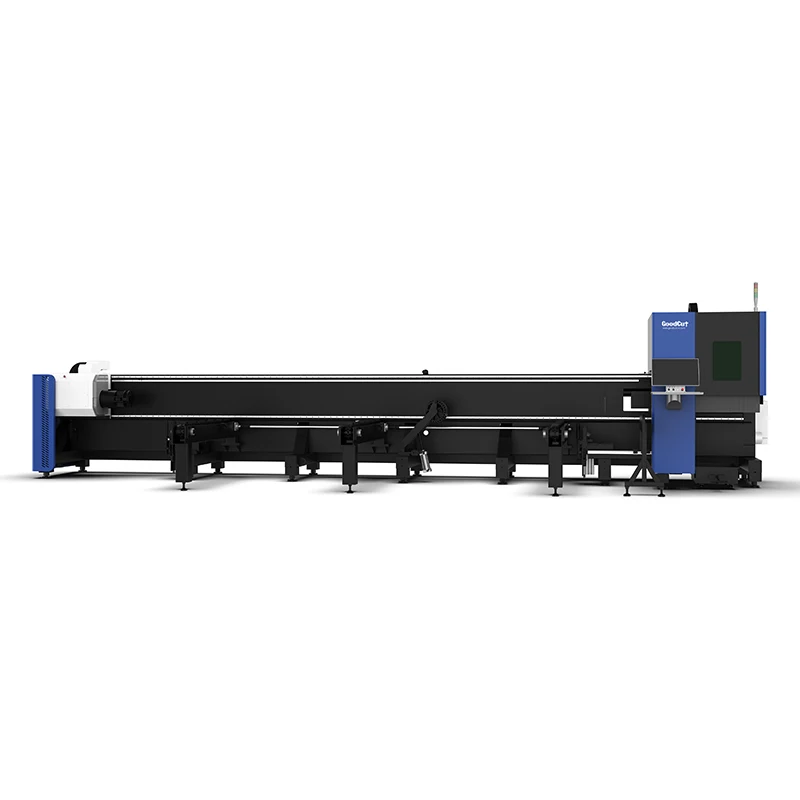

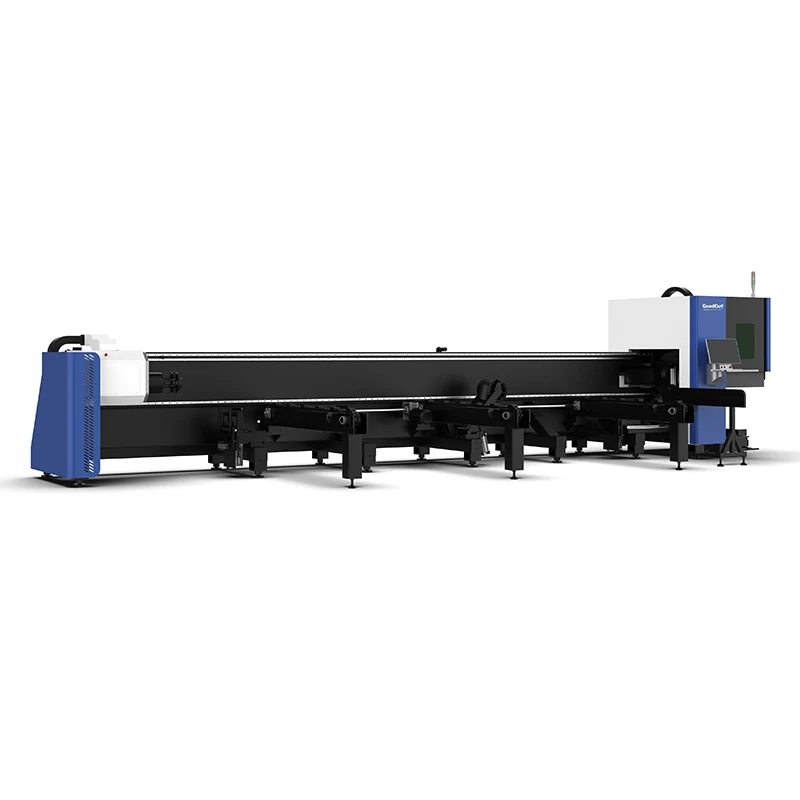

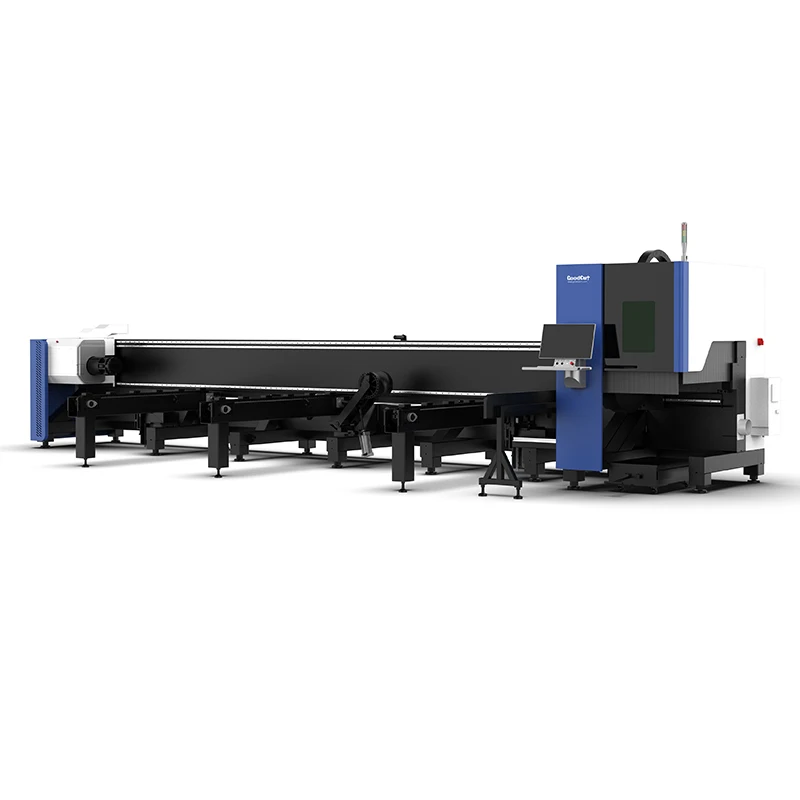

Tube Fiber Laser Cutting Machine for Metal Stainless Steel






Product Description


 GoodCut tube fiber (3)




























































































Model

GC-FR

Max.outside diameter of round tubes(mm)


20-210(Customized to 250)


Pipe thickness


Depends on the power


Cutting speed


Cutting speed: Max 0.8s/cut(Depending on material thickness)


"Y" axis single feeding length


1200mm


"Z" axis adjustment range


65mm


"W" axis adjustment range


360°


Machine repeat positioning accuracy


±0.05mm/1000mm


Machine positioning accuracy


±0.1mm


Machine idle speed


120m/min


Maximum acceleration


1.0G


Electricity demand


380V 50Hz(customizable)


Cutting accuracy


±0.1mm


Machine size


9340*1560*1615MM


Machine weight


8T


Power


500-8000w(Optional)


Accuracy


±0.1mm


Max . raw material length (mm)


≤6200


Max. finished part length (mm)


1200


Pipe remain length (mm)


180


Multi-funtional cutting


Mitre cut, rectangular, slot, square, circular, cold mouth, special profiles





GoodCut tube fiber (10)GoodCut tube fiber (11)






Features







1. High output power, 1000-3000 watts is optional.


2. Can cut inclined truncation surface at the end of tubes.


3. Can cut intersection line of branch pipe, which is intersected with circular main pipe.


4. Can cut off square pipes and do 360 degree turning cutting.


5. Can cut square holes, waist type holes on tubes.


6. Can do various graphic cut on square tube, oval tube, U tube and rectangular tube etc.





GoodCut tube fiber (6)GoodCut tube fiber (5)GoodCut tube fiber (3)GoodCut tube fiber (4)GoodCut tube fiber (1)GoodCut tube fiber (2)






Applications







1. Widely used in cutting stainless steel,carbon steel, manganese steel, spring steel, titanium alloy, galvanized sheet, aluminum plate, brass, copper and other metal material.





2. Ultra-high type, special metal material cutting.





3. Used for metal round, square tube, L kshaped metal, H Shaped metal, etc








sample (6)sample (4)









Team & Certificate


687





Company Infomation





Jinan GoodCut CNC Machinery Co.,Ltd. GoodCut has Purchasing department, The design department, The production department, Quality inspection department, packaging and transportation department, The sales department, After sales service department. We can offer highest quality machine, and competitive price.





Mainly manufacture and sale cnc router, laser engraving, marking, cutting machine, wood lathe machine, fiber cutting machine, plasma cutting machine, 3D scanner etc.


GoodCut machine listcustomer





Packaging & Shipping







Our Services






Jinan GoodCut CNC Machinery Co., Ltd.


The meaning of “GoodCut” brand: Good Quality, Good Price, Good Service





Good Quality


1. 15 engineers with more than 10 years rich working experience, manufacture high precision machines;


2. Three-day 72-hour testing machine inspection, after confirming that the machine has no quality problems, then it will be shipped;


3. 4 QC staffs do strict evaluations on in-coming inspections, in-process inspections and final inspections.





Good Price


1. GoodCut manufactures about 500 sets of machines per month, with a large sales volume. We have  long-term cooperation with parts suppliers, can get advantageous prices of parts, so that the price of machine is very competitive;


2. GoodCut aims to develop long-term cooperation with new and regular customers, and to give customers the best prices with the most sincere attitude.





Good Service


1. English manual and video for machine using and maintaining, explaining the operation steps in detail;


2. Professional after-sales service staffs, providing 24-hour online service;


3. Provide free technical training and factory field operation teaching to eliminate customer worries.
