Мостовой Кран подъемное оборудование 50ton 100ton для продажи

Сохранить в закладки 1601341336213:


Цена:339 376,80 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description


Description:

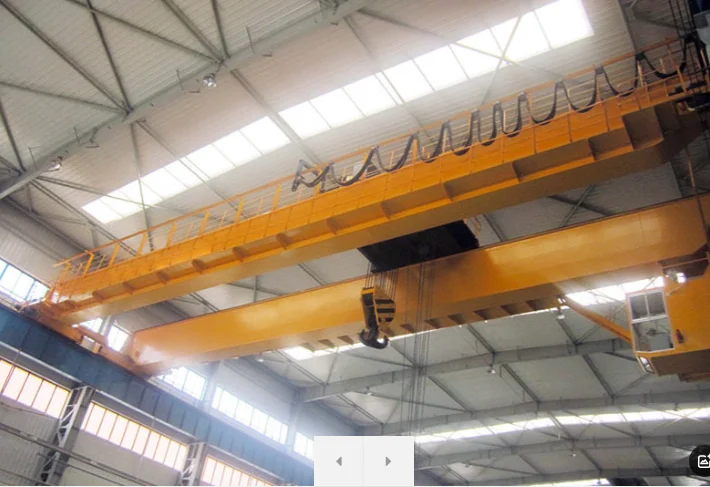

Double girder overhead bridge crane is widely used handing machinery. It is mainly comprised of box-shape bridge frame, crane crab, long crane travelling mechanism and electric control system. The load handing device is the hook.
It has Three operation modes: ground control, wireless remote control, cabin control.

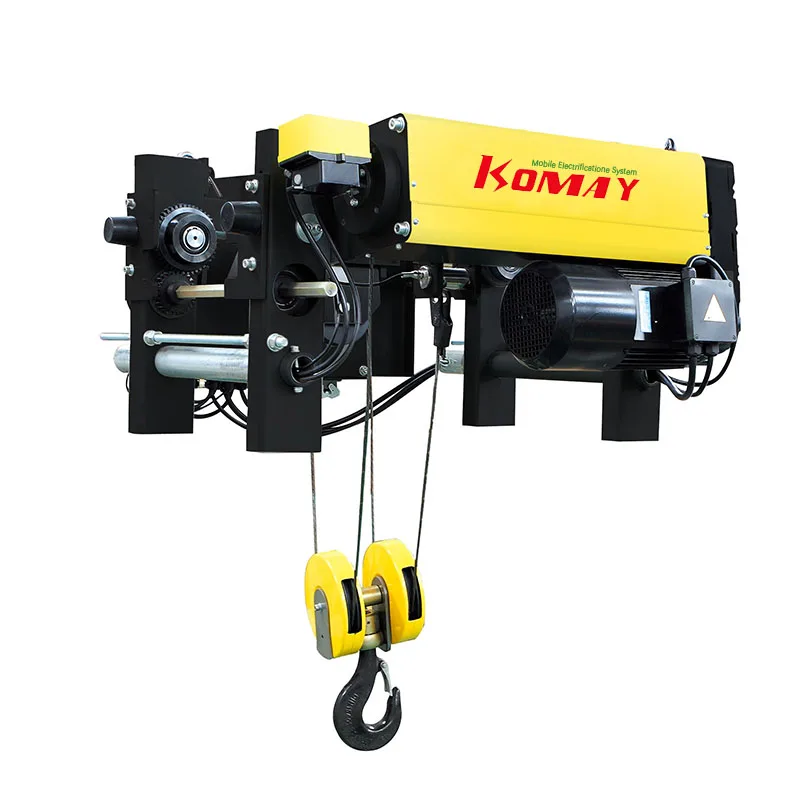

The crane can be finished with load handing device such as motor grab, electromagnet chuck to meet the demand of handing varied types of materials.Lifting mechanism: Hoist trolley and winch trolley (optional).
The crane working duty is A3~A8, commonly lifting load of 5-500 ton, suitable to work in factories, warehouse and freight yards where the ambient temperature is -10°C~40°C and the relative humidity is not more than 85%.

.jpg

Advantages:

1). Reasonable structure,strong bearing capacity
2). Low noise, soft starting and stopping
3). Safe and reliable operation

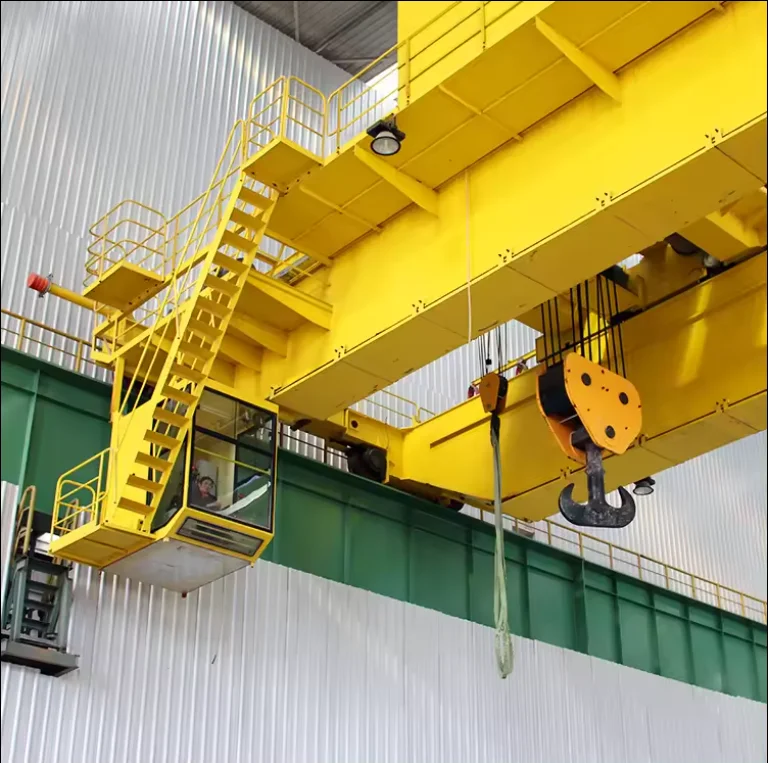

4). Commodious cabin and open view
5). Low cost maintenance, long working life
6). Strong box type,welding by machine hand.
7). Wheels are vacuum casting,medium frequency quenching
8). Wheels,wire rope drum,gears, couplings are processed by CNC manchine center, TOP quality control.
9). Geared motors could be ABM and SEW with protection class IP55, insulation class F, soft starting and smooth running.
10). Schneider/Siemens main electric parts are used for durable and safe operation

Features:







1. Minimum IP55 for electrical enclosure.
2. Electronic overload protection c/w warning horn.
3. Noise level below 85 dB(A) at full load.
4. Thermal protection for pole-changing and 3 PTC thermistors for inverter drive.
5. Crane rake with asbestos-free lining which activates automatically in case of power failure.
6. Composed with Girder frame, Crane travel device, and the trolley with lifting and moving device.
7. Two speed control via pole changing for the hoisting motion, inverter control and smooth and precise operation.






 Parameter:

































































































Lifting Capacity




T




5




10




16/3.2




20/5




32/5




50/10




Span



m



10.5-31.5
















Speed



Main Hook Lifting


A5













m/min




11.3




8.5




7.9




7.2




7.5




5.9



A6



15.6




13.3




13




12.3




9.5




7.8



Aux. Hook Lifting













16.7




19.5




19.5




10.4



Traveling of Trolley



37.2




43.8




44.6




44.6




42.4




38.5






Traveling of Crab


A5



89.8/91.8




90.7/91.9

/84.7




84.7/87.6




84.7/87.6




87/74.2




74.6



A6



92.7/93.7




115.6/116

/112.5




112.5/101.4




112.5/101.4




101.4/101.8




75/76.6




Operational Model




Cabin; remote control; ground handle




Working Duty




A5/A6/A7/A8




Power Supply




Three-phase A.C. 380V, 50Hz or customized




We can design and manufacture all kinds of non-standard product according to your requirement





Details:

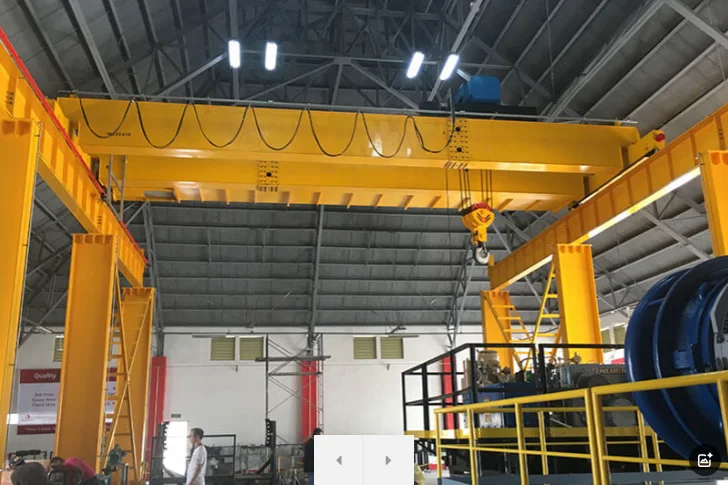

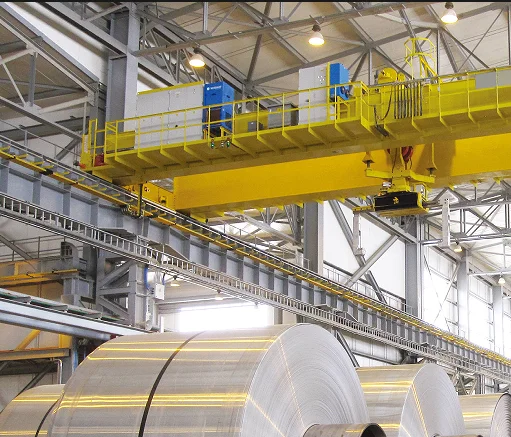

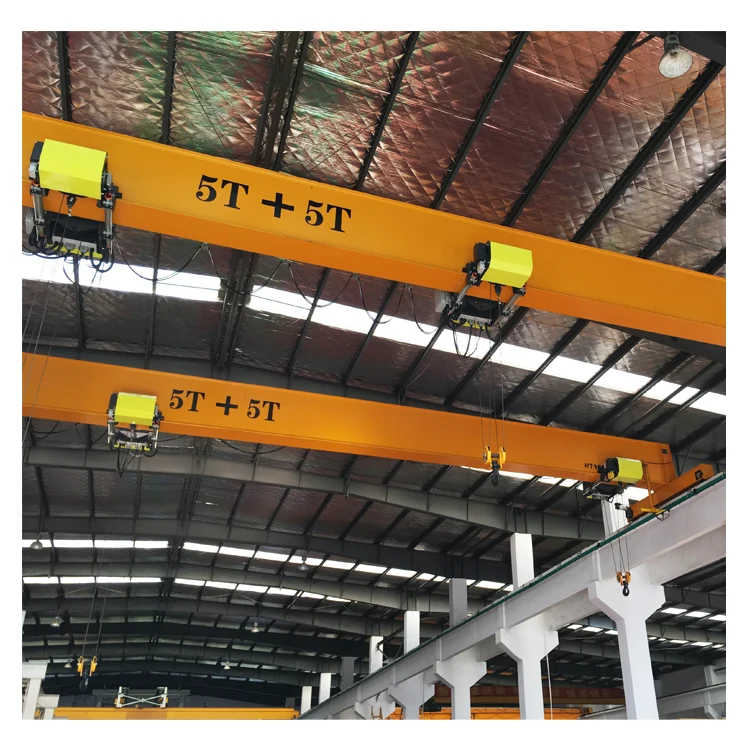

APPLICATION:

.jpg




Company Information


HENAN MODERN HEAVY INDUSTRY & TECHNOLOGY CO., LTD focuses on lifting resolutions for more than 17 years.We provide design,production and service of different lifting equipments,which covers electric wire rope hoist,chain hoist,jib crane,bridge crane,gantry crane etc.
Our products have completely passed ISO9001,CE,GS and other quality system certificates.Thanks to our high quality products and outstanding customer service,Modern Crane has earned a reputation from our customers and gained a global saes network reaching Brazil,India,Philippine,Ukraine,Argentina,Spanish,Malaysia,and other 30 countries.
With the commitment of customer satisfaction,we are expecting t widen and deepen the cooperation and communication with all friends all over the world.







factory







Our Services


Sale Service:
1.Examining products;
2.Helping customers draft construction plan;
3.Give advice and suggestions and show around our producton sites.
After-sale Service:
1.Setting up customer records,knowing well the location and running state of the sold equipment, return visit and contact information.Dispatching professional after-sales service staff to the site to help customers install and adjust equipment.1-2 technicians are needed to assist customers in site-manufacturing for 1 month until customers are satisfied.
2.Keeping a record of the daily information from hot-line and its handing.Announcing the customers whose equipments have been over warranty period in time;Infoming them of the maintaining details at regular intervals.
3.As to customer complaints out of non-quality reasons,customer managers should work with after-sales staff to analyse and explain problems caused by personal factors,make up and restore the damaged parts,implement operation guiding and training among customers' operators.








FAQ


Please kindly tell us the following information for your inquiry:
1.Lifting Capacity?
2.Lifting Height?
3.Power supply: in China is 380V/50HZ/3PHASE, how about your factory?
If you want to buy gantry crane or bridge crane,please also tell us:
1.It is single girder or double girder?
2.Span of the main girder?
3.The dimension of the overhang part?
4.Travel distance?Do you need to buy the travel rails from us also?
Any problem,please contact our sales manager:
how can we guarantee quality?
Always final Inspection before shipment.


what can you buy from us?
Hoist,Lifting Beams,Electric Winch Machine,Transfer Trolley/Cart,Permanent Magnetic Lifter.


why should you buy from us not from other suppliers?
wholesaling a premium quality range of Electric Hoist, Permanent Magnetic Lifter, Electric Hydraulic Stacker, Electronic Crane Scale etc.
