Product Description
led solar marine navigation lights portable 12V 24Ah gel battery-operated ICAO medium intensity red flashing obstruction light

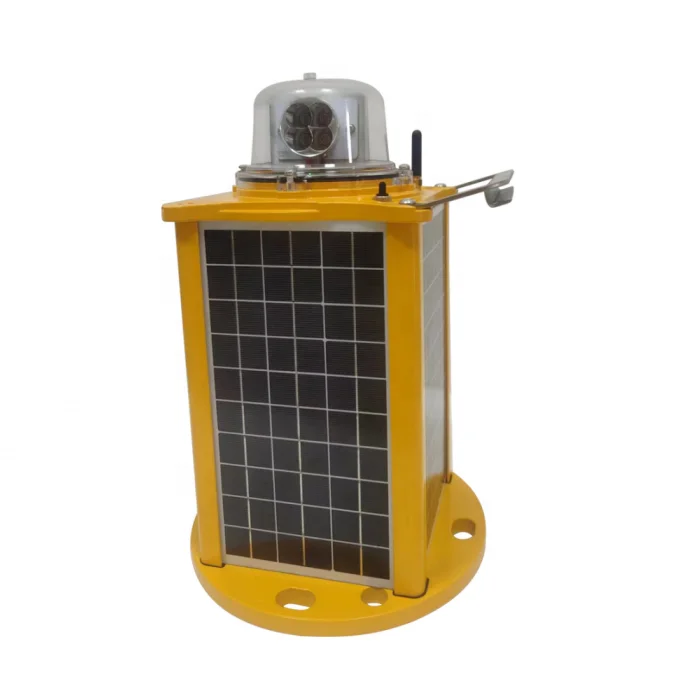

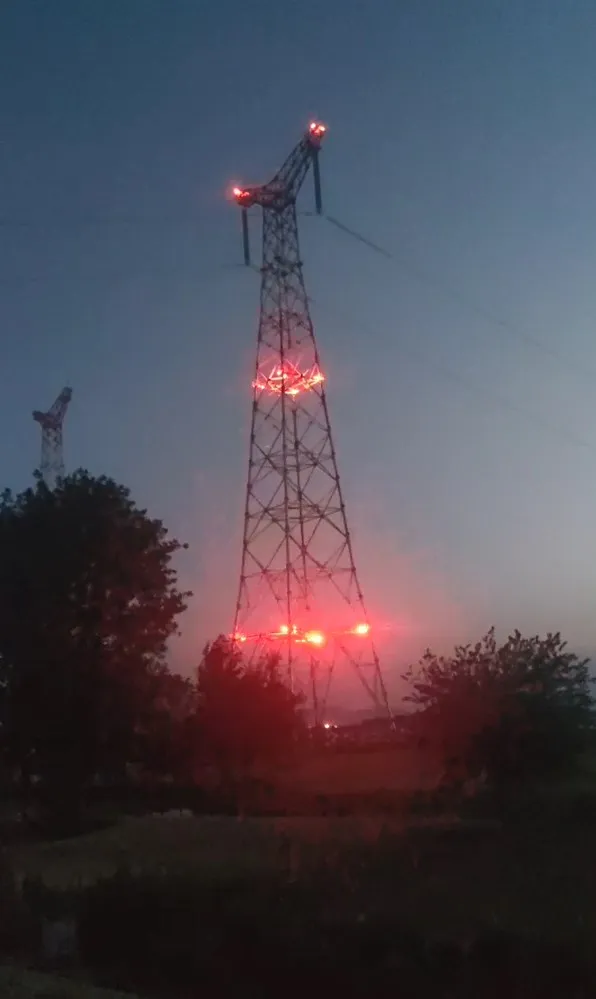

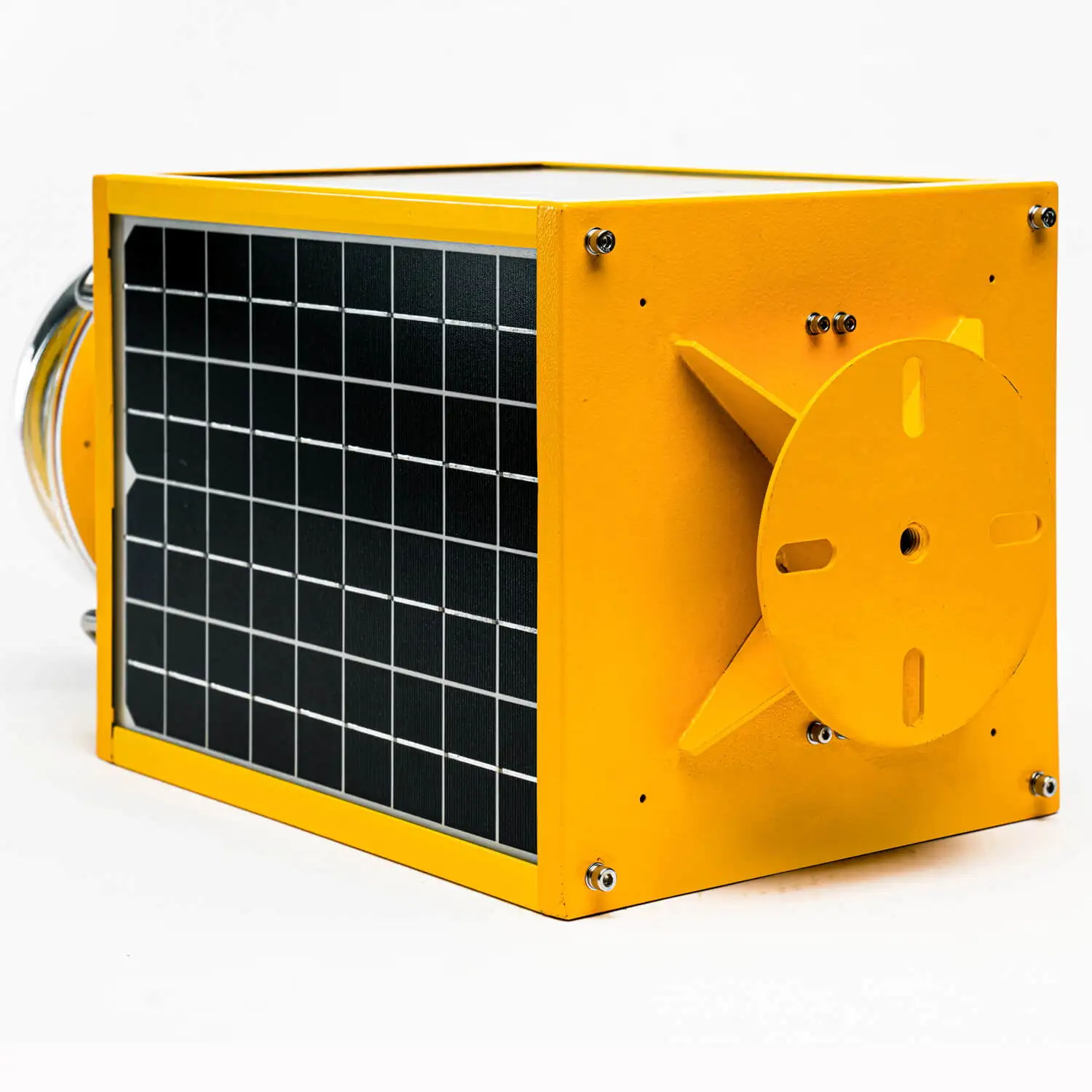

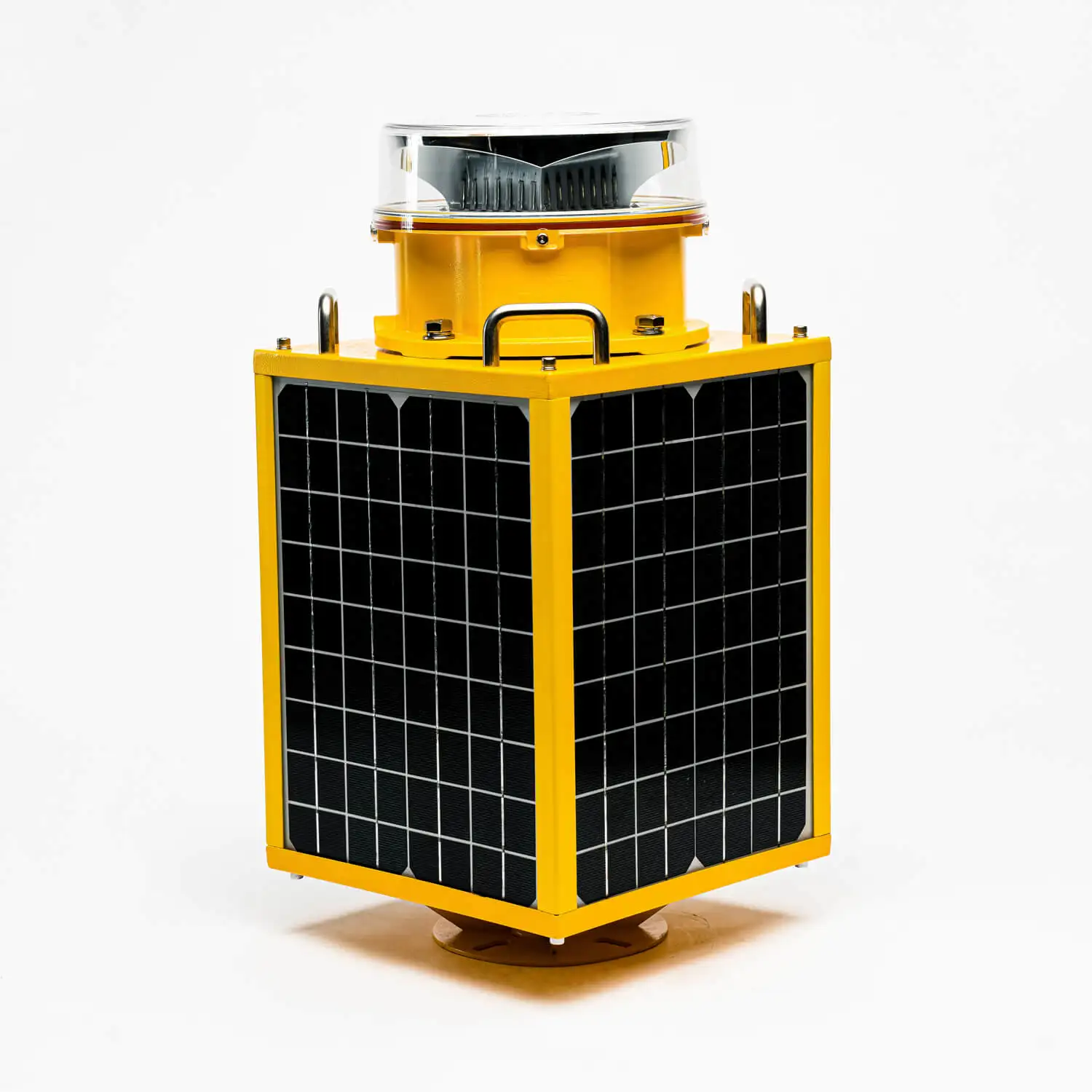

Medium Intensity Solar Warning Lights (MIOL) with solar panel, multi LED type. In compliance with ICAO Annex 14 Type B, Type C and FAA L-864. This flashing red LED beacon obstruction light is the perfect solution for wind turbines, towers (cell/broadcast/other),buildings, and similar obstructions. Meets FAA and ICAO standards. Available with IR option for night vision. Easily retrofits to replace incandescent light.
Medium Intensity Obstruction Lights with Solar Panel have to be used where the obstacle is particularly large and the height of the surrounding soil is more than 45m and where the power supply does not arrive or where it is very weak.
Medium Intensity Obstruction Lights with Solar Panel have to be used where the obstacle is particularly large and the height of the surrounding soil is more than 45m and where the power supply does not arrive or where it is very weak.
OPTIONS
* Twin version: two galvanically separated circuits in the same fixture
* Infrared version: IR wavelength 850nM
* Twin version: two galvanically separated circuits in the same fixture
* Infrared version: IR wavelength 850nM
* GPS sync
Item | Parameter |
Name | L-864 Solar Medium Intensity Type Obstruction Light |
Model | CK-15-T |
Operating Voltage | DC12V |
Power consumption | ≤2W |
Flashing frequency | 20-60 times/min |
Light intensity | 2000cd |
Life span | ＞100,000 hours |
Emitting color | Red |
Beam angle | 360° horizontal,>3° vertical |
Overall size | 255mmx255mmx515mm |
Installation size | Φ105-4*M10 |
Ingress protection | IP65 |
Lightning protection level | 10KA |
Light controlled sensitivity | 100Lux |
Operating temperature | -40℃～55℃ |
Net weight | 17KG |
Wind load | 80m/sec. |
Solar Panel Size | 320*230*3mm |
Solar Power Voltage | 18V |
Solar Power Consumption | 10.5W per pcs |
Lead Acid Battery | 24AH |
Using Rainy / Cloudy Day | 25 days |
Specification
1. Lamp shade of the light adopts PC with anti-UV which is high efficiency light transmission
up to 90%, quite high impact resistance and fit the bad environment very well.
2. The body of the light adopts SUS304 stainless steel, House of the light is made of aluminum
alloy and painted by spraying plastics, the structure is high strength, resistance to corrosion.
3. Special battery for solar energy, free maintenance and high reliability, lifetime more than 3
years.
4. Based on the single chip computer micro power control, could control the charge and
discharge precisely.
5. Mild steel change glass Polycrystalline silicon solar panels, energy efficiency high (> 18%),
lifetime more than 20 years.
6. Using Fresnel lens optical design, range further.
7. Further use reflector optical design, visual distance, angle more accurately, thoroughly
eliminate the light pollution.
8. Light source adopts LED with long lifespan up to 100,000hrs, lower power consumption and
high efficiency.
9. Used the photosensitive probe fit for the natural ligh spectrum curce, automatic control
light intensity level.
10. The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5
times, Imax 15KA so that the light is suitable to harsh environment.
11. Integral structure, protection lever of Ip65.
12. Synchronizing GPS function is available.
Company Profile
Established in 2012, Hunan Chendong Technology Co., Ltd (CDT) is located in the historic city of Changsha, Hunan province, where is known as Yuelu Mountain, a part among Nanyue Hengshan Mountain and Yuelu Academy with a thousand years history. CDT is a hi-tech company that focuses on R&D, production and sells all kinds of aviation obstruction light and green light for airport navigation.CDT has approved by ISO9001, CAAC and ICAO, owned numerous patents. And keep long terms cooperation with enterprises as ZTE, State Grid Corporation of China, China Southern Power Grid, CAH, CWAG and Hunan Airport Management Group etc. As a pioneer in aviation obstruction light, CDT expands overseas market at the same time. We have exported to over 100 countries in Southeast Asia, Europe ,South Africa, Middle East, North America, Africa and Oceania.
Product packaging
FAQ
Q1. Can I have a sample order for Obstruction light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for Obstruction light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Obstruction light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Obstruction light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for Obstruction light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Obstruction light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Obstruction light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Exhibition
Похожие товары
Беспроводной аэродром визуальной навигации светодиодный солнечный свет взлетно-посадочной полосы аэропорта
155,00-189,00 $
Наружная Светодиодная лампа для авиационной обструкции
2000cd красный мигающий авиационный свет обструкции для антенн башня
279,00-289,00 $
ATEX IP66 WF1 WF2 120 дБ настраиваемый зуммер сигнализация звуковая сигнальная сирена для обнаружения неисправности машины
Совместимый 6.6A однонаправленный повышенный подъем/порог/конечный свет-галоген
116,13 $

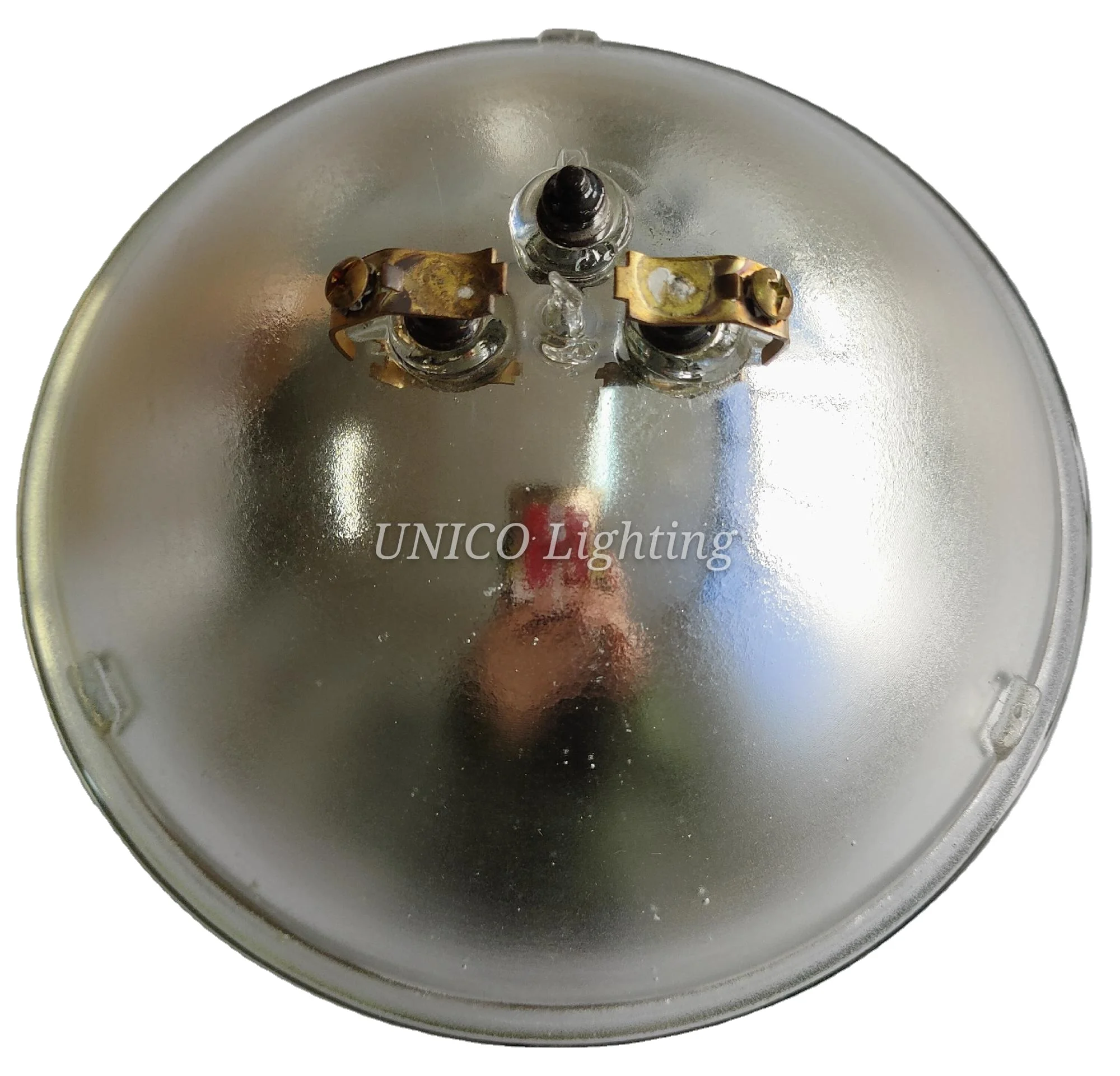

Посадочные огни для самолетов герметичный луч 300PAR56/2SP

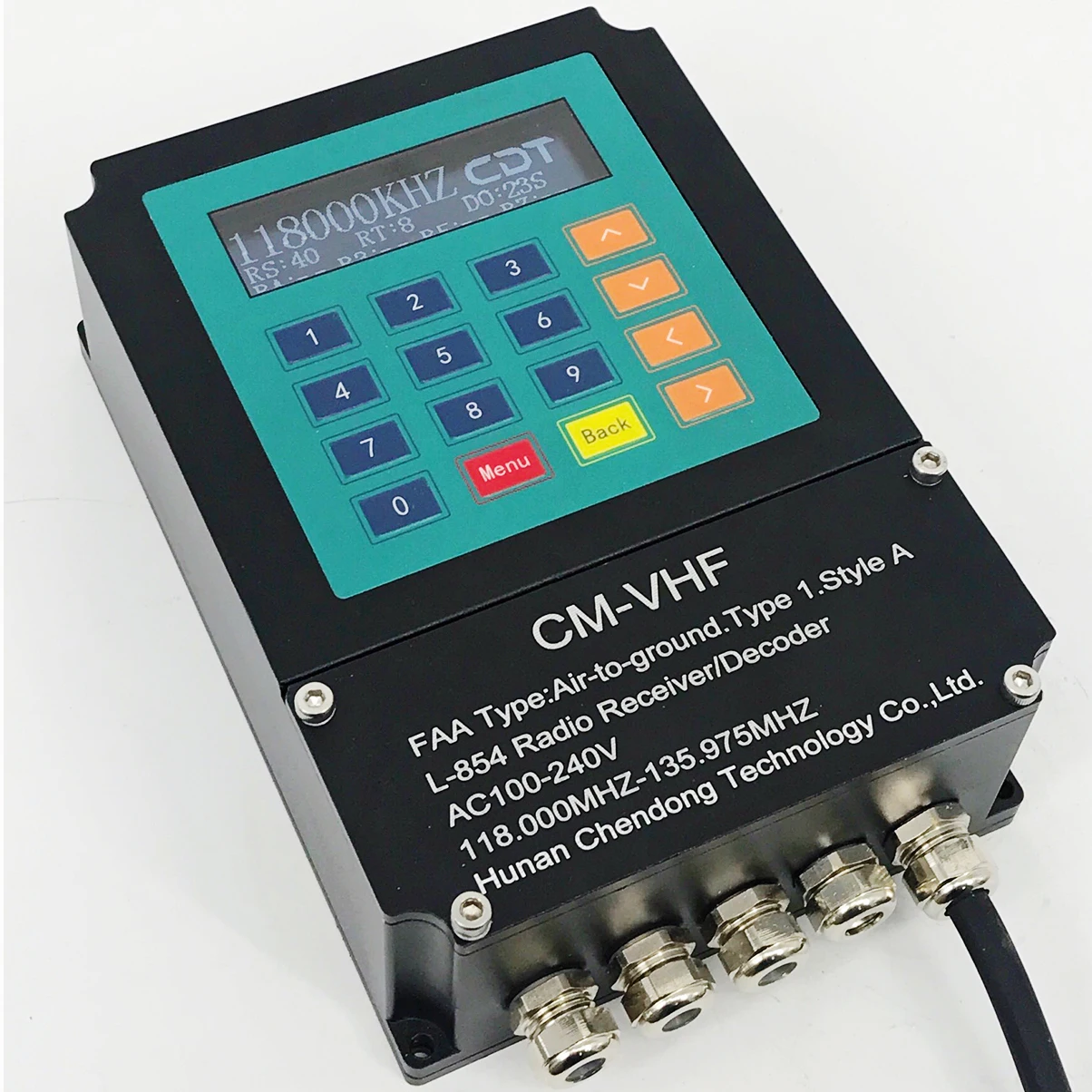

118 000 мГц ~ 135 975 радиоприемник VHF Heliport освещения
