Более эффективные вставки cbn высококвалифицированные VBGW110308/VBGW160408 для закаленных стальных режущих инструментов
- Категория: >>>
- Поставщик: Henan Wegcl New Materials Co. Ltd.Henan Ltd.
Сохранить в закладки 1601342452434:
Описание и отзывы
Характеристики
more efficient cbn inserts high qualify VBGW110308/VBGW160408 for quenched steel cbn cutting tools
PRODUCTS DESCRIPTION

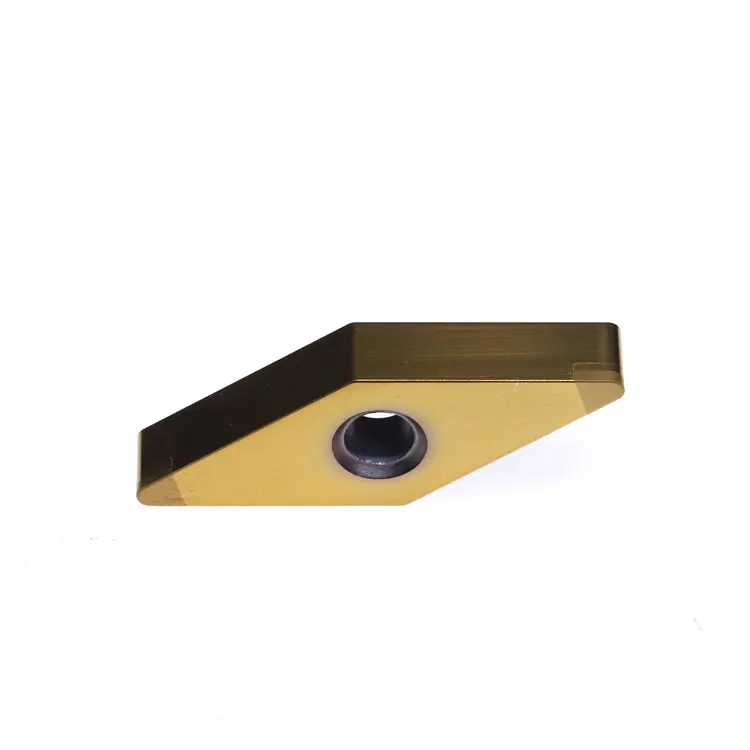

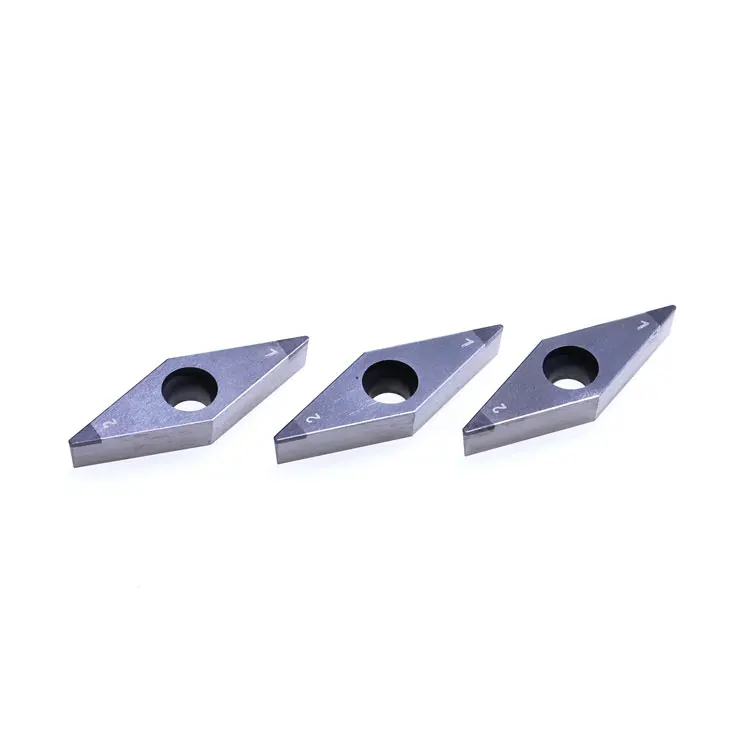

The Introduction of Tipped PCBN Insert VBGW
VBGW is an 35-degree diamond insert with a 5-degree relief angle. It is made of PCBN composite sheet with excellent performance. It is a composite PCBN insert with a carbide base inlaid with a CBN tip. It is commonly used in finishing and semi-finishing cast iron and hardened steel. It is commonly used as boring inserts.
VBGW composite PCBN inserts are often used for finishing and semi-finishing quenched workpiece, such as gear inner holes, gear end faces, gear outer circles and gear shafts, etc., as well as gray cast iron workpiece, such as brake discs, brake drums, engine blocks, etc.
When machining hardened steel, VBGW composite PCBN inserts can be coated. After coating, the tool life will be increased by 30%-45% compared with uncoated inserts, and the finish will also be improved.
When machining hardened steel, VBGW composite PCBN inserts can be coated. After coating, the tool life will be increased by 30%-45% compared with uncoated inserts, and the finish will also be improved.
What products we offered ？

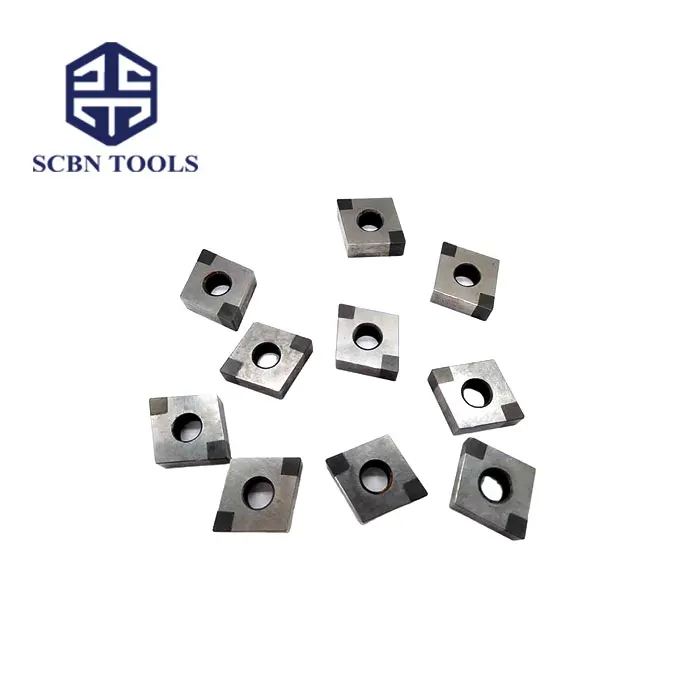

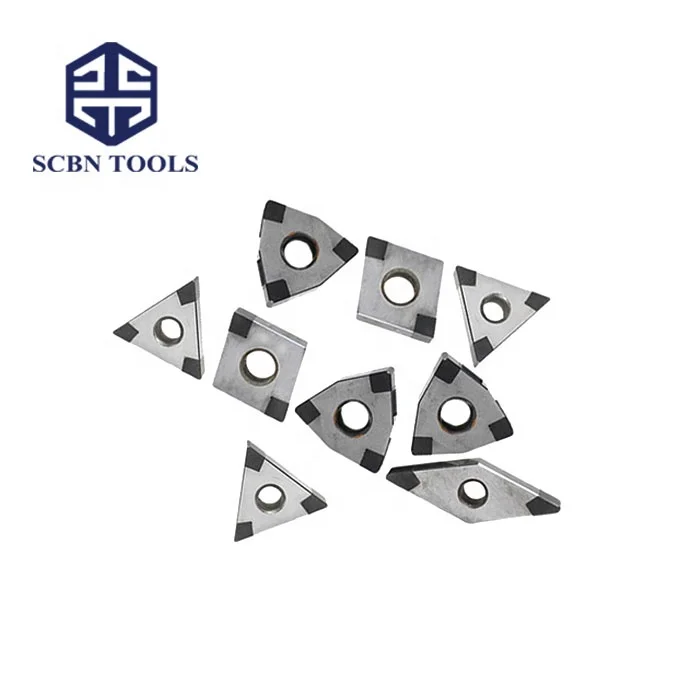

Our products include a variety of ISO standard model cutting tools, such as solid CBN Inserts, composite PCBN inserts, coated PCBN inserts, wiper CBN Inserts, and Chip-breaker CBN Inserts. We also accept customized orders for non-standard CBN Inserts based on drawings.
ISO | Dimension | Standard Chamfer | ||||||||
L(mm) | ΦI.C(mm) | S(mm) | Φd(mm) | r(mm) | ||||||
VBGW110302-2N | 11 | 6.35 | 3.18 | 2.8 | 0.2 | S01020 S01025 S02020 S02025 | ||||
VBGW110304-2N | 11 | 6.35 | 3.18 | 2.8 | 0.4 | |||||
VBGW110308-2N | 11 | 6.35 | 3.18 | 2.8 | 0.8 | |||||
VBGW160402-2N | 16 | 9.525 | 4.76 | 4.4 | 0.2 | |||||
VBGW160404-2N | 16 | 9.525 | 4.76 | 4.4 | 0.4 | |||||
VBGW160408-2N | 16 | 9.525 | 4.76 | 4.4 | 0.8 | |||||
CBN INSERTS CHARACTERISTICS
The performance characteristics of CBN tools mainly include the following aspects
1. High hardness: CBN tools have a hardness second only to diamond, reaching above 5500HV, which gives them extremely high wear resistance and tensile strength, allowing them to work under high loads and speeds.
2. High thermal stability: CBN tools have good high-temperature stability and high-temperature hardness, and can work under high temperature, speed, and load, greatly improving cutting efficiency.
3. Excellent wear resistance: CBN tools have higher wear resistance than traditional hard alloy and ceramic tools, with longer service life, which can be several times or even more than that of hard alloy and ceramic tools.
4. Small cutting force: CBN tools can complete machining tasks with smaller cutting force, reducing workpiece deformation and loss.
5. Processing high hardness materials: CBN tools can process high hardness materials, such as quenched steel, hot-worked hardened steel, thermal spraying materials, and high hardness cast iron.
6. High-speed cutting: CBN tools can achieve high-speed cutting, thereby improving production efficiency and reducing production costs.
3. Excellent wear resistance: CBN tools have higher wear resistance than traditional hard alloy and ceramic tools, with longer service life, which can be several times or even more than that of hard alloy and ceramic tools.
4. Small cutting force: CBN tools can complete machining tasks with smaller cutting force, reducing workpiece deformation and loss.
5. Processing high hardness materials: CBN tools can process high hardness materials, such as quenched steel, hot-worked hardened steel, thermal spraying materials, and high hardness cast iron.
6. High-speed cutting: CBN tools can achieve high-speed cutting, thereby improving production efficiency and reducing production costs.
In summary, CBN tools have the advantages of high efficiency, precision, stability, wear resistance, and high temperature resistance, making them an indispensable cutting tool in modern industrial production
APPLICATION INDUSTRY
SBH series is developed for hard steel parts. It can cut all hardened steels above HRC45, tool steels, die steels, high-speed steels, spring steels, carburized steels, high manganese steels, wear-resistant steels, etc. On behalf of grinding hardened steel, the effect is very significant.
CUSTOMERS FEEDBACK
Indian customer feedback：
We are very satisfied with the CBN cutting tools products and services of SCBN TOOLS as an Indian customer. Your product quality is excellent, with a long service life, which can meet our production needs. At the same time, your after-sales service is also very professional and prompt, making us feel very at ease. We will continue to choose SCBN TOOLS products and recommend your brand to other customers.
Korean customer feedback：
SCBN TOOLS가 제공하는 CBN 절삭공구 제품 및 서비스에 대해 매우 감사드립니다. 제품 품질이 매우 안정적이며 우수한 성능을 갖추고 있어 우리의 생산 효율과 제품 품질을 향상시키는 데 도움이 됩니다. 동시에, 매우 세심하고 적시에 이루어지는 서비스로 인해 우리는 매우 만족합니다. SCBN TOOLS와 장기적인 협력 관계를 맺기를 기대합니다.
Russian customer feedback：
Мы очень довольны продукцией и услугами компании SCBN TOOLS, особенно CBN режущим инструментом. Качество продукции очень хорошее, с длительным сроком службы, что позволяет нам снизить затраты на производство и повысить эффективность производства. Кроме того, Ваша послепродажная служба также очень профессиональна и своевременна, мы чувствуем себя очень уверенными. Мы будем продолжать выбирать продукцию SCBN TOOLS и рекомендовать Ваш бренд другим клиентам.
Мы очень довольны продукцией и услугами компании SCBN TOOLS, особенно CBN режущим инструментом. Качество продукции очень хорошее, с длительным сроком службы, что позволяет нам снизить затраты на производство и повысить эффективность производства. Кроме того, Ваша послепродажная служба также очень профессиональна и своевременна, мы чувствуем себя очень уверенными. Мы будем продолжать выбирать продукцию SCBN TOOLS и рекомендовать Ваш бренд другим клиентам.
German customer feedback：
Wir schätzen sehr die CBN-Werkzeuge und den Service von SCBN TOOLS. Die Qualität Ihrer Produkte ist sehr hoch und die
Verwendungseffffekte sind sehr gut, um unseren Anforderungen an die Hochpräzisionsbearbeitung gerecht zu werden. Gleichzeitig ist Ihr Kundenservice auch sehr professionell und aufmerksam, was uns sehr zufriedenstellt. Wir freuen uns darauf, mit SCBN TOOLS eine engere Zusammenarbeit aufzubauen und gemeinsam die Entwicklung der Branche voranzutreiben
Verwendungseffffekte sind sehr gut, um unseren Anforderungen an die Hochpräzisionsbearbeitung gerecht zu werden. Gleichzeitig ist Ihr Kundenservice auch sehr professionell und aufmerksam, was uns sehr zufriedenstellt. Wir freuen uns darauf, mit SCBN TOOLS eine engere Zusammenarbeit aufzubauen und gemeinsam die Entwicklung der Branche voranzutreiben

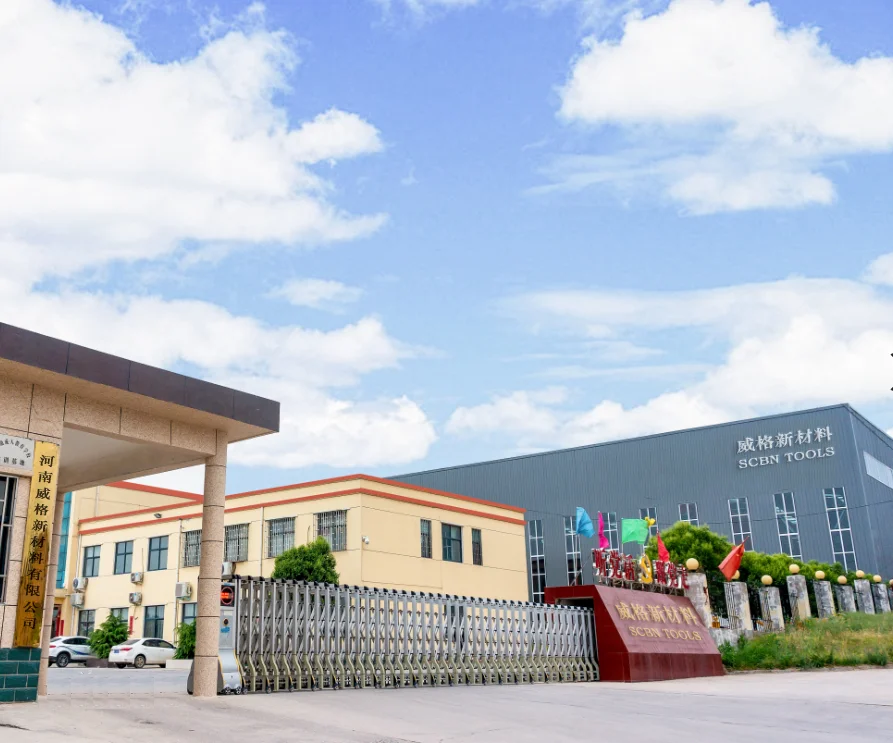

Henan WEGCL New Materials Co., Ltd. (Named SCBN TOOLS), originated from China Henan New Materials Research Institute (formerly a comprehensive materials research institution directly under the Ministry of Machinery Industry of China), focusing on the research and development and production of superhard materials, is committed to providing the best cutting solutions and tools for global customers, and is regarded by customers as a reliable supplier of superhard material tools.
After several years of rapid development, SCBN TOOLS has formed an industrial pattern based on the advantages of raw materials and turning tools, and has realized the self-sufficiency of the whole industry chain. In the application technology and material research and development of superhard materials, it is at the leading level in China, and has passed the IOS9001 quality system certification.
The main products are: Solid CBN inserts, Tipped PCBN Inserts and other precision machine cutting tools, etc. Solid CBN Grade SBN800,SBN850, have unique advantages on cast iron materials. It has an absolute cost-effective advantage in the processing of typical parts brake discs and brake drums.
Products are widely used in gears, bearings, automobiles, iron and steel metallurgy and aerospace and other industries, has reached cooperation with many well-known enterprises around the world, and our products are exported to Germany, Italy, South Africa, South Korea and other countries in Southeast Asia.
After several years of rapid development, SCBN TOOLS has formed an industrial pattern based on the advantages of raw materials and turning tools, and has realized the self-sufficiency of the whole industry chain. In the application technology and material research and development of superhard materials, it is at the leading level in China, and has passed the IOS9001 quality system certification.
The main products are: Solid CBN inserts, Tipped PCBN Inserts and other precision machine cutting tools, etc. Solid CBN Grade SBN800,SBN850, have unique advantages on cast iron materials. It has an absolute cost-effective advantage in the processing of typical parts brake discs and brake drums.
Products are widely used in gears, bearings, automobiles, iron and steel metallurgy and aerospace and other industries, has reached cooperation with many well-known enterprises around the world, and our products are exported to Germany, Italy, South Africa, South Korea and other countries in Southeast Asia.
Why Choose Us
01 Technical support: We have a professional technical team that provides comprehensive technical support and consultation services. Please contact us at any time when you have any problems and we will provide timely solutions.
02 Quality guarantee: All SCBN TOOLS products undergo strict quality control and testing to ensure they meet ISO standards. If there are any quality issues, please contact us and we will handle them promptly. We are committed to providing our customers with high-quality products and services.
03 Fast response service: We promise to respond within 24 hours of receiving your feedback, and provide you with a solution in the shortest possible time.
04 Fast shipping: We promise to arrange delivery as soon as possible after receiving your order and choose the fastest express delivery method to ensure you receive the product as soon as possible. (DHL, FedEx, UPS, TNT)
FAQ
1 Who Are We?
SCBN TOOLS are based in Zhengzhou,Henan,China,originated from China Henan New Materials Research Institute (formerly a comprehensive materials research institution directly under the Ministry of Machinery Industry of China).
2 How Can We Guarantee Quality?
Always a pre-production sample before mass production;
Always multiple quality inspection steps in the production and final inspection before shipment;
3 What Can You Buy From Us?
Solid cbn inserts,tipped pcbn inserts,coating pcbn inserts,wiper pcbn inserts,CBN Grooving Inserts,Chipbreaker PCBN Inserts and any other customized CBN Inserts.
4 Why Should You Buy From Us Not From Other Suppliers?
1) Integrating R&D, production and sales.
2) Formerly known as Henan Advanced Materials Research Institute, located in China's Superhard material Base.
3) Known for "SCBN TOOLS" Brand and have exported our products to various countries.
5 What Services Can We Provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,German,Russian,Korean
SCBN TOOLS are based in Zhengzhou,Henan,China,originated from China Henan New Materials Research Institute (formerly a comprehensive materials research institution directly under the Ministry of Machinery Industry of China).
2 How Can We Guarantee Quality?
Always a pre-production sample before mass production;
Always multiple quality inspection steps in the production and final inspection before shipment;
3 What Can You Buy From Us?
Solid cbn inserts,tipped pcbn inserts,coating pcbn inserts,wiper pcbn inserts,CBN Grooving Inserts,Chipbreaker PCBN Inserts and any other customized CBN Inserts.
4 Why Should You Buy From Us Not From Other Suppliers?
1) Integrating R&D, production and sales.
2) Formerly known as Henan Advanced Materials Research Institute, located in China's Superhard material Base.
3) Known for "SCBN TOOLS" Brand and have exported our products to various countries.
5 What Services Can We Provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,German,Russian,Korean
